Presentation Transcript


Star ii chip controller input output numbering on controller and miro devices

Star II (CHIP) Controller

Input/Output Numbering

on Controller and MIRO Devices


Star ii input output logic

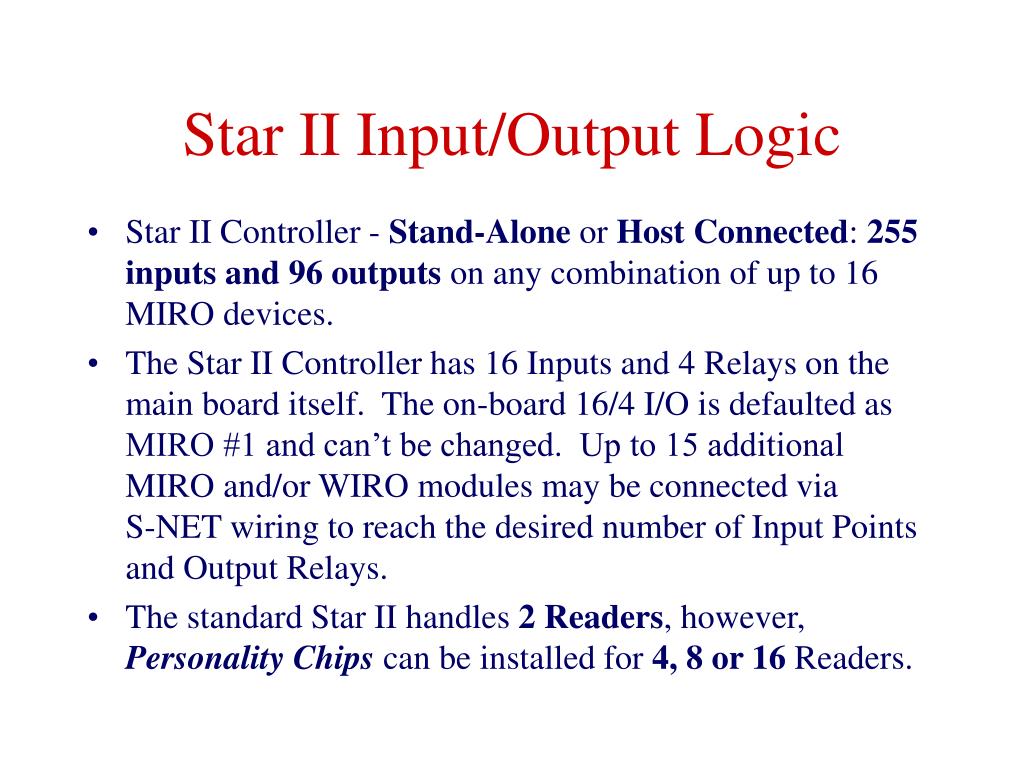

Star II Input/Output Logic

  • Star II Controller - Stand-Alone or Host Connected: 255 inputs and 96 outputs on any combination of up to 16 MIRO devices.

  • The Star II Controller has 16 Inputs and 4 Relays on the main board itself. The on-board 16/4 I/O is defaulted as MIRO #1 and can’t be changed. Up to 15 additional MIRO and/or WIRO modules may be connected via S-NET wiring to reach the desired number of Input Points and Output Relays.

  • The standard Star II handles 2 Readers, however, Personality Chips can be installed for 4, 8 or 16 Readers.
