Volume forming swage forging

Volume forming – swage forging


Volume forming swage forging1

Volume forming – swage forging

Swage forging serves for production of large number of identically shaped steel parts or other alloys.

Die block is mainly ‘two parts’ tool.

Upper and lower (bottom) die.

Main advantage of ‘swage forging’ is high productivity and easy operation.

Disadvantages are limited dimension and mass.


Volume forming swage forging2

Volume forming – swage forging

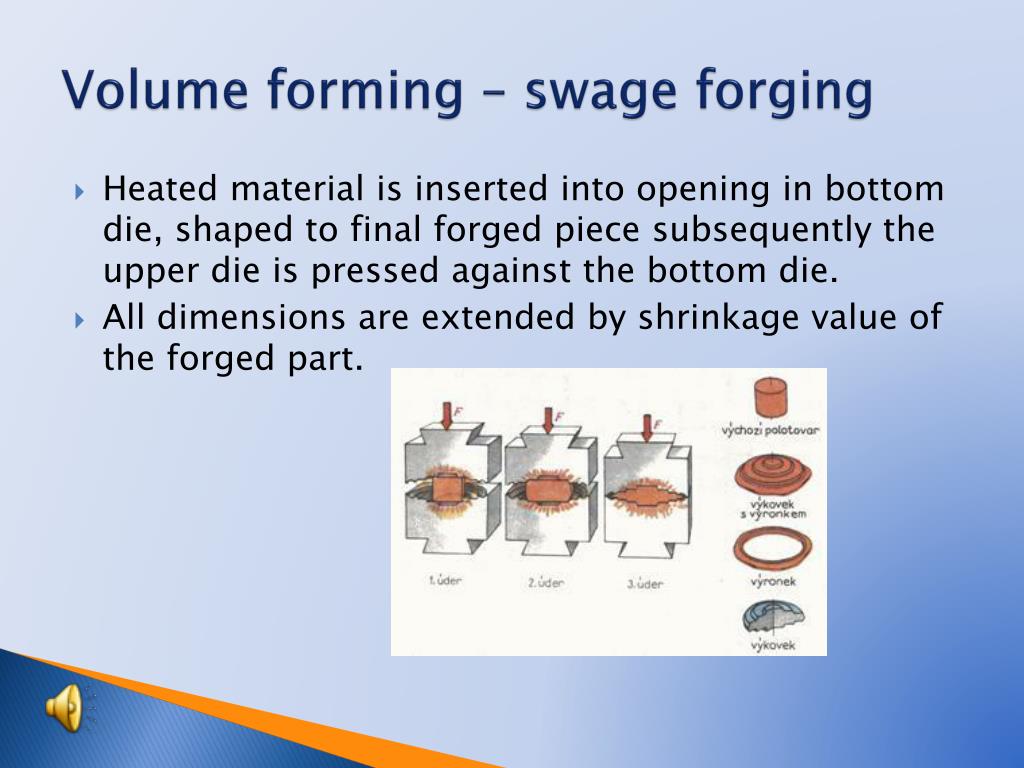

  • Heated material is inserted into opening in bottom die, shaped to final forged piece subsequently the upper die is pressed against the bottom die.

  • All dimensions are extended by shrinkage value of the forged part.


Volume forming swage forging3

Volume forming – swage forging

  • For die forging a power hammer and presses are used.

  • Die opening is filled up either by ramming or hobbing. – hobbing is easier.


Volume forming swage forging4

Volume forming – swage forging

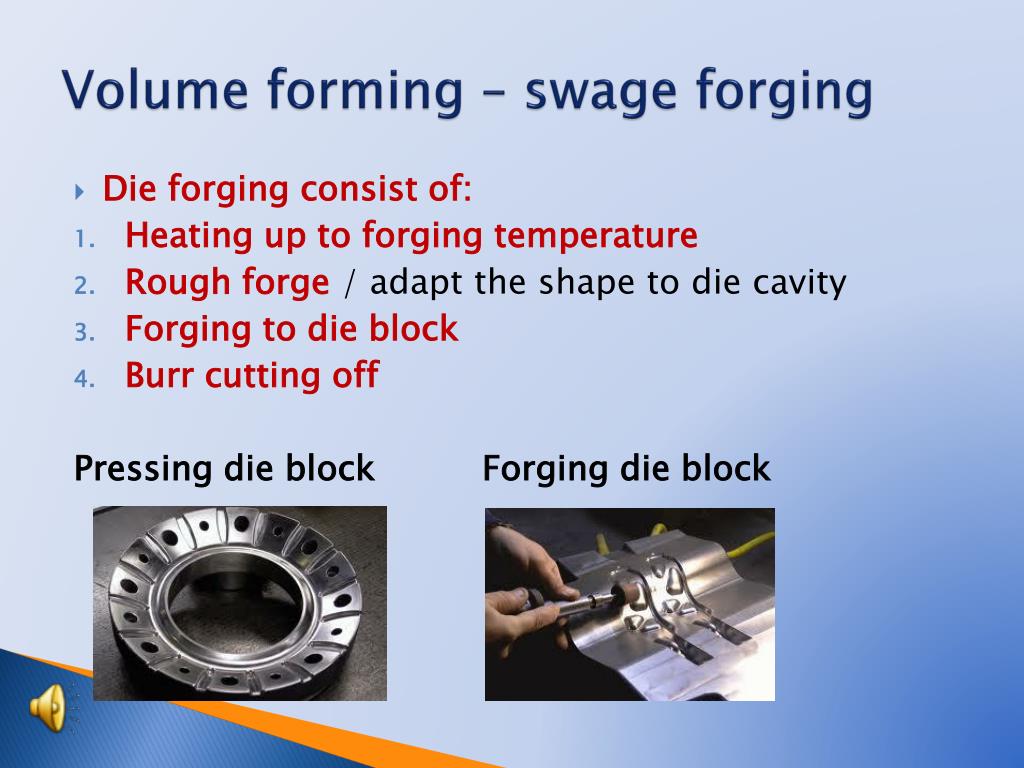

  • Die forging consist of:

  • Heating up to forging temperature

  • Rough forge / adapt the shape to die cavity

  • Forging to die block

  • Burr cutting off

    Pressing die blockForging die block


Volume forming swage forging5

Volume forming – swage forging

  • In case of more complicated shapes is necessary to forge into more die cavities, which ensure better material flow – multiple-impression.

  • 1-3 – blocking / preliminary forging

  • 4-5- burr cutting


Volume forming swage forging6

Volume forming – swage forging

  • Example of die blocks:

  • Knife forgings:


Volume forming swage forging7

Volume forming – swage forging

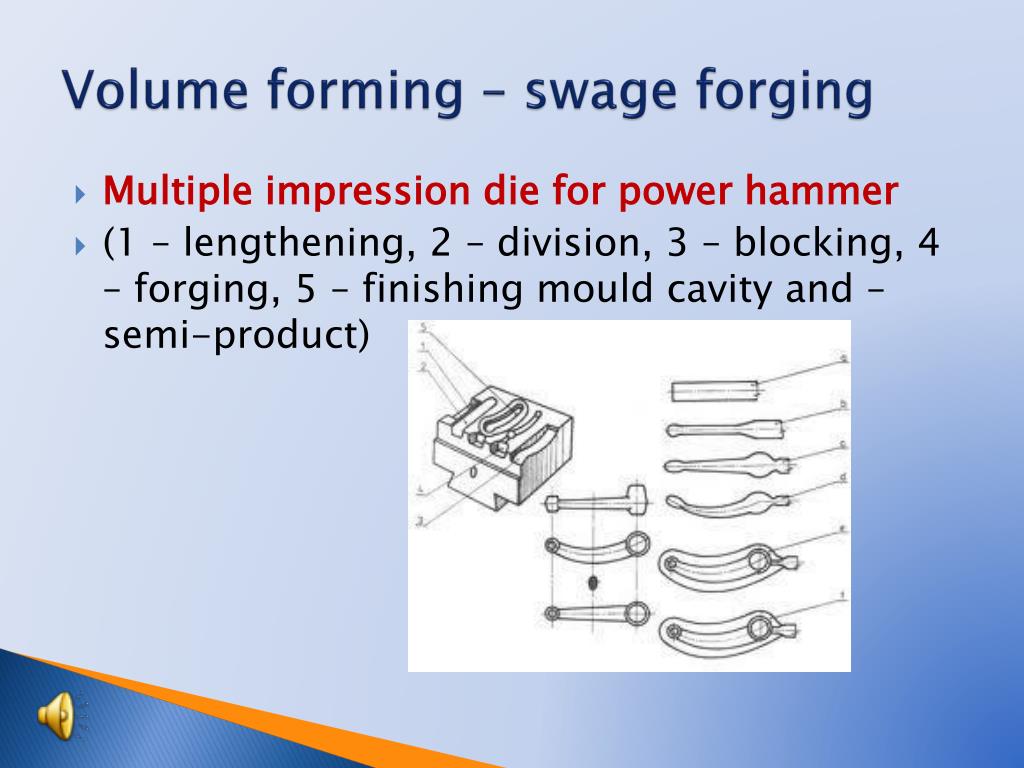

  • Multiple impression die for power hammer

  • (1 – lengthening, 2 – division, 3 – blocking, 4 – forging, 5 – finishing mould cavity and – semi-product)


Volume forming swage forging8

Volume forming – swage forging

  • Final treatment of forged piece:

  • Cutting off burr

  • Punching

  • Calibration


Volume forming swage forging9

Volume forming – swage forging

  • Before forging die block must be preheated to 250 deg. C.

  • Working surfaces are lubricated with oil and graphite mixture.

  • Finished product is soft annealed.

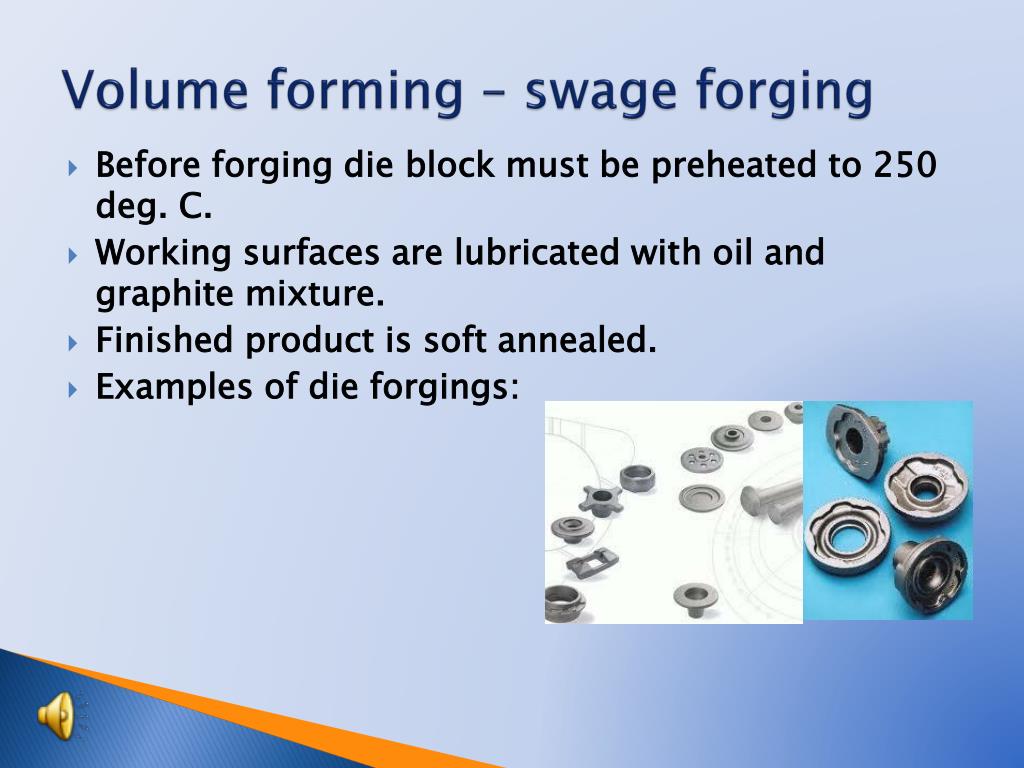

  • Examples of die forgings:


Answer these questions

Answer these questions:

  • What is a drop forging - swaging.

  • How is the die divided.

  • Main advantages of swaging.

  • By what parameters are increased the final product size?

  • What mechanical machines are used for die forging / swaging?


Answer these questions1

Answer these questions:

  • How do we call forging by impact?

  • How is forging by steady pressure called?

  • Name for stages of swaging.

  • When do we forge in progressive dies?

  • Describe final treatment of forged pieces.


Used literature

Used literature

  • http://www.firmconsult.cz/cz/vykovky-vylisky/

  • http://www.ksp.tul.cz/cz/kpt/obsah/vyuka/skripta_tkp/sekce/03.htm
