  1. Quality-aware Data Collection in Energy Harvesting WSN Nga Dang Elaheh Bozorgzadeh Nalini Venkatasubramanian University of California, Irvine

  2. Outline • Introduction • Energy harvesting • Wireless Sensor Network • Energy Harvesting • Renewable Energy • Energy Harvesting WSN • Battery-operated vs. Energy Harvesting WSN • Wireless Sensor Network • Data Collection • Quality of services • Case study • Approximated Data Collection • Experiment

  3. Introduction • Energy harvesting • Green design: harvesting energy from surrounding environments • It’s not new! • Wireless sensor network • Data Collection • Green use • Replace battery • Harvest renewable energy • Self-sustainable

  4. Renewable Energy • Energy sources from natural or surrounding environments • In 2006, 18% of global final energy consumption came from renewables (biomass and hydroelectricity) • New renewables are growing rapidly • Energy sources: wind, solar, motion, vibration, thermal • Large scale systems: windmills, buildings • Small scale systems: Wireless sensor motes • Is it possible?

  5. Energy Harvesting WSN • Motes capable of harvesting solar and wind Ambimax/Everlast Heliomote: powering Mica/Telos Prometheus: Self-sustaining Telos Mote

  6. Battery-operated vs. Energy Harvesting WSN • Basic Comparison

  7. Energy Harvesting Prediction • Solar energy is predictable • “Adaptive Duty Cycling for Energy Harvesting Systems”,Jason Hsu et. al, International Symposium of Low Power Electrical Design’06 • “Solar energy harvesting prediction algorithm”, J. Recas, C. Bergonzini, B. Lee, T. SimunicRosing, Energy Harvesting Workshop, 2009 • History data, seasonal trend, daily trend, weather forecast • Prediction every 30 minutes with high accuracy

  8. Outline • Introduction • Energy harvesting • Wireless Sensor Network • Energy Harvesting • Renewable Energy • Energy Harvesting WSN • Battery-operated vs. Energy Harvesting WSN • Wireless Sensor Network • Data Collection • Quality of services • Case study • Approximated Data Collection • Experiment

  9. Wireless Sensor Network • Components: • Server with unlimited resource and processing power • Sensor mote with small processor, embedded sensor, ADC channels, radio circuitry and Battery! • Data Collection • Each node records sensor value and sends update to base station • Server receives external queries, asking data from sensor nodes • Communication is costly • Battery capacity is limited Queries

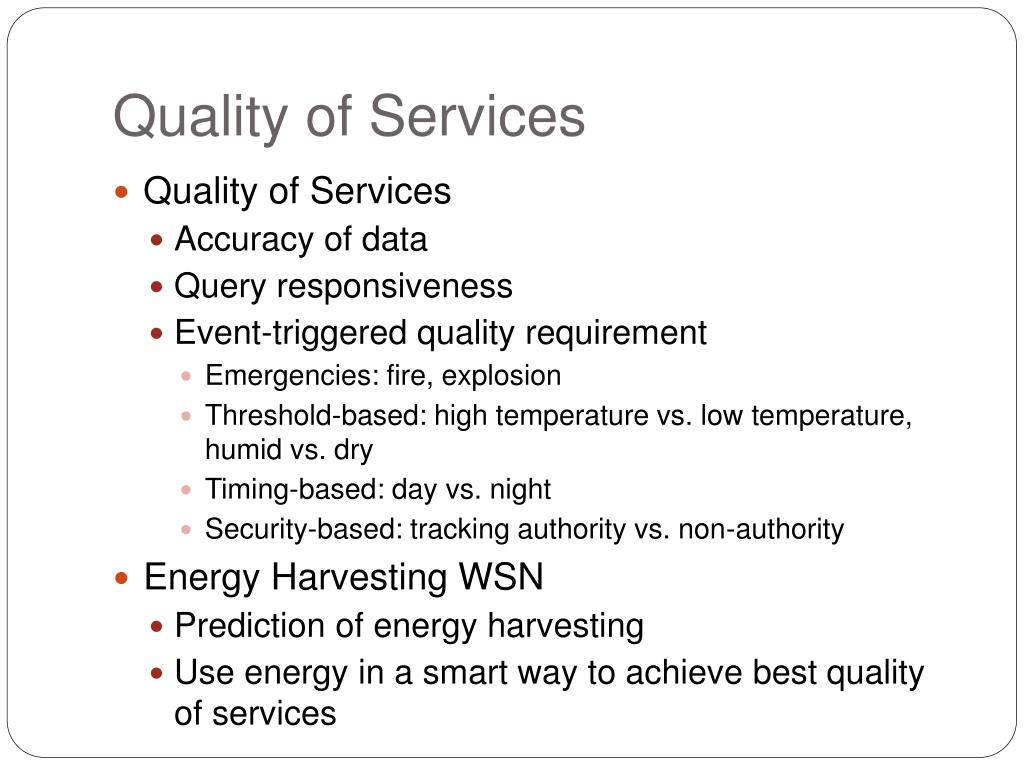

  10. Quality of Services • Quality of Services • Accuracy of data • Query responsiveness • Event-triggered quality requirement • Emergencies: fire, explosion • Threshold-based: high temperature vs. low temperature, humid vs. dry • Timing-based: day vs. night • Security-based: tracking authority vs. non-authority • Energy Harvesting WSN • Prediction of energy harvesting • Use energy in a smart way to achieve best quality of services

  11. Outline • Introduction • Energy harvesting • Wireless Sensor Network • Energy Harvesting • Renewable Energy • Energy Harvesting WSN • Battery-operated vs. Energy Harvesting WSN • Wireless Sensor Network • Data Collection • Quality of services • Case study • Approximated Data Collection • Experiment

  12. Approximated Data Collection • Exploit error tolerance/margin • Lots of applications can tolerate a certain degree of error • Example: temperature of a given region (+/- 2 Celsius) • Approximated Data Collection • For each sensor data: e is a given margin • u is value reading on sensor node • v is cached value on server node • Requirement: • Battery-operated • Maintain minimum data accuracy • Minimize energy consumption to • Energy harvesting WSN • Adapt accuracy level according to available energy harvesting • Distribute/spend energy in a smart way to maximize data accuracy |v – u| < e

  13. Battery-operated WSN Experiment results • Simulator results • Maintain minimum data accuracy • Minimize communication cost • Low energy utilization 7% - 50%

  14. Energy harvesting WSNExperiment Results • Energy distribution • Choose error bound that fits available energy level • Qualitative data: error bound as low as 0.0 (100% accurate) • Energy utilization: 26% - 75%

  15. Future work • Set up harvesting energy in our infrastructure • Implement our energy harvesting management framework on this system for application requiring quality of services • Carry out extensive field testing
