Results Overview. RPC Gaps 18 th of December 2012. Department of Physics and Astronomy. Different Gas leak cuts applied. Leak tests using a PicoLog ADC. Slope calculation over 200sec after 1000sec for +20mbar tests. Same procedure after 1800sec for +5mbar tests.

dong
Download Presentation

Results Overview

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. ResultsOverview RPC Gaps 18th of December 2012 Department of Physics and Astronomy

  2. DifferentGasleakcutsapplied

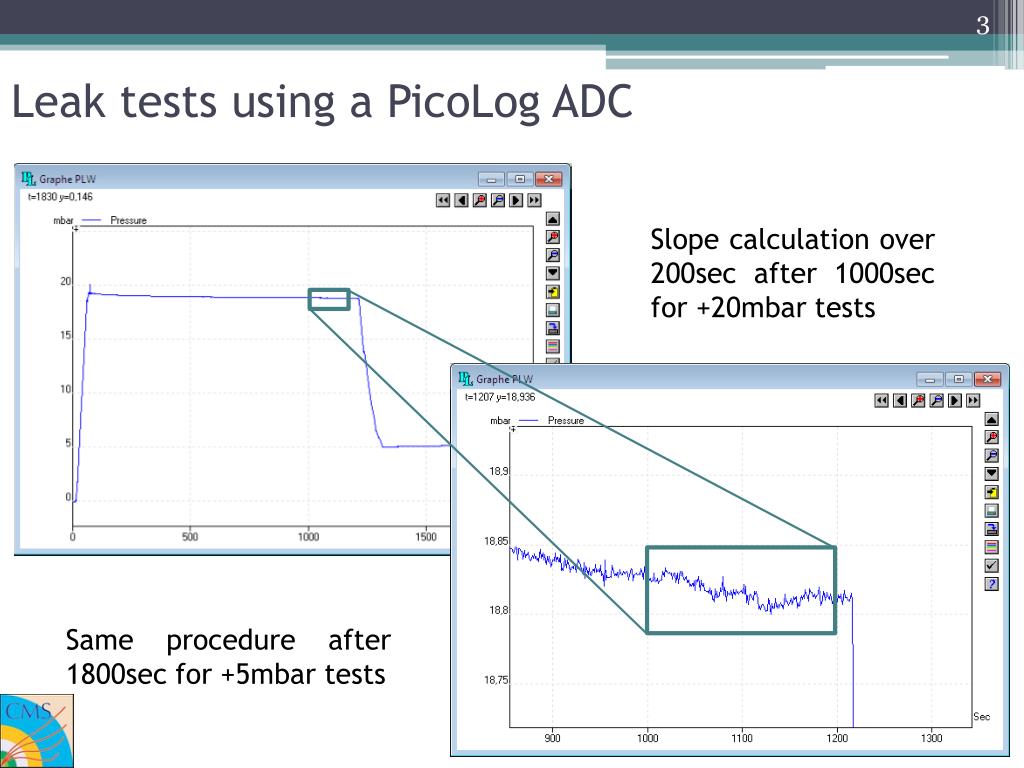

  3. Leak tests using a PicoLog ADC Slopecalculation over 200sec after1000sec for +20mbar tests Sameprocedureafter 1800sec for +5mbar tests

  4. Measurement of the dispersion on the B017 gap Slope = -0.0001 mbar/s Dispersion of the points around the fit line Sigma = 0.005mbar

  5. Repeatability of the measurements 10 measurements on gaps B017 & TW0082 differentoverpressures : +20mbar and +5mbarConclusion : dispersion is~0.01mbar RMS = 0.004 mbar RMS = 0.008 mbar RMS = 0.004 mbar RMS = 0.010 mbar

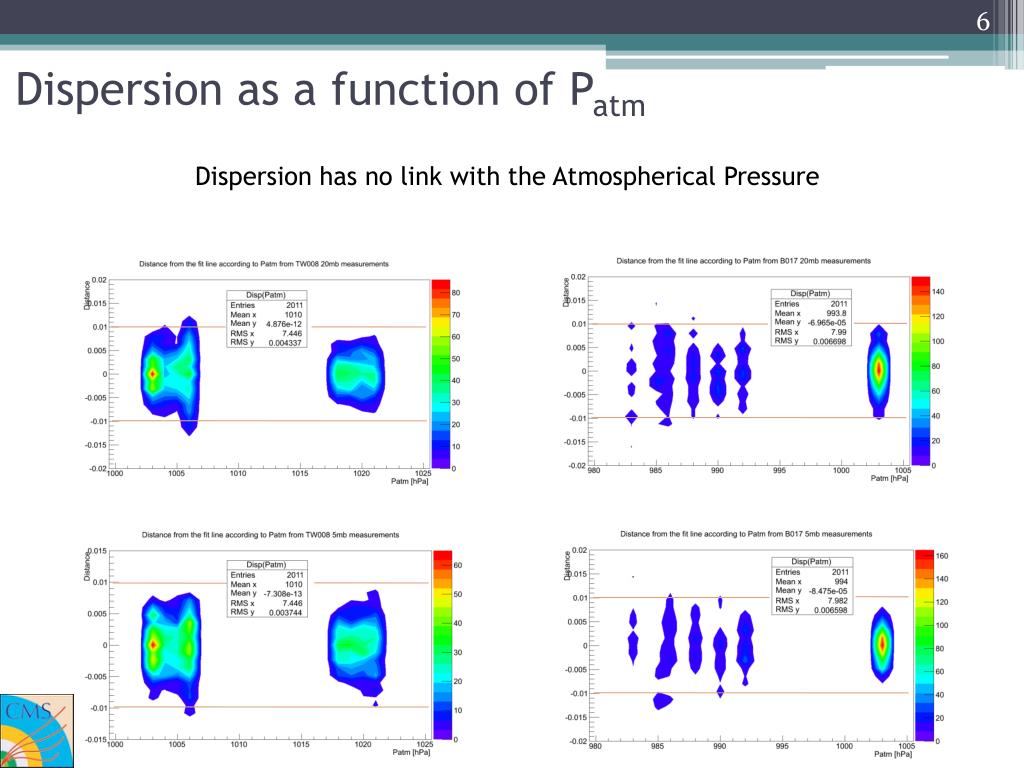

  6. Dispersion as a function of Patm Dispersion has no linkwith the Atmospherical Pressure

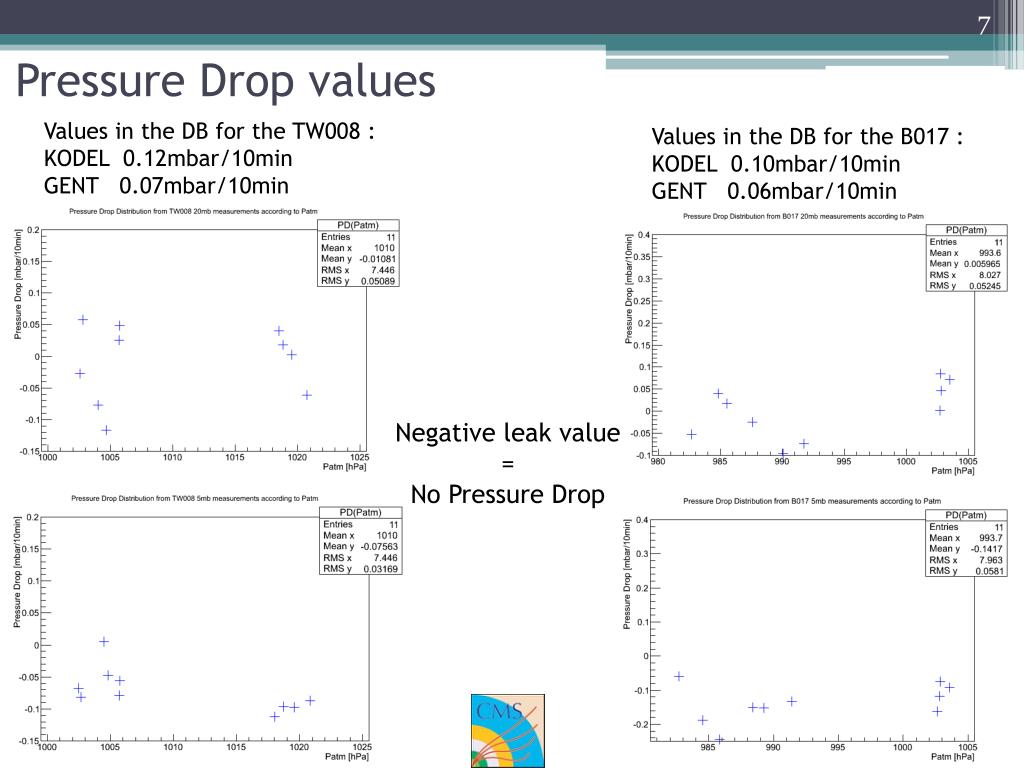

  7. Values in the DB for the TW008 : KODEL 0.12mbar/10min GENT 0.07mbar/10min Values in the DB for the B017 : KODEL 0.10mbar/10min GENT 0.06mbar/10min Pressure Drop values Negativeleak value = No Pressure Drop
