Gears

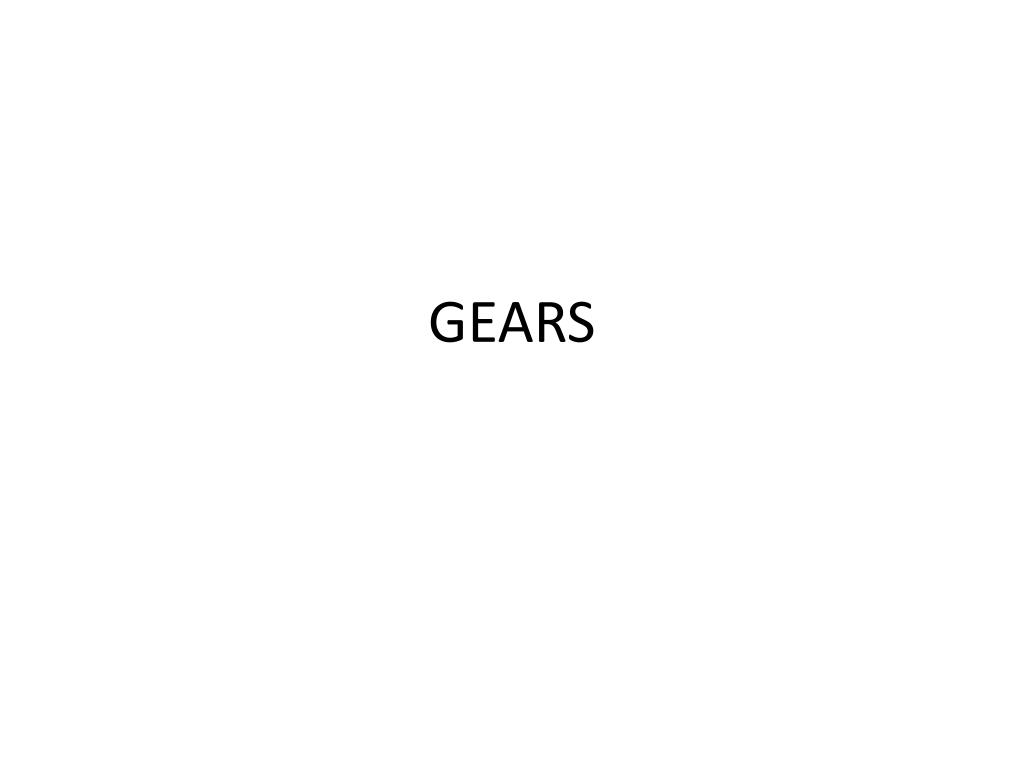

GEARS


Spur gears

Spur gears

  • gear having involuted teeth either straight or helically cut on a cylindrical surface. Two such gears are used to transmit power between parallel shafts


Worm gear

Worm gear

  • 1.A gear consisting of a spirally threaded shaft and a wheel with marginal teeth that mesh into it.

  • 2.The toothed wheel of this gear; a worm wheel.

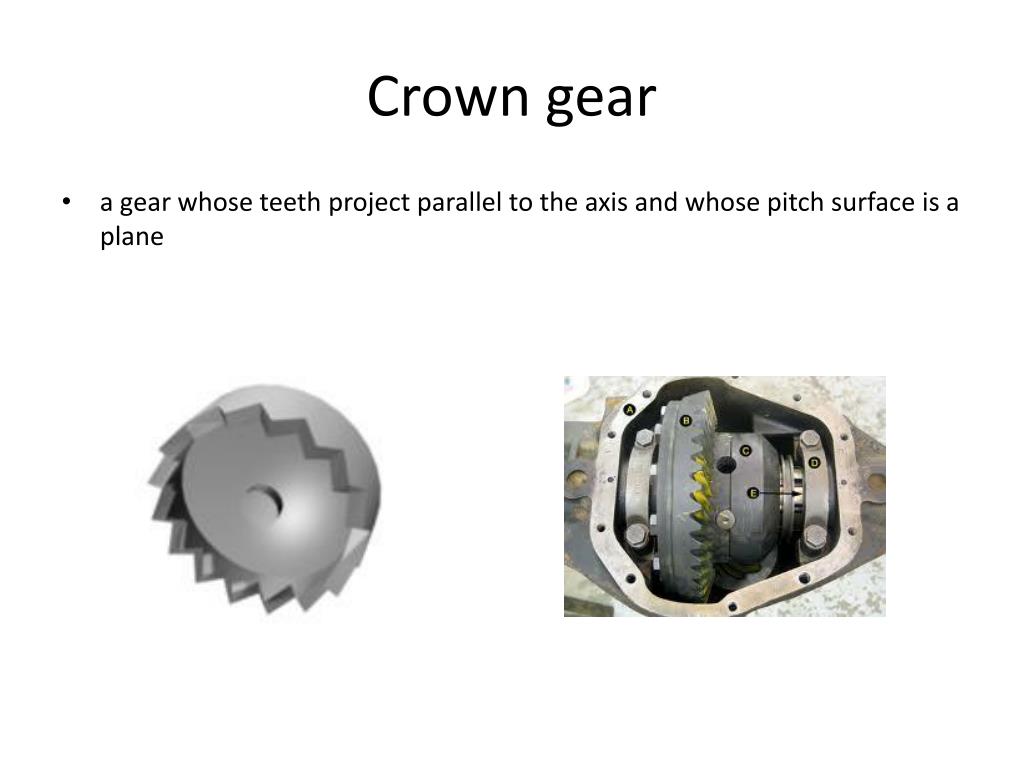

Crown gear

Crown gear

  • a gear whose teeth project parallel to the axis and whose pitch surface is a plane
