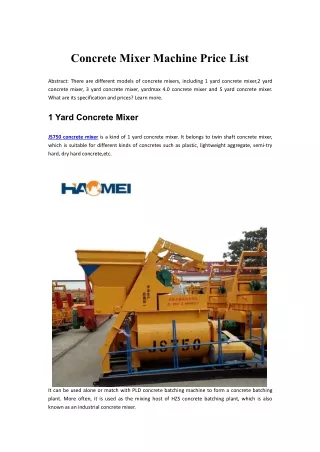

Concrete Mixer Machine Price List

1. Concrete Mixer Machine Price List Abstract: There are different models of concrete mixers, including 1 yard concrete mixer,2 yard concrete mixer, 3 yard concrete mixer, yardmax 4.0 concrete mixer and 5 yard concrete mixer. What are its specification and prices? Learn more. 1 Yard Concrete Mixer JS750 concrete mixer is a kind of 1 yard concrete mixer. It belongs to twin shaft concrete mixer, which is suitable for different kinds of concretes such as plastic, lightweight aggregate, semi-try hard, dry hard concrete,etc. It can be used alone or match with PLD concrete batching machine to form a concrete batching plant. More often, it is used as the mixing host of HZS concrete batching plant, which is also known as an industrial concrete mixer.

2. The main parameters of JS750 concrete mixer: Discharging volume: 750L; Charging volume: 1200 L; Aggregate size: 60/80 mm; Working Circle: 60s; Weight: 5000 kg How to use it properly? There are some tips: 1. The concrete mixer is installed stably, and the motor must be connected to the ground wire. 2. Make necessary inspections and preparations before use. 3. Add the weighed sample to dry mixing for one minute and then add water to mix evenly 4. After being mixed well, it can be poured in both forward and reverse rotation. 5. After using, completely clean it with water and brush the necessary parts with lubricating oil for rust prevention. 6. Pay attention to the daily maintenance. 2 Yard Concrete Mixer In recent years, the number of large-scale engineering construction projects in many countries has increased and the development of commercial concrete batching plants has increased. The main models are HZS60, HZS90, HZS120, HZS180 and HZS240. What are their specific configuration? HZS60 concrete batching plant JS1000 twin shaft concrete mixer, PLD1600 four-bin batching machine, belt conveyor, 2 x 100-ton cement silos, a set of automatic electrical control system, and other auxiliary facilities. HZS90 concrete mixing plant 2 yard concrete mixer, PLD2400 four-bin batching machine, belt conveyor, 3 x100-ton cement silos, a set of automatic electrical control system, and other auxiliary facilities. HZS120 stationary concrete plant JS2000 twin shaft mixer, PLD3200 type four-bin batching machine, belt conveyor, 4 x 200-ton cement silos, a set of automatic electrical control system, and other auxiliary facilities. HZS180 stationary concrete batching plant JS3000 concrete mixer, PLD4800 four-bin batching machine, belt conveyor, 4x 300-ton cement silo, a set of automatic electrical control system, and other auxiliary facilities. HZS240 concrete batching plant JS4000 concrete mixer, PLD4800 type four-bin batching machine, belt conveyor, 4x300-ton cement warehouses, a set of automatic electrical control system, and other auxiliary facilities. Among these configurations, the twin shaft concrete mixer can also be used alone or form a simple batching plant with a batching machine. Welcome to leave message below to inquire the commercial concrete batching plant and 2 yard concrete mixer.

3. 3 Yard Concrete Mixer for Sale The JS2000 concrete mixer is a kind of 3 yard concrete mixer for sale. It has strong mixing capacity, uniform and rapid mixing, and high productivity, which is suitable for dry hard, semi-dry hard, plastic and various proportions of concrete from C15-C60. What are its advantages? Accurate and stable measurement Regardless of the measurement of coarse sand, fine sand or gravel, Haomei JS2000 concrete mixer can ensure accurate measurement and stable working performance, which improves the working efficiency of the concrete mixer. High reliability The lining plate and mixing blade of JS2000 concrete mixer are specially treated and made of high manganese alloy, which improves the performance of the equipment and extend its service life.The main electrical control system adopts high-quality components, which greatly reduces the failure rate of the equipment. High efficiency and low energy consumption The scientific design concept and reliable experimental data enable the JS2000 concrete mixer to

4. minimize the friction and impact of materials, greatly shortening the mixing time and reducing the mixing energy consumption. Easy to clean With the improved design, Haomei Machinery has successfully solved the problem of sticky material on the cover of the mixing drum of the JS2000 concrete mixer, which makes the customers free from the trouble of cleaning the mixer. JS2000 concrete mixer is usually used as the mixing host of HZS120 concrete batching plant. Its price from different manufacturers is different. Yardmax 4.0 Concrete Mixer At present, there are many concrete mixer manufacturers in China and the products have been serialized. However, the production process and technical level are uneven. It is recommended that customers choose those experienced manufacturers. The twin shaft concrete mixer is a mainstream concrete mixer. The main molds are JS500, JS750, JS1500, JS2000, JS3000 and JS4000. The output ranges from 0.5-4 cubic meters each time and 25-480 cubic meters per hour. What is a yardmax 4.0 concrete mixer? Its output is about 3.0 m3per batch. The theoretical

5. capacity is 180 m3/h. That is JS3000 concrete mixer. The mixing power is 2x55 kw. The aggregate size is 80/120 mm. The mixing time is about 30 seconds. Its main parts all have been improved: Mixing drum: It is of compact structure, sufficient rigidity and strength to ensure the normal operation of the mixer. The welding process of the mixing cylinder adopts overall annealing treatment to prevent stress deformation after welding and ensure the service life of the whole machine. Lining plates and blades are made of alloy wear-resistant cast iron or high-manganese steel. The reasonable structure is designed through finite element analysis and fluid mechanics analysis, and has a long service life. Transmission system: The system adopts two planetary gear reducers for transmission, which has the characteristics of stable transmission, convenient installation, low noise, compact structure, overload protection, and high transmission efficiency. Shaft end seal: Labyrinth seal made of special wear-resistant materials, with multiple special rubber rings and pressurized grease protection in the middle, and a floating seal ring and a rubber seal ring on the outer layer can effectively prevent the slurry leakage happen. 5 Yard Concrete Mixer JS4000 concrete mixer, a kind of 5 yard concrete mixer, is a large-scale concrete mixer with good comprehensive performance. With reasonable design, novel structure and strong mixing capacity, it can be widely used in large and medium-sized commercial concrete mixing plant. JS4000 concrete mixer has the following advantages: 1. JS4000 concrete mixer is of high mixing efficiency and good uniformity. It adopts “Double spiral belt" replacing traditional blades, which shortens mixing time by more than 50%, and increases mixing uniformity by 15%. 2. It adopts new sealing technology and imported sealing components, bringing good sealing effect and longer service life. 3. High quality reducer. It is of reliable working performance and good quality. 4. The 5 yard concrete mixer is equipped with outstanding automatic lubrication pump, which adopts centralized oil supply. 5. The power "safety lock" ensures the operator’s safety. 6. The bearing hole of the mixing shaft of the twin shaft is processed by the large-scale CNC machines, ensuring the coaxiality and accuracy of the shaft. 7. It is coated with the long-lasting paint and polyurethane coating,which keeps bright color longer and provides better protection.

6. Concrete Mixer Machine Price List The twin shaft mixer can dry hard, plastic, fluid, lightweight aggregate concrete and various mortars. The models of concrete mixer supply are JS500, JS750, JS1000, JS1500, JS2000, JS3000 and JS4000. The numbers represent the output of each batch. For example, JS500 means that the mixer discharges 0.5 m3. Haomei twin shaft concrete mixer also has the following performance advantages: 1. The electric oil pump can use NLGI oil to make the shaft end seal better and reduce lubrication oil consumption. 2. With scientific design of the mixing blades, it has better mixing performance and can meet the diverse needs of users. 3. The concrete slump in the mixer can be monitored at any time and adjusted to ensure the quality of concrete mixer. 4. The advanced design concept and reliable experimental data can greatly reduce the friction and impact of the material, and the material movement is more reasonable. The specification of different types of concrete mixers Model Discharging volume Feeding volume Capacity Aggregate size Water supply accuracy 30 m3/h 35 m3/h JS500 500 L 750 L 80 mm ≤2% JS750 750 L 1200 L 80 mm ≤2%

7. 50-60 m3/h 90 m3/h 120 m3/h 180 m3/h 240 m3/h JS1000 1000 L 1600 L 80 mm ≤2% JS1500 1500 L 2400 L 80 mm ≤2% JS2000 2000 L 3000 L 80 mm ≤2% JS3000 3000 L 4500 L 80 mm ≤2% JS4000 4000 L 6000 L 80 mm ≤2%
