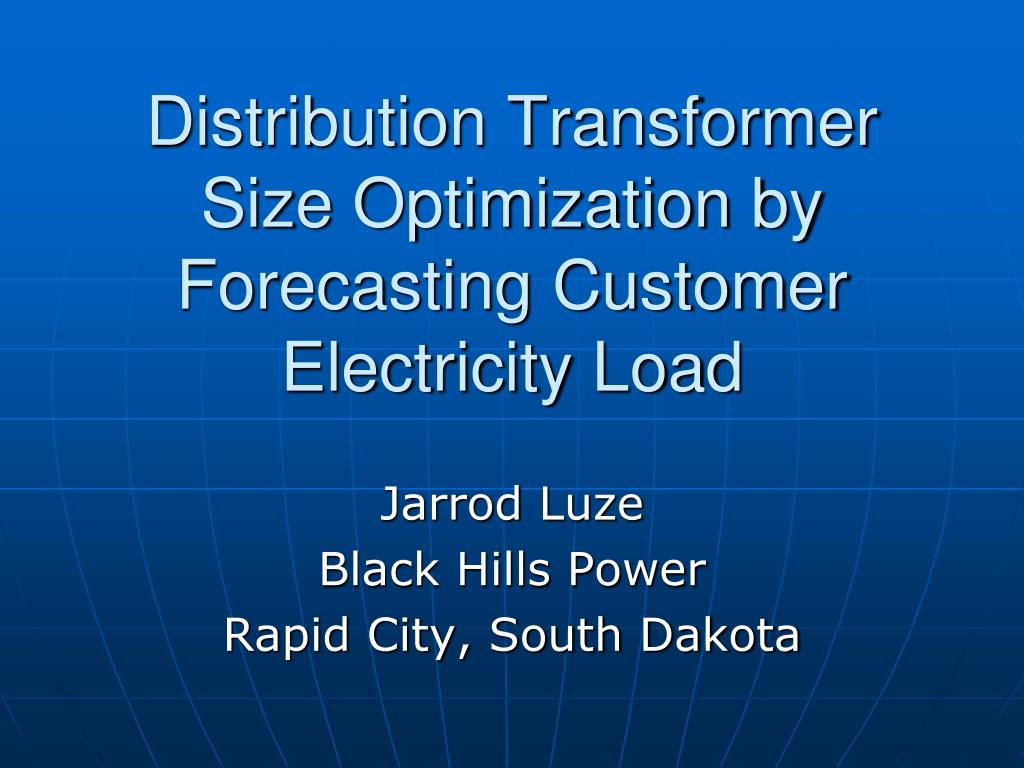

  1. Distribution Transformer Size Optimization by Forecasting Customer Electricity Load Jarrod Luze Black Hills Power Rapid City, South Dakota

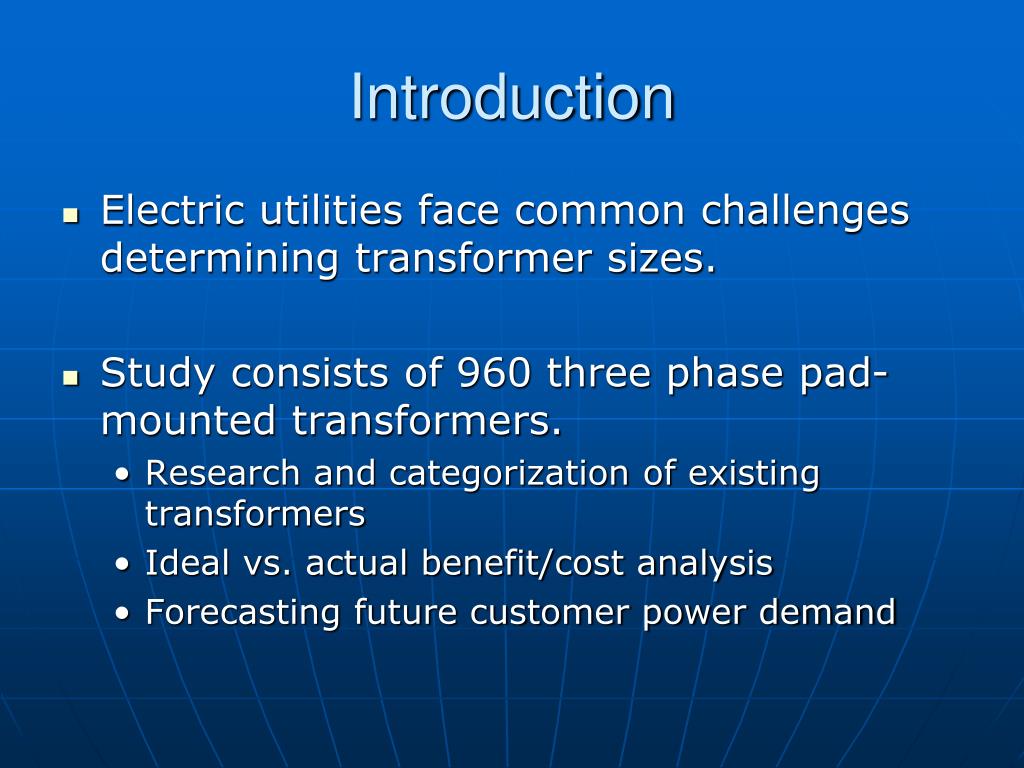

  2. Introduction • Electric utilities face common challenges determining transformer sizes. • Study consists of 960 three phase pad-mounted transformers. • Research and categorization of existing transformers • Ideal vs. actual benefit/cost analysis • Forecasting future customer power demand

  3. Study of Existing Transformers in Service • Compared kVA name-plate rating to peak demand of customer • ‘R+_’ signifies that a transformer is undersized and would ideally require a larger transformer for the load. • ‘R-_’ signifies the transformer is under-loaded, and a smaller transformer would suffice.

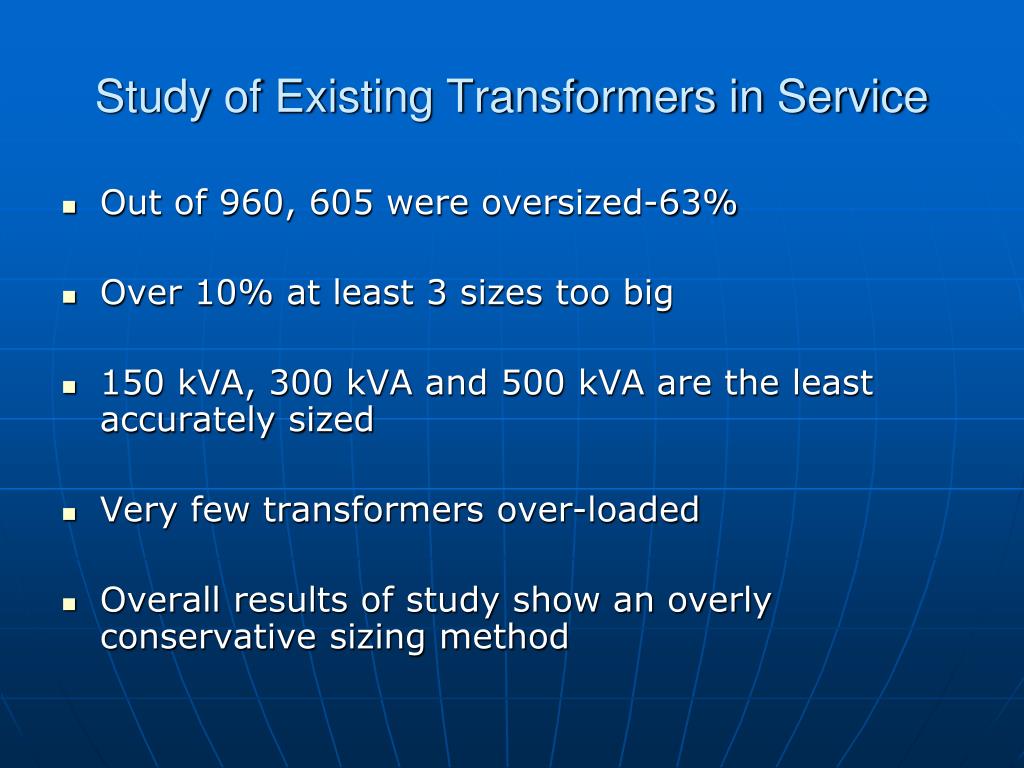

  4. Study of Existing Transformers in Service • Out of 960, 605 were oversized-63% • Over 10% at least 3 sizes too big • 150 kVA, 300 kVA and 500 kVA are the least accurately sized • Very few transformers over-loaded • Overall results of study show an overly conservative sizing method

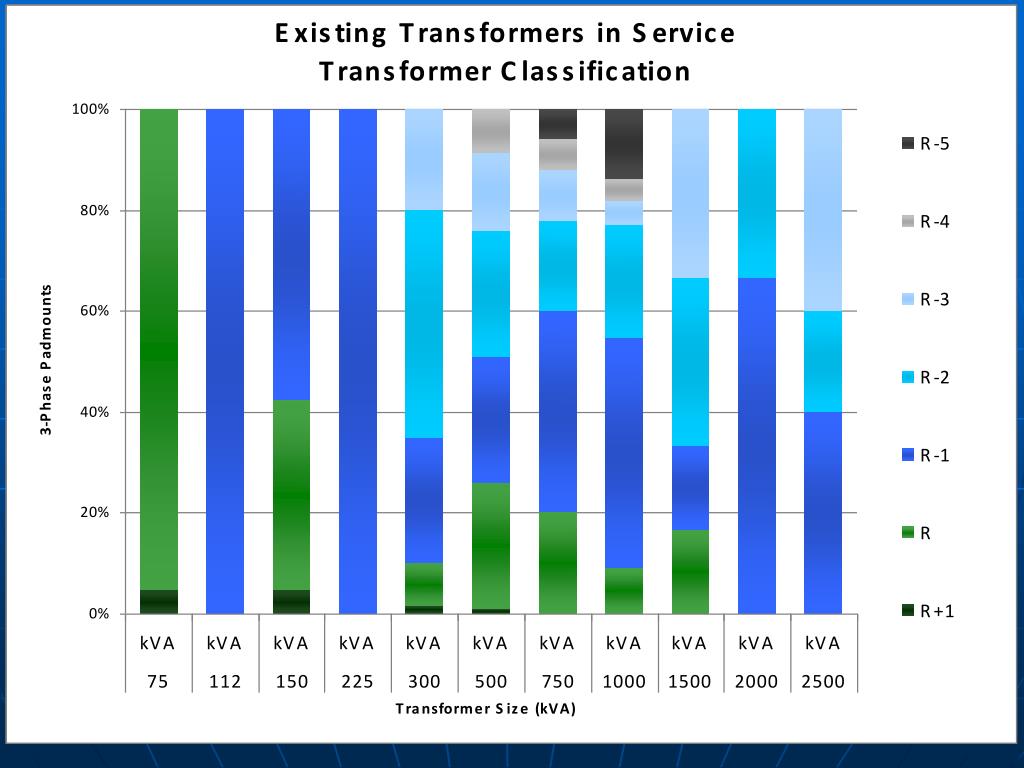

  5. Existing Transformers in Service

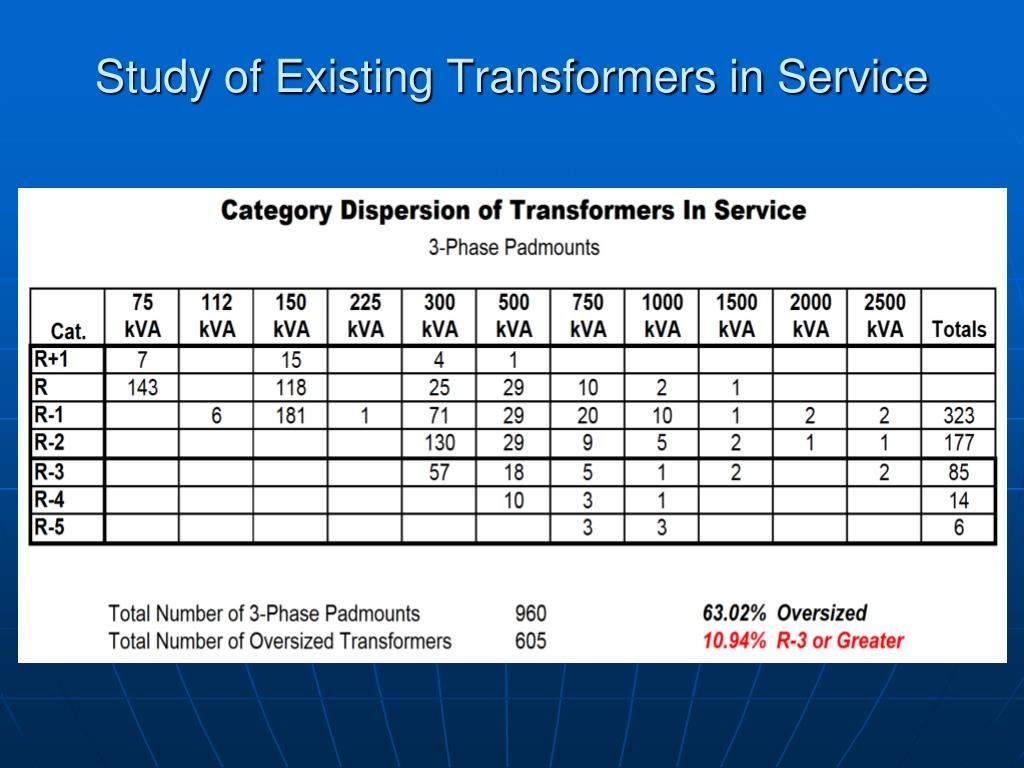

  6. Study of Existing Transformers in Service

  7. Financial Analysis • Capital expense of the equipment • Operating cost = No-load power loss • Wholesale electricity rate of $0.04/kWH was used

  8. Financial Analysis – Capital • Estimated by using the price of the most recently purchased transformer of that size • Sums entire purchase price* of the 960 transformers (total capital expense) *Purchase price includes installation costs • Theoretical estimated purchase cost vs. actual estimated purchase cost

  9. Financial Analysis

  10. Financial Analysis – Operating • No-load power loss (Watts) • Not considered: • Full-load loss, repairs and maintenance • Conservative estimate • PF of 0.95 used, if unable to gather from database

  11. Financial Analysis No-Load Power Loss (O&M)

  12. Financial Analysis - Overall Assuming sizing methods and results are consistent for all BHP transformers • Three-phase, pad-mount share of the transformer purchase cost is roughly 26% of the $2.5 million annual transformer purchase cost budget • At 17%, $425,000 annual benefit

  13. Research Application • Increase efficiency from the sizing statistics • Possibilities • Review current transformer placement, and change-out existing units based on economic feasibility. • Develop more accurate transformer sizing method

  14. Forecasting Customer Electricity Loads • Many factors • Size of structure to be powered • General purpose of structure • Structural components • Machines and Appliances to be installed • Location • Personnel capacity of building or structure

  15. Customer Categories • This study includes • Retail Stores • Business offices • Apartments (gas heated, electric heat) • Many others to be considered, time-constraints limit this study

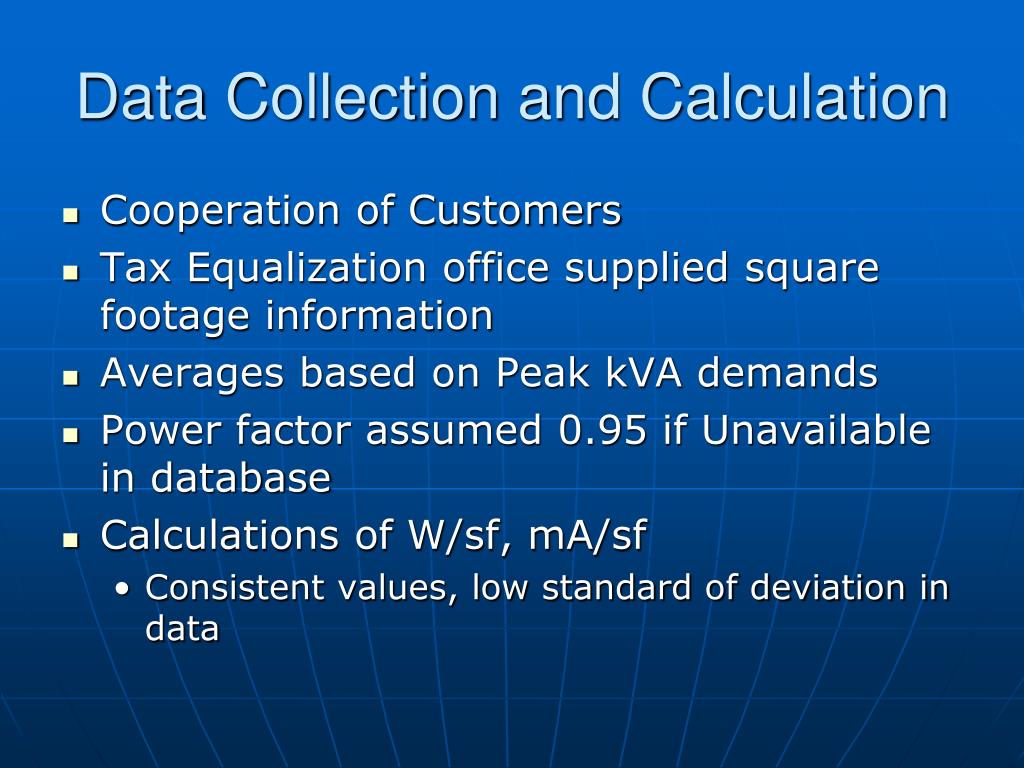

  16. Data Collection and Calculation • Cooperation of Customers • Tax Equalization office supplied square footage information • Averages based on Peak kVA demands • Power factor assumed 0.95 if Unavailable in database • Calculations of W/sf, mA/sf • Consistent values, low standard of deviation in data

  17. Results – Business Offices • Averaged 5.76 watts per square foot • Highest: 7.09 Lowest: 4.52 W/sqft • Averaged 34% of Main Switch Ampacity • Mainly fluorescent lighting • Gas heated

  18. Business Offices

  19. Results - Retail Stores • Averaged 4.98 W/sqft • High: 8.13 / Low: 2.86 • Averaged 46% of Main Switch Ampacity • Mostly Fluorescent Lighting, some spot lighting

  20. Retail Stores

  21. Results - Apartments • Gas Heated, summer peaking, 94.7% occ. • Averaged 1.42 W/sqft, 1.5 W/sqft @ 100% • High: 2.09 / Low: 0.82 • Electric Heat, winter peaking, 81.5% occ. • Averaged 3.53 W/sqft, 4.3 W/sqft @ 100% • High: 4.14 / Low: 2.71

  22. Apartment Buildings

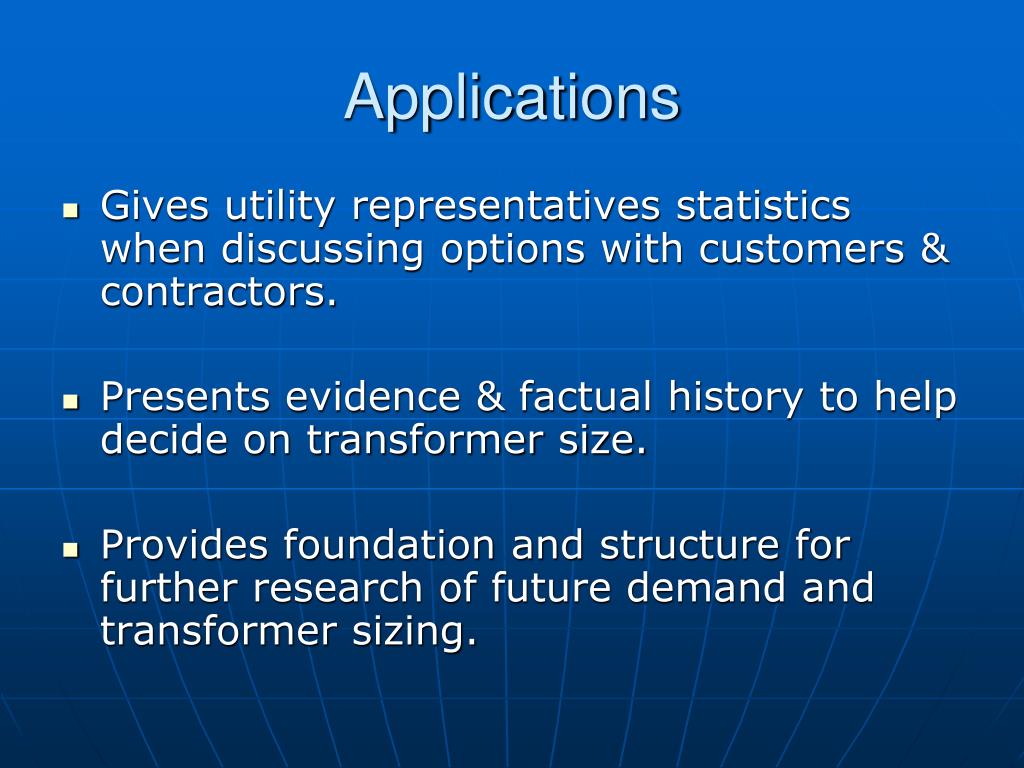

  23. Applications • Gives utility representatives statistics when discussing options with customers & contractors. • Presents evidence & factual history to help decide on transformer size. • Provides foundation and structure for further research of future demand and transformer sizing.

  24. Summary • Sizing analysis shows significant cost avoidance capabilities: • 17% $425,000 • O&M savings (NLL only) of 31% • Customer demand indicators may help utility reps with transformer sizing, and provide a basis to advance research

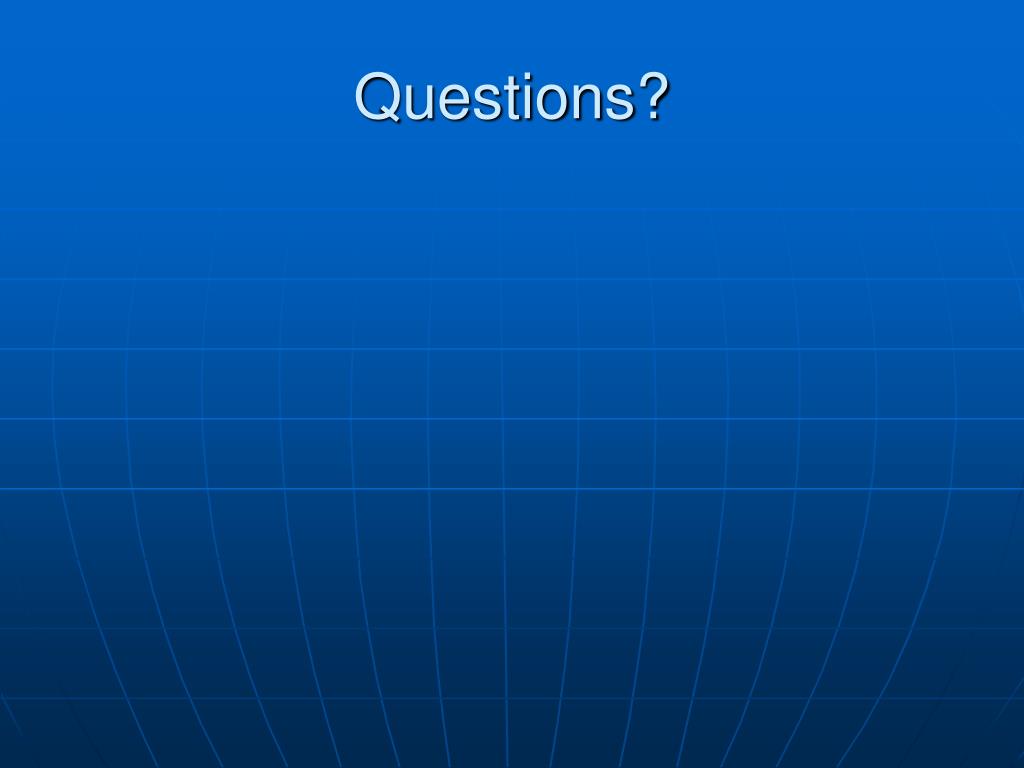

  25. Questions?
