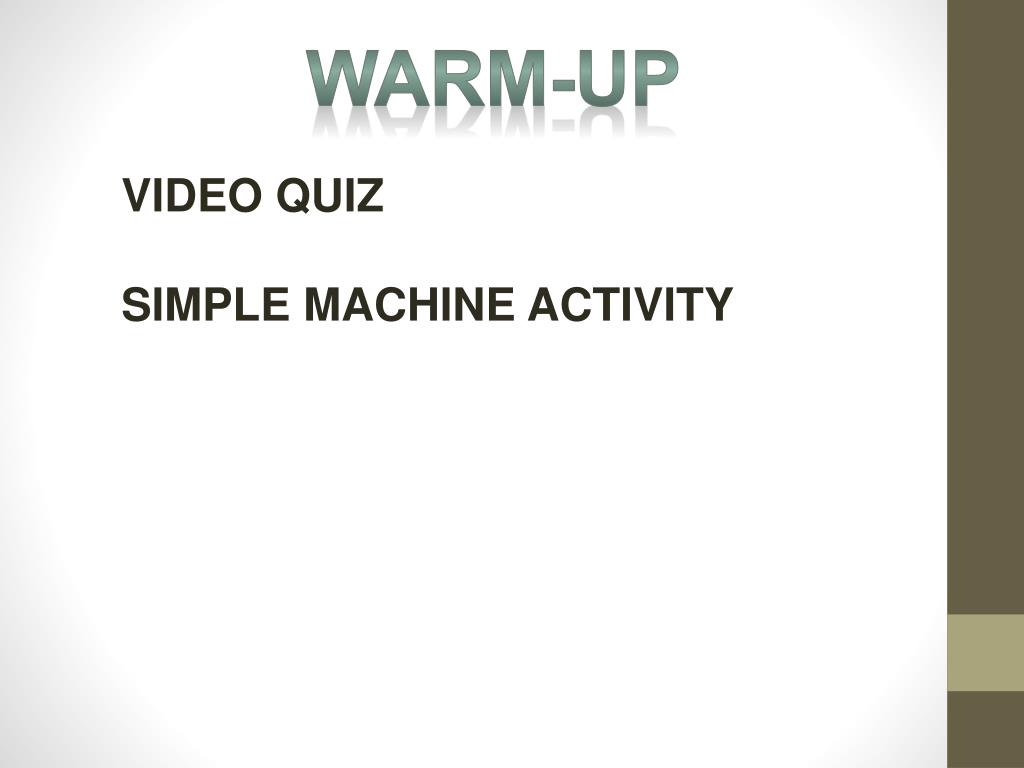

  1. WARM-UP VIDEO QUIZ SIMPLE MACHINE ACTIVITY

  2. Content standard S8P3. Students will investigate relationship between force, mass, and the motion of objects. c. Demonstrate the effect of simple machines (lever, inclined plane, pulley, wedge, screw, and wheel and axle) on work.

  3. Today’s Goals • Define work and power. • Identify joules and watts as units of measurement for work and power. • Distinguish between work as defined in physics and work in everyday life. • Identify work and non-work examples of moving objects. • Calculate work and power. • Cite everyday examples of work and power.

  4. Essential question What is the difference between scientific work and work in everyday life?

  5. WORK Definition: The transfer of energy to an object by using a force that causes the object to move in the direction of the force; work is measured in Joules (one Newton x one meter = one joule)

  6. WORK • Examples: • Picking up a stack of books • Pushing a lawn mower across the yard

  7. W = F x d Work= Force times distance

  8. Example #1: Using a 10 N force, you push a shopping cart 8 m. How much work do you do? Find Work Formula W = F x d Given: Sub & Solve:

  9. Example #1: Using a 10 N force, you push a shopping cart 8 m. How much work do you do? Find Work Formula W = F x d Given: Sub & Solve: F = 10 N D = 8 m

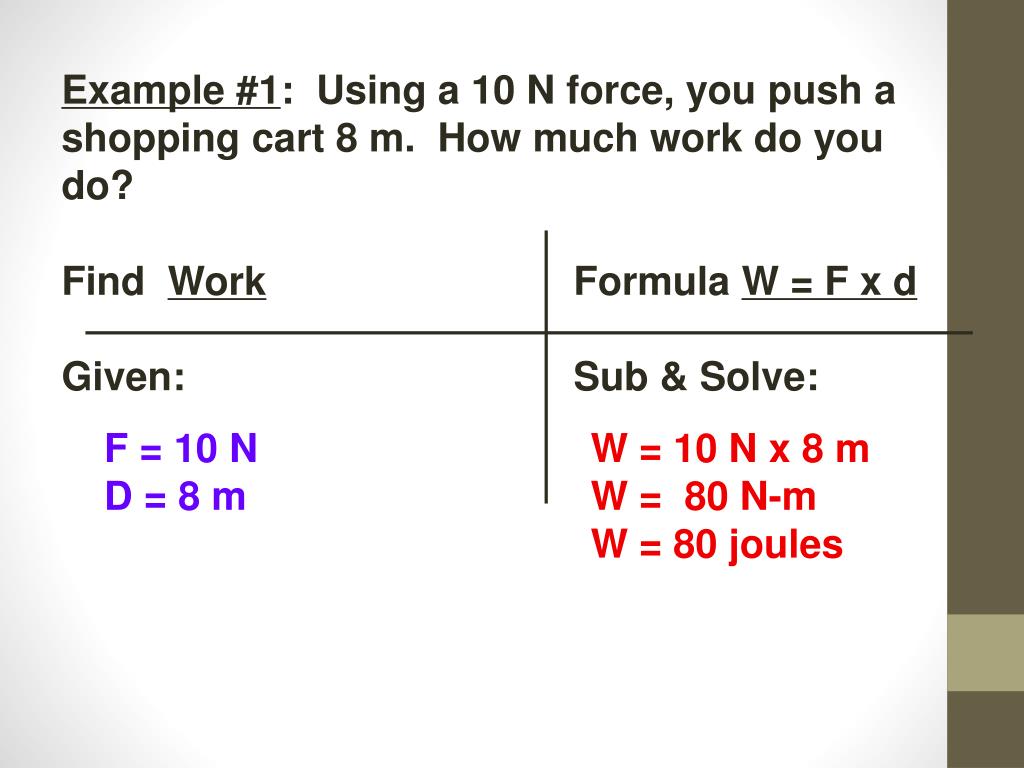

  10. Example #1: Using a 10 N force, you push a shopping cart 8 m. How much work do you do? Find Work Formula W = F x d Given: Sub & Solve: F = 10 N D = 8 m W = 10 N x 8 m W = 80 N-m W = 80 joules

  11. Example #2: Jill is putting books on a shelf that is 1.5 m high. Each book has a weight of 8 N. How much work is being done on each book? Find Work Formula W = F x d Given: Sub & Solve: W = 8 N x 1.5 m F = 8 N d = 1.5 m W = 12 joules

  12. Discussion Point How would Example #2 change if you were given 8 kg instead of 8N? kg is mass, not weight (the force of gravity) You cannot use mass in the place of weight (a force)!!!

  13. Discussion Point How would Example #2 change if you were given 8 kg instead of 8N? You would need to change 8 kg (mass) into weight first! To convert mass into its weight on Earth, multiply by 9.8 m/s2

  14. Warning!!! Applying a force does not always result in work being done. Examples: a) Trying to push a car stuck in snow and ice is not work b) Carrying a heavy book across the room is not work

  15. Warning!!! Applying a force does not always result in work being done. WHY??? In order for work to be done (energy transferred to the object), the object must move in the direction of the force

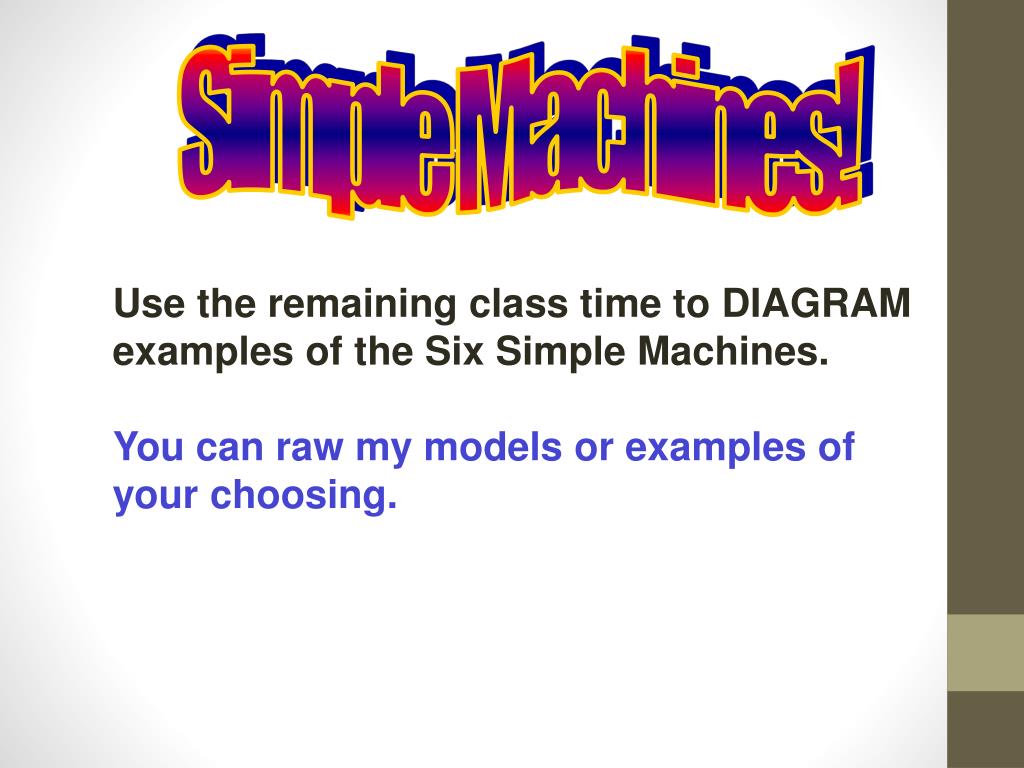

  16. Simple Machines! Use the remaining class time to DIAGRAM examples of the Six Simple Machines. You can raw my models or examples of your choosing.

  17. POWER Power is the rate at which work is done.

  18. POWER Formula: Power = Work = W = F x d Time t t

  19. POWER Example #3 Example #3 How much power does a person weighing 500 N need to climb a 3-m ladder in 5 seconds?

  20. POWER Example #3 How much power does a person weighing 500 N need to climb a 3-m ladder in 5 seconds? Find ________ Formula ___________ Given: Apply & Solve: P = F x d/t Power P = (500 N x 3 m) 5 s F = 500 N d = 3 m t = 5 s P = 300 N-m/s P = 300 watts

  21. POWER Power is measured in watts, named for James Watt, who worked on the steam engine One watt = one joule per second

  22. POWER A watt is pretty small – about equal to the power used to raise a glass of water from your knees to your mouth in one second.

  23. POWER The power of most household appliances is measured in kilowatts. Remember kilo- represents 1000

  24. POWER Historically, power was provided by animals (i.e. horses)

  25. POWER As machines replaced horses, people naturally estimated the power of a machine by how many horses it could replace. Today’s engines are still rated in terms of horsepower.

  26. Essential question REvisited What is the difference between scientific work and work in everyday life?

  27. Summarize!!! Write several sentences in your journal summarizing what you learned today about work and power. The summary will be graded.

  28. Simple Machine Project Due Wednesday Jan. 25th

  29. HOMEWORK ZONE Use the time remaining in class to begin working on Practice Sheet #16 This is due Friday!!!

  30. Kagan FREEZE Question #1 How does work transfer energy to an object? Question #2 What is the unit used to measure work?

  31. Kagan FREEZE Question #3 What does power measure? Question #4 What is the unit used to measure power?

  32. Kagan FREEZE Question #5 Give an example of work transferring energy to an object. Question #6 Give an example of power.
