  1. ELM: ESPA Launch Load Module Department of Mechanical & Industrial Engineering Northeastern University Boston, MA 02115 April 17, 2007 Ben Kneppers, Matthew Krenek, Nate Matcheson, Rachelle Parsons, and Rylan Summit Advisor: Dr. Sinan Muftu In Conjunction with : Santa Clara University Santa Clara, CA NASA Ames Research Center Moffett Field, CA CSA Engineering, Inc. Mountain View, CA

  2. ESPA: EELV Secondary Payload Adapter • Located between the primary payload and EELV • Holds up to 6 additional payloads • Actual loads unknown • Estimated 10 g’s simultaneously in lateral/axial • Probably over engineered

  3. ELM:ESPA Launch Load Module • Secondary Payloads are cantilevered from the ESPA ports; no other payloads are mounted this way • Measure flight environment loads experienced by ESPA and secondary payloads • Provide data for more accurate and less expensive engineering

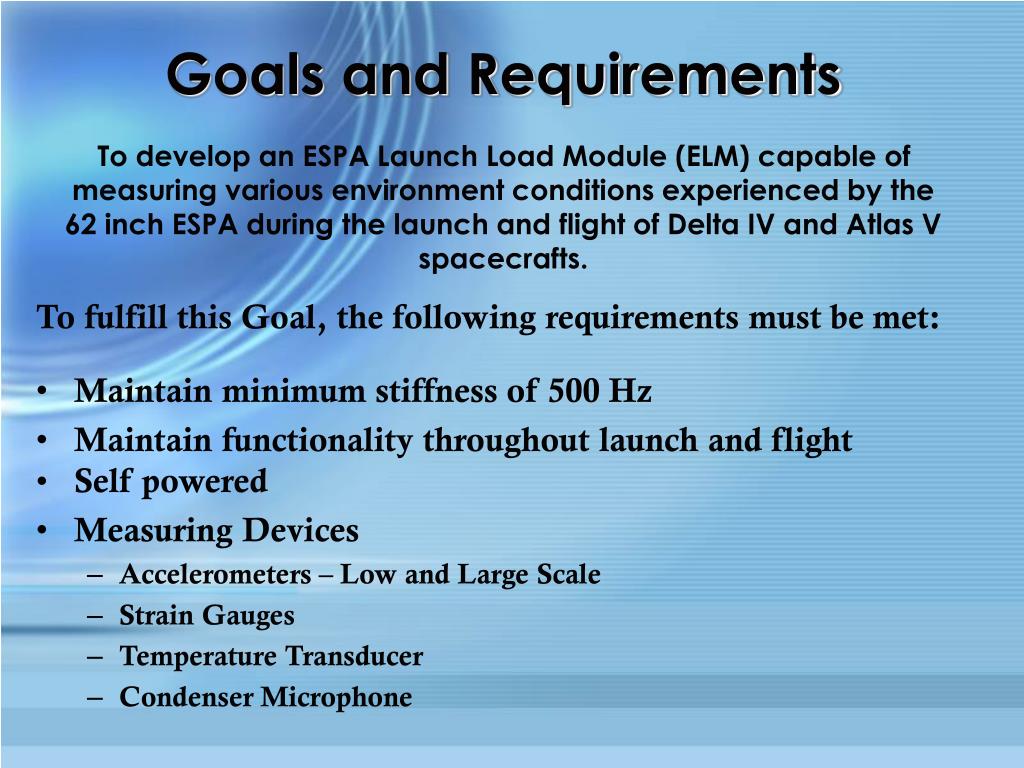

  4. Goals and Requirements To develop an ESPA Launch Load Module (ELM) capable of measuring various environment conditions experienced by the 62 inch ESPA during the launch and flight of Delta IV and Atlas V spacecrafts. To fulfill this Goal, the following requirements must be met: • Maintain minimum stiffness of 500 Hz • Maintain functionality throughout launch and flight • Self powered • Measuring Devices • Accelerometers – Low and Large Scale • Strain Gauges • Temperature Transducer • Condenser Microphone

  5. Previous Designs Design #1 (Milled) Design # 2 (Milled and welded 2 parts) Design #3 (Milled and welded)

  6. Structural Design • Located in ESPA port opposite a satellite • Module enclosed • Assembly Dimensions: • L = 10 in • t wall/shelf = 0.25 in • OD = 13.5 in • Weight: • ELM = 30.7 lbs • Battery ≈ 1.23 lbs • Computer < 1 lbs

  7. Structural Design • Basic parts: • Base Plate, Shelf Assembly, Tube and Cap

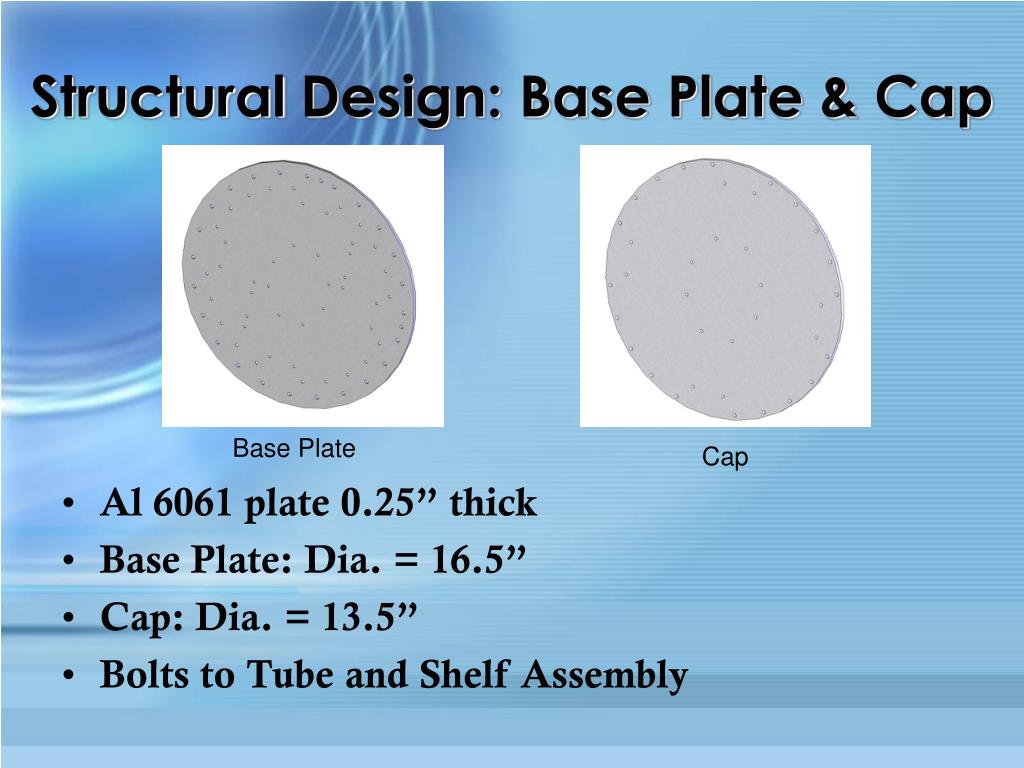

  8. StructuralDesign: Base Plate & Cap Base Plate Cap • Al 6061 plate 0.25” thick • Base Plate: Dia. = 16.5” • Cap: Dia. = 13.5” • Bolts to Tube and Shelf Assembly

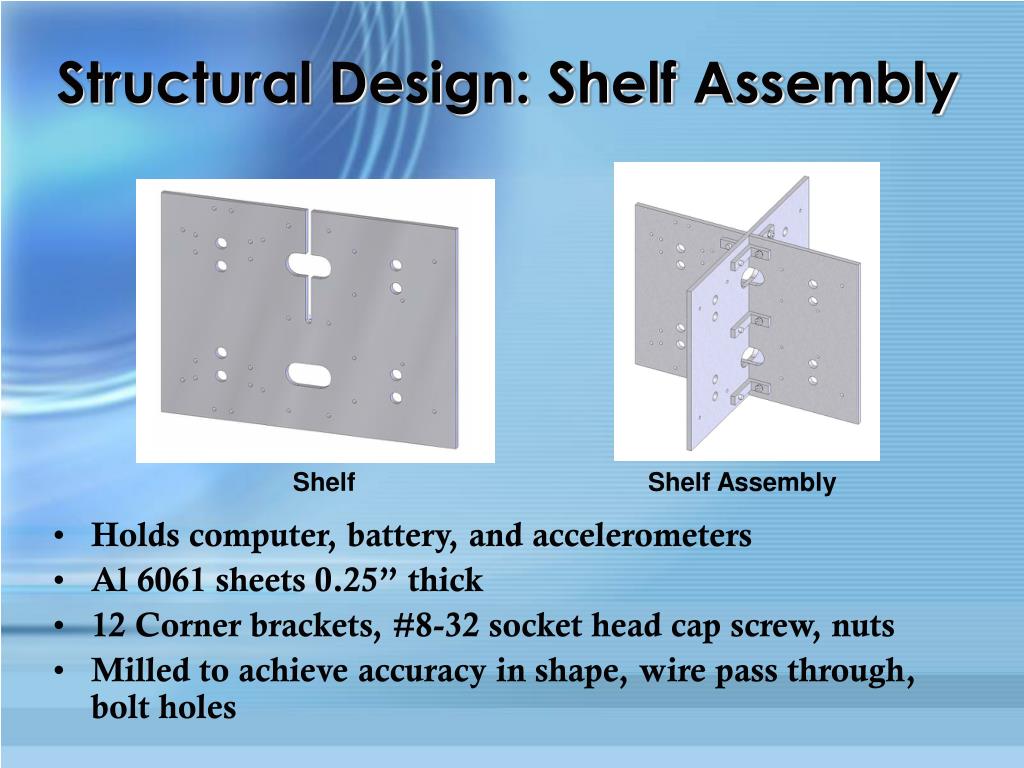

  9. Structural Design: Shelf Assembly Shelf Shelf Assembly • Holds computer, battery, and accelerometers • Al 6061 sheets 0.25” thick • 12 Corner brackets, #8-32 socket head cap screw, nuts • Milled to achieve accuracy in shape, wire pass through, bolt holes

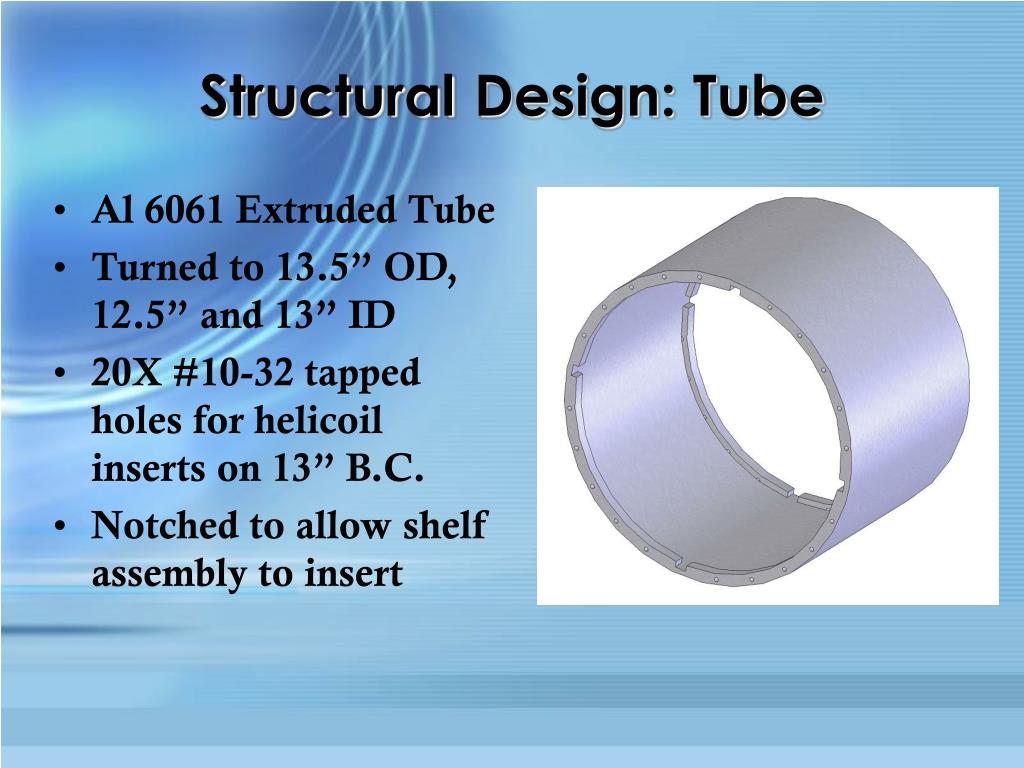

  10. StructuralDesign: Tube • Al 6061 Extruded Tube • Turned to 13.5” OD, 12.5” and 13” ID • 20X #10-32 tapped holes for helicoil inserts on 13” B.C. • Notched to allow shelf assembly to insert

  11. Structural Design: Battery Bracket • Clamps battery with thermal conductive vibration insulation foam to shelf assembly • Bent from 5051 Aluminum • Wire pass at one end

  12. Structural Design: Corner and Strain Beam Brackets • 2” x 2” 90˚ 6061 Al extrusion • Bracket Dimensions • 2” x 1.5” x 0.5” • Thickness = 0.25” • #8-32 through holes Strain Beam Bracket Corner Bracket

  13. Environmental Variable Measuring Devices Prototype • Accelerometer – Low and Large Scale • Single Strain Gauge • Temperature Transducer Options on Final – Decided By Customer • Accelerometer – Low and Large Scale • Condenser Microphone • Rosette Strain Gauge • Temperature Transducer

  14. Measurement Device Requirements • ESPA can be used on the Delta IV- Medium and the Atlas V 400 • Flight Environment data from these launch vehicles were used to establish requirements for the ELM measurement devices

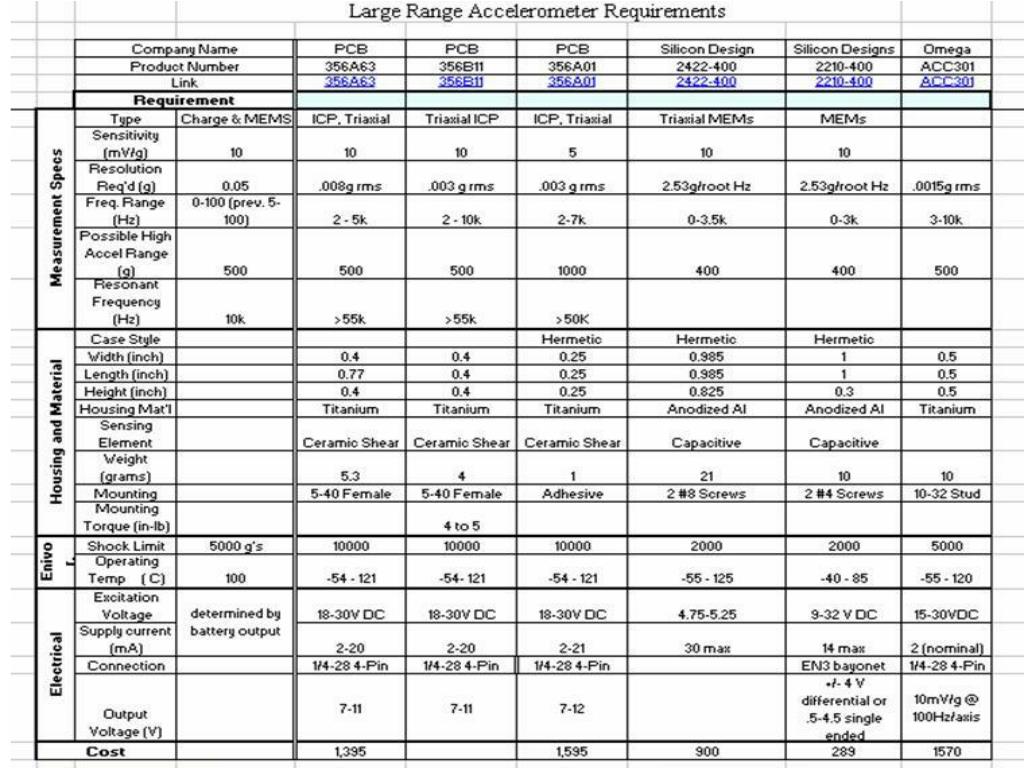

  15. Tri-Axial Accelerometers Large Range • Measures up to 500g • Measures any sudden peaks Low Range • Measures up to 50g • Resolution is much higher for subtle events

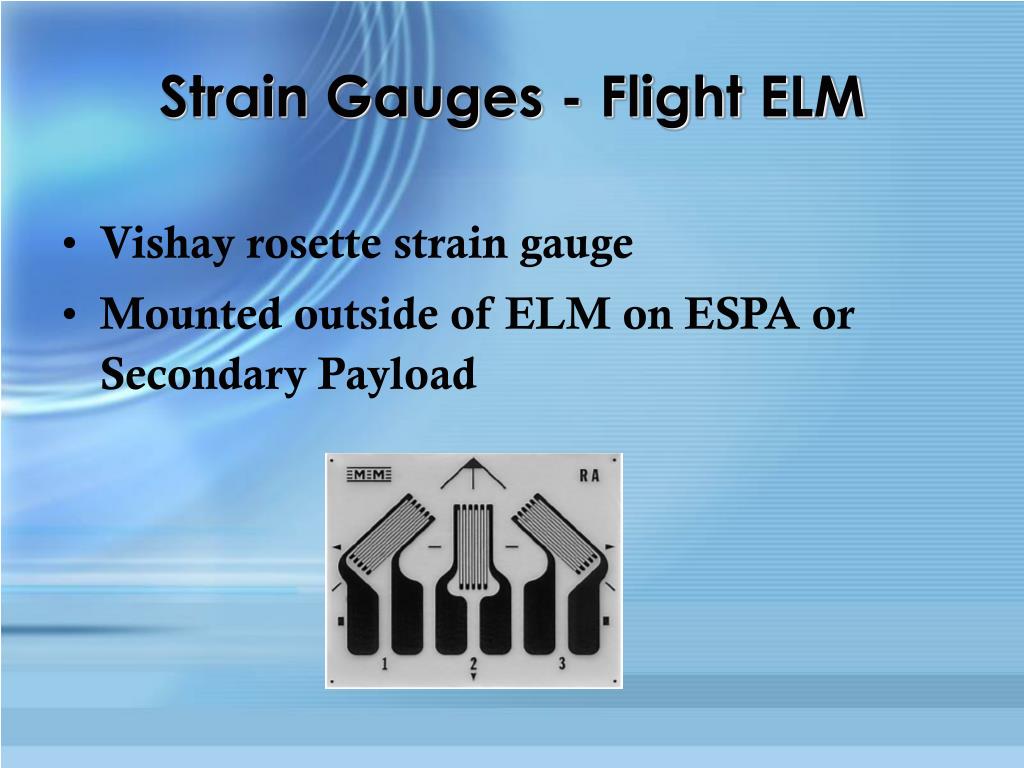

  16. Strain Gauges - Flight ELM • Vishay rosette strain gauge • Mounted outside of ELM on ESPA or Secondary Payload

  17. Strain Gauges - Prototype ELM • Vishay single strain gauges • Mounted on two cantilevered beams: 20 and 50 Hz

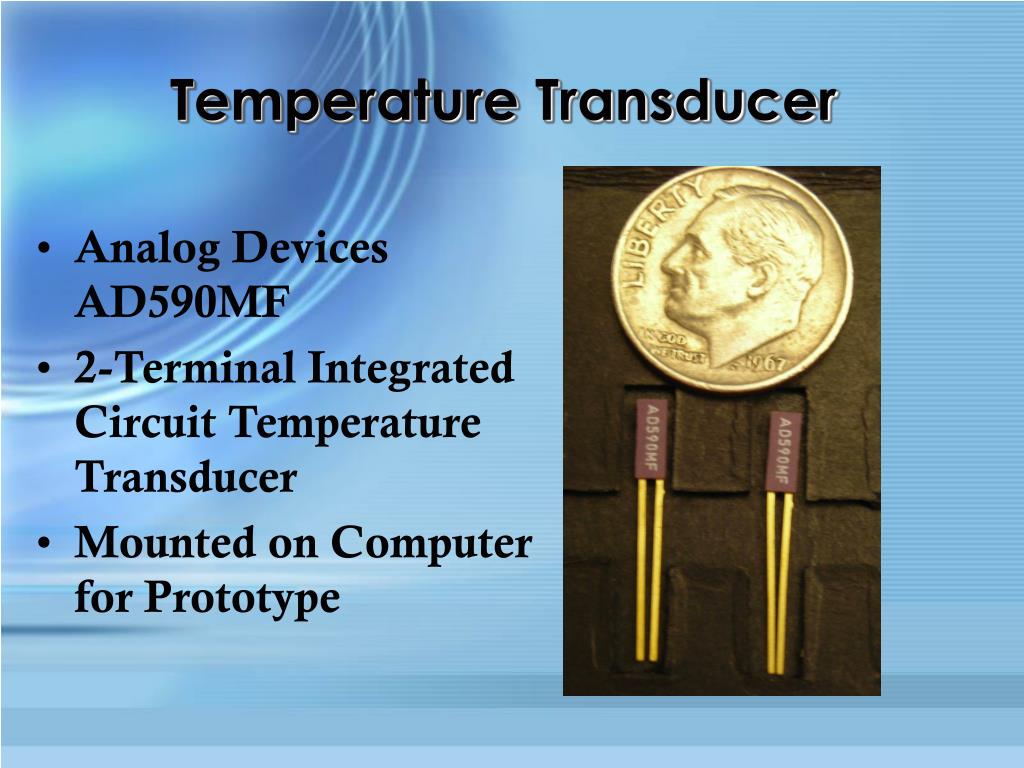

  18. Temperature Transducer • Analog Devices AD590MF • 2-Terminal Integrated Circuit Temperature Transducer • Mounted on Computer for Prototype

  19. Condenser Microphones • Optional device for the final ELM • Requires vibration isolation Pre-Amplifier PCB 426B03 Condenser Microphone PCB 377B10

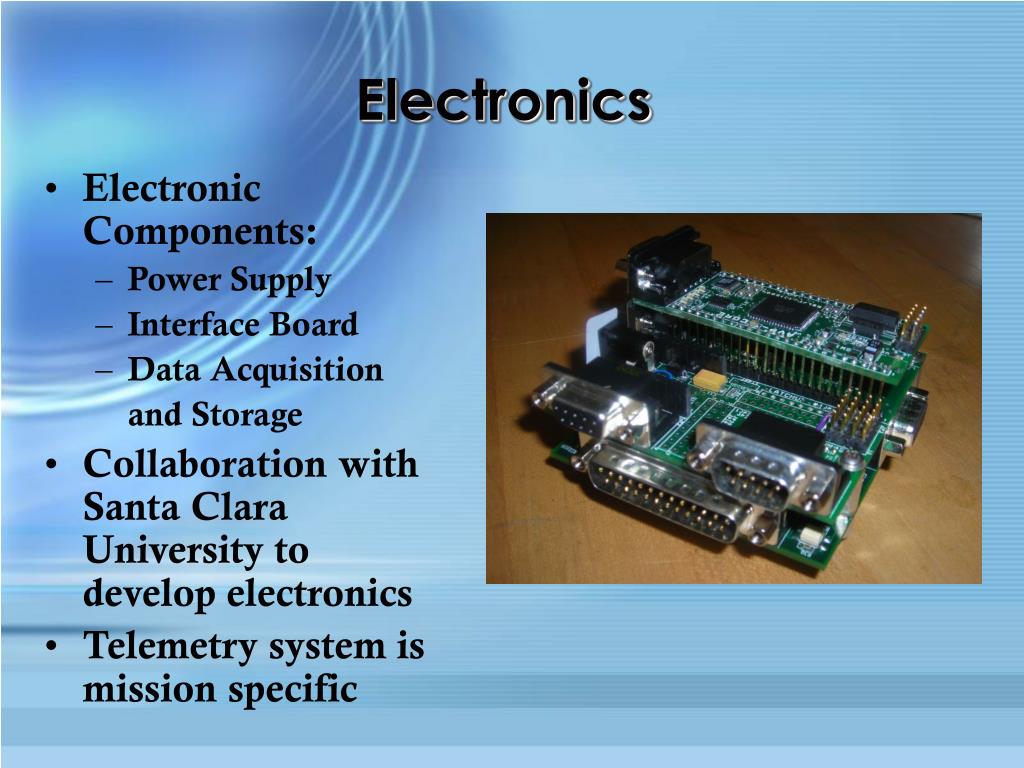

  20. Electronics • Electronic Components: • Power Supply • Interface Board • Data Acquisition and Storage • Collaboration with Santa Clara University to develop electronics • Telemetry system is mission specific

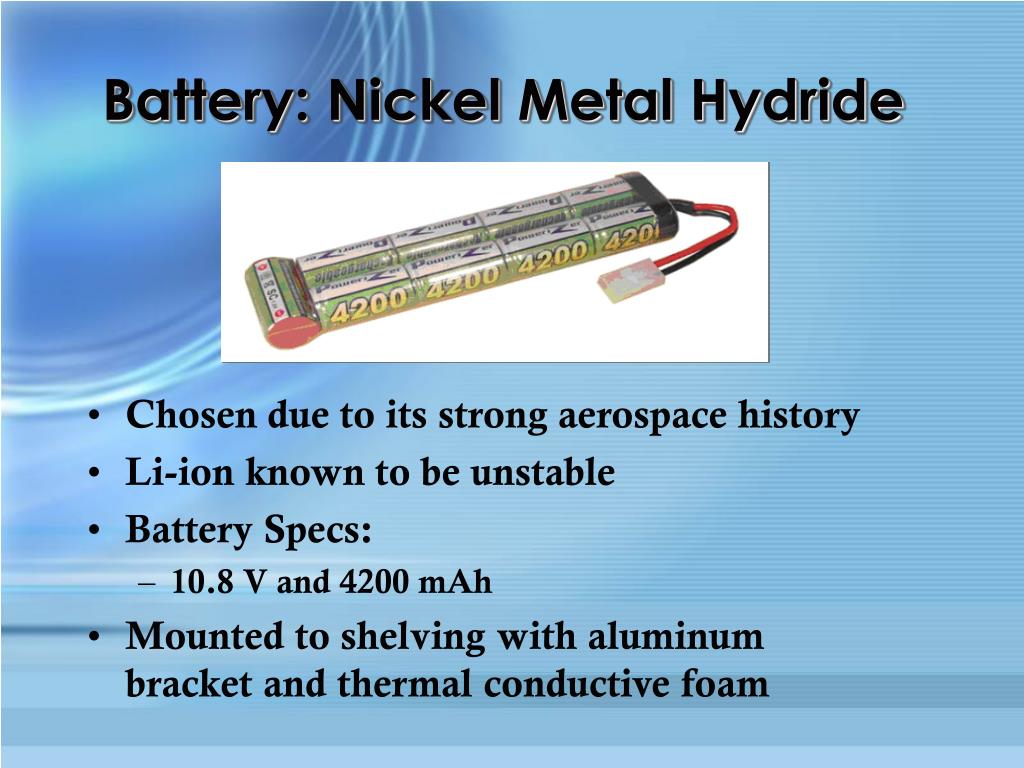

  21. Battery: Nickel Metal Hydride • Chosen due to its strong aerospace history • Li-ion known to be unstable • Battery Specs: • 10.8 V and 4200 mAh • Mounted to shelving with aluminum bracket and thermal conductive foam

  22. Structural Integrity • ELM must maintain a natural frequency above 500 Hz • ELM must remain functional under predicted loads: • 20 Hz to 2 kHz • 10 g’s lateral/axial • 14.1 g’s vectored

  23. Finite Element Analysis:Natural Frequency • Finite Element Analysis used to estimate the natural frequency • First mode of empty housing was approximately 1100 Hz • Actual natural frequency expected to be lower

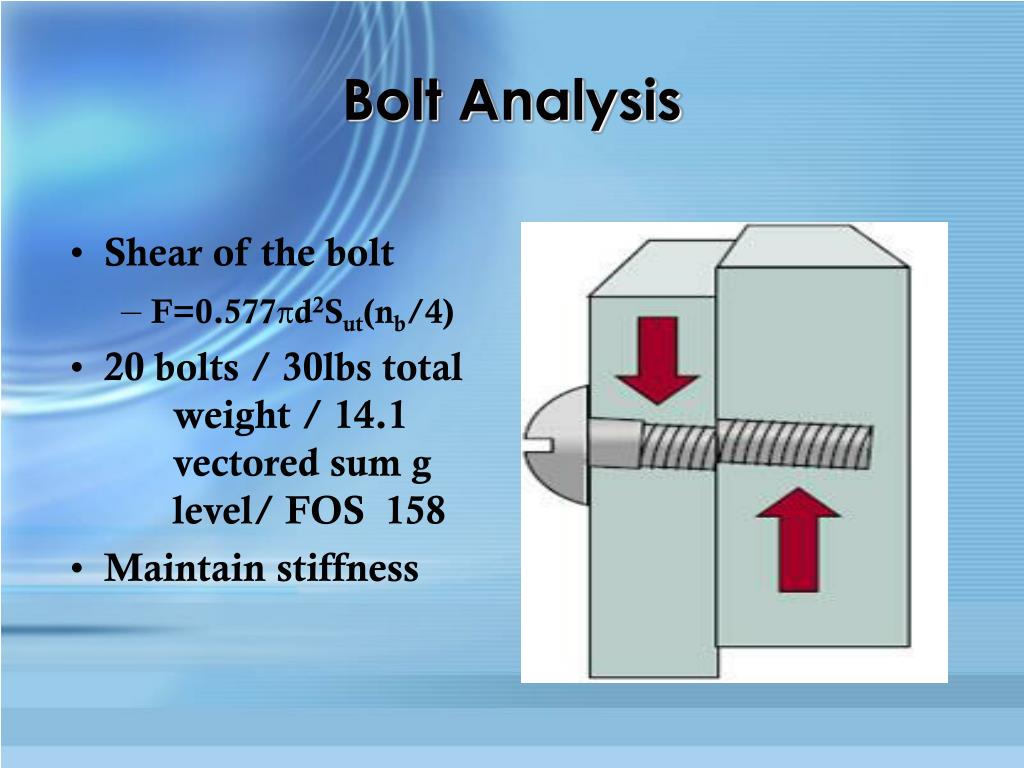

  24. Bolt Analysis • Shear of the bolt • F=0.577πd2Sut(nb/4) • 20 bolts / 30lbs total weight / 14.1 vectored sum g level/ FOS 158 • Maintain stiffness

  25. Vibration Testing • Vibration tests were completed to verify structural integrity • Random vibrations of 20 Hz to 2 kHz were applied to 3 axes • Sine sweeps were performed before and after each random test as a diagnostic

  26. Vibration Testing • 3 NTS Accelerometers • Between ELM Accelerometers • On Battery Bracket • Near the Computer

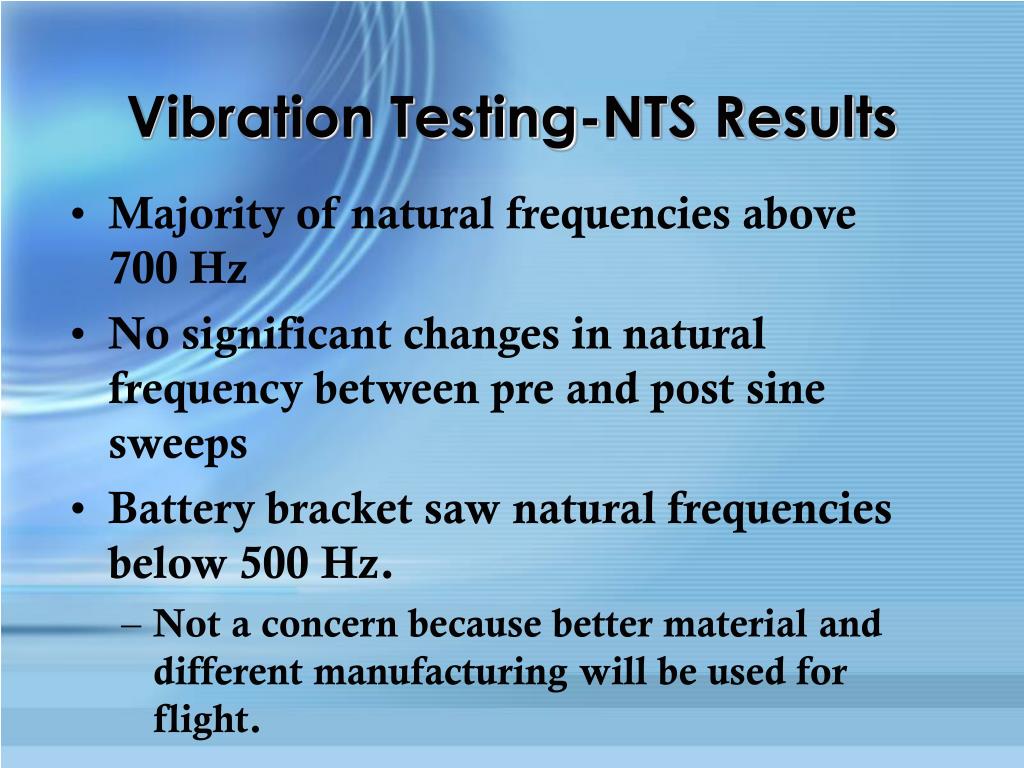

  27. Vibration Testing-NTS Results • Majority of natural frequencies above 700 Hz • No significant changes in natural frequency between pre and post sine sweeps • Battery bracket saw natural frequencies below 500 Hz. • Not a concern because better material and different manufacturing will be used for flight.

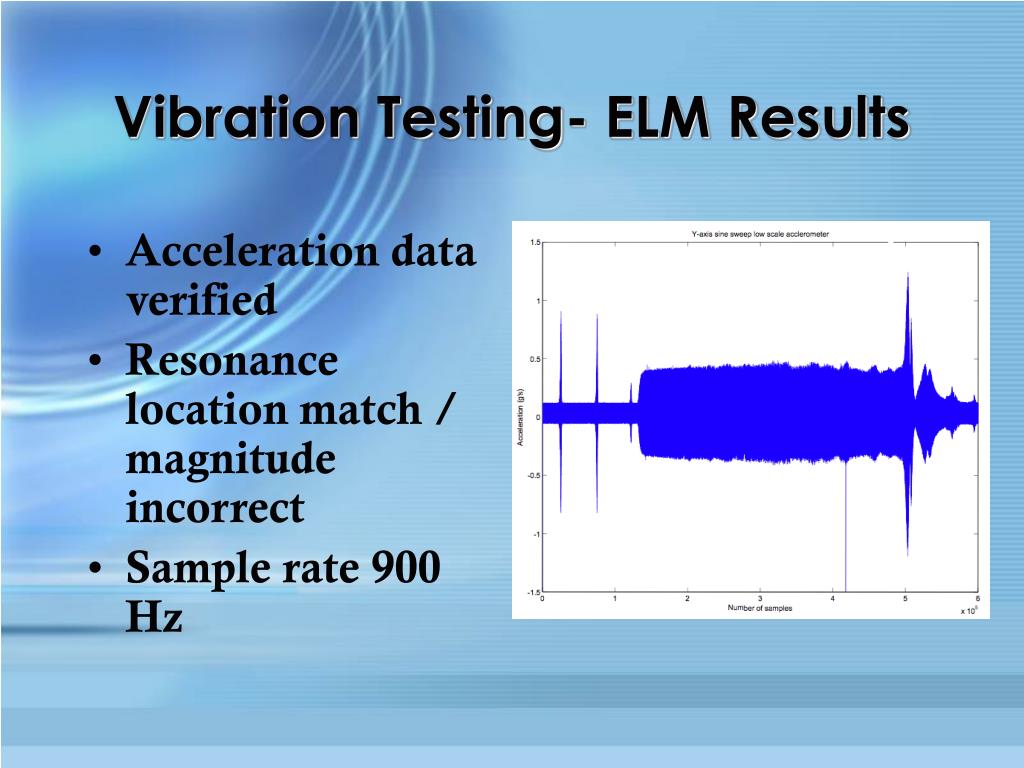

  28. Vibration Testing- ELM Results • Acceleration data verified • Resonance location match / magnitude incorrect • Sample rate 900 Hz

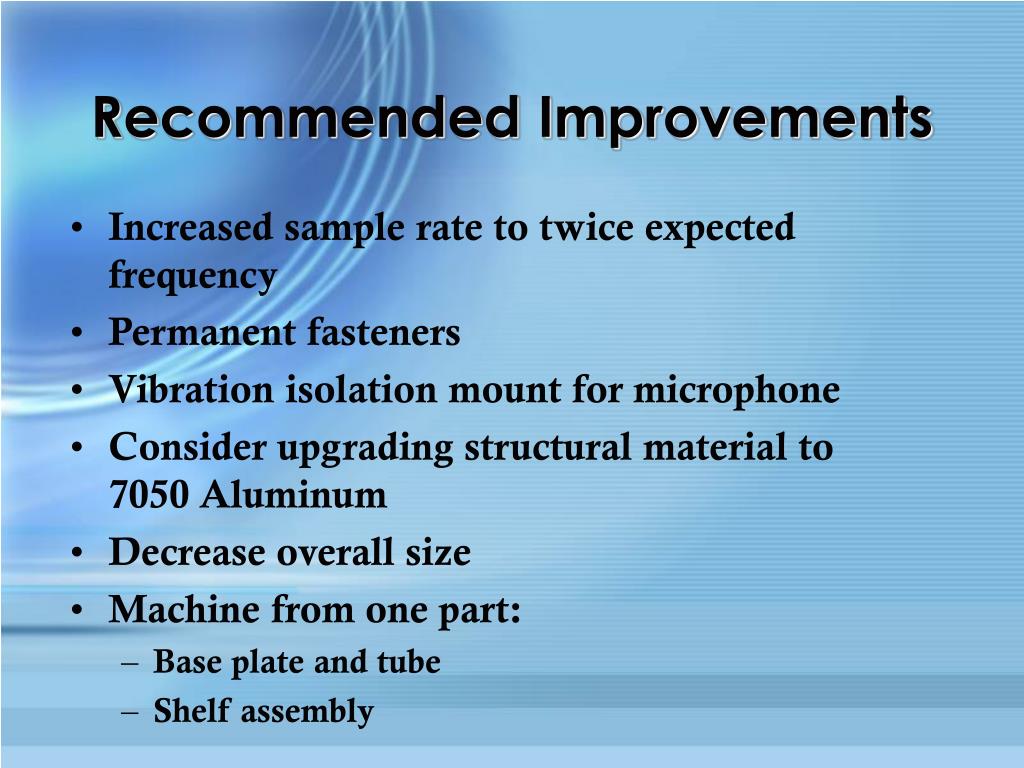

  29. Recommended Improvements • Increased sample rate to twice expected frequency • Permanent fasteners • Vibration isolation mount for microphone • Consider upgrading structural material to 7050 Aluminum • Decrease overall size • Machine from one part: • Base plate and tube • Shelf assembly

  30. Questions?
