Sock and jolie from the formal basis to a service oriented programming language part ii

Claudio Guidi and Fabrizio Montesi

SOCK and JOLIE from the formal basis to a service oriented programming language

Part II


What is jolie

What is Jolie?

Jolie is the concrete implementation of SOCK

  • simple syntax which resembles those of C and Java

  • Communication primitives

  • Workflow composition operators

  • Correlation sets for managing service sessions

  • Dynamic fault handling management

  • XML data

  • Developed for supporting different communication protocols (http, https, SOAP, WSAddressing,…)


Structure of a program

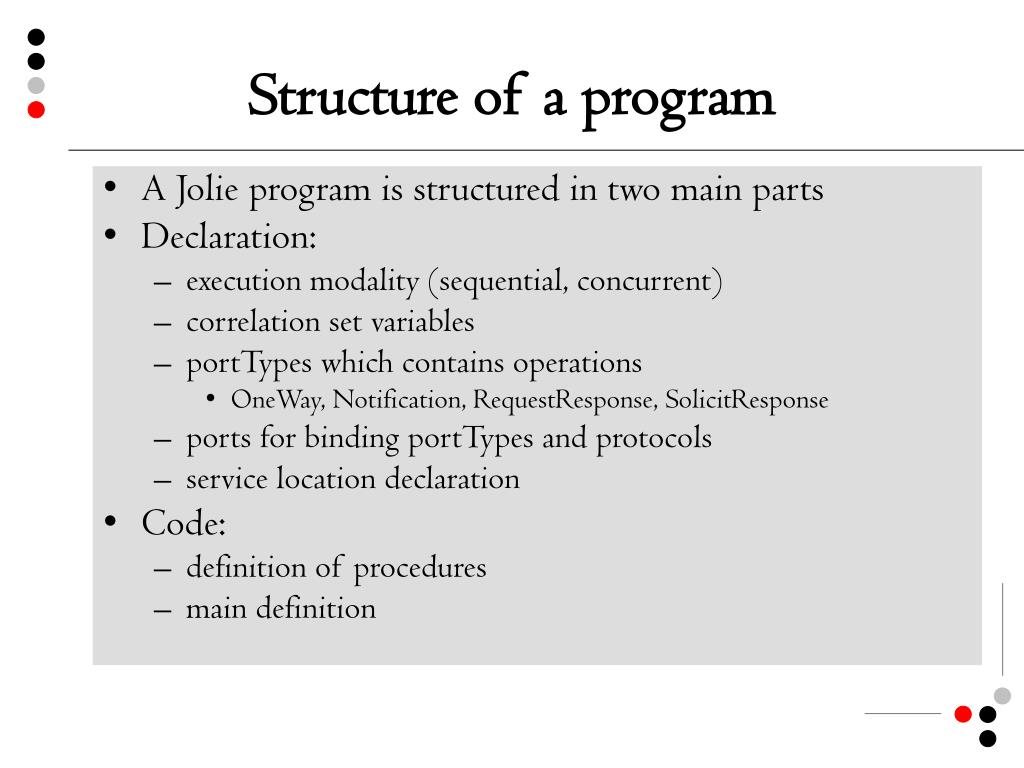

Structure of a program

  • A Jolie program is structured in two main parts

  • Declaration:

    • execution modality (sequential, concurrent)

    • correlation set variables

    • portTypes which contains operations

      • OneWay, Notification, RequestResponse, SolicitResponse

    • ports for binding portTypes and protocols

    • service location declaration

  • Code:

    • definition of procedures

    • main definition


Demo 1 stores

Demo (1: stores)

  • A store registry (SR) registers store locations

  • Three stores register themselves into the service registry: electroincs store (ES), photo store (PS) and TV store (TS)

ES

PS

SR

TS


Demo 2 bank

Demo (2: bank)

  • A bank database service (BDb) allows for the retrieving of bank service locations depending on the type (visa, master card)

  • Two bank services, visa (VB) and master cart (MC), provide operations for adding and subtracting euros from/to accounts

  • A payment service (PY) manages transactions among bank services. Each transaction between two banks corresponds to a session of the payment service

VB

PS

PS

BDb

PY

MC


Demo 3 client sessions

Demo (3: client sessions)

  • A client (C) open a session on the market service (MS) by sending its username and password checked by the market invoking an account service (AS)

  • Correlation sets allows for the identification of the client session

    • a fresh id is generated by the market

MS

C

MS

AS

logging..


Demo 4 getting product list

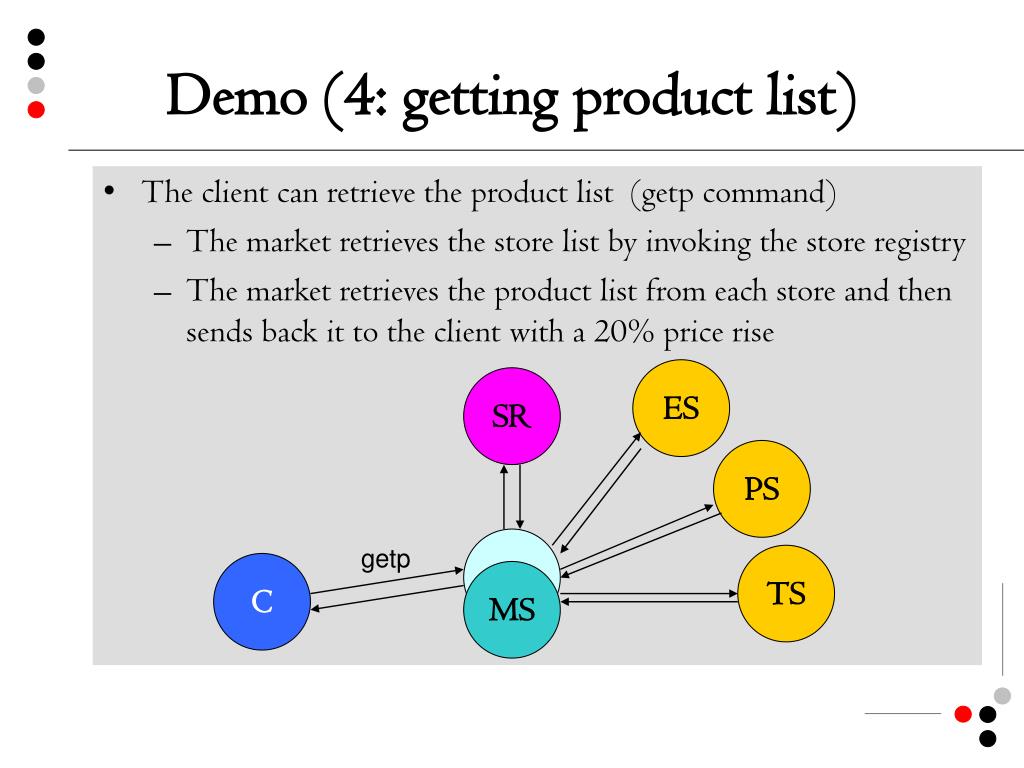

Demo (4: getting product list)

  • The client can retrieve the product list (getp command)

    • The market retrieves the store list by invoking the store registry

    • The market retrieves the product list from each store and then sends back it to the client with a 20% price rise

ES

SR

PS

PS

getp

TS

C

MS


Demo 5 the shopping cart

Demo (5: the shopping cart)

  • The shopping cart is stored within the session on the market side

  • The client manages its shopping cart by means of two commands:

    • putp: put a product into the shopping cart

    • delp: delete a product from the shopping cart

MS

MS

putp

delp

C

MS


Demo 6a buy

Demo (6a: buy)

  • The payment service waits for a confirmation from the client

  • The payment performs the transaction by invoking the bank services

  • The payment performs a transaction for each product in the shopping cart and then sends a confirmation to the market. The client checks the transaction result to the market

  • Client command for buy the shopping cart: buy.

    • The market returns the total amount to pay

    • The client sends its account data to the market

  • The market starts a transaction session on the payment service between the market and the client

  • The payment service checks the accounts invoking the bank services

VB

MS

PS

MS

PY

MC

C

MS


Demo 6b shopping cart transactions

Demo (6b: shopping cart transactions)

  • Before notifying the end of transaction to the client the market starts a transaction for each product into the shopping cart

    • it asks for the store data account

    • it starts the transaction

VB

MS

PS

MS

PY

MC

MS


Demo 7 aborting an order

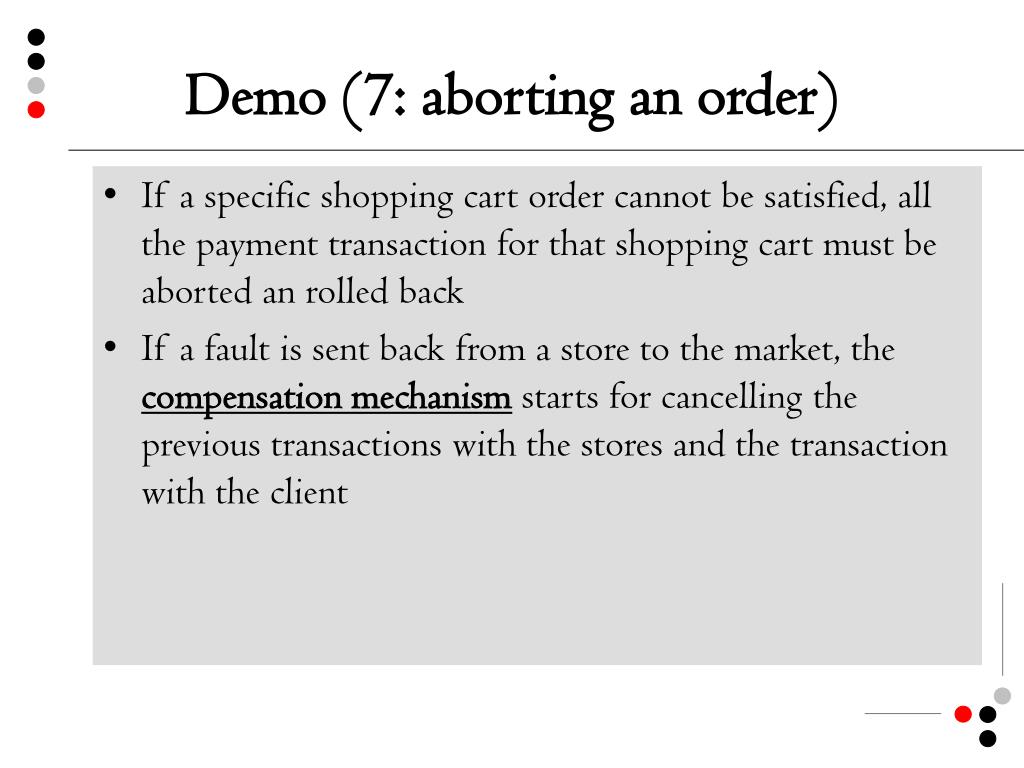

Demo (7: aborting an order)

  • If a specific shopping cart order cannot be satisfied, all the payment transaction for that shopping cart must be aborted an rolled back

  • If a fault is sent back from a store to the market, the compensation mechanism starts for cancelling the previous transactions with the stores and the transaction with the client


Conclusions

Conclusions

  • Jolie is the concrete implementation of SOCK

  • Jolie is an open source project

  • At http://sourceforge.net/jolie it is possible to download an old version of the Jolie engine

  • Next month we start up a company, italianaSoftware , for commercializing Jolie

  • Version 1.0 scheduled for the end of the summer
