Seminarium onComponent-based Software Engineering

Callbacks and

object re-entrance

Marcello Bonsangue

LIACS – Leiden University

Fall 2004

libraries
Libraries
  • A library is a collection of procedures
  • It is always the client to call the library
  • Library operations run to completion before returning control

Only states before and after a call are relevant to clients, library intermediate states are not observable

Seminarium CBSE

callbacks
Callbacks
  • A callback is a procedure that can be registered to a library so that the library can call it back
    • Example: registration of client code to be called when library catch user events
  • They are a mechanism for extensibility
  • Callbacks operate on the intermediate state of a library!!

Seminarium CBSE

callback message sequence chart

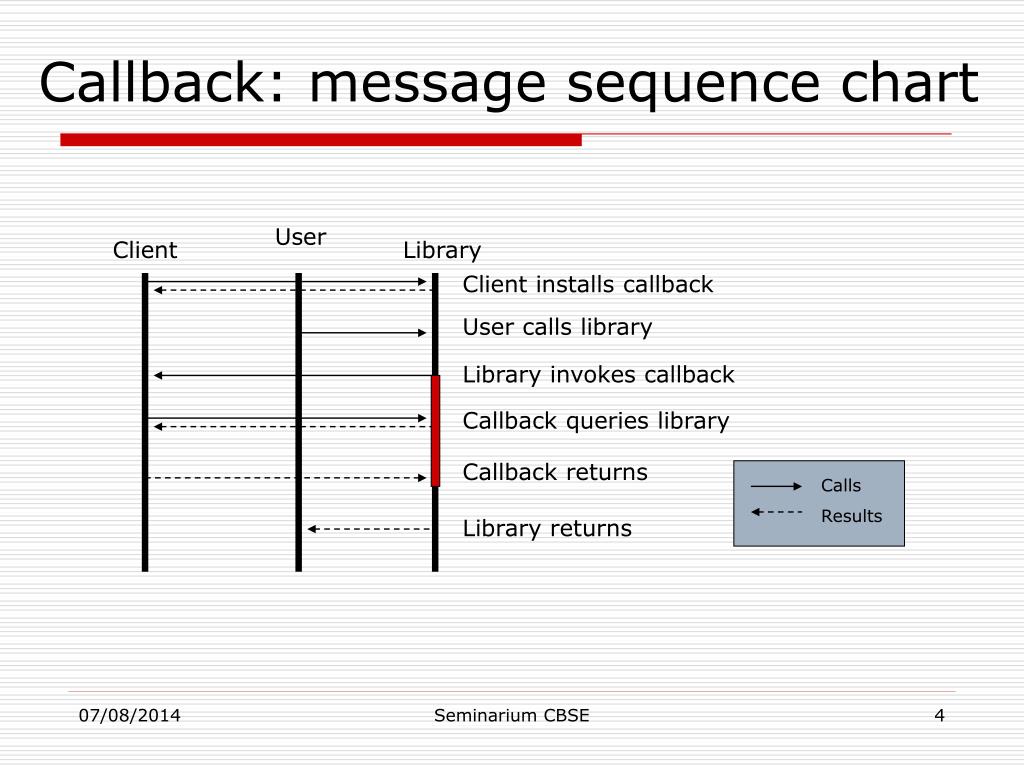

Callback: message sequence chart

User

Client

Library

Client installs callback

User calls library

Library invokes callback

Callback queries library

Callback returns

Calls

Results

Library returns

Seminarium CBSE

a directory service example
A Directory service example

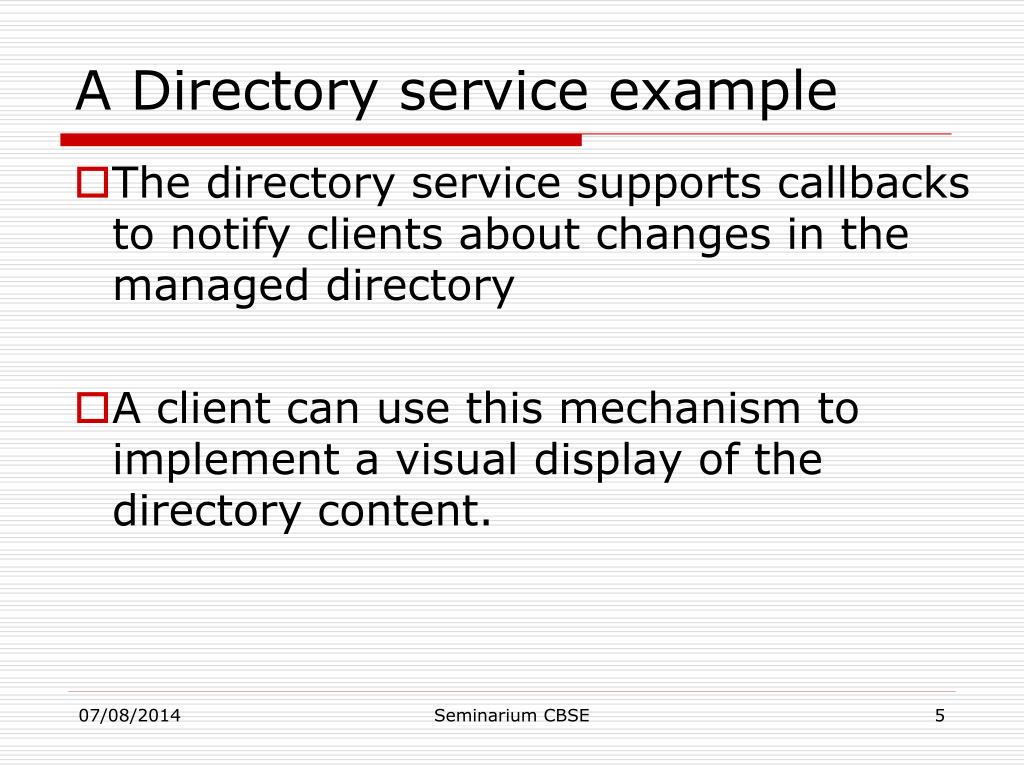

  • The directory service supports callbacks to notify clients about changes in the managed directory
  • A client can use this mechanism to implement a visual display of the directory content.

Seminarium CBSE

the directory service details
LIBRARY Directory

Name=ARRAY OF CHAR;

Notifier=PROCEDURE(IN name:Name);

PROCEDURE ThisFile(n:Name): Files.File;

(*pre n <>“” *)

(*post result=file named n OR (result=NIL and no such file *)

PROCEDURE addEntry(n:Name,f:Files.File);

(* pre n<>“” and f<>NIL *)

(* post ThisFile(n)=f *)

PROCEDURE RemoveEntry(n:Name);

(* pre n<>”” *)

(* post ThisFile(n)=NIL *)

PROCEDURE RegisterNotifier(n:Notifier);

(* pre n<>NIL *)

(* post n registered, will be called on AddEntry and RemoveEntry *)

PROCEDURE UnregisterNotifier(n:Notifier);

(* pre n<>NIL *)

(* post n unregistered, will not be called anymore *);

DirectoryDisplay (V 1.0)

IMPORT Directory;

PROCEDURE Notifer(IN n:DirectoryName);

BEGIN

IF Directory.ThisFile(n) = NIL THEN

(*entry under name n has been removed –

delete n in display *)

ELSE

(* entry has been added under name n – include n in display *)

END Notifier;

BEGIN

Directory.RegisterNotifier(Notifier);

END

The Directory service details

Seminarium CBSE

the directory contract ambiguity

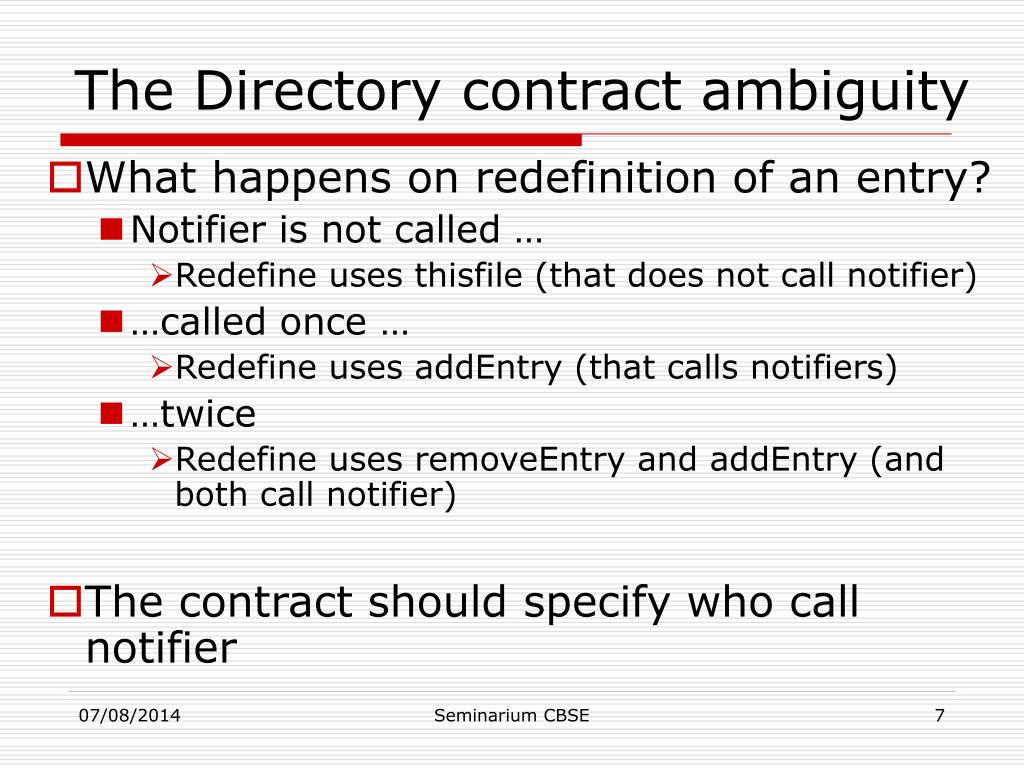

The Directory contract ambiguity
  • What happens on redefinition of an entry?
    • Notifier is not called …
      • Redefine uses thisfile (that does not call notifier)
    • …called once …
      • Redefine uses addEntry (that calls notifiers)
    • …twice
      • Redefine uses removeEntry and addEntry (and both call notifier)
  • The contract should specify who call notifier

Seminarium CBSE

the directory contract ambiguity1

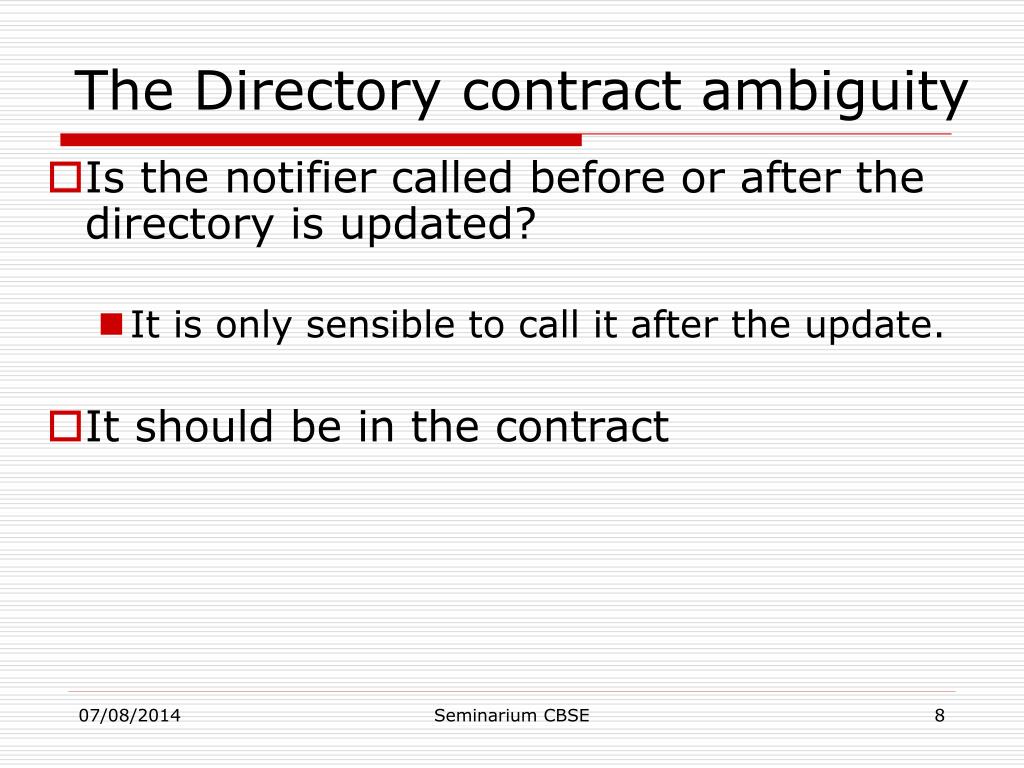

The Directory contract ambiguity
  • Is the notifier called before or after the directory is updated?
    • It is only sensible to call it after the update.
  • It should be in the contract

Seminarium CBSE

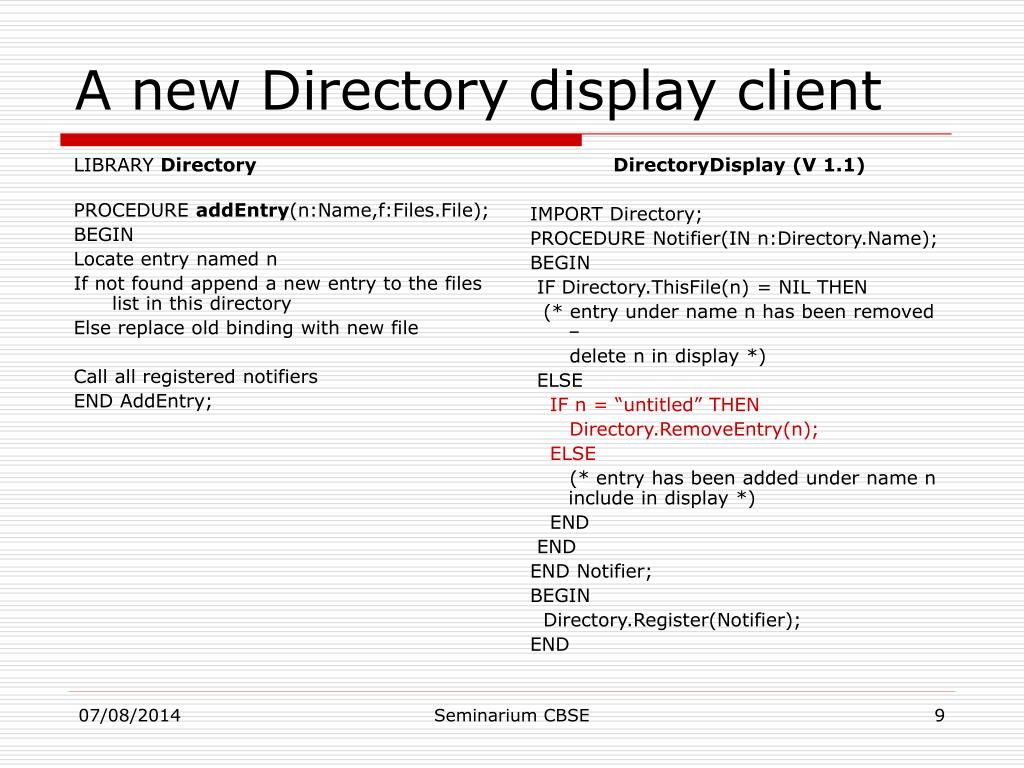

a new directory display client
LIBRARY Directory

PROCEDURE addEntry(n:Name,f:Files.File);

BEGIN

Locate entry named n

If not found append a new entry to the files list in this directory

Else replace old binding with new file

Call all registered notifiers

END AddEntry;

DirectoryDisplay (V 1.1)

IMPORT Directory;

PROCEDURE Notifier(IN n:Directory.Name);

BEGIN

IF Directory.ThisFile(n) = NIL THEN

(* entry under name n has been removed –

delete n in display *)

ELSE

IF n = “untitled” THEN

Directory.RemoveEntry(n);

ELSE

(* entry has been added under name n include in display *)

END

END

END Notifier;

BEGIN

Directory.Register(Notifier);

END

A new Directory display client

Seminarium CBSE

broken contract
Broken contract
  • Request of a user to create file “untitled”
  • Notifier() is called by the directory
  • File is removed by Notifier()
  • The AddEntry() post condition

ThisFile(“Untitled”)=f

is broken

DirectoryDisplay

User

Directory

RegisterNotifier(Notifier)

AddEntry(“Untitled”,f)

Notifier(“Untitled”)

ThisFile(“Untitled”)

RemoveEntry(“Untitled”)

Notifier(“Untitled”)

ThisFile(“Untitled”)

Notifier returns

RemoveEntry returns

Notifier returns

AddEntry returns

Seminarium CBSE

what is the problem

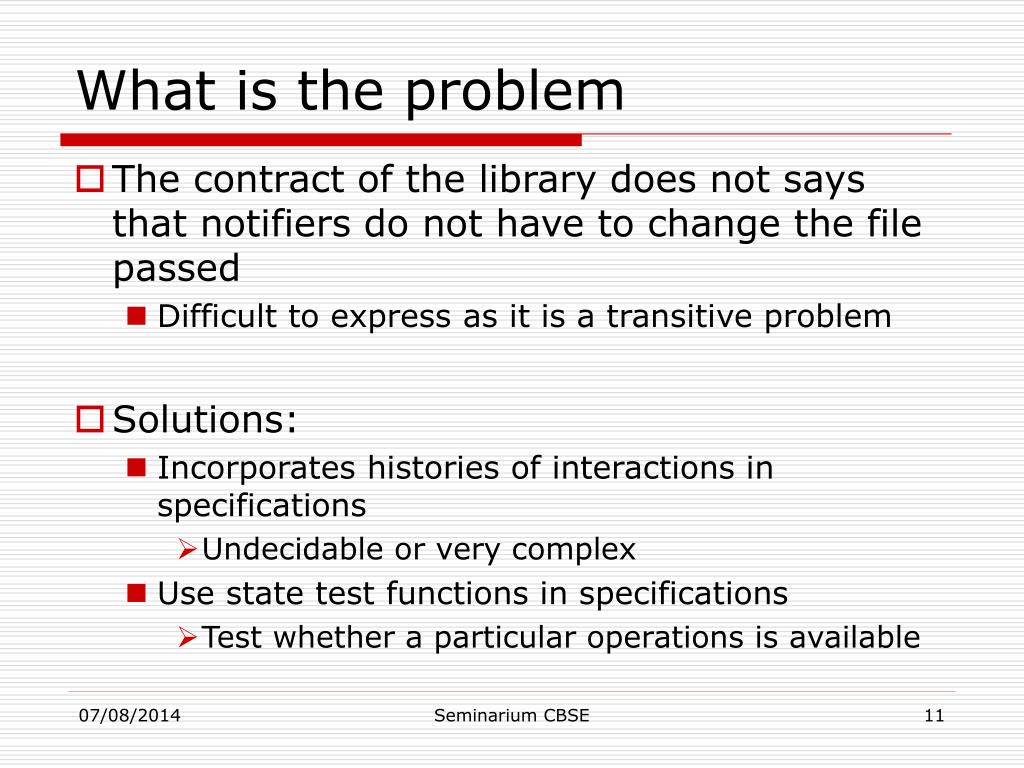

What is the problem
  • The contract of the library does not says that notifiers do not have to change the file passed
    • Difficult to express as it is a transitive problem
  • Solutions:
    • Incorporates histories of interactions in specifications
      • Undecidable or very complex
    • Use state test functions in specifications
      • Test whether a particular operations is available

Seminarium CBSE

test functions

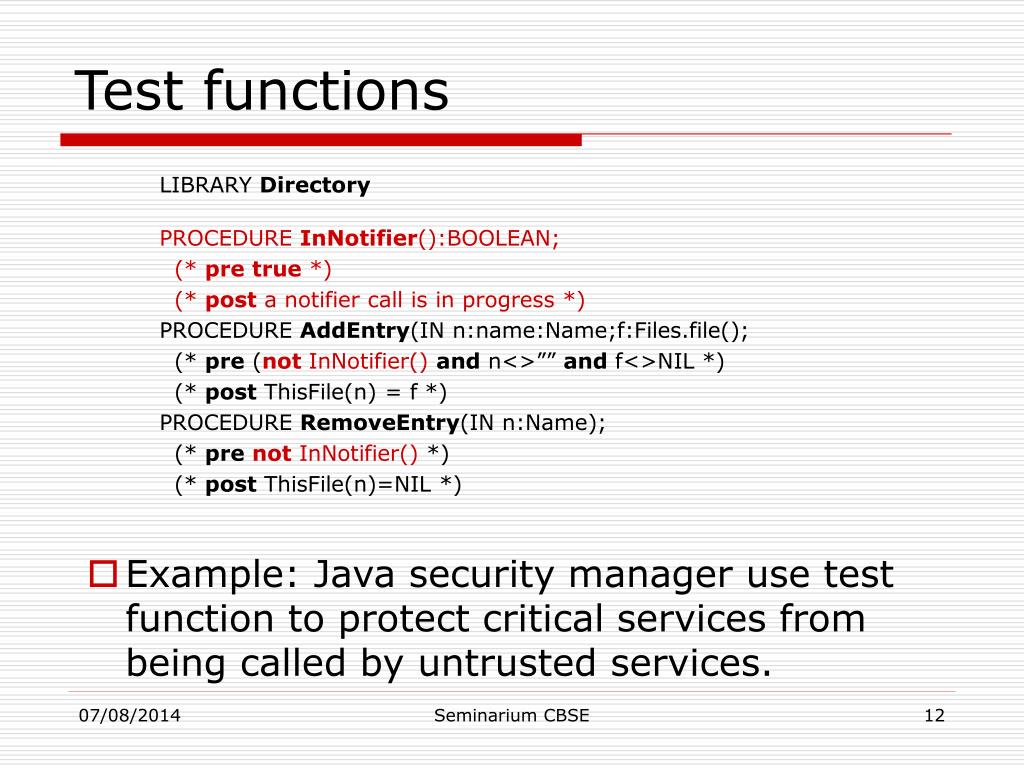

Example: Java security manager use test function to protect critical services from being called by untrusted services.

LIBRARY Directory

PROCEDURE InNotifier():BOOLEAN;

(* pre true *)

(* post a notifier call is in progress *)

PROCEDURE AddEntry(IN n:name:Name;f:Files.file();

(* pre (not InNotifier()and n<>”” and f<>NIL *)

(* post ThisFile(n) = f *)

PROCEDURE RemoveEntry(IN n:Name);

(* pre not InNotifier() *)

(* post ThisFile(n)=NIL *)

Test functions

Seminarium CBSE

callbacks in objects
Callbacks in objects

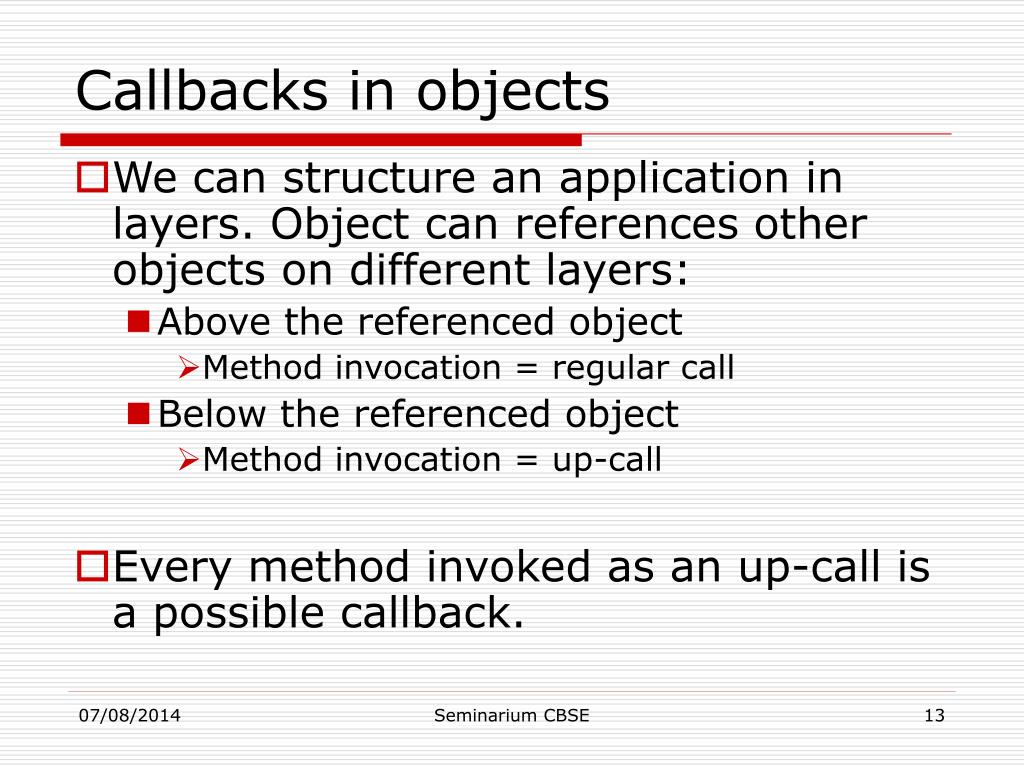

  • We can structure an application in layers. Object can references other objects on different layers:
    • Above the referenced object
      • Method invocation = regular call
    • Below the referenced object
      • Method invocation = up-call
  • Every method invoked as an up-call is a possible callback.

Seminarium CBSE

a text processing example

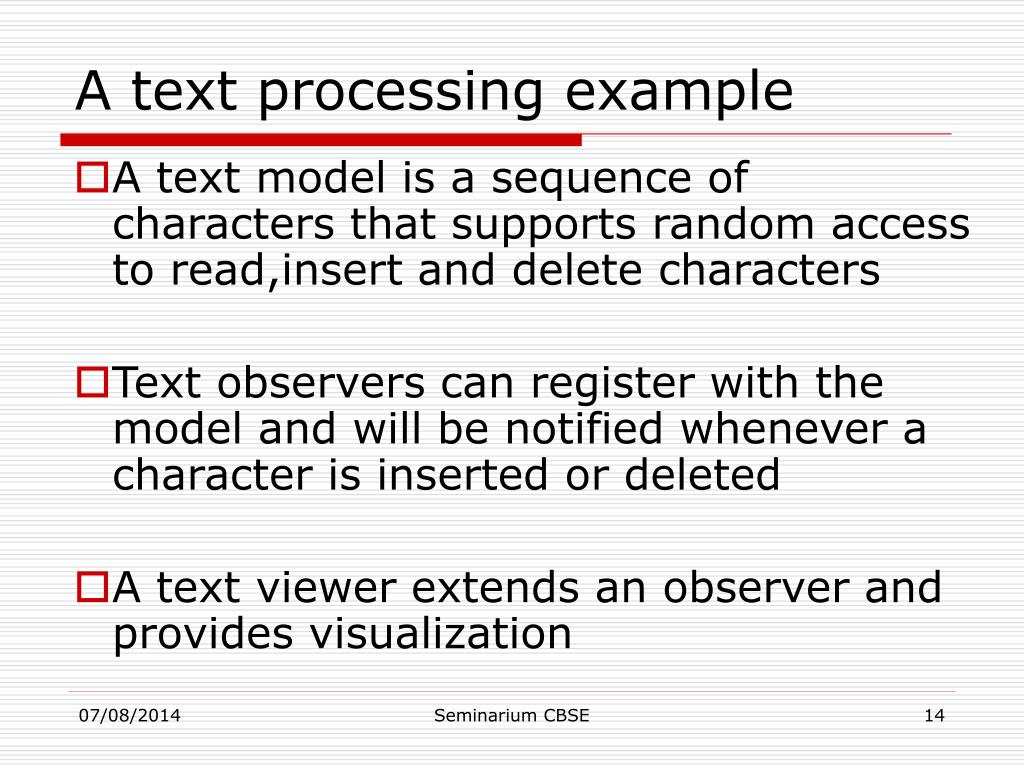

A text processing example
  • A text model is a sequence of characters that supports random access to read,insert and delete characters
  • Text observers can register with the model and will be notified whenever a character is inserted or deleted
  • A text viewer extends an observer and provides visualization

Seminarium CBSE

the textmodel
INTERFACE TextModel

method write(int pos,char ch);

//[len:int;txt:array of char;

//pre len=this.length();

(all i:0<=i<len:txt[i]:=this.read(i)) and

len< this.max() and 0<=pos<=len

//post this.length() = len +1

and (all i:0<=i<=len:this.read(i):=txt[i])

and this.read(pos) = ch

and (all i: pos<=i<=this.length(): this.read(i)=txt[i-1]

method delete(int pos);

// delete char at pos pos and shift all successive char back to one

method max(): int;

//pre true

//post result=maximum length this text instance can have

method length():int

//pre true

//post 0<=result<=this.max() and result=length of text

method read(int pos):char;

//pre 0<=pos<=this.length()

//post result=character at position pos

method register(TextObserver x);

method unregister(TextObserver x);

The TextModel

Seminarium CBSE

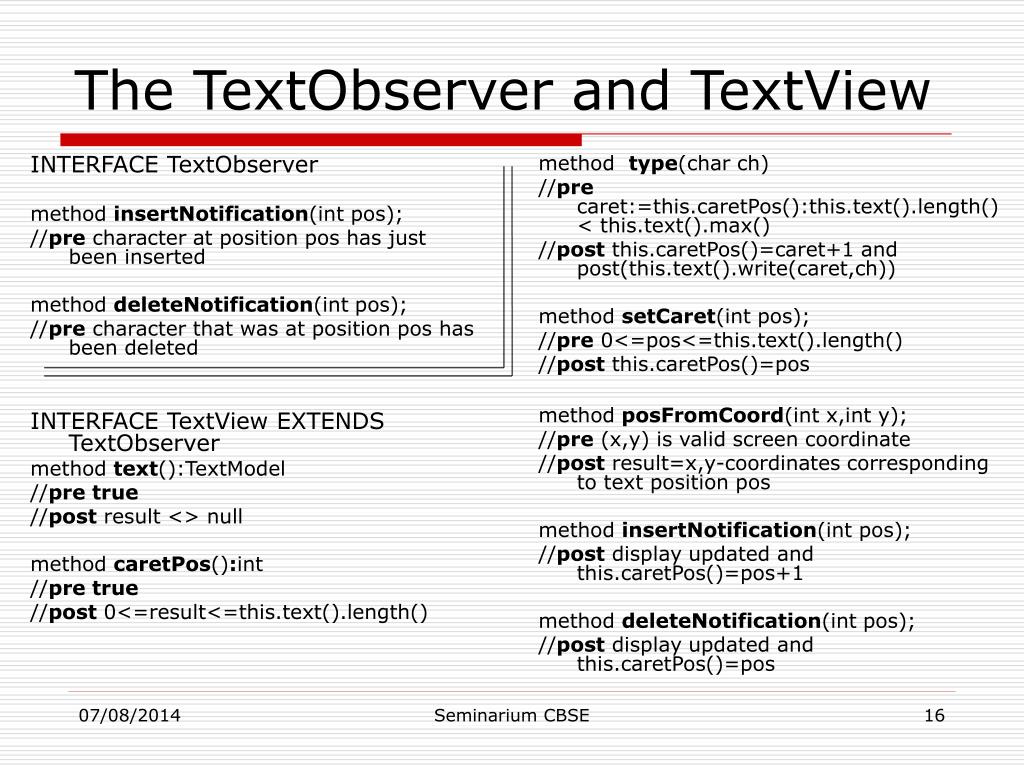

the textobserver and textview
INTERFACE TextObserver

method insertNotification(int pos);

//pre character at position pos has just been inserted

method deleteNotification(int pos);

//pre character that was at position pos has been deleted

INTERFACE TextView EXTENDS TextObserver

method text():TextModel

//pre true

//post result <> null

method caretPos():int

//pre true

//post 0<=result<=this.text().length()

method type(char ch)

//pre caret:=this.caretPos():this.text().length() < this.text().max()

//post this.caretPos()=caret+1 and post(this.text().write(caret,ch))

method setCaret(int pos);

//pre 0<=pos<=this.text().length()

//post this.caretPos()=pos

method posFromCoord(int x,int y);

//pre (x,y) is valid screen coordinate

//post result=x,y-coordinates corresponding to text position pos

method insertNotification(int pos);

//post display updated and this.caretPos()=pos+1

method deleteNotification(int pos);

//post display updated and this.caretPos()=pos

The TextObserver and TextView

Seminarium CBSE

inserting a character

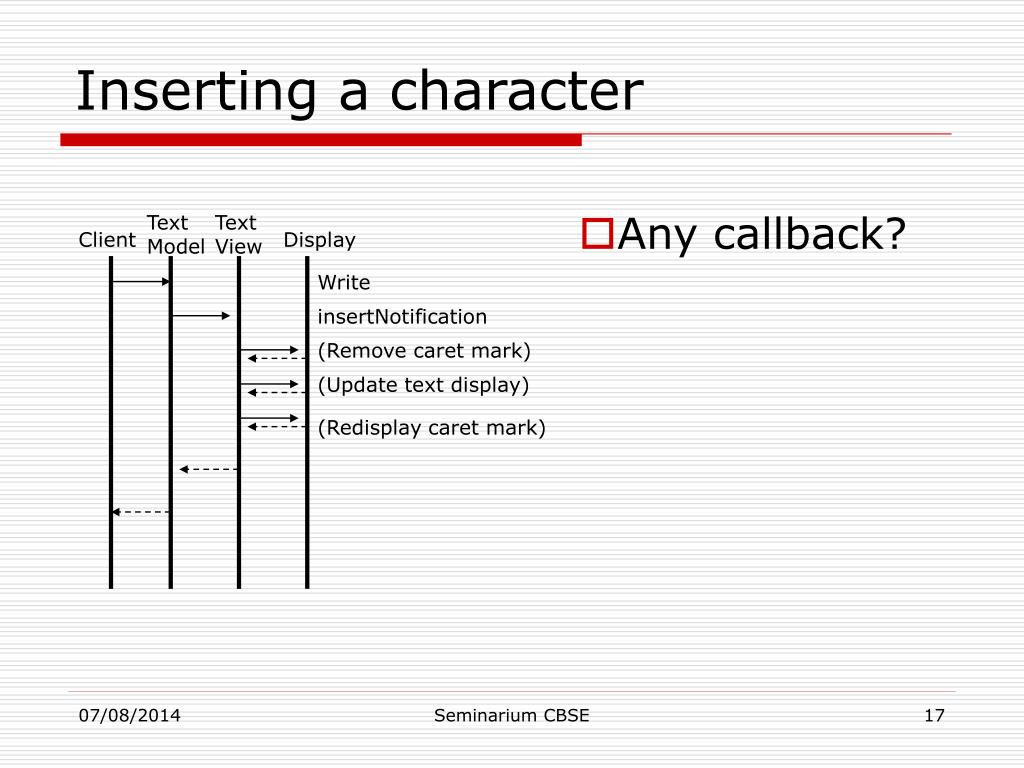

Inserting a character

Text Model

Text View

  • Any callback?

Client

Display

Write

insertNotification

(Remove caret mark)

(Update text display)

(Redisplay caret mark)

Seminarium CBSE

inserting a character revised

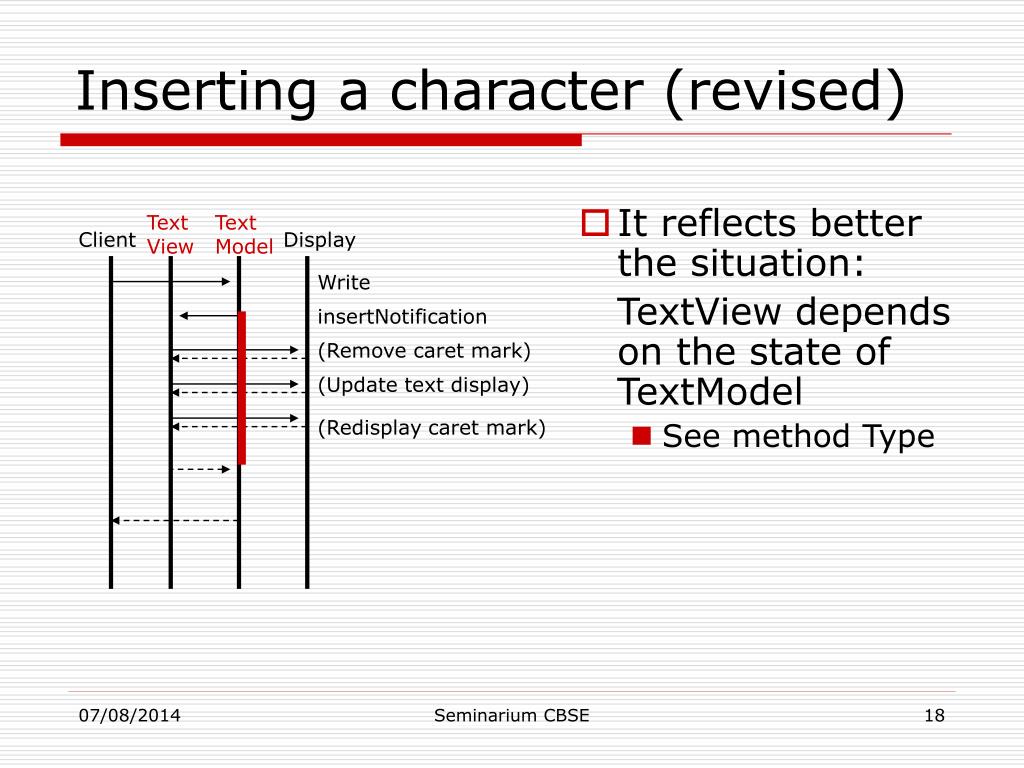

Inserting a character (revised)
  • It reflects better the situation:

TextView depends on the state of TextModel

    • See method Type

Text View

Text Model

Client

Display

Write

insertNotification

(Remove caret mark)

(Update text display)

(Redisplay caret mark)

Seminarium CBSE

inter object consistency
Inter-object consistency

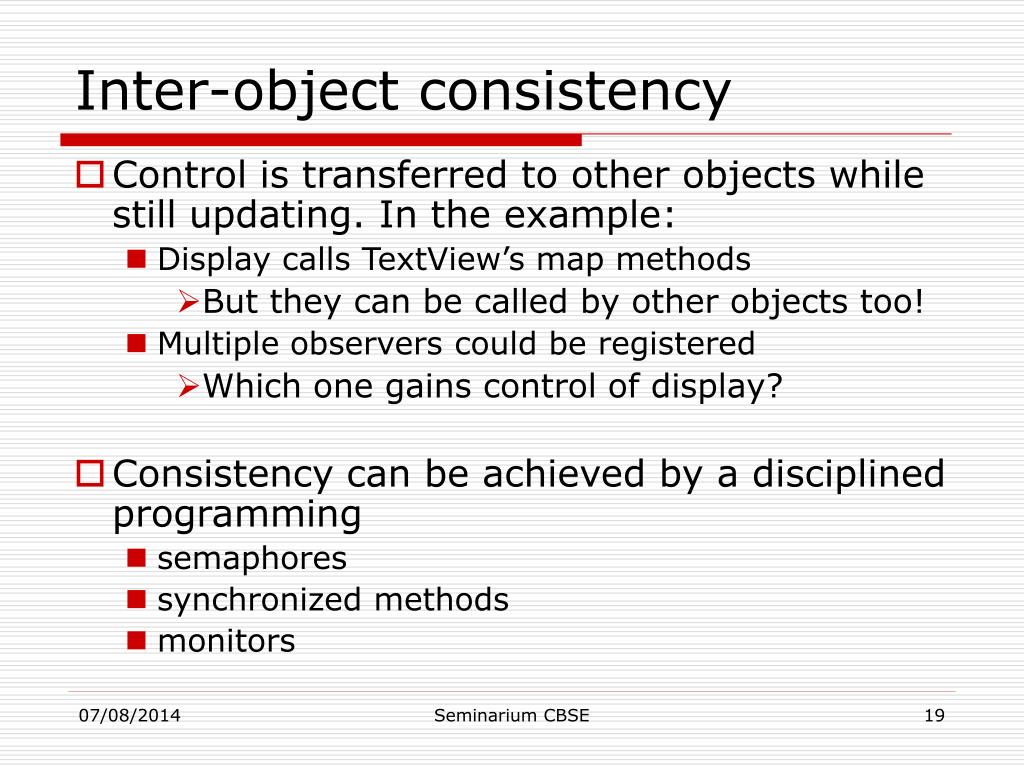

  • Control is transferred to other objects while still updating. In the example:
    • Display calls TextView’s map methods
      • But they can be called by other objects too!
    • Multiple observers could be registered
      • Which one gains control of display?
  • Consistency can be achieved by a disciplined programming
    • semaphores
    • synchronized methods
    • monitors

Seminarium CBSE

intra object consistency
Intra-object consistency

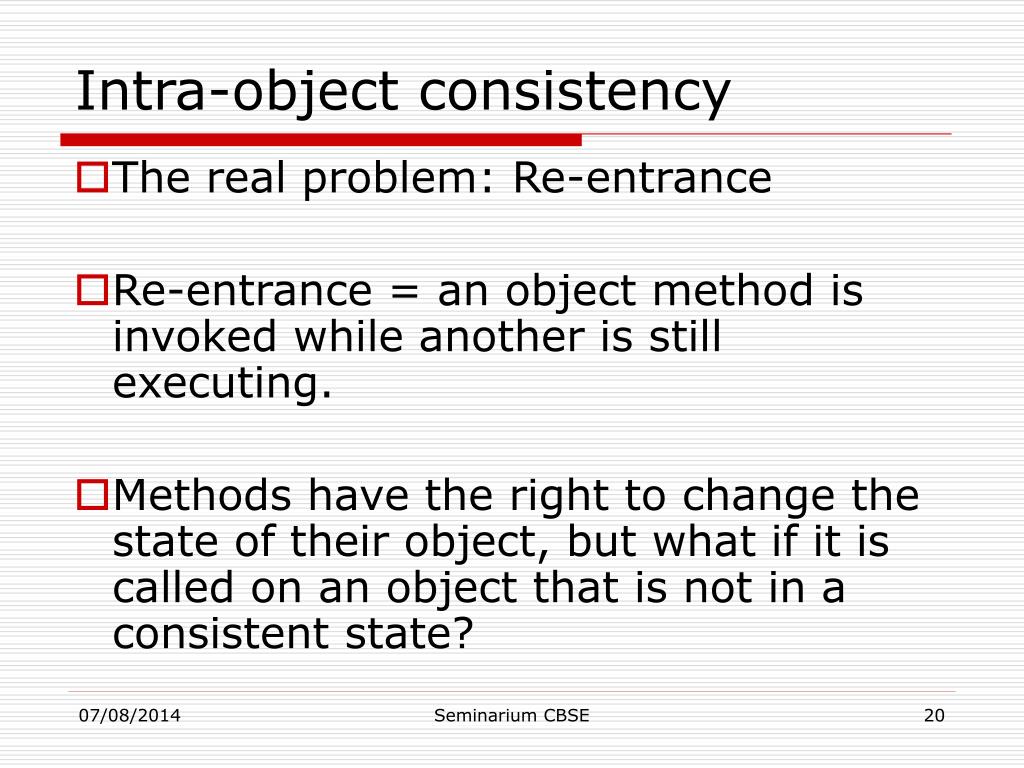

  • The real problem: Re-entrance
  • Re-entrance = an object method is invoked while another is still executing.
  • Methods have the right to change the state of their object, but what if it is called on an object that is not in a consistent state?

Seminarium CBSE

object re entrance
Class Repository

mystore :Store

max = 100

method register(store)

mystore:= store

method add (elm)

if store.check(max) then

// code for adding elm to repository

Object re-entrance

Class Store

var size:Int := 0

rep :Repository

method insert(elm int);

size:= size+1

rep.add(elm)

method check (max)

if size < max return true

method notify(repository:Repository):Store

rep:= repository

rep.register(self)

Display

myStore

User

Notify(myrepository)

Insert(elm)

(add(elm)

check(max)

(Redisplay caret mark)

Seminarium CBSE

re entrance continued
Re-entrance (continued)
  • MyStore in in inconsistent state when the message check(max) is received
  • Obvious solution:
    • Switch the command lines

size:= size+1

rep.add(elm)

in the code of method insert(elm int)

  • It requires inspection of code, but components must be independently verifiable based on their contracts at interfaces

Seminarium CBSE

self interference re entrance
Self-interference & re-entrance
  • Leads to inconsistent object state
  • Re-entrance is necessary
    • Recursive calls (direct or indirect)
  • As for callbacks it can be addressed by:
    • Introducing test functions for clients
    • Adding time-stamps to the state
    • Allowing histories of communication in specification
    • Not using method invocation

Seminarium CBSE

multithreading and re entrance
Multithreading and re-entrance

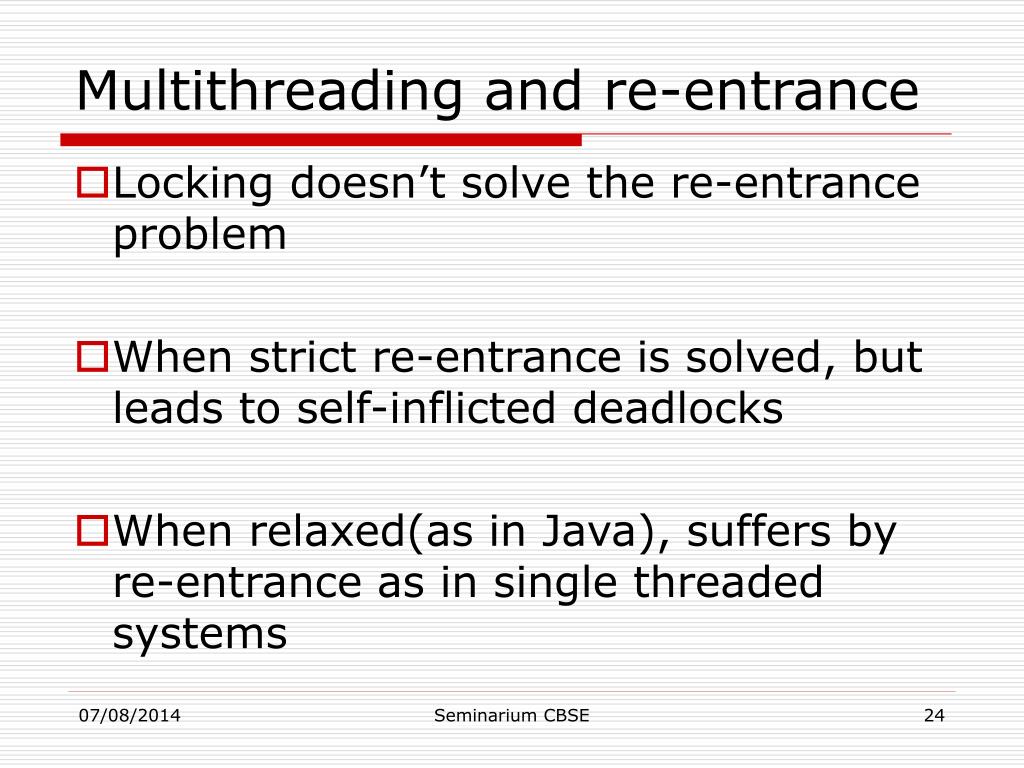

  • Locking doesn’t solve the re-entrance problem
  • When strict re-entrance is solved, but leads to self-inflicted deadlocks
  • When relaxed(as in Java), suffers by re-entrance as in single threaded systems

Seminarium CBSE

histories
Histories
  • Alternative to specification contracts
  • Histories are sequences of messages
  • Restricting the permissible traces we can get valid state transitions
  • Permissible traces are hard to be checked dynamically

Seminarium CBSE

without method invocation
Without method invocation
  • Explicit dependencies between state and events
    • Remember UML state machine

obj!recall(book)

obj?borrow(book)

book on the shelf

book on loan by obj

obj?return(book)

Seminarium CBSE

ad
