  1. Efficient Runahead Execution ProcessorsA Power-Efficient Processing Paradigm forTolerating Long Main Memory Latencies Onur Mutlu PhD Defense 4/28/2006

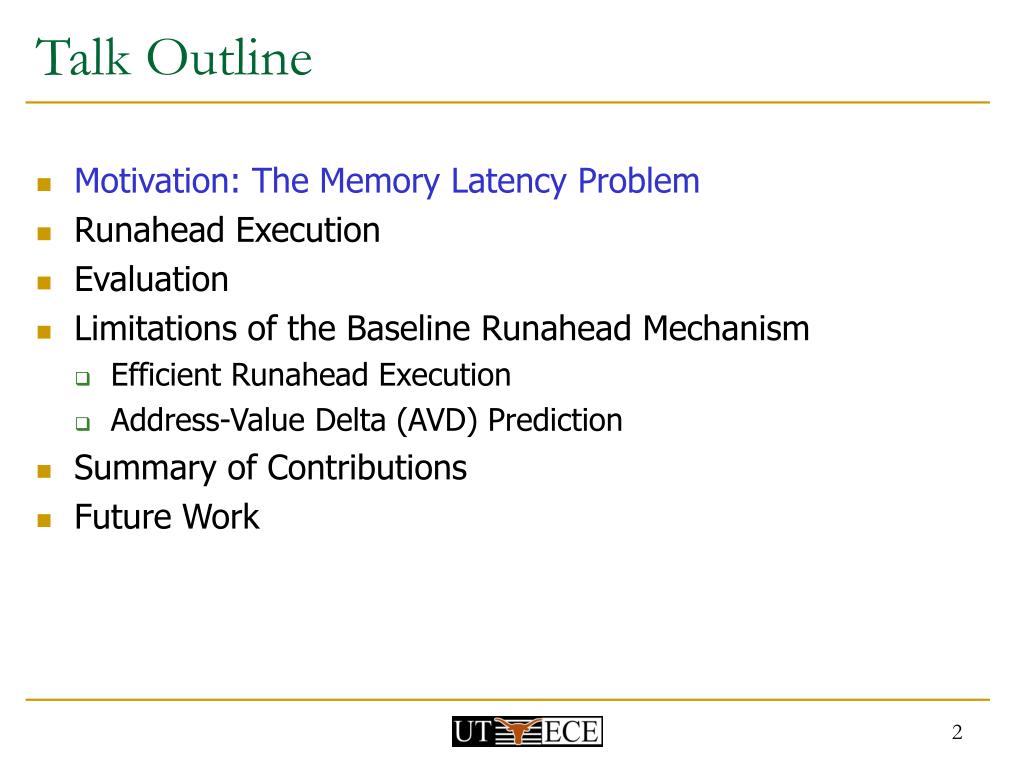

  2. Talk Outline • Motivation: The Memory Latency Problem • Runahead Execution • Evaluation • Limitations of the Baseline Runahead Mechanism • Efficient Runahead Execution • Address-Value Delta (AVD) Prediction • Summary of Contributions • Future Work

  3. Motivation • Memory latency is very long in today’s processors • CDC 6600: 10 cycles [Thornton, 1970] • Alpha 21264: 120+ cycles [Wilkes, 2001] • Intel Pentium 4: 300+ cycles [Sprangle & Carmean, 2002] • And, it continues to increase (in terms of processor cycles) • DRAM latency is not reducing as fast as processor cycle time • Conventional techniques to tolerate memory latency do not work well enough.

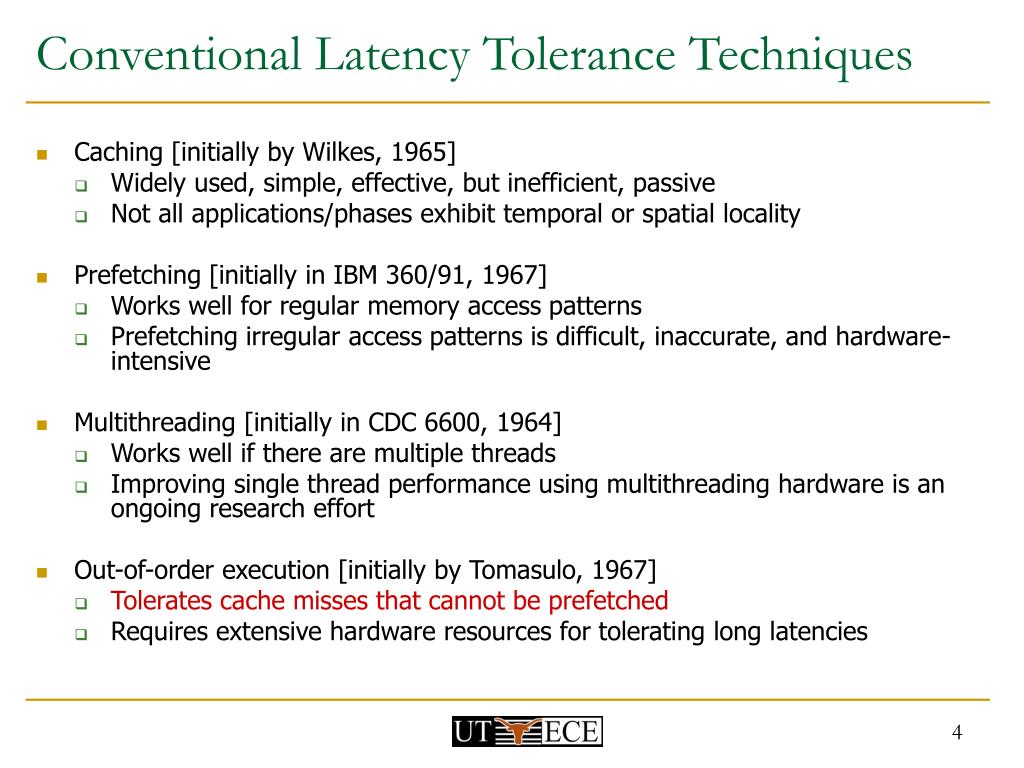

  4. Conventional Latency Tolerance Techniques • Caching [initially by Wilkes, 1965] • Widely used, simple, effective, but inefficient, passive • Not all applications/phases exhibit temporal or spatial locality • Prefetching [initially in IBM 360/91, 1967] • Works well for regular memory access patterns • Prefetching irregular access patterns is difficult, inaccurate, and hardware-intensive • Multithreading [initially in CDC 6600, 1964] • Works well if there are multiple threads • Improving single thread performance using multithreading hardware is an ongoing research effort • Out-of-order execution [initially by Tomasulo, 1967] • Tolerates cache misses that cannot be prefetched • Requires extensive hardware resources for tolerating long latencies

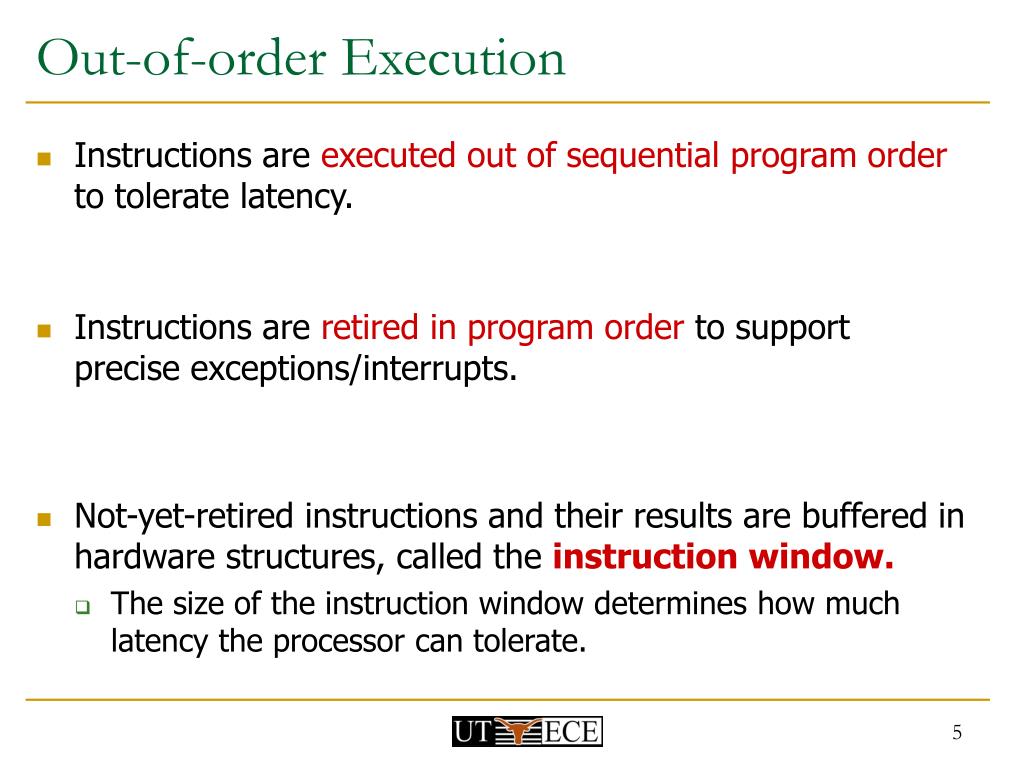

  5. Out-of-order Execution • Instructions are executed out of sequential program order to tolerate latency. • Instructions are retired in program order to support precise exceptions/interrupts. • Not-yet-retired instructions and their results are buffered in hardware structures, called the instruction window. • The size of the instruction window determines how much latency the processor can tolerate.

  6. Small Windows: Full-window Stalls • When a long-latency instruction is not complete, it blocks retirement. • Incoming instructions fill the instruction window. • Once the window is full, processor cannot place new instructions into the window. • This is called a full-window stall. • A full-window stall prevents the processor from making progress in the execution of the program.

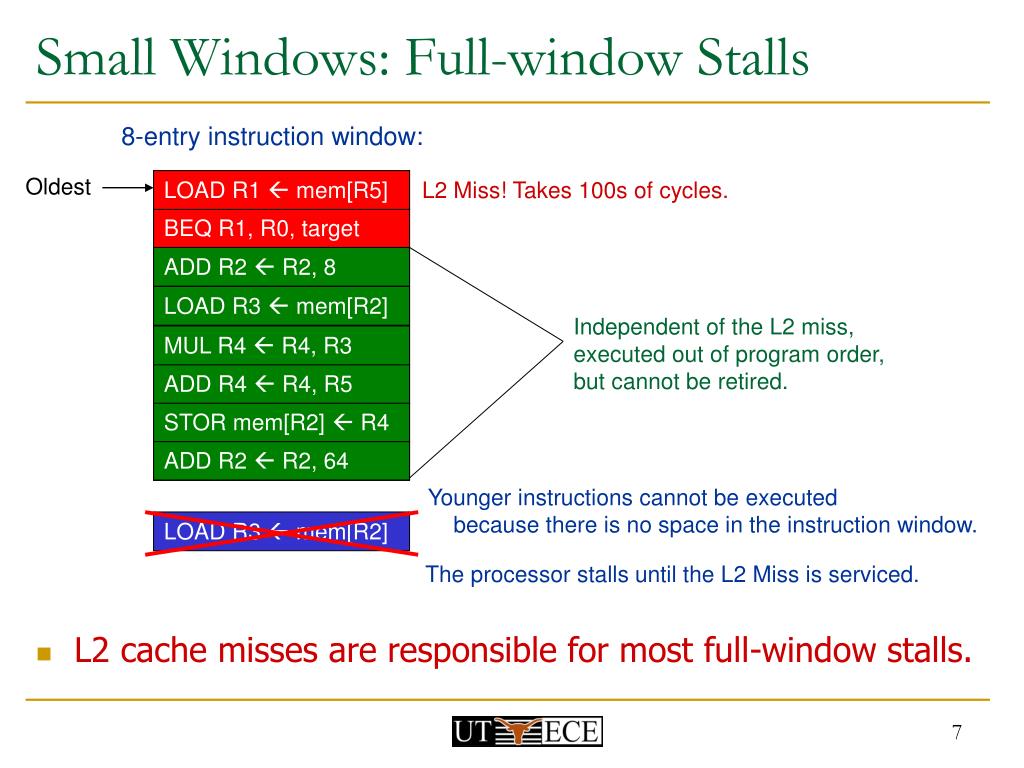

  7. Small Windows: Full-window Stalls 8-entry instruction window: • L2 cache misses are responsible for most full-window stalls. Oldest LOAD R1  mem[R5] L2 Miss! Takes 100s of cycles. BEQ R1, R0, target ADD R2  R2, 8 LOAD R3  mem[R2] Independent of the L2 miss, executed out of program order, but cannot be retired. MUL R4  R4, R3 ADD R4  R4, R5 STOR mem[R2]  R4 ADD R2  R2, 64 Younger instructions cannot be executed because there is no space in the instruction window. LOAD R3  mem[R2] The processor stalls until the L2 Miss is serviced.

  8. Impact of L2 Cache Misses L2 Misses 512KB L2 cache, 500-cycle DRAM latency, aggressive stream-based prefetcher Data averaged over 147 memory-intensive benchmarks on a high-end x86 processor model

  9. Impact of L2 Cache Misses L2 Misses 500-cycle DRAM latency, aggressive stream-based prefetcher Data averaged over 147 memory-intensive benchmarks on a high-end x86 processor model

  10. The Problem • Out-of-order execution requires large instruction windows to tolerate today’s main memory latencies. • As main memory latency increases, instruction window size should also increase to fully tolerate the memory latency. • Building a large instruction window is a challenging task if we would like to achieve • Low power/energy consumption • Short cycle time • Low design and verification complexity

  11. Talk Outline • Motivation: The Memory Latency Problem • Runahead Execution • Evaluation • Limitations of the Baseline Runahead Mechanism • Efficient Runahead Execution • Address-Value Delta (AVD) Prediction • Summary of Contributions • Future Work

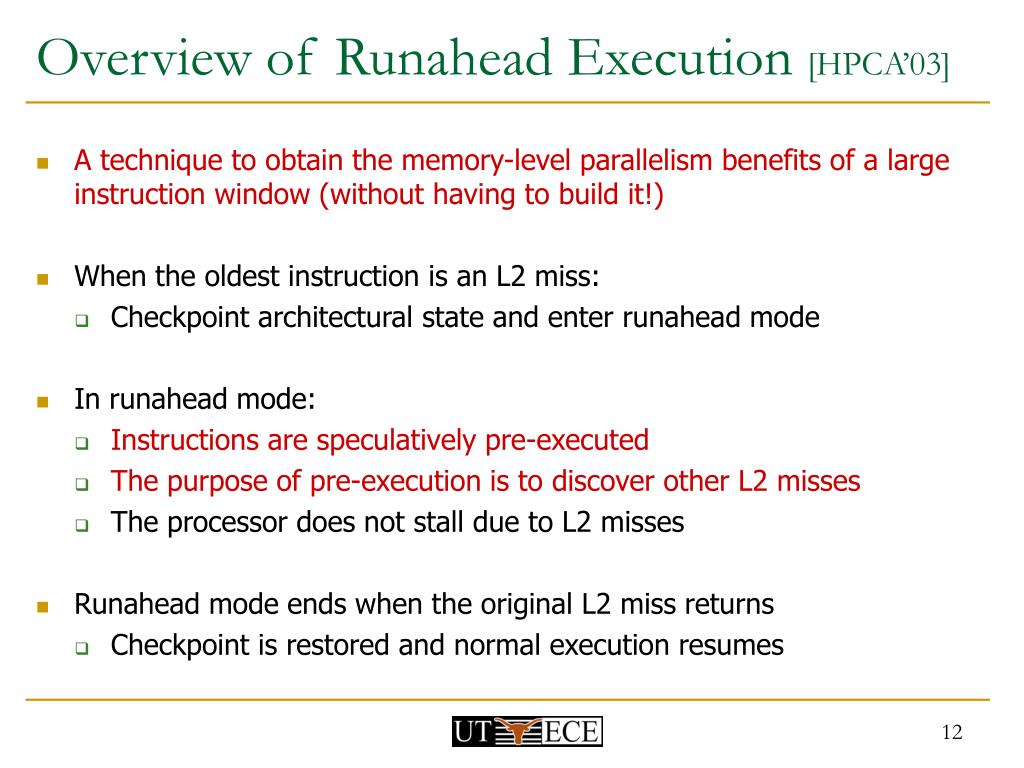

  12. Overview of Runahead Execution [HPCA’03] • A technique to obtain the memory-level parallelism benefits of a large instruction window (without having to build it!) • When the oldest instruction is an L2 miss: • Checkpoint architectural state and enter runahead mode • In runahead mode: • Instructions are speculatively pre-executed • The purpose of pre-execution is to discover other L2 misses • The processor does not stall due to L2 misses • Runahead mode ends when the original L2 miss returns • Checkpoint is restored and normal execution resumes

  13. Runahead Example Perfect Caches: Load 2 Hit Load 1 Hit Compute Compute Small Window: Load 2 Miss Load 1 Miss Compute Compute Stall Stall Miss 1 Miss 2 Runahead: Load 1 Miss Load 2 Miss Load 2 Hit Load 1 Hit Runahead Compute Compute Saved Cycles Miss 1 Miss 2

  14. Benefits of Runahead Execution Instead of stalling during an L2 cache miss: • Pre-executed loads and stores independent of L2-miss instructions generate very accurate data prefetches: • For both regular and irregular access patterns • Instructions on the predicted program path are prefetched into the instruction/trace cache and L2. • Hardware prefetcher and branch predictor tables are trained using future access information.

  15. Runahead Execution Mechanism • Entry into runahead mode • Checkpoint architectural register state • Instruction processing in runahead mode • Exit from runahead mode • Restore architectural register state from checkpoint

  16. Instruction Processing in Runahead Mode Load 1 Miss Runahead Compute Miss 1 Runahead mode processing is the same as normal instruction processing, EXCEPT: • It is purely speculative: Architectural (software-visible) register/memory state is NOT updated in runahead mode. • L2-miss dependent instructions are identified and treated specially. • They are quickly removed from the instruction window. • Their results are not trusted.

  17. L2-Miss Dependent Instructions Load 1 Miss Runahead Compute Miss 1 • Two types of results produced: INV and VALID • INV = Dependent on an L2 miss • INV results are marked using INV bits in the register file and store buffer. • INV values are not used for prefetching/branch resolution.

  18. Removal of Instructions from Window Load 1 Miss Runahead Compute Miss 1 • Oldest instruction is examined for pseudo-retirement • An INV instruction is removed from window immediately. • A VALID instruction is removed when it completes execution. • Pseudo-retired instructions free their allocated resources. • This allows the processing of later instructions. • Pseudo-retired stores communicate their data to dependent loads.

  19. Store/Load Handling in Runahead Mode Load 1 Miss Runahead Compute Miss 1 • A pseudo-retired store writes its data and INV status to a dedicated memory, called runahead cache. • Purpose: Data communication through memory in runahead mode. • A dependent load reads its data from the runahead cache. • Does not need to be always correct Size of runahead cache is very small.

  20. Branch Handling in Runahead Mode Load 1 Miss Runahead Compute Miss 1 • INV branches cannot be resolved. • A mispredicted INV branch causes the processor to stay on the wrong program path until the end of runahead execution. • VALID branches are resolved and initiate recovery if mispredicted.

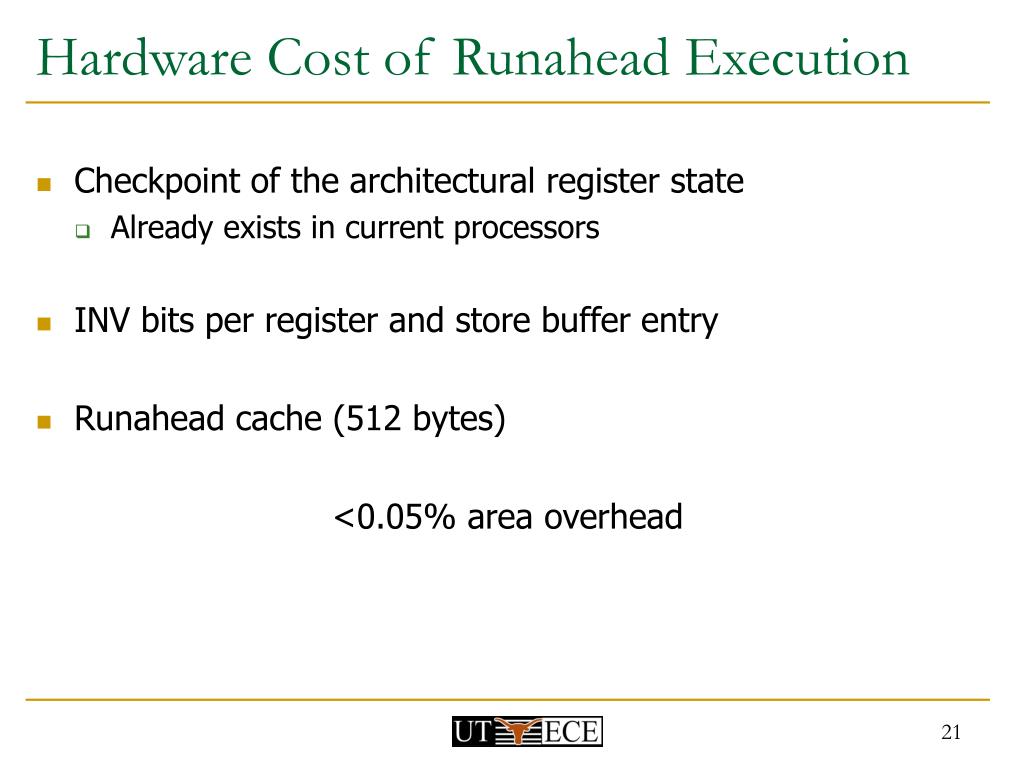

  21. Hardware Cost of Runahead Execution • Checkpoint of the architectural register state • Already exists in current processors • INV bits per register and store buffer entry • Runahead cache (512 bytes) <0.05% area overhead

  22. Talk Outline • Motivation: The Memory Latency Problem • Runahead Execution • Evaluation • Limitations of the Baseline Runahead Mechanism • Efficient Runahead Execution • Address-Value Delta (AVD) Prediction • Summary of Contributions • Future Work

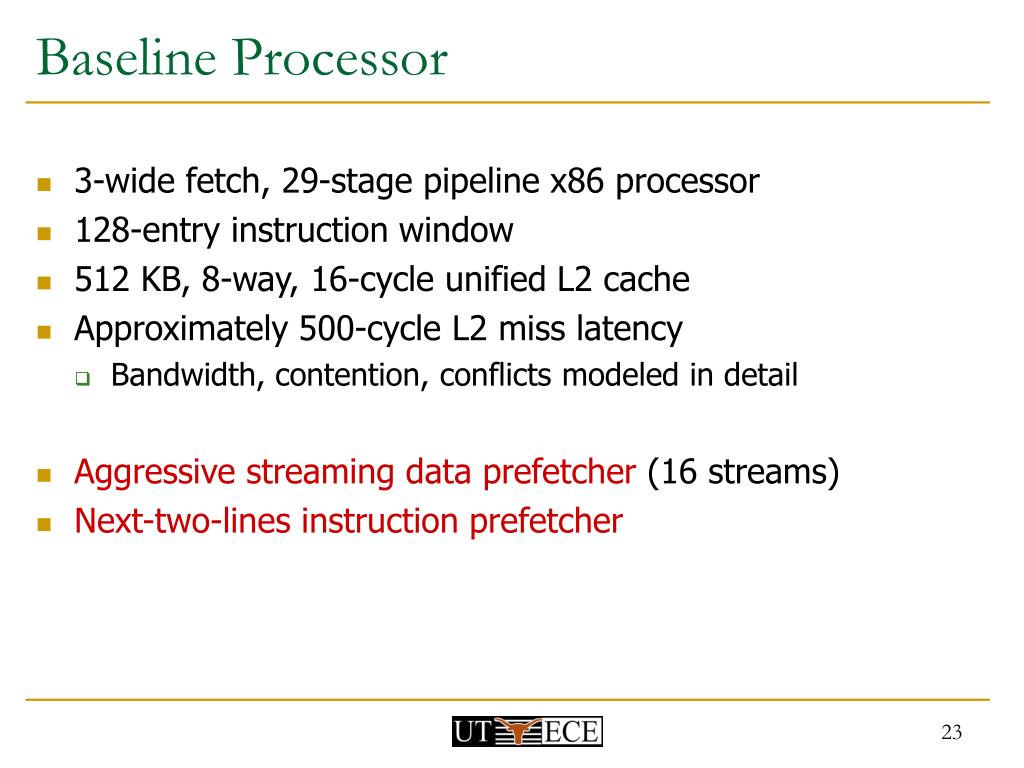

  23. Baseline Processor • 3-wide fetch, 29-stage pipeline x86 processor • 128-entry instruction window • 512 KB, 8-way, 16-cycle unified L2 cache • Approximately 500-cycle L2 miss latency • Bandwidth, contention, conflicts modeled in detail • Aggressive streaming data prefetcher (16 streams) • Next-two-lines instruction prefetcher

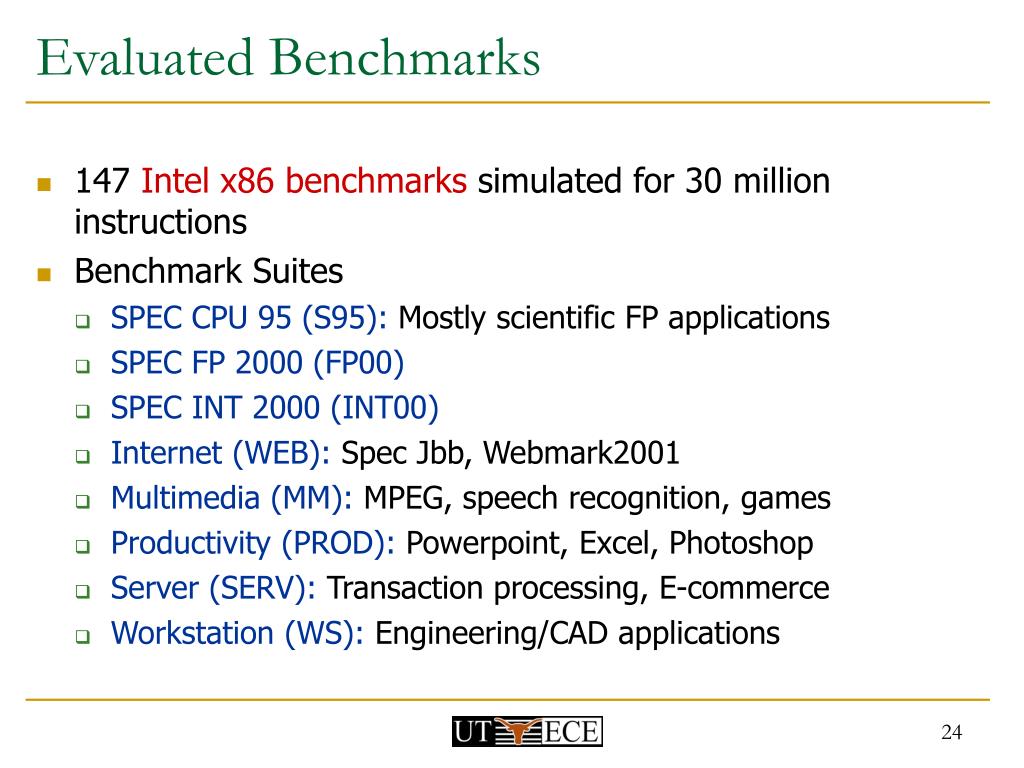

  24. Evaluated Benchmarks • 147 Intel x86 benchmarks simulated for 30 million instructions • Benchmark Suites • SPEC CPU 95 (S95): Mostly scientific FP applications • SPEC FP 2000 (FP00) • SPEC INT 2000 (INT00) • Internet (WEB): Spec Jbb, Webmark2001 • Multimedia (MM): MPEG, speech recognition, games • Productivity (PROD): Powerpoint, Excel, Photoshop • Server (SERV): Transaction processing, E-commerce • Workstation (WS): Engineering/CAD applications

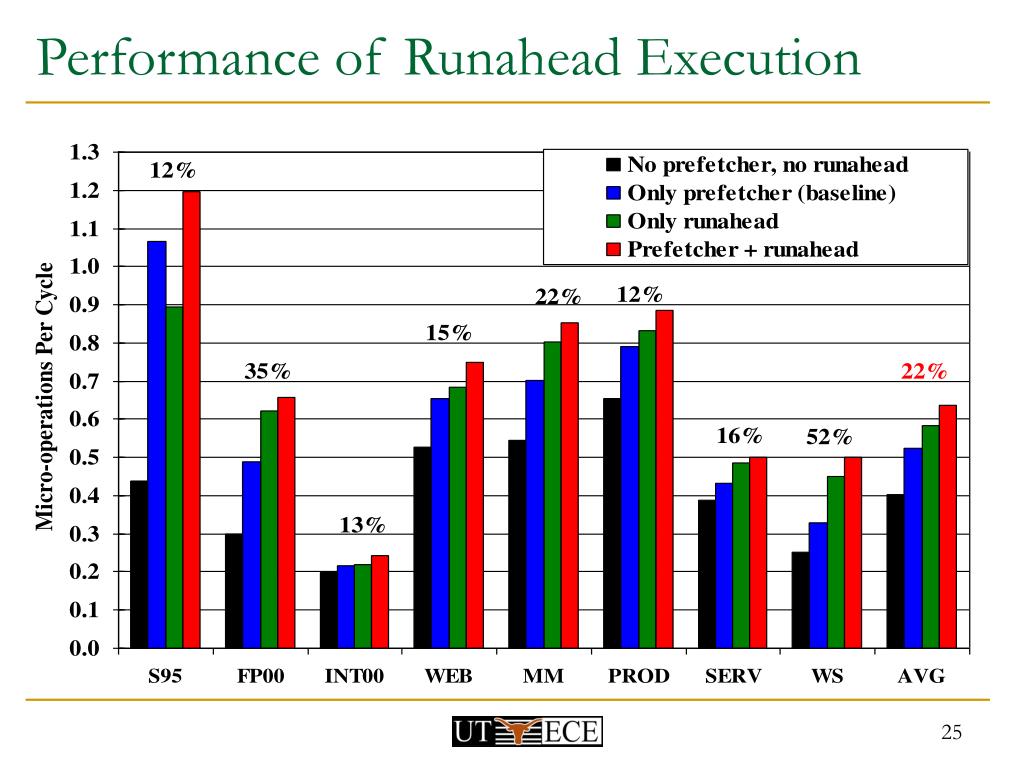

  25. Performance of Runahead Execution

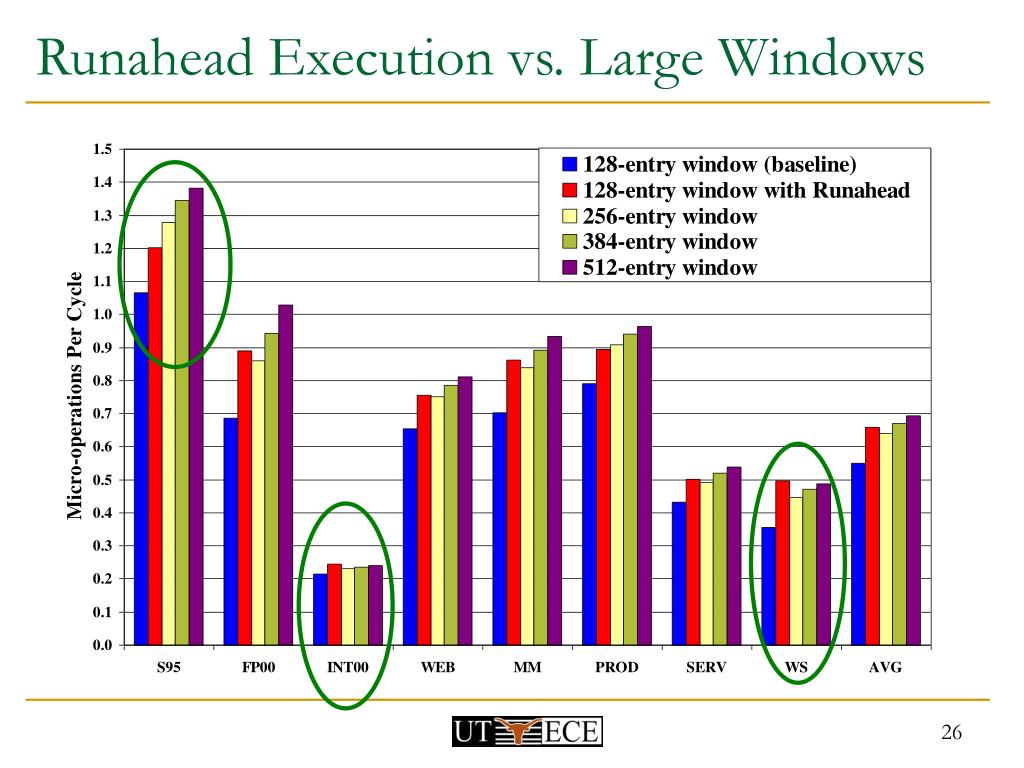

  26. Runahead Execution vs. Large Windows

  27. Talk Outline • Motivation: The Memory Latency Problem • Runahead Execution • Evaluation • Limitations of the Baseline Runahead Mechanism • Efficient Runahead Execution • Address-Value Delta (AVD) Prediction • Summary of Contributions • Future Work

  28. Limitations of the Baseline Runahead Mechanism • Energy Inefficiency • A large number of instructions are speculatively executed • Efficient Runahead Execution [ISCA’05, IEEE Micro Top Picks’06] • Ineffectiveness for pointer-intensive applications • Runahead cannot parallelize dependent L2 cache misses • Address-Value Delta (AVD) Prediction [MICRO’05] • Irresolvable branch mispredictions in runahead mode • Cannot recover from a mispredicted L2-miss dependent branch • Wrong Path Events [MICRO’04]

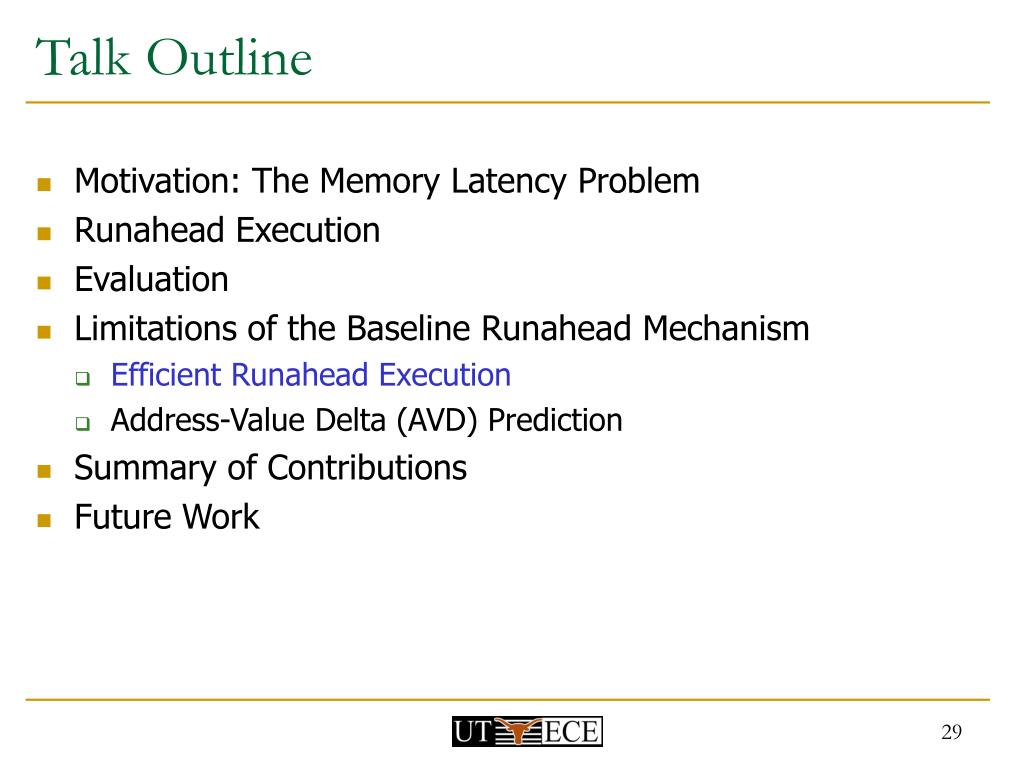

  29. Talk Outline • Motivation: The Memory Latency Problem • Runahead Execution • Evaluation • Limitations of the Baseline Runahead Mechanism • Efficient Runahead Execution • Address-Value Delta (AVD) Prediction • Summary of Contributions • Future Work

  30. The Efficiency Problem [ISCA’05] • A runahead processor pre-executes some instructions speculatively • Each pre-executed instruction consumes energy • Runahead execution significantly increases the number of executed instructions, sometimes without providing performance improvement

  31. The Efficiency Problem 22% 27%

  32. % Increase in IPC Efficiency = % Increase in Executed Instructions Efficiency of Runahead Execution • Goals: • Reduce the number of executed instructions without reducing the IPC improvement • Increase the IPC improvement without increasing the number of executed instructions

  33. Causes of Inefficiency • Short runahead periods • Overlapping runahead periods • Useless runahead periods

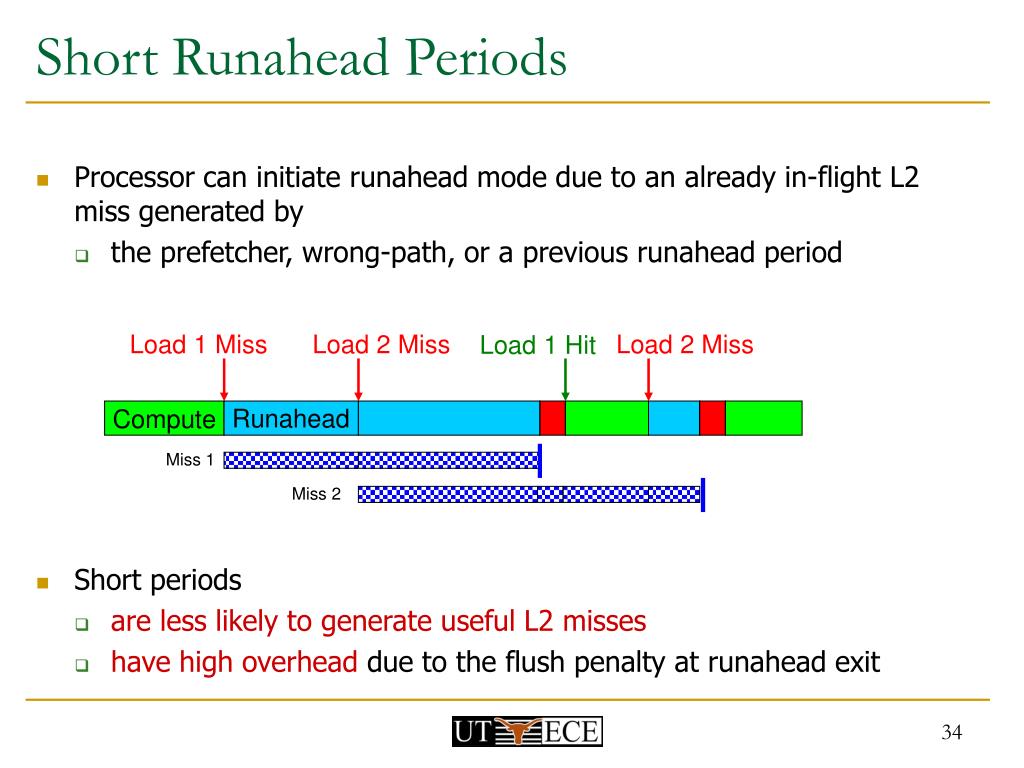

  34. Short Runahead Periods • Processor can initiate runahead mode due to an already in-flight L2 miss generated by • the prefetcher, wrong-path, or a previous runahead period • Short periods • are less likely to generate useful L2 misses • have high overhead due to the flush penalty at runahead exit Load 1 Miss Load 2 Miss Load 2 Miss Load 1 Hit Runahead Compute Miss 1 Miss 2

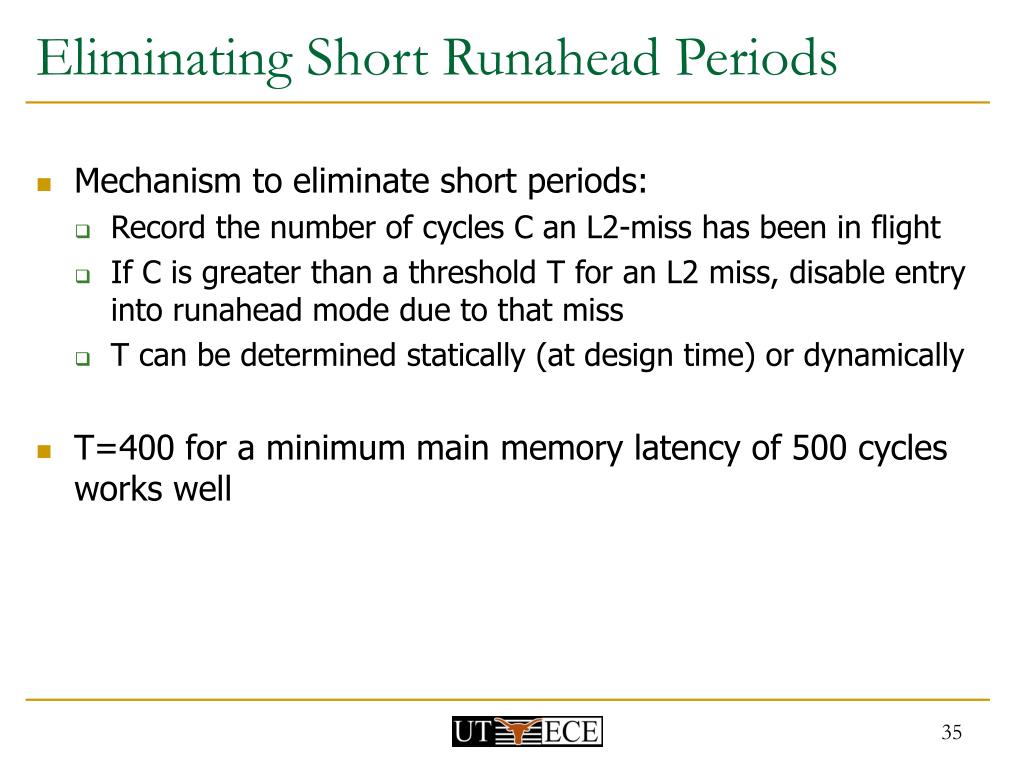

  35. Eliminating Short Runahead Periods • Mechanism to eliminate short periods: • Record the number of cycles C an L2-miss has been in flight • If C is greater than a threshold Tfor an L2 miss, disable entry into runahead mode due to that miss • Tcan be determined statically (at design time) or dynamically • T=400 for a minimum main memory latency of 500 cycles works well

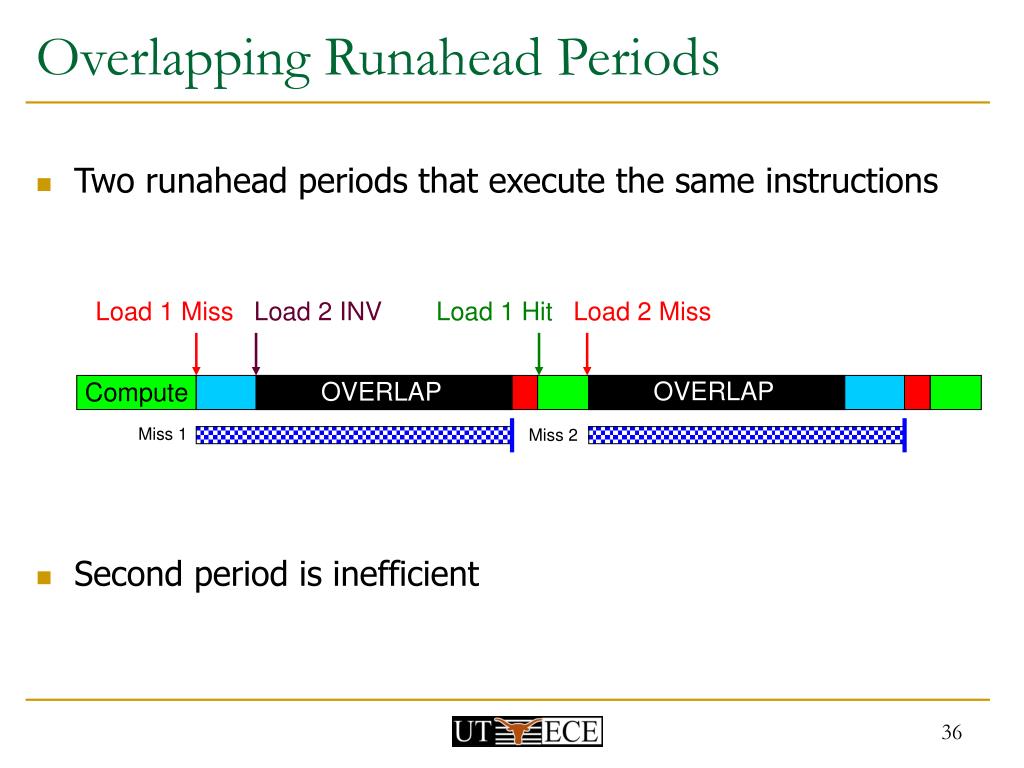

  36. Overlapping Runahead Periods • Two runahead periods that execute the same instructions • Second period is inefficient Load 1 Miss Load 2 INV Load 1 Hit Load 2 Miss OVERLAP OVERLAP Compute Runahead Miss 1 Miss 2

  37. Overlapping Runahead Periods (cont.) • Overlapping periods are not necessarily useless • The availability of a new data value can result in the generation of useful L2 misses • But, this does not happen often enough • Mechanism to eliminate overlapping periods: • Keep track of the number of pseudo-retired instructions R during a runahead period • Keep track of the number of fetched instructions N since the exit from last runahead period • If N < R, do not enter runahead mode

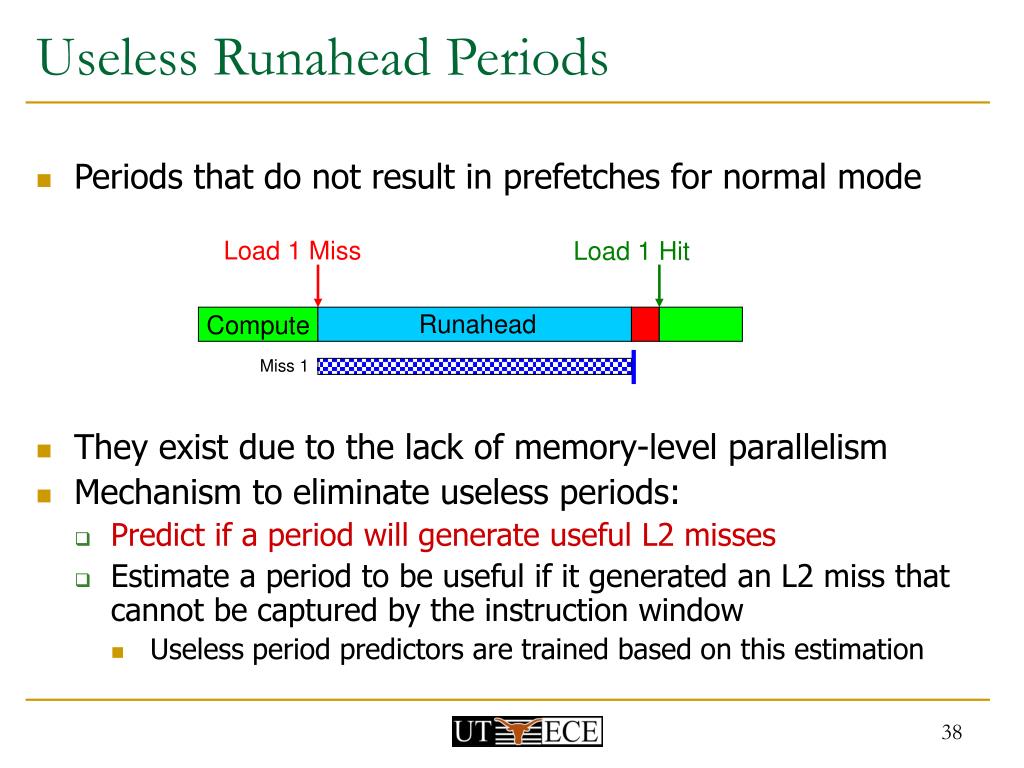

  38. Useless Runahead Periods • Periods that do not result in prefetches for normal mode • They exist due to the lack of memory-level parallelism • Mechanism to eliminate useless periods: • Predict if a period will generate useful L2 misses • Estimate a period to be useful if it generated an L2 miss that cannot be captured by the instruction window • Useless period predictors are trained based on this estimation Load 1 Miss Load 1 Hit Runahead Compute Miss 1

  39. Predicting Useless Runahead Periods • Prediction based on the past usefulness of runahead periods caused by thesame static load instruction • A 2-bit state machine records the past usefulness of a load • Prediction based on too many INV loads • If the fraction of INV loads in a runahead period is greater than T, exit runahead mode • Sampling (phase) based prediction • If last N runahead periods generated fewer than T L2 misses, do not enter runahead for the next M runahead opportunities • Compile-time profile-based prediction • If runahead modes caused by a load were not useful in the profiling run, mark it as non-runahead load

  40. Performance Optimizations for Efficiency • Both efficiency AND performance can be increased byincreasing the usefulness of runahead periods • Three major optimizations: • Turning off the Floating Point Unit (FPU) in runahead mode • FP instructions do not contribute to the generation of load addresses • Optimizing the update policy of the hardware prefetcher (HWP) in runahead mode • Improves the positive interaction between runahead and HWP • Early wake-up of INV instructions • Enables the faster removal of INV instructions

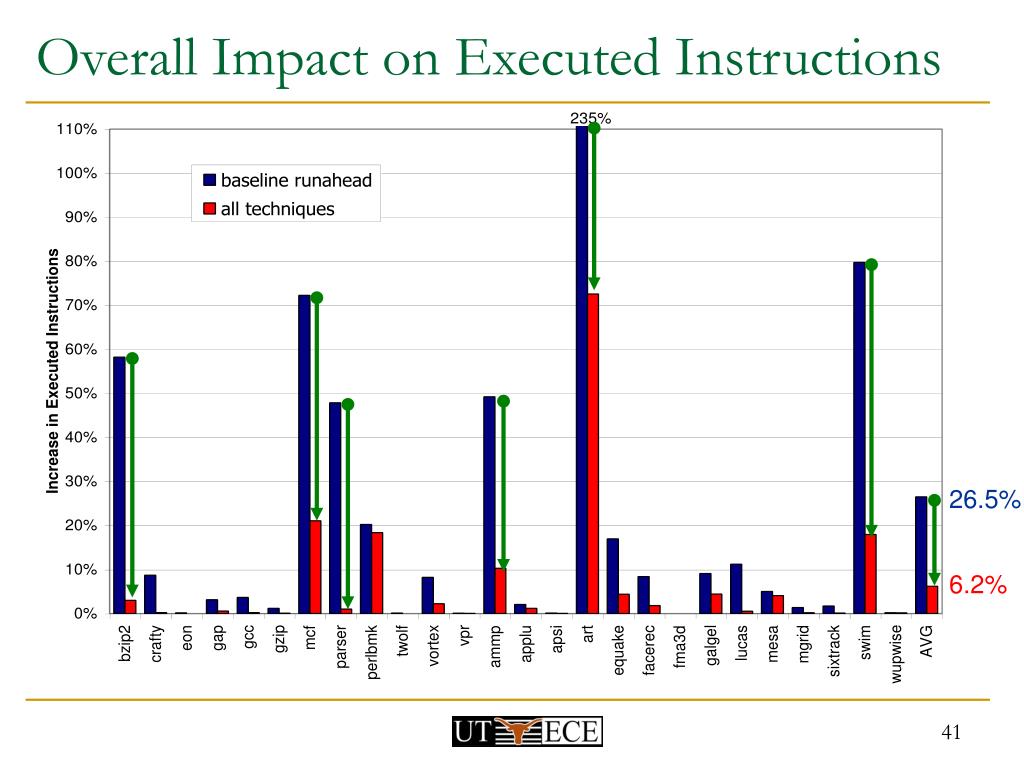

  41. Overall Impact on Executed Instructions 26.5% 6.2%

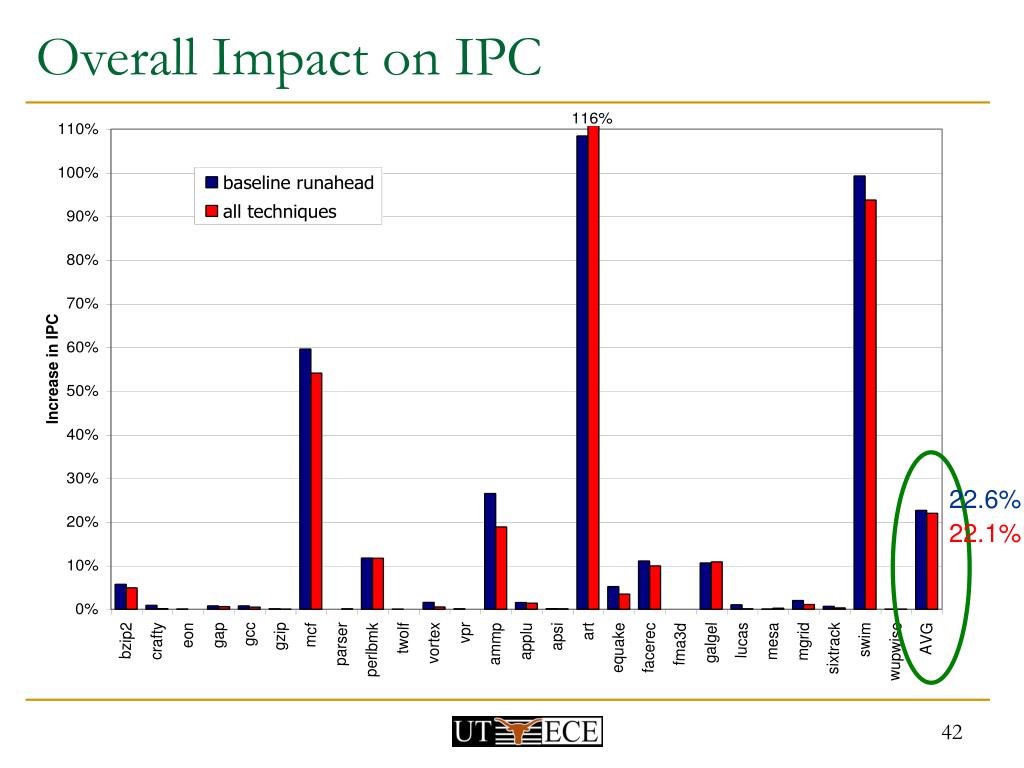

  42. Overall Impact on IPC 22.6% 22.1%

  43. Talk Outline • Motivation: The Memory Latency Problem • Runahead Execution • Evaluation • Limitations of the Baseline Runahead Mechanism • Efficient Runahead Execution • Address-Value Delta (AVD) Prediction • Summary of Contributions • Future Work

  44. The Problem: Dependent Cache Misses Runahead: Load 2 is dependent on Load 1 • Runahead execution cannot parallelize dependent misses • wasted opportunity to improve performance • wasted energy (useless pre-execution) • Runahead performance would improve by 25% if this limitation were ideally overcome Cannot Compute Its Address! INV Load 1 Miss Load 2 Load 1 Hit Load 2 Miss Runahead Compute Miss 1 Miss 2

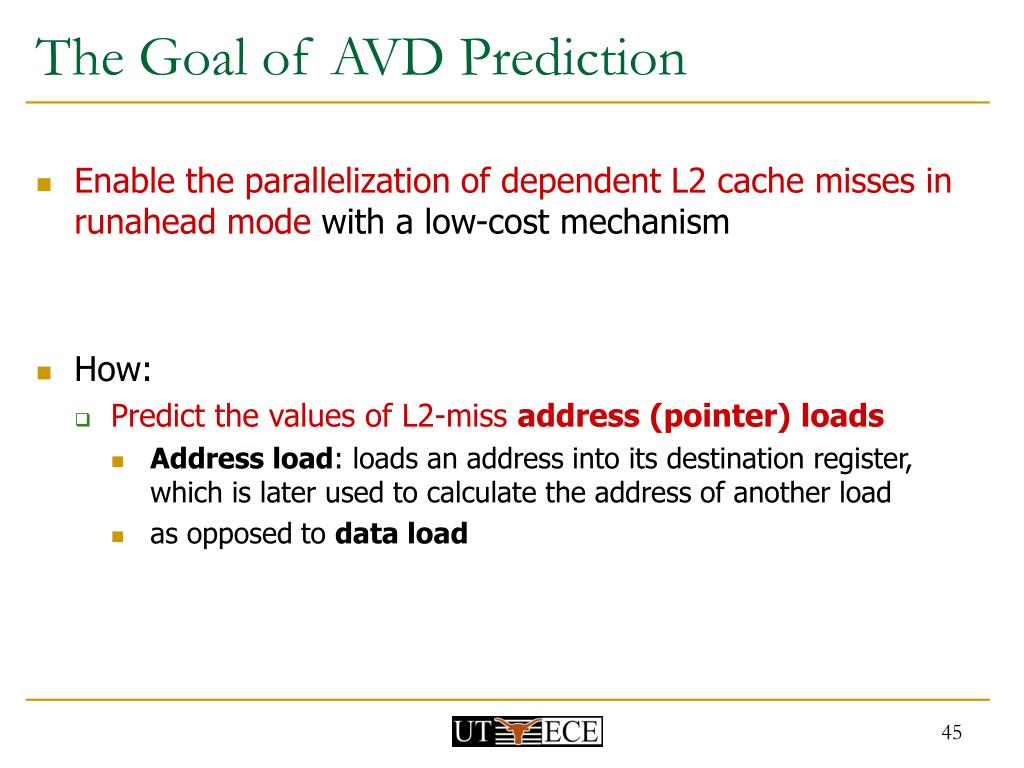

  45. The Goal of AVD Prediction • Enable the parallelization of dependent L2 cache misses in runahead mode with a low-cost mechanism • How: • Predict the values of L2-miss address (pointer) loads • Address load: loads an address into its destination register, which is later used to calculate the address of another load • as opposed to data load

  46. Parallelizing Dependent Cache Misses Cannot Compute Its Address! Load 1 Miss Load 2 INV Load 1 Hit Load 2 Miss Runahead Compute Miss 1 Miss 2 Can Compute Its Address Value Predicted Saved Speculative Instructions Miss Load 2 Load 1 Hit Load 2 Hit Load 1 Miss Compute Runahead Saved Cycles Miss 1 Miss 2

  47. AVD Prediction [MICRO’05] • Address-value delta (AVD) of a load instruction defined as: AVD = Effective Address of Load – Data Value of Load • For some address loads, AVD is stable • An AVD predictor keeps track of the AVDs of address loads • When a load is an L2 miss in runahead mode, AVD predictor is consulted • If the predictor returns a stable (confident) AVD for that load, the value of the load is predicted Predicted Value = Effective Address – Predicted AVD

  48. Why Do Stable AVDs Occur? • Regularity in the way data structures are • allocated in memory AND • traversed • Two types of loads can have stable AVDs • Traversal address loads • Produce addresses consumed by address loads • Leaf address loads • Produce addresses consumed by data loads

  49. Traversal Address Loads Regularly-allocated linked list: A traversal address load loads the pointer to next node: node = nodenext A AVD = Effective Addr – Data Value A+k Effective Addr Data Value AVD A+2k A A+k -k A+k A+2k -k ... A+3k A+2k A+3k -k Striding data value Stable AVD

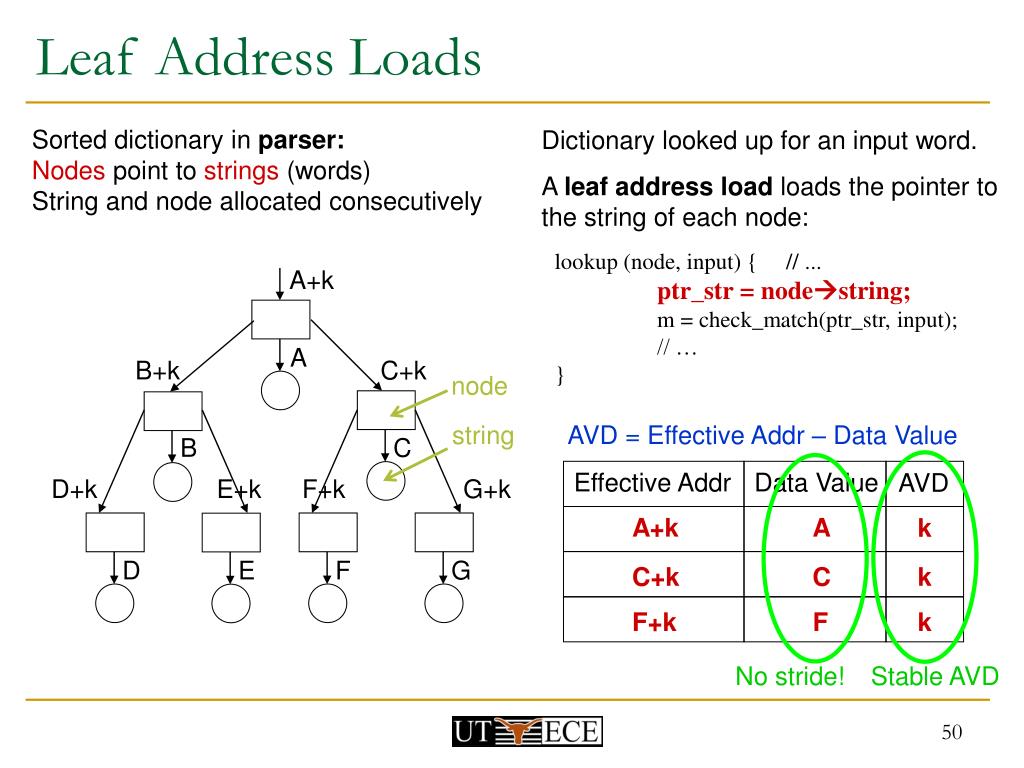

  50. Leaf Address Loads Sorted dictionary in parser: Nodes point to strings (words) String and node allocated consecutively Dictionary looked up for an input word. A leaf address load loads the pointer to the string of each node: lookup (node, input) { // ... ptr_str = nodestring; m = check_match(ptr_str, input); // … } A+k A B+k C+k node string AVD = Effective Addr – Data Value B C Effective Addr Data Value AVD D+k E+k F+k G+k A+k A k D E F G C+k C k F+k F k No stride! Stable AVD
