Intelligent cargo in efficient and sustainable global logistics operations workpackage 4 icargo ecosystem infrastructure

Intelligent Cargo in Efficient and Sustainable Global Logistics OperationsWorkpackage 4: iCargo Ecosystem Infrastructure

iCargo 1st Review

May 2012

05/12/2012 Avenue de Beaulieu, Brussels

WP4 Innovation Agenda


Position and dependencies of wp4

Position and dependencies of WP4


Intelligent cargo in efficient and sustainable global logistics operations workpackage 4 icargo ecosystem infrastructure

The WP4 aims to design and prototype the iCargo Ecosystem Infrastructure allowing iCargo business and technical services to interoperate in order to realise the iCargo business goals

utilising technologies from semantic Web and ontologies, distributed data and event management, Internet of Things (IoT) and Internet of Services (IoS), Service Oriented Architecture (SOA) and Cloud technologies (Cloud Bus)}.

Test and deploy the Ecosystem, integrating WP2 and WP3 components, to support pilots development and demonstration.

WP4: Aims and Objectives


Intelligent cargo in efficient and sustainable global logistics operations workpackage 4 icargo ecosystem infrastructure

iCargo Ecosystem: What is it

a shared virtual infrastructure (for providing and consuming cargo services) between different organizations (the iCargo Ecosystem participants) governed primarily in a distributed manner

channels

Shipment from factory

Long haul transport

In-city delivery

Road transport

The iCargo Ecosystem is a ‘parallel universe’ mirroring logistic processes, resources and data and offering capabilities for co-operative, synchronized and real-time management of transport resources (i.e. intelligent planning and controlling transport logistics chains) to optimise efficiency, quality and environmental performance.


Intelligent cargo in efficient and sustainable global logistics operations workpackage 4 icargo ecosystem infrastructure

iCargo Ecosystem: High Level Architecture

Network of Cooperating peer to peer

Logistics Nodes

The Ecosystem is set up as a network of semantically compatible services (www.icargoschema.com) and…‘common and distributed’ participation / cooperation rules, Registration and Common iCargo Services.

This Hybrid Service Network is based on loosely connected, distributed, compliant, Access Points (> Semantic Gateways) exposing Entity Centric Services or Application Services for cooperative use

Participants use the Ecosystem Services to compose solutions in their own environment or residing in the Ecosystem itself.

Common iCargo Services

Registration

&

Configuration Support

Application

Application

Application

Application

Semantic mediation


Intelligent cargo in efficient and sustainable global logistics operations workpackage 4 icargo ecosystem infrastructure

Logistic chain composition

External devices

External services

iCargo Applications and services

Access point

Access point

Access point

iCargo Generic components

Logistic network awareness

Semantic gateway

Emission monitoring

Semantic Tooling

Entity repository

WP4

Entity discovery

Semantic models

Service registry

Distributed storage

Service repository

Semantic repository

e.g. Common Framework

Hybrid service network

Lifecycle management

Service provisioning

Service orchestration

Service authorisation

Resource management

iCargo IT infrastructure


Intelligent cargo in efficient and sustainable global logistics operations workpackage 4 icargo ecosystem infrastructure

Innovation Agenda

Common Framework – iCargo domain Ontologies - semantic standard: www.icargoschema.com

“Logistic chain composition”, “Logistic network awareness”, “Emission monitoring” ...


Intelligent cargo in efficient and sustainable global logistics operations workpackage 4 icargo ecosystem infrastructure

Main innovations introduced in Workpackage 4

Service virtualisation: Business services can be discovered and invoked (contracted, composed) irrespectively of the physical locations and physical implementations in the IT systems that host them.

Dynamic service composition: Heterogeneous services can exchange data with each other and cooperate over a Cloud Bus.

Secure and customised access to services: Channels are used for secure access to service status and data, according to the nature of the service (e.g. Cargo status notification updates, CO2, calculators,...) the service provider and subscriber (e.g. A mobile logistics unit), and the business model supported (e.g. paid for services)


Intelligent cargo in efficient and sustainable global logistics operations workpackage 4 icargo ecosystem infrastructure

Why should I use the iCargo Cloud?

Because:

  • I want to scale up the sharing of my data with my partners without having to create dedicated connections and interfaces to their systems

  • I want to access data from other participants to which I do not have dedicated connections, to execute queries on large, distributed sets of cargo data

  • I want to share and scale up to support many users, the cargo related services (e.g. CO2 calculations) I provide (free or paid-for)

  • I need regular updates to the status of logistics objects without having to subscribe to multiple web sites/portals or other online (non Cloud) sources


Intelligent cargo in efficient and sustainable global logistics operations workpackage 4 icargo ecosystem infrastructure

Next steps

Current Achievements

High Level architecture (first cut) defined

Major architectural components identified

Existing technologies to be used off-the-shelf identified

Initial work allocation to WP4 participants done

Plans for next 12 months

Define interfaces between components

Detailed design of components

Adjust architecture if necessary in the light of changes in WPs: 2,3,5:

Implement components from WP2 and WP3

Provide ‘toolkit’ to support development of pilots (WP5)

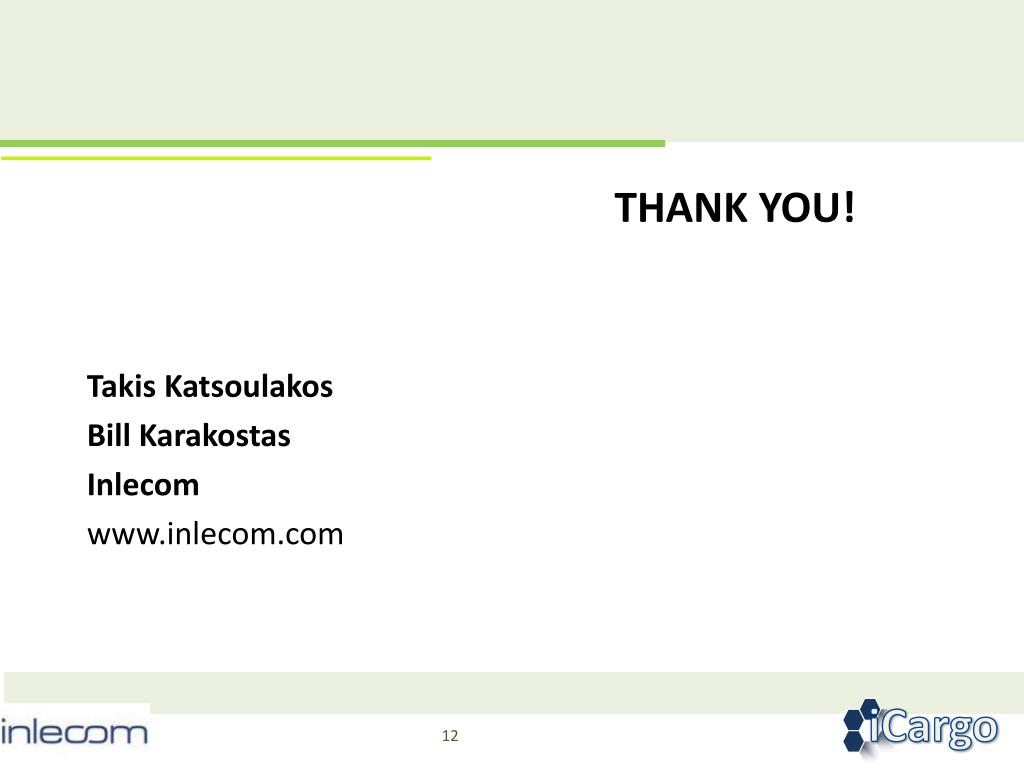

Takis katsoulakos bill karakostas inlecom www inlecom com

Takis Katsoulakos

Bill Karakostas

Inlecom

www.inlecom.com

THANK YOU!


Intelligent cargo in efficient and sustainable global logistics operations workpackage 4 icargo ecosystem infrastructure

Channels –Access Points – Semantic Gateways

  • Channels are the mechanisms with which you supply to or obtain information from the Cloud

  • A Channel connects one provider of logistics information to many consumers (through the Cloud), or one consumer to multiple providers

  • Same as with real life (TV channels!) there are free and paid-for channels, as there are high speed and normal speed ones.

  • How information is transmitted (i.e. by using discrete events or continuous streams) and the speed of the transmission also varies depending on the type of channel.

  • Access Points will be developed as evolution of ‘agents’ in Euridice, EAPs with profiling regarding messages, and Semantic Gateways


Intelligent cargo in efficient and sustainable global logistics operations workpackage 4 icargo ecosystem infrastructure

iCargo Cloud: Services

  • User Services

    • entity centric services: information about physical entities

    • Application services –WP3

    • orchestration services: combination of entity centric services to deliver added value, for example, to allow Ecosystem participants to compose and coordinate (‘orchestrate’) complex logistics chains – used bylogistics applications such as the iCargo organizer (WP3)

  • Infrastructure services

    • make the Ecosystem a predictable, auditable, secure, and useful environment for its participants - Authentication Service /Resources Access Service/Gateway Services / Link / Data Mining Service /Events Subscription Service /Discovery Service Payment Services

  • Services amplification

    • To deal with the pragmatic issue that in reality many organisations will use proprietary formats, technologies and protocols, the Ecosystem’s HSN adopts different mechanisms such as software virtualisation and semantic technologies.


Intelligent cargo in efficient and sustainable global logistics operations workpackage 4 icargo ecosystem infrastructure

Architectural view


Intelligent cargo in efficient and sustainable global logistics operations workpackage 4 icargo ecosystem infrastructure

Implementation - iCargo Cloud APIs

  • iCargo Application Programming Interfaces allow you to publish information about your logistics chain resources (data, services), or to subscribe to such resources provided by other participants in the iCargo Ecosystem

    • APIs are defined in an implementation independent way, abstracting away the specific underlying Cloud technologies

    • One of the most suitable technologies for this purpose is Representational State Tranfer (REST)

    • Most of the Cloud Storage industry strongly believe that a key capability of a storage cloud is the REST style Web Services API.  Many of the most popular storage cloud services include or exclusively use REST, including SoftLayer'sCloudLayer, Amazon S3, Nirvanix SDN and Rackspace Cloud Files

  • Implementation alternatives:

    • Use the services of an existing commercial Cloud

    • (e.g. Microsoft Azure or Amazon EC2): no iCargo specific API

    • Implement core services and APIs on an open source Cloud platform

    • Define a generic iCargo Cloud API and map it to specific APIs

    • (e.g. language specific such as Apache LibCloud and/or general

    • ones defined by OCC, OGF and other standardisation bodies)


Intelligent cargo in efficient and sustainable global logistics operations workpackage 4 icargo ecosystem infrastructure

Entity centric register

WS

KB

SG

Secure access

ERP system

Individual

processing

LS

Semantics

eR

SO

Single access point

VSP

eR

Secure & single point of access

eR

Semantic support

eR

eR

K

R

Cloud services

Active & Context awareness

A

Mobile agent

Entity centric


Intelligent cargo in efficient and sustainable global logistics operations workpackage 4 icargo ecosystem infrastructure

Business (driven) vision

1

Technical vision

  • Semantic interoperability

  • Common Framework

Interpretation of data

  • Seamless connectivity

  • Controlled & secure access

Accessibility of data

2

  • Entity-centric approach

  • Reduction of complexity

Organisation of data


Intelligent cargo in efficient and sustainable global logistics operations workpackage 4 icargo ecosystem infrastructure

Semantic Gateways

Erik Cornelisse


Intelligent cargo in efficient and sustainable global logistics operations workpackage 4 icargo ecosystem infrastructure

Dependencies with Workpackage 2, 3

Application

  • Physical and logical Persistent Logistic Objects (PLOs) provided by WP3, as well as from users’ systems and existing platforms from logistics and related domains.

  • Generic support components, (WP2) that provide the basic capabilities for PLOs to be searched, combined and engage in interactions, in a “Logistics cloud” environment.

  • An ontology based on the Common Framework to support interoperability based on the semantic web approach, by integrating the knowledge management tools developed by WP2 in the overall architecture

WP2 architecture: source: Logica

Smart Gateways

Semantic Web Components

Composition

Services

Digital Shadows (software agents)

Knowledge base incl. standards

Semantic Web services

Cloud Ecosystem

Cloud APIS

Physical Server

Mobile resources

Cloud resources

User desktop

Computing resources
