  1. Design and Implementation of VLSI Systems (EN1600) Lecture 17: Design Considerations Prof. Sherief Reda Division of Engineering, Brown University Spring 2008 [sources: Weste/Addison Wesley – Rabaey/Pearson]

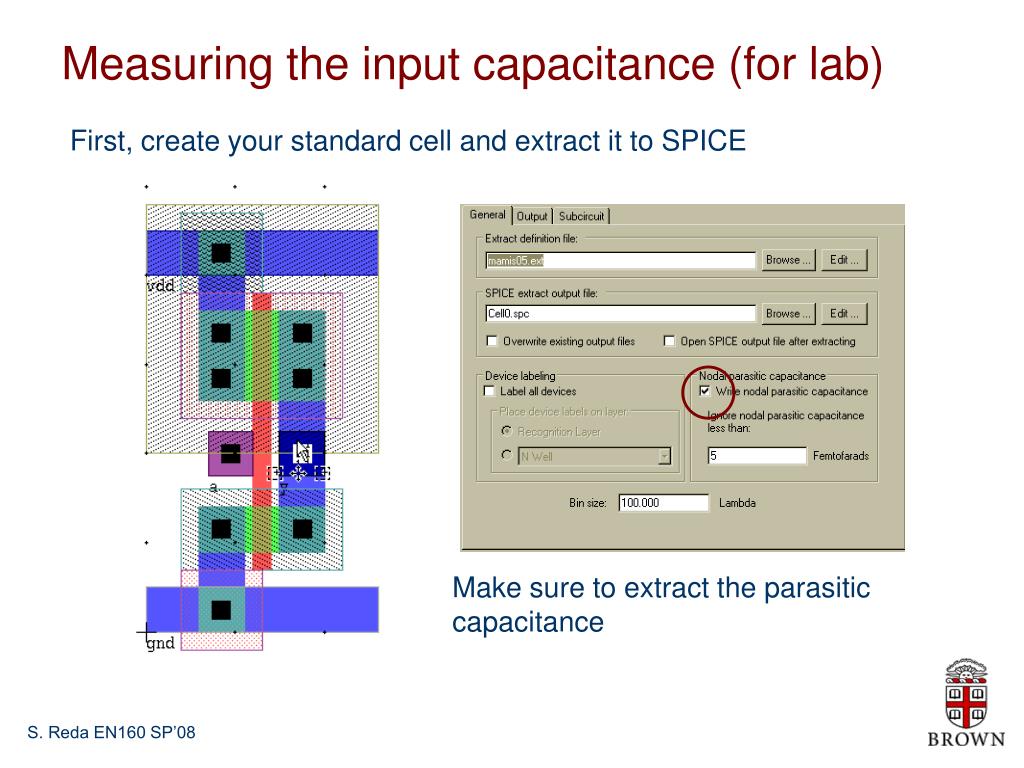

  2. Measuring the input capacitance (for lab) First, create your standard cell and extract it to SPICE Make sure to extract the parasitic capacitance

  3. Creating a subcircuit of your cell Create a subcircuit out of the extracted files .global vdd gnd .subckt inv a y Cpar1 vdd 0 14.40942f Cpar2 gnd 0 8.9712f Cpar3 y 0 12.0537f M1 y a vdd vdd PMOS L=600n W=3u M2 y a gnd gnd NMOS L=600n W=1.5u .ends

  4. Basic idea c I3 CAP delay of I1 I2 I1 a f y • Delay from a to y depend on the load capacitance of I1 → input capacitance of I2 • If CAP has the same capacitance as I2 then delay from a to c will be equal to delay from a to y • Objective: try to “guess” CAP to equalize the delay

  5. SmartSPICE has a builtin optimizer to save your guessing time XI1 a y inv XI2 y f inv XI3 a c inv Ccin c gnd CAP Vin a gnd PULSE 0 3.3 100ps 0ps 0ps 2000ps 4200ps .measure TRAN tdr TRIG v(a) VAL='0.5*3.3' FALL=1 TARG v(y) VAL='0.5*3.3' RISE=1 .measure TRAN tdf TRIG v(a) VAL='0.5*3.3' RISE=1 TARG v(y) VAL='0.5*3.3' FALL=1 .measure TRAN tdavg PARAM='(tdr+tdf)/2' .measure TRAN tdrc TRIG v(a) VAL='0.5*3.3' FALL=1 TARG v(c) VAL='0.5*3.3' RISE=1 .measure TRAN tdfc TRIG v(a) VAL='0.5*3.3' RISE=1 TARG v(c) VAL='0.5*3.3' FALL=1 .measure TRAN tdavgc PARAM='(tdrc+tdfc)/2' goal=tdavg .model opt1 opt method=bisection .param CAP=optc(0fF, 0fF, 100fF) .tran 20ps 3000ps sweep optimize=optc results = tdavgc model=opt1 .end Optimizer report that the input capacitance = 6.25 fF (which you can easily validate!)

  6. 1st CPU 2nd CPU [source: Devgan’05] thermal profile during runtime cache Design margins [source: Asenov’99] Sources of variations: Manufacturing (process variations): L, Vth, tox, interconnect dielectric height, .., etc Temperature Supply voltage (IR drop) threshold voltage 0.97V threshold voltage 0.57V

  7. Variations can be modeled statistically

  8. Process corners describe extreme case variations If a design works in all corners, it will probably work for any variation. Describe corner with four letters (T, F, S) nMOS speed pMOS speed Voltage Temperature Process corners

  9. Design corners check

  10. Simulating corner cases in SPICE .lib '05corners.lib' typ .temp 27 .option scale=250n .option post vdd vdd gnd 3.3 Vin a gnd PULSE 0 3.3 100ps 0ps 0ps 2000ps 4200ps M1 y a gnd gnd NMOS W=4 L=2 AS=20 PS=18 AD=20 PD=18 M2 y a vdd vdd PMOS W=8 L=2 AS=40 PS=26 AD=40 PD=26 .tran 1ps 500ps .alter .lib '05corners.lib' fastfast .alter .lib '05corners.lib' slowslow .end
