Presentation Transcript


Igneous rocks

Igneous Rocks

Chap. 5

  • What are igneous rocks?

  • Identifying igneous rocks


What are igneous rocks 5 1

Objectives

What are igneous rocks? – 5.1

  • compare and contrast intrusive and extrusive rocks

  • describe the composition of magma

  • discuss the factors that affect how rocks melt and crystallize

Rhyolite breccia


Igneous rocks

  • Definition


Igneous rocks

Igneous Rocks

Rocks formed when magma crystallizes.

‘Ignis’ = fire


Igneous rocks

  • Types of Igneous rocks


Igneous rocks

  • Types of Igneous rocks

  • Extrusive – fine grained rocks that cool quickly, on Earth’s surface

Basalt


Igneous rocks

  • Types of Igneous rocks

  • Intrusive – -grained rocks that cool , the Earth


Igneous rocks

  • Types of Igneous rocks

  • Intrusive – coarse-grained rocks that cool slowly, under the Earth

Granite


Igneous rocks

  • Magma composition

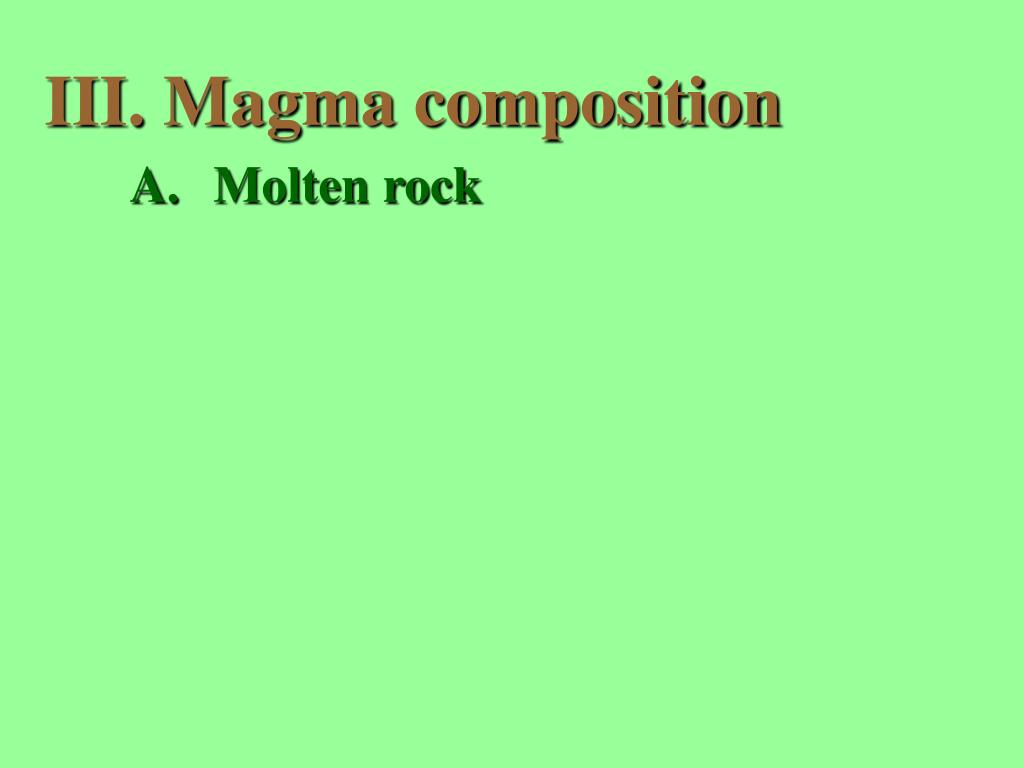

Igneous rocks

  • Magma composition

  • Molten rock

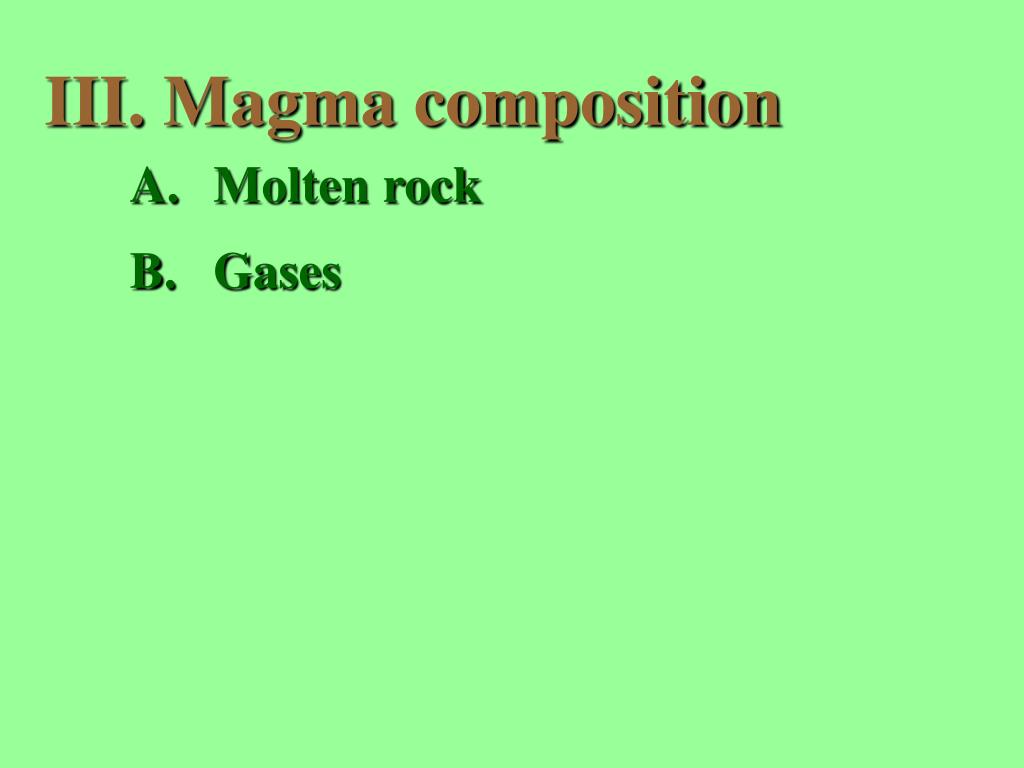

Igneous rocks

  • Magma composition

  • Molten rock

  • Gases

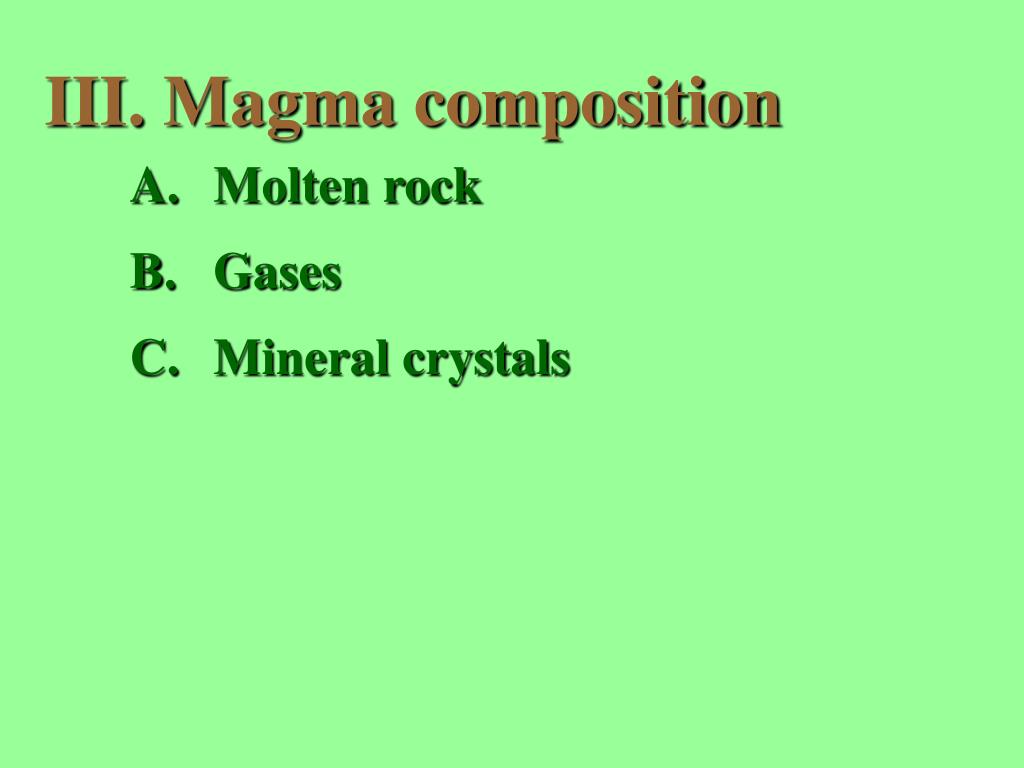

Igneous rocks

  • Magma composition

  • Molten rock

  • Gases

  • Mineral crystals


Igneous rocks

  • Magma composition

  • Molten rock

  • Gases

  • Mineral crystals

  • Magma Classifications


Igneous rocks

  • Magma composition

  • Molten rock

  • Gases

  • Mineral crystals

  • Magma Classifications

  • Basaltic – 50% SiO2


Igneous rocks

  • Magma composition

  • Molten rock

  • Gases

  • Mineral crystals

  • Magma Classifications

  • Basaltic – 50% SiO2

  • Andesitic – 60% SiO2


Igneous rocks

  • Magma composition

  • Molten rock

  • Gases

  • Mineral crystals

  • Magma Classifications

  • Basaltic – 50% SiO2

  • Andesitic – 60% SiO2

  • Rhyolitic – 70% SiO2


Igneous rocks

  • Magma Formation is Influenced by


Igneous rocks

  • Magma Formation is Influenced by

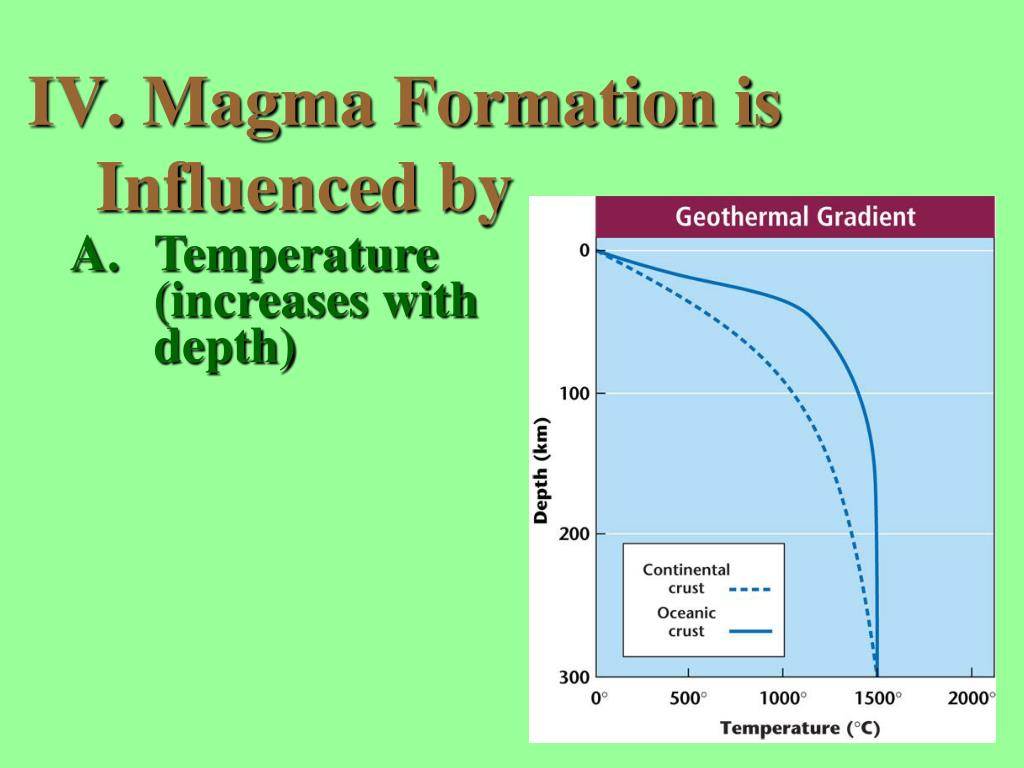

  • Temperature (increases with depth)


Igneous rocks

  • Magma Formation is Influenced by

  • Temperature (increases with depth)

  • Pressure (as pressure ↑, melting pt. ↑)


Igneous rocks

  • Magma Formation is Influenced by

  • Temperature (increases with depth)

  • Pressure (as pressure ↑, melting pt. ↑)

  • H2O content (more H2O, melting pt. ↓)

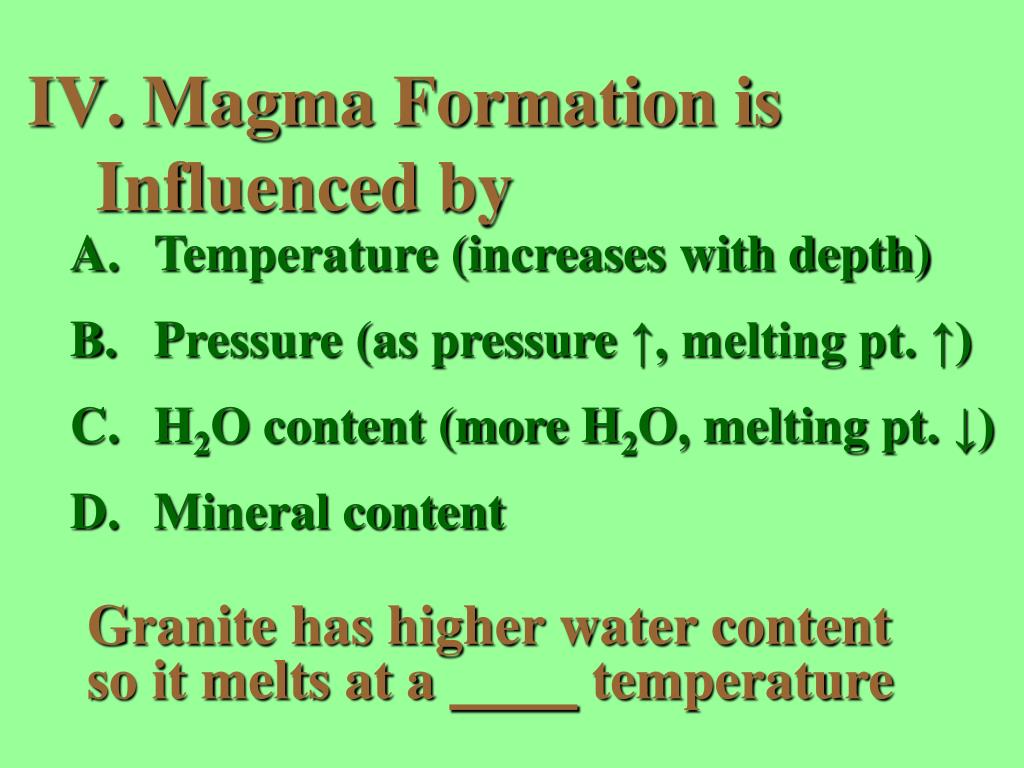

Igneous rocks

  • Magma Formation is Influenced by

  • Temperature (increases with depth)

  • Pressure (as pressure ↑, melting pt. ↑)

  • H2O content (more H2O, melting pt. ↓)

  • Mineral content

Granite has higher water content so it melts at a temperature


Igneous rocks

  • Magma Formation is Influenced by

  • Temperature (increases with depth)

  • Pressure (as pressure ↑, melting pt. ↑)

  • H2O content (more H2O, melting pt. ↓)

  • Mineral content

Granite has higher water content so it melts at a lower temperature


Igneous rocks

  • Melting Rocks


Igneous rocks

  • Melting Rocks

  • Partial melting

Some minerals melt while others remain solid


Igneous rocks

  • Melting Rocks

  • Partial melting

HEAT

Some minerals melt while others remain solid


Igneous rocks

  • Melting Rocks

  • Partial melting

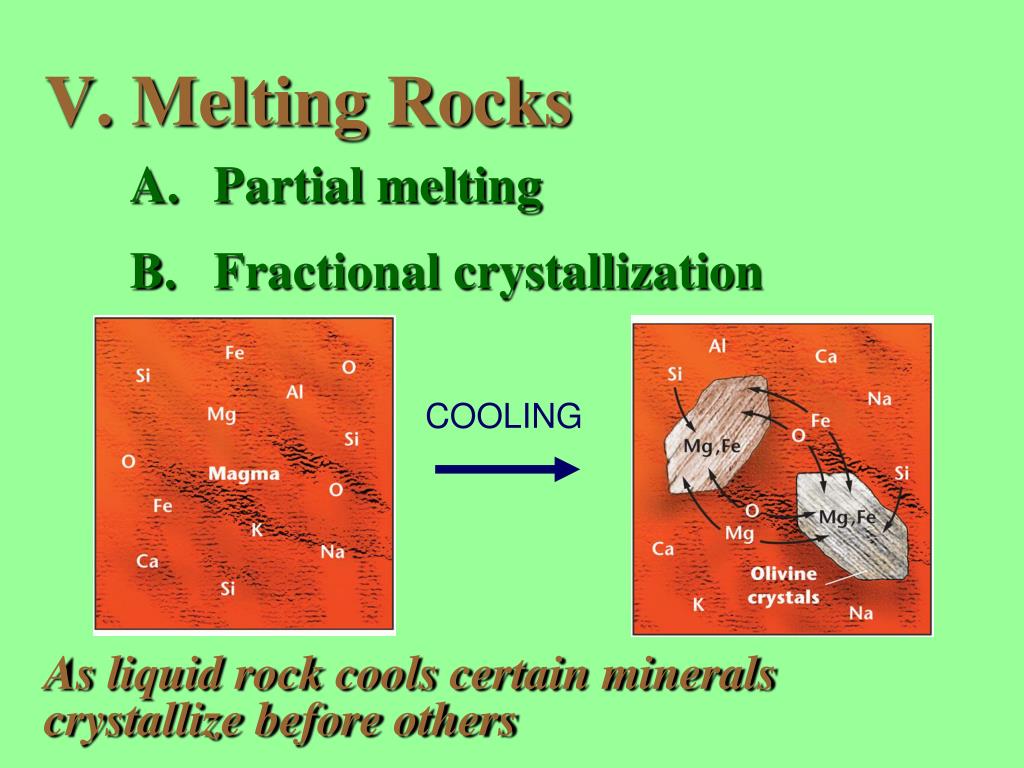

  • Fractional crystallization

As liquid rock cools certain minerals crystallize before others


Igneous rocks

  • Melting Rocks

  • Partial melting

  • Fractional crystallization

COOLING

As liquid rock cools certain minerals crystallize before others


Igneous rocks

  • Bowen’s Series

A chart that shows how minerals crystallize when cooled


Igneous rocks

  • Bowen’s Series

  • Two paths


Igneous rocks

  • Bowen’s Series

  • Two paths

  • Continuous path for feldspars


Igneous rocks

  • Bowen’s Series

  • Two paths

  • Continuous path for feldspars

  • Stepwise path for Fe/Mg minerals


Igneous rocks

  • Bowen’s Series

  • Two paths

  • Both paths end with Si and O – the last minerals to crystallize


Igneous rocks

  • Intrusions


Igneous rocks

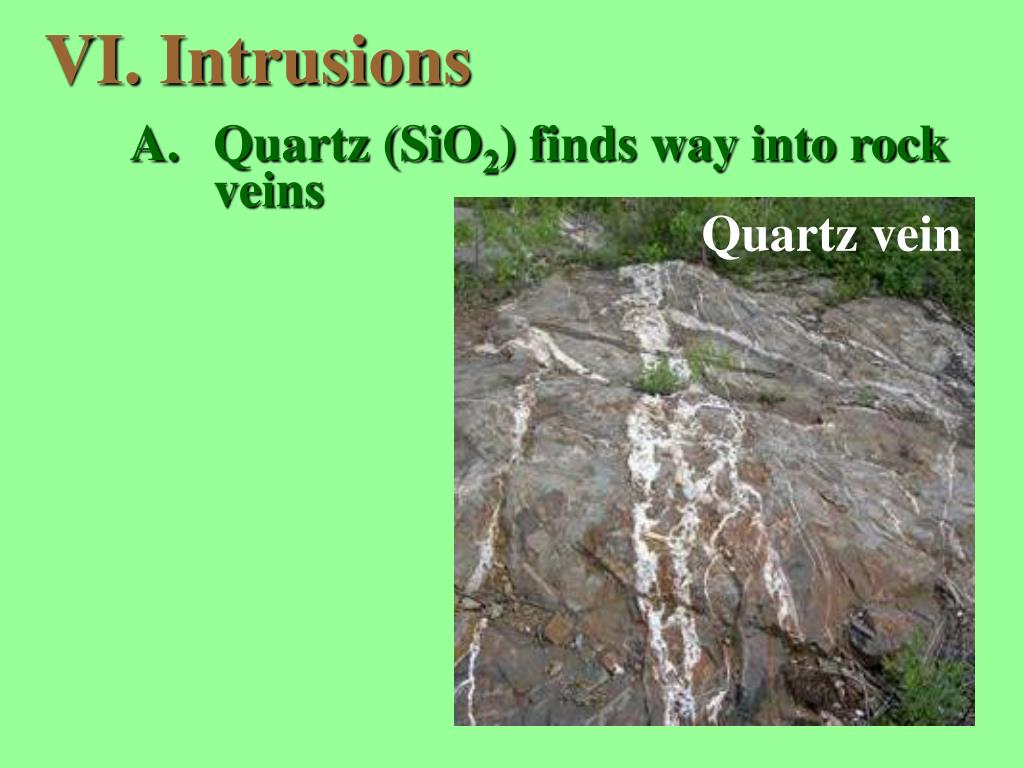

  • Intrusions

  • Quartz (SiO2) finds way into rock veins

Quartz vein


Igneous rocks

  • Intrusions

  • Quartz (SiO2) finds way into rock veins

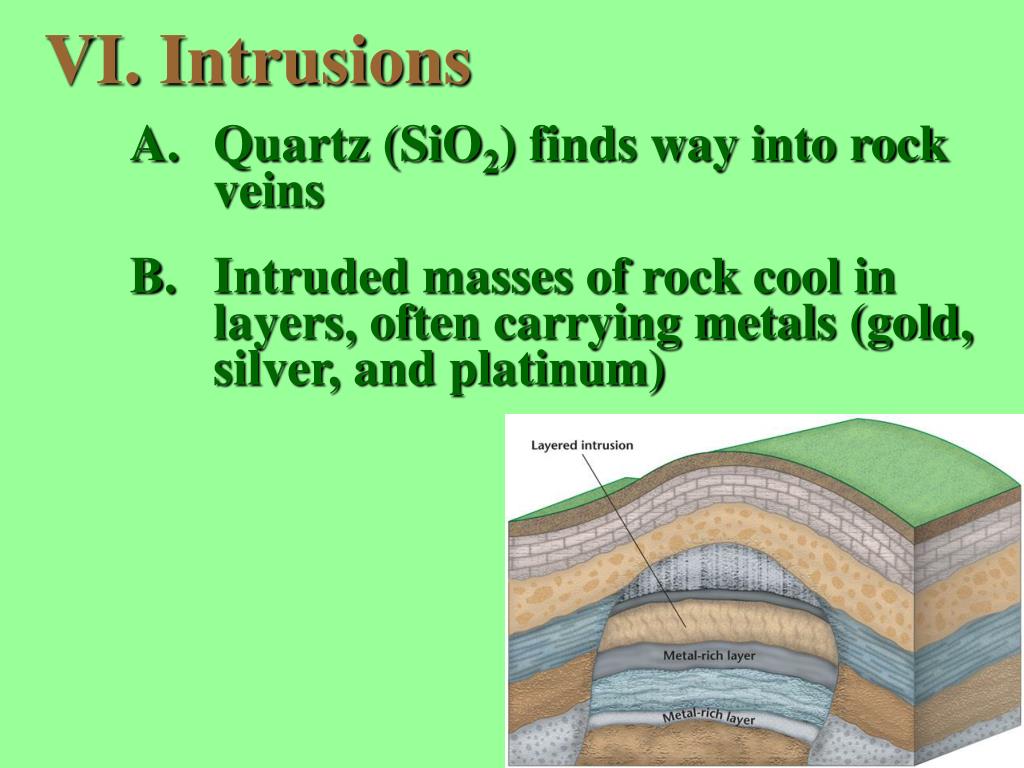

  • Intruded masses of rock cool in layers, often carrying metals (gold, silver, and platinum)


Igneous rocks

The End


Classifying igneous rocks 5 2

Objectives

Classifying Igneous Rocks 5.2

Basalt

  • Classify different types and textures of igneous rocks

  • Recognize the effects of cooling rates on the grain sizes

  • Describe some uses of igneous rocks


Igneous rocks

  • Where rock forms

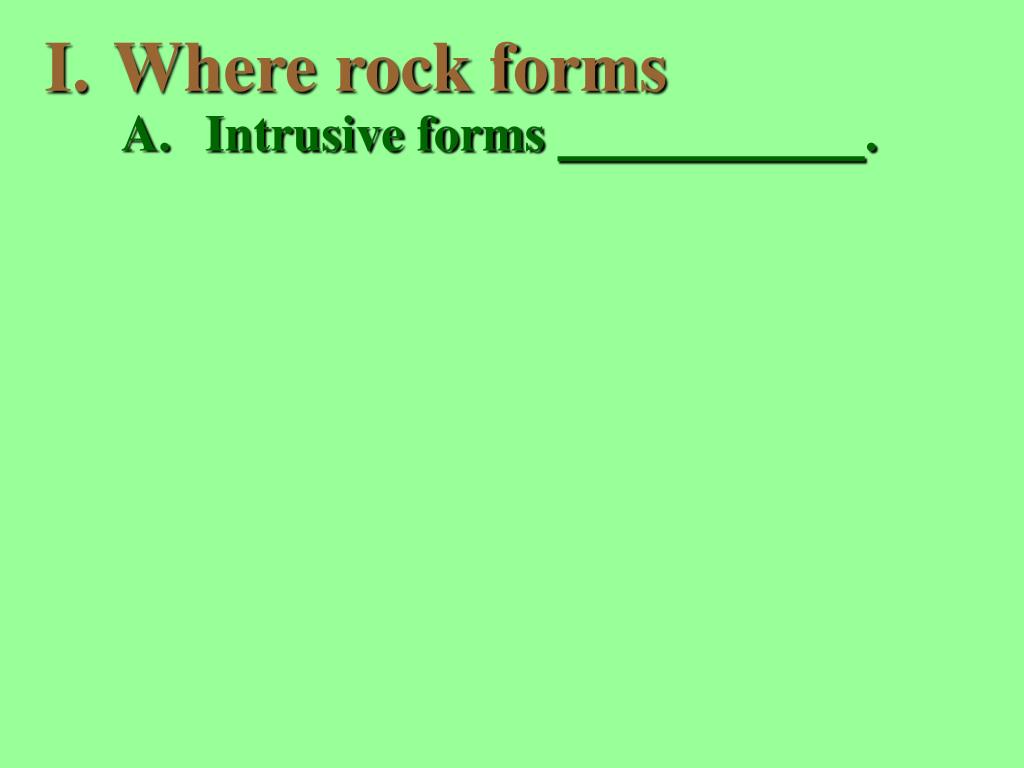

Igneous rocks

  • Where rock forms

  • Intrusive forms .


Igneous rocks

  • Where rock forms

  • Intrusive forms under surface.

  • Extrusive forms .


Igneous rocks

  • Where rock forms

  • Intrusive forms under surface.

  • Extrusive forms above surface.


Igneous rocks

  • Rock’s composition


Igneous rocks

  • Rock’s composition

  • Felsic – silicon-rich, light colored

Granite


Igneous rocks

  • Rock’s composition

  • Felsic – silicon-rich, light colored

  • Mafic – iron & magnesium rich, dark colored

Gabbro


Igneous rocks

  • Rock’s composition

  • Felsic – silicon-rich, light colored

  • Mafic – iron & magnesium rich, dark colored

  • Ultramafic – very high levels of Fe & Mg

Peridotite

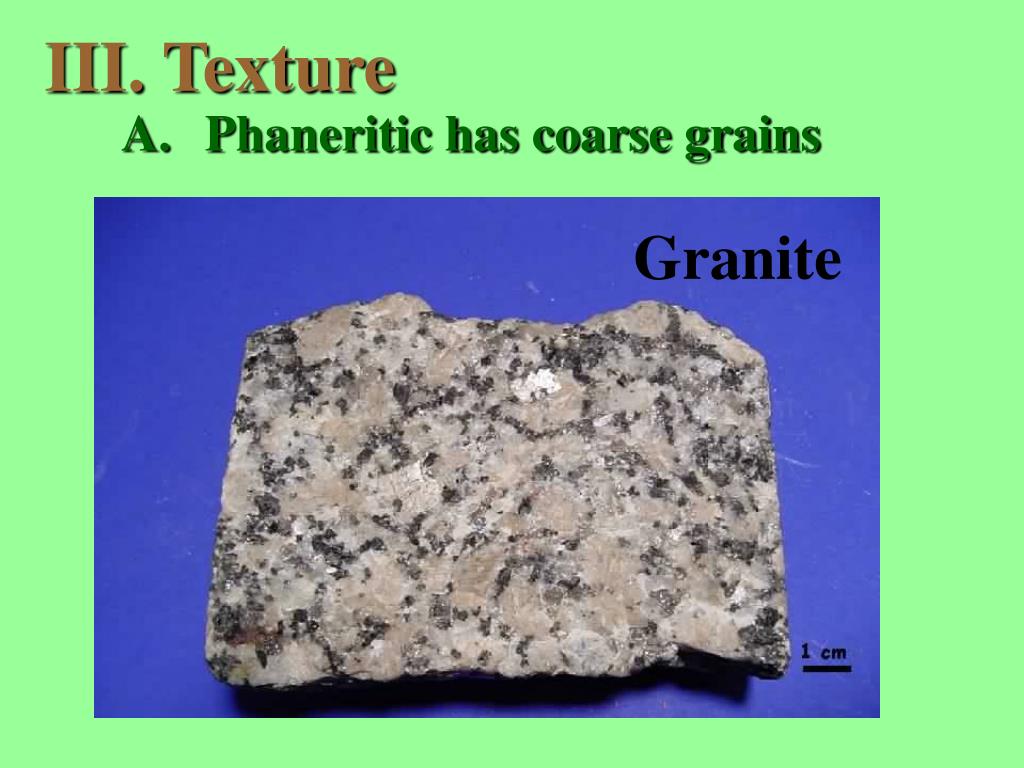

Igneous rocks

  • Texture

  • Phaneritic has coarse grains

Granite


Igneous rocks

  • Texture

  • Aphanitic is fine-grained

Basalt


Igneous rocks

  • Texture

  • Vessicular – has tiny holes

Vessicular Basalt

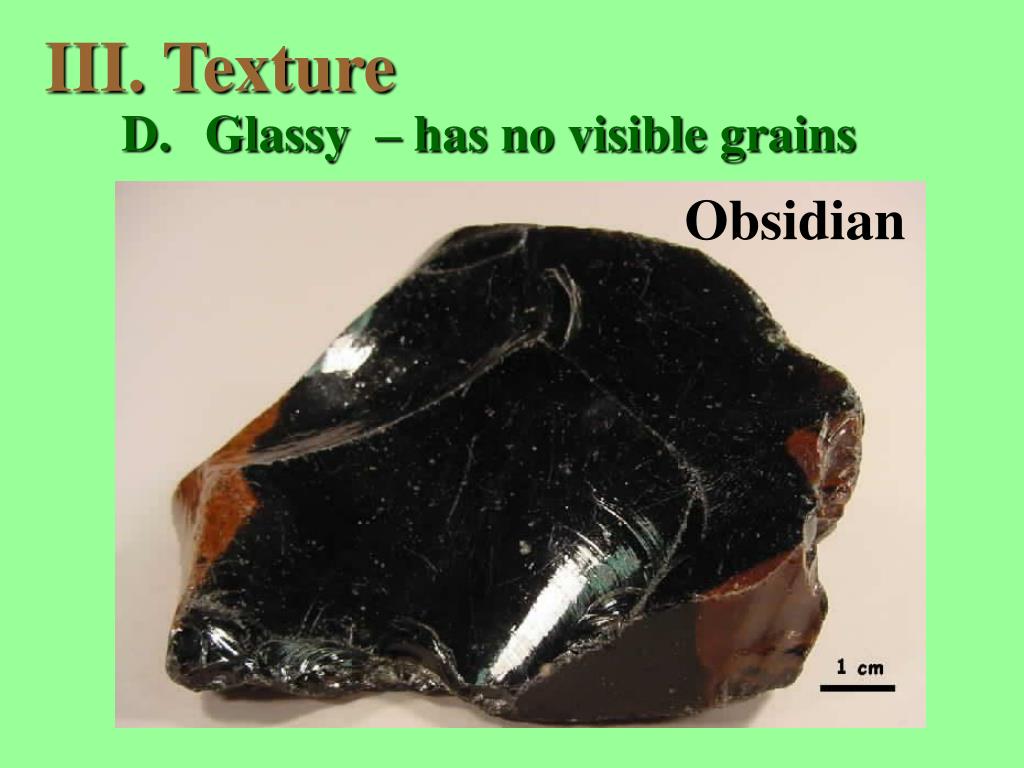

Igneous rocks

  • Texture

  • Glassy – has no visible grains

Obsidian

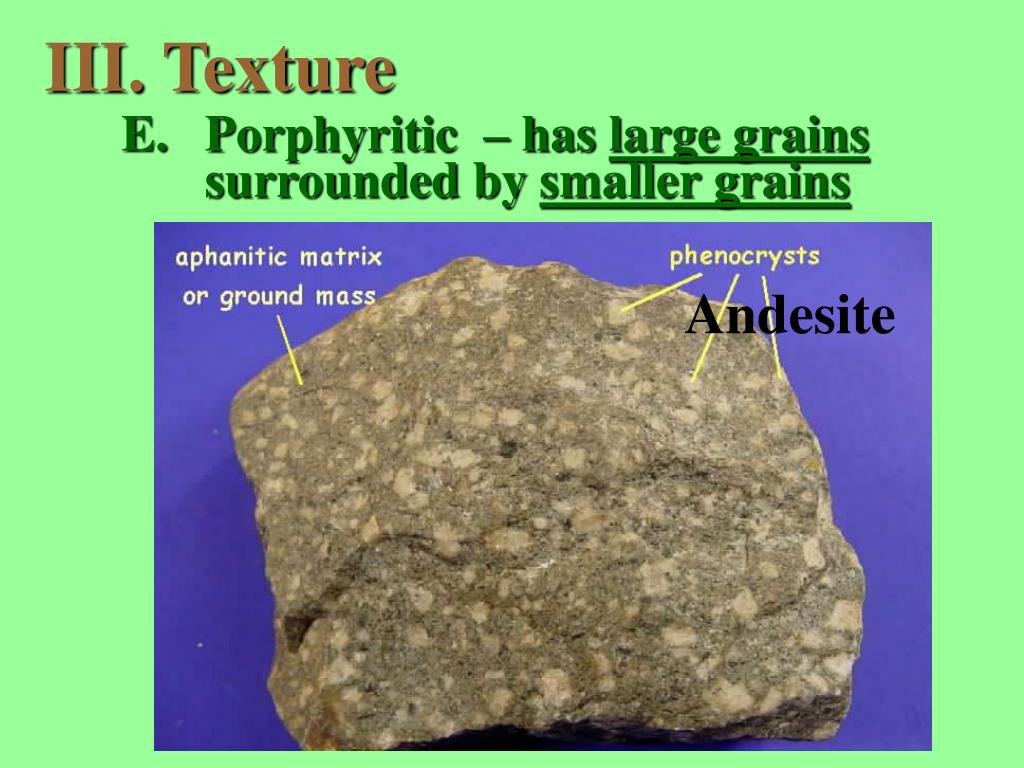

Igneous rocks

  • Texture

  • Porphyritic – has large grains surrounded by smaller grains

Andesite


Igneous rocks

  • Igneous rocks as resources


Igneous rocks

  • Igneous rocks as resources

  • They are strong and resist weathering


Igneous rocks

  • Igneous rocks as resources

  • They are strong and resist weathering

  • Granite is a common construction material


Igneous rocks

  • Ores

Minerals that contain useful substances that are mined for profit


Igneous rocks

  • Ores

  • Important metallic elements often found near veins


Igneous rocks

  • Ores

  • Important metallic elements often found near veins

  • Pegmatites

Veins of extremely large-grained minerals


Igneous rocks

  • Ores

  • Important metallic elements often found near veins

  • Pegmatites

  • Kimberlites

These contain diamonds


Igneous rocks

The End
