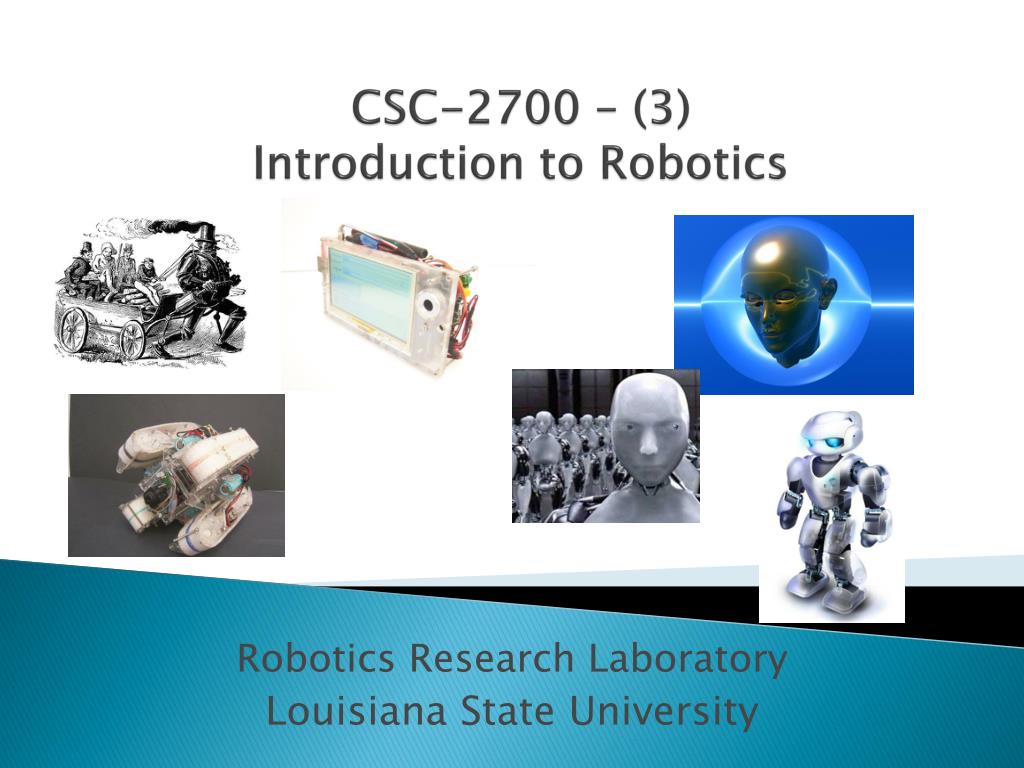

Csc 2700 3 introduction to robotics

CSC-2700 – (3) Introduction to Robotics

Robotics Research Laboratory

Louisiana State University


Topics for today

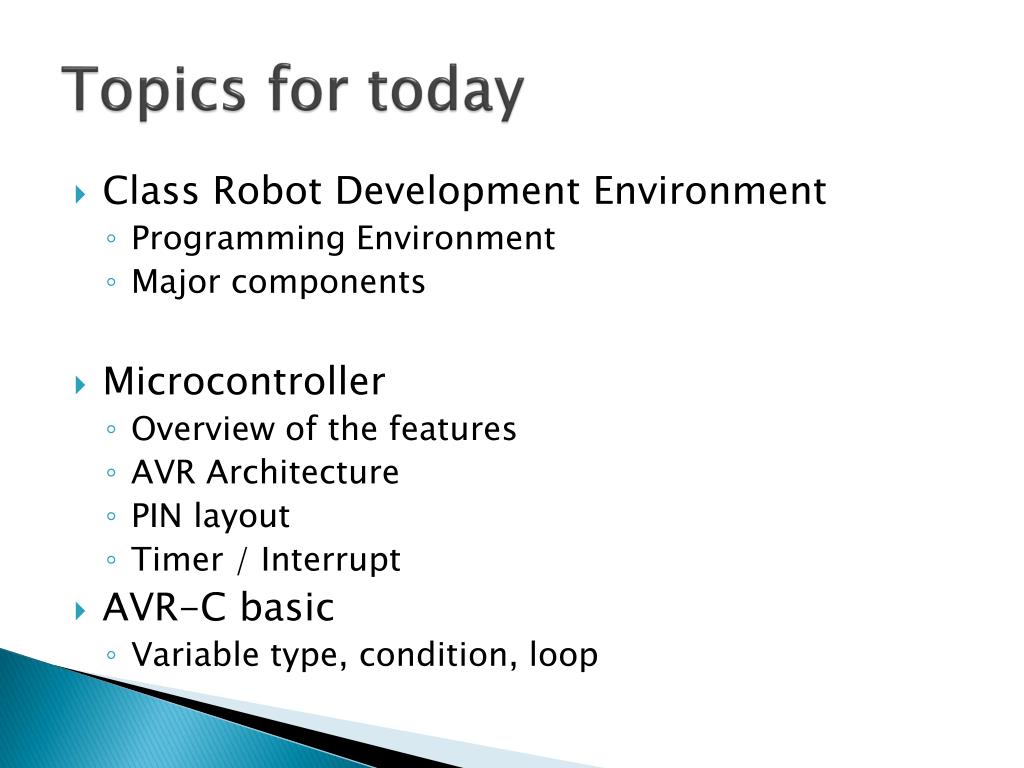

Topics for today

  • Class Robot Development Environment

    • Programming Environment

    • Major components

  • Microcontroller

    • Overview of the features

    • AVR Architecture

    • PIN layout

    • Timer / Interrupt

  • AVR-C basic

    • Variable type, condition, loop


Class robot development environment

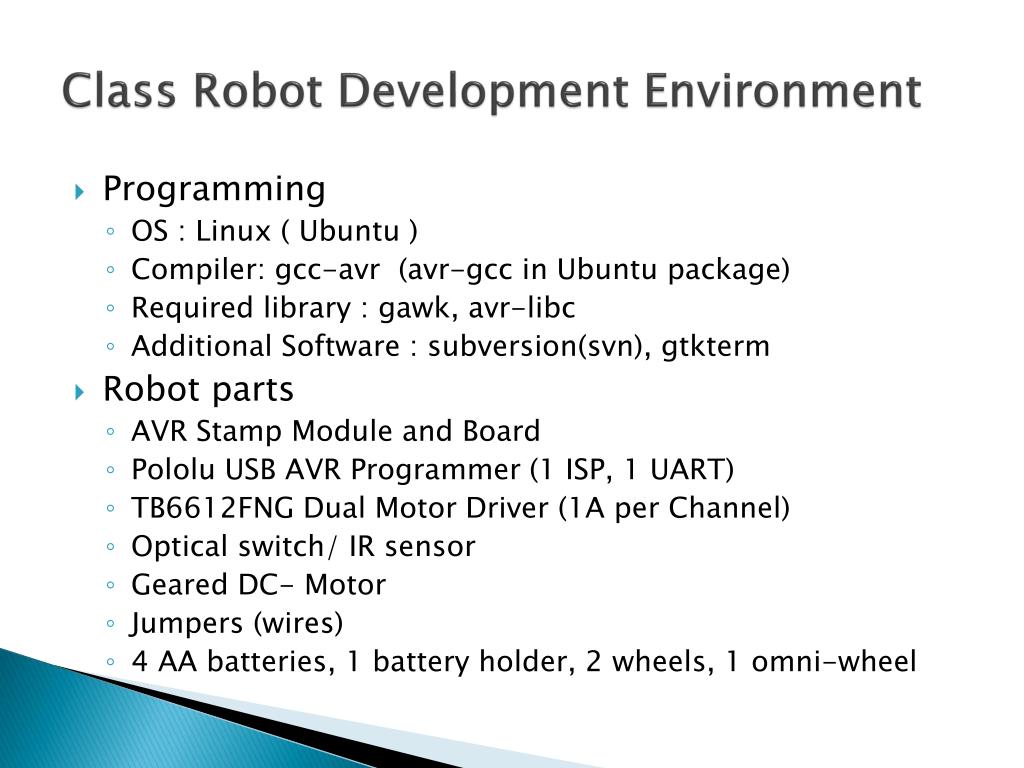

Class Robot Development Environment

  • Programming

    • OS : Linux ( Ubuntu )

    • Compiler: gcc-avr (avr-gcc in Ubuntu package)

    • Required library : gawk, avr-libc

    • Additional Software : subversion(svn), gtkterm

  • Robot parts

    • AVR Stamp Module and Board

    • Pololu USB AVR Programmer (1 ISP, 1 UART)

    • TB6612FNG Dual Motor Driver (1A per Channel)

    • Optical switch/ IR sensor

    • Geared DC- Motor

    • Jumpers (wires)

    • 4 AA batteries, 1 battery holder, 2 wheels, 1 omni-wheel


How to setup

How to setup

  • Install Ubuntu

  • Update list of Ubuntu package

    • sudo apt-get update

  • Install required package for AVR

    • sudo apt-get install gcc-avravr-libc gawk avrdude

  • Install additional packages

    • sudo apt-get install subversion gtkterm

  • Download basic robot libraries –

    • svn co http://svn.gumstix.com/gumstix-buildroot/branches/projects/robostix robostix

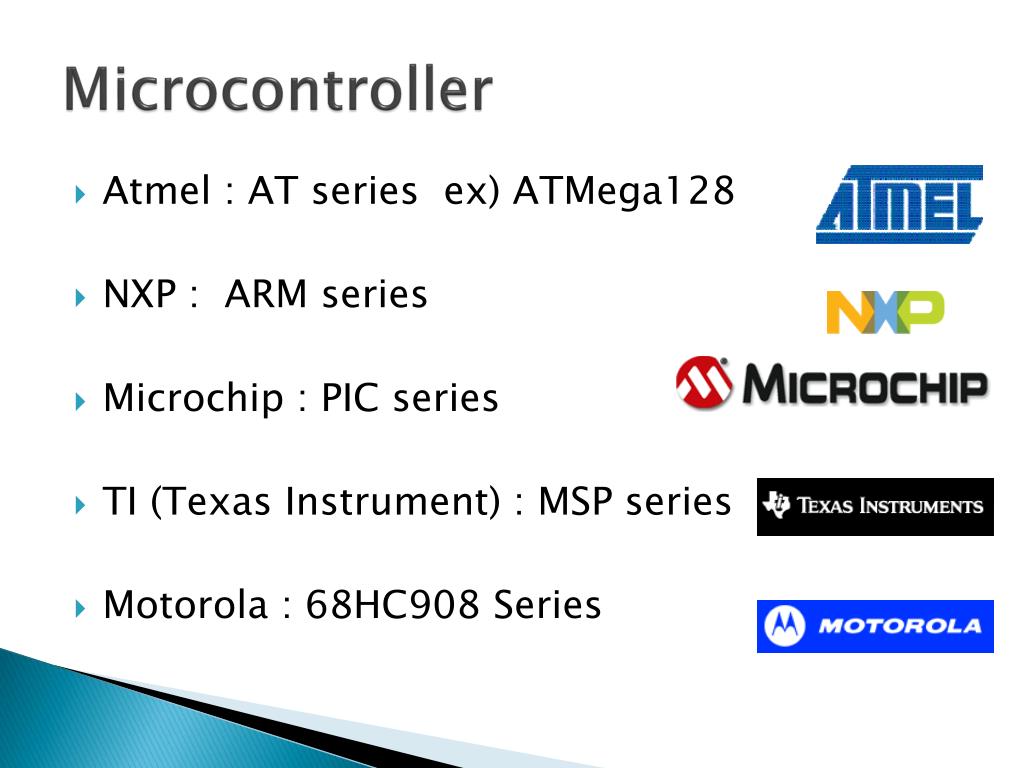

Microcontroller

Microcontroller

  • Atmel : AT series ex) ATMega128

  • NXP : ARM series

  • Microchip : PIC series

  • TI (Texas Instrument) : MSP series

  • Motorola : 68HC908 Series


Atmega 128 microcontroller

ATMega 128 Microcontroller

  • Advanced RISC Architecture – 8 Bit Microcontroller

    • 133 Powerful Instructions – Most Single Clock Cycle Execution

    • 32 x 8 General Purpose Working Registers

    • Up to 16MIPS Throughput at 16MHz

  • 128Kbytes of ISP Flash program memory

  • 4Kbytes EEPROM, 4Kbytes Internal SRAM

  • Two 8-bit Timer/Counters

  • 8 External Interrupt ports

  • Two Expanded 16-bit Timer/Counters

  • 6 PWM Channels from 2 to 16 Bits

  • 8-channel, 10-bit ADC

  • 53 Programmable I/O Lines

  • 4.5 - 5.5V supply power ; 0.2 W (16Mhz, 5.0V)

  • $5 ~ $12

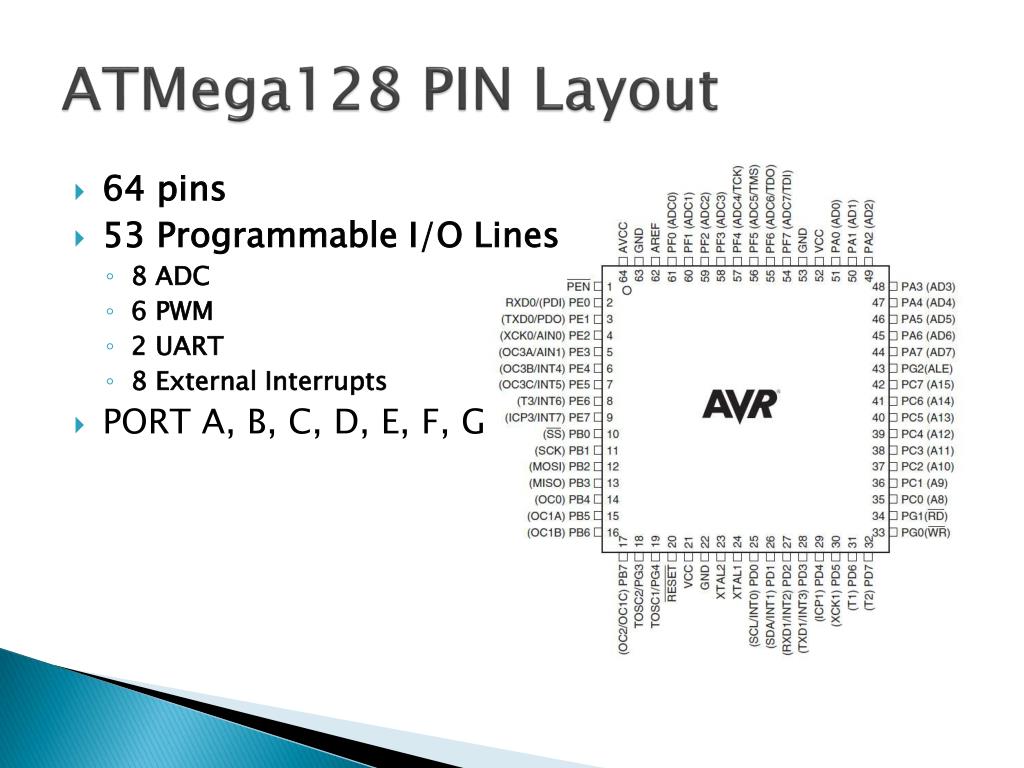

Atmega128 pin layout

ATMega128 PIN Layout

  • 64 pins

  • 53 Programmable I/O Lines

    • 8 ADC

    • 6 PWM

    • 2 UART

    • 8 External Interrupts

  • PORT A, B, C, D, E, F, G

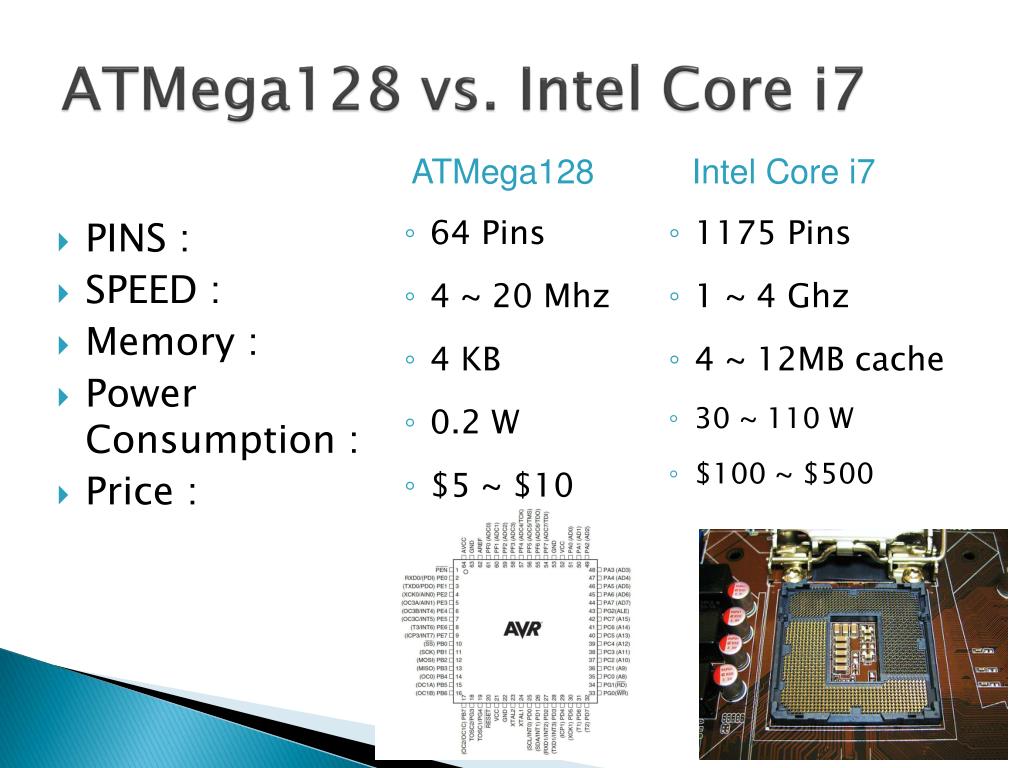

Atmega128 vs intel core i7

ATMega128 vs. Intel Core i7

ATMega128

Intel Core i7

  • 64 Pins

  • 4 ~ 20 Mhz

  • 4 KB

  • 0.2 W

  • $5 ~ $10

  • 1175 Pins

  • 1 ~ 4 Ghz

  • 4 ~ 12MB cache

  • 30 ~ 110 W

  • $100 ~ $500

  • PINS :

  • SPEED :

  • Memory :

  • Power Consumption :

  • Price :

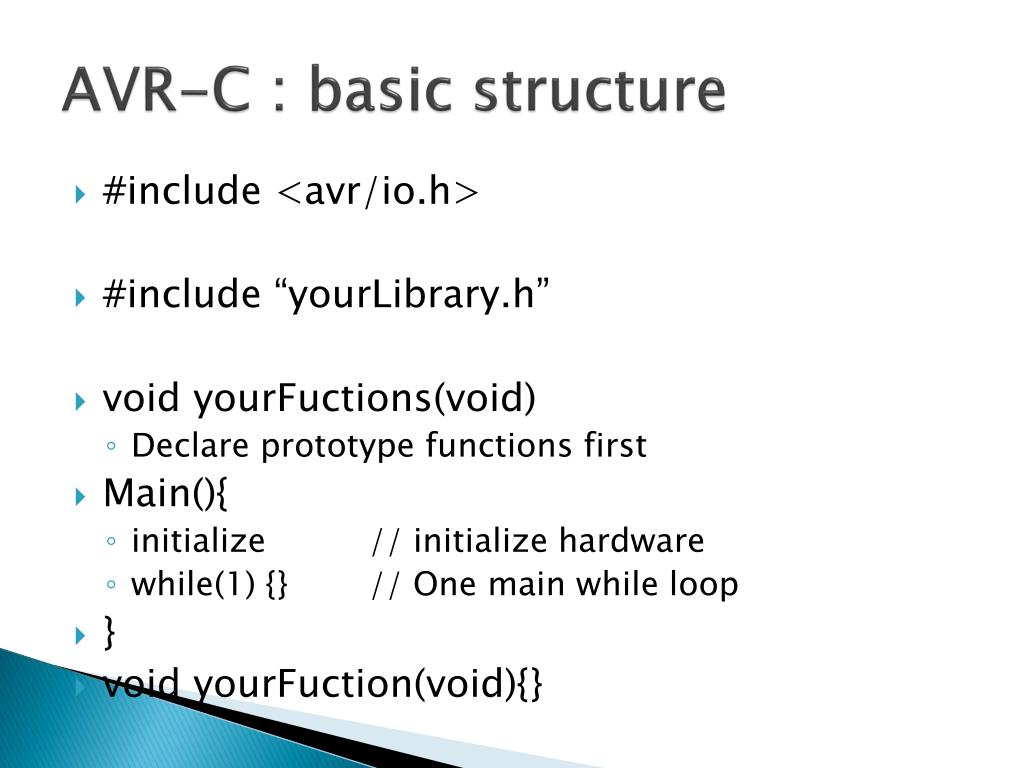

Avr c basic structure

AVR-C : basic structure

  • #include <avr/io.h>

  • #include “yourLibrary.h”

  • void yourFuctions(void)

    • Declare prototype functions first

  • Main(){

    • initialize// initialize hardware

    • while(1) {} // One main while loop

  • }

  • void yourFuction(void){}

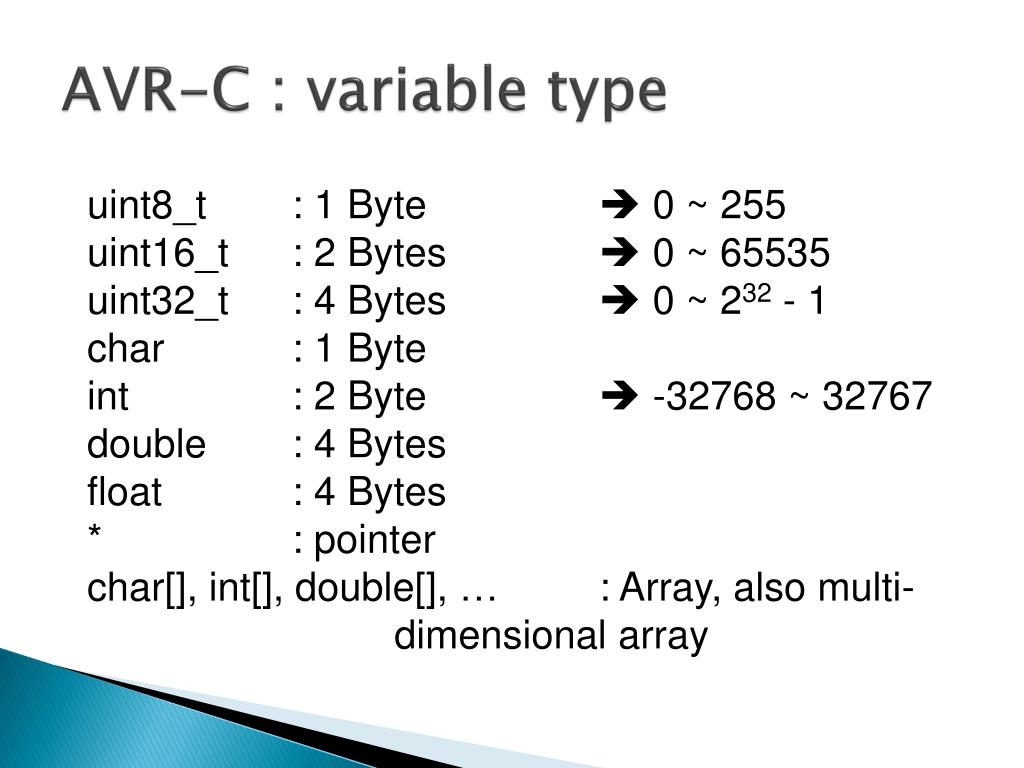

Avr c variable type

AVR-C : variable type

uint8_t: 1 Byte 0 ~ 255

uint16_t: 2 Bytes 0 ~ 65535

uint32_t: 4 Bytes 0 ~ 232 - 1

char: 1 Byte

int: 2 Byte -32768 ~ 32767

double: 4 Bytes

float: 4 Bytes

*: pointer

char[], int[], double[], … : Array, also multi- dimensional array

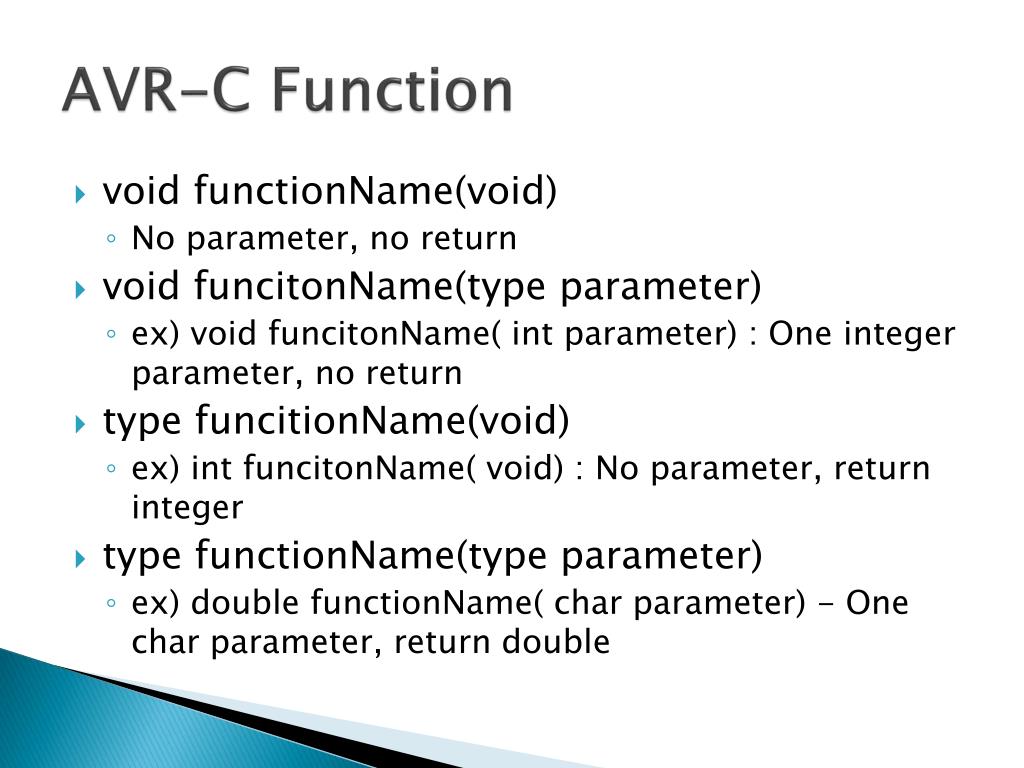

Avr c function

AVR-C Function

  • void functionName(void)

    • No parameter, no return

  • void funcitonName(type parameter)

    • ex) void funcitonName( int parameter) : One integer parameter, no return

  • type funcitionName(void)

    • ex) intfuncitonName( void) : No parameter, return integer

  • type functionName(type parameter)

    • ex) double functionName( char parameter) - One char parameter, return double


Avr c condition loop

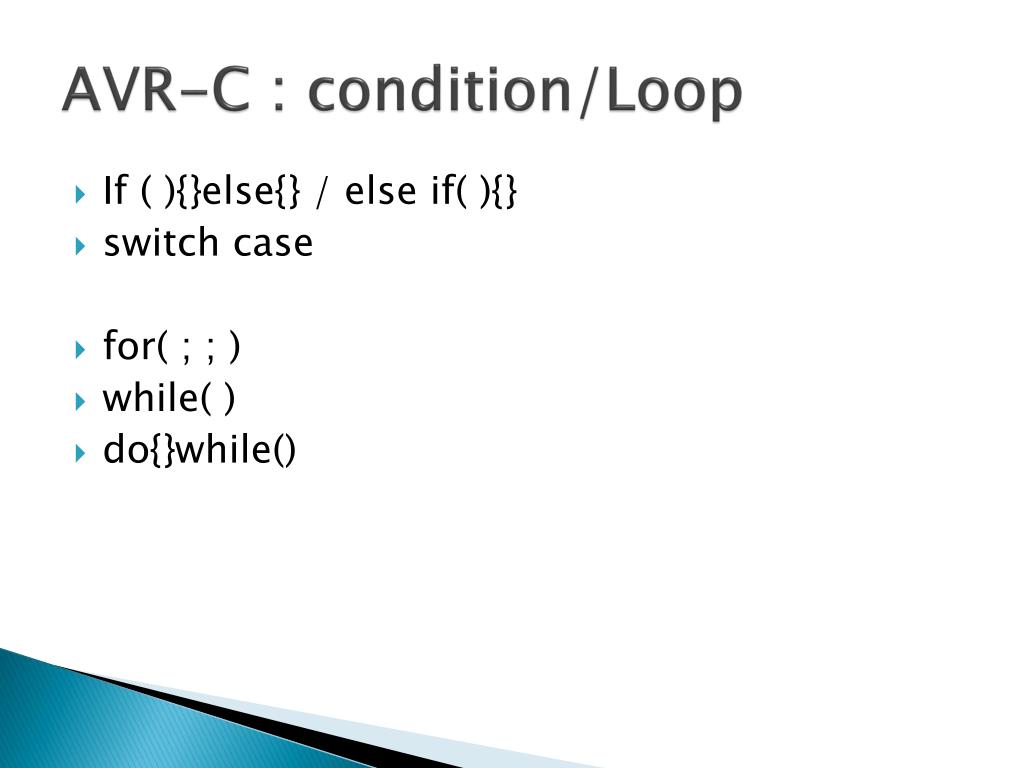

AVR-C : condition/Loop

  • If ( ){}else{} / else if( ){}

  • switch case

  • for( ; ; )

  • while( )

  • do{}while()


Compile the code and send it to the robot

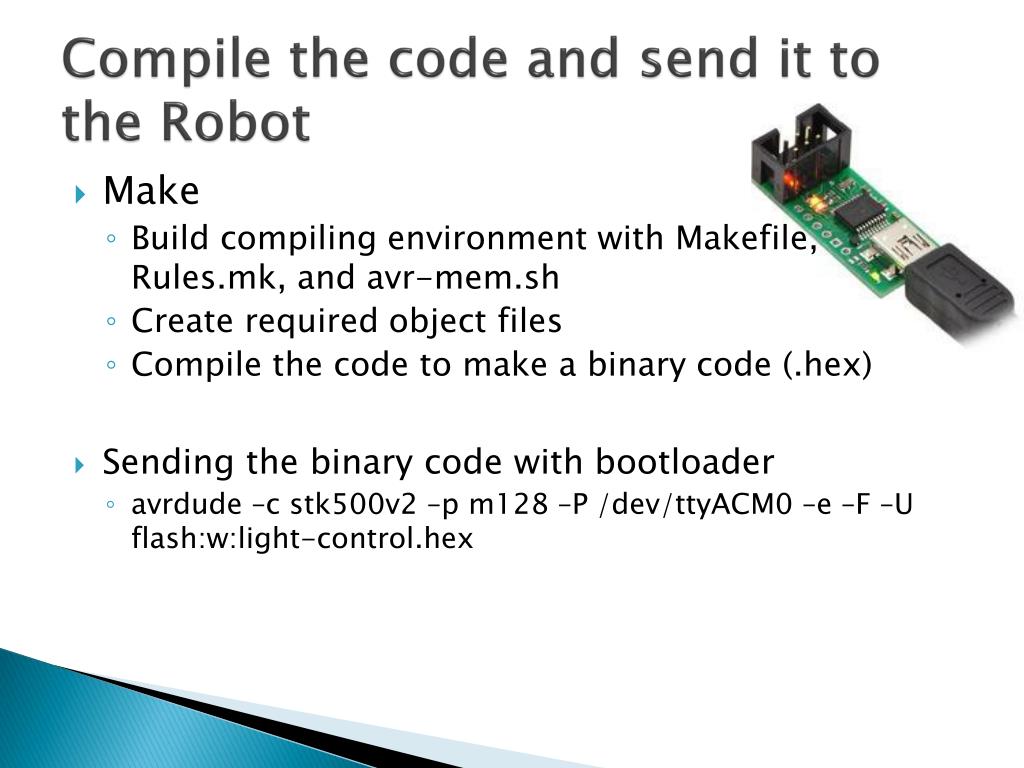

Compile the code and send it to the Robot

  • Make

    • Build compiling environment with Makefile, Rules.mk, and avr-mem.sh

    • Create required object files

    • Compile the code to make a binary code (.hex)

  • Sending the binary code with bootloader

    • avrdude –c stk500v2 –p m128 –P /dev/ttyACM0 –e –F –U flash:w:light-control.hex


Robot control flow

Robot Control Flow

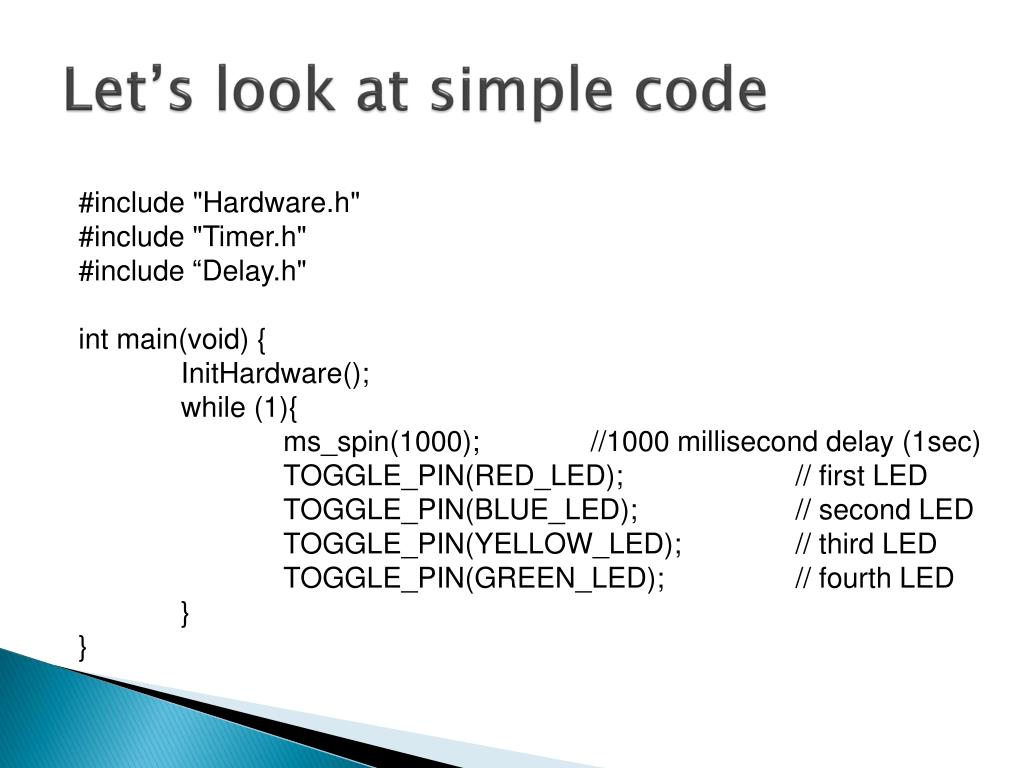

Let s look at simple code

Let’s look at simple code

  • #include "Hardware.h"

  • #include "Timer.h"

  • #include “Delay.h"

  • intmain(void) {

  • InitHardware();

  • while (1){

  • ms_spin(1000); //1000 millisecond delay (1sec)

    • TOGGLE_PIN(RED_LED);// first LED

    • TOGGLE_PIN(BLUE_LED);// second LED

    • TOGGLE_PIN(YELLOW_LED);// third LED

    • TOGGLE_PIN(GREEN_LED);// fourth LED

    • }

  • }

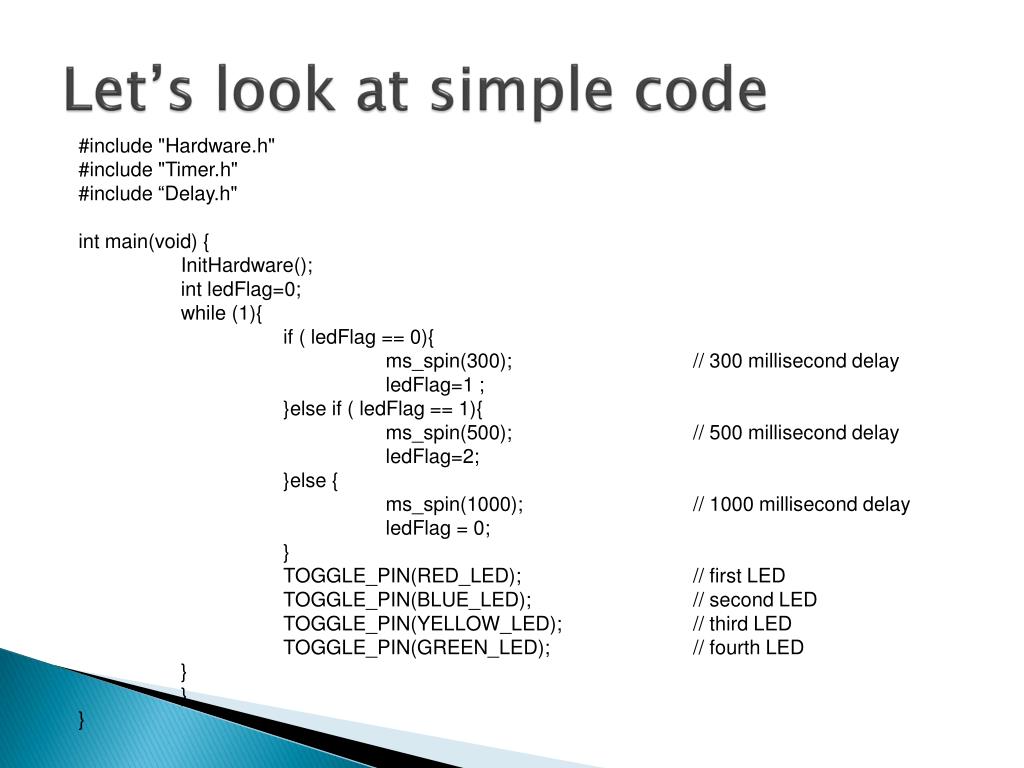

  • Let s look at simple code1

    Let’s look at simple code

    • #include "Hardware.h"

    • #include "Timer.h"

    • #include “Delay.h"

    • intmain(void) {

    • InitHardware();

    • intledFlag=0;

    • while (1){

    • if ( ledFlag == 0){

      • ms_spin(300); // 300 millisecond delay

      • ledFlag=1 ;

      • }else if ( ledFlag == 1){

      • ms_spin(500); // 500 millisecond delay

      • ledFlag=2;

      • }else {

      • ms_spin(1000); // 1000 millisecond delay

      • ledFlag = 0;

      • }

      • TOGGLE_PIN(RED_LED);// first LED

      • TOGGLE_PIN(BLUE_LED);// second LED

      • TOGGLE_PIN(YELLOW_LED);// third LED

      • TOGGLE_PIN(GREEN_LED);// fourth LED

      • }

      • }

  • }


  • Let s look at simple code2

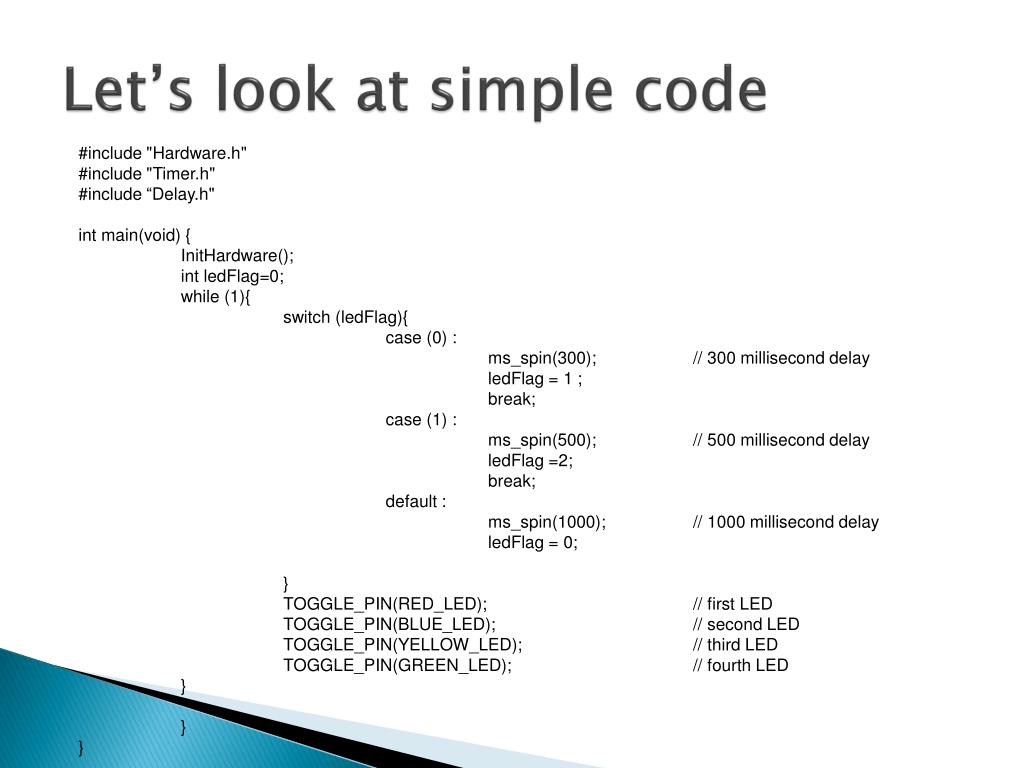

    Let’s look at simple code

    • #include "Hardware.h"

    • #include "Timer.h"

    • #include “Delay.h"

    • intmain(void) {

    • InitHardware();

    • intledFlag=0;

    • while (1){

    • switch (ledFlag){

    • case (0) :

      • ms_spin(300); // 300 millisecond delay

      • ledFlag = 1 ;

      • break;

      • case (1) :

      • ms_spin(500); // 500 millisecond delay

      • ledFlag =2;

      • break;

  • default :

    • ms_spin(1000); // 1000 millisecond delay

    • ledFlag = 0;

    • }

    • TOGGLE_PIN(RED_LED);// first LED

    • TOGGLE_PIN(BLUE_LED);// second LED

    • TOGGLE_PIN(YELLOW_LED);// third LED

    • TOGGLE_PIN(GREEN_LED);// fourth LED

    • }

    • }

  • }


  • 4 led toggle in different times

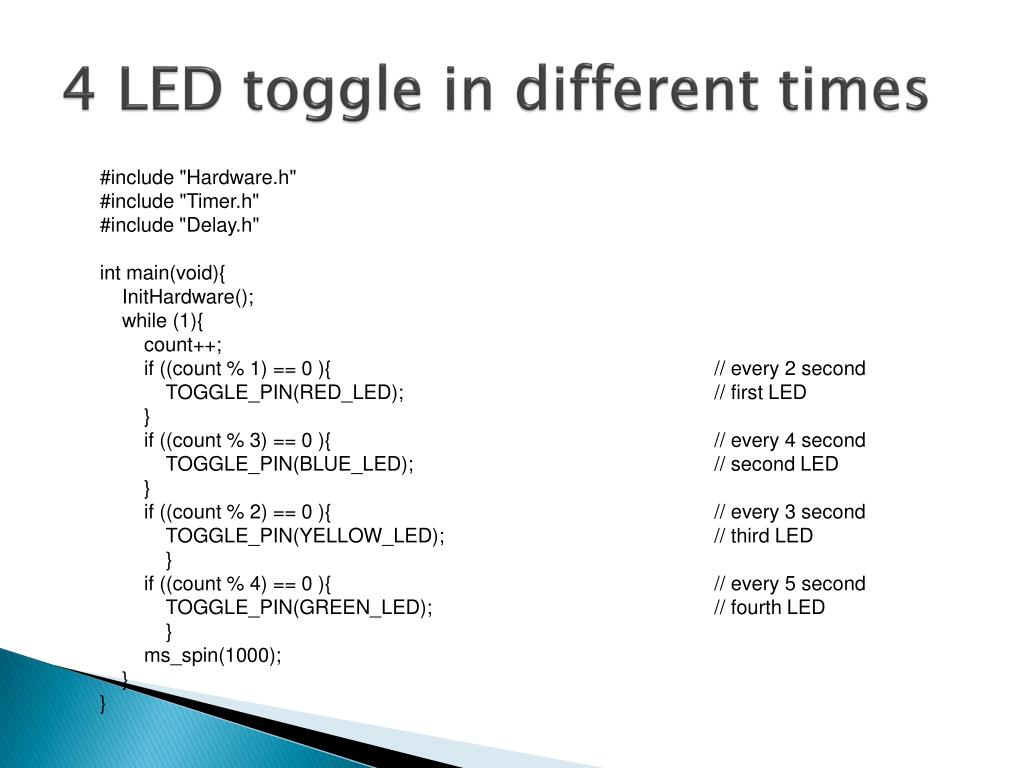

    4 LED toggle in different times

    #include "Hardware.h"

    #include "Timer.h"

    #include "Delay.h"

    int main(void){

    InitHardware();

    while (1){

    count++;

    if ((count % 1) == 0 ){ // every 2 second

    TOGGLE_PIN(RED_LED);// first LED

    }

    if ((count % 3) == 0 ){ // every 4 second

    TOGGLE_PIN(BLUE_LED); // second LED

    }

    if ((count % 2) == 0 ){// every 3 second

    TOGGLE_PIN(YELLOW_LED);// third LED

    }

    if ((count % 4) == 0 ){// every 5 second

    TOGGLE_PIN(GREEN_LED); // fourth LED

    }

    ms_spin(1000);

    }

    }


    4 led toggle in different times1

    4 LED toggle in different times

    #include "Hardware.h"

    #include "Timer.h"

    #include "Delay.h"

    int main(void){

    InitHardware();

    while (1){

    count++;

    if ((count % 1) == 0 ){ // 1 millisecond

    TOGGLE_PIN(RED_LED);

    }

    if ((count % 10) == 0 ){ // 10 millisecond

    TOGGLE_PIN(BLUE_LED);

    }

    if ((count % 100) == 0 ){// 100 millisecond

    TOGGLE_PIN(YELLOW_LED);

    }

    if ((count % 1000) == 0 ){// 1 second

    TOGGLE_PIN(GREEN_LED);

    }

    ms_spin(1);

    }

    }


    Homework

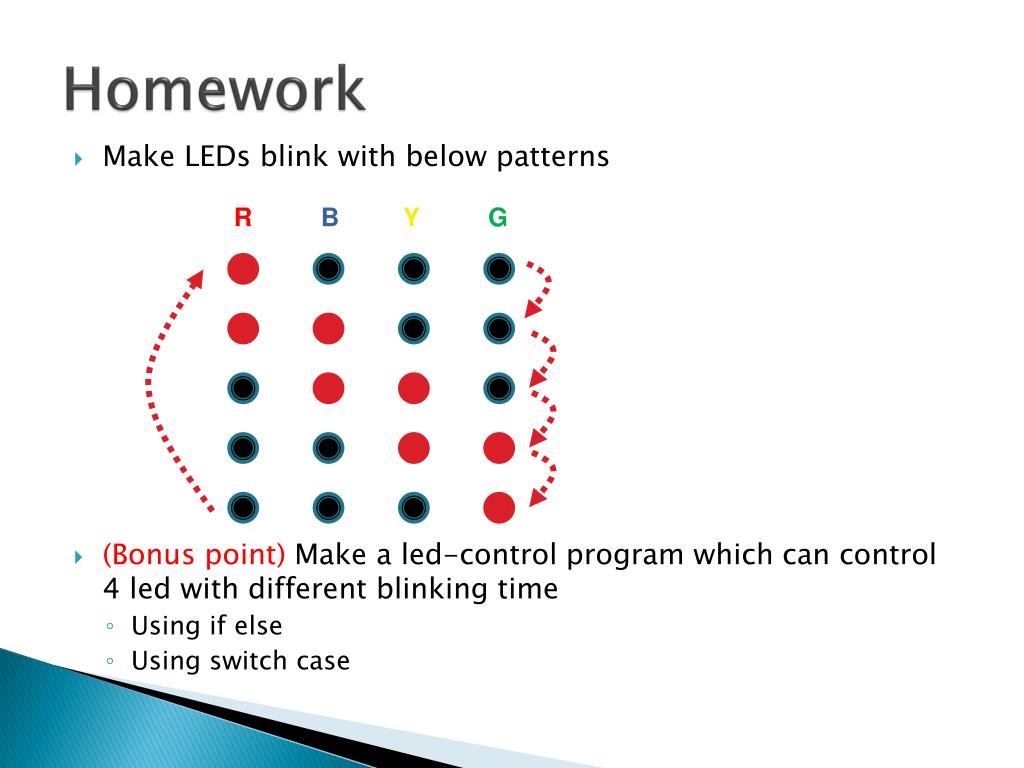

    Homework

    • Make LEDs blink with below patterns

    • (Bonus point) Make a led-control program which can control 4 led with different blinking time

      • Using if else

      • Using switch case

    R

    B

    Y

    G


    Open mind quiz

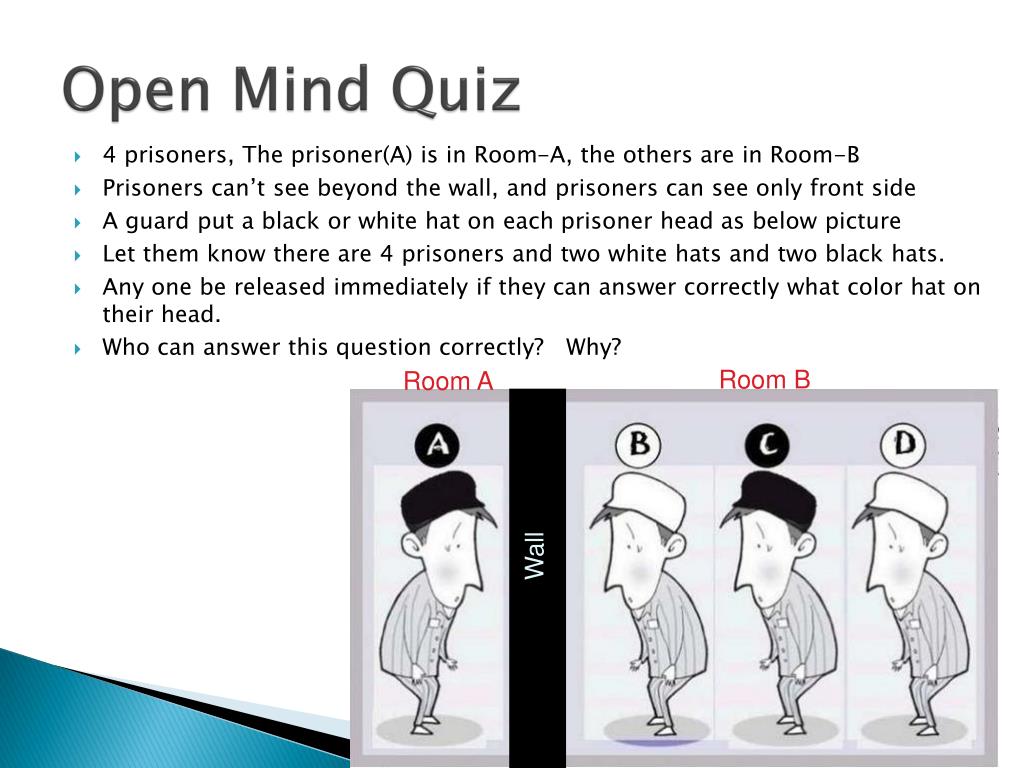

    Open Mind Quiz

    • 4 prisoners, The prisoner(A) is in Room-A, the others are in Room-B

    • Prisoners can’t see beyond the wall, and prisoners can see only front side

    • A guard put a black or white hat on each prisoner head as below picture

    • Let them know there are 4 prisoners and two white hats and two black hats.

    • Any one be released immediately if they can answer correctly what color hat on their head.

    • Who can answer this question correctly? Why?

    Room B

    Room A

    Wall
