THE INTERNATIONAL DORIS SERVICE. G. Tavernier (CNES) L. Soudarin (CLS) P. Willis (IGN/LAREG). C. Noll (GSFC/CDDIS) J. Ries (UTEX/CSR). DORIS SYSTEM. DORIS NETWORK. DORIS RECEIVERS FAMILY.

Download Presentation

THE INTERNATIONAL DORIS SERVICE

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


The international doris service

THE INTERNATIONAL DORIS SERVICE

G. Tavernier (CNES)

L. Soudarin (CLS)

P. Willis (IGN/LAREG)

C. Noll (GSFC/CDDIS)

J. Ries (UTEX/CSR)


The international doris service

DORIS SYSTEM


The international doris service

DORIS NETWORK


The international doris service

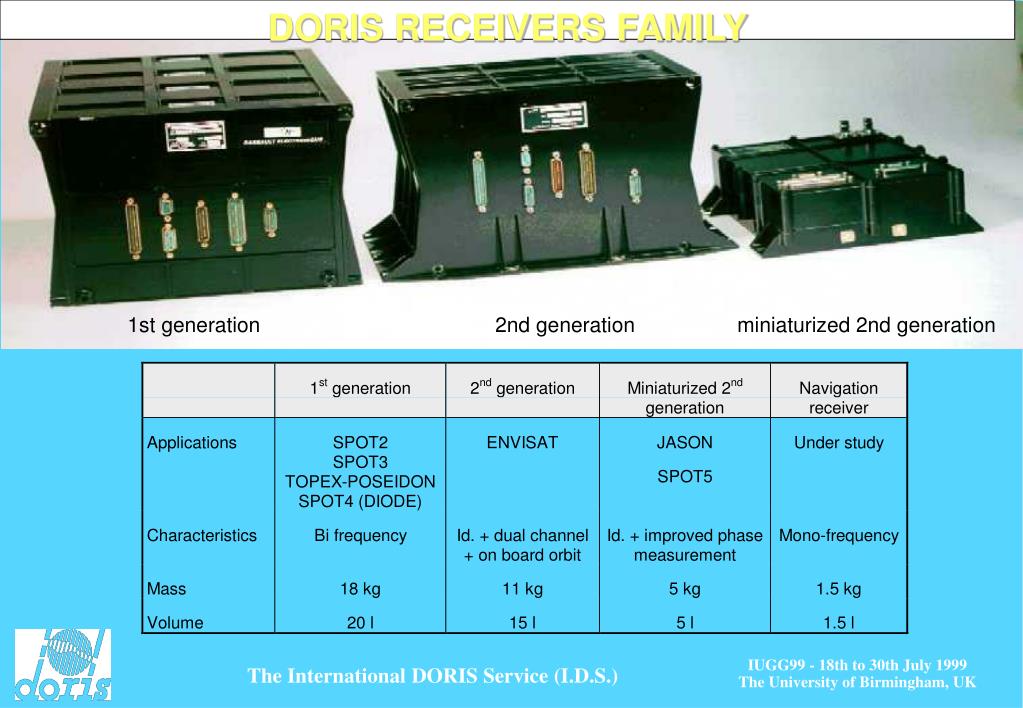

DORIS RECEIVERS FAMILY

1st generation 2nd generation miniaturized 2nd generation


The international doris service

DORIS Missions (decided)

90 91 92 93 94 95 96 97 98 99 2000 2001 2002

SPOT-2

TOPEX-POSEIDON

SPOT-3

SPOT-4

ENVISAT-1

JASON-1

SPOT-5

Precise Orbit

Precise Beacon Location

Gravity field

Earth rotation

Navigation


The international doris service

DORIS system evolutions and perspectives

  • DIODE navigator

    • SPOT4 (March 1998)

    • JASON-1, ENVISAT, SPOT5 ...

  • 2nd generation receivers

    • dual channel

    • absolute phase measurement

    • miniaturized (Jason, SPOT5 …)

    • DIODE

  • 3rd generation ground beacons

    • shifted frequency

    • DORIS message & modulation on 2GHz channel


The international doris service

DORIS and Nuvel-1 velocities


The international doris service

DORIS, GPS and LASER velocities


The international doris service

Velocities of 4 sites near EURASIAN boundariesrelative to the EURASIAN plate


The international doris service

Velocities of MANILLE, CIBINONG & GUAM stationsrelative to the EURASIAN and PHILLIPINE plates


The international doris service

Relative velocities to India plate in Nepal and Tibet


The international doris service

Polar motion with DORIS data


The international doris service

Geocenter coordinates derived from DORIS data


The international doris service

International DORIS Service IDS

  • 4 techniques contributing to the IERS

  • International Services

    • I.G.S.

    • I.L.R.S.

    • I.V.S.

  • Benefit of an International DORIS service

    • IERS Directing Board

    • international scientific community

  • Call for Participation


The international doris service

IDS Elements

  • Transmitting stations

  • On-board packages

  • Data Centers

    • archive and distribute data and products

  • Analysis Centers

    • products

    • intercomparisons

    • combined solutions

  • Central Bureau

    • coordination

    • management

  • Directing Board

    • policies

    • directives

  • Associate Members

  • Corresponding Members


The international doris service

IDS Analysis Centers products

  • Precise ephemerides

  • Stations coordinates andvelocities (ITRF)

  • Earth rotation results

  • ionospheric information

  • Time varying geocentercoordinates

  • Earth’s gravity field

  • Intercomparisons and quality checks

  • combined solution (IERS)


The international doris service

IDS Call for Participation

  • Call for Participation

    • IUGG99 - July 1999

  • Letter of intent

    • 15 September 1999

  • Formal proposals

    • 1 January 2000

  • IDS steering committee

    • January 2000

  • DORIS Days

    • 2-3 May 2000


The international doris service

IDS contacts

  • CNES

  • DSO/ED/AL/MA - Bpi 2002

  • 18, avenue Edouard Belin

  • 31401 TOULOUSE CEDEX 4

  • FRANCE

  • Gilles Tavernier

    • [email protected]

  • Laurent Soudarin

    • [email protected]

  • Pascal Willis

    • [email protected]

  • DORIS Mail : http://lareg.ensg.ign.fr/DORIS/doris_mail.html

  • Carey Noll

    • [email protected]

  • John Ries

    • [email protected]


The international doris service

International Doris Service - Call for Participation

  • Precise ephemerides

  • Stations coordinates andvelocities (ITRF)

  • Earth rotation results

  • ionospheric information

  • Time varying geocentercoordinates

  • Earth’s gravity field

  • Transmitting stations

  • On-board packages

  • Data Centers

  • Analysis Centers

  • Central Bureau

  • Directing Board
