Scripti ng environment

Xelas IEC 61850 overview. Legacy equipment/applications. Browser. Other protocol adapter. Logical script based translator. Scripti ng environment. System process management. IEC 61850 adapter. (Glassfish) J2EE Server. IEC 61850/61400 ACSI DATABASE SCHEMA. JDBC/ ODBC.

dillon-hooper
Download Presentation

Scripti ng environment

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

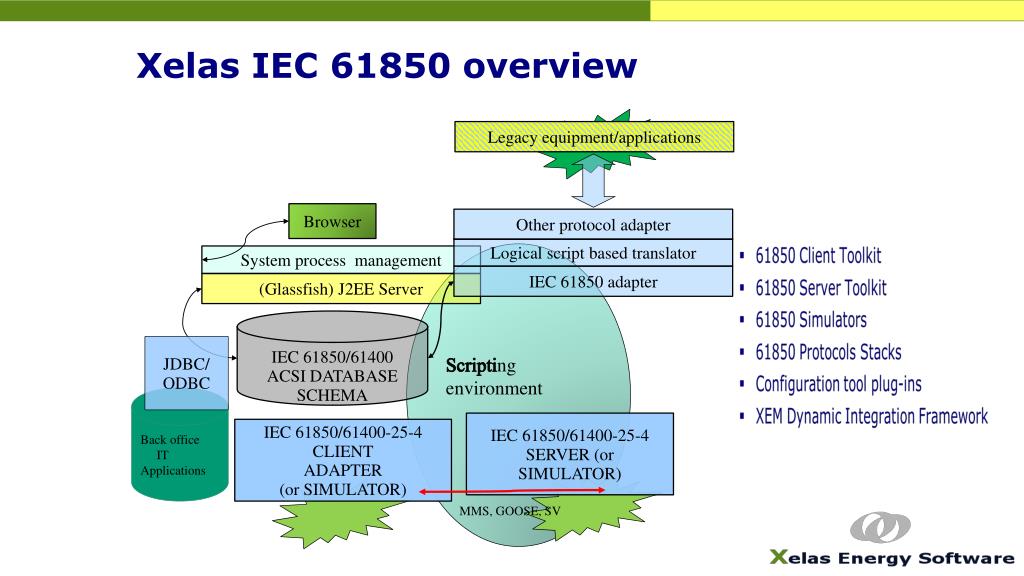

  1. Xelas IEC 61850 overview Legacy equipment/applications Browser Other protocol adapter Logical script based translator Scripting environment System process management IEC 61850 adapter (Glassfish) J2EE Server IEC 61850/61400 ACSI DATABASE SCHEMA JDBC/ ODBC IEC 61850/61400-25-4 SERVER (or SIMULATOR) IEC 61850/61400-25-4 CLIENT ADAPTER (or SIMULATOR) Back office IT Applications MMS, GOOSE, SV

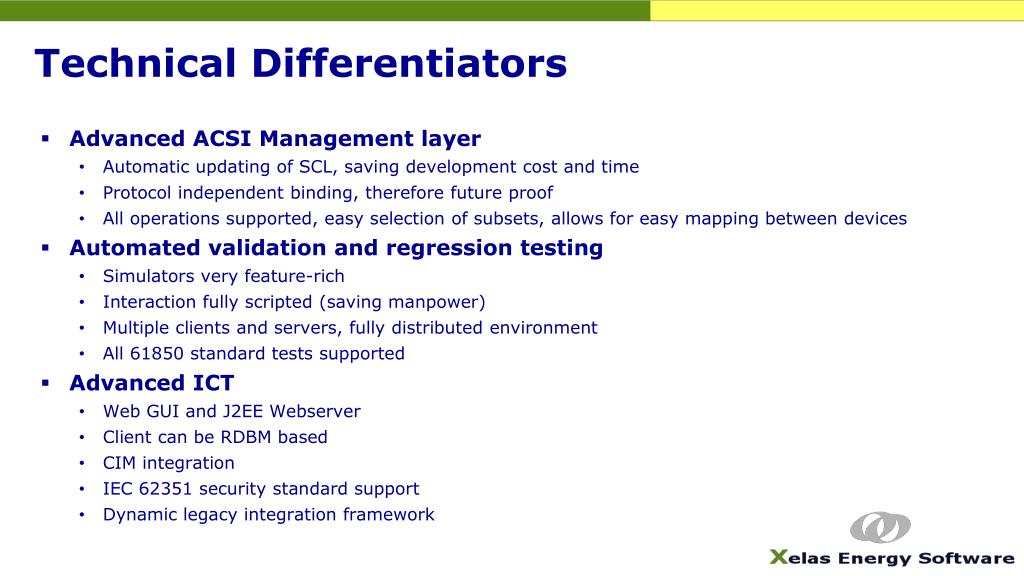

  2. Technical Differentiators • Advanced ACSI Management layer • Automatic updating of SCL, saving development cost and time • Protocol independent binding, therefore future proof • All operations supported, easy selection of subsets, allows for easy mapping between devices • Automated validation and regression testing • Simulators very feature-rich • Interaction fully scripted (saving manpower) • Multiple clients and servers, fully distributed environment • All 61850 standard tests supported • Advanced ICT • Web GUI and J2EE Webserver • Client can be RDBM based • CIM integration • IEC 62351 security standard support • Dynamic legacy integration framework
