Digital signatures

Digital Signatures

A Brief Overview

by

Tim Sigmon

August, 2000


Digital signatures1

Digital Signatures

  • Legal concept of “signature” is very broad

    • any mark made with the intention of authenticating the marked document

  • Digital signatures are one of many types of electronicsignatures

  • Example electronic signatures

    • loginid/password, PIN, card/PIN

    • digitized images of paper signatures

    • digitally captured signatures (UPS, Sears, etc.)

    • typed notations, e.g., “/s/ John Smith”

    • email headers


Digital signatures cont d

Digital Signatures (cont’d)

  • “digital signature” means the result of using specific cryptographic processes

  • Digital signatures operate within a framework of hardware, software, policies, people, and processes called a Public Key Infrastructure (PKI)

  • Note: PKI also supports other security requirements; in particular, confidentiality, both during transmission (e.g., SSL) and for storage


Public key cryptography

Public Key Cryptography

  • First, “secret key” or symmetric cryptography

    • same key used for encryption and decryption

    • orders of magnitude faster than public key cryptography

  • Public key technology solves the key exchange problem (no shared secrets!)

  • Public key and private key that are mathematically linked

  • Private key not deducible from public key

  • Confidentiality: one key encrypts, other decrypts

  • Digital signature: one key signs, other validates


Digital signature example

Digital Signature example


Signed email example

Signed Email example

  • (show example of sending/receiving digitally signed email using Netscape Messenger)

  • (uses S/MIME)


Problem relying party needs to verify a digital signature

Problem: relying party needs to verify a digital signature

  • To do this, must have an assured copy of the signer’s public key

    • signer’s identity must be assured

    • integrity of public key must be assured

  • Potential options for obtaining public keys

    • signer personally gives their public key to relying party

    • relying party obtains the desired public key by other “out of band” means that they trust, e.g., transitive relationships, signing parties, etc.

  • But, what about strangers? what about integrity of the public key?


Public key or digital certificates

Public Key (or Digital) Certificates

  • Purpose: validate both the integrity of a public key and the identity of the owner

  • How: bind identifying attributes to a public key (and therefore to the keyholder of the corresponding private key)

  • Binding is done (i.e., digitally signed) by a trusted third party (Certification Authority)

  • It is this third party's credibility that provides "trust"


X 509 v3 certificates

X.509 v3 Certificates

  • Subject’s/owner’s identifying info (e.g., name)

  • Subject’s/owner’s public key

  • Validity dates (not before, not after)

  • Serial number

  • Level of assurance

  • Certification Authority’s name and signature

  • Extensions


Example certs

Example Certs

  • (this is where I show and describe the contents of the actual certificates that were used to verify a digitally signed email message)


Distribution of certificates

Distribution of Certificates

  • since certs carry public info and are integrity-protected, they can be distributed and shared by any and all means, e.g.,

    • distribute via floppies or other removable media

    • publish on web sites

    • distribute via email (e.g., S/MIME)

    • directory lookups (e.g., LDAP, X.500)

  • distribution via directories is the ultimate solution

  • however, many important applications and uses of digital signatures can be implemented without the implementation or use of sophisticated directories


Trust and certification paths

Trust and Certification Paths

  • Relying party needs an assured copy of the issuing CA’s PK in order to validate a certificate containing the signer’s PK

  • In general, a chain of multiple certificates that ends at a trusted root may be needed

  • How to organize the CA’s?

    • single top-down hierarchy (yikes!)

    • multiple hierarchies (Netscape/Microsoft disservice)

    • cross certifications (e.g., Federal BCA, Virginia’s BCA)

  • Revocation and CRLs (certificate revocation lists)


Where are we now

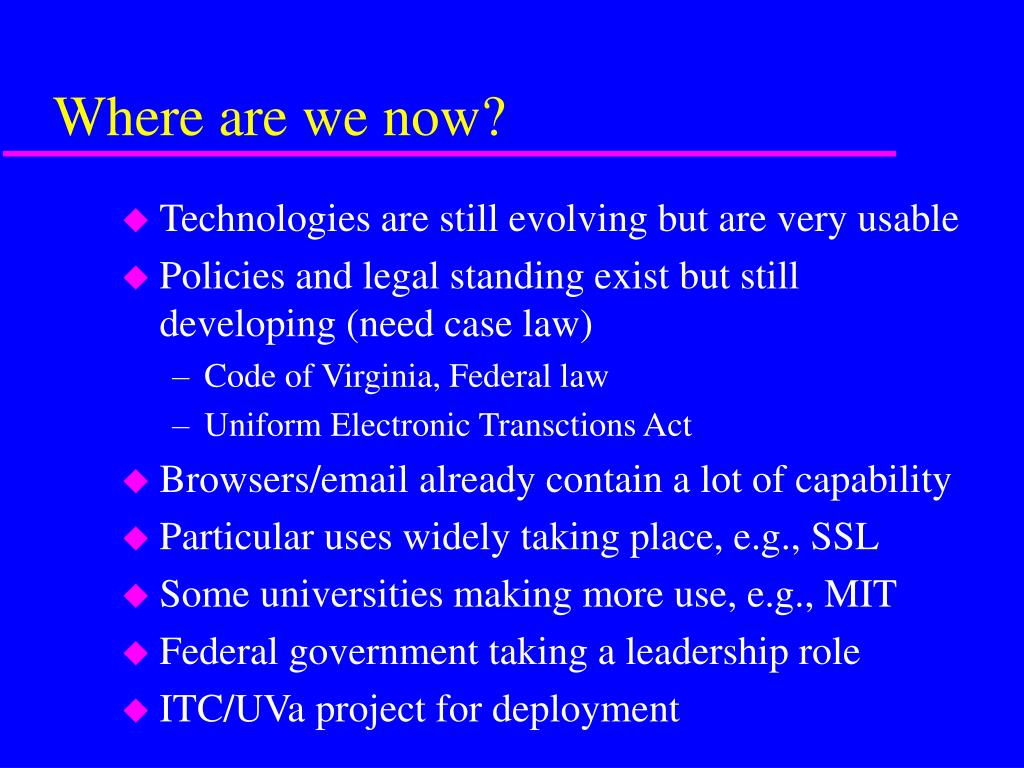

Where are we now?

  • Technologies are still evolving but are very usable

  • Policies and legal standing exist but still developing (need case law)

    • Code of Virginia, Federal law

    • Uniform Electronic Transctions Act

  • Browsers/email already contain a lot of capability

  • Particular uses widely taking place, e.g., SSL

  • Some universities making more use, e.g., MIT

  • Federal government taking a leadership role

  • ITC/UVa project for deployment


Ds efforts in virginia

DS efforts in Virginia

  • Digital Signature Initiative (COTS workgroup) formed to pursue pilot deployments

  • UVa led development of a bridge certification architecture (modeled after federal bridge)

  • Pilot project sponsors

    • VIPNet, DIT, DGIF

    • DMV, DOT, DGS

    • Counties of Chesterfield, Fairfax, Wise

    • Cities of Norfolk, Charlottesville

  • http://www.sotech.state.va.us/cots

    • Virginia’s Council on Technology Services


Portals at uva

Portals at UVa

A Status Report

by

Tim Sigmon

August, 2000


Portal definition

Portal Definition

  • problem: every person/group has a different definition

  • working definition: deliver information and services in an integrated, customized, and personalized manner

  • elements that we include:

    • authenticated access

    • customization - system presents info that is peculiar to the specific user

    • personalization - user controls certain aspects

    • break down organizational views/barriers


Background and players

Background and Players

  • discussions among ITC, Univ. Relations, Student Council, Student Affairs, ....

  • JA-SIG conference and uPortal evaluation

  • development of “e-volving University” proposal

  • Reynolds and Sweeney presentation to Senior Cabinet

  • team is led by Nancy Tramontin and Debbie Mills


First phase

First Phase

  • deliver first version of student portal by Jan., 2001

  • will not use uPortal (nor any other portal framework)

  • desired functionality

    • authenticated access (using existing passwords)

    • brief email stats and web-based email access

    • calendar that includes student events (not personal, yet)

    • course links

    • personal links (i.e., bookmarks)

    • personal reminders (?)

    • news, announcements, weather

    • important “fixed” links


  • Login
