The V alue of Active Learning : Understanding Acidity Group 2

1. The Value of Active Learning: Understanding Acidity Group 2 Sarah Malmquist Stony Brook University Joanna Kiryluk Stony Brook University • Chandrika Narayan • University of Massachusetts, Lowell • Khaliliah Reddie • University of Massachusetts, Lowell • Valerie Purdie-Vaughns • Columbia University • Brent Stockwell • Columbia University

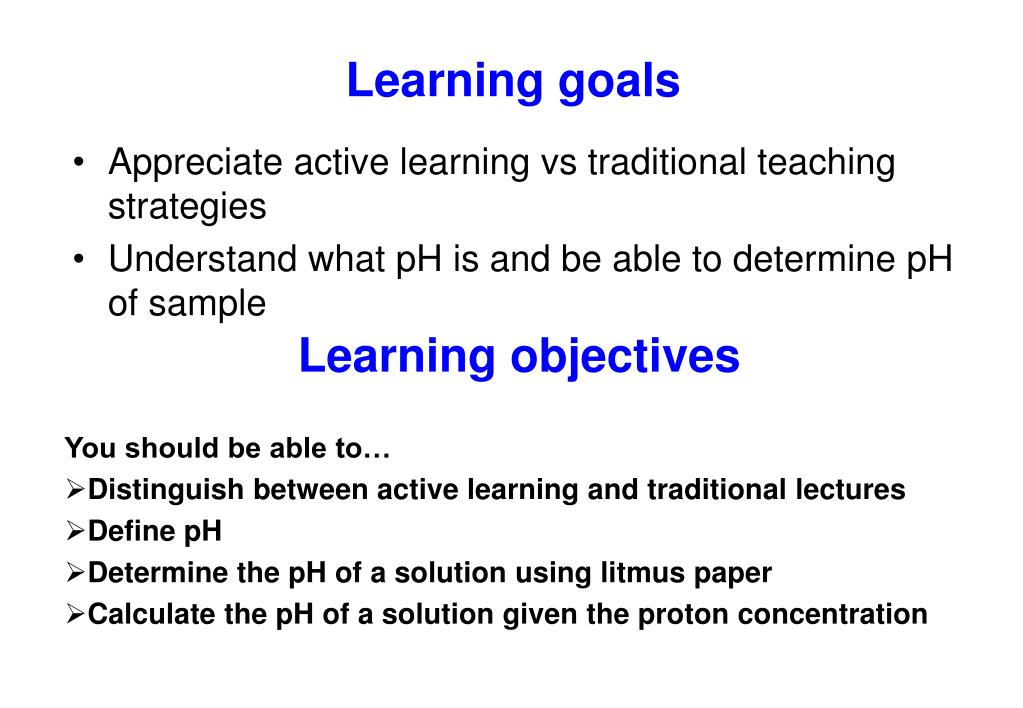

2. Learning goals • Appreciate active learning vs traditional teaching strategies • Understand what pH is and be able to determine pH of sample Learning objectives You should be able to… • Distinguish between active learning and traditional lectures • Define pH • Determine the pH of a solution using litmus paper • Calculate the pH of a solution given the proton concentration

3. Setting the scene Problem to solve: readiness for active learning Who are you? • Students in Bio 101 (or any introductory science class) • First day of class What will you do? • Participate in two activities

4. Part 1Lecture: acidity

5. Acidity is a critical feature of biological systems • Acidity is the concentration of H+ • measured using pH • pH is important living systems • fish in water • human blood • tumor growth • digestion

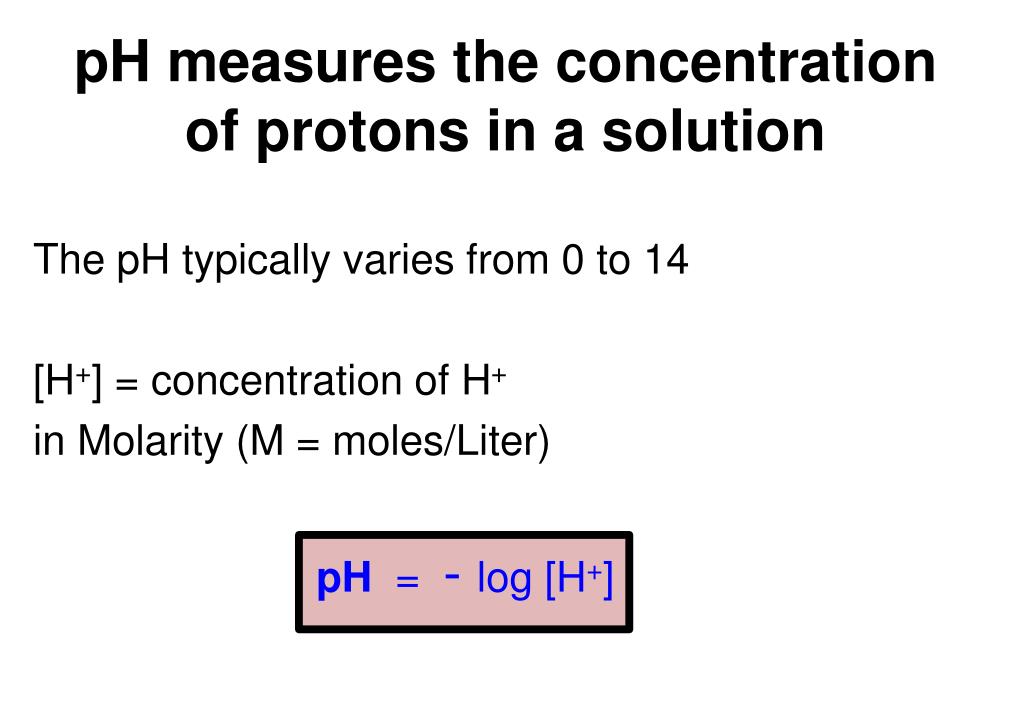

6. The pH typically varies from 0 to 14 [H+] = concentration of H+ in Molarity (M = moles/Liter) pH = - log [H+] pH measures the concentration of protons in a solution

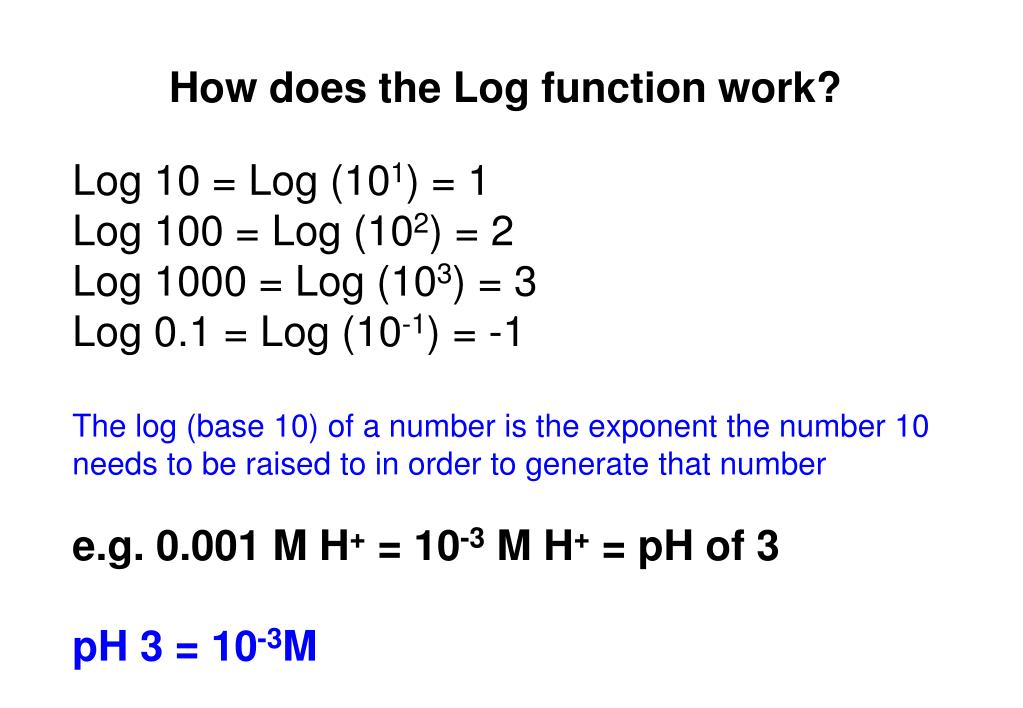

7. How does the Log function work? • Log 10 = Log (101) = 1 • Log 100 = Log (102) = 2 • Log 1000 = Log (103) = 3 • Log 0.1 = Log (10-1) = -1 • The log (base 10) of a number is the exponent the number 10 needs to be raised to in order to generate that number • e.g. 0.001 M H+ = 10-3 M H+ = pH of 3 • pH 3 = 10-3M

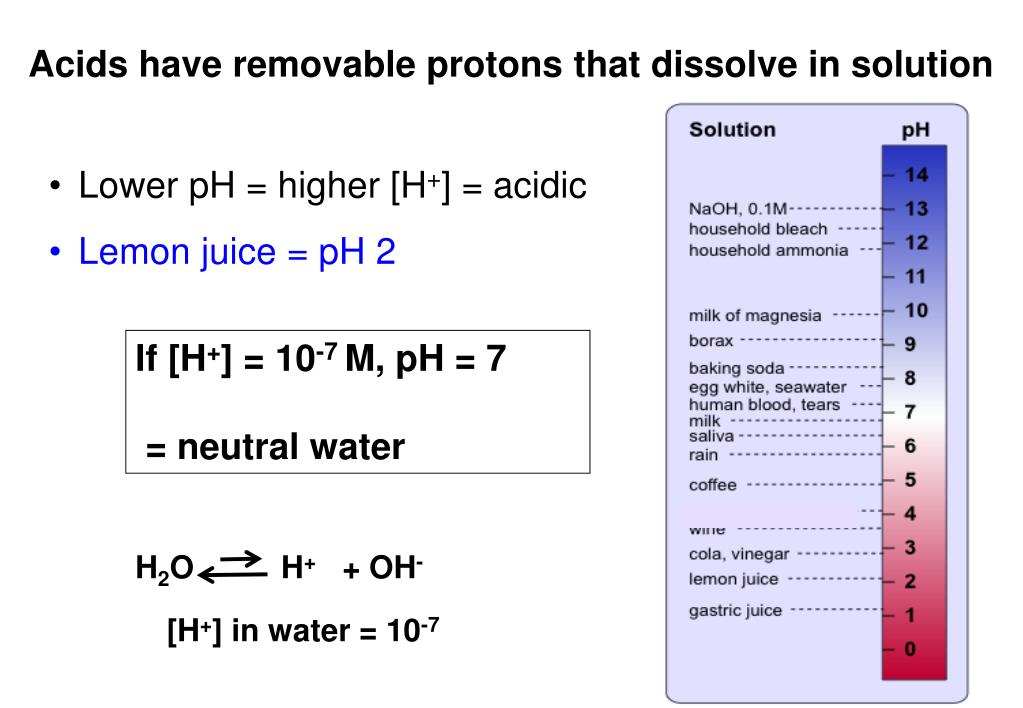

8. Acids have removable protons that dissolve in solution • Lower pH = higher [H+] = acidic • Lemon juice = pH 2 If [H+] = 10-7 M, pH = 7 = neutral water H2O H+ + OH- [H+] in water = 10-7

9. Solutions that differ by 1 pH unit have a ten fold difference in [H+] Lemon Juice pH = 2 0.01 M H+ Vinegar pH = 3 0.001 M H+ H+ H+ H+ H+ H+ H+ H+ H+ H+ H+ H+ H+ H+ H+ H+ H+ H+ H+ H+ H+ H+ H+ H+ H+ H+ H+ H+ H+ H+ H+ H+ H+ H+

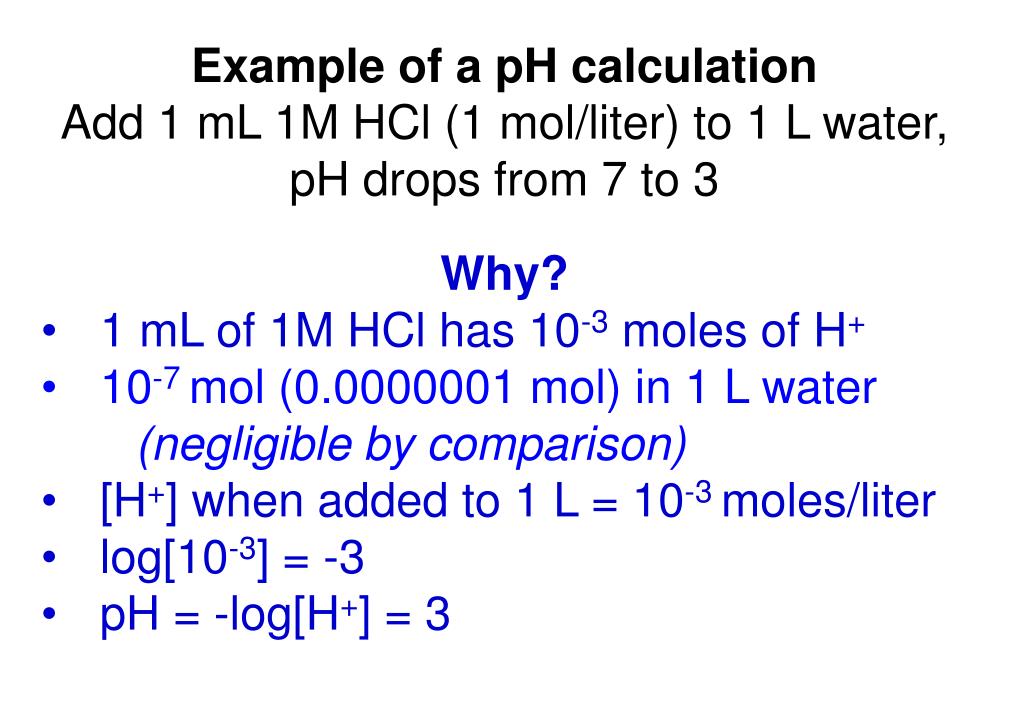

10. Example of a pH calculation • Add 1 mL 1M HCl (1 mol/liter) to 1 L water, pH drops from 7 to 3 • Why? • 1 mL of 1M HCl has 10-3 moles of H+ • 10-7 mol (0.0000001 mol) in 1 L water • (negligible by comparison) • [H+] when added to 1 L = 10-3 moles/liter • log[10-3] = -3 • pH = -log[H+] = 3

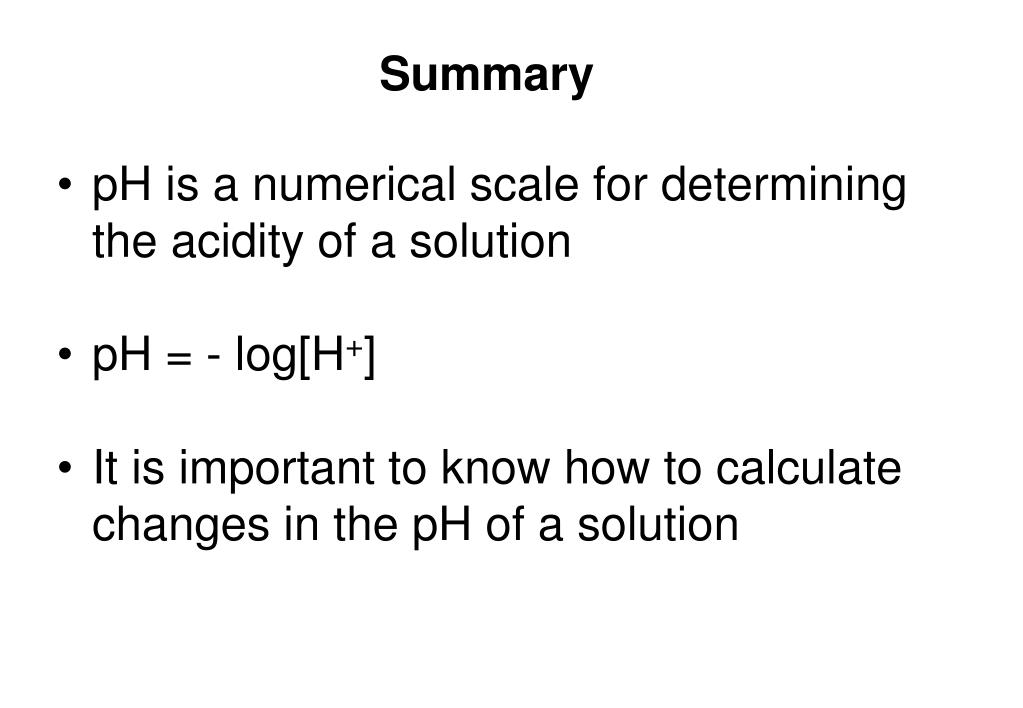

11. Summary • pH is a numerical scale for determining the acidity of a solution • pH = - log[H+] • It is important to know how to calculate changes in the pH of a solution

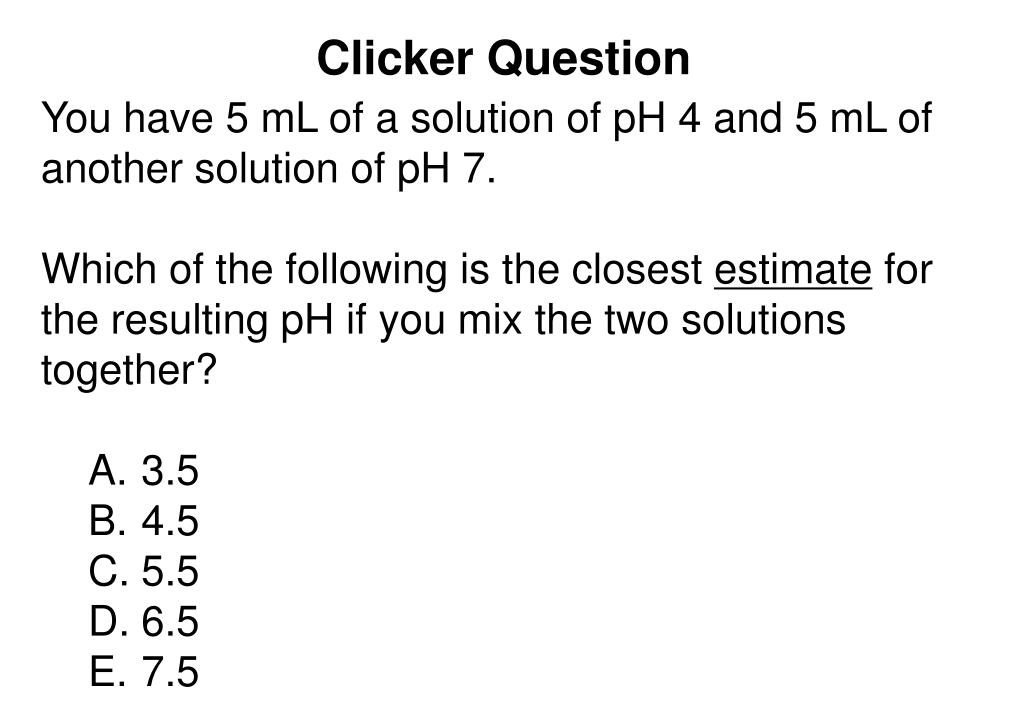

12. Clicker Question • You have 5 mL of a solution of pH 4 and 5 mL of another solution of pH 7. • Which of the following is the closest estimate for the resulting pH if you mix the two solutions together? • 3.5 • 4.5 • 5.5 • 6.5 • 7.5

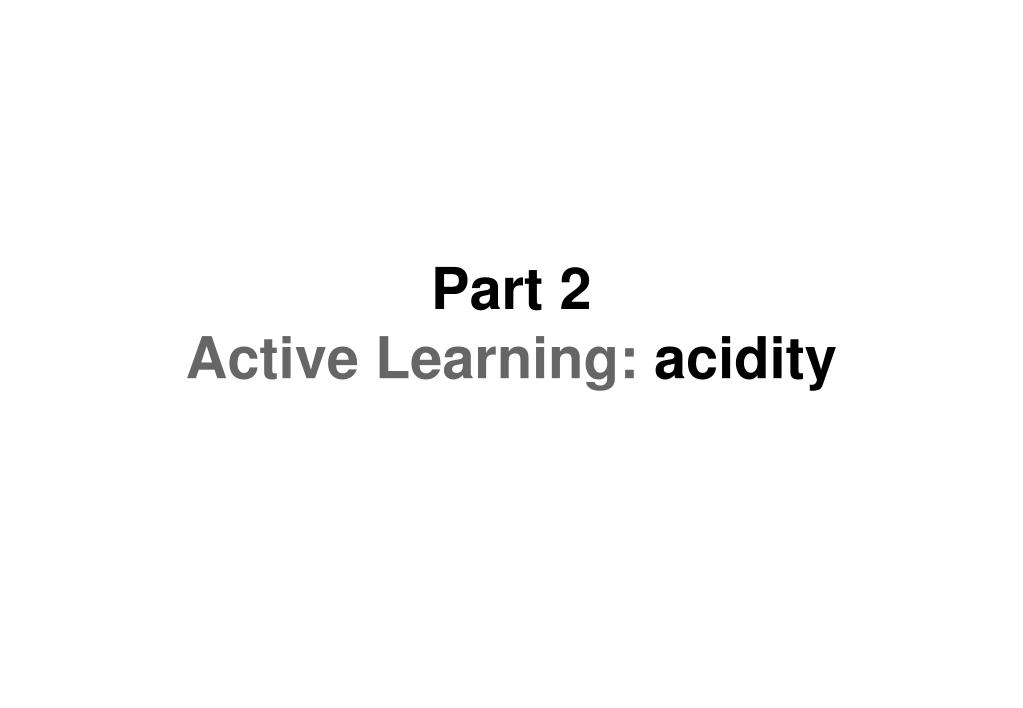

13. Part 2Active Learning: acidity

14. A hands-on pH experiment GOAL: Understand how to measure and calculate pH 1. How to use a litmus paper to measure pH of a solution. • Litmus paper: a strip of indicator paper that is dipped in a sample liquid. • The paper turns a different color depending upon the pH of the solution. • The strip is compared to a color standard to determine pH

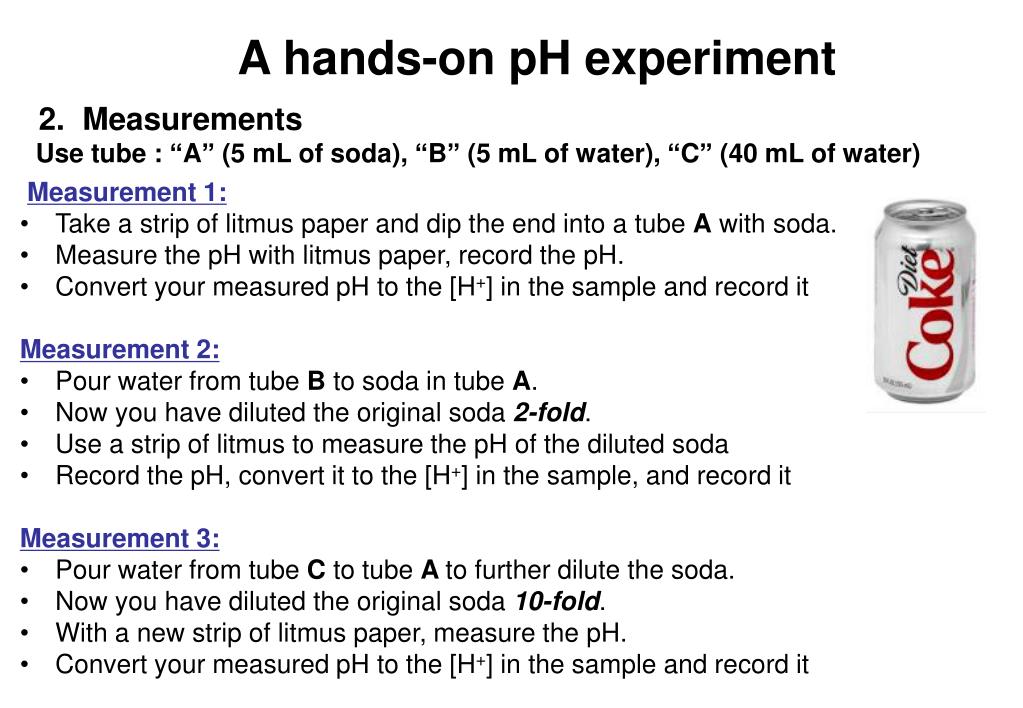

15. A hands-on pH experiment 2. Measurements Use tube : “A” (5 mL of soda), “B” (5 mL of water), “C” (40 mL of water) • Measurement 1: • Take a strip of litmus paper and dip the end into a tube A with soda. • Measure the pH with litmus paper, record the pH. • Convert your measured pH to the [H+] in the sample and record it • Measurement 2: • Pour water from tube B to soda in tube A. • Now you have diluted the original soda 2-fold. • Use a strip of litmus to measure the pH of the diluted soda • Record the pH, convert it to the [H+] in the sample, and record it • Measurement 3: • Pour water from tube C to tube A to further dilute the soda. • Now you have diluted the original soda 10-fold. • With a new strip of litmus paper, measure the pH. • Convert your measured pH to the [H+] in the sample and record it

16. A hands-on pH experiment pH = –log [H+] • Please label each pH strip after you use it • What was the pH change after a two-fold dilution? • After a 10-fold dilution?

17. Clicker Question • You have 5 mL of a solution of pH 4 and 5 mL of another solution of pH 7. • Which of the following is the closest estimate for the resulting pH if you mix the two solutions together? (Talk with your whole table.) • 3.5 • 4.5 • 5.5 • 6.5 • 7.5

18. Clicker Question • You have 5 mL of a solution of pH 4 and 5 mL of another solution of pH 7. • Which of the following is the closest estimate for the resulting pH if you mix the two solutions together? • 3.5 • 4.5 • 5.5 • 6.5 • 7.5

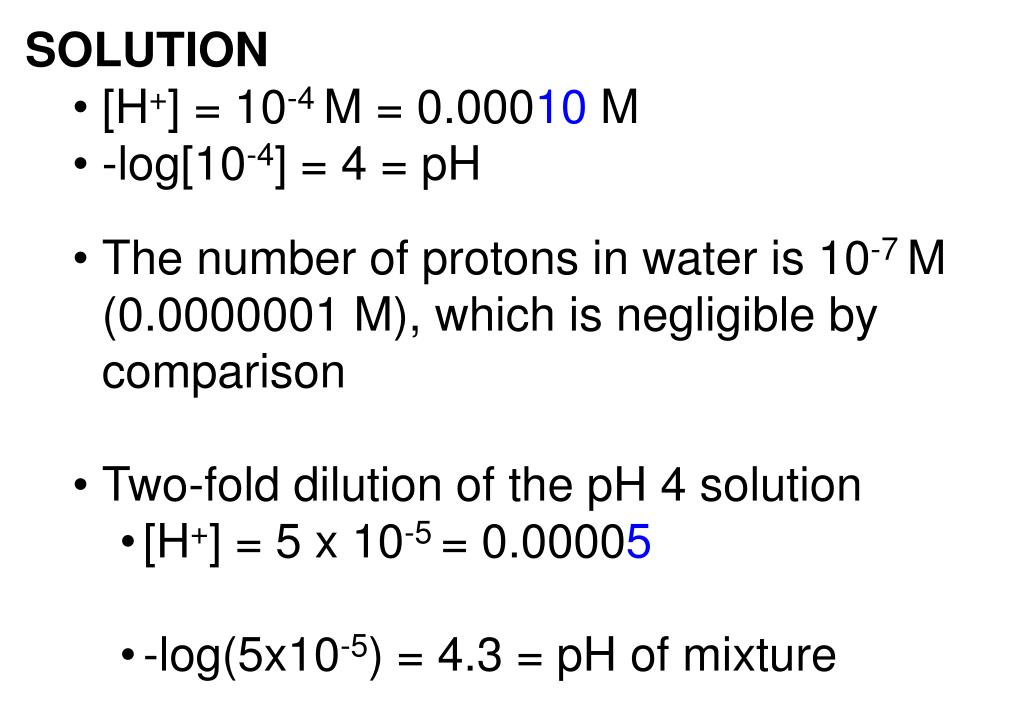

19. SOLUTION • [H+] = 10-4 M = 0.00010 M • -log[10-4] = 4 = pH • The number of protons in water is 10-7 M (0.0000001 M), which is negligible by comparison • Two-fold dilution of the pH 4 solution • [H+] = 5 x 10-5 = 0.00005 • -log(5x10-5) = 4.3 = pH of mixture

20. Brainstorm • How did the hands-on experiment help prepare you for the clicker question? • Complements lecture • Adds excitement

21. Decreased failure rate Freeman et al., 2014, Proceedings in the National Academy of Sciences

22. “I need the best possible grade in this course” Dream come true! Active learning in class Higher grades

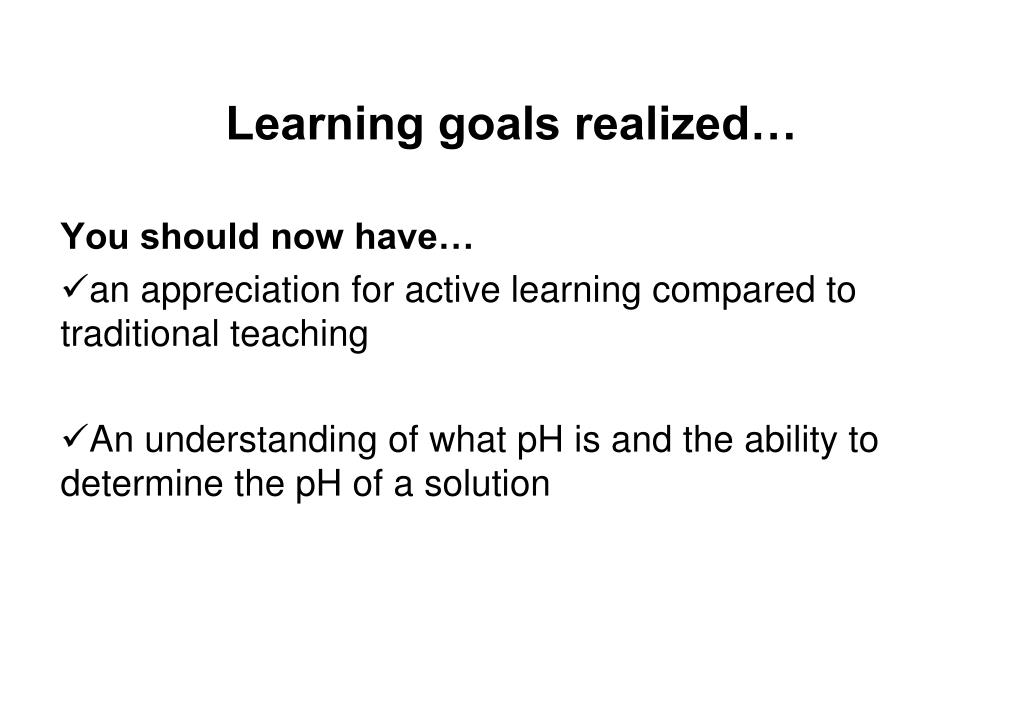

23. Learning goals realized… You should now have… • an appreciation for active learning compared to traditional teaching • An understanding of what pH is and the ability to determine the pH of a solution

24. Thank you.

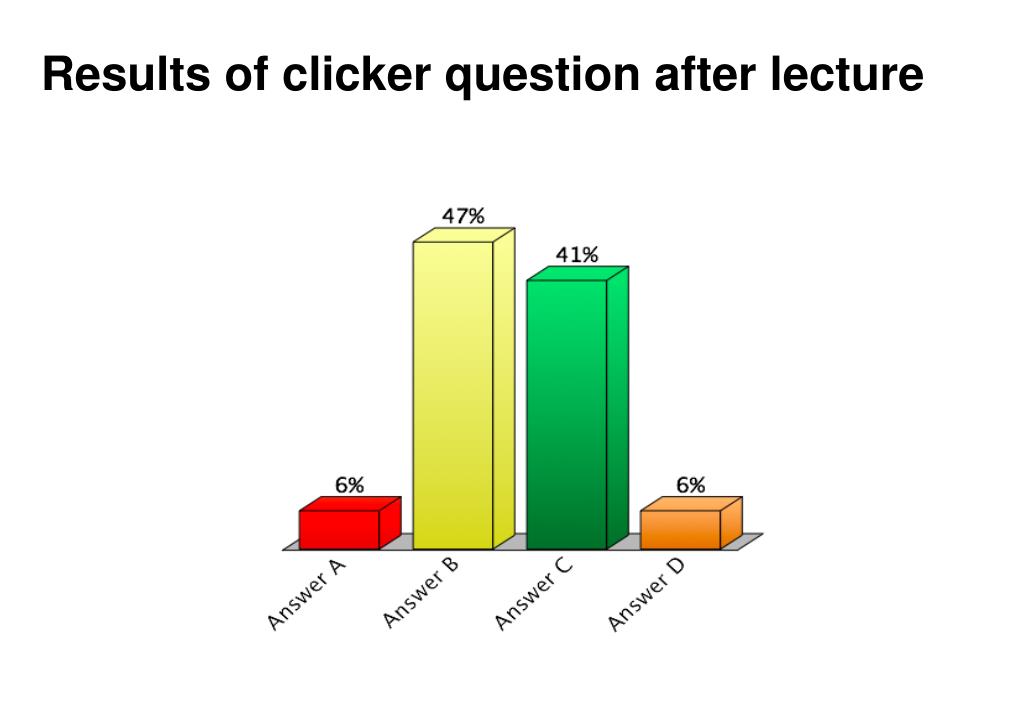

25. Results of clicker question after lecture

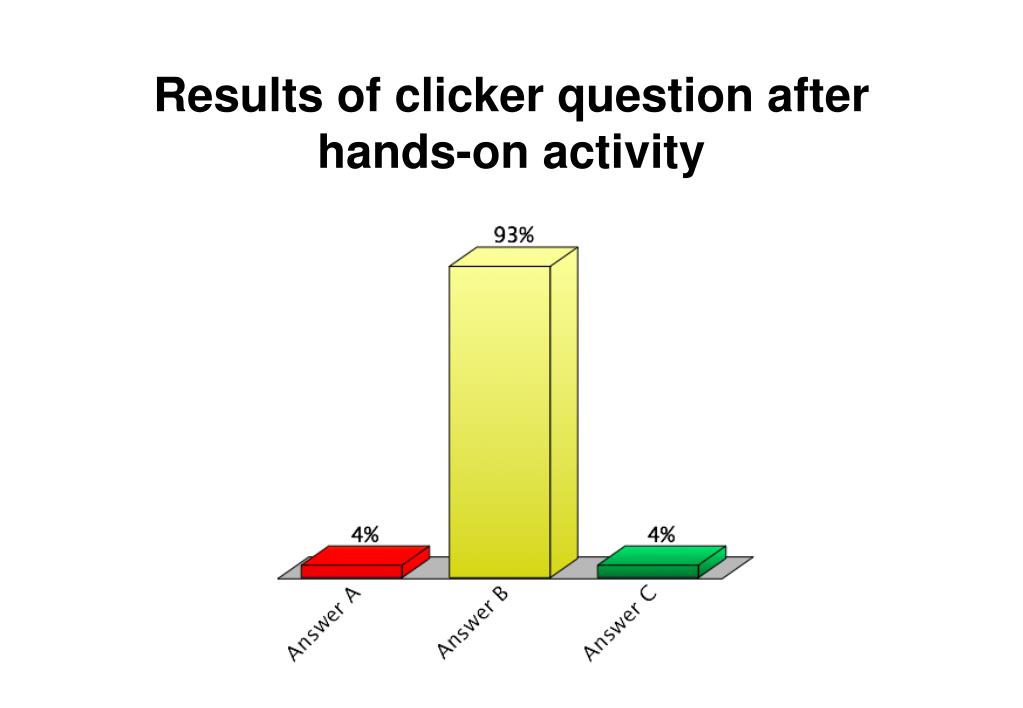

26. Results of clicker question after hands-on activity

27. Supplemental handout Example of a pH calculation If you add 1 mL of 1M HCl (1 mol/liter) to 1 liter of water, the pH of the water drops from 7 to 3

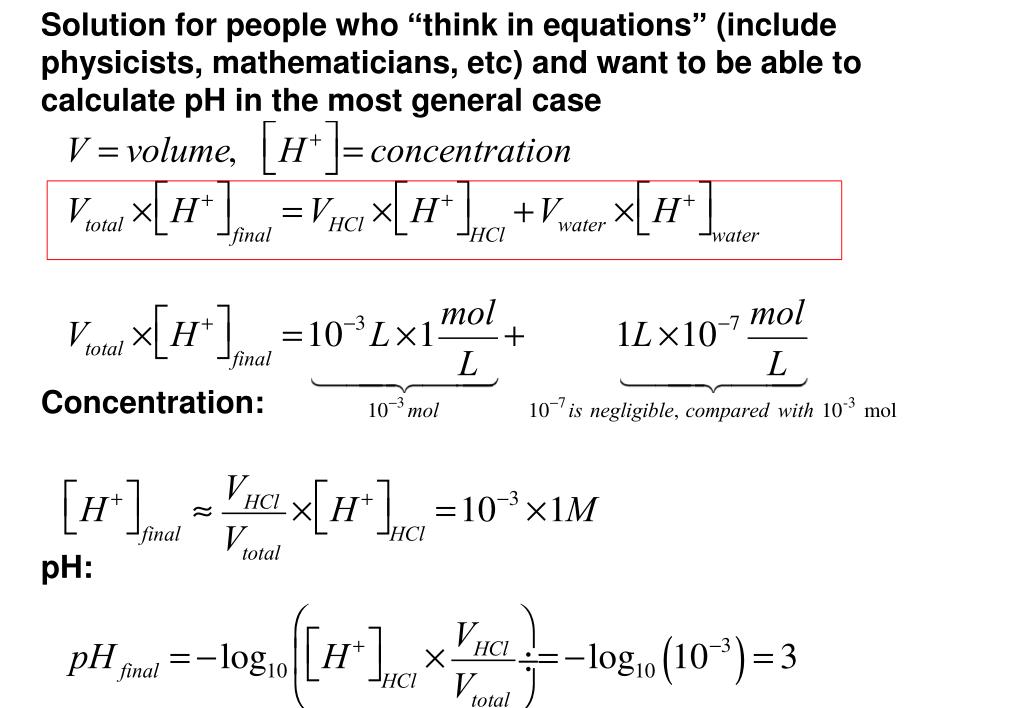

28. Solution for people who “think in equations” (include physicists, mathematicians, etc) and want to be able to calculate pH in the most general case Concentration: pH:
