Presentation Transcript

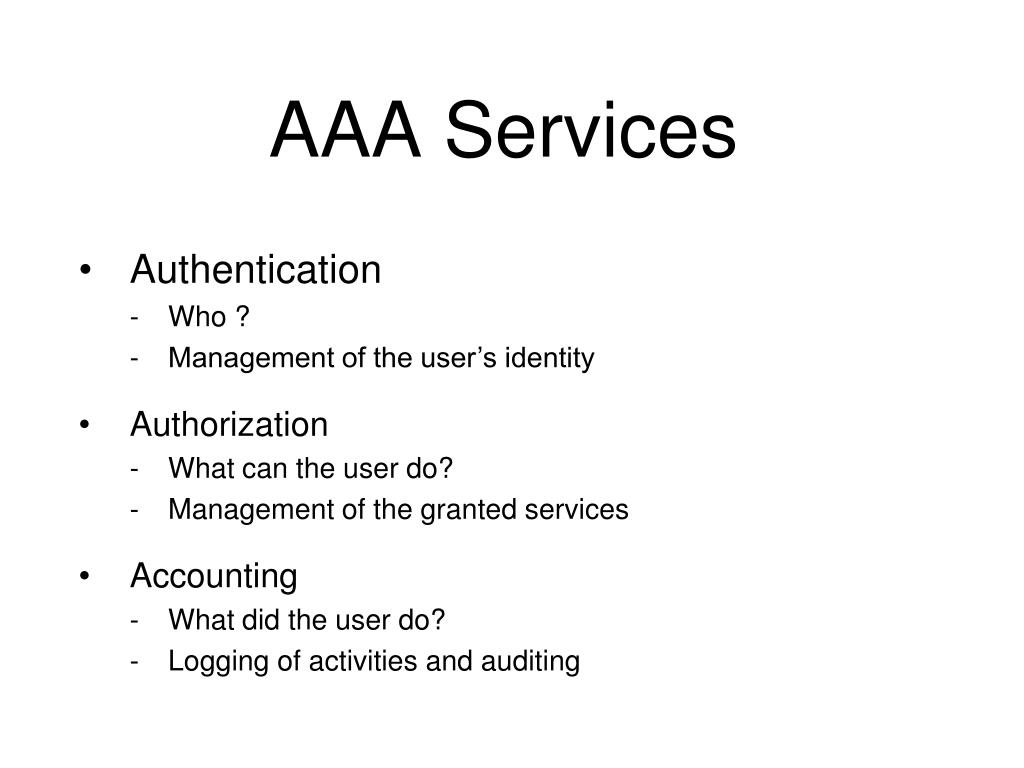

  1. AAA Services • Authentication • Who ? • Management of the user’s identity • Authorization • What can the user do? • Management of the granted services • Accounting • What did the user do? • Logging of activities and auditing

  2. Uses of AAA • Two modes: • The character mode access AAA services are used to control administrative access such as Telent or Console access to network devices • The packet mode access AAA services are used to manage remote user network access such as dialup clients or VPN clients Network Security

  3. c.f., Alternative methods to AAA • Examples: • Password-based authentication • Challenge-response authentication • Incomplete access management • Limited to authentication only Network Security

  4. Local vs Centralized Databases in AAA Network Security

  5. Authentication Protocols in AAA • RADIUS vs TACACS+ • RADIUS • Remote Authentication Dial In User Service • An IETF standard (RFC 2865) • Open source s/w • Interoperability among RADIUS-based products • Client/server authentication btwn a NAS (e.g., a router) and a RADIUS server • A shared secret btwn the client and the server • on UDP (port 1812 for authentication and authorization; port 1813 for accounting) Network Security

  6. RADIUS • RFC 2865 (2000): http://www.ietf.org/rfc/rfc2865.txt Network Security

  7. The Authenticator field • Request Authenticator • The authenticator in the Access-Request packets • Rqts: The value SHOULD be unpredictable and unique over the lifetime of a shared secret • Repetition of a request value in conjunction with the same secret would permit an attacker to reply with a previously intercepted response. • Response Authenticator • The authenticator in the Access-Accept, Access- Reject, and Access-Challenge packets • ResponseAuth = MD5(Code+ID+Length+RequestAuth+Attributes+Secret) Network Security

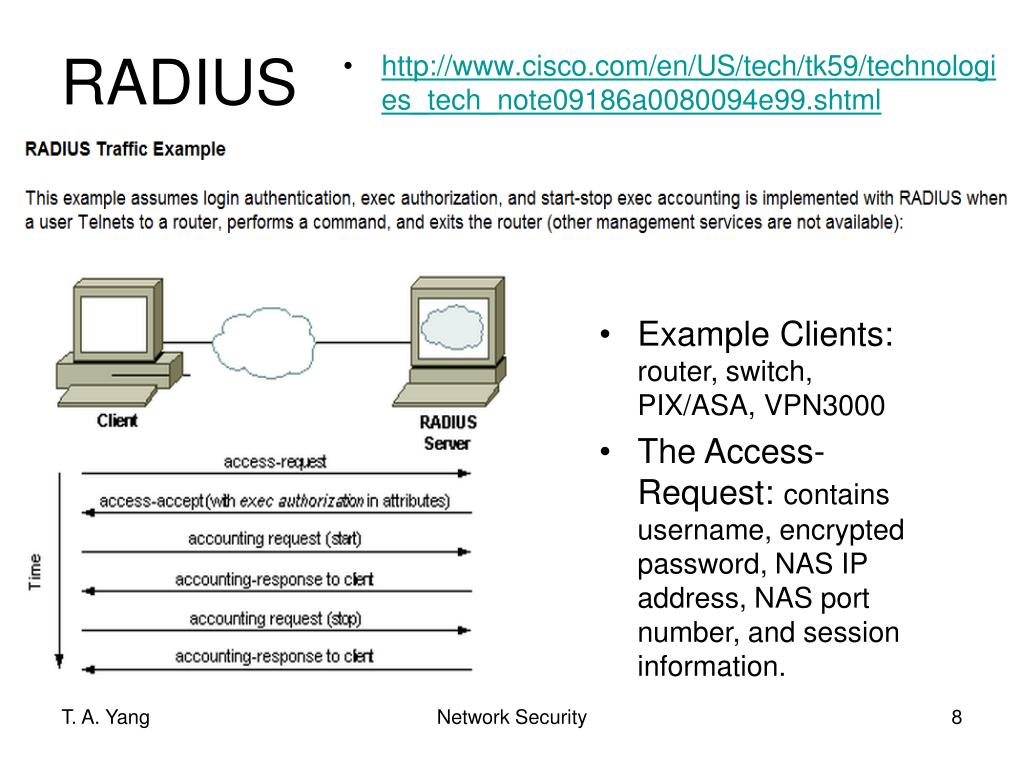

  8. RADIUS • http://www.cisco.com/en/US/tech/tk59/technologies_tech_note09186a0080094e99.shtml • Example Clients: router, switch, PIX/ASA, VPN3000 • The Access-Request: contains username, encrypted password, NAS IP address, NAS port number, and session information. Network Security

  9. RADIUS authentication • Note: Both authentication and authorization information are combined in a single Access-Request packet. • Upon receiving an Access-Request, the RADIUS server • Validates the shared secret • Validates the username and password If not validated, sends an Access-Reject response; • Authorizes the user If authorization fails, sends an Access-Reject response; Otherwise, sends an Access-Accept response; Network Security

  10. Security mechanisms in RADIUS • Shared secret btwn the client and the server • In the Access-Request packet, the password is encrypted. MD5 (shared secret + Request Authenticator) XOR the-first-16-octets-of-the-password • 16-octet encrypted password • Q: How would the RADIUS server authenticate the encrypted password? Network Security

  11. TACACS+ • TACACS: Terminal Access Controller Access Control System • A Cisco proprietary client/server authentication protocol • A shared secret btwn the client & the server • Can encrypt the entire body of the packet (as indicated by the flags field) • On TCP Network Security

  12. TACACS+ • http://tools.ietf.org/html/draft-grant-tacacs-02 Network Security

  13. TACACS+ • Example interactions: http://www.cisco.com/en/US/tech/tk59/technologies_tech_note09186a0080094e99.shtml Network Security

  14. TACACS+ vs RADIUS • Shared: • Client/server based • Authentication btwn a NAS and an authentication server • Shared secret • Differences ? Network Security

  15. TACACS+ vs RADIUSsource: http://etutorials.org/Networking/network+management/Part+II+Implementations+on+the+Cisco+Devices/Chapter+9.+AAA+Accounting/High-Level+Comparison+of+RADIUS+TACACS+and+Diameter/ Network Security
