Presentation Transcript


An introduction to computer animation

An Introduction to Computer Animation

Michiel van de Panne


Overview

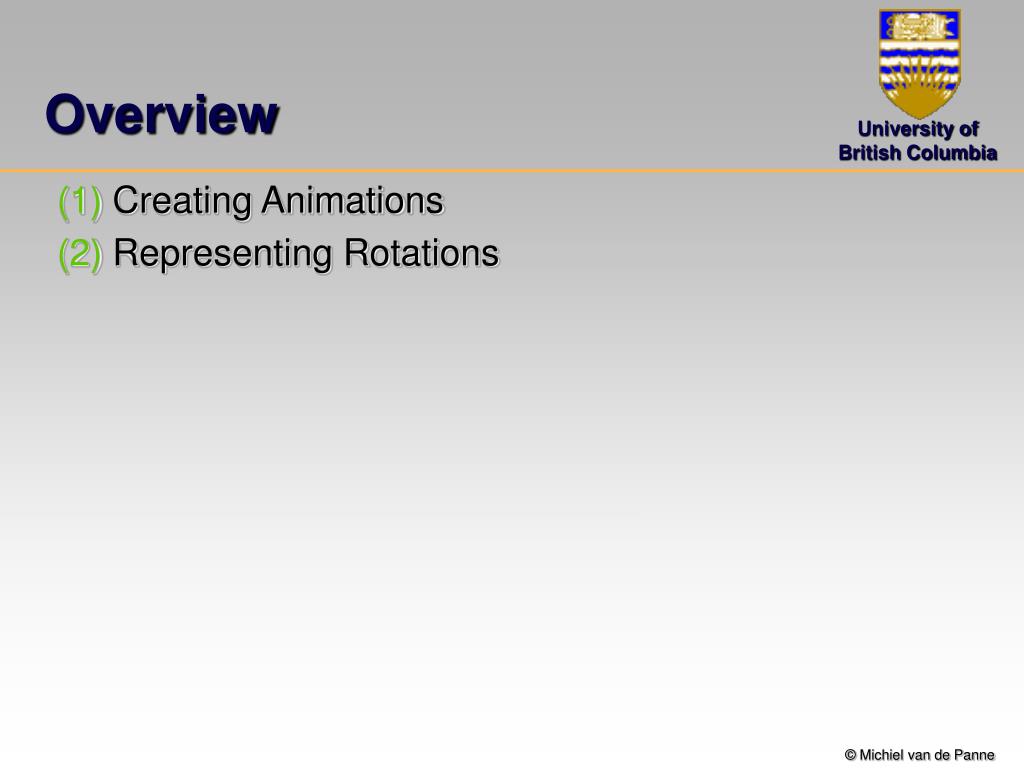

Overview

  • Creating Animations

  • Representing Rotations


1 creating animations

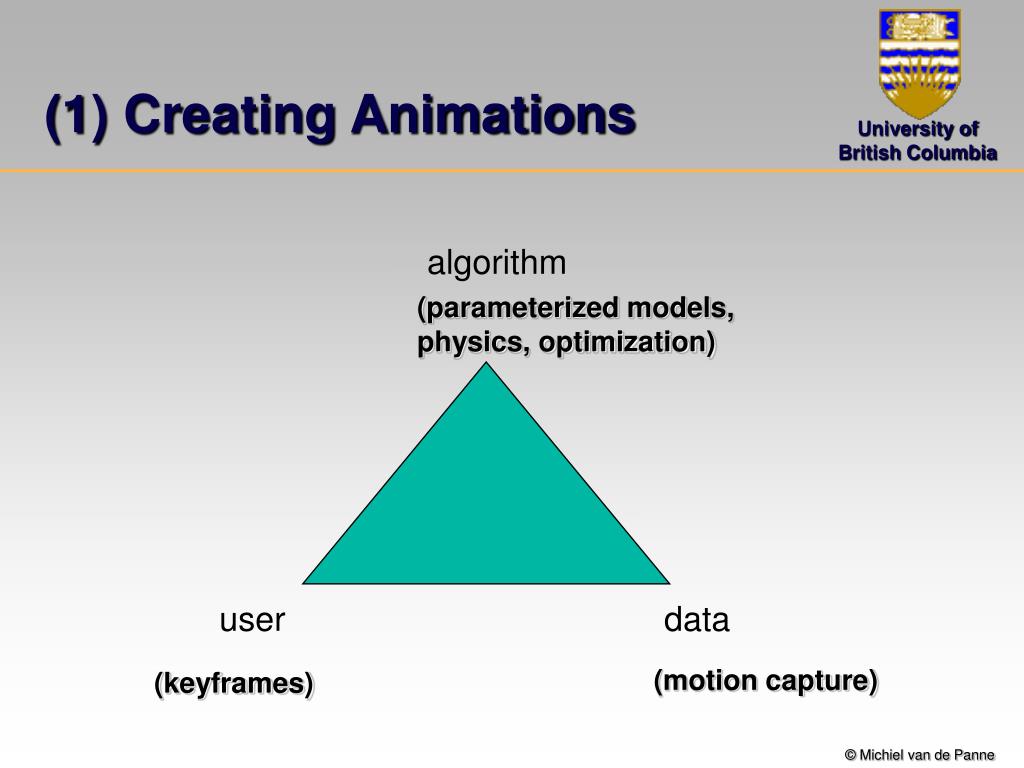

(1) Creating Animations

algorithm

(parameterized models,physics, optimization)

user

data

(motion capture)

(keyframes)


Representing motion

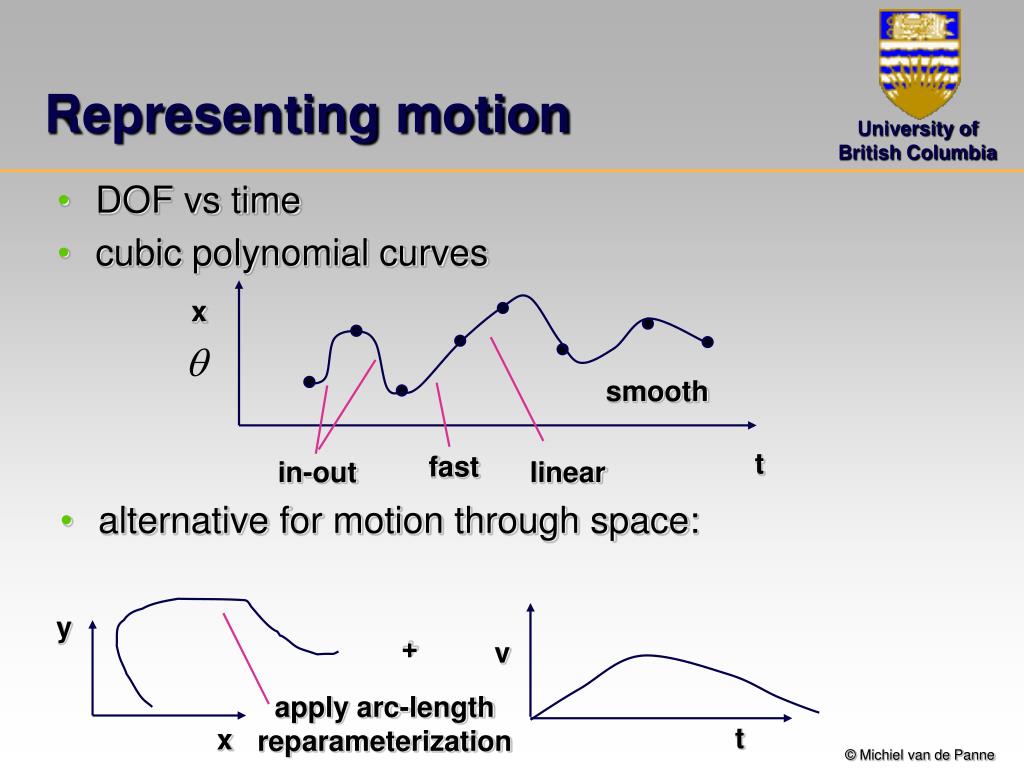

Representing motion

  • DOF vs time

  • cubic polynomial curves

x

smooth

t

fast

in-out

linear

  • alternative for motion through space:

y

+

v

apply arc-length

reparameterization

t

x


2 representing rotations

world

torso

RUarm

RLarm

LUarm

Rhand

LLarm

Lhand

RUleg

RLleg

LUleg

LLleg

Rfoot

Lfoot

head

trans(0.30,0,0) rot(z, )

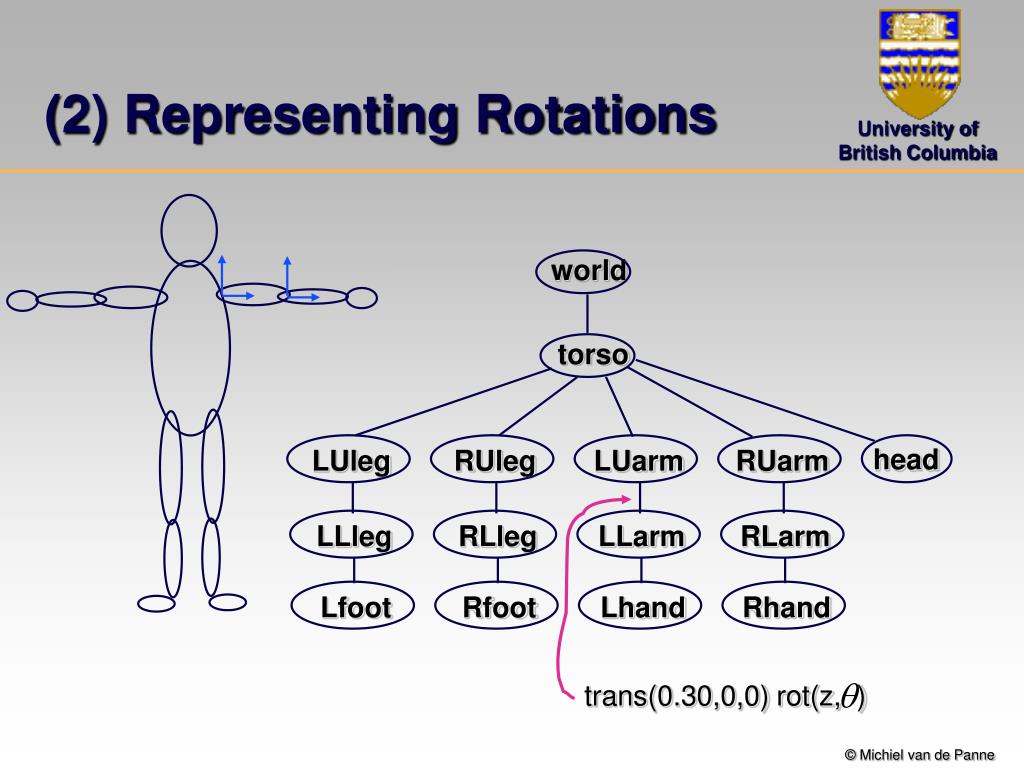

(2) Representing Rotations


Transformation hierarchies

Transformation Hierarchies

glTranslate3f(x,y,0);

glRotatef( ,0,0,1);

DrawBody();

glPushMatrix();

glTranslate3f(0,7,0);

DrawHead();

glPopMatrix();

glPushMatrix();

glTranslate(2.5,5.5,0);

glRotatef( ,0,0,1);

DrawUArm();

glTranslate(0,-3.5,0);

glRotatef( ,0,0,1);

DrawLArm();

glPopMatrix();

... (draw other arm)

  • Example

y

x


Rotation dofs

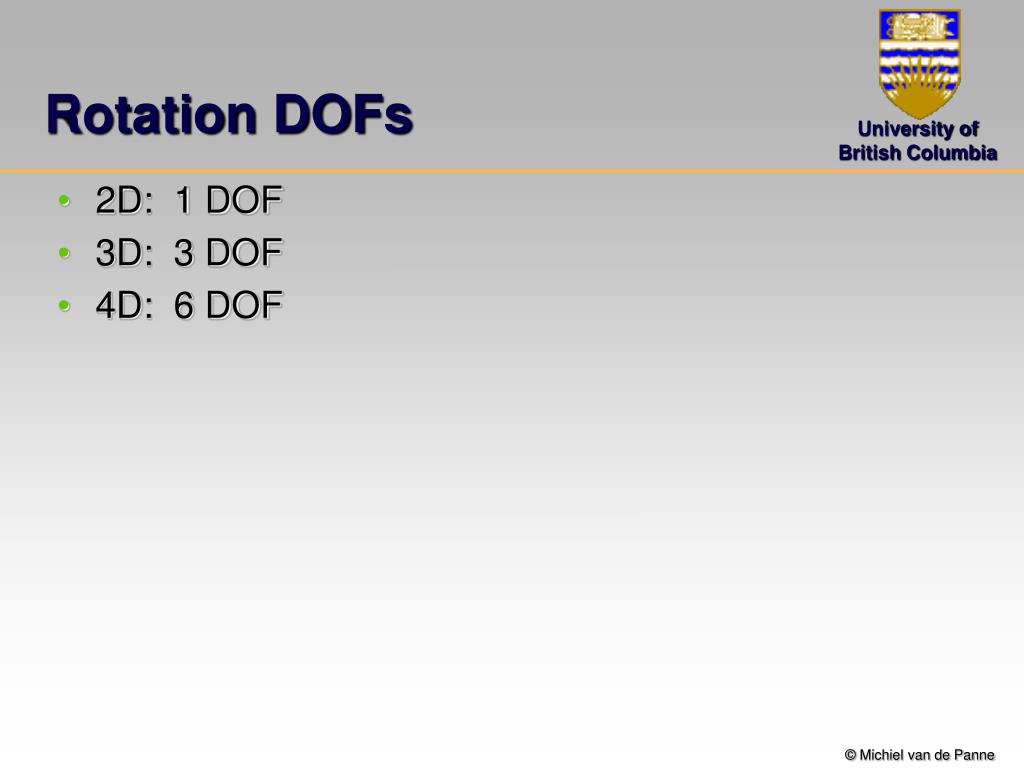

Rotation DOFs

  • 2D: 1 DOF

  • 3D: 3 DOF

  • 4D: 6 DOF


Transformations

Transformations

  • Rotation

glRotatef(angle,x,y,z);

glRotated(angle,x,y,z);


3x3 rotation matrix

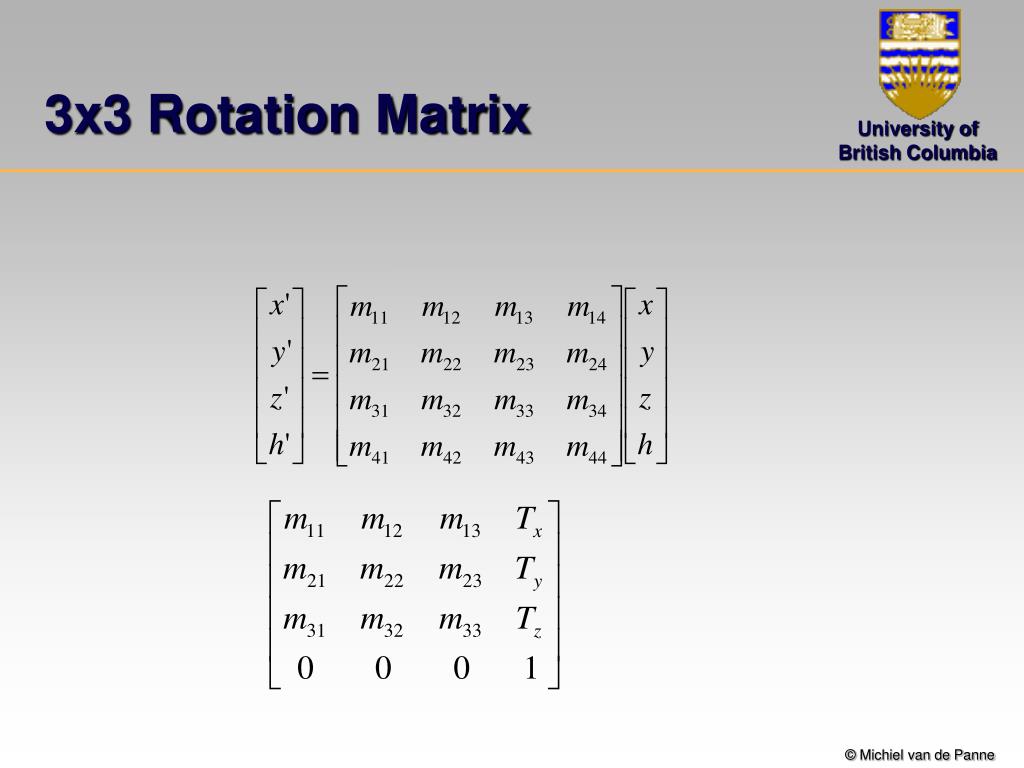

3x3 Rotation Matrix


3x3 rotation matrix1

3x3 Rotation Matrix

  • 9 elements

  • 6 constraints

  • renormalization algorithms

  • extracting pure rotational component (polar decomp)

... and determinant = 1


Rotations

Rotations

  • SO(3)

    • rotations do not commute

    • require at least 4 parameters for a smooth parameterization

      • analogy: surface of the earth

        • 2D surface, 3 params

    • combing the hairy ball

      • camera orientation: view object from any dir


Rotations1

Rotations

  • orientation vs rotation?

  • how to specify?

  • how to interpolate?

  • 2D vs 3D


Fixed angle representations

pitch

yaw

roll

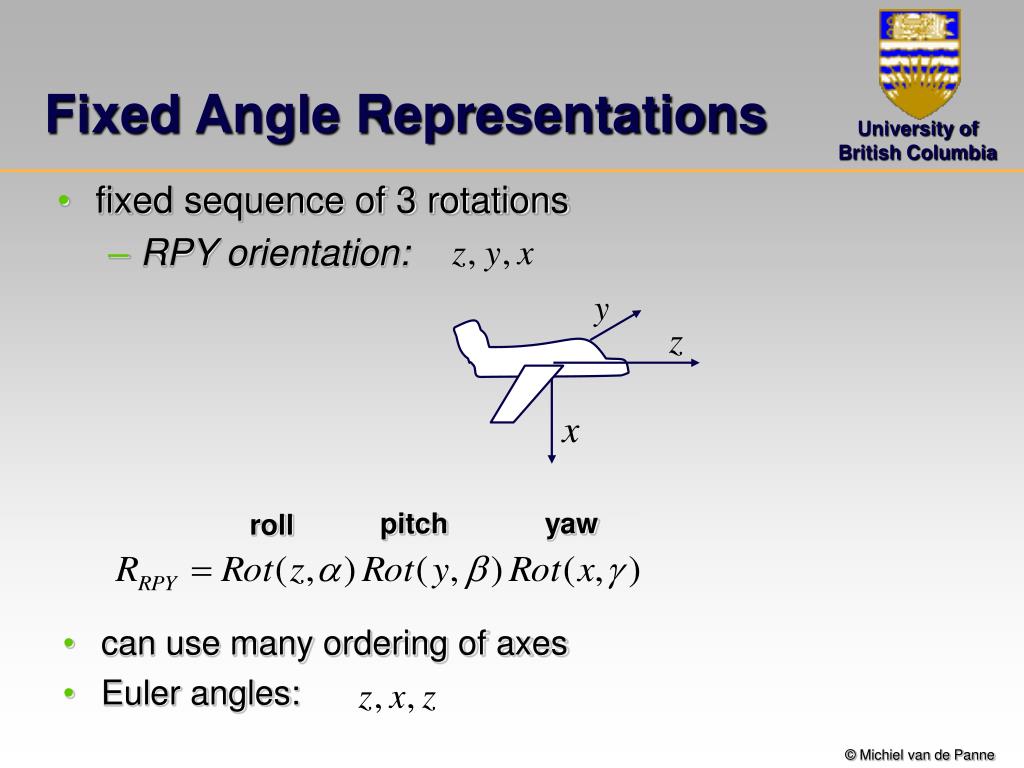

Fixed Angle Representations

  • fixed sequence of 3 rotations

    • RPY orientation:

  • can use many ordering of axes

  • Euler angles:


Euler s rotation theorem

Euler’s Rotation Theorem

  • can always go from one orientation to anotherwith one rotation about a single axis

180 deg about line in xy-plane

where


Quaternions

Quaternions

  • review of complex numbers

  • quaternions


Quaternions1

Quaternions

  • rotation of a vector

  • two successive rotations

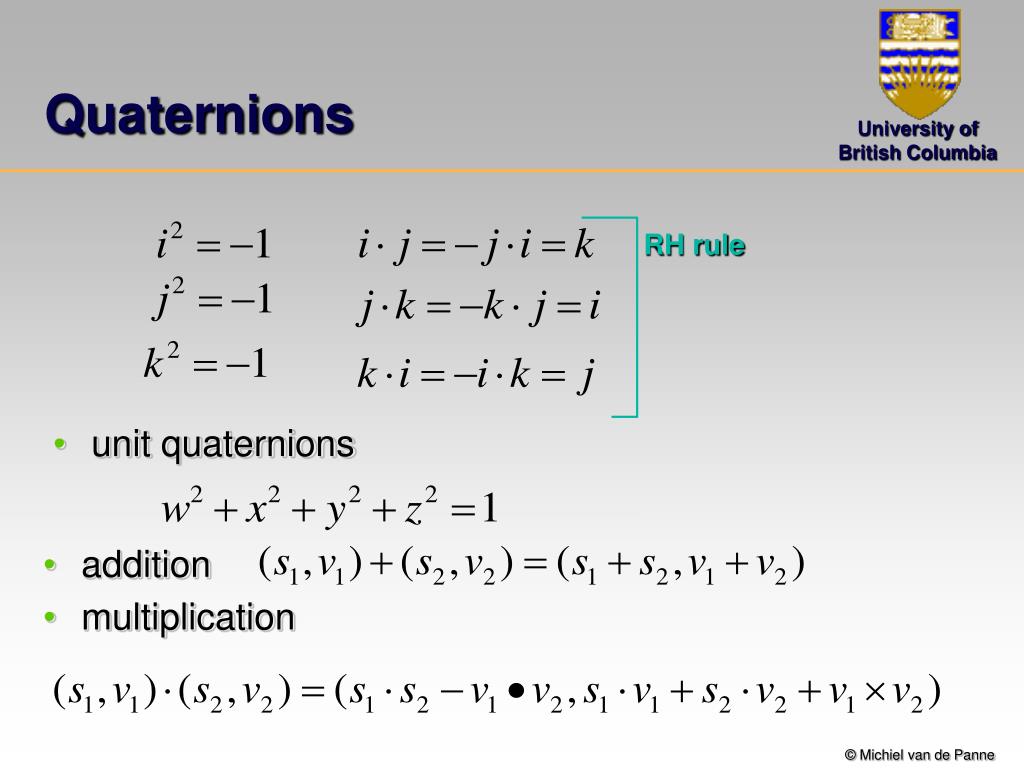

Quaternions2

Quaternions

RH rule

  • unit quaternions

  • addition

  • multiplication
