  1. XDCS eXtensible Data Cataloging System

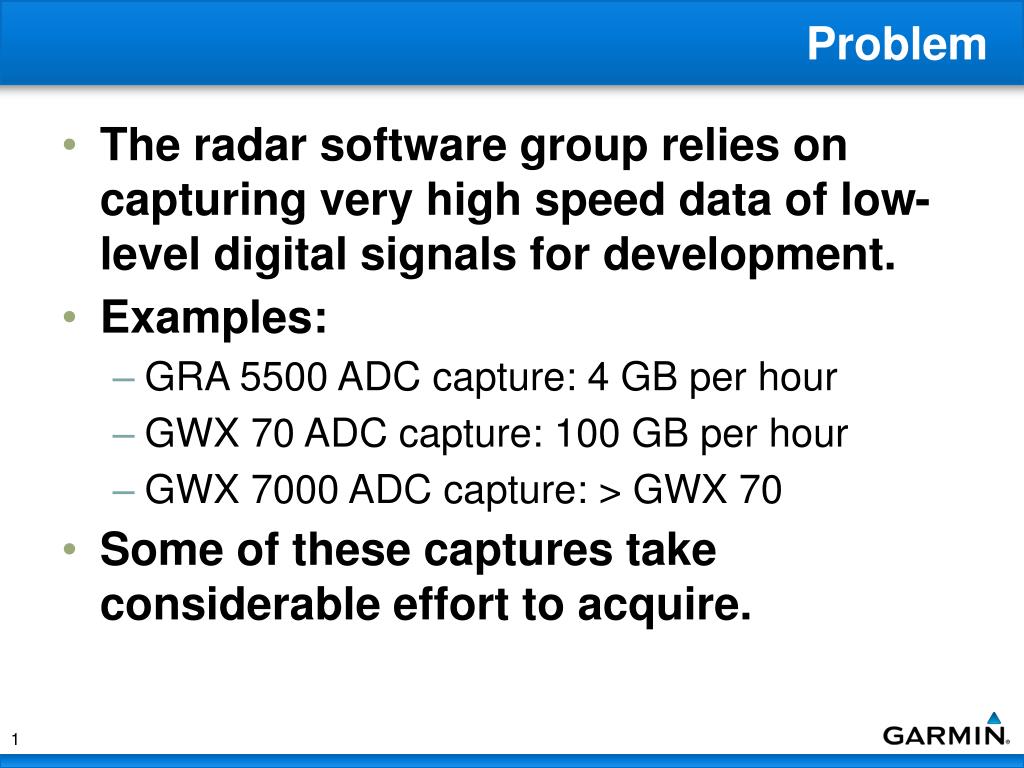

  2. Problem • The radar software group relies on capturing very high speed data of low-level digital signals for development. • Examples: • GRA 5500 ADC capture: 4 GB per hour • GWX 70 ADC capture: 100 GB per hour • GWX 7000 ADC capture: > GWX 70 • Some of these captures take considerable effort to acquire.

  3. What is XDCS? • Efficient, scalable storage for very large files • Consistent, well-defined retrieval of the contents of very large files • Relate file contents between different sources and formats • Document and annotate file contents

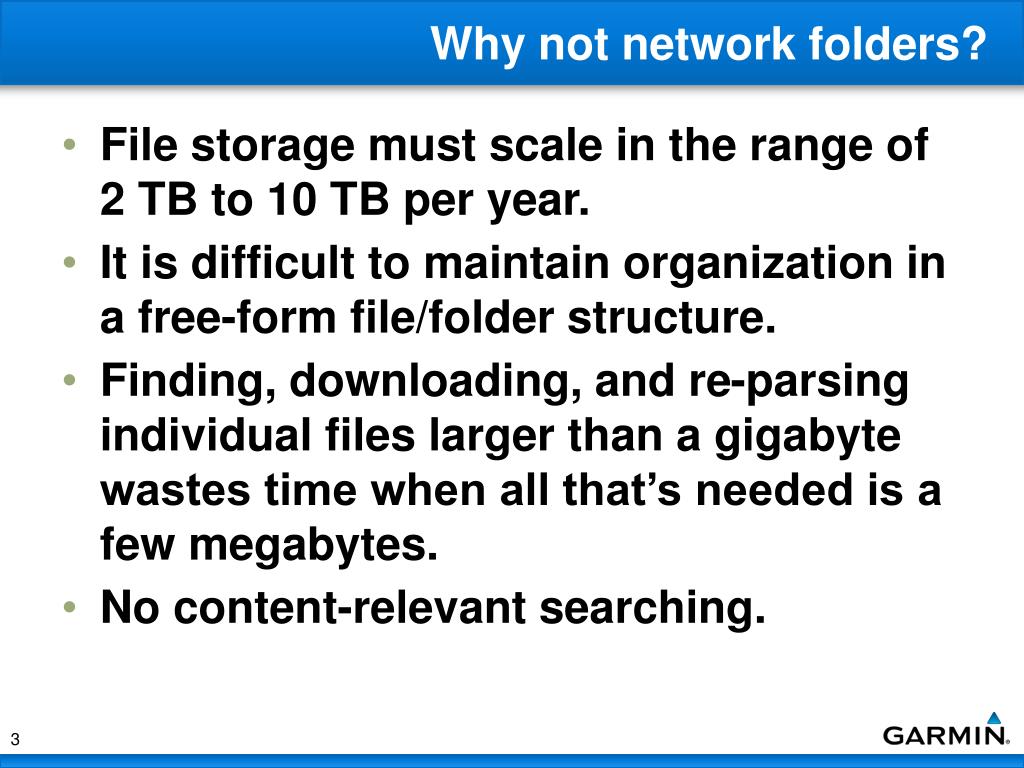

  4. Why not network folders? • File storage must scale in the range of 2 TB to 10 TB per year. • It is difficult to maintain organization in a free-form file/folder structure. • Finding, downloading, and re-parsing individual files larger than a gigabyte wastes time when all that’s needed is a few megabytes. • No content-relevant searching.

  5. Desired Features • Abstract physical file storage to ease scaling and organization on the user • Retrieve selectable segments of files • Stand-alone GUI for common activities • C and Python libraries allow streaming partial files directly over the network • Web interface for browsing/retrieval (and administration/monitoring) • File format translation, combining, and filtering • Attach supporting files to capture sets • Offline parse/tag workflow

  6. System Diagram

  7. Typical Workflow

  8. Typical Workflow

  9. Project Setup Examples

  10. Typical Workflow

  11. GUI Demonstration

  12. Export Modules • Ability to plug in different export formats

  13. Future Plans • Web browse/search/retrieve interface • GUI polish/iteration • Parametric search and visualization • Project setup automation/verification • Portable library development • Import/export plug-in API • Server performance, scalability analysis • Data acquisition front-end • Software/project update tools

  14. Questions?
