Presentation Transcript
Cs 468 cg texture mapping

CS 468Cg Texture Mapping

Jon Moon

Spring 2004

Computer Science

Cornell University


Agenda
Agenda

  • NVIDIA’s Cg Browser effects

    • Bump Mapping

    • Reflection Mapping

    • Thin Film

    • Bump Horizon Mapping

    • Car Paint

    • Bumpy Shiny Patch

  • Watch demo, understand the shaders


Cg commands
Cg Commands

  • saturate(x): same as clamp(x,0,1)

  • lerp(a,b,f): (1-f)*a + b*f

  • lit(ndotl, ndoth, m): returns Blinn model {ambient, diffuse, specular,1}

  • length(x), distance(x1,x2), pow(x,y), etc.


Simple fp20 bump mapping
Simple fp20 Bump Mapping

  • Goal: Bumpy Earth

  • What should the FP do?

    • Vertex inputs?

    • Uniform Parameters?

    • Outputs?

    • Code?

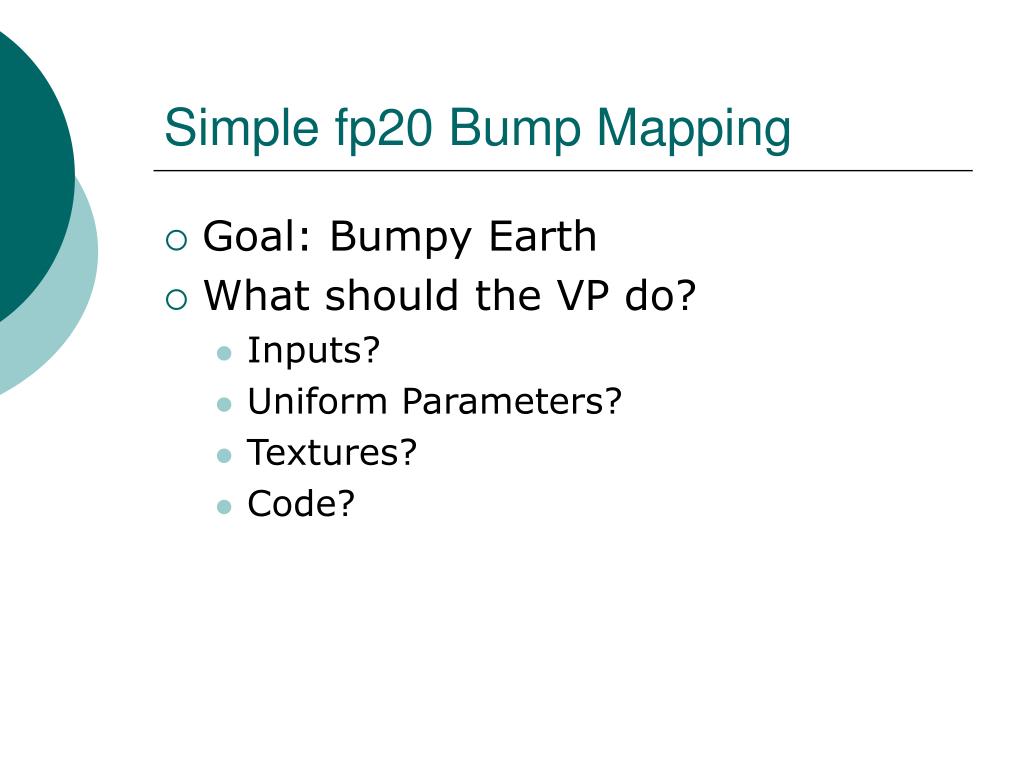

Simple fp20 bump mapping1
Simple fp20 Bump Mapping

  • Goal: Bumpy Earth

  • What should the VP do?

    • Inputs?

    • Uniform Parameters?

    • Textures?

    • Code?


Texture reads in cg
Texture reads in Cg

  • Need uniform parameter for the texture itself: sampler2d, sampler3d, etc.

  • Need to call appropriate texture read function, with appr. Params: tex2d(my2dTexture, myCoords)


Simple fp20 bump mapping2
Simple fp20 Bump Mapping

  • Texture read code (out of context):

    float2 decalCoords : TEXCOORD0;

    uniform sampler2D decal, etc.

    float3 decalColor = tex2D(decal, IN.decalCoords).rgb;

  • OpenGL side will be covered next week!


Bump reflection mapping
Bump Reflection Mapping

  • Goal: Achieve reflection using normal map, environment map

  • What kind of textures will we use?

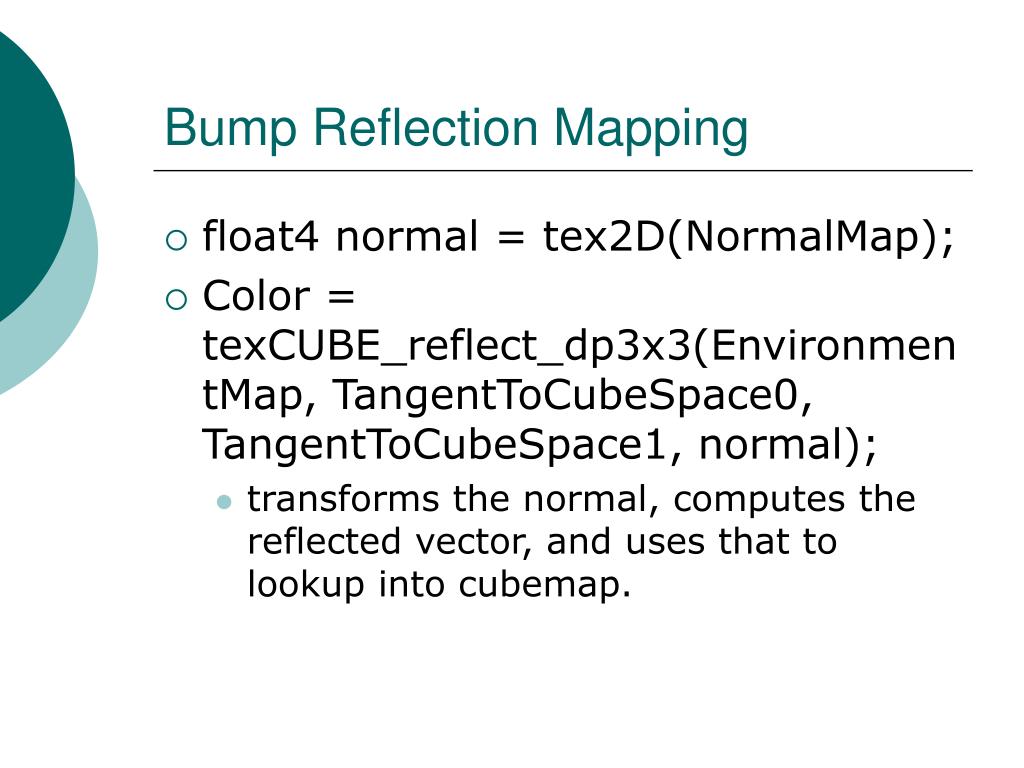

Bump reflection mapping1
Bump Reflection Mapping

  • float4 normal = tex2D(NormalMap);

  • Color = texCUBE_reflect_dp3x3(EnvironmentMap, TangentToCubeSpace0, TangentToCubeSpace1, normal);

    • transforms the normal, computes the reflected vector, and uses that to lookup into cubemap.


Thin film interference
Thin Film Interference

  • Goal:

    • produce thin film color patterns (think oil or soap bubbles)

  • Plan:

    • calculate the depth of film on the surface of object, based on view/normal angle

    • Use depth as lookup and get color, use that to modify specular component


Bump horizon mapping
Bump Horizon Mapping

  • Goal: bump mapping with self-shadowing

  • Theory: create horizon maps that store the elevation angle needed in a particular direction at each point

  • Use the horizon maps nearest the light direction to find elevation, compare to light vector


Bump horizon mapping1
Bump Horizon Mapping

  • Can encode 4 horizon maps in one texture, with 1 elevation in each RGBA value.

  • Thus horizon maps for 8 cardinal directions (N, NE, etc.) can be encoded nicely in 2 textures

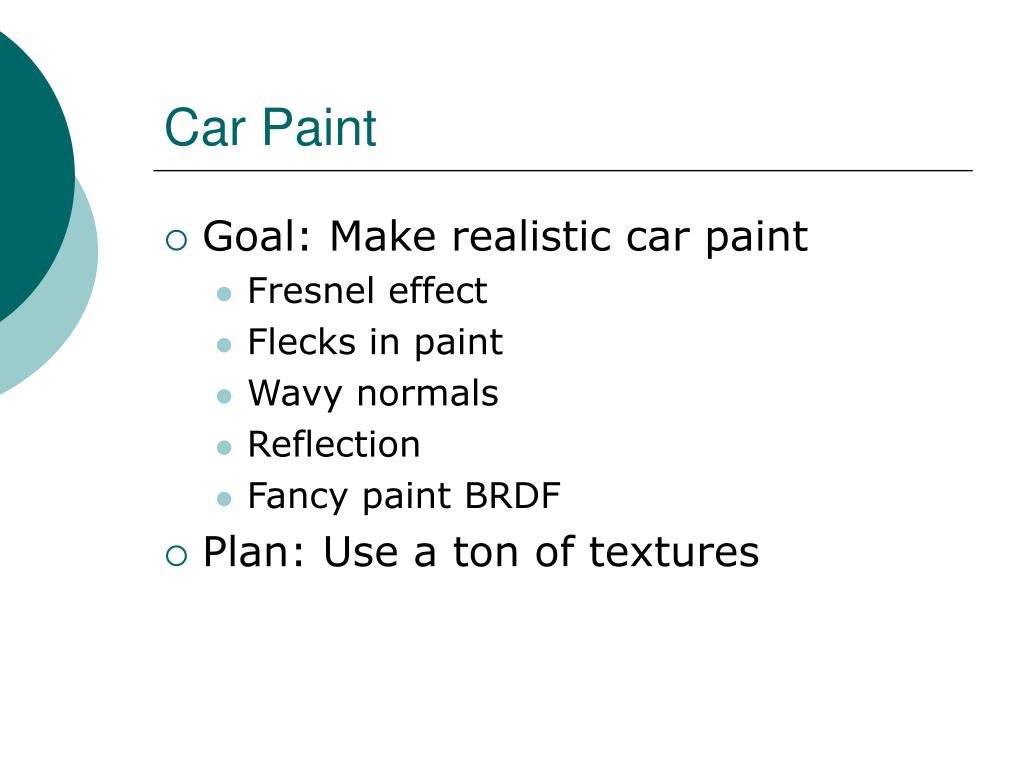

Car paint
Car Paint

  • Goal: Make realistic car paint

    • Fresnel effect

    • Flecks in paint

    • Wavy normals

    • Reflection

    • Fancy paint BRDF

  • Plan: Use a ton of textures


Bumpy shiny patch
Bumpy Shiny Patch

  • Goal: (go watch it!)

  • What mapping effects are being used?


Other possibilities
Other possibilities?

  • Iridescence: color is view dependent

  • Gloss mapping: reflectivity differs over object

  • Height field, offset bump maps

  • Be creative! Be clever!


Resources
Resources

  • Cg User Manual:

    • http://developer.nvidia.com/object/cg_users_manual.html

    • Also in Cg Toolkit folder

  • Cg Browser download:

    • http://developer.nvidia.com/object/cg_toolkit.html

    • Part of the Cg Toolkit (~100 MB)
