APPLICATIONS : NANO-CAPILLARY ELECTROPHORESIS (nCE) DEVICE

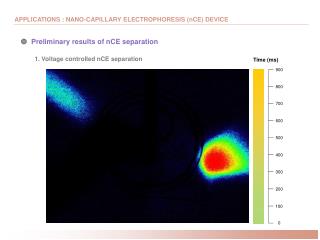

Preliminary results of nCE separation

1. Voltage controlled nCE separation

Time (ms)

1. Electric field = 440V/cm, ΔV=38V

2. Dye solution : Rhodamine110 + Fluorescein

3. Buffer : Phosphate 10mM, pH = 7

4. Joule heating ~ 150nW

applications nano capillary electrophoresis nce device1

t=240ms

Rhodamine110

t=780ms

Fluorescene

APPLICATIONS : NANO-CAPILLARY ELECTROPHORESIS (nCE) DEVICE

Preliminary results of nCE separation

3. Separation analysis
