  1. Real World RCRA Fall, 2004

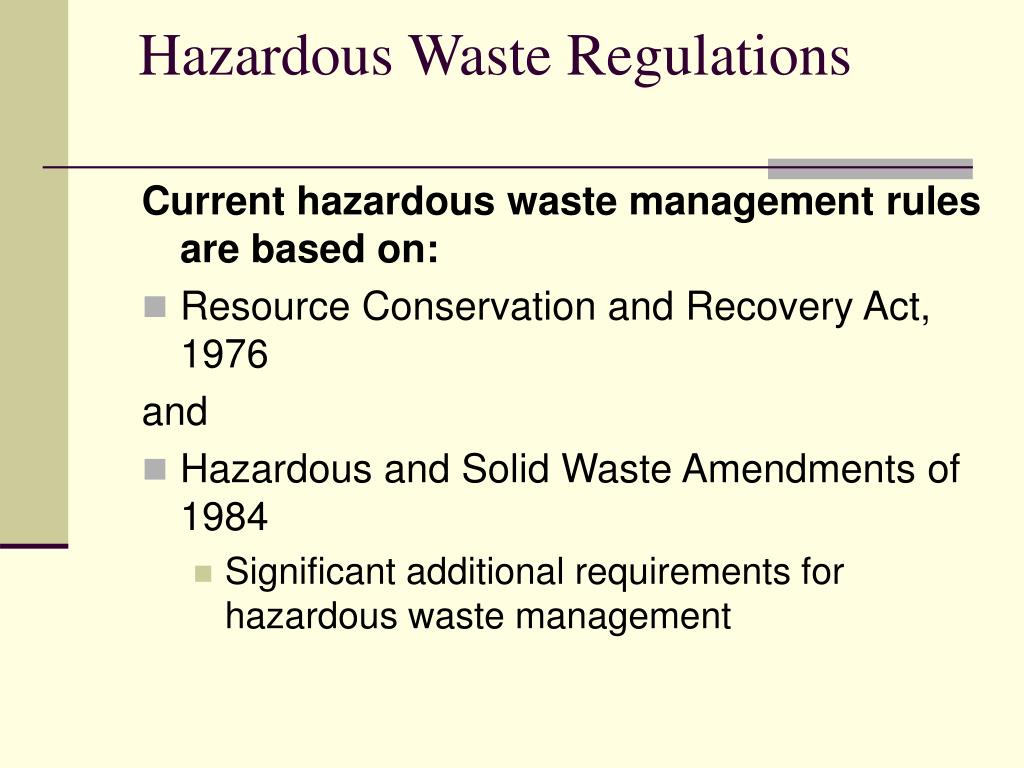

  2. Hazardous Waste Regulations Current hazardous waste management rules are based on: • Resource Conservation and Recovery Act, 1976 and • Hazardous and Solid Waste Amendments of 1984 • Significant additional requirements for hazardous waste management

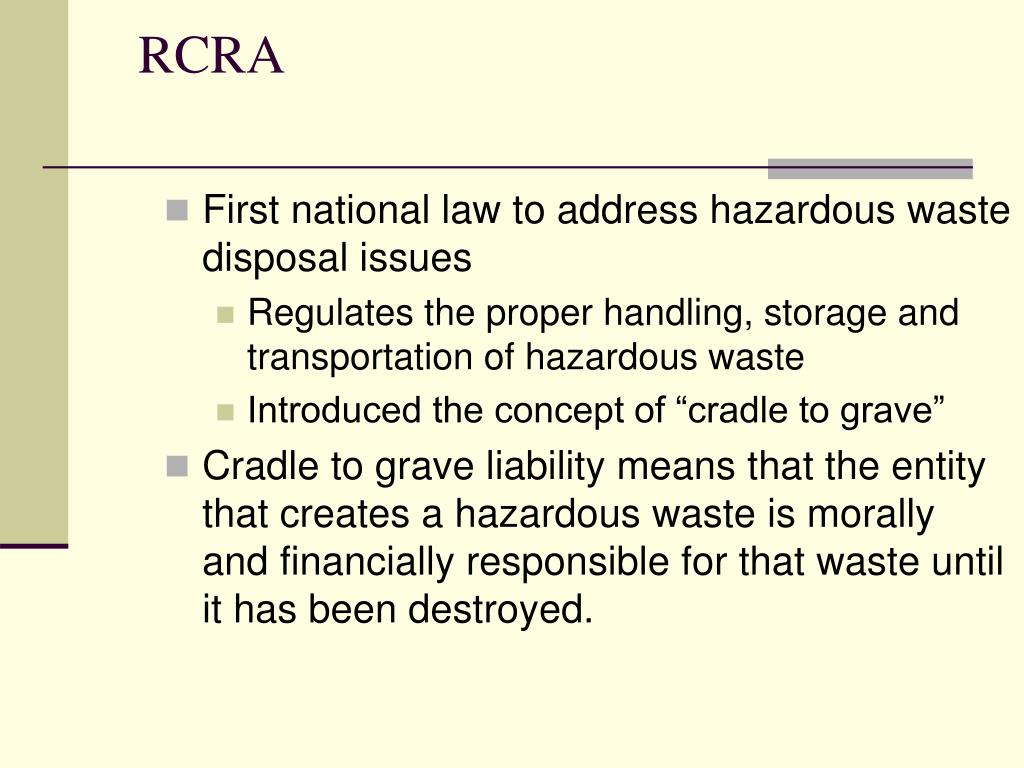

  3. RCRA • First national law to address hazardous waste disposal issues • Regulates the proper handling, storage and transportation of hazardous waste • Introduced the concept of “cradle to grave” • Cradle to grave liability means that the entity that creates a hazardous waste is morally and financially responsible for that waste until it has been destroyed.

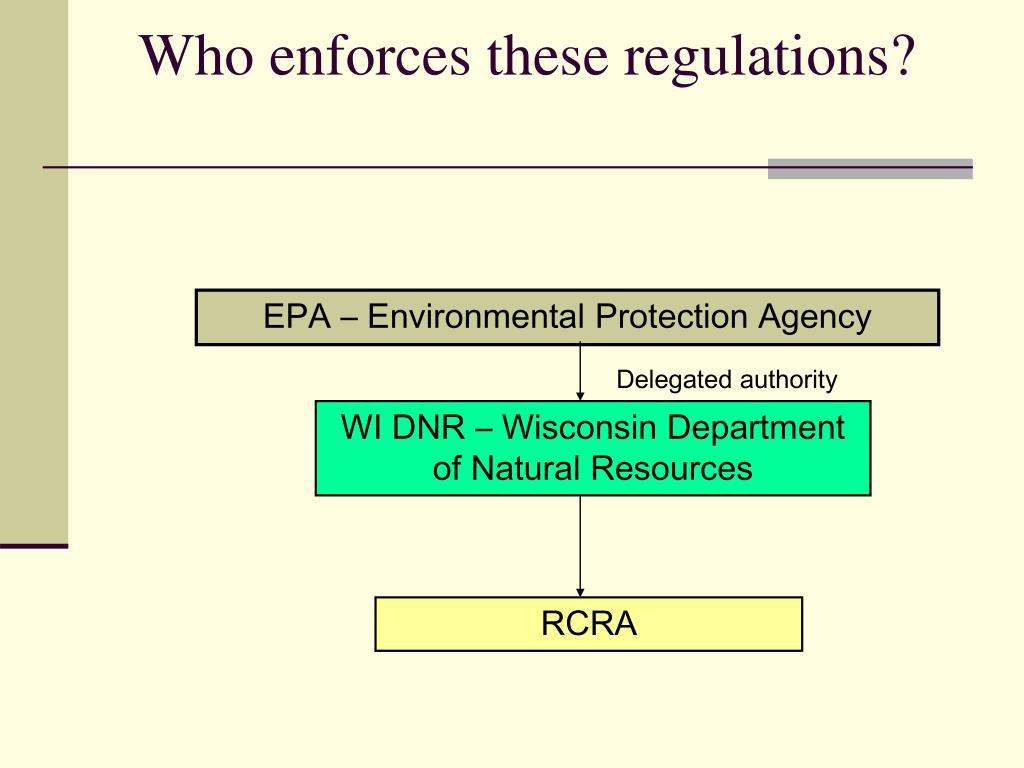

  4. Who enforces these regulations? EPA – Environmental Protection Agency Delegated authority WI DNR – Wisconsin Department of Natural Resources RCRA

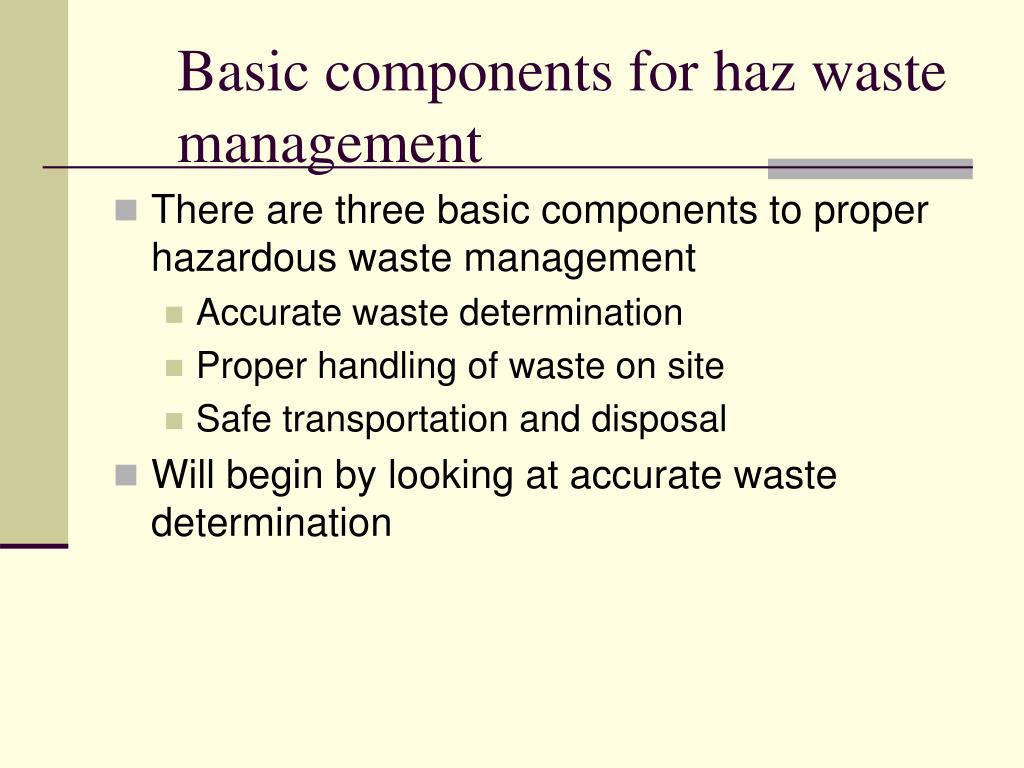

  5. Basic components for haz waste management • There are three basic components to proper hazardous waste management • Accurate waste determination • Proper handling of waste on site • Safe transportation and disposal • Will begin by looking at accurate waste determination

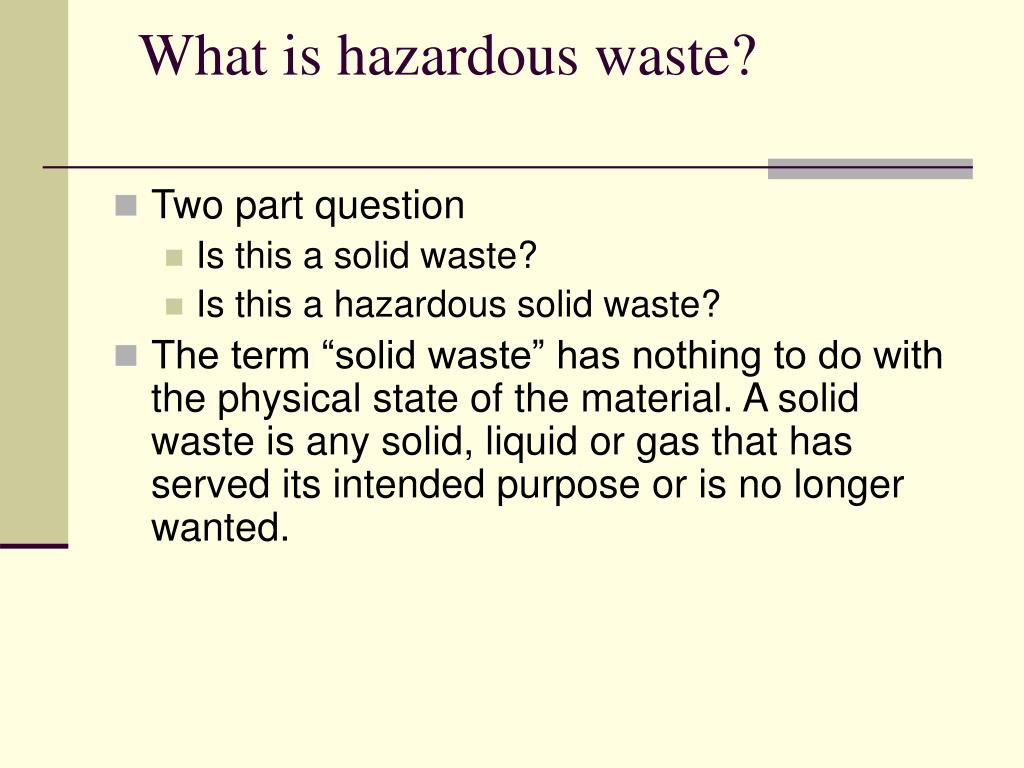

  6. What is hazardous waste? • Two part question • Is this a solid waste? • Is this a hazardous solid waste? • The term “solid waste” has nothing to do with the physical state of the material. A solid waste is any solid, liquid or gas that has served its intended purpose or is no longer wanted.

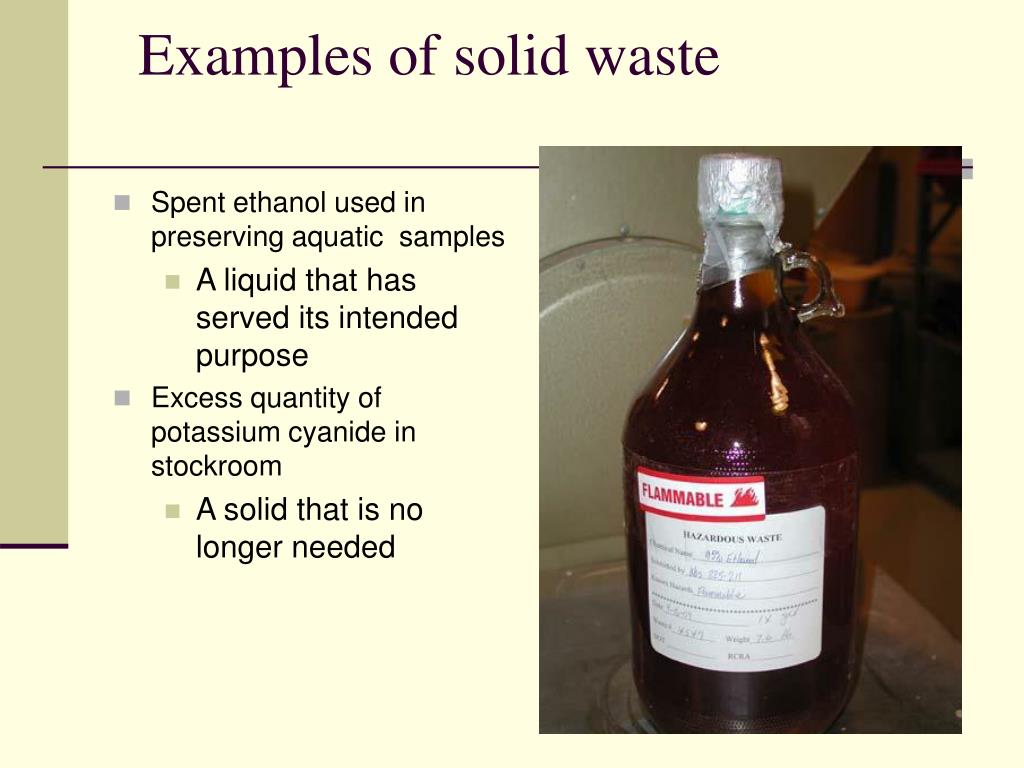

  7. Spent ethanol used in preserving aquatic samples A liquid that has served its intended purpose Excess quantity of potassium cyanide in stockroom A solid that is no longer needed Examples of solid waste

  8. Is it a hazardous waste? – cont’d • A solid waste is a hazardous waste if it falls into one of the following two categories: • Is specifically listed by the WI Department of Natural Resources in the NR 600 codes (listed waste) or • Displays any of the four hazardous waste characteristics (characteristic waste): • Ignitability, corrosivity, reactivity or toxicity

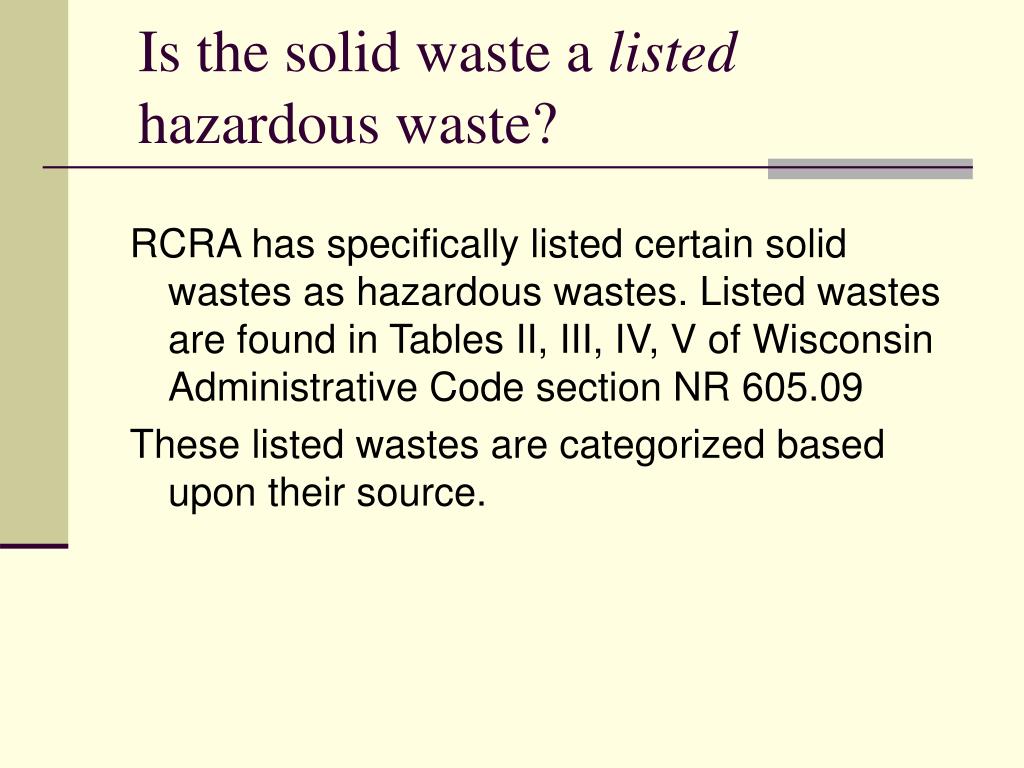

  9. Is the solid waste a listed hazardous waste? RCRA has specifically listed certain solid wastes as hazardous wastes. Listed wastes are found in Tables II, III, IV, V of Wisconsin Administrative Code section NR 605.09 These listed wastes are categorized based upon their source.

  10. Listed Waste • Table II wastes – the F-list • Wastes from non-specific sources • Includes many spent solvents • E.g. spent acetone, toluene • Wastes listed in this table will carry a waste code beginning with “F” • Table III wastes – the K-list • Wastes from specific sources or processes • K-listed wastes are not typically generated in a lab

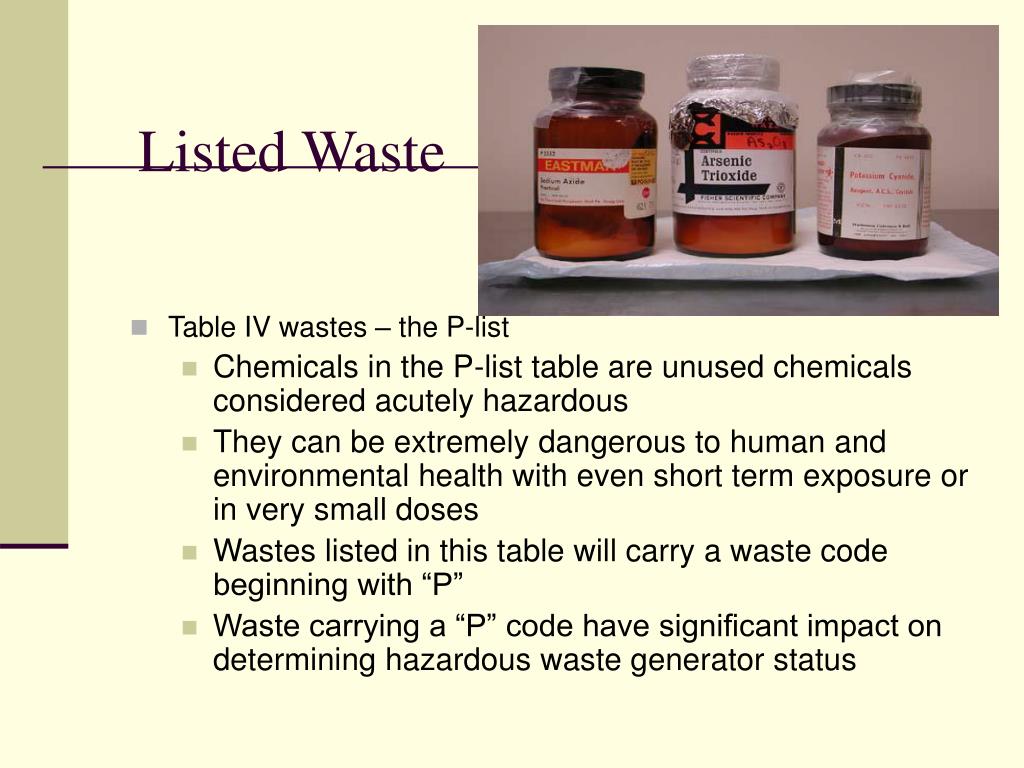

  11. Listed Waste • Table IV wastes – the P-list • Chemicals in the P-list table are unused chemicals considered acutely hazardous • They can be extremely dangerous to human and environmental health with even short term exposure or in very small doses • Wastes listed in this table will carry a waste code beginning with “P” • Waste carrying a “P” code have significant impact on determining hazardous waste generator status

  12. Table V wastes – the U-list Chemicals in the U-list table are unused chemicals considered hazardous but not as dangerous as the acutely hazardous P-listed chemicals Wastes listed in this table will carry a waste code beginning with a “U” E.G. butyl alcohol

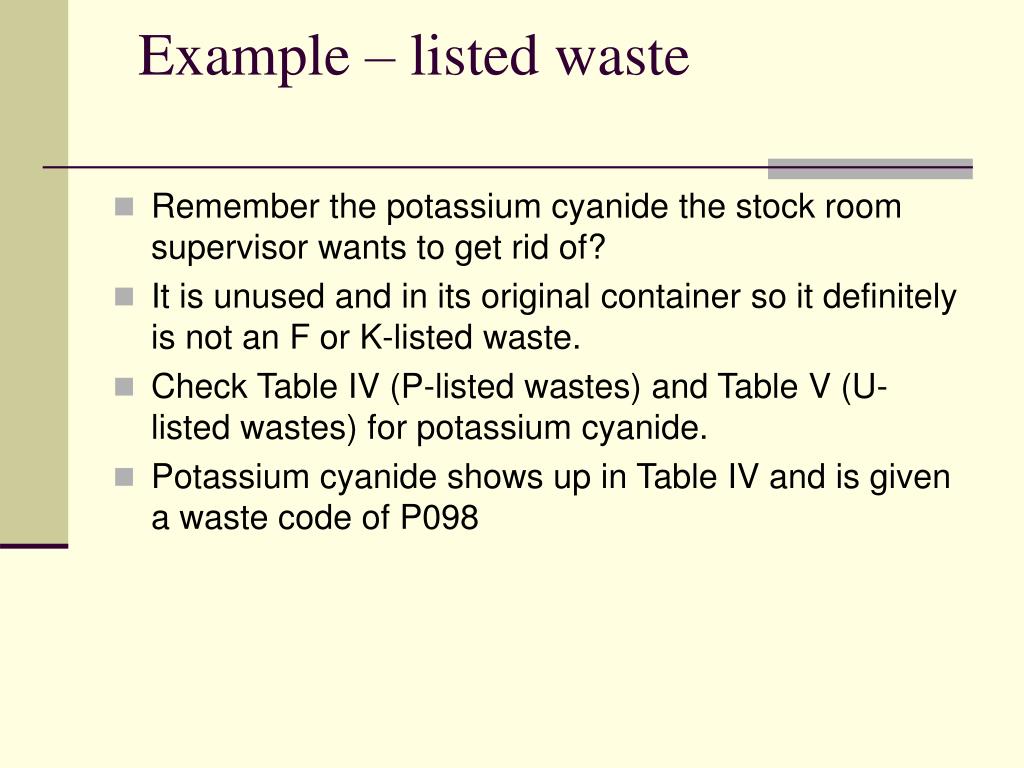

  13. Example – listed waste • Remember the potassium cyanide the stock room supervisor wants to get rid of? • It is unused and in its original container so it definitely is not an F or K-listed waste. • Check Table IV (P-listed wastes) and Table V (U-listed wastes) for potassium cyanide. • Potassium cyanide shows up in Table IV and is given a waste code of P098

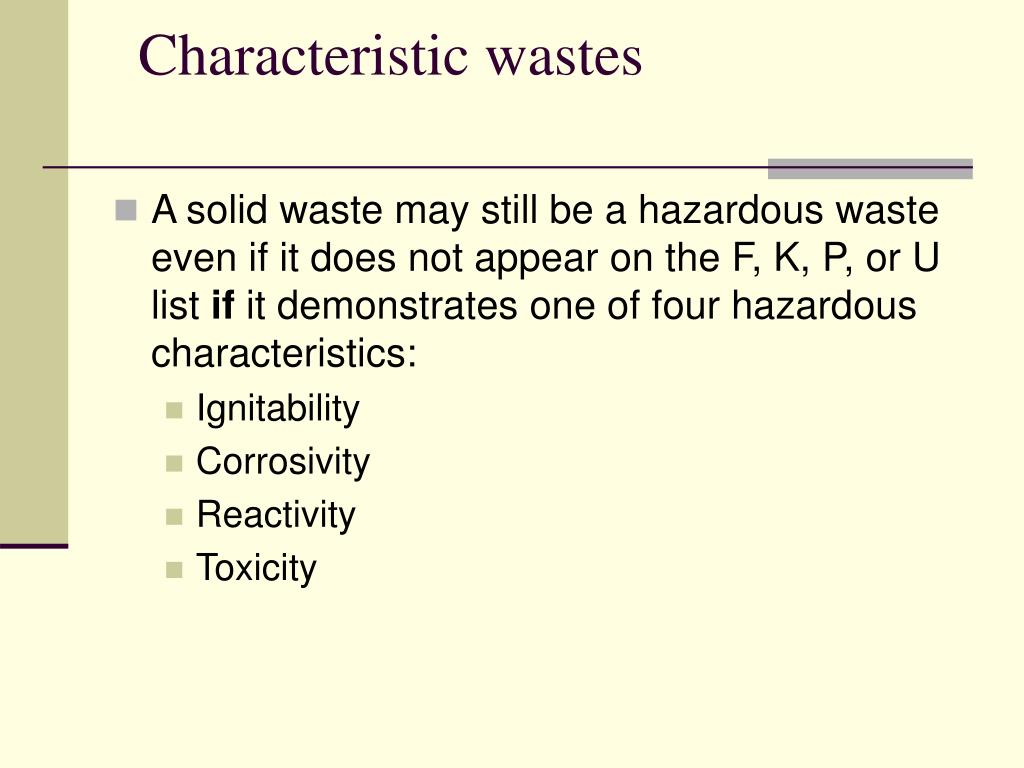

  14. Characteristic wastes • A solid waste may still be a hazardous waste even if it does not appear on the F, K, P, or U list if it demonstrates one of four hazardous characteristics: • Ignitability • Corrosivity • Reactivity • Toxicity

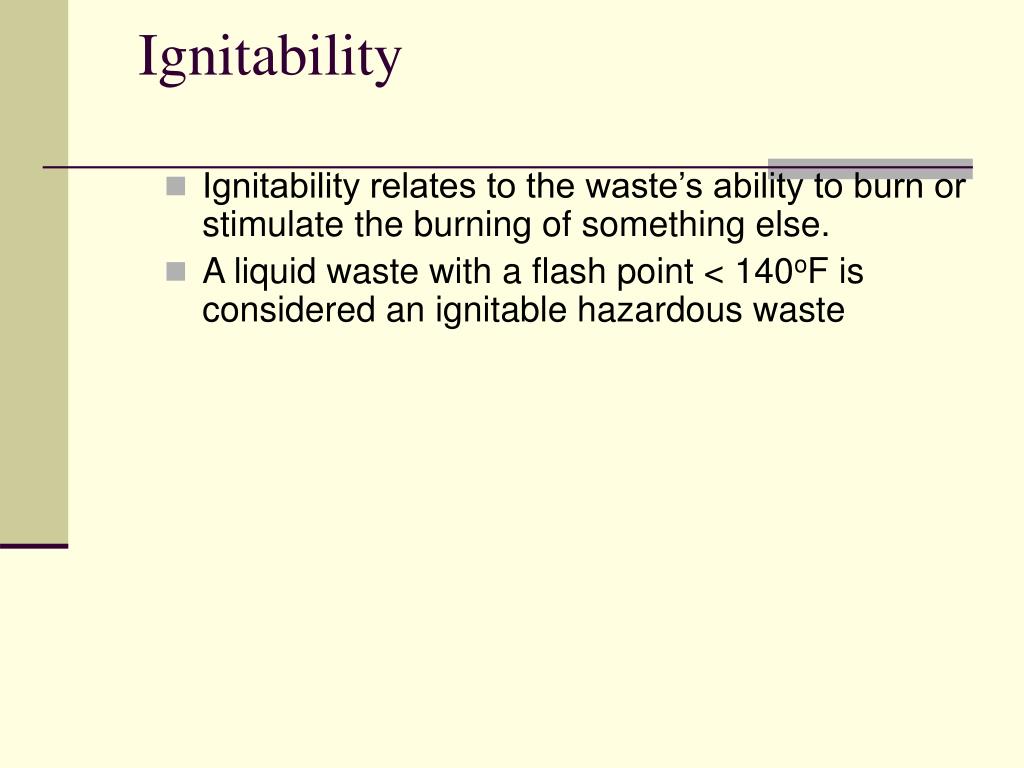

  15. Ignitability • Ignitability relates to the waste’s ability to burn or stimulate the burning of something else. • A liquid waste with a flash point < 140oF is considered an ignitable hazardous waste

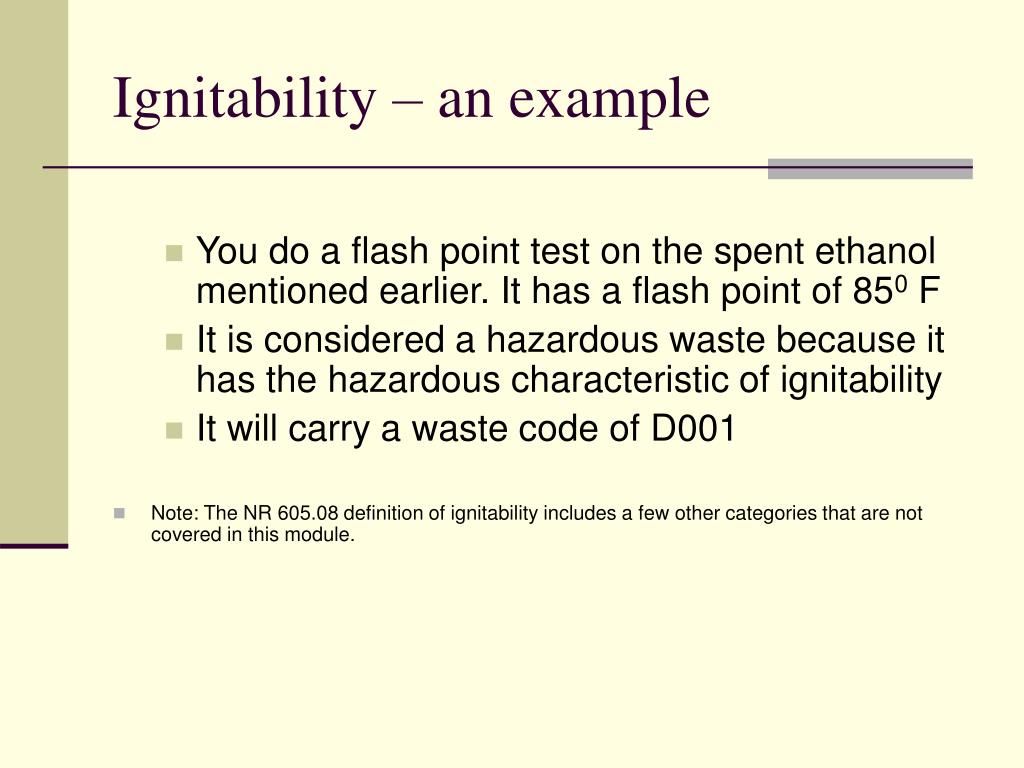

  16. Ignitability – an example • You do a flash point test on the spent ethanol mentioned earlier. It has a flash point of 850 F • It is considered a hazardous waste because it has the hazardous characteristic of ignitability • It will carry a waste code of D001 • Note: The NR 605.08 definition of ignitability includes a few other categories that are not covered in this module.

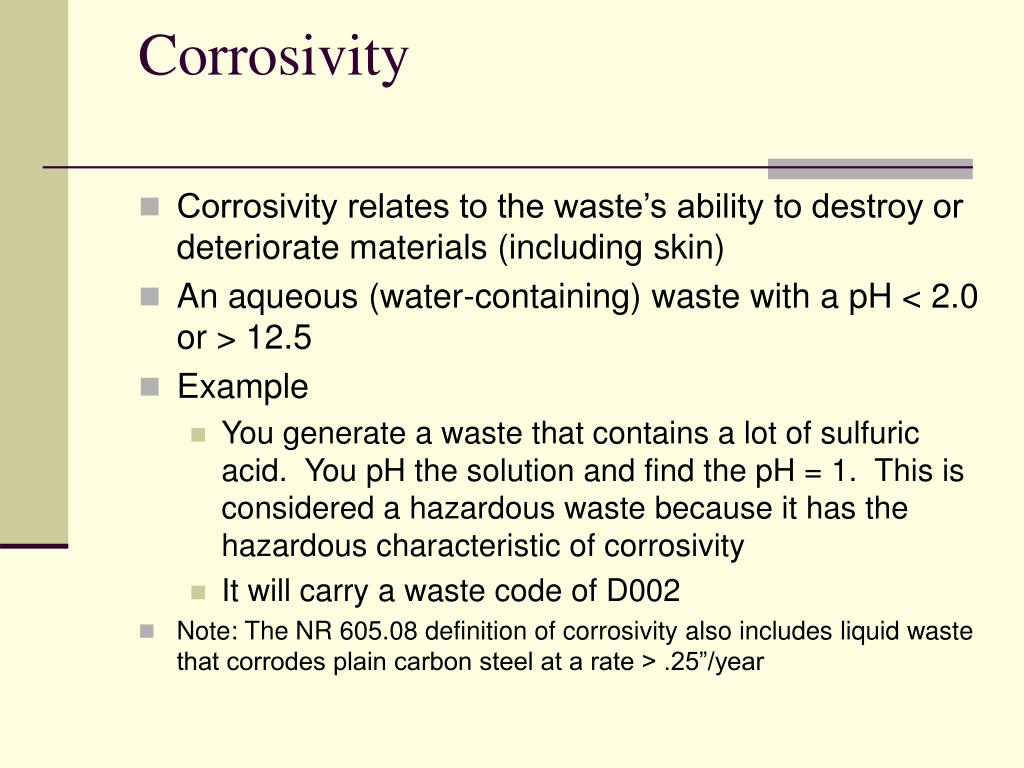

  17. Corrosivity • Corrosivity relates to the waste’s ability to destroy or deteriorate materials (including skin) • An aqueous (water-containing) waste with a pH < 2.0 or > 12.5 • Example • You generate a waste that contains a lot of sulfuric acid. You pH the solution and find the pH = 1. This is considered a hazardous waste because it has the hazardous characteristic of corrosivity • It will carry a waste code of D002 • Note: The NR 605.08 definition of corrosivity also includes liquid waste that corrodes plain carbon steel at a rate > .25”/year

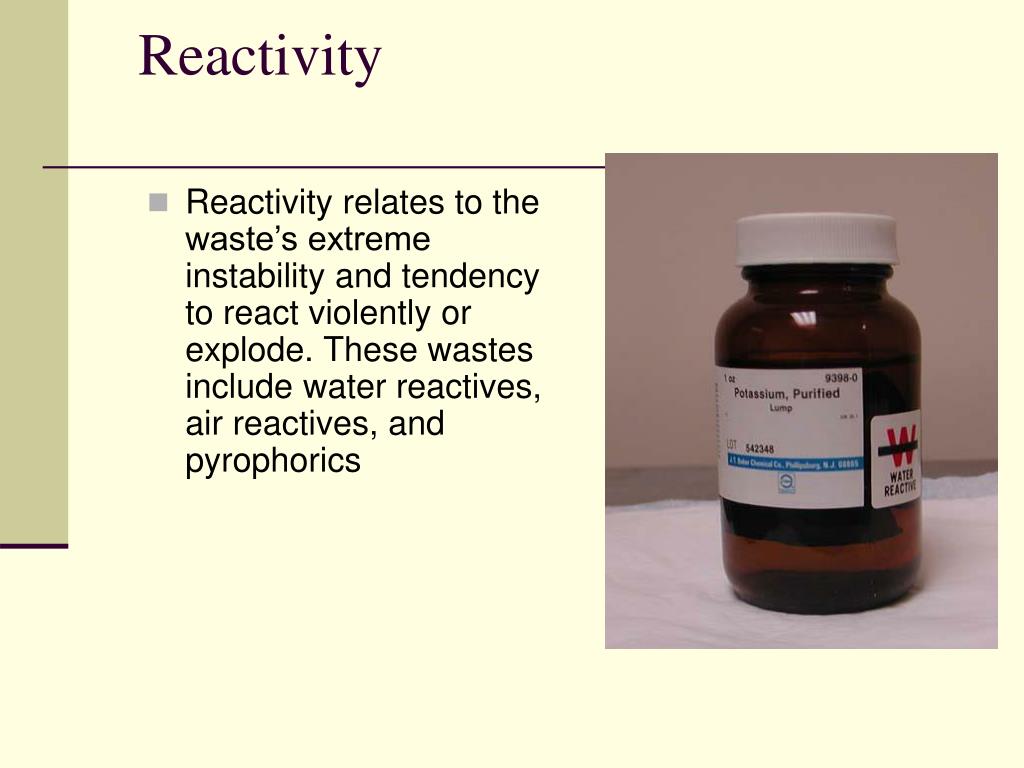

  18. Reactivity relates to the waste’s extreme instability and tendency to react violently or explode. These wastes include water reactives, air reactives, and pyrophorics Reactivity

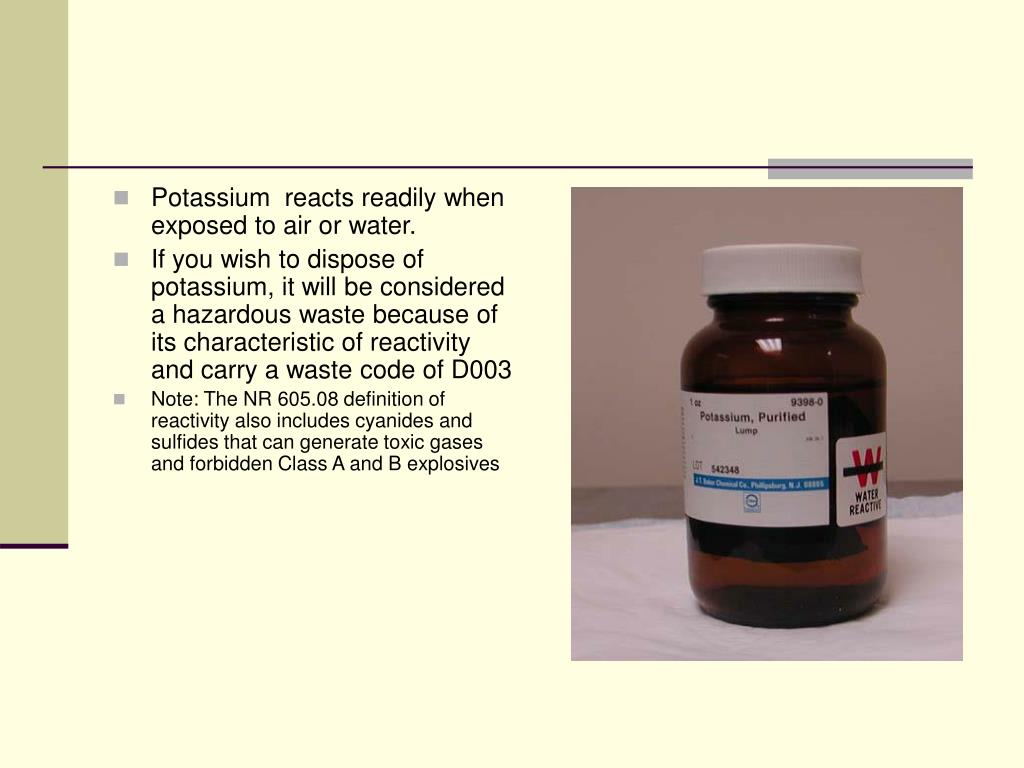

  19. Potassium reacts readily when exposed to air or water. If you wish to dispose of potassium, it will be considered a hazardous waste because of its characteristic of reactivity and carry a waste code of D003 Note: The NR 605.08 definition of reactivity also includes cyanides and sulfides that can generate toxic gases and forbidden Class A and B explosives

  20. Toxicity • Toxicity relates to the waste’s ability to contaminate groundwater. Wastes are considered toxic if they release or leach any of 39 specified heavy metals, pesticides or organic chemicals above their regulatory level concentrations. The laboratory test used to determine this characteristic is called the Toxic Characteristic Leaching Procedure (TCLP) • Waste codes for toxic wastes are D004-D043

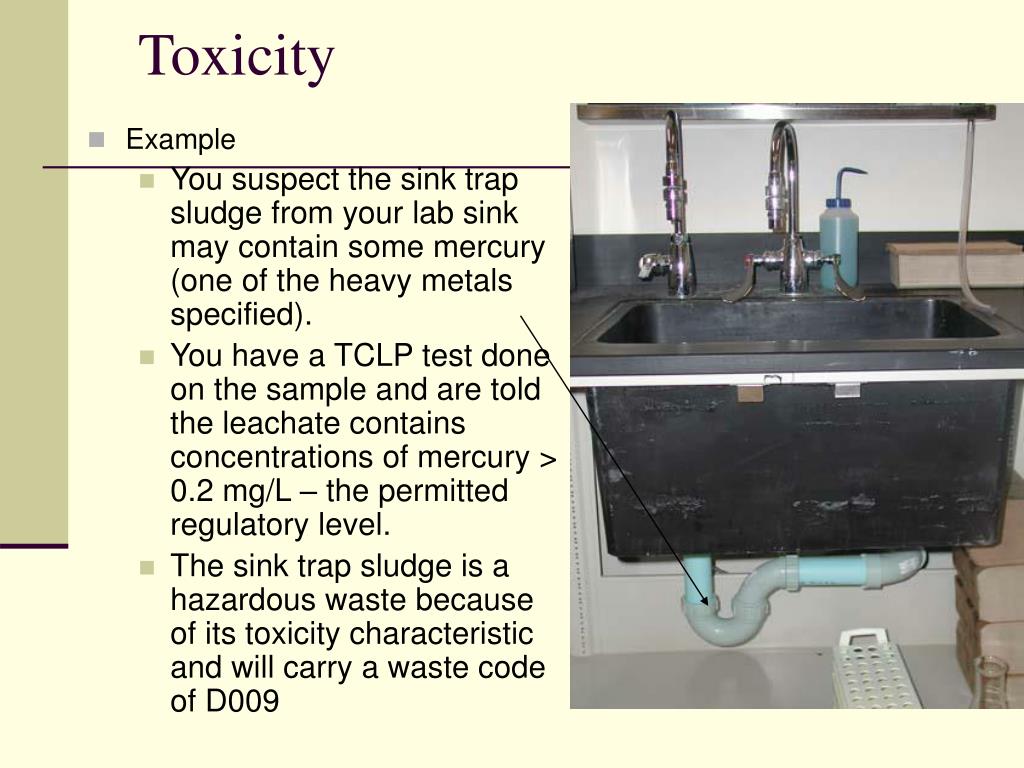

  21. Example You suspect the sink trap sludge from your lab sink may contain some mercury (one of the heavy metals specified). You have a TCLP test done on the sample and are told the leachate contains concentrations of mercury > 0.2 mg/L – the permitted regulatory level. The sink trap sludge is a hazardous waste because of its toxicity characteristic and will carry a waste code of D009 Toxicity

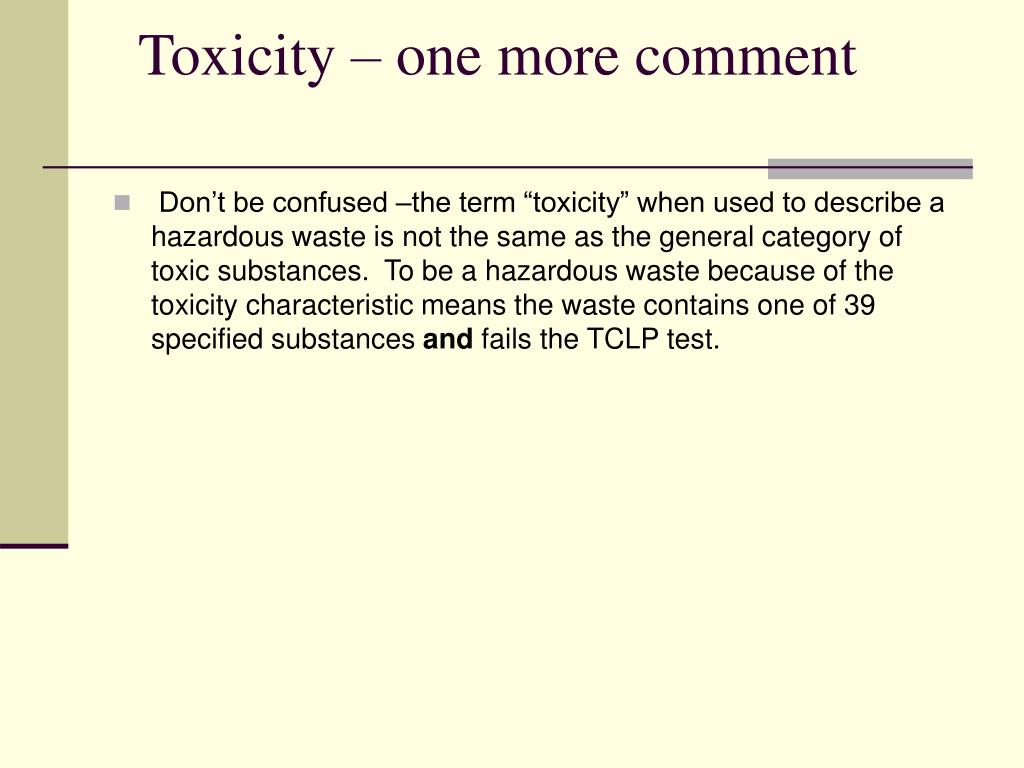

  22. Toxicity – one more comment • Don’t be confused –the term “toxicity” when used to describe a hazardous waste is not the same as the general category of toxic substances. To be a hazardous waste because of the toxicity characteristic means the waste contains one of 39 specified substances and fails the TCLP test.

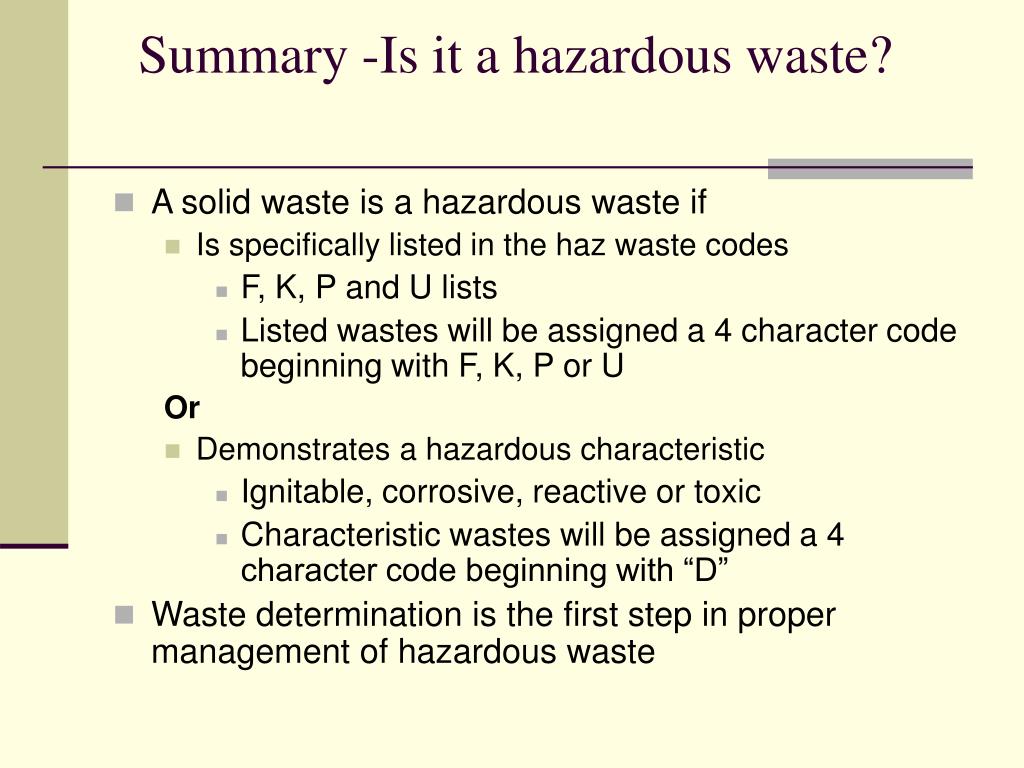

  23. Summary -Is it a hazardous waste? • A solid waste is a hazardous waste if • Is specifically listed in the haz waste codes • F, K, P and U lists • Listed wastes will be assigned a 4 character code beginning with F, K, P or U Or • Demonstrates a hazardous characteristic • Ignitable, corrosive, reactive or toxic • Characteristic wastes will be assigned a 4 character code beginning with “D” • Waste determination is the first step in proper management of hazardous waste

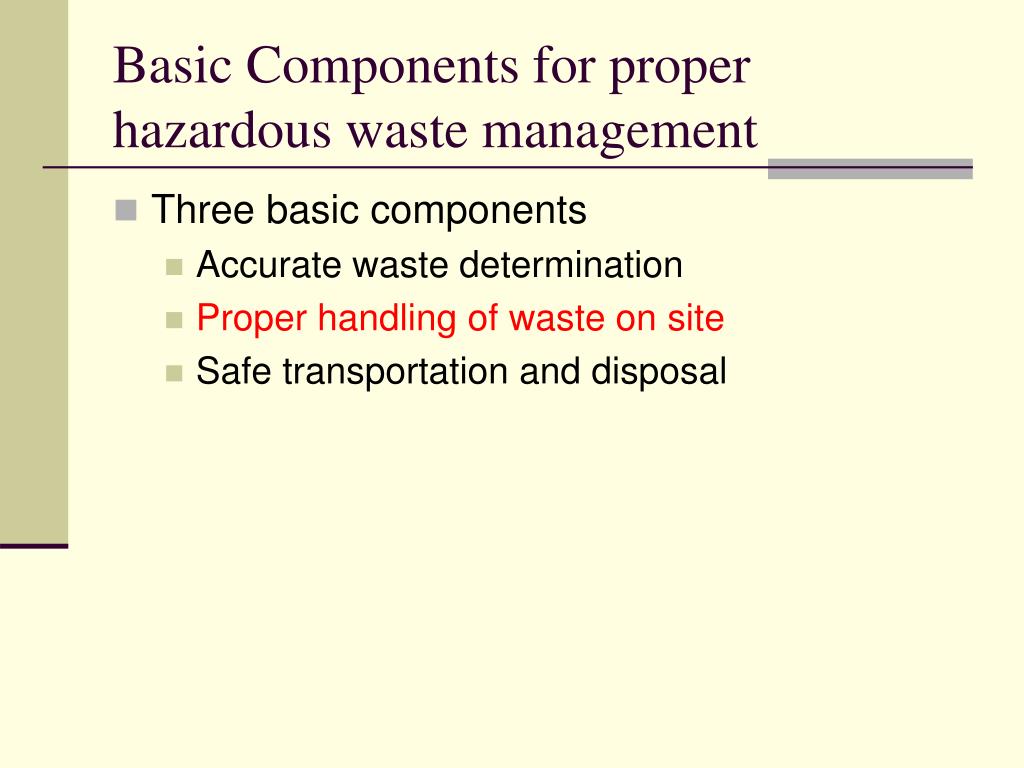

  24. Basic Components for proper hazardous waste management • Three basic components • Accurate waste determination • Proper handling of waste on site • Safe transportation and disposal

  25. Proper handling of hazardous waste • Once you have determined you have generated hazardous waste you must then manage that waste properly. • Haz waste management requirements are partially dependent on your generator status

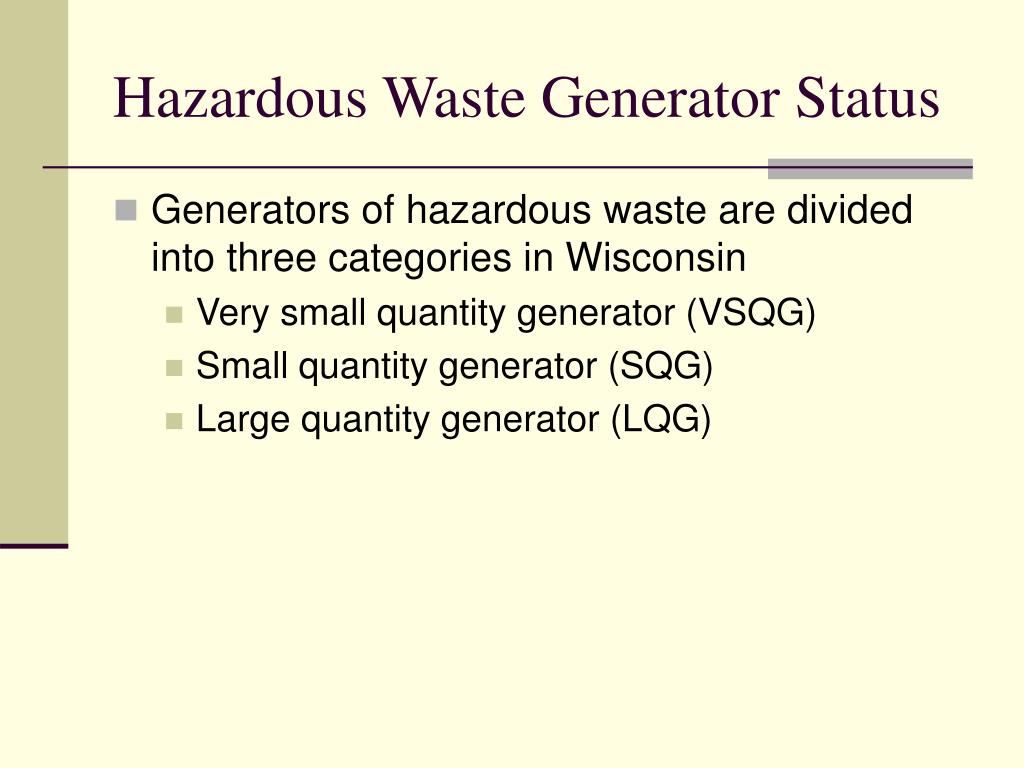

  26. Hazardous Waste Generator Status • Generators of hazardous waste are divided into three categories in Wisconsin • Very small quantity generator (VSQG) • Small quantity generator (SQG) • Large quantity generator (LQG)

  27. Your hazardous waste generator status depends on three factors: • How much hazardous waste you generate in a calendar month • How much hazardous waste you accumulate on site • How much acute hazardous waste you generate per month • All acute hazardous waste carries a “P” code (with the exception of F027 waste which is also considered acute haz waste).

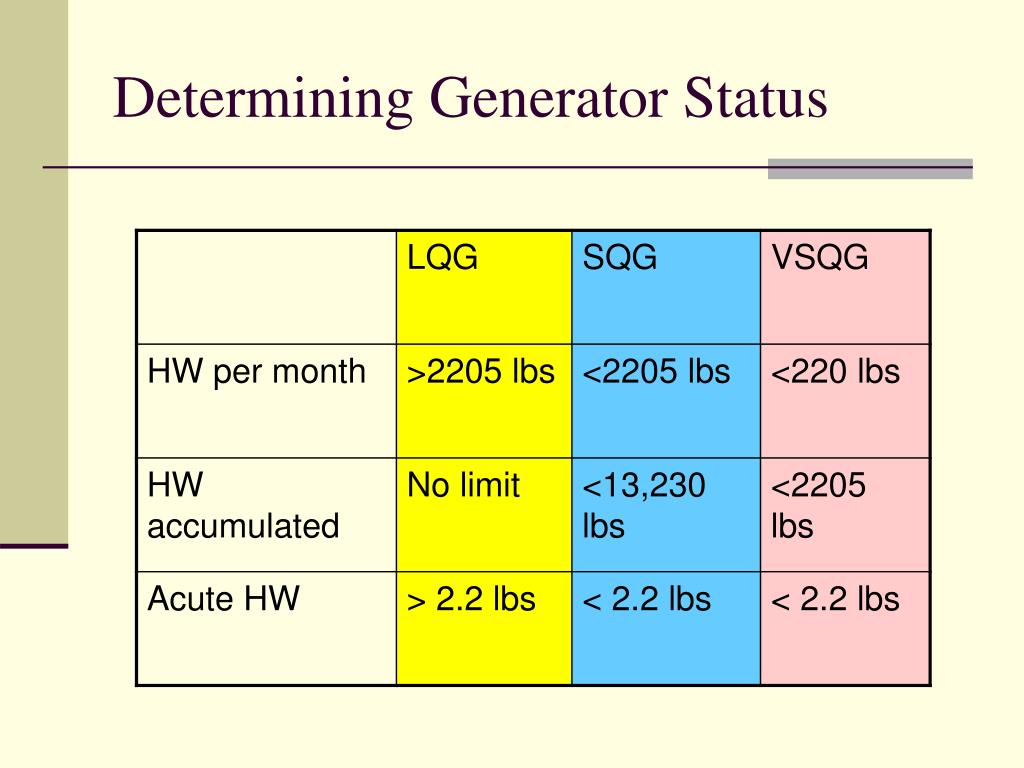

  28. Determining Generator Status

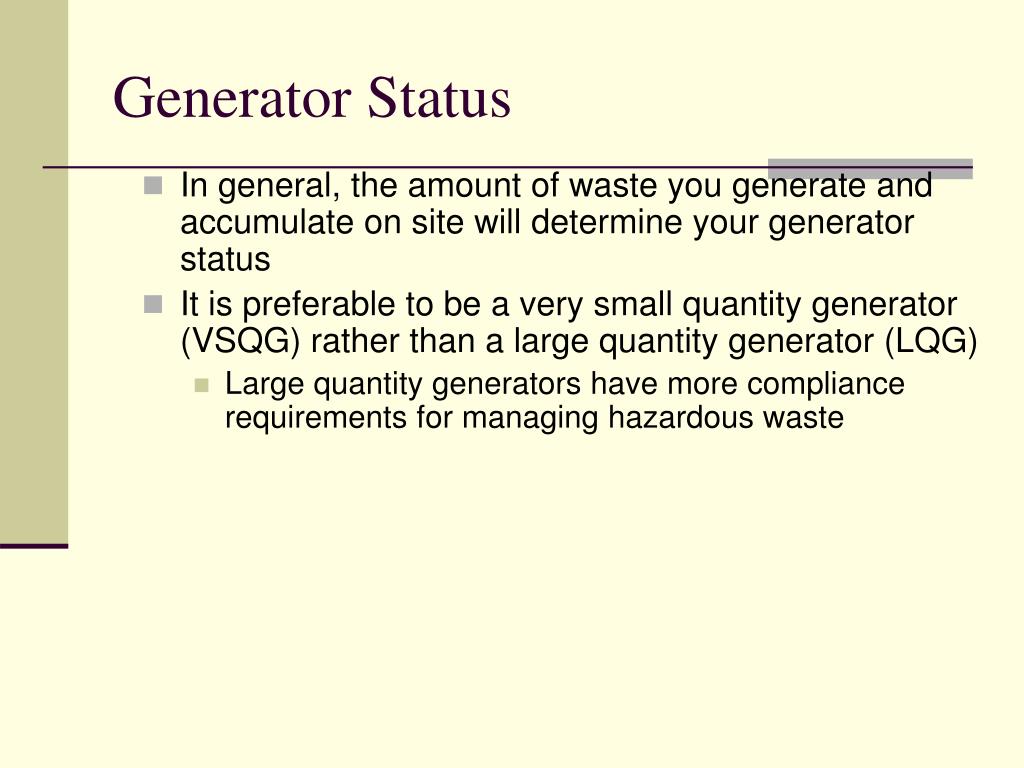

  29. Generator Status • In general, the amount of waste you generate and accumulate on site will determine your generator status • It is preferable to be a very small quantity generator (VSQG) rather than a large quantity generator (LQG) • Large quantity generators have more compliance requirements for managing hazardous waste

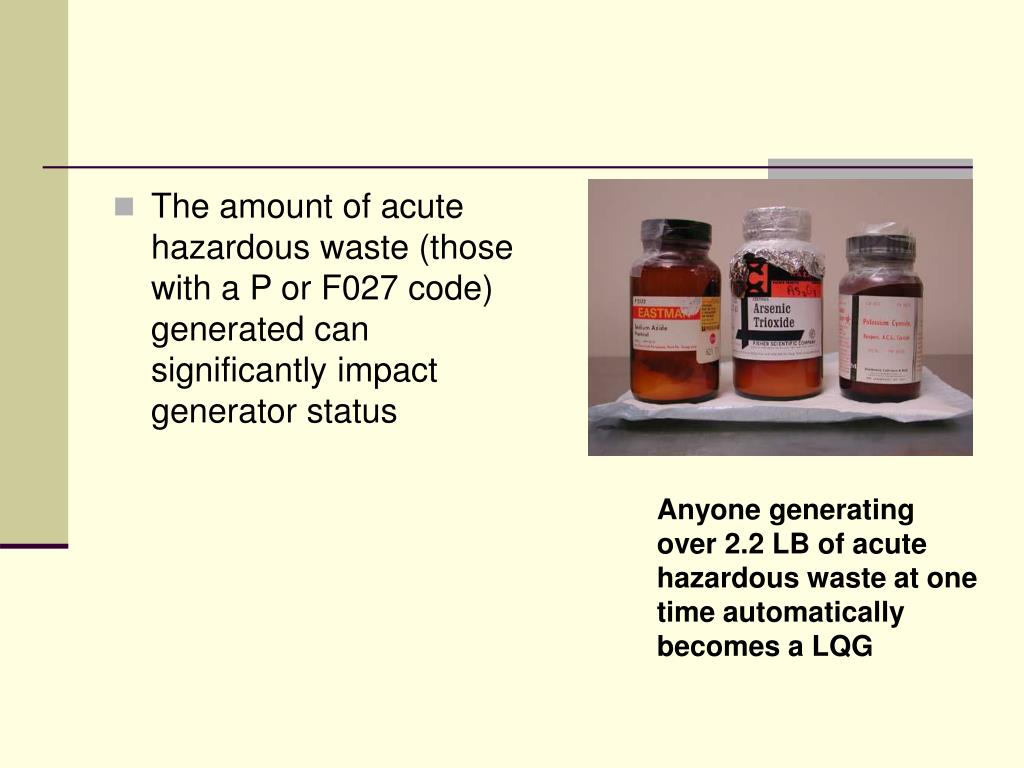

  30. The amount of acute hazardous waste (those with a P or F027 code) generated can significantly impact generator status Anyone generating over 2.2 LB of acute hazardous waste at one time automaticallybecomes a LQG

  31. Waste Management • All generators of hazardous waste must do certain things – although the requirements vary a bit depending on generator status. • Obtain an EPA ID number – EPA monitors and tracks generator activity by assigning EPA ID numbers. EPA ID numbers can be obtained from the DNR

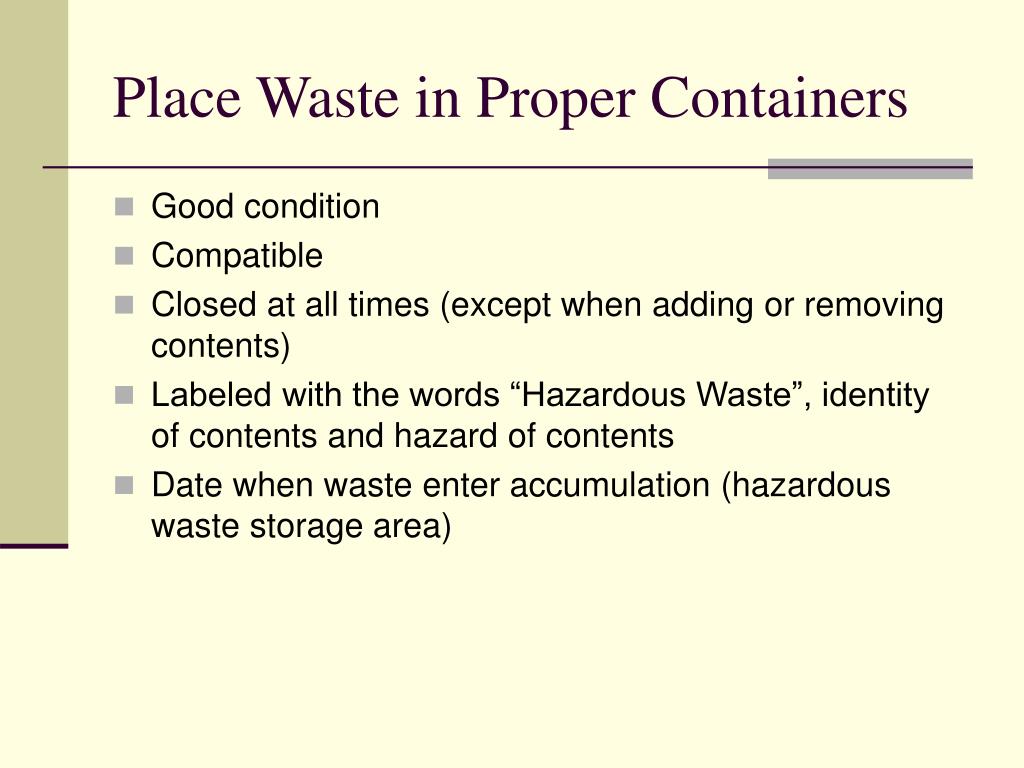

  32. Place Waste in Proper Containers • Good condition • Compatible • Closed at all times (except when adding or removing contents) • Labeled with the words “Hazardous Waste”, identity of contents and hazard of contents • Date when waste enter accumulation (hazardous waste storage area)

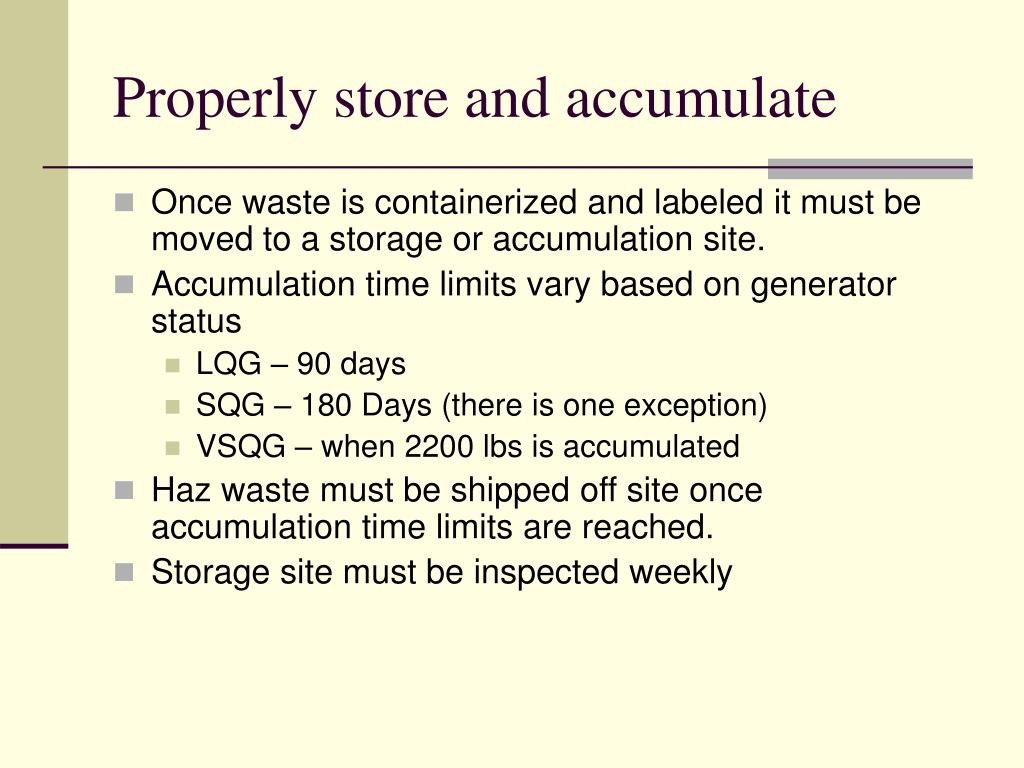

  33. Properly store and accumulate • Once waste is containerized and labeled it must be moved to a storage or accumulation site. • Accumulation time limits vary based on generator status • LQG – 90 days • SQG – 180 Days (there is one exception) • VSQG – when 2200 lbs is accumulated • Haz waste must be shipped off site once accumulation time limits are reached. • Storage site must be inspected weekly

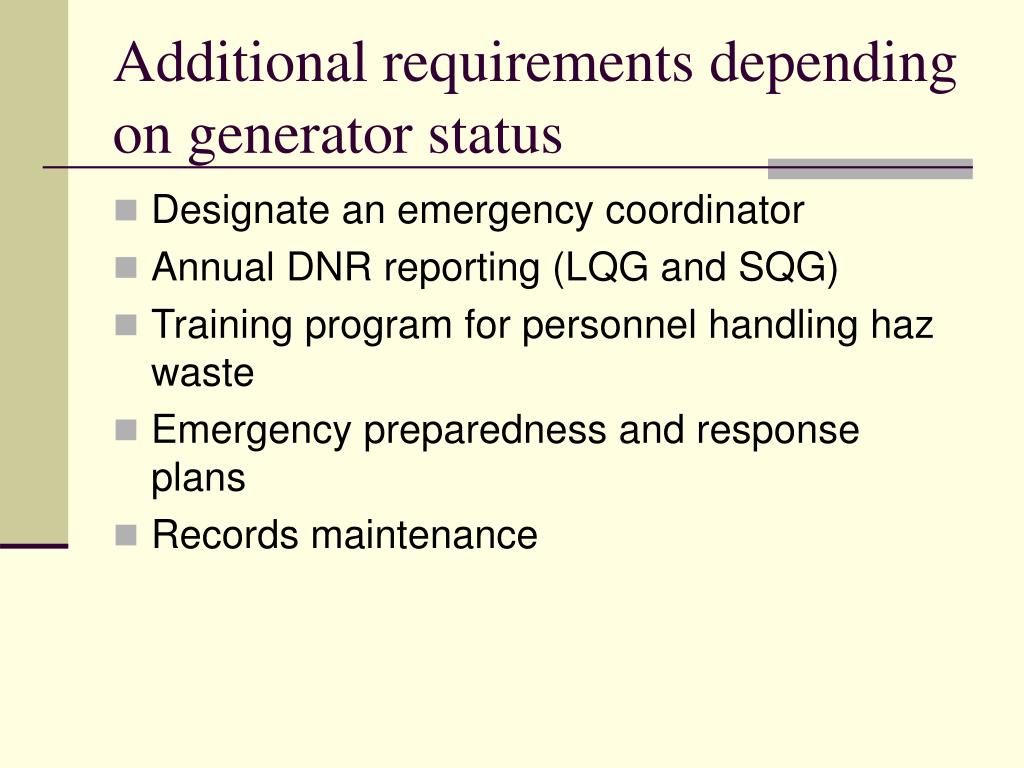

  34. Additional requirements depending on generator status • Designate an emergency coordinator • Annual DNR reporting (LQG and SQG) • Training program for personnel handling haz waste • Emergency preparedness and response plans • Records maintenance

  35. Common haz waste violations • Not marking containers as “hazardous waste” • Accumulating too much waste at a satellite accumulation area • Not marking start date for waste containers in haz waste storage site • Accumulating waste on site for more than 90 or 180 days – depending on generator status • Open haz waste containers • Improper haz waste containers, containers in poor condition

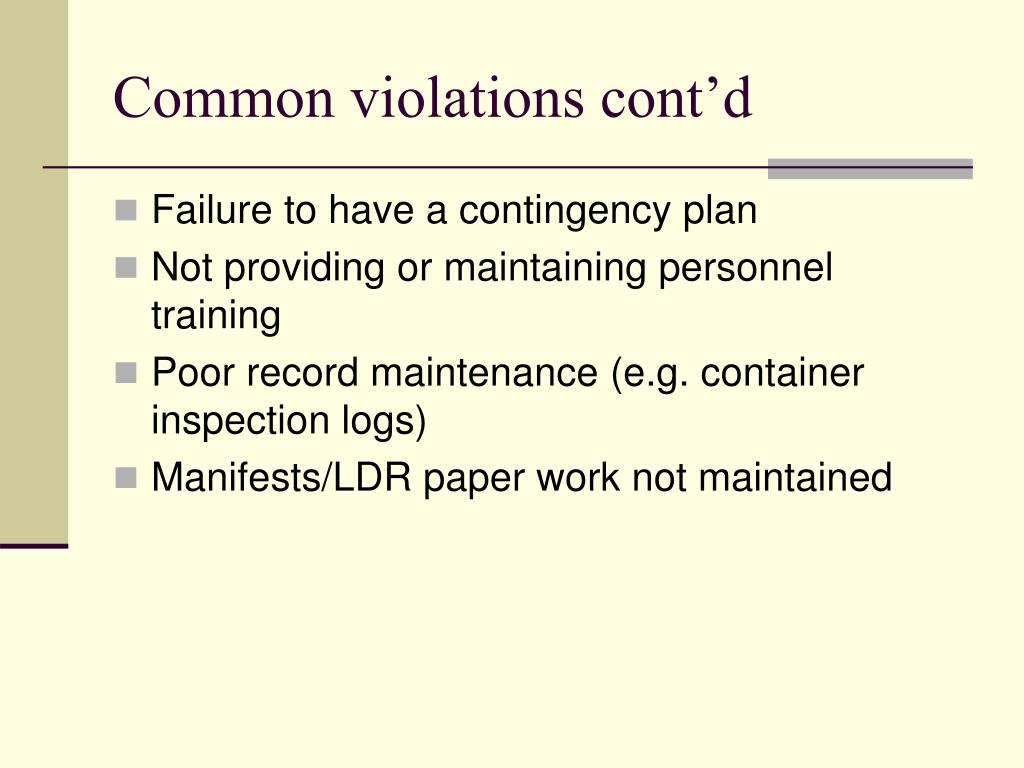

  36. Common violations cont’d • Failure to have a contingency plan • Not providing or maintaining personnel training • Poor record maintenance (e.g. container inspection logs) • Manifests/LDR paper work not maintained

  37. Enforcement of RCRA rules • Proper management of hazardous waste is not only good science but also it’s the law. • EPA has been actively enforcing RCRA rules in academic institutions in recent years. http://www.epa.gov/r02earth/news/2003/03133.htm http://www/epa.gov/r02earth/news/2002/02118.htm

  38. Up to this point we have considered how to accurately determine whether you have generated a hazardous waste and handle it properly while on-site. The next thing to consider is how to properly ship and dispose of this waste. It is important to remember that “cradle to grave” makes the generator liable for hazardous waste generated until it is destroyed – even if you hire someone else to ship and dispose of that waste.

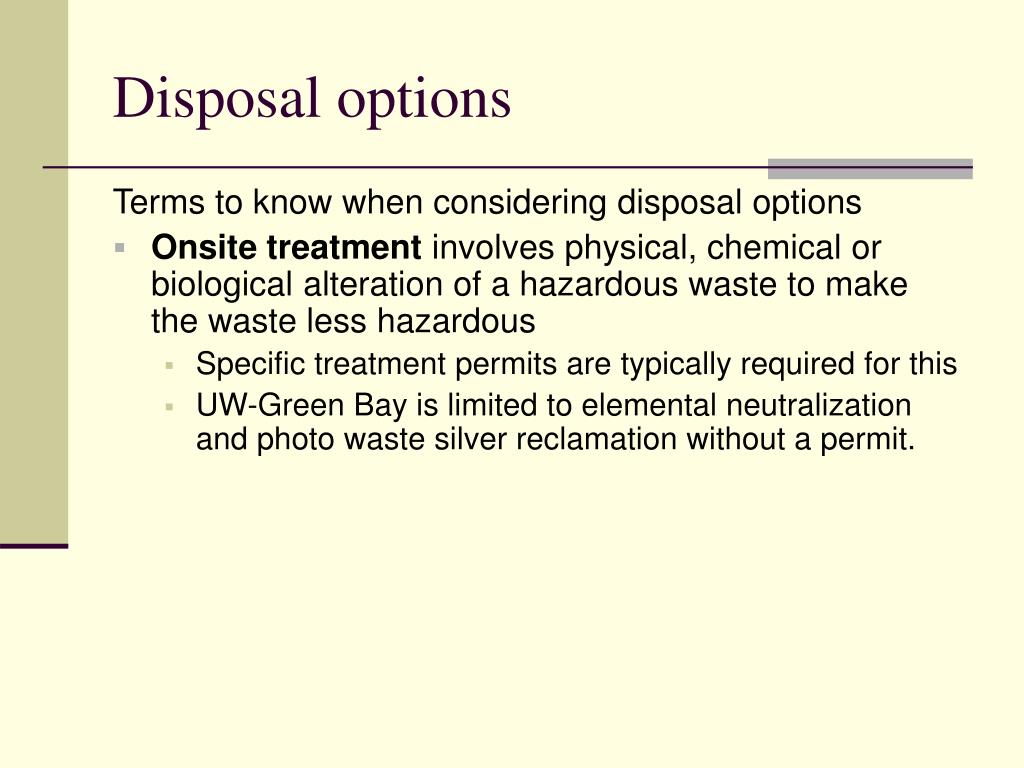

  39. Disposal options Terms to know when considering disposal options • Onsite treatment involves physical, chemical or biological alteration of a hazardous waste to make the waste less hazardous • Specific treatment permits are typically required for this • UW-Green Bay is limited to elemental neutralization and photo waste silver reclamation without a permit.

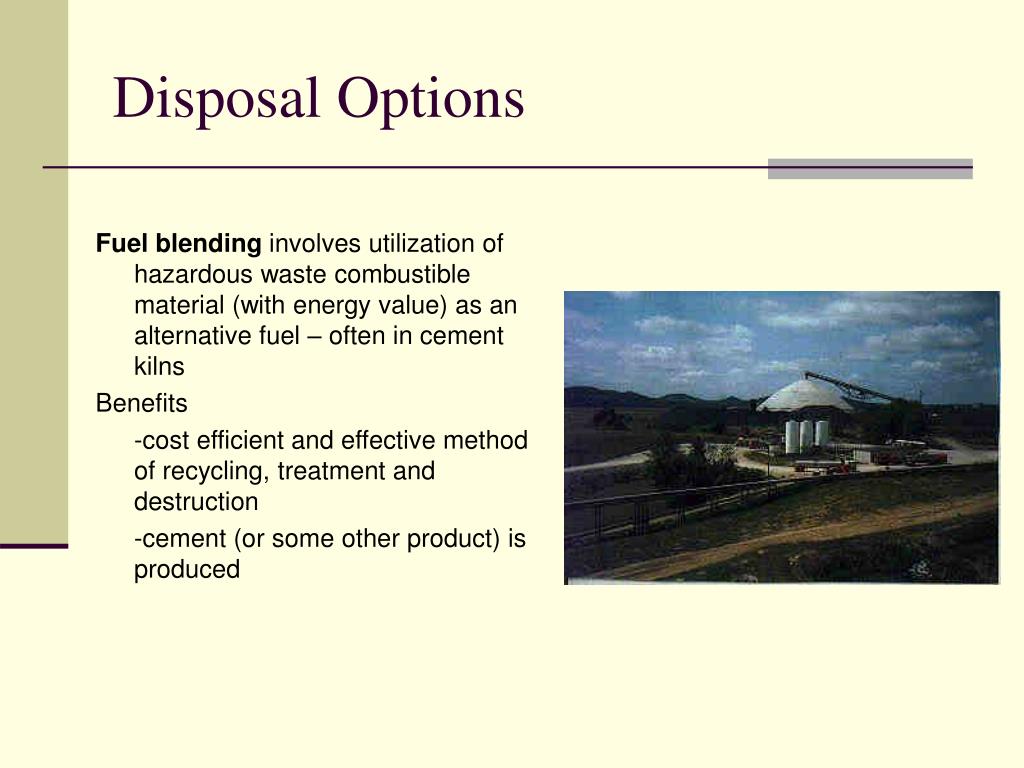

  40. Fuel blending involves utilization of hazardous waste combustible material (with energy value) as an alternative fuel – often in cement kilns Benefits -cost efficient and effective method of recycling, treatment and destruction -cement (or some other product) is produced Disposal Options

  41. Disposal options • UW-Green Bay commonly uses this option for shipping haz waste generated in the lab • Lab pack – process of having a waste disposal company arrive at site and package smaller containers into one larger container

  42. Disposal Options • Reclamation – removing useful parts from waste stream for reuse elsewhere • UW-Green Bay reclaims silver from photo waste on site • UW-Green Bay sends items containing mercury off-site for mercury reclamation

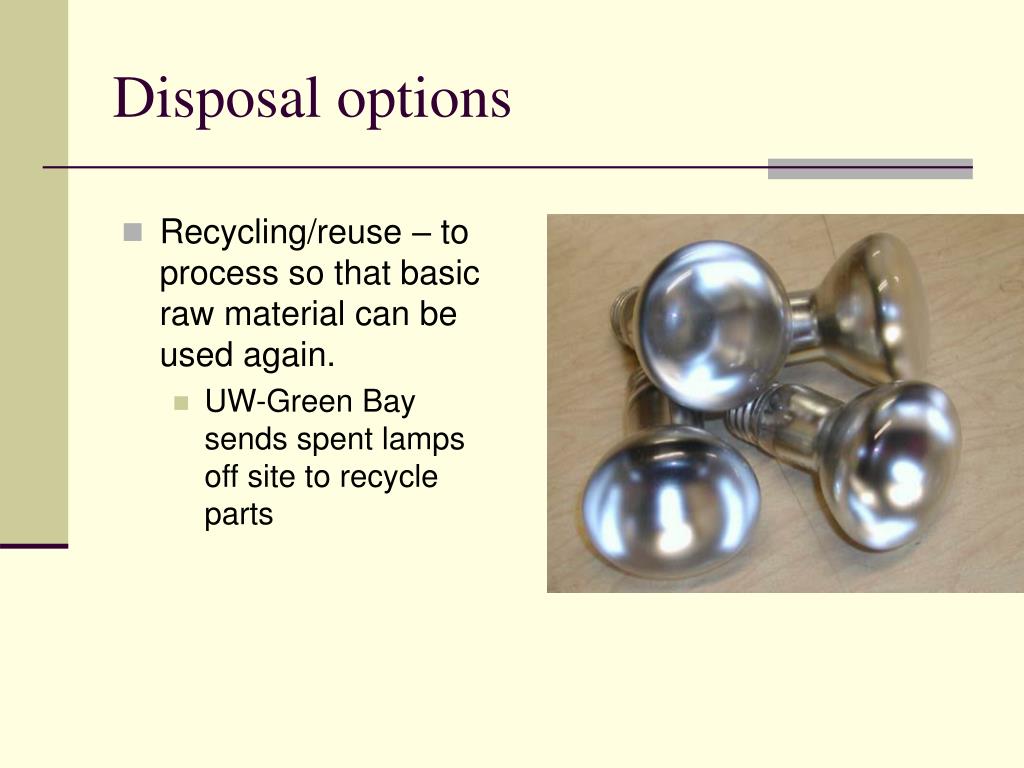

  43. Recycling/reuse – to process so that basic raw material can be used again. UW-Green Bay sends spent lamps off site to recycle parts Disposal options

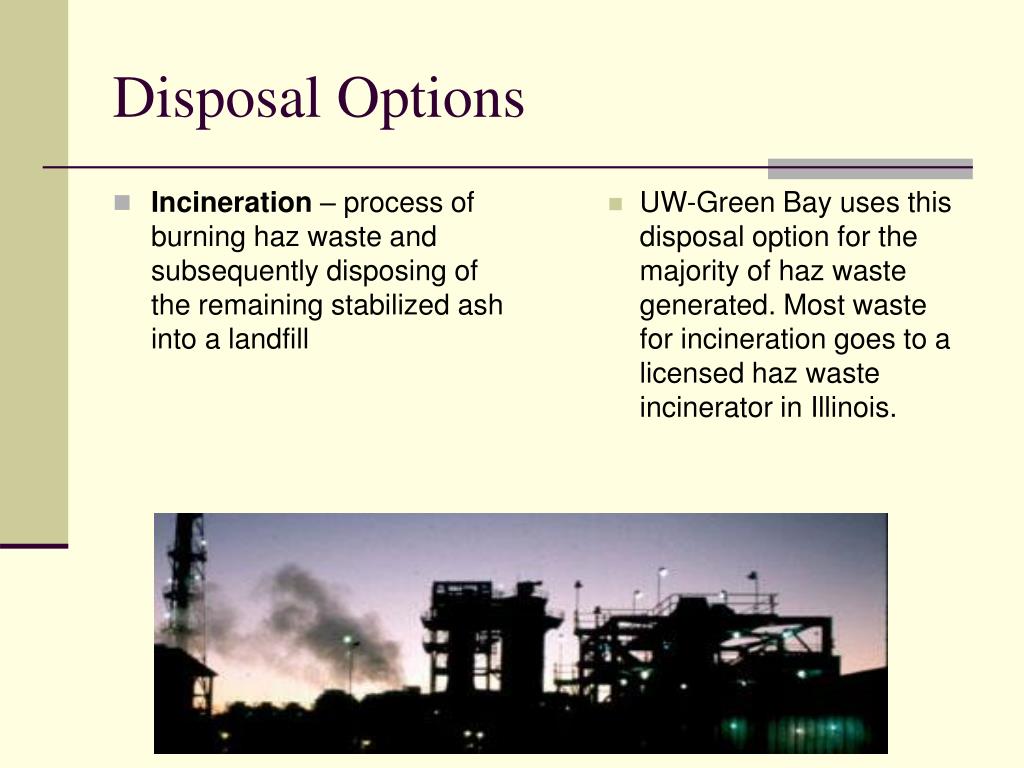

  44. Disposal Options • Incineration – process of burning haz waste and subsequently disposing of the remaining stabilized ash into a landfill • UW-Green Bay uses this disposal option for the majority of haz waste generated. Most waste for incineration goes to a licensed haz waste incinerator in Illinois.

  45. Disposal options • Solidification/encapsulation – this process involves “locking up” the hazardous parts of the waste so that they cannot change or leach out into the landfill. • UW-Green Bay sends aqueous mercury salt solutions to Canada for stabilization, encapsulation and landfill. • UW-Green Bay has sent low level radioactive waste for encapsulation and landfill disposal.

  46. Disposal options E.g. -UW-Green Bay sends asbestos material to a landfill for disposal • Landfill – direct disposal of haz waste into a designated excavation or “cell.” Make sure the landfill you use is licensed to accept the material you wish to landfill. Most only accept dry material

  47. Waste Management Disposal Priorities • Reuse, reclaim or recycle • Elementary neutralization • Fuel blending • Treatment • Destruction via incineration • Licensed permitted hazardous waste landfills

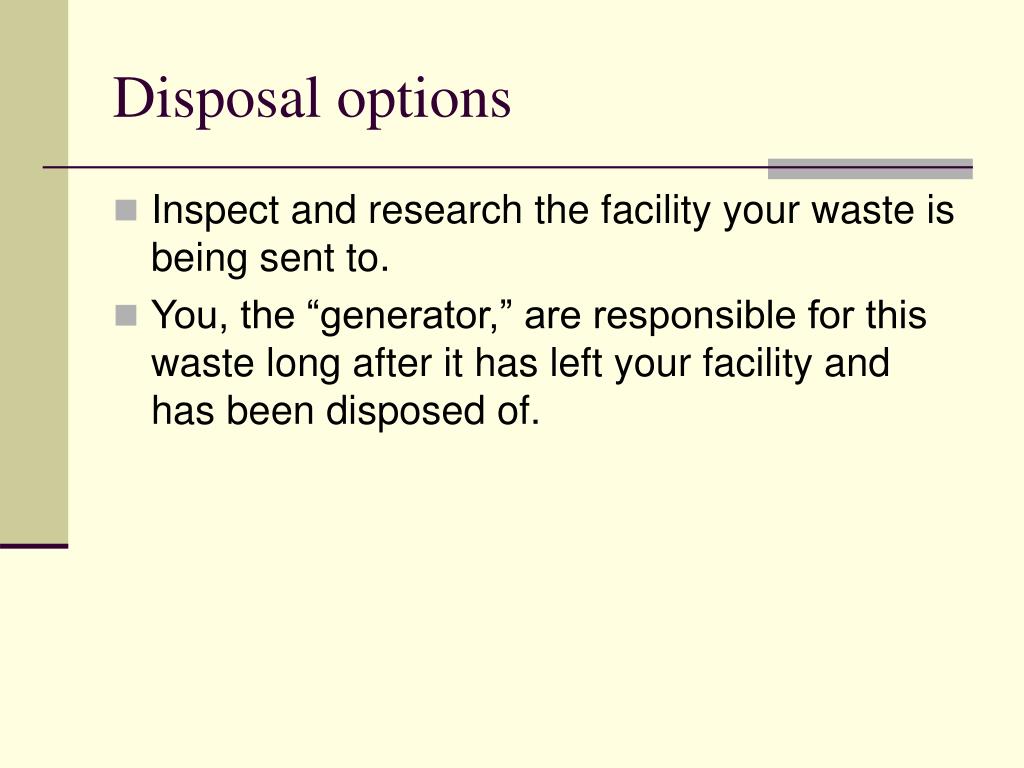

  48. Disposal options • Inspect and research the facility your waste is being sent to. • You, the “generator,” are responsible for this waste long after it has left your facility and has been disposed of.

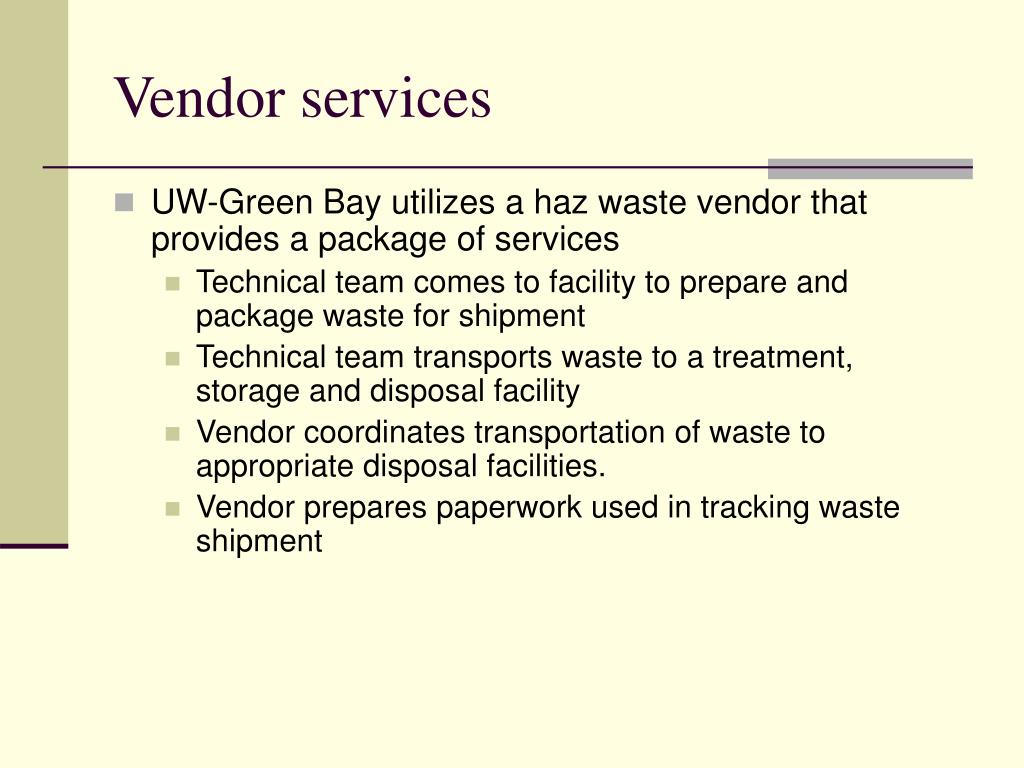

  49. Vendor services • UW-Green Bay utilizes a haz waste vendor that provides a package of services • Technical team comes to facility to prepare and package waste for shipment • Technical team transports waste to a treatment, storage and disposal facility • Vendor coordinates transportation of waste to appropriate disposal facilities. • Vendor prepares paperwork used in tracking waste shipment

  50. Creating a paper trail • The generator is legally responsible for completion of this document and for submitting copies of manifests to DNR • Uniform hazardous waste manifest is a document used when transporting hazardous waste. It creates a paper trail for tracking haz waste from “cradle to grave.”
