  1. FPFPU Structure D.Kampf KAYSER-THREDE FPFPU Structure

  2. STRUCTURE LAYOUT • FPFPU devided in mechanical subsystems • Top Optics • common instrument for spectrometer and photometer • Photometer optics • housing • baffles • mirrors • filter wheel • Bolometer • arrays • cooler • connectors FPFPU Structure

  3. STRUCTURE LAYOUT • FPFPU subsystems cont’d • Collimator • to-slicer optics • slicer • collimator • grating • 1 axis foot to OB • Spectrometer • common optics • dichroic • filter wheel • red & blue spectrometer arrays • distribution boards • 3 axis and 2 axis feet to OB FPFPU Structure

  4. STRUCTURE LAYOUT TOP OPTICS FOLD 3 CHOPPER FOLD 5 FOLD 1 FOLD 4 PERISCOPE M1 PUPIL FOLD 2 TROG 2 TROG 1 FPFPU Structure

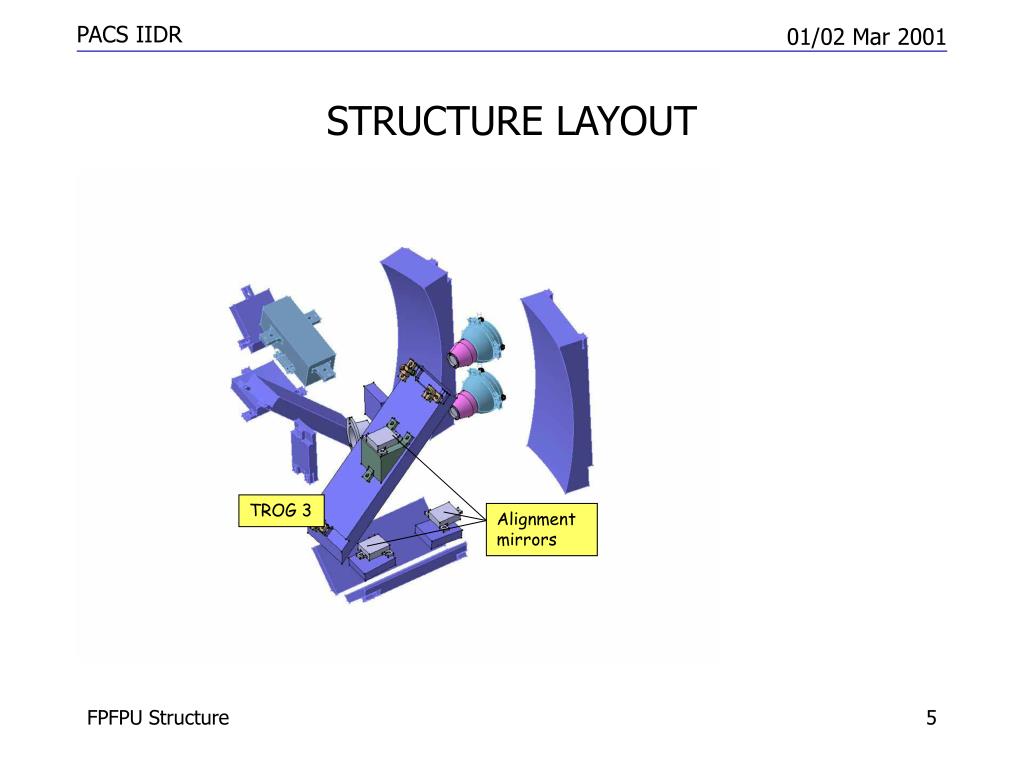

  5. STRUCTURE LAYOUT TROG 3 Alignment mirrors FPFPU Structure

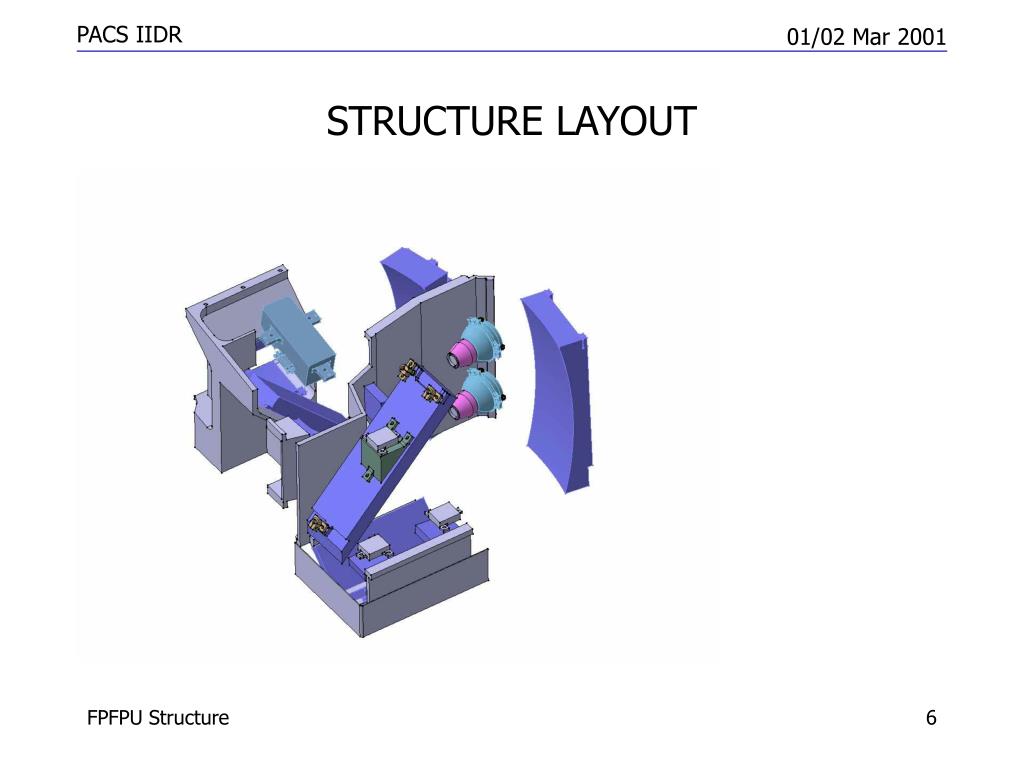

  6. STRUCTURE LAYOUT FPFPU Structure

  7. STRUCTURE LAYOUT TOP OPTICS FPFPU Structure

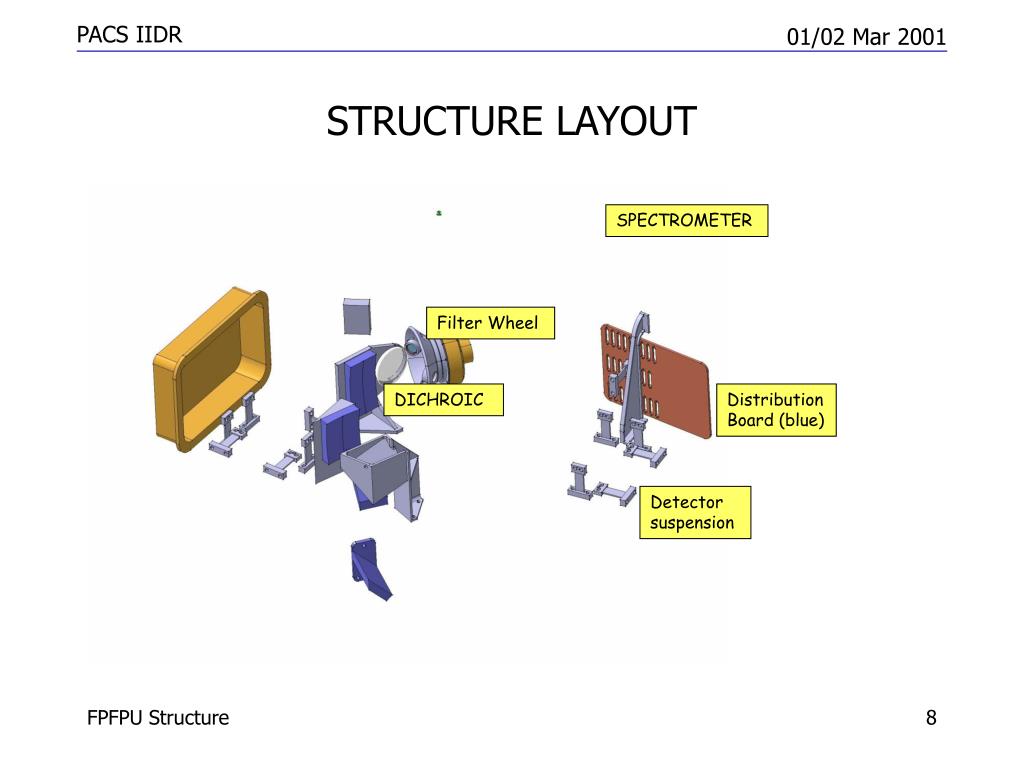

  8. STRUCTURE LAYOUT SPECTROMETER Filter Wheel DICHROIC Distribution Board (blue) Detector suspension FPFPU Structure

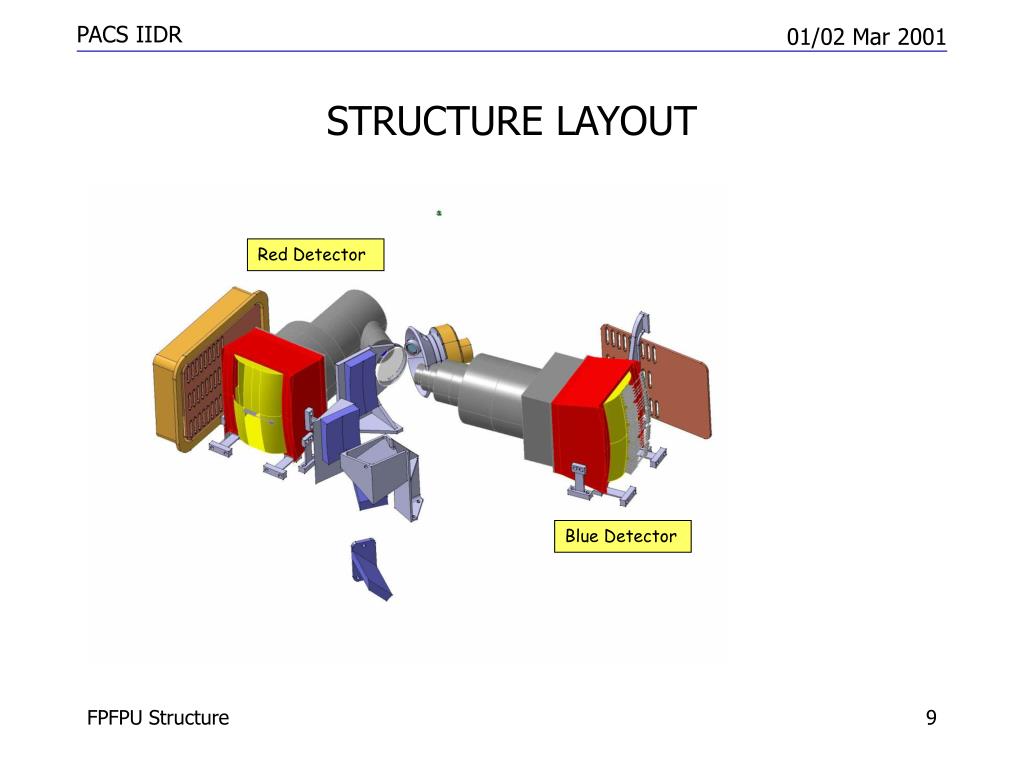

  9. STRUCTURE LAYOUT Red Detector Blue Detector FPFPU Structure

  10. STRUCTURE LAYOUT FPFPU Structure

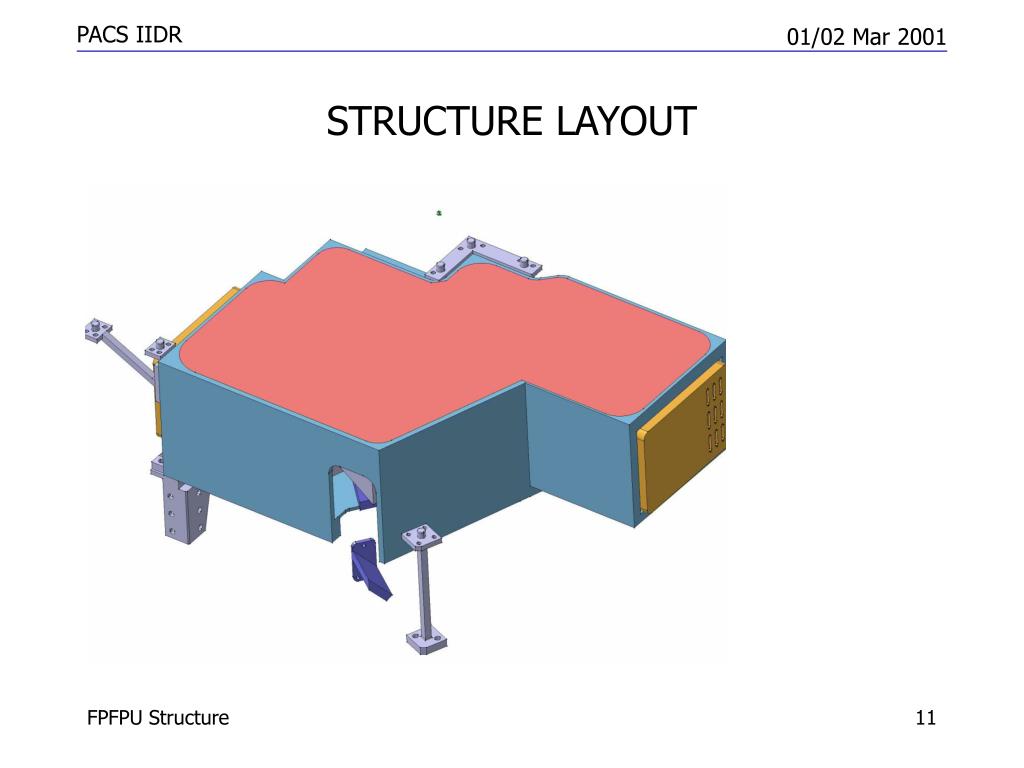

  11. STRUCTURE LAYOUT FPFPU Structure

  12. STRUCTURE LAYOUT TOP OPTICS DICHROIC Collimator 1 Filter Wheel Bolometer Spectrometer Grating FPFPU Structure

  13. STRUCTURE LAYOUT Field Mirror FPFPU Structure

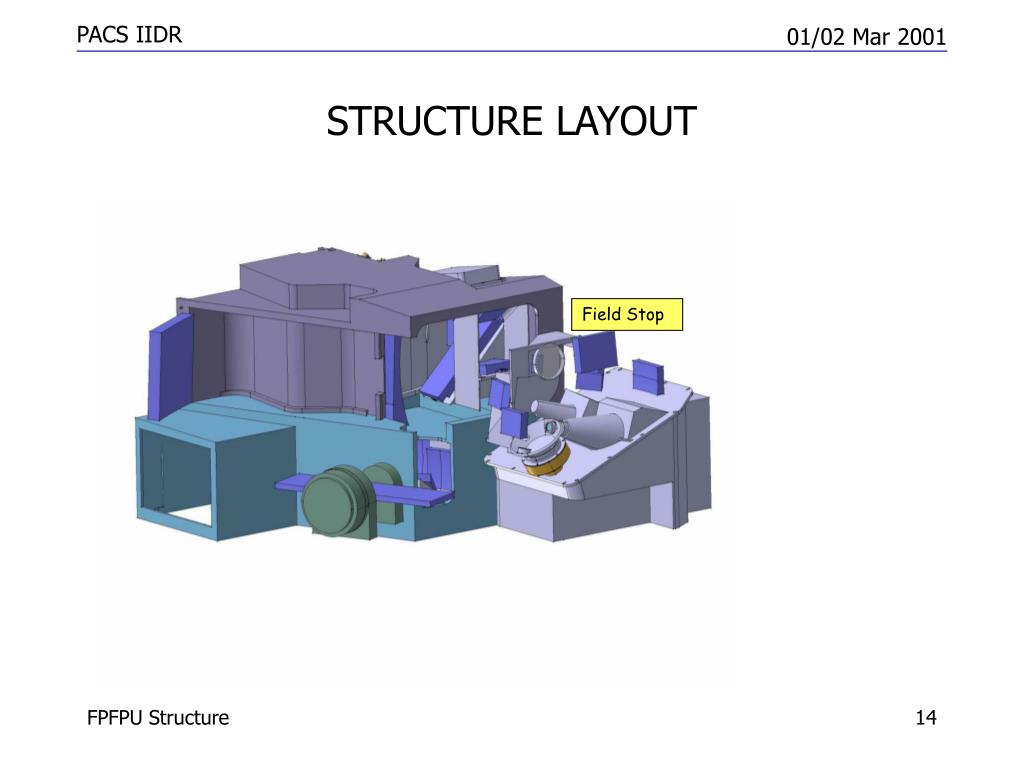

  14. STRUCTURE LAYOUT Field Stop FPFPU Structure

  15. STRUCTURE LAYOUT Baffle (red-blue) FPFPU Structure

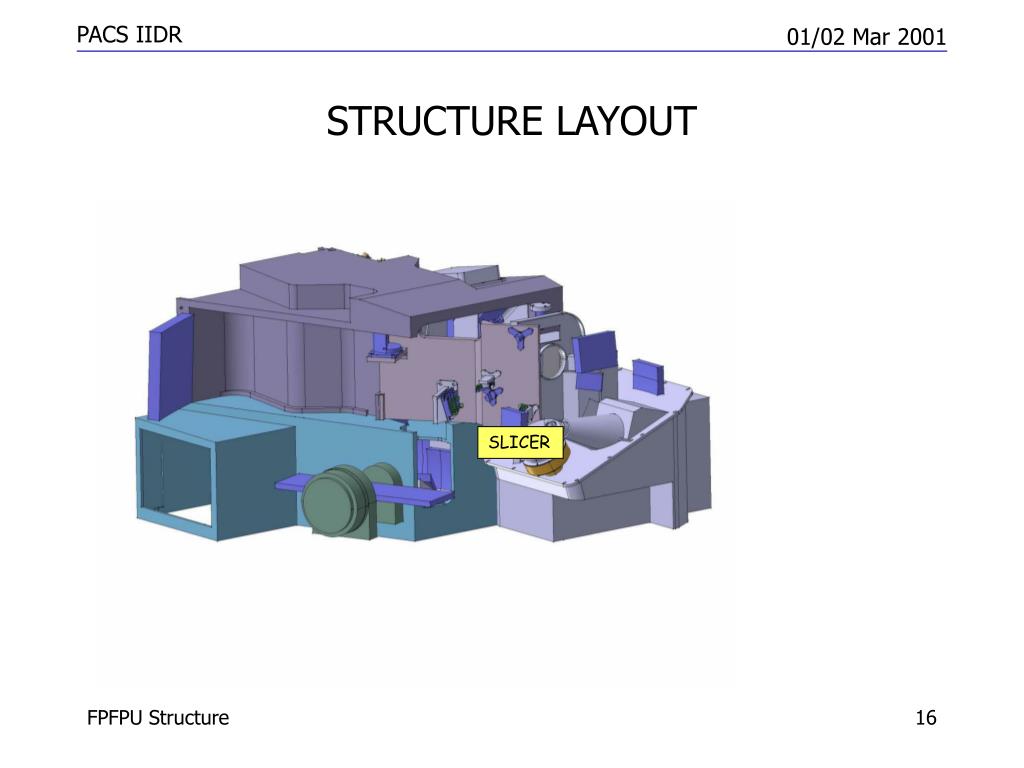

  16. STRUCTURE LAYOUT SLICER FPFPU Structure

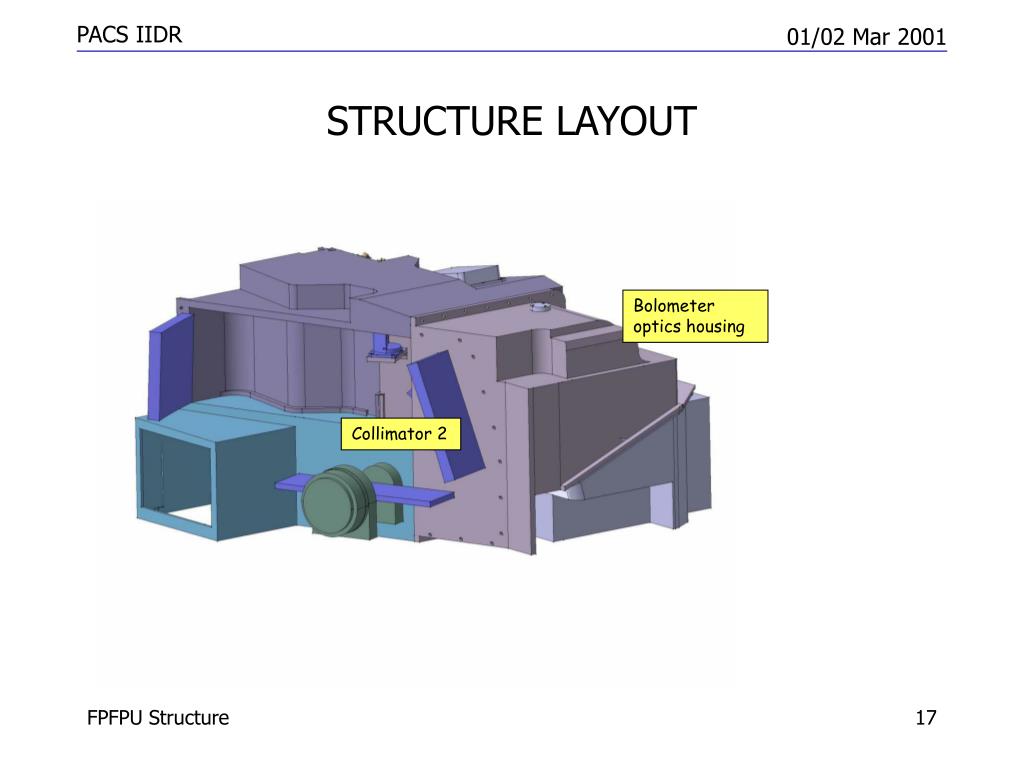

  17. STRUCTURE LAYOUT Bolometer optics housing Collimator 2 FPFPU Structure

  18. STRUCTURE LAYOUT Collimator housing FPFPU Structure

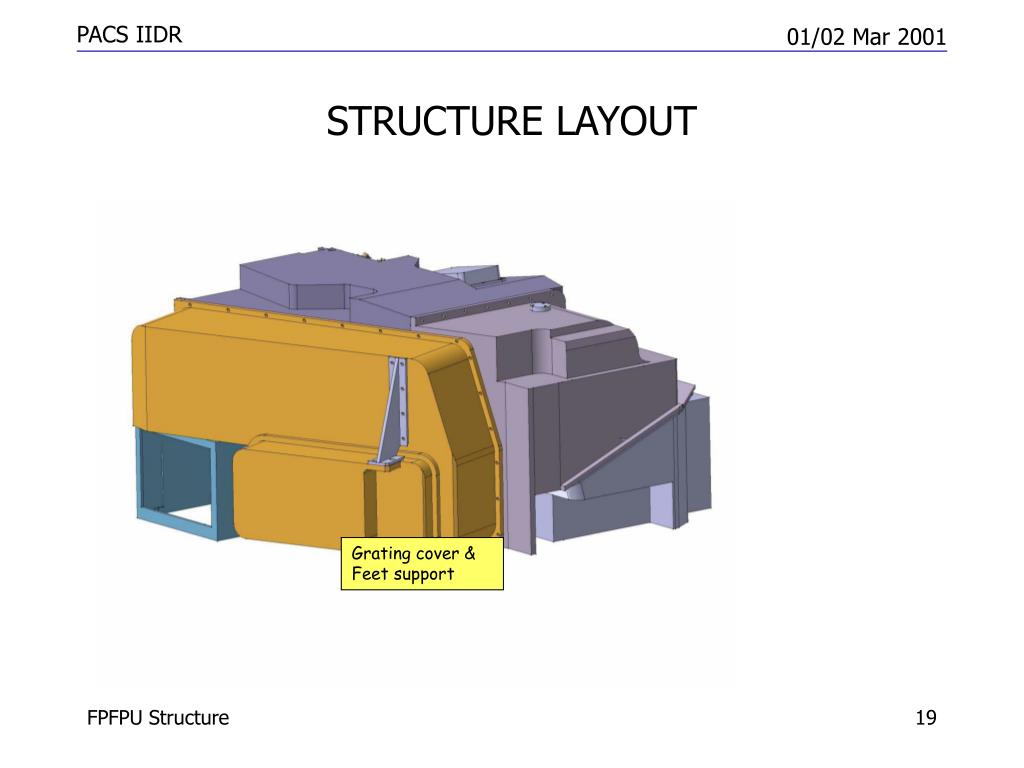

  19. STRUCTURE LAYOUT Grating cover & Feet support FPFPU Structure

  20. STRUCTURE LAYOUT Distribution Board Bolometer & Cooler FPFPU Structure

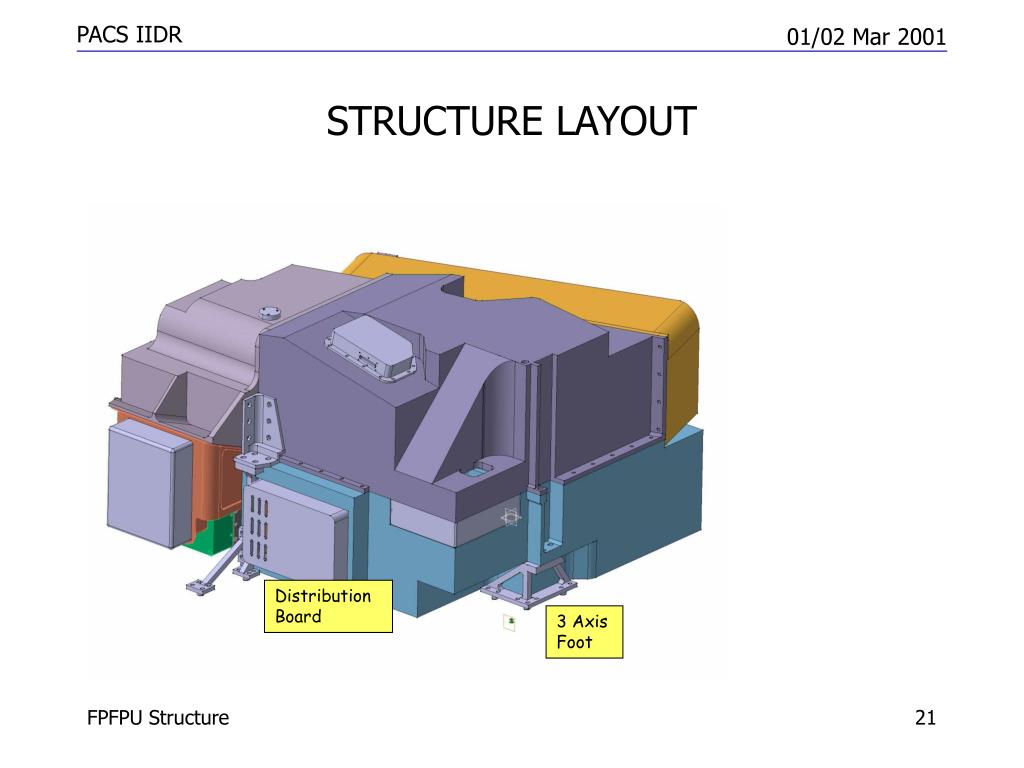

  21. STRUCTURE LAYOUT Distribution Board 3 Axis Foot FPFPU Structure

  22. STRUCTURE LAYOUT FPU Support FPFPU Structure

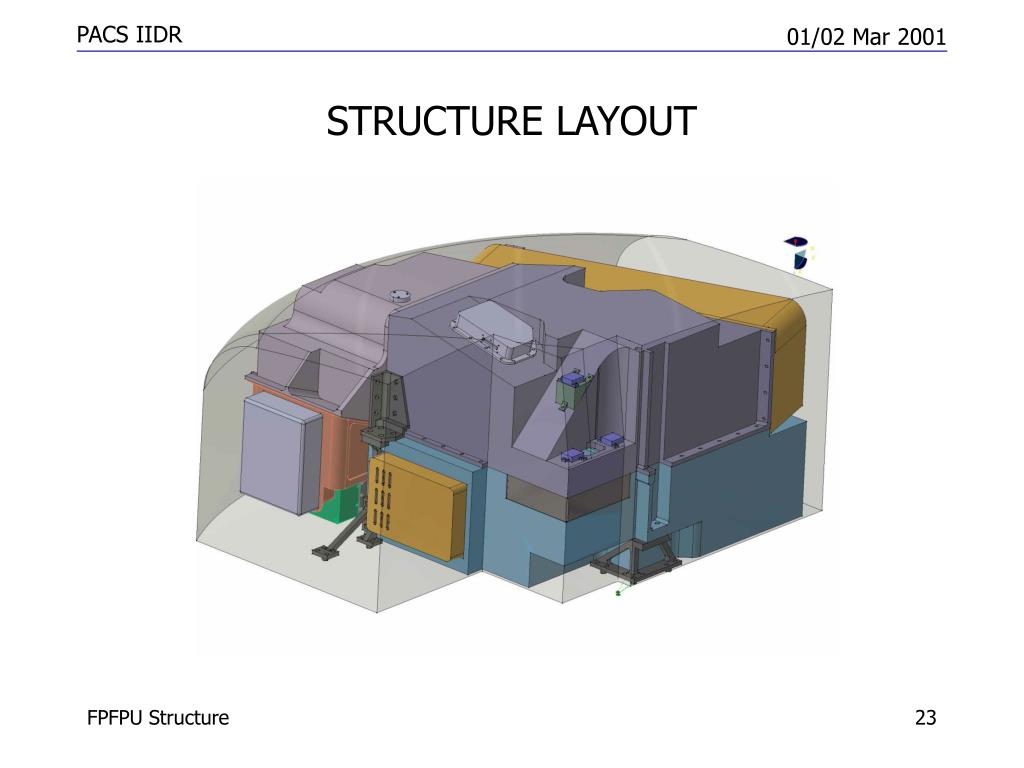

  23. STRUCTURE LAYOUT FPFPU Structure

  24. STRUCTURE LAYOUT FPFPU Structure

  25. ENVELOPE FPFPU Structure

  26. CHOPPER I/F FPFPU Structure

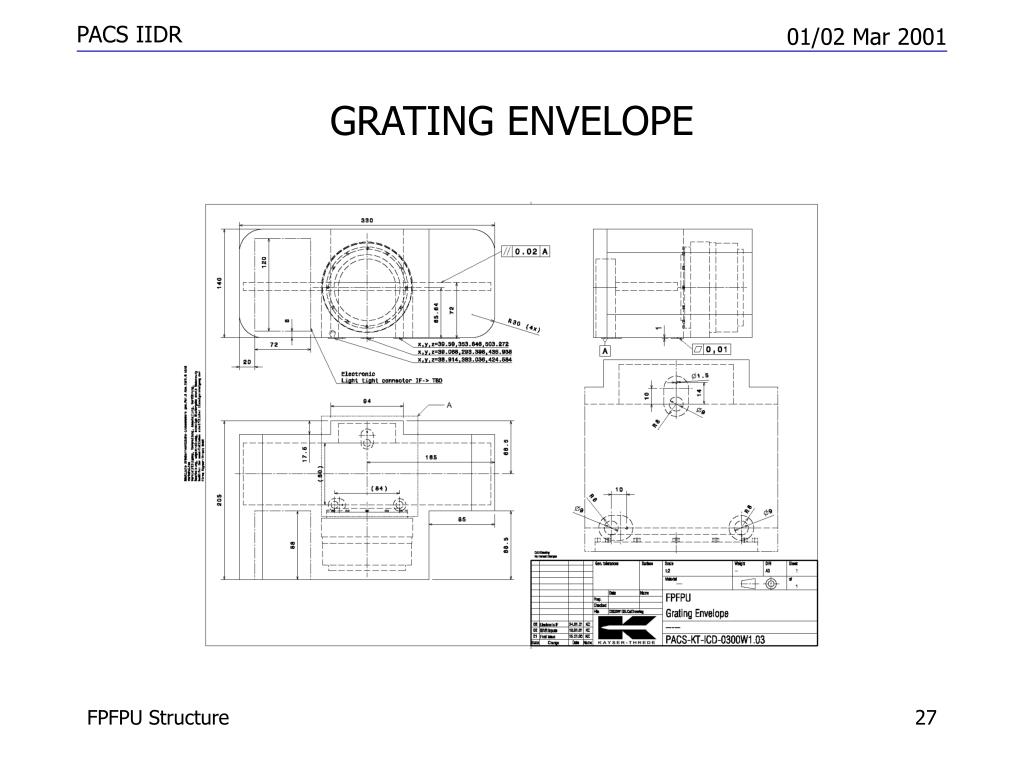

  27. GRATING ENVELOPE FPFPU Structure

  28. BOLOMETER ENVELOPE FPFPU Structure
