Chicago Transit Authority - Wilson Station

PROJECT:

HNTB and Chicago Transit Authority

CUSTOMER:

"Modernizing the Chicago Transit’s facility around the existing infrastructure, while finding locations for new piers that did not negatively impact existing conditions, was certainly challenging. Use of LiDAR to quickly and efficiently document existing conditions translates quickly into model form - especially for a complex site.”

Eddy Krygiel, Director of Design Technology

HNTB Architecture

Images Courtesy of HNTB and Chicago Transit Authority

Project teams embrace BIM to improve project performance, discuss spatial coordination and actively work to eliminate conflicts in the model rather than on site to maintain maximum uptime for the station during construction


Chicago transit authority wilson station

Station Aerial – An overview of the project scope – the solid grey band of track is the new alignment connecting the north (right) and the south (left) portions of the track. Image courtesy of HNTB


Wilson station entry new entry road overpass and elevator towers image courtesy of hntb

Wilson Station Entry –new entry, road overpass, and elevator towers - Image courtesy of HNTB


Platform view view from the rail platform with the new canopy image courtesy of hntb

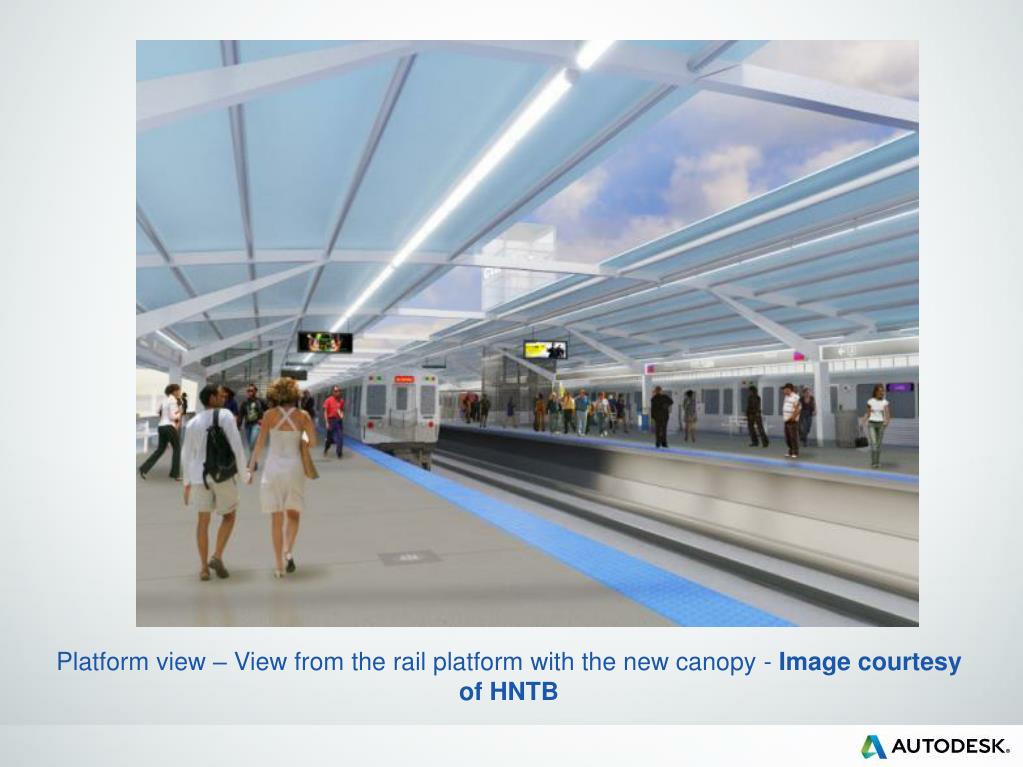

Platform view – View from the rail platform with the new canopy - Image courtesy of HNTB


Wilson station entry section image courtesy of hntb

Wilson Station Entry Section - Image courtesy of HNTB


Wilson station section view image courtesy of hntb

Wilson Station Section View - Image courtesy of HNTB
