A leader in Industrial Wireless – R&R GROUP International

Multi-Hops Repeater Technology @ IEEE 802.11n

Tras Series, TRH2001-25/TRH2002-25/TRH2003-25

For Wireless Internet Service


Features:

  • To integrate multiple radios into single device

  • To compliant with 802.11n standard and to support IEEE 802.11 a/g/n 2.4GHz and 5GHz dual band.

  • To Support 2x2 MIMO and 300 Mbps rate for each radio. Up to 300Mbps x 3 for single device.

  • Intelligent Switching Technology

  • AP (Access Point) and WS (Wireless Station) Point-to-Point or Point-to-Multi-Points to form multiple hops.

  • Up to 100Mbps real TCP throughput after 10 hops

  • Low latency delay < 2ms for each hop

Advantages:

  • To solve Non-LOS deployment issue easily

  • To extend wireless coverage quickly

  • To save cost of leased-line

  • To Keep high performance @ multiple radios w/ multiple frequencies.

  • To get projects via unique technology and architecture.


PTMP Mode

PTP Mode

Networks Architecture :

Point –to-Point

Point-to-Multi-Points



Tras backhaul solutions – MIMO 802.11n Multi-hops repeater

100Km Solution with 9 repeaters --- Throughput > 100Mbps

TRH2001

TRH2002

TRH2002

TRH2002

TRH2002

TRH2001

TRH2002

10 km

10 km

10 km

10 km

50 km

A Site

10 km

RPT 3

Village 3

RPT 2

Village 2

RPT 4

Village 4

RPT 5 ~ RPT 9

Village 5~9

B Site

RPT 1

Village 1

160 Mbps

10 KM from A site to RPT 1 backhaul solution

155 Mbps

20 KM from A site to RPT 2 backhaul solution

Sample: Internet service @ Village

- Triple sectors coverage

150 Mbps

30 KM from A site to RPT 3 backhaul solution

145 Mbps

40 KM from A site to RPT 4 backhaul solution

140 Mbps

50 KM from A site to RPT 5 backhaul solution

100+ Mbps

100 KM from A site to B site backhaul solution

Note: Requirements for 100 KM backhaul solutions:

A Site & B Site: TRH 2001-25 x 1 / 29 dBi dual pol dish antenna x 1 @ each site

RPT 1~RPT 9: TRH2002-25 x1 / 29 dBi dual pol dish antenna x 2 @ each site

Total equipments list: TRH 2001-25 x 2, TRH 2002-25 x 5 & 29 dBi dual pol dish x 12


2.4 GHz WiFi coverage for Internet Service @ Village: repeater

Equipments list @ Village:

1, TRH2003-25, 802.11 abgn Triple radios (320 Mbps total throughput) (IP-68)

2, TRANT2414D-S60, 2.4 GHz 14dBi dual Pol sector antenna

3, TRAUN331, 2.4 GHz bgn CPE (IP-55)

4, TRAUN335, 2.4 GHz bgn CPE (IP-55)

5,TRAUN321 V2, 2.4 GHz bgn Indoor AP router

EAH2003

AUN331

AUN335

AUN321V2

Internet

320 Mbps throughput


Reference Outdoor Test Results – Multi-Hops Series, 3 hops :

Date/Time

  • Date:2012/10/05

  • Time:AM 11:00 ~ PM 16:00

    Location

  • Location A / Location B / Location C / Location D

    Equipment

  • Radio:AP x 4

  • Antenna:5GHz 2x2 MIMO 20dBi Panel Antenna x 6

  • Computer:ASUS A43F Series laptop x 2, Dell laptop x 2

  • Software:Windows XP SP3、IxChariot 5.40

  • Firmware Version:1.0(1110.0402)

Topology: Multiple Hopping – 3 hops

320m

710m

930m

TCP Throughput from A to D

Total Distances:1,960m, 3 Hops


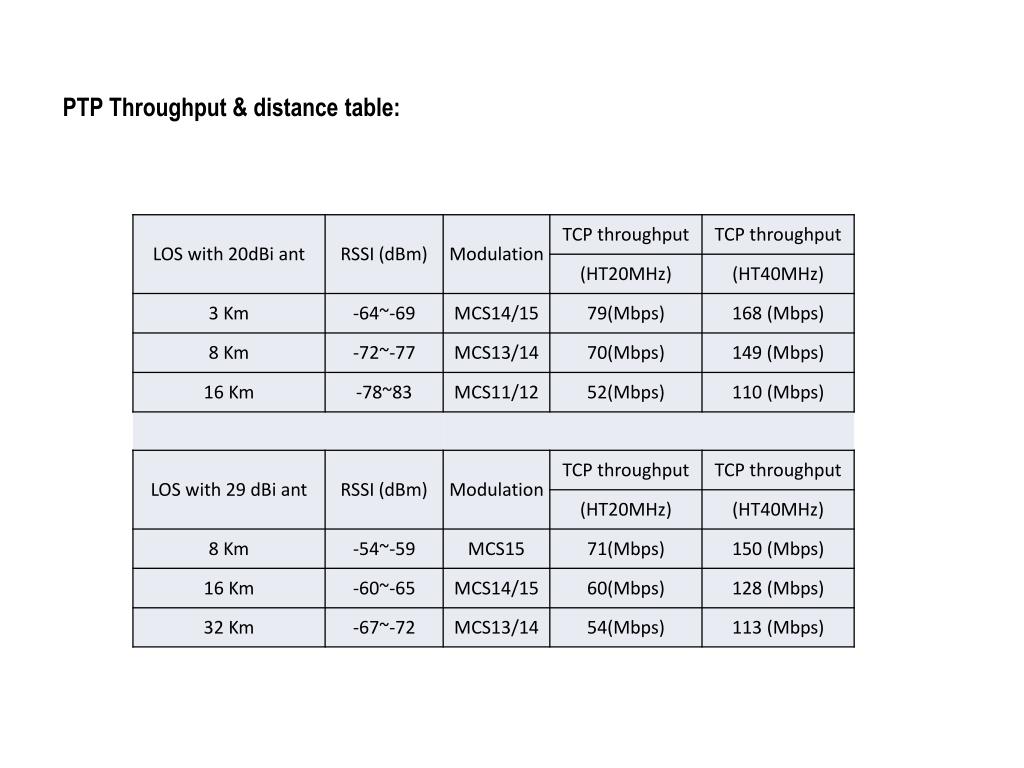

Reference Test Report(Outdoor 16Km long distance Point-to-Point)

Date/Time

  • Date:2012/10/27

  • Time:AM 11:00 ~ PM 16:00

    Location

  • Local Site / Remote Site

    Equipment

  • Radio:AP x 2

  • Antenna:5GHz 2x2 MIMO 29dBi Dish Antenna x 2

  • Computer:ASUS A43F Series laptop x 2

  • Software:Windows XP SP3、IxChariot 5.40

  • Firmware Version: 1.0(1110.2601)

Topology: Multiple Hopping – PTP

TCP Throughput

Total Distances:16 km, PTP


Ordering Information: Point-to-Point)
