  1. “Isolation of rare circulating tumour cells in cancerpatients by microchip technology” Nagrath et al. Nature 2007 Peter Bojo

  2. Big Picture • Potential uses of CTCs • Choice of therapy • Monitoring of therapy • Explaining the biology of metastasis • Microchip is one of many CTC technologies • Immunomagnetic beads • Total RNA qPCR

  3. Microchip Design • Blood pumped through forest of posts • ~80,000 posts on a ~10cmX10cm chip • EpCAM antibodies on posts • Testing with cancer cell spiked solutions determines: • Flow rate ~1mL/hr • High capture efficiency even for low EpCAM expression levels ~60% • Identical capture efficiency for whole blood and lysed blood

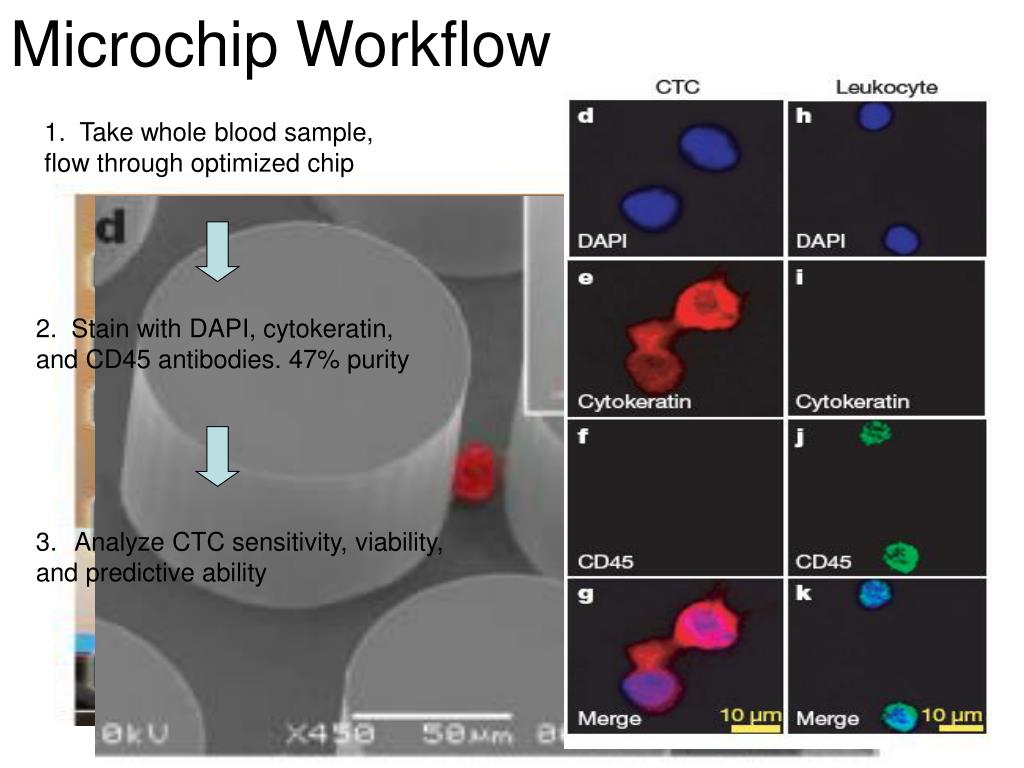

  4. Microchip Workflow 1. Take whole blood sample, flow through optimized chip 2. Stain with DAPI, cytokeratin, and CD45 antibodies. 47% purity • Analyze CTC sensitivity, viability, • and predictive ability

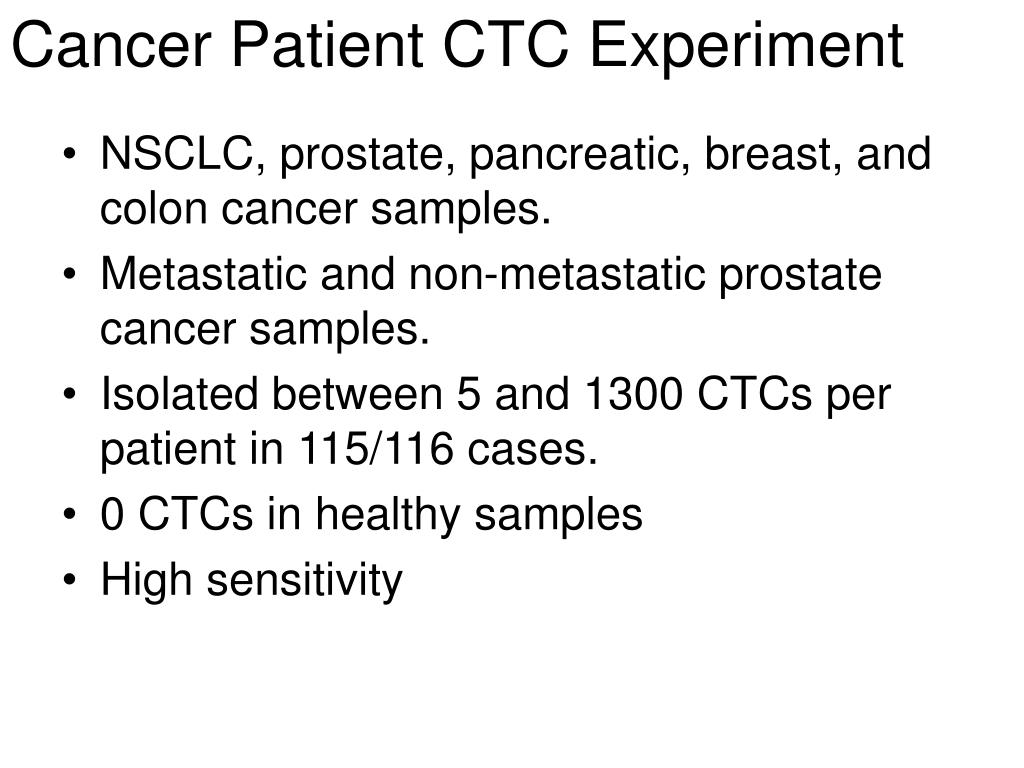

  5. Cancer Patient CTC Experiment • NSCLC, prostate, pancreatic, breast, and colon cancer samples. • Metastatic and non-metastatic prostate cancer samples. • Isolated between 5 and 1300 CTCs per patient in 115/116 cases. • 0 CTCs in healthy samples • High sensitivity

  6. Predictive Ability for Cancer Treatment

  7. Conclusions • Microchip is a competitive CTC enrichment technology • Uses unprocessed blood • High purity of isolated cells: 47% • High sensitivity: 99% • Capture efficiency: ~60% • High cell viability: 98% • Further Study warranted for: • CTC count and tumor size correlation • Comparable numbers of CTCs in localized and metastatic cancers
