  1. AIML2.0 Artificial Intelligence Markup Language HàNội 2013

  2. Overview AIML • Chatbot open source • AIML 1.0 – 2001 • AIML 2.0 – 2013 • https://docs.google.com/document/d/1wNT25hJRyupcG51aO89UcQEiG-HkXRXusukADpFnDs4/pub

  3. Overview New app - AIML 2.0 technology

  4. AIML 2.0 The most important units of AIML • <aiml>: the tag that begins and ends an AIML document • <category>: the tag that marks a "unit of knowledge" in an Alicebot's knowledge base • <pattern>: used to contain a simple pattern that matches what a user may say or type to an Alicebot • <template>: contains the response to a user input <category> <pattern>WHAT IS YOUR NAME</pattern><template>My name is John.</template> </category>

  5. AIML 2.0 What’s new AIML 2.0 • Zero+ wildcards: new wildcards that match 0 or more words. • Highest priority matching: select certain words to have top matching priority. • Migrating from attributes to tags: more dynamic control of attribute values. • AIML Sets: match inputs with sets of words and phrases. • AIML Maps: map set elements to members of other sets. • Loops: Iterations in conditional expressions. • Local variables: variables with scope limited to one category. • Sraix: access external web services and other Pandorabots. • Pandorabots extensions • date: formatted date and time. • request: access previous input request history. • response: access previous bot response history. • unbound predicates: check if a predicate has been set or not. • learn: learn new AIML categories. • learnf: learn new AIML categories and save in a file. • explode: split words and phrases into individual characters. • OOB (Out of Band) Tags: AIML extension for mobile device control

  6. AIML 2.0 Zero + Wildcards • <category><pattern>SHARPTEST #</pattern> • <template>#star = <star/></template> • </category> • <category><pattern>SHARPTEST # TEST</pattern> • <template>#star = <star/></template> • </category> • <category><pattern># KEYWORD #</pattern> • <template>Found KEYWORD</template> • </category> • <category><pattern>^ CARETTEST</pattern> • <template>^star = <star/></template> • </category>

  7. AIML 2.0 Set and Map in AIML <category> <pattern>WHAT IS THE CAPITAL OF <set>state </set></pattern> <template> The capital of <star/> is <map> <name>statecapital</name> <star/> </map></template> </category> Ex: What is the capital of Vietnam ? The capital of Vietnam is Hanoi https://docs.google.com/document/d/1DWHiOOcda58CflDZ0Wsm1CgP3Es6dpicb4MBbbpwzEk/pub Vietnam:Hanoi Ghana:Accra

  8. AIML 2.0 Folder & AIMLIF 0,Bạn đang làm ở đâu *,*,*,<srai>WORK</srai>,reductions1.aiml 0,Bạn đang làm việc ở đâu *,*,*,<srai>WORK</srai>,reductions1.aiml 0,Bạn được chế tạo ở đâu *,*,*,<srai>NATIONALITY</srai>,reductions1.aiml 0,Ai chế tạo ra bạn *,*,*,<srai>BOTMASTER</srai>,reductions1.aiml

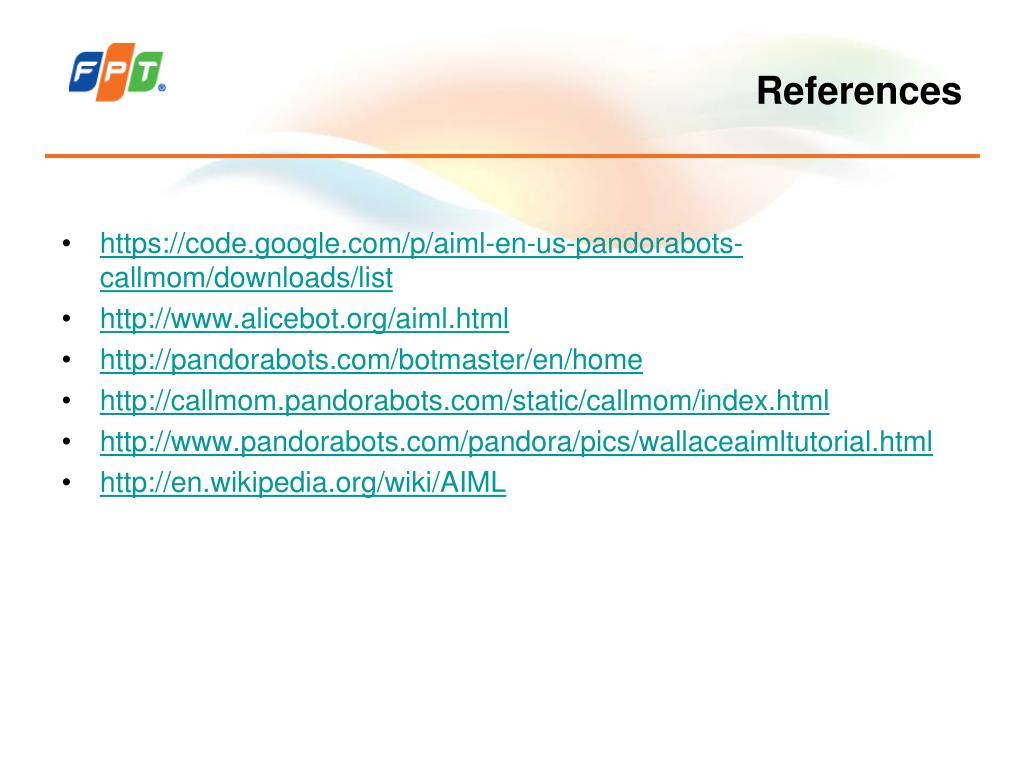

  9. References • https://code.google.com/p/aiml-en-us-pandorabots-callmom/downloads/list • http://www.alicebot.org/aiml.html • http://pandorabots.com/botmaster/en/home • http://callmom.pandorabots.com/static/callmom/index.html • http://www.pandorabots.com/pandora/pics/wallaceaimltutorial.html • http://en.wikipedia.org/wiki/AIML
