Economics of autotrac

Economics of AutoTrac

Alan Smith


Introduction

Introduction

  • Introduction to GreenStar and AutoTrac

  • Costs

  • Savings


What is autotrac

What is AutoTrac?

  • AutoTrac is a hands-free guidance solution that provides you with pass-to-pass accuracy. AutoTrac allows you to take yours hands off the wheel as the machine travels down the most optimum pass in the field, increasing profitability and performance on many farming operations.


Greenstar3 2630 display

GreenStar3 2630 Display

  • A GS3 allows you the ability to access all of John Deere's AMS programs

  • Comes ready with:

    • Field Documentation

    • Harvest Documentation

    • On-Screen Mapping

    • USB Port

    • Video Capability


Gs3 additional features

GS3 Additional Features

  • AutoTrac

    • Precision guidance

  • Row Sense

    • Precision guidance for harvesting

  • Pivot Pro

    • Adds circle track to AutoTrac

  • Swath Control Pro

    • Automatic section control

  • iTEC Pro

    • Automatic headlands turning


Autotrac screen

AutoTrac Screen


Starfire 3000

StarFire 3000

  • GPS Receiver

    • Allows the AMS programs to run threw John Deere's StarFire Network.

    • Runs off WAAS as well as GLONASS


Autotrac universal

AutoTrac Universal

  • Steers your tractors that are not AutoTrac ready

  • Downfalls:

    • Less smooth movements

    • Bulky

    • Cost more


Is your equipment capable

Is your equipment capable?

  • AutoTrac Ready

  • R Series Tractors

  • 30 & 40 Series

  • S and 70 Series combines

  • 30 and 40 Sprayers

  • GreenStar Ready

  • 10 & 20 Series Tractors and up


Costs

Costs

  • GreenStar 3 (2630) Display - $6,000

  • StarFire 3000 Receiver - $3,200

  • AutoTrac Activation - $3,000

  • AutoTrac Universal Kit - $1,900

  • Harness/Installation (AutoTrac Ready) - $300

  • Harness/Installation (Non-GS Ready) - $2,300

    Total - $12,500 / $16,400


Using row markers for seeding

Using row markers for seeding

  • No till drill- $4,500

  • No till planter – $7,000


Levels of accuracy

Levels of accuracy

  • SF1

    • 9 in accuracy

  • SF2

    • 2.5 inch accuracy

    • Upgrade costs- $4,500

    • Yearly maintenance $1,050

  • RTK

    • Sub inch repeatable accuracy

    • Upgrade costs- $6,400

    • Yearly maintenance- $1,500

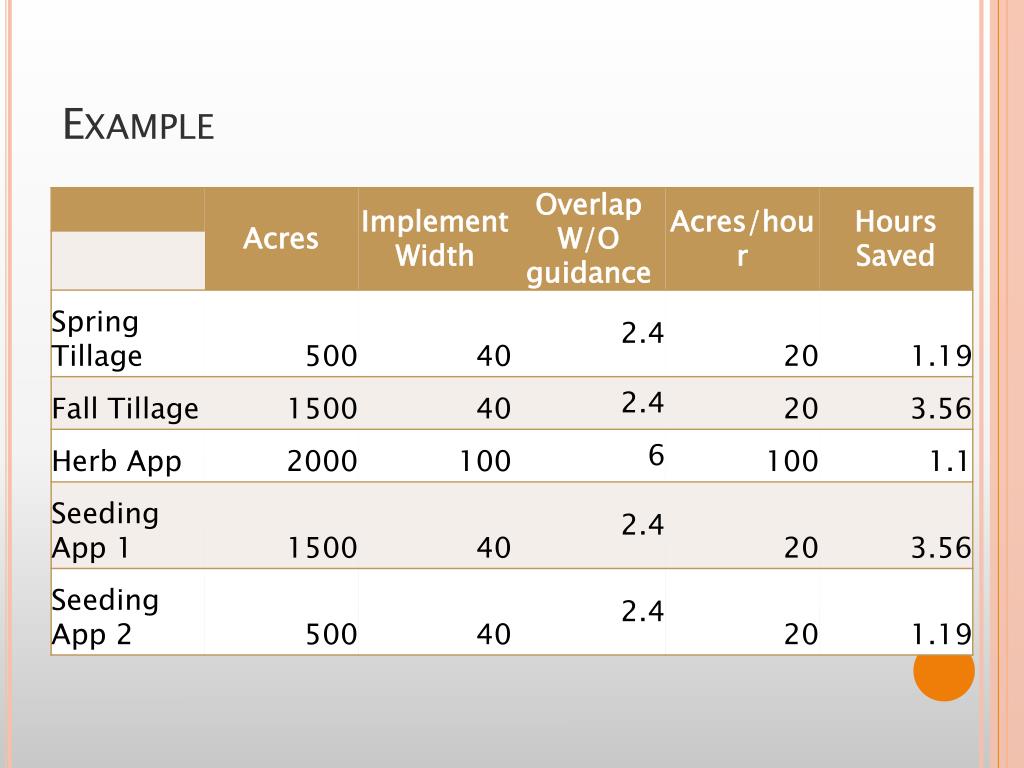

Example

Example


Actual savings

Actual Savings


Questions

Questions?
