Chapter Two:Elementary Weaves (Fundamental Weaves)

2.1 General Characteristics.

2.2 Plain Weave

2.3 Twill Weaves

2.4 Sateen/Satin Weaves

2 1 general characteristics l.jpgSlide 2

2.1 General Characteristics.

  • 1. The shift of the weaves is constant.

  • 2. The fundamental weaves are such weaves in which every warp and every weft thread within the repeat overlaps or is overlapped only by one thread of the opposite system. It means that, in fundamental weaves any weft or warp thread must have only one warp or weft overlapping within the repeat.

2 2 plain weave l.jpgSlide 3

2.2 Plain Weave

  • 1)concept: This is the simplest weave. In this weave the threads interlace in alternate order, i.e. the first warp thread overlaps the first weft thread (Fig. 2.1) and passes under the second weft thread, and the second warp thread passes under the first weft thread and overlaps the second one, and so on.

Fig. 2.1 Plan weave and section diagram

Slide4 l.jpgSlide 4

Plain weave

  • 2)Parameters: Repeat (R)= 2,Shift (S)= 1

  • 3) Weaving plan: straight draft or skip straight and tappet shedding is enough.

  • 4) Properties: The fabric made from plain weave is firmer and stronger.

  • 5) Applications: poplin, voile, lawn, flannel, panama, crepe etc.

Slide5 l.jpgSlide 5

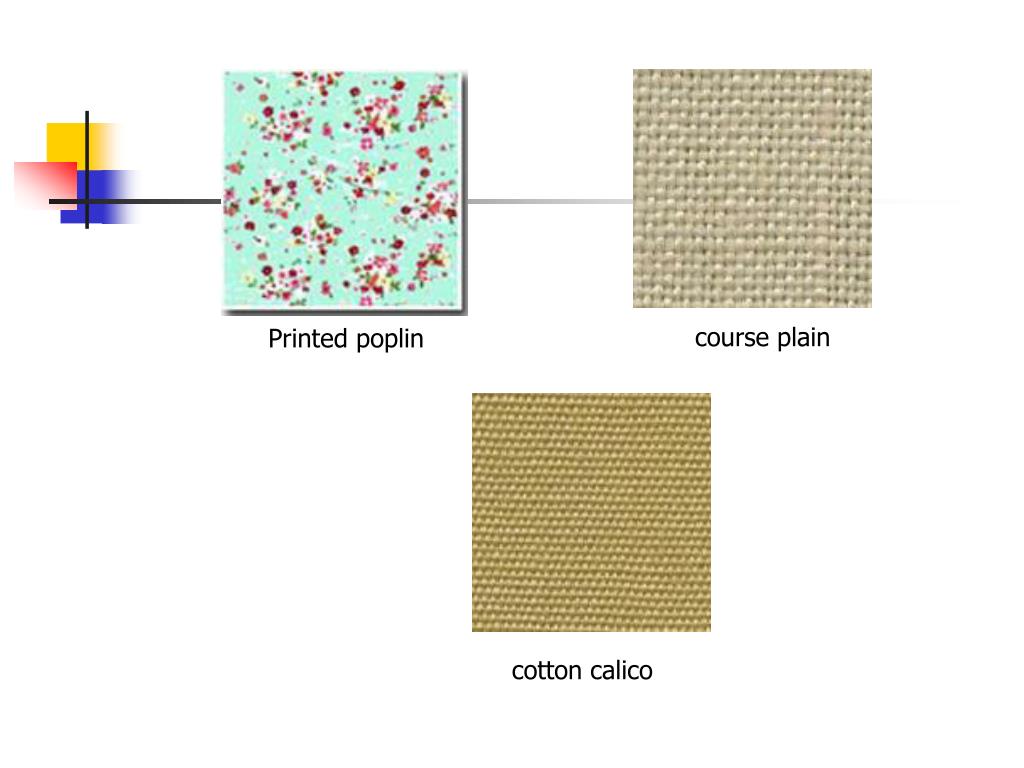

course plain

Printed poplin

cotton calico

2 3 twill weaves l.jpgSlide 6

2.3 Twill Weaves

  • 1) Concept:

    The most characteristic of twill is that they have diagonal lines on the cloth.

Slide7 l.jpgSlide 7

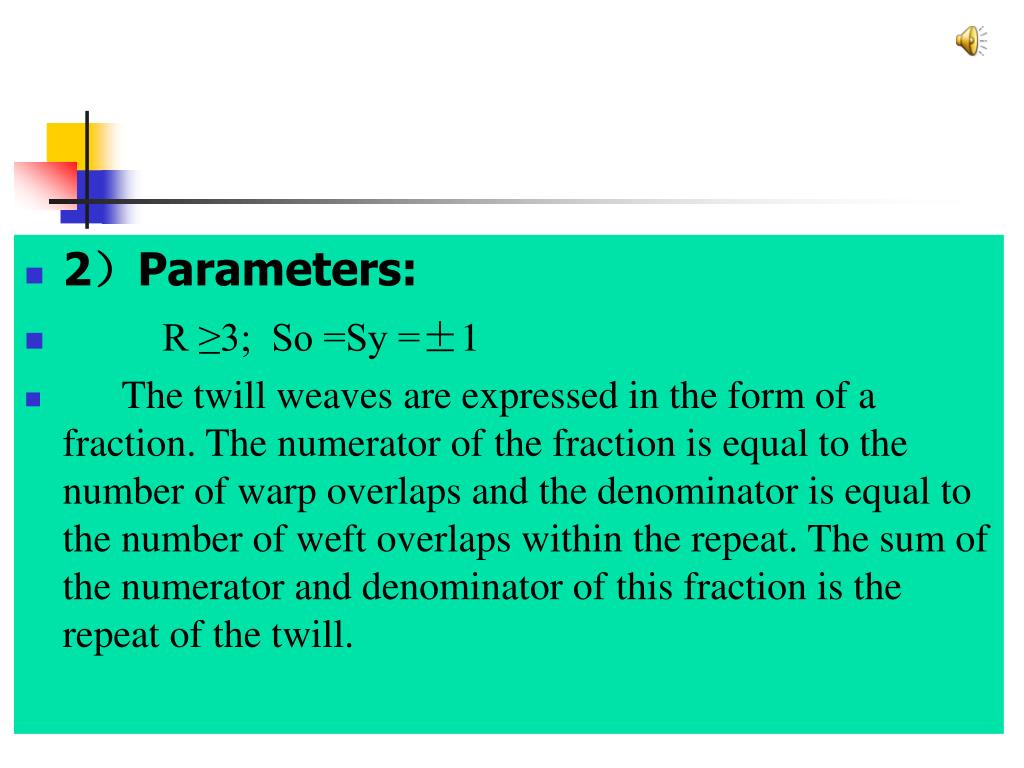

  • 2)Parameters:

  • R ≥3; So =Sy =±1

  • The twill weaves are expressed in the form of a fraction. The numerator of the fraction is equal to the number of warp overlaps and the denominator is equal to the number of weft overlaps within the repeat. The sum of the numerator and denominator of this fraction is the repeat of the twill.

Slide8 l.jpgSlide 8

  • Such as 3/1, 1/3, 2/1, 4/1.

  • Some concept about the twill weaves:

  • warp-face twill,

  • weft-face twill,

  • right-hand twill,

  • left-hand twill.

Weft-face & right-hand twill

R=4

Sy=1

Warp-face &left-hand twill

R=4

Sy=-1

3 weave diagram drawn l.jpgSlide 9

3) Weave diagram drawn

Example : Draw a twill weave of 2/1↗

  • ① Calculating the repeat R, drawing the outline, and giving the number.

  • ② Drawing the first end according to the fraction given.

  • ③Drawing the other ends depended on the shift.

a: repeat R=3, and draw the outline

b: draw the first end

c: and the other ends

Slide10 l.jpgSlide 10

  • 4) Weaving plan

  • Straight draft

  • 5) Properties:

  • Good aesthetic properties;

  • Used for ornamentation;

  • Softer than plain weaves

6 applications l.jpgSlide 11

6) Applications:

  • denim, jean, flannel, gabardine, whipcord, glen check, drill.

Same samples l.jpgSlide 12

Same samples

T/C Blended twill

Slide13 l.jpgSlide 13

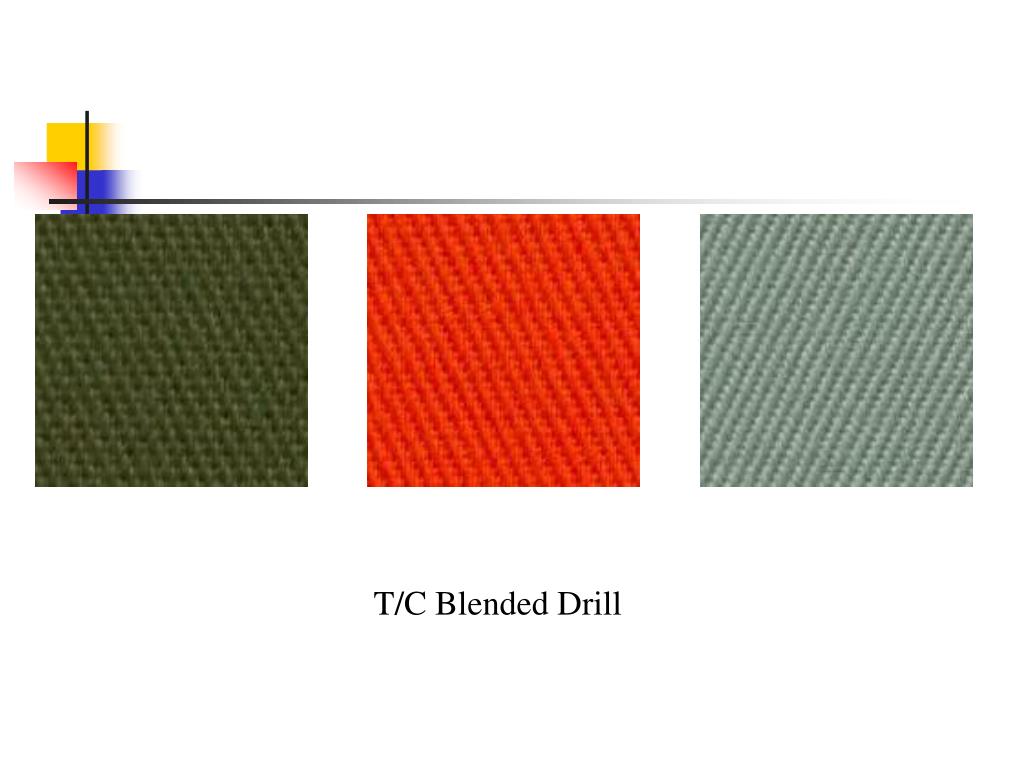

T/C Blended Drill

Home work l.jpgSlide 14

Home work:

1. Drawing the following weave diagrams, and indicates the warp face twill or weft face twill.

1/3↗, 4/1↖ 2/1↗ , 3/1↗

2. Listing 5 fabrics made from plain weave and 5 fabrics made from twill weave.

2 4 sateen satin weaves l.jpgSlide 15

2.4 Sateen/Satin Weaves

  • 1)concept:

    The characteristic of the sateen/satin weave is that they have a smoothness and lustrous fabric surface.

    Sateen weaves have a weft effect and satin weaves have a warp effect

Slide16 l.jpgSlide 16

  • 2) parameters:

    R ≥5 and R≠6

    1 ﹤ S ﹤(R-1)

    R and S must be expressed by prime numbers

  • The sateen weave is denoted by a fraction. But the meaning is different from that of twill. The numerator of this fraction is equal to the repeat of weave. The denominator is equal to the shift (Sy) of overlaps.

Examples l.jpgSlide 17

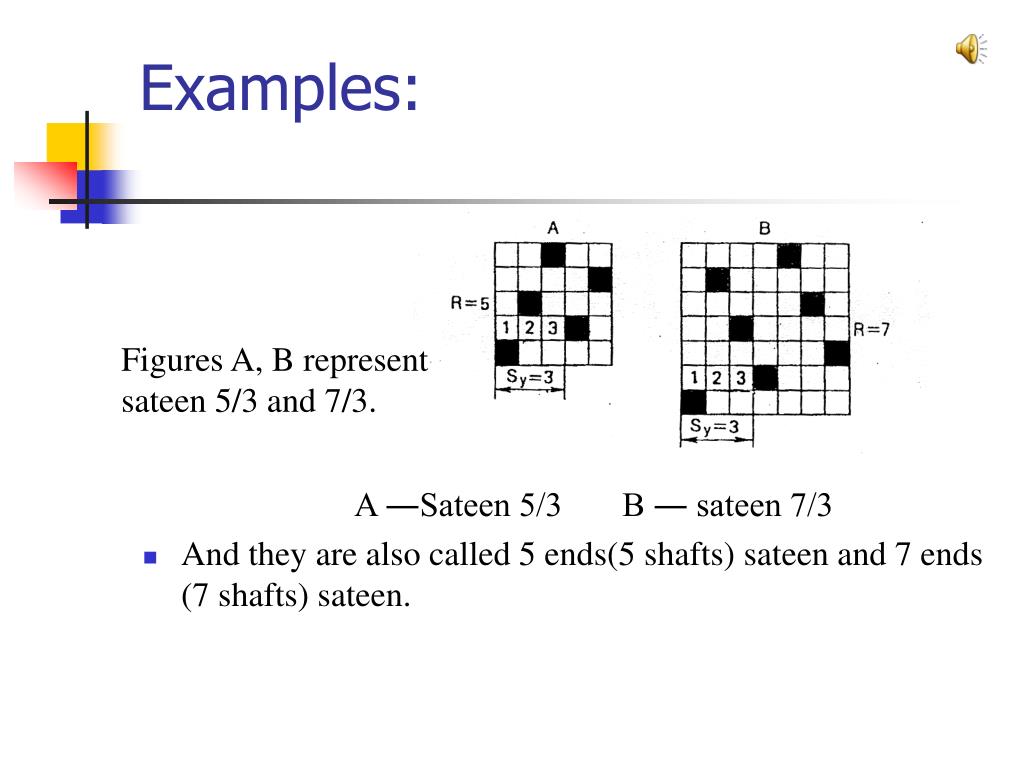

Examples:

A ―Sateen 5/3 B ― sateen 7/3

  • And they are also called 5 ends(5 shafts) sateen and 7 ends (7 shafts) sateen.

Figures A, B represent sateen 5/3 and 7/3.

3 weave drawn l.jpgSlide 18

3) weave drawn:

①Drawing the outline according to the repeat, and giving the number of the threads.

② Drawing the first end or pick. (Satin for first end, sateen for first pick).

③Drawing the other ends or picks according to the shift

Here is an example of 5/3 satin

Slide19 l.jpgSlide 19

  • 4) Weaving plan

    Straight draft

  • 5) Properties: softness, smoothness, lustrous.

  • 6) Applications: satin-back gabardine, doeskin cloth, satin-back crepe, satin drill, light weight linings, slippers, bridal gowns.

Some samples l.jpgSlide 20

Some samples

Home works l.jpgSlide 21

Home works:

  • Drawing the following weave diagram:

    5/3 sateen, 8/3 sateen, 5/3 satin, 11/3 sateen.
