Korean space environment forecast center

Space Weather Workshop 2010

Its Mission and Vision

Korean Space Environment Forecast Center

Seok-heeBae, Sun-hak Hong, Jin-wook Han, Jong-woon Kim, Whan-sang Lee, Chung-hyunYu, Hun Youn, Jung-tae Kim


Korea

?

!

Korea


Ground breaking ceremony for ksefc

Ground Breaking Ceremony for KSEFC

Mar 25, 2010


Korean space environment forecast center1

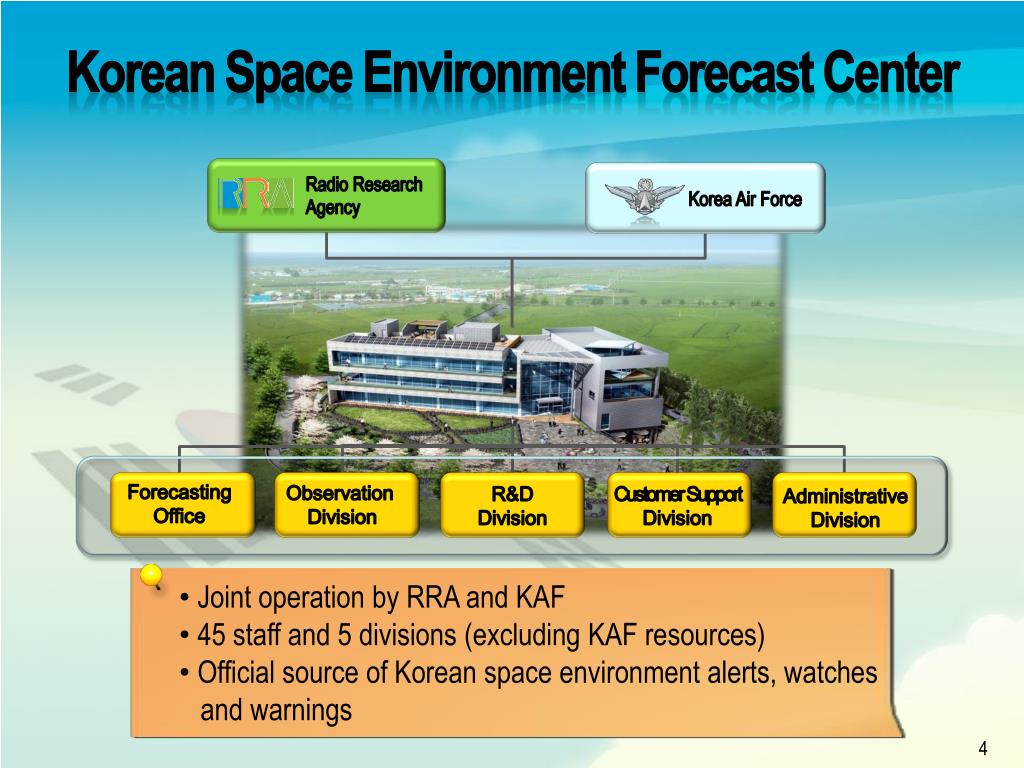

Korean Space Environment Forecast Center

Radio Research Agency

Korea Air Force

ForecastingOffice

Observation Division

R&DDivision

Customer SupportDivision

AdministrativeDivision

  • Joint operation by RRA and KAF

  • 45 staff and 5 divisions (excluding KAF resources)

  • Official source of Korean space environment alerts, watches and warnings


Kcc org chart

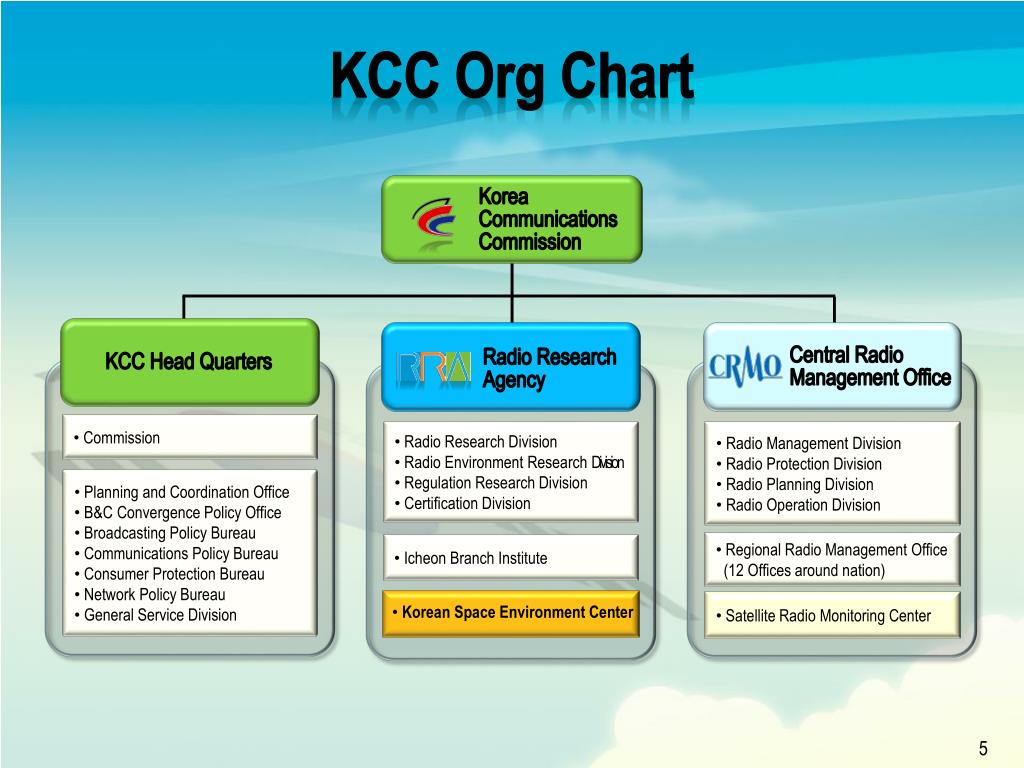

KCC Org Chart

Korea Communications Commission

Central RadioManagement Office

Radio Research Agency

KCC Head Quarters

  • Commission

  • Radio Management Division

  • Radio Protection Division

  • Radio Planning Division

  • Radio Operation Division

  • Radio Research Division

  • Radio Environment Research Division

  • Regulation Research Division

  • Certification Division

  • Planning and Coordination Office

  • B&C Convergence Policy Office

  • Broadcasting Policy Bureau

  • Communications Policy Bureau

  • Consumer Protection Bureau

  • Network Policy Bureau

  • General Service Division

  • Regional Radio Management Office (12 Offices around nation)

  • Icheon Branch Institute

  • Satellite Radio Monitoring Center

  • Korean Space Environment Center


Radio research agency

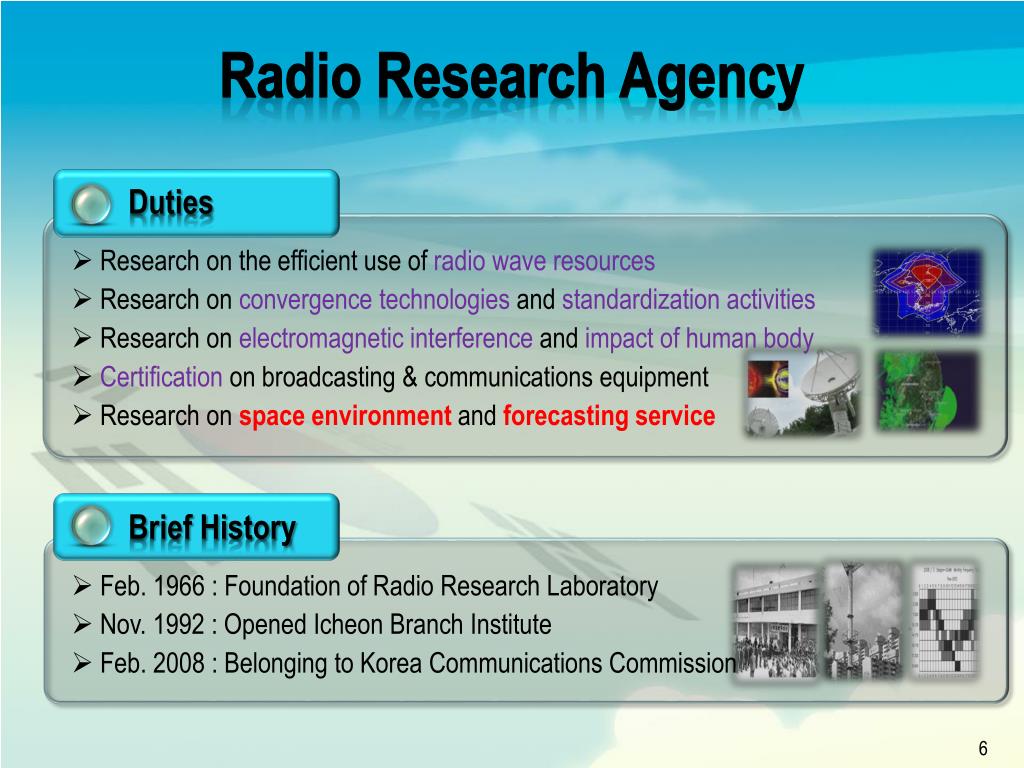

Radio Research Agency

Duties

  • Research on the efficient use of radio wave resources

  • Research on convergence technologies and standardization activities

  • Research on electromagnetic interference and impact of human body

  • Certification on broadcasting & communications equipment

  • Research on space environment and forecasting service

Brief History

  • Feb. 1966 : Foundation of Radio Research Laboratory

  • Nov. 1992 : Opened Icheon Branch Institute

  • Feb. 2008 : Belonging to Korea Communications Commission


Observation networks

Observation Networks

Gangnung

Anyang

http://solaradio.rra.go.kr


Observation systems in ksefc

Observation Systems in KSEFC

  • Existing Facility

N

  • New Facility

0

25M

50M

100M

Magnetometer(1998~)

ACE Tracking Station(2011~)

Ionosonde(2008~)

TEC Monitor(2009~)

IPS(2012~)

RIMS(2012~)(700 - 18,000MHz )

Forecast Center


Ksefc operational flow

Observation

Customers

Defense

Comm.

Satellite

Aviation

Research

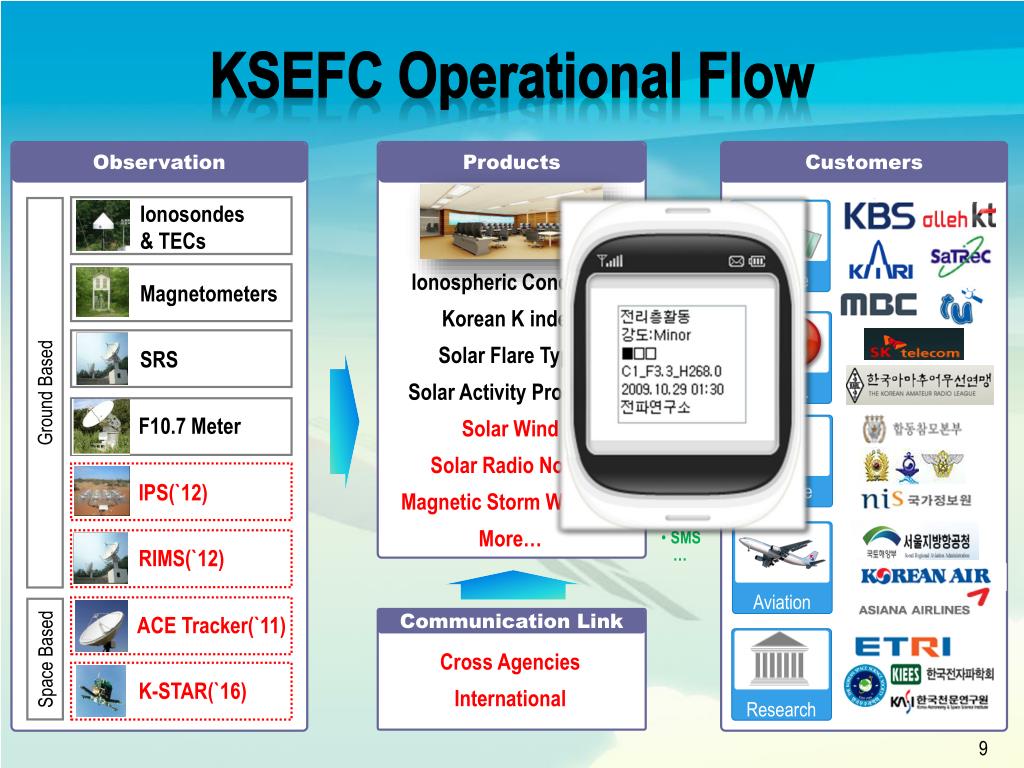

KSEFC Operational Flow

Products

Ionosondes & TECs

Ground Based

Ionospheric Condition

Magnetometers

Korean K index

Solar Flare Type

SRS

Solar Activity Progress

F10.7 Meter

Solar Wind

Solar Radio Noise

IPS(`12)

Magnetic Storm Warning

  • Web

  • Mail

  • SMS …

More…

RIMS(`12)

Space Based

ACE Tracker(`11)

Communication Link

Cross Agencies

K-STAR(`16)

International


Concepts of ksefc services

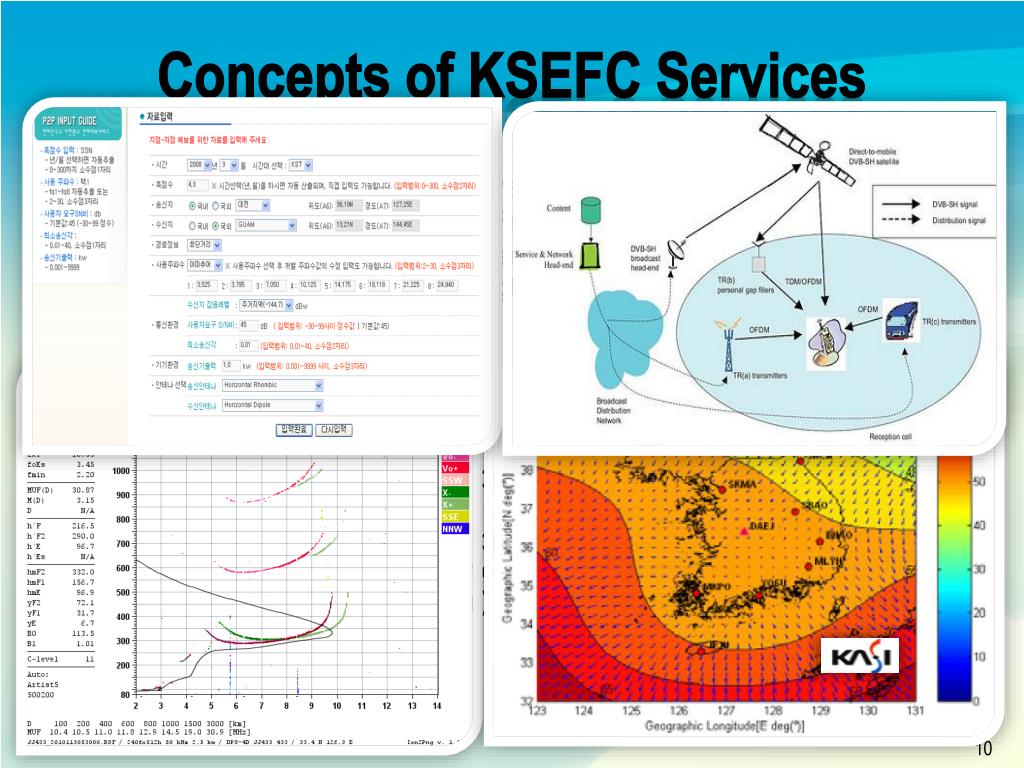

Concepts of KSEFC Services

  • Into the languages that our end-users are using

    • Ionogram optimum frequency for HF radio comm.

    • TEC map  GPS ranging error in meter (1 TECU=1016 electrons m-2)

    • RIMS in sfu  radio interference strength in dBm/Hz

  • Different impact on different communication system

    • User interactive input (web service of long-term prediction for HF radio comm.)

    • Different impact to each communication parts of even in a service (use different frequency & link budget)


Effective partnership

Effective Partnership

Inter Agencies

International

ISES

ETRI

NOAA

KAIST

SaTRec

IPS

LOA with NOAA/NWS

(Dec. 10, 2009)

RRA

KAF

KMA

NICT

National Defense

ESA

KASI

ITU

More …

More …

MOU with KAF

(Oct. 16, 2009)

User Conference

(Oct. 29, 2009)


Ubiquitous communication society

RGW

DMB

AP

AP

WLAN

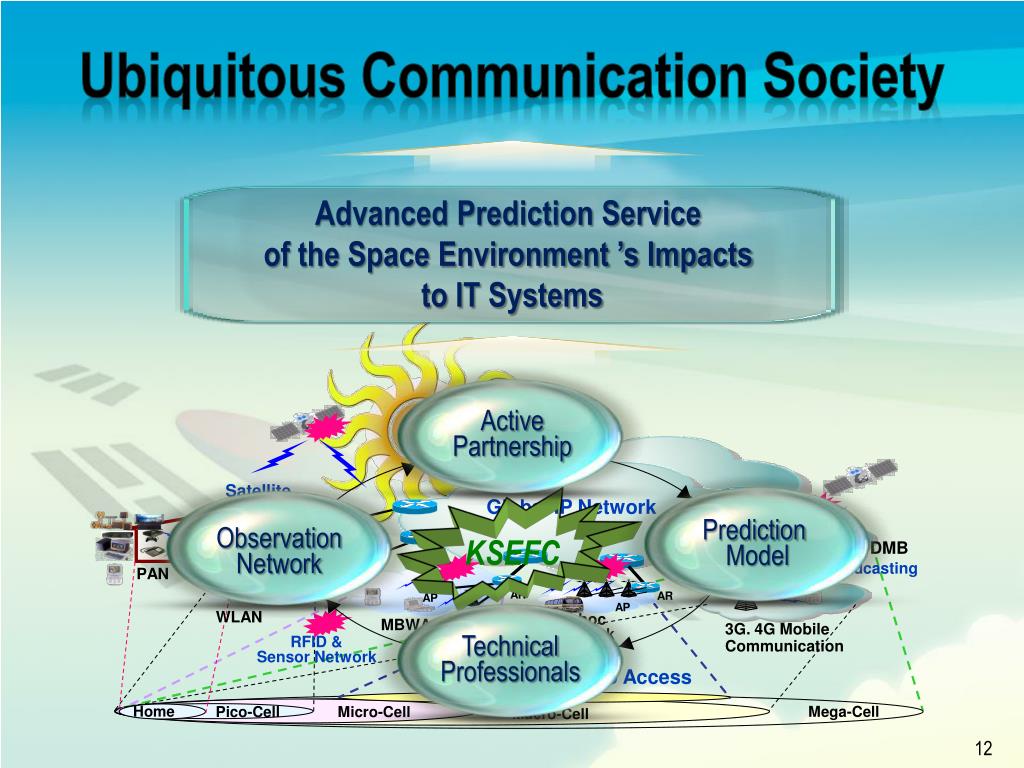

Ubiquitous Communication Society

Advanced Prediction Service of the Space Environment ’s Impacts to IT Systems

ActivePartnership

Satellite Communication

Global IP Network

Prediction

Model

AP

Broadcasting

ObservationNetwork

PAN

KSEFC

AR

AR

AP

AP

Ad-hoc Network

MBWA

3G. 4G Mobile Communication

RFID & Sensor Network

TechnicalProfessionals

Heterogeneous Radio Access

Linear-Cell

Home

Mega-Cell

Pico-Cell

Micro-Cell

Macro-Cell
