Rearrange the history so that the sequence begins with the highest peak

D. D. H. F. B. B. E. A. A. C. C. G. Rearrange the history so that the sequence begins with the highest peak. D. D. H. F. B. B. E. A. A. C. C. G. Rearrange the history so that the sequence begins with the highest peak. D. D. D. D. H. H. F. F. B. B. B. E. E. A.

Download Presentation

Rearrange the history so that the sequence begins with the highest peak

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

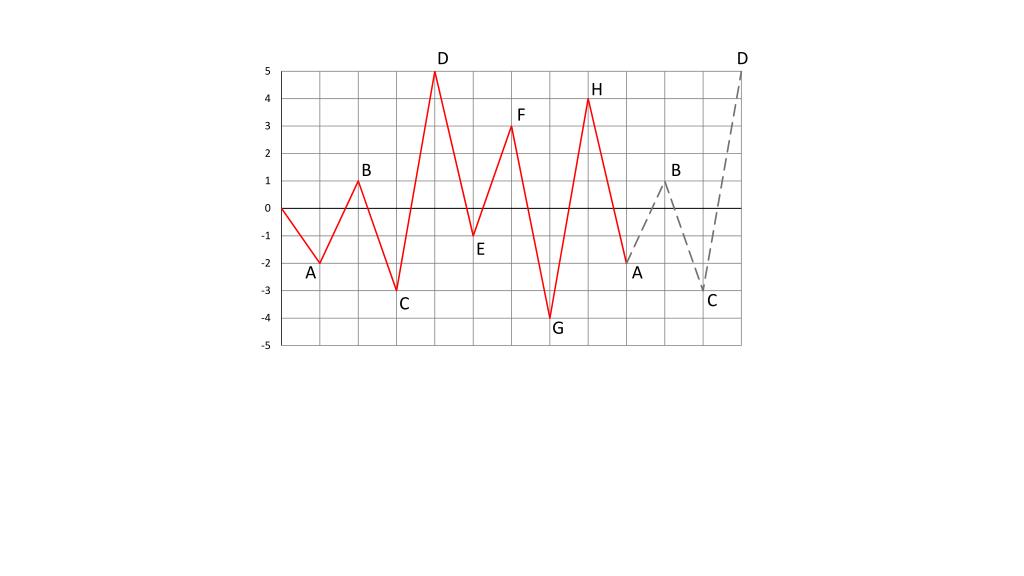

  1. D D H F B B E A A C C G

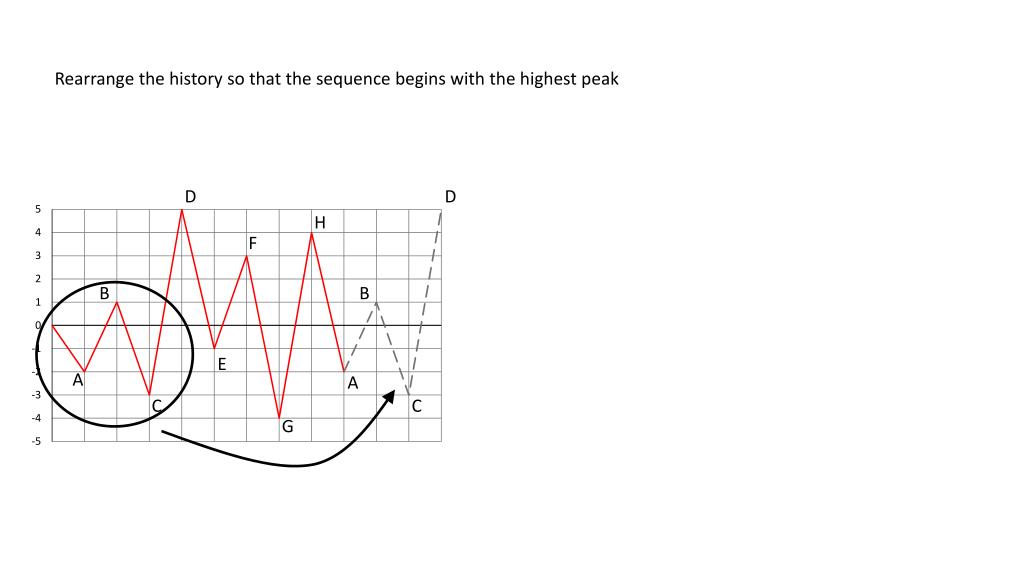

  2. Rearrange the history so that the sequence begins with the highest peak D D H F B B E A A C C G

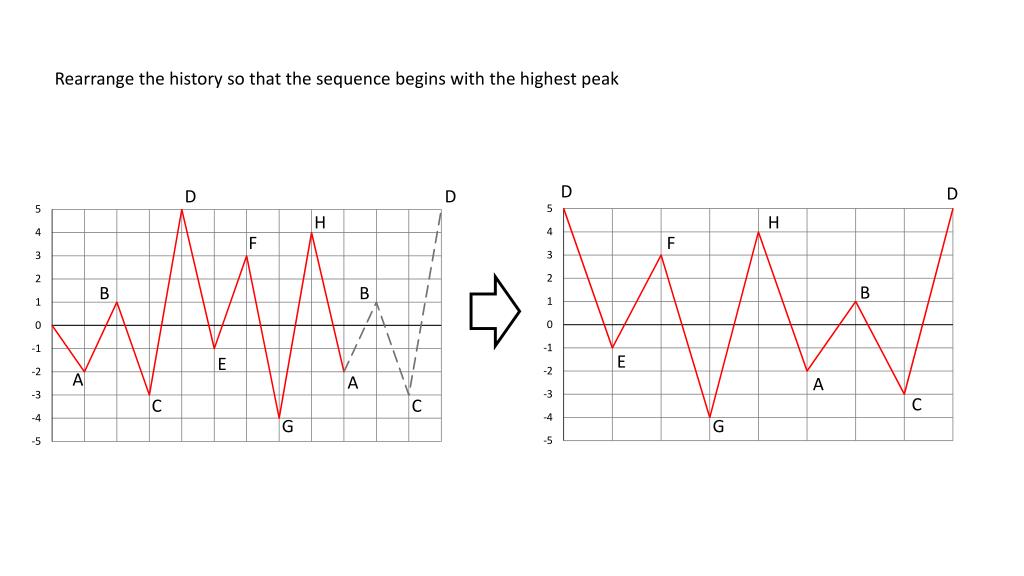

  3. Rearrange the history so that the sequence begins with the highest peak D D D D H H F F B B B E E A A A C C C G G

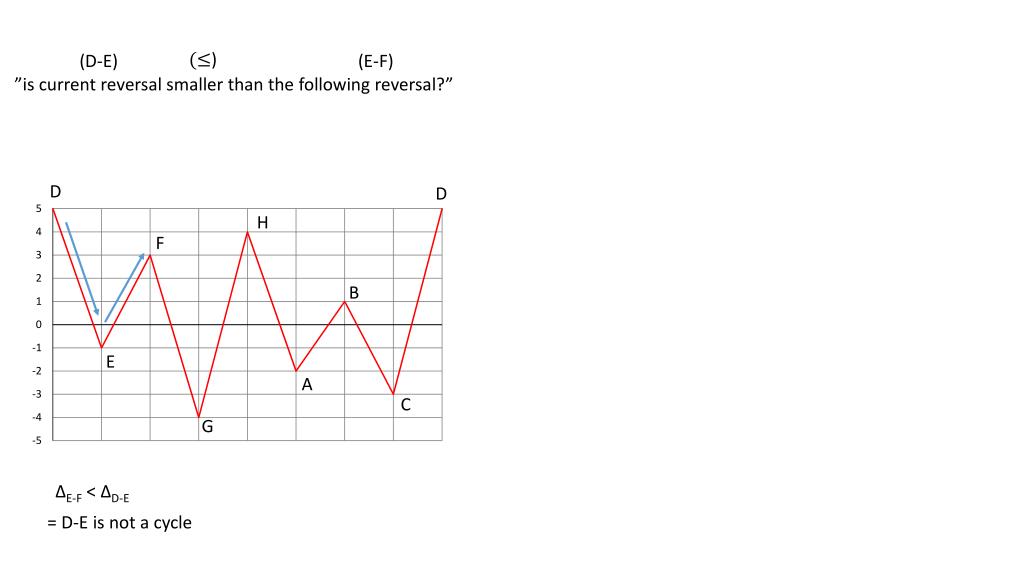

  4. (D-E) (E-F) ) ”is current reversal smaller than the following reversal?” D D H F B E A C G ΔE-F < ΔD-E = D-E is not a cycle

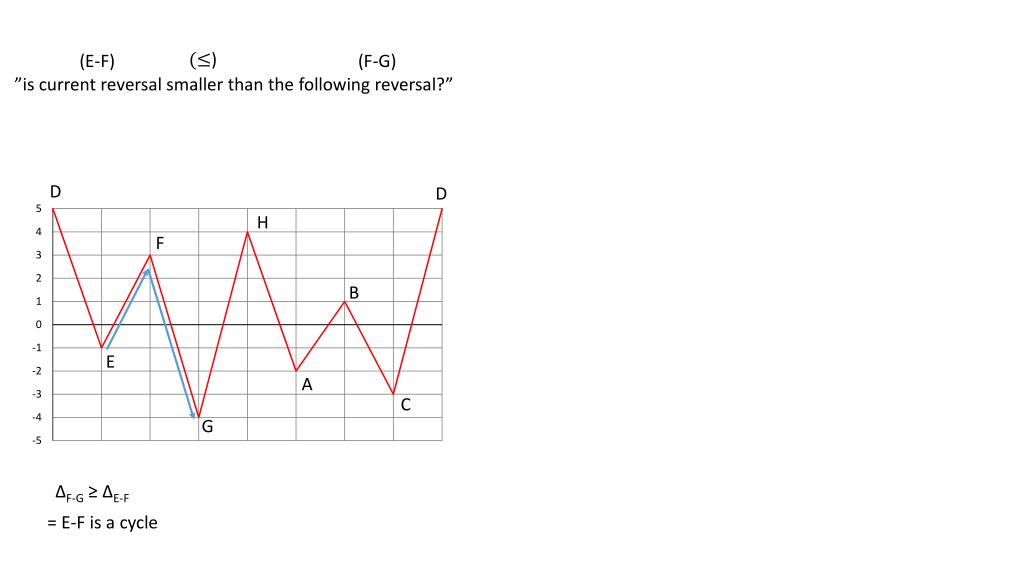

  5. (E-F) (F-G) ) ”is current reversal smaller than the following reversal?” D D H F B E A C G ΔF-G ≥ ΔE-F = E-F is a cycle

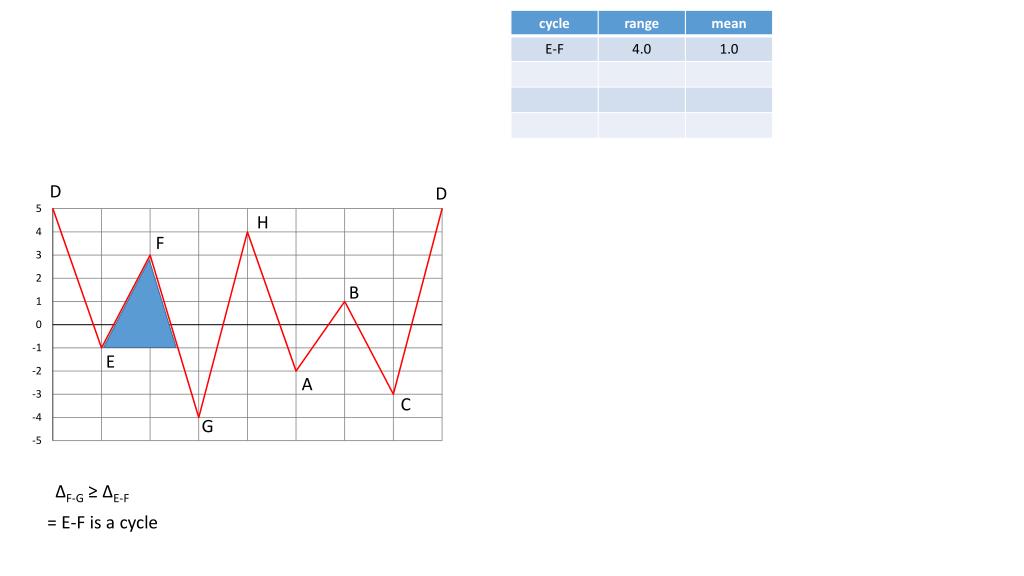

  6. D D H F B E A C G ΔF-G ≥ ΔE-F = E-F is a cycle

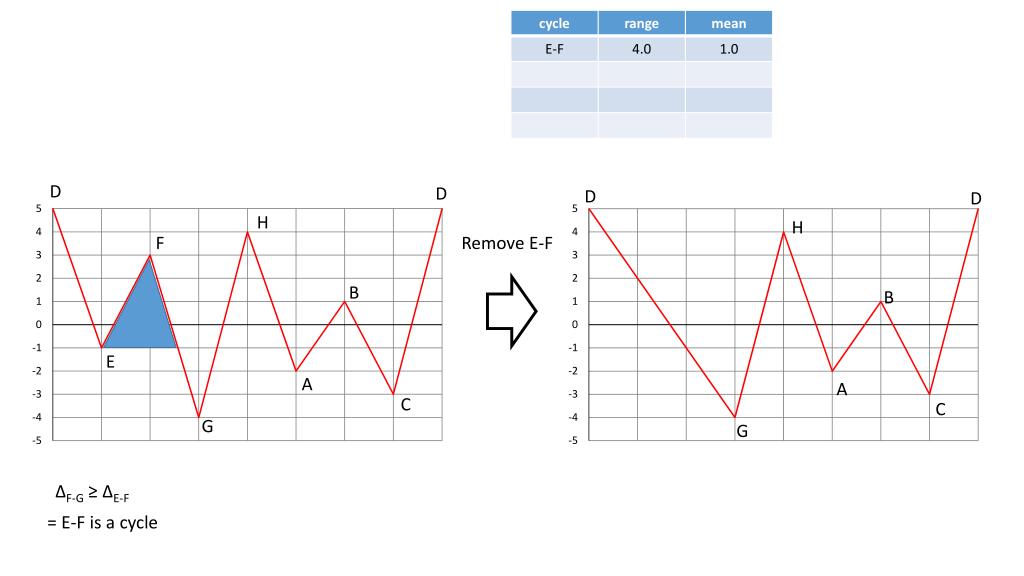

  7. D D D D H H F Remove E-F B B E A A C C G G ΔF-G ≥ ΔE-F = E-F is a cycle

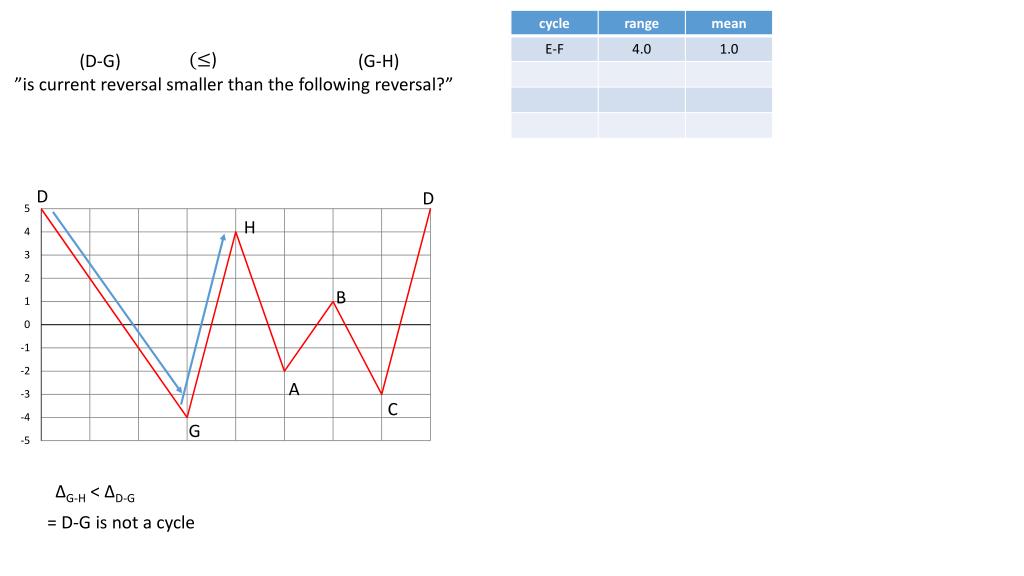

  8. (D-G) (G-H) ) ”is current reversal smaller than the following reversal?” D D H B A C G ΔG-H < ΔD-G = D-G is not a cycle

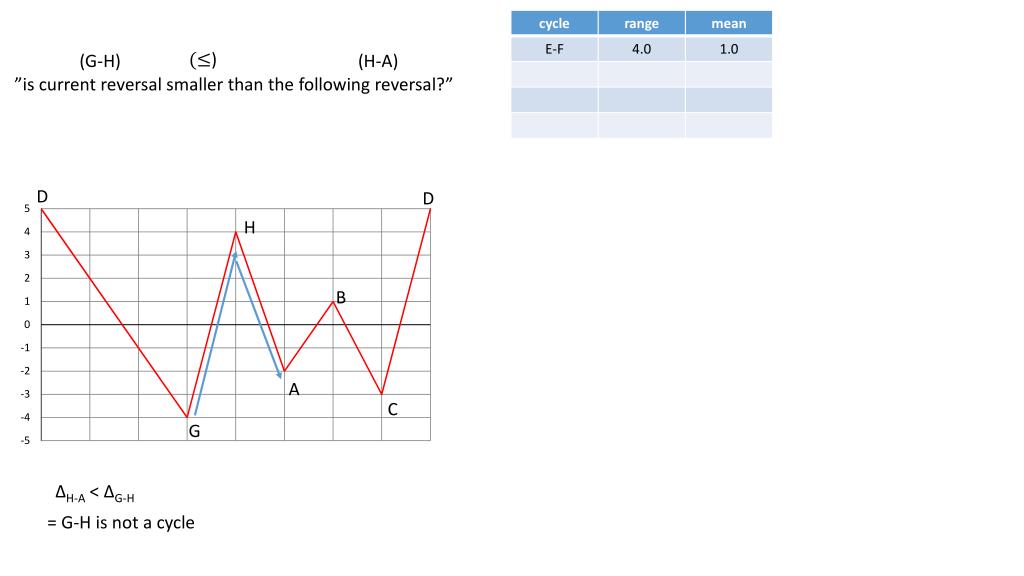

  9. (G-H) (H-A) ) ”is current reversal smaller than the following reversal?” D D H B A C G ΔH-A < ΔG-H = G-H is not a cycle

  10. (H-A) (A-B) ) ”is current reversal smaller than the following reversal?” D D H B A C G ΔA-B < ΔH-A = H-A is not a cycle

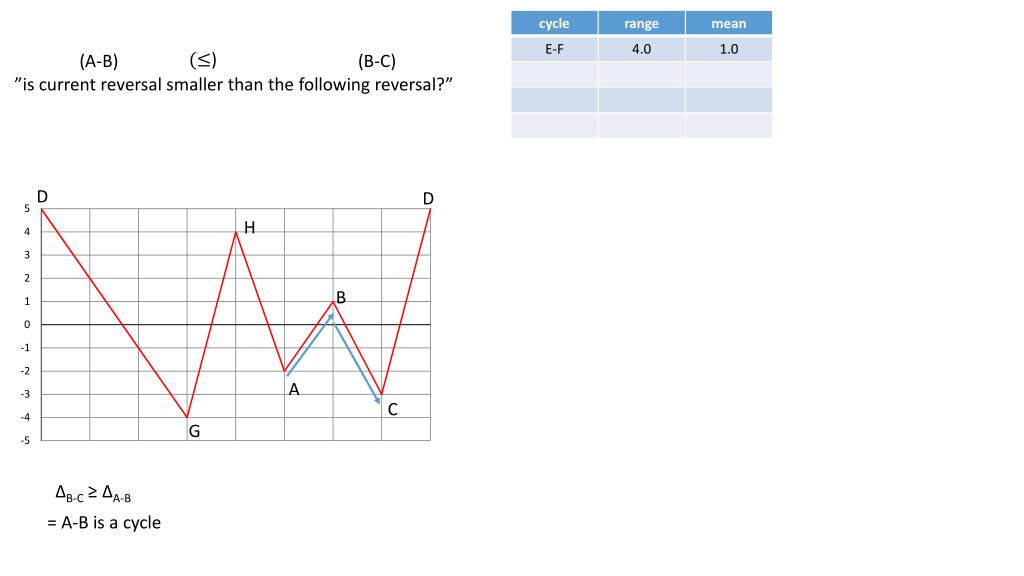

  11. (A-B) (B-C) ) ”is current reversal smaller than the following reversal?” D D H B A C G ΔB-C ≥ ΔA-B = A-B is a cycle

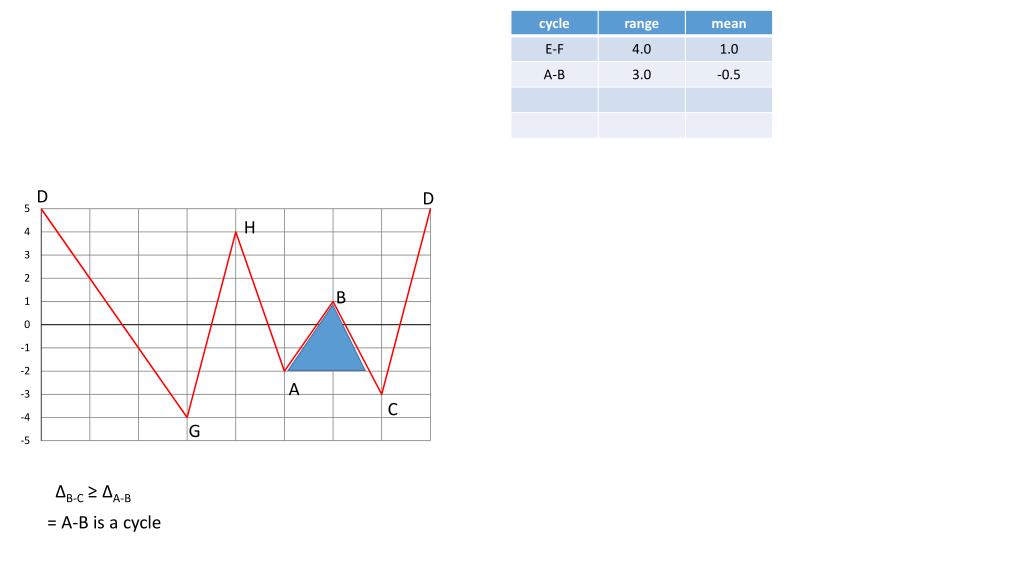

  12. D D H B A C G ΔB-C ≥ ΔA-B = A-B is a cycle

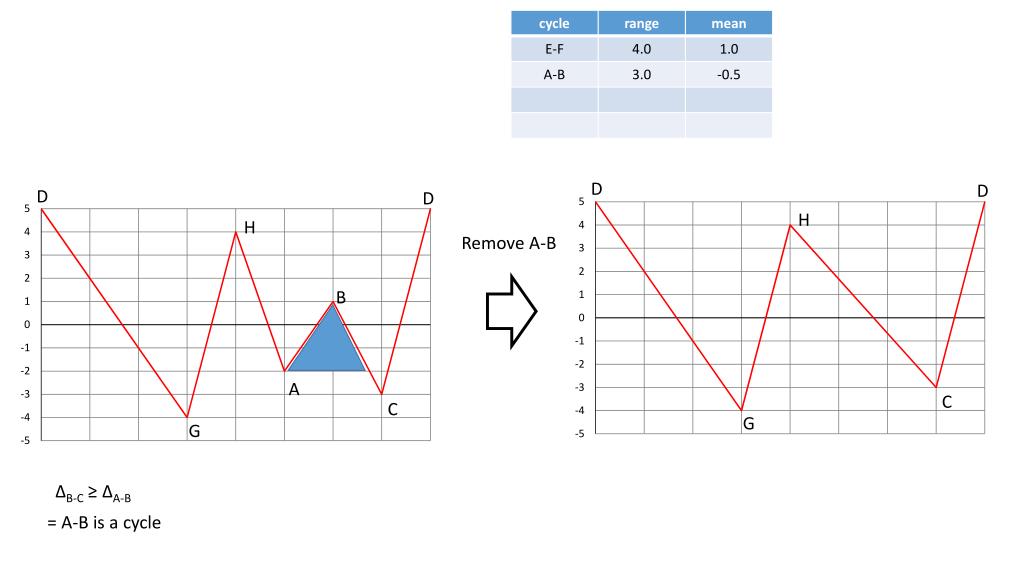

  13. D D D D H H Remove A-B B A C C G G ΔB-C ≥ ΔA-B = A-B is a cycle

  14. (D-G) (G-H) ) ”is current reversal smaller than the following reversal?” D D H C G ΔG-H < ΔD-G = D-G is not a cycle

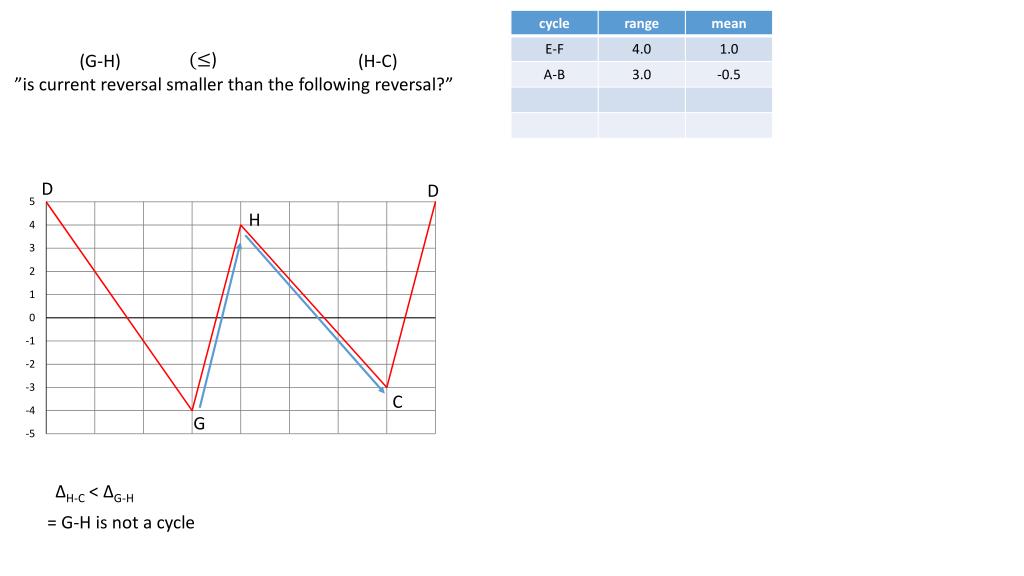

  15. (G-H) (H-C) ) ”is current reversal smaller than the following reversal?” D D H C G ΔH-C < ΔG-H = G-H is not a cycle

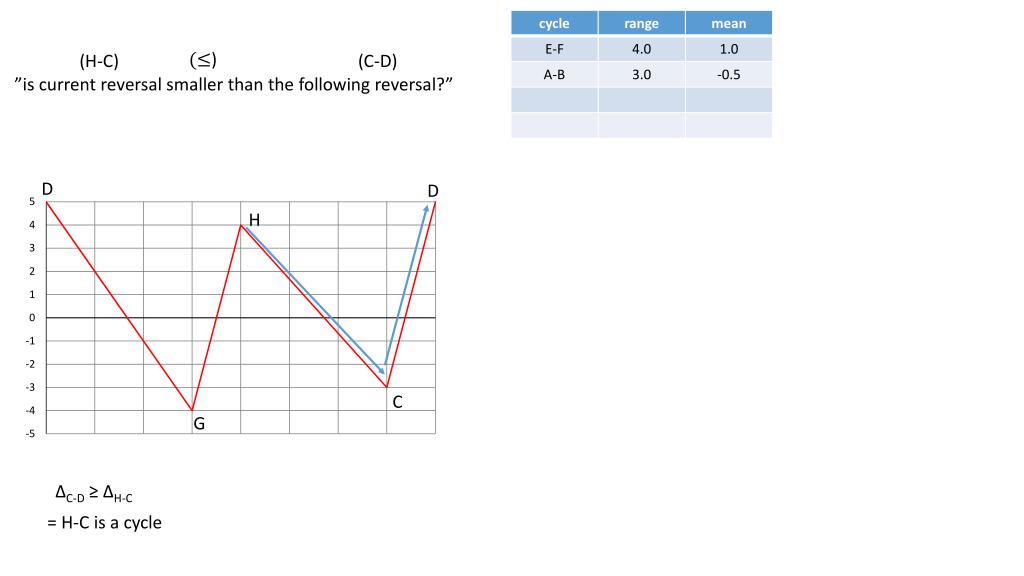

  16. (H-C) (C-D) ) ”is current reversal smaller than the following reversal?” D D H C G ΔC-D ≥ ΔH-C = H-C is a cycle

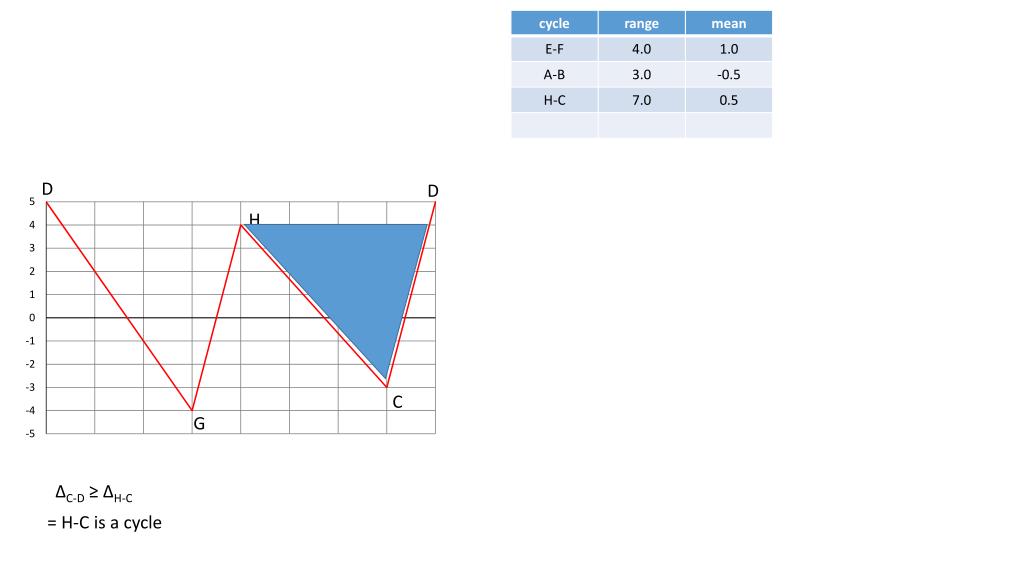

  17. D D H C G ΔC-D ≥ ΔH-C = H-C is a cycle

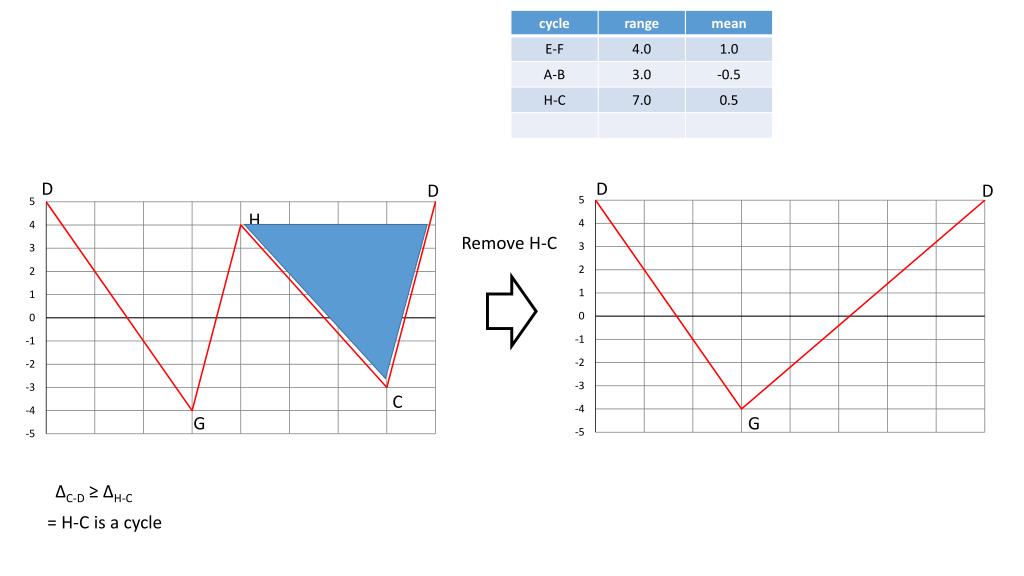

  18. D D D D H Remove H-C C G G ΔC-D ≥ ΔH-C = H-C is a cycle

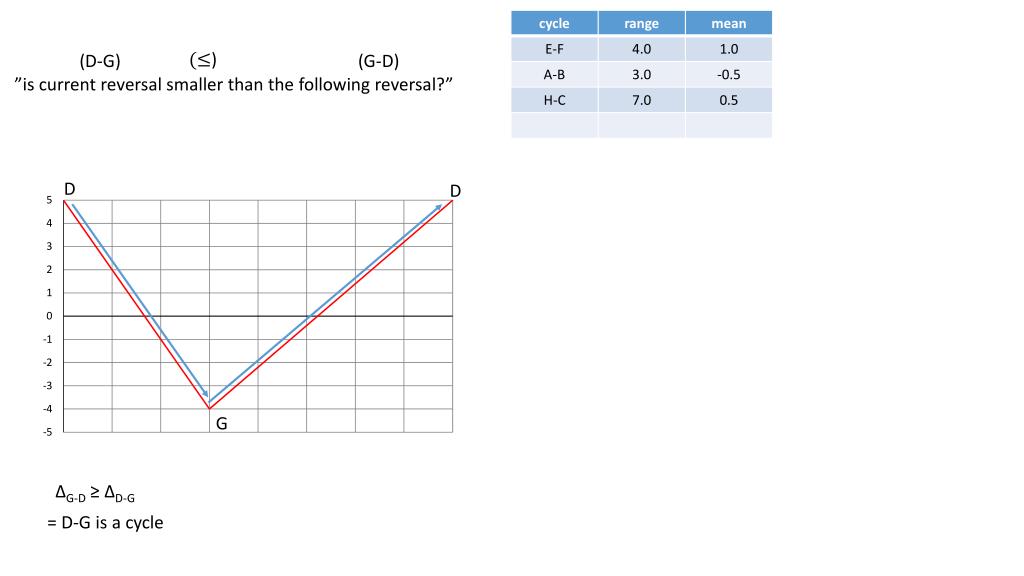

  19. (D-G) (G-D) ) ”is current reversal smaller than the following reversal?” D D G ΔG-D ≥ ΔD-G = D-G is a cycle

  20. D D G ΔG-D ≥ ΔD-G = D-G is a cycle
