  1. The Inheritance of Complex Traits Chapter 5

  2. Differences Among Brothers and Sisters is Due to both Genetic and Environmental Factors

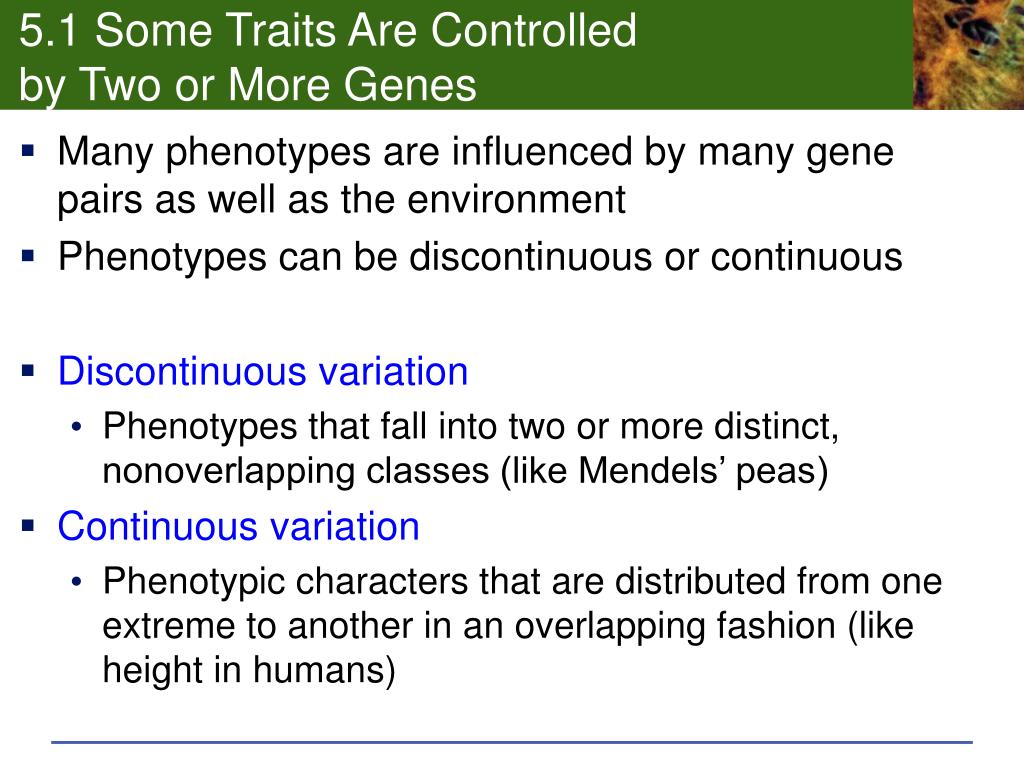

  3. 5.1 Some Traits Are Controlled by Two or More Genes • Many phenotypes are influenced by many gene pairs as well as the environment • Phenotypes can be discontinuous or continuous • Discontinuous variation • Phenotypes that fall into two or more distinct, nonoverlapping classes (like Mendels’ peas) • Continuous variation • Phenotypic characters that are distributed from one extreme to another in an overlapping fashion (like height in humans)

  4. Comparison of Discontinuous and Continuous Phenotypes

  5. 100 50 % of individuals 0 Dwarf Tall P1 parental generation 100 % of individuals 50 0 Dwarf Tall F1 generation 100 50 % of individuals 0 Dwarf Tall F2 generation (a) Pea plants Fig. 5-1a, p. 96

  6. 100 50 % of individuals 0 Dwarf Tall P1 parental generation 100 % of individuals 50 0 Intermediate F1 generation 100 % of individuals 50 0 (b) Tobacco plants Dwarf Intermediate Tall F2 generation Fig. 5-1b, p. 96

  7. Example of a Continuous phenotype Fig. 5-2, p. 96

  8. What are Complex Traits? • Complex traits are determined by the cumulative effects of genes and the influence of environment • Polygenic traits • Traits controlled by two or more genes • Patterns of inheritance that can be measured quantitatively • Multifactorial traits • Polygenic traits resulting from interactions of two or more genes and one or more environmental factors

  9. Keep In Mind • Many human diseases are controlled by the action of several genes

  10. Animation: Height bar-graph

  11. Animation: Coat color in Labrador retrievers

  12. 5.2 Polygenic Traits and Variation in Phenotype • Assessing interactions of genes, environment, and phenotype can be difficult • In some cases, only a specific gene and a specific environmental factor causes an effect • Polygenic: when several genes each make a small contribution to phenotype. The result is continuous phenotypic variation

  13. Polygenic Inheritance • Traits are usually quantified by measurement rather than counting • Two or more genes contribute to the phenotype • Phenotypic expression varies across a wide range • Interactions with the environment often participate in creating the phenotype.

  14. Polygenic Inheritance • The distribution of polygenic traits through the population follows a bell-shaped (normal) curve

  15. 18 16 14 12 10 Percentage of men 08 06 04 02 0 50 55 60 65 70 75 80 85 Phenotype (height in inches) Fig. 5-3, p. 98

  16. A Multifactorial Polygenic Trait: Skin Color • Skin color is controlled by 3 or 4 genes and environmental factors leading to a wide range of phenotypes Fig. 5-4, p. 98

  17. Keep In Mind • Environmental factors interact with genes to produce variations in phenotype

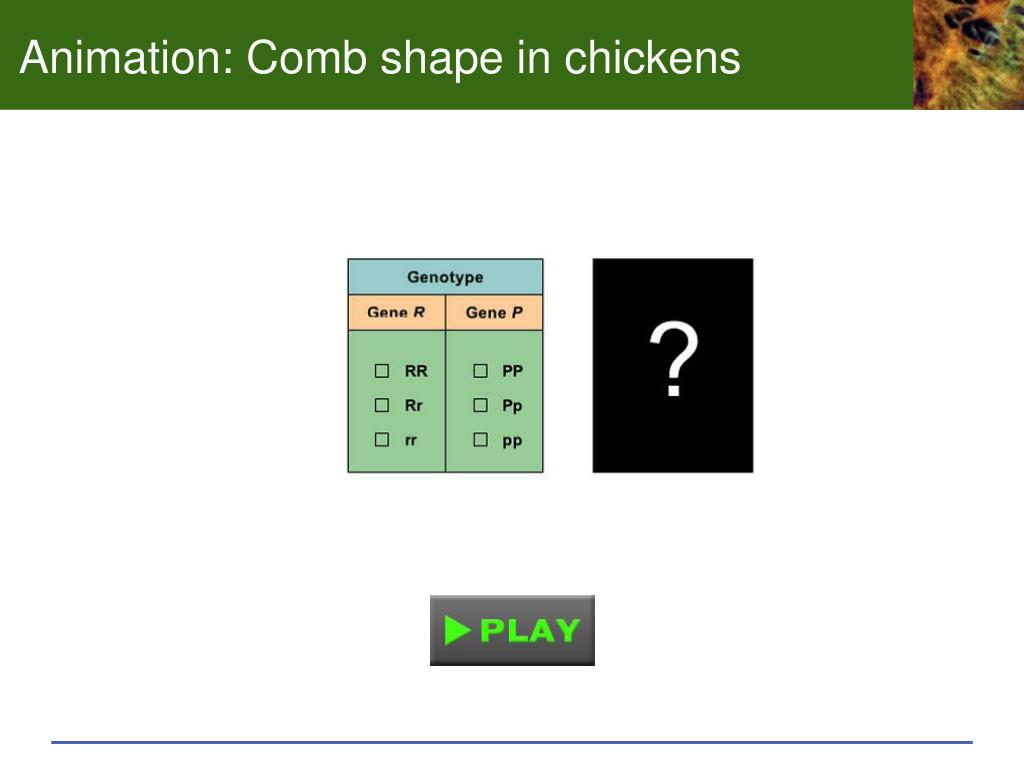

  18. Animation: Comb shape in chickens

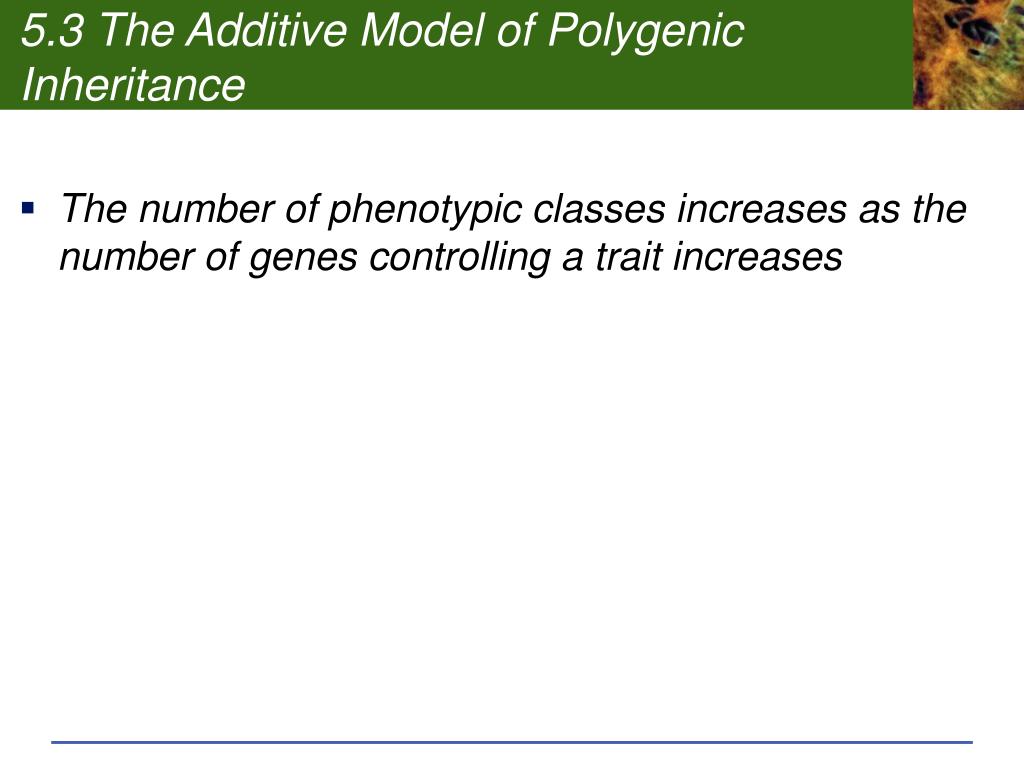

  19. 5.3 The Additive Model of Polygenic Inheritance • The number of phenotypic classes increases as the number of genes controlling a trait increases

  20. The Additive Model of Polygenic Inheritance • As the number of genes involved increase, the number of phenotypic classes increases

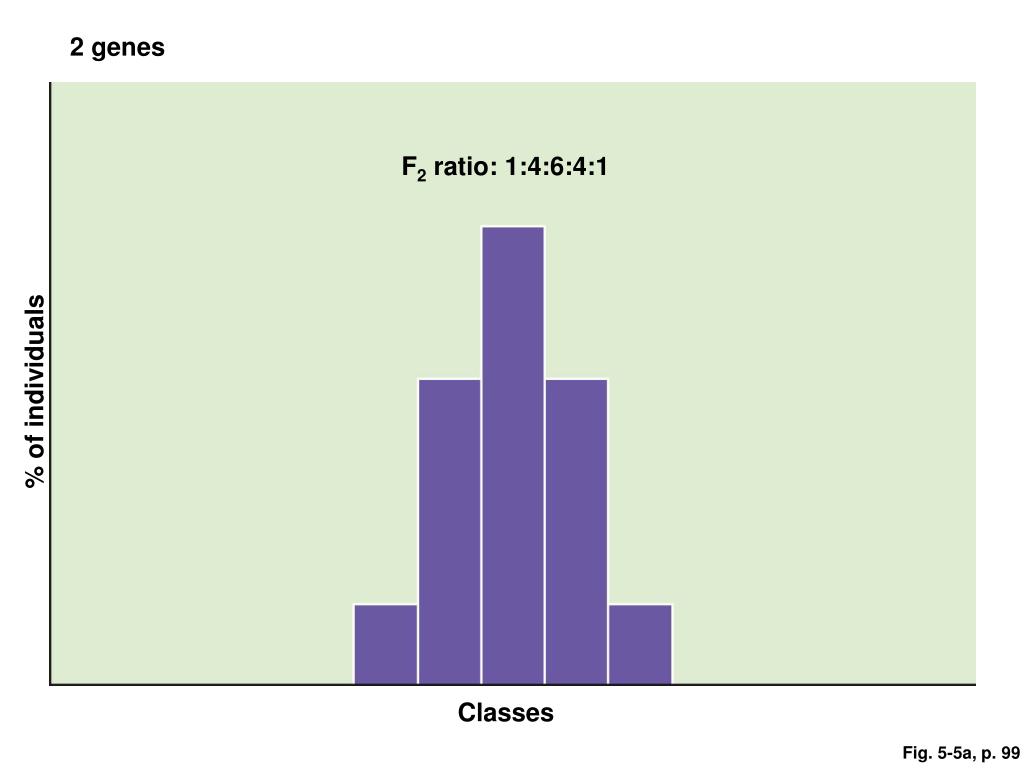

  21. 2 genes F2 ratio: 1:4:6:4:1 % of individuals Classes Fig. 5-5a, p. 99

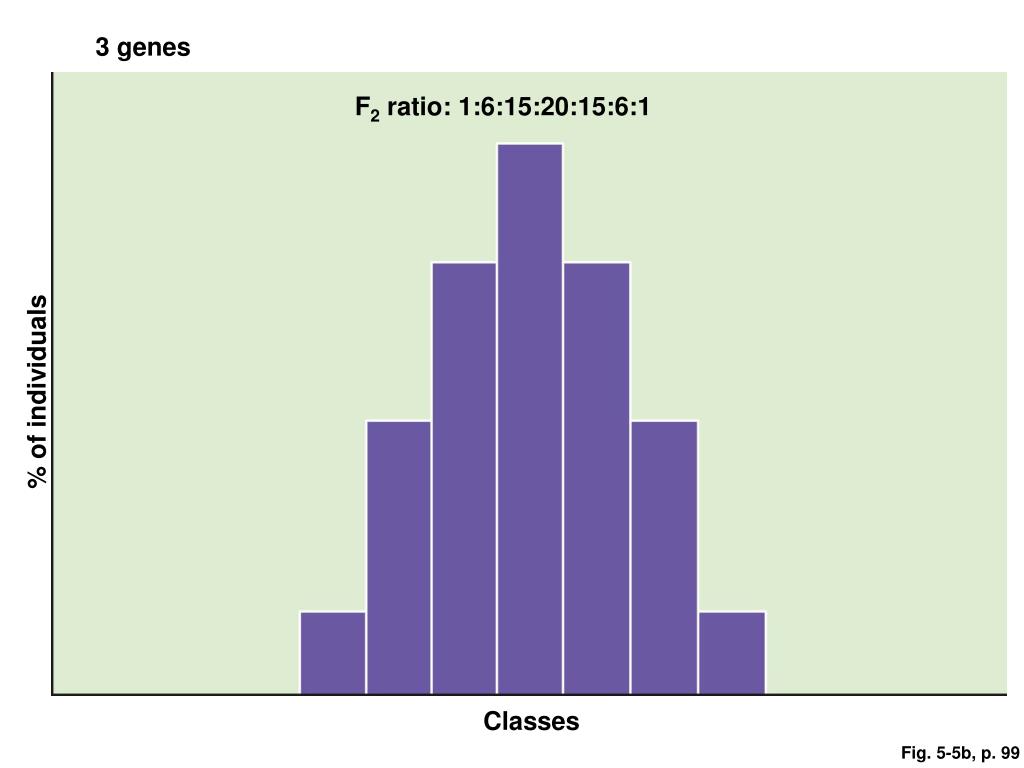

  22. 3 genes F2 ratio: 1:6:15:20:15:6:1 % of individuals Classes Fig. 5-5b, p. 99

  23. Fig. 5-5c, p. 99

  24. The Additive Model of Polygenic Inheritance

  25. Fig. 5-7a, p. 100

  26. Gametes ABC AbC aBC abC Gametes AABBCc 7 ft. AABbCc 6 ft. 9 in. AaBBCc 6 ft. 9 in. AaBbCc 6 ft. 6 in. ABc AAbbCc 6 ft. 6 in. AaBbCc 6 ft. 6 in. AabbCc 6 ft. 3 in. AABbCc 6 ft. 9 in. Abc AaBBCc 6 ft. 9 in. AaBbCc 6 ft. 6 in. aaBBCc 6 ft. 6 in. aaBbCc 6 ft. 3 in. aBc AaBbCc 6 ft. 6 in. AabbCc 6 ft. 3 in. aaBbCc 6 ft. 3 in. aabbCc 6 ft. abc (b) Fig. 5-7b, p. 100

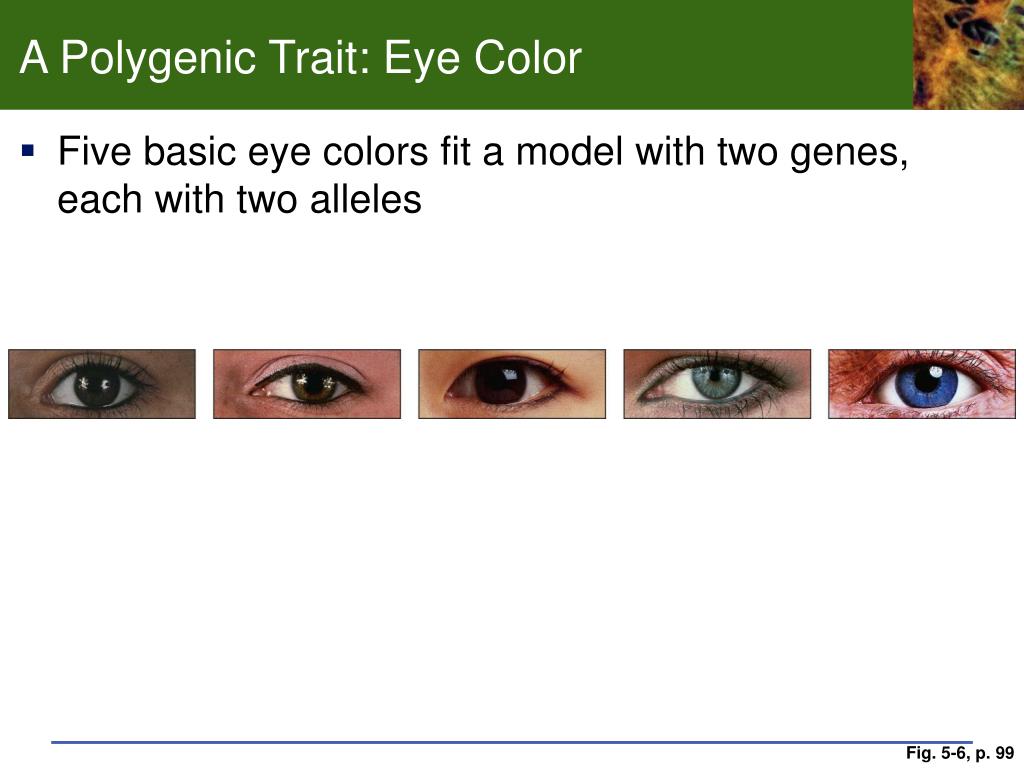

  27. A Polygenic Trait: Eye Color • Five basic eye colors fit a model with two genes, each with two alleles Fig. 5-6, p. 99

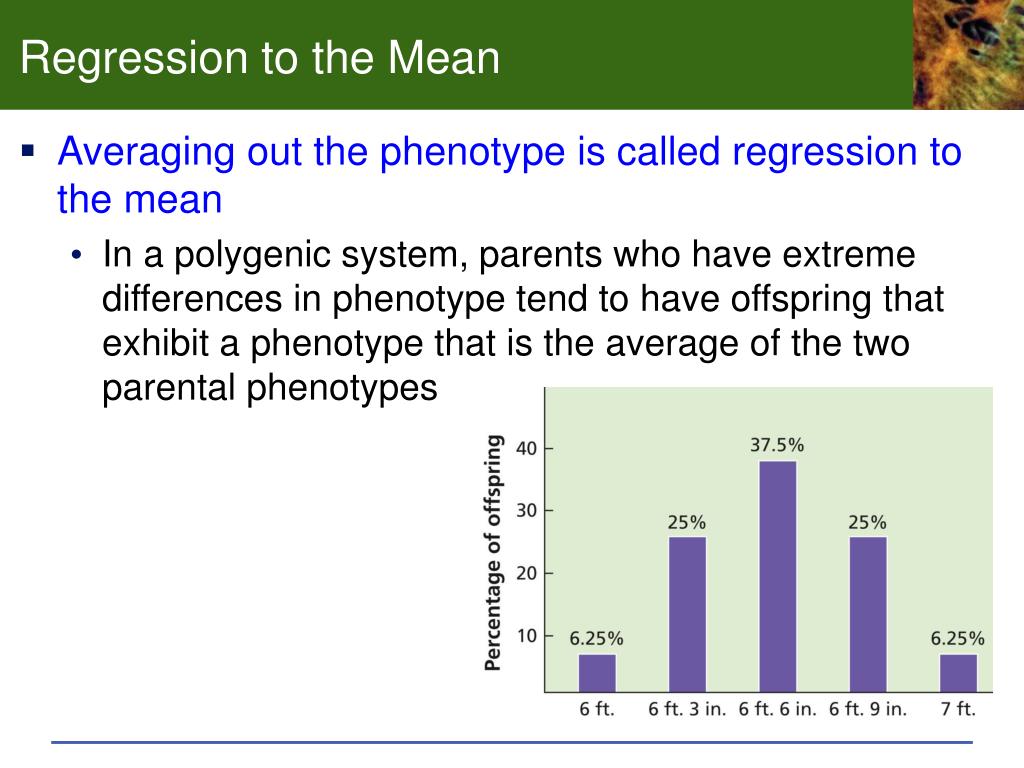

  28. Regression to the Mean • Averaging out the phenotype is called regression to the mean • In a polygenic system, parents who have extreme differences in phenotype tend to have offspring that exhibit a phenotype that is the average of the two parental phenotypes

  29. 37.5% 40 30 Percentage of offspring 25% 25% 20 10 6.25% 6.25% 6 ft. 6 ft. 3 in. 6 ft. 6 in. 6 ft. 9 in. 7 ft. Fig. 5-8, p. 100

  30. 5.4 Multifactorial Traits: Polygenic Inheritance and Environmental Effects • Variations in expression of polygenic traits often are due to the action of environmental factors • Multifactorial or complex traits are polygenic traits with a strong environmental component

  31. Multifactorial Traits • Characteristics • Traits are polygenic • Each gene controlling the trait contributes a small amount to the phenotype • Environmental factors interact with the genotype to produce the phenotype

  32. Environmental Effects and Phenotype • The impact of environment on genotype can cause genetically susceptible individuals to exhibit a trait discontinuously, even though there is an underlying continuous distribution of genotypes for the trait

  33. The Genetic Revolution:Dissecting Genes and Environment in Spina Bifida • Spina Bifida is a common birth defect involving the nervous system • Twin studies show a significant genetic component • Nutrition (especially folate) has a significant impact on the frequency of occurrence

  34. The Threshold Model • Explains the discontinuous distribution of some multifactorial traits

  35. Unaffected Affected Frequency Threshold Genetic liability Fig. 5-9, p. 102

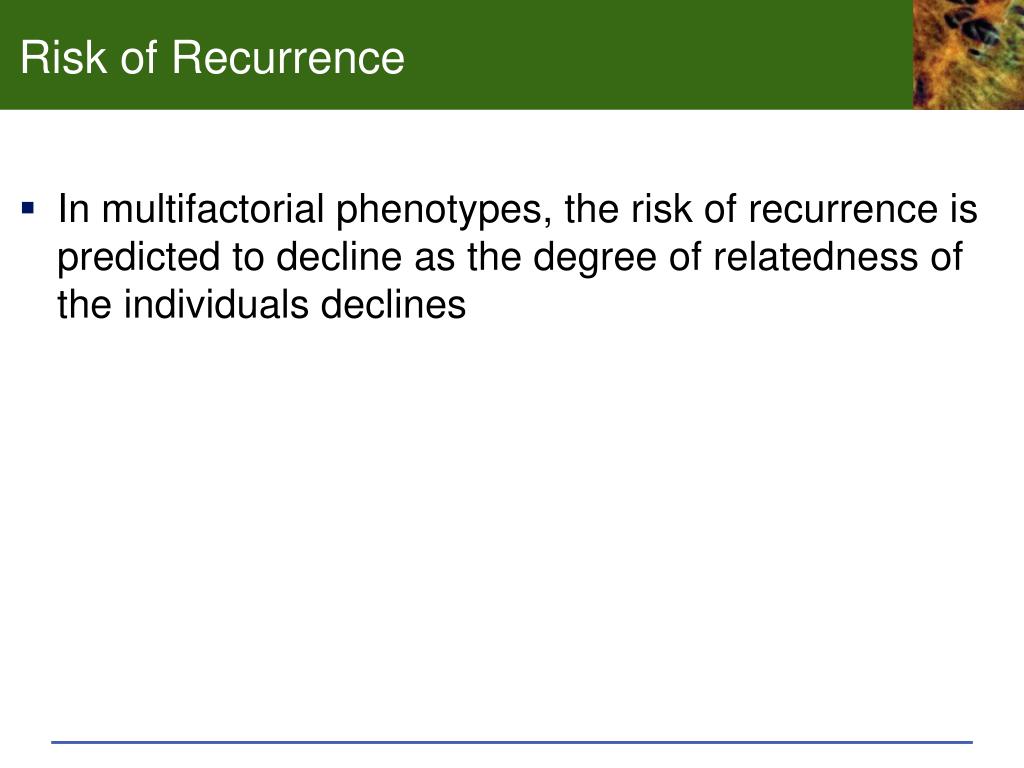

  36. Risk of Recurrence • In multifactorial phenotypes, the risk of recurrence is predicted to decline as the degree of relatedness of the individuals declines

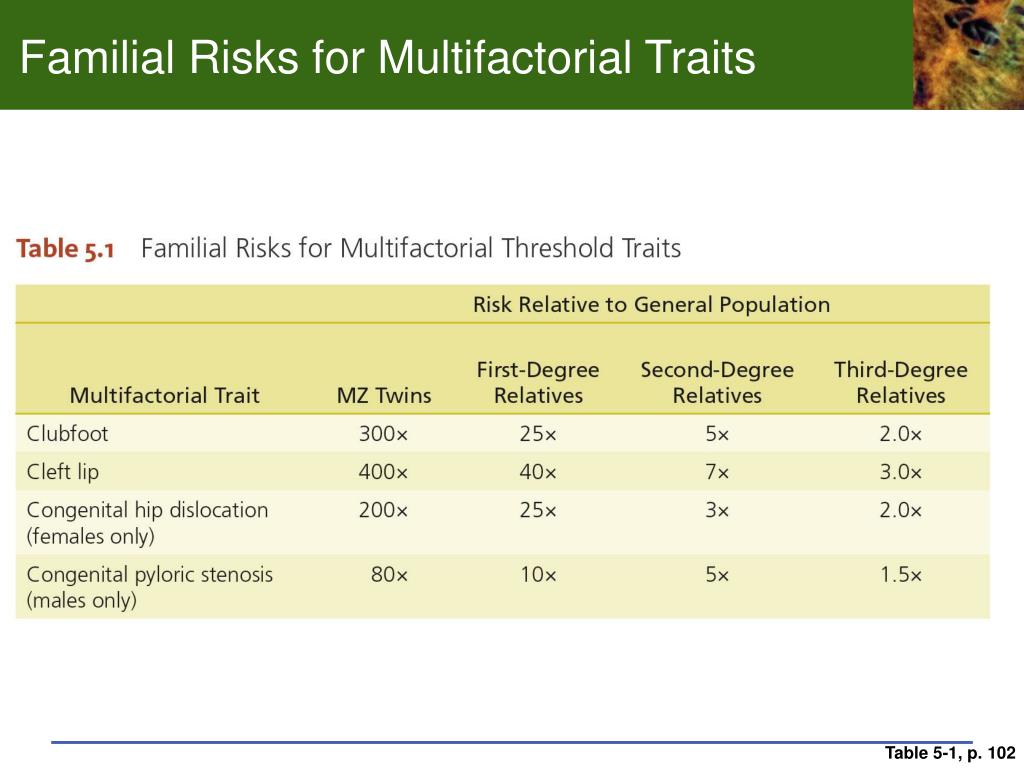

  37. Familial Risks for Multifactorial Traits Table 5-1, p. 102

  38. Keep In Mind • The genetic contribution to phenotypic variation can be estimated

  39. ANIMATION: Temperature effect To play movie you must be in Slide Show Mode PC Users: Please wait for content to load, then click to play Mac Users: CLICK HERE

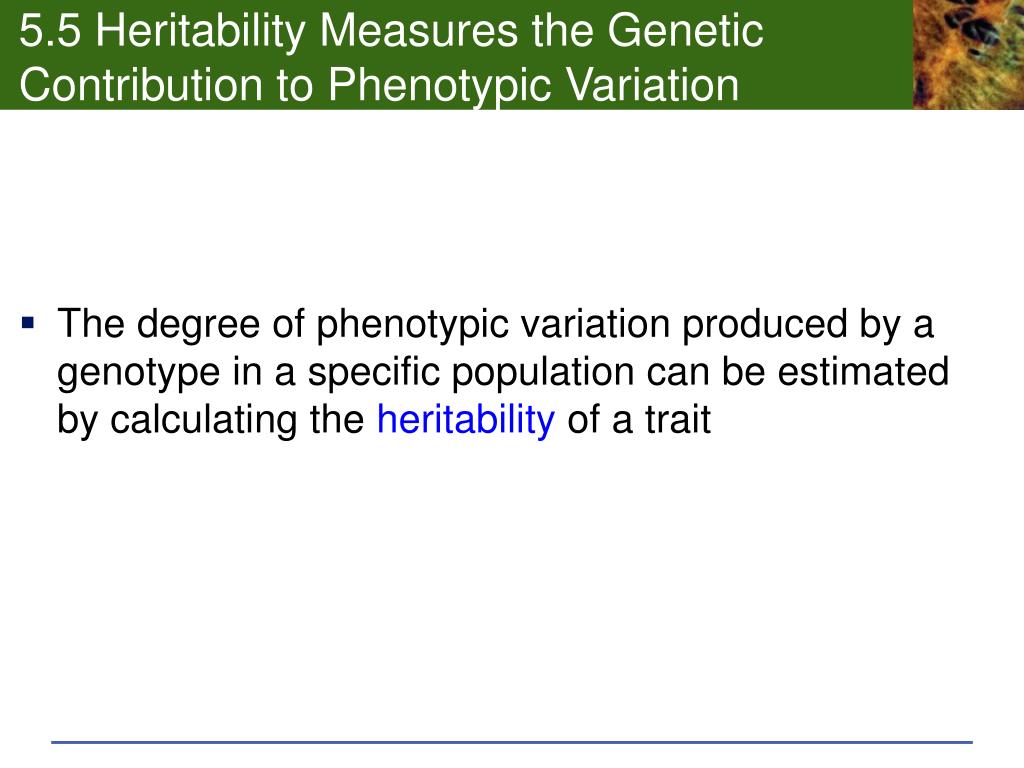

  40. 5.5 Heritability Measures the Genetic Contribution to Phenotypic Variation • The degree of phenotypic variation produced by a genotype in a specific population can be estimated by calculating the heritability of a trait

  41. 5.5 Heritability Measures the Genetic Contribution to Phenotypic Variation • Phenotypic variation is derived from two sources: • Genetic variance • The phenotypic variance of a trait in a population that is attributed to genotypic differences • Environmental variance • The phenotypic variance of a trait in a population that is attributed to differences in the environment

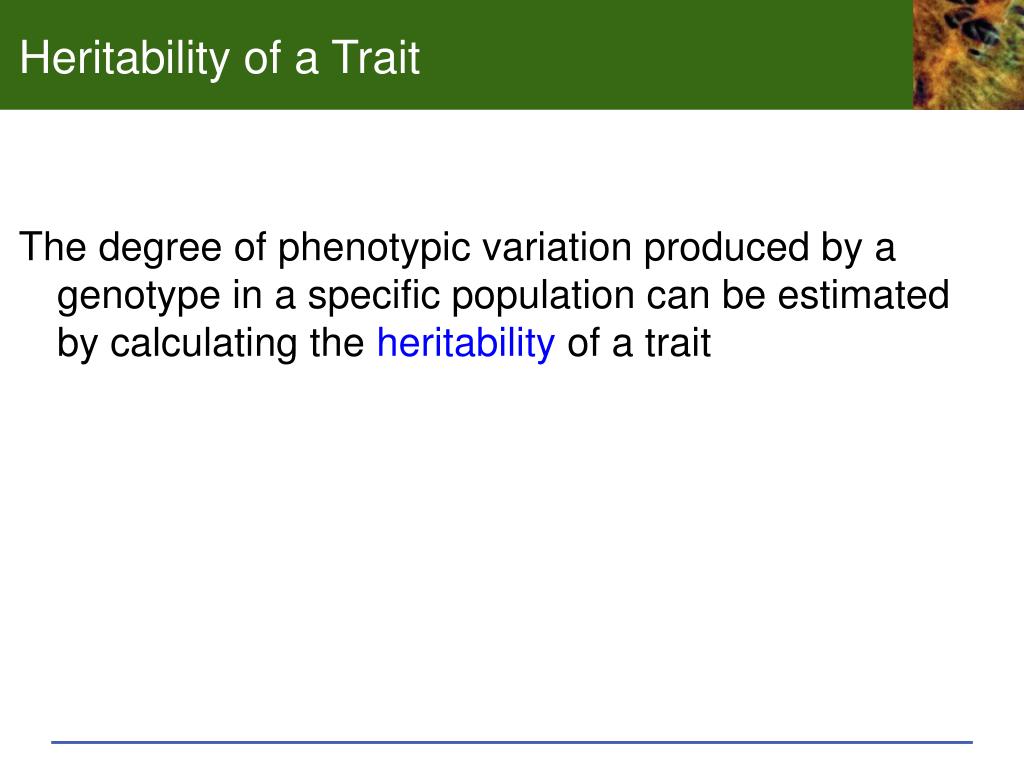

  42. Heritability of a Trait The degree of phenotypic variation produced by a genotype in a specific population can be estimated by calculating the heritability of a trait

  43. Heritability Estimates • Heritability is estimated by observing the amount of variation among relatives who have a known fraction of genes in common (known as genetic relatedness) • Heritability can be estimated only for the population under study and the environmental condition in effect at the time of the study

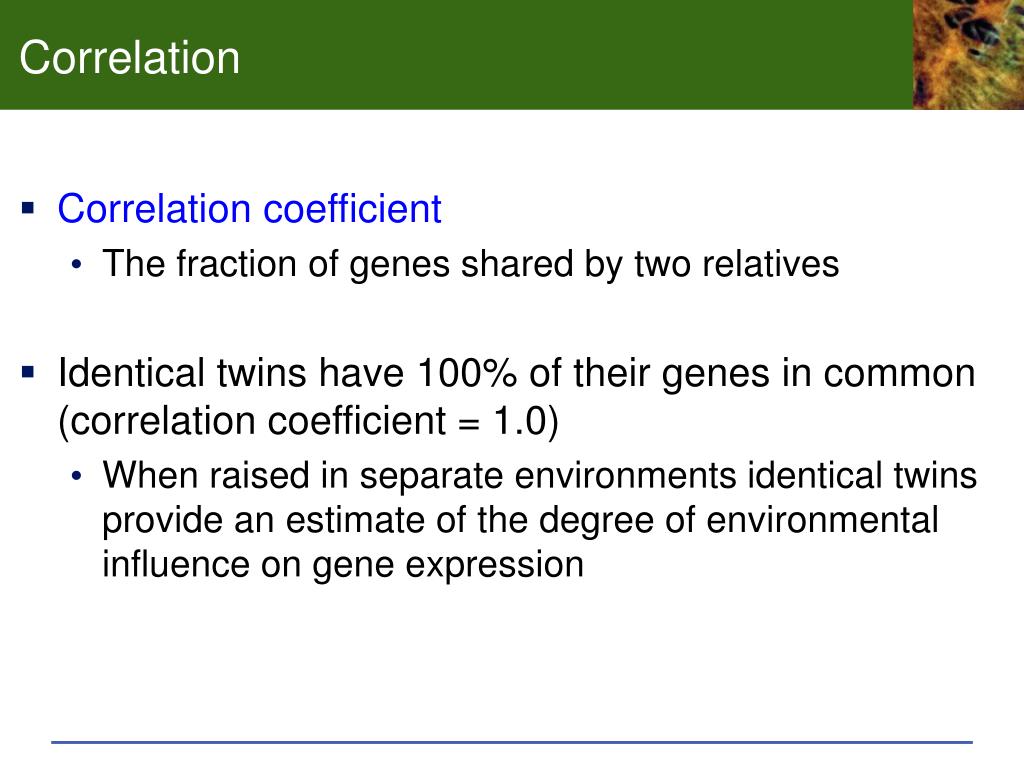

  44. Correlation • Correlation coefficient • The fraction of genes shared by two relatives • Identical twins have 100% of their genes in common (correlation coefficient = 1.0) • When raised in separate environments identical twins provide an estimate of the degree of environmental influence on gene expression

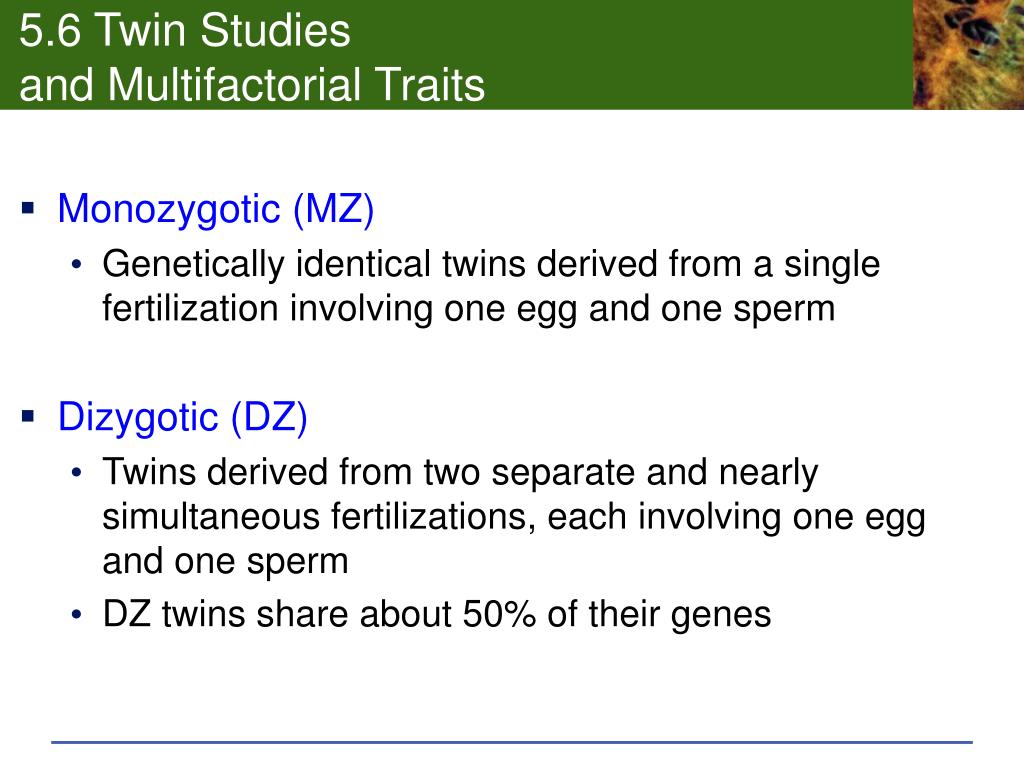

  45. 5.6 Twin Studies and Multifactorial Traits • Monozygotic (MZ) • Genetically identical twins derived from a single fertilization involving one egg and one sperm • Dizygotic (DZ) • Twins derived from two separate and nearly simultaneous fertilizations, each involving one egg and one sperm • DZ twins share about 50% of their genes

  46. Monozygotic (identical) Twins Share a Single Genotype Fig. 5-10, p. 104

  47. Monozygotic and Dizygotic Twins

  48. Monozygotic (MZ) twins Single fertilization event Mitosis Two genetically identical embryos (a) Fig. 5-11a, p. 105

  49. Dizygotic (DZ) twins Two independent fertilization events Mitosis Two embryos sharing about half their genes (b) Fig. 5-11b, p. 105

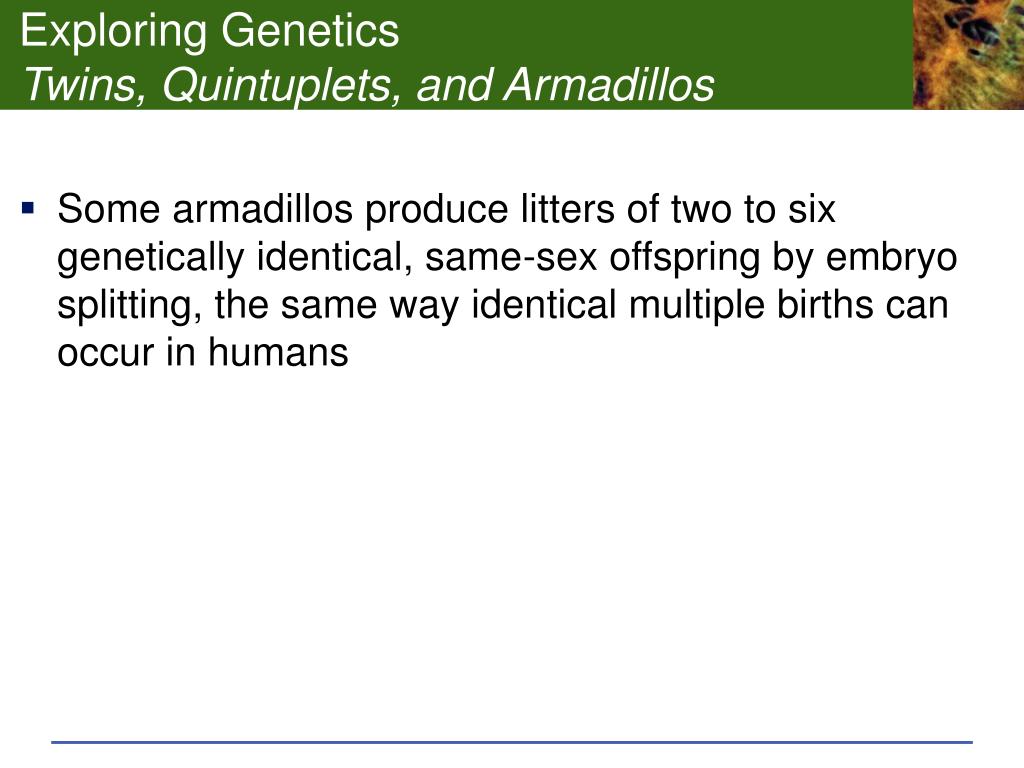

  50. Exploring Genetics Twins, Quintuplets, and Armadillos • Some armadillos produce litters of two to six genetically identical, same-sex offspring by embryo splitting, the same way identical multiple births can occur in humans
