Glomerulonephritis - PowerPoint PPT Presentation

  • Uploaded on
  • Presentation posted in: General

Glomerulonephritis. By Dr. Abdelaty Shawky Assistant professor of pathology. Glomerular diseases constitute one of the major problems in nephrology; indeed, chronic glomerulonephritis is one of the most common causes of chronic renal failure in humans.

I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.

Download Presentation


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.

- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript




Dr. Abdelaty Shawky

Assistant professor of pathology


  • Glomerular diseases constitute one of the major problems in nephrology; indeed, chronic glomerulonephritis is one of the most common causes of chronic renal failure in humans.

Classification of glomerular diseases

* Classification of glomerular diseases:

I. Primary G.N (the disease affects kidney only):

  • Minimal change glomerular disease (Lipoid nephrosis).

  • Acute diffuse proliferative G.N:

    • Post-streptococcal G.N.

    • Non-post-streptococcal GN.

  • Rapidly progressive G.N.

  • MembraneousG.N.

  • MembranoproliferativeG.N.

  • Chronic G.N.


II. Secondary G.N (the disease affects kidney and other organs):

  • Systemic lupus erythematosus (SLE).

  • Polyarteritisnodosa (PAN).

  • Wegener granulomatosis.

  • Diabetes mellitus (diabeteic nephropathy).

  • Goodpasture syndrome.

  • Amyloidosis.

Normal glomerulus

Normal Glomerulus


  • Most of the 1ry glomerular disease are due to immunologic mechanisms.

  • To study any glomerular disease, a renal biopsy is taken and examined by 3 types of microscopes:

    1. Light microscope: to examine the structure of glomeruli, tubules and interstitium.

    2. IF (immune flourescentmicroscope): to detect the type of deposited immunoglobulin in the glomeruli.

    3. EM (electron microscope): to detect the site of immune complex, either sub-epithelial, sub-endothelial, mesangial or basement membrane..

Minimal change glomerular disease

Minimal change glomerular disease

Etiology pathogenesis

*Etiology & pathogenesis:

  • Chemical change in the glomerular basement membrane causing protein loss.


* Grossly:

  • Mild bilateral kidney enlargement.

    * LM (Light microscope):

  • No abnormalities.

    * IF (Immunoflurescence):

  • No immune deposits.

    * EM (Electron microscope):

  • Fusion of the foot processes of the epithelial cells (podocytes).

Em of normal glomerulus

EM of normal glomerulus

Em of minimal change glom disease

EM of minimal change glom. disease


* CP (Clinical picture):

  • Affect children and young adults.

  • Cause nephrotic syndrome.

    * Fate:

  • The disease has excellent prognosis and most patients respond to corticosteroids with complete resolution of proteinuria.

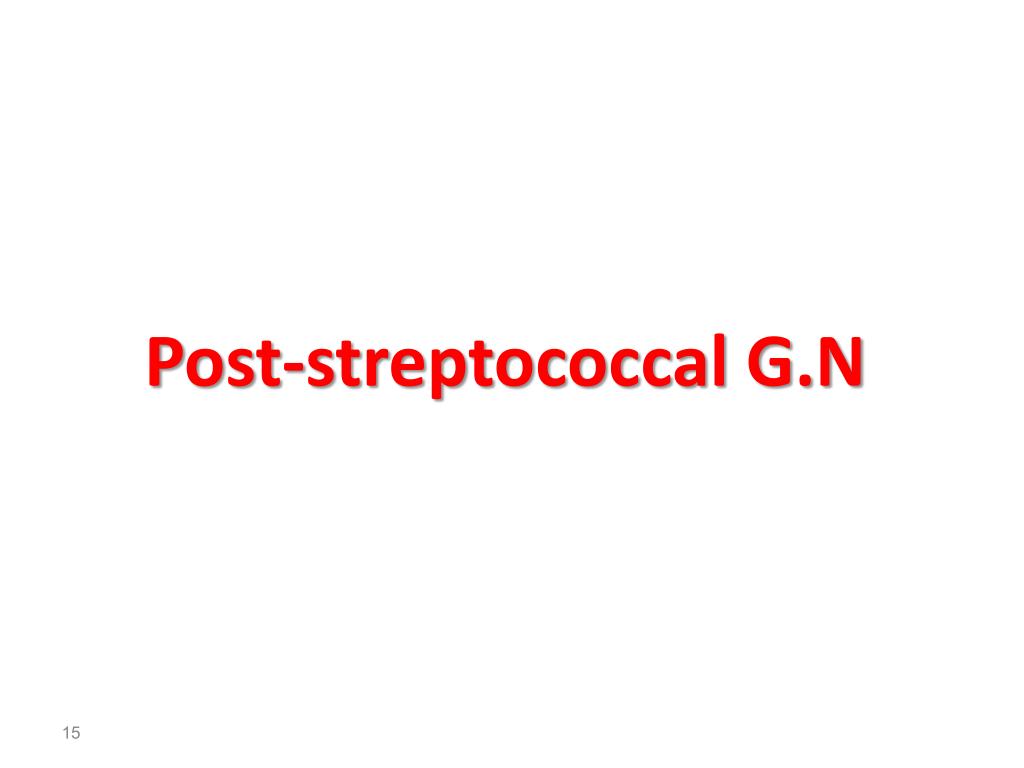

Post streptococcal g n

Post-streptococcal G.N

Etiology pathogenesis1

*Etiology & pathogenesis:

  • Immune complex reaction; (nephrotegenic strains of group A beta haemolytic streptococci + Ig G), the complex is deposited in the glomeruli with subsequent complement activation  acute inflammation.


* Grossly:

  • Mild bilateral kidney enlargement with petechial hemorrhages.

Lm light microscope

* LM (Light microscope):

a. Glomeruli:

  • Proliferation of endothelial and mesangial cells.

  • Glomerular capillaries contain neutrophils.

  • Bowman’s space shows: neutrophils, RBCs, some albumin.

    b. Tubules:

  • The lining cells are swollen.

  • The lumens show casts (RBCs casts, neutrophil casts & hyaline casts).

    c. Interstitium:

  • Acute inflammatory reaction…...

Normal kidney

Normal kidney

Normal kidney1

Normal kidney

Post streptococcal gn

Post-streptococcal GN

Post streptococcal gn1

Post-streptococcal GN


* IF (Immunoflurescence):

  • Deposition of IgG and C3.

Positive ig g and c3

Positive Ig G and C3


* EM (Electron microscope):

  • Subepithelial immune complex deposit (humps).

Cp clinical picture

* CP (Clinical picture):

  • A young child presents with oliguria, hematuria (cocoa-colored urine) and peri-orbital edema about 2 weeks after recovery from a sore throat.

Rbcs cast

Hematuria (coca cola colored urine)

RBCs cast


  • More than 95% of the affected children eventually recover totally with treatment.

  • A small minority of children (perhaps less than 1%) do not improve, become severely oliguric, and develop a rapidly progressive glomerulonephritis.

  • Some of the remaining patients may undergo slow progression to chronic glomerulonephritis.

Nephritic syndrome

Nephritic syndrome

- A syndrome formed of:

1. Haematuria.

2. Oliguria.

3. Peri-orbital oedema.

4. Hypertension.

- The most common cause of nephritic syndrome in children is post-streptococcal GN.

Nephrotic syndrome

Nephrotic syndrome

- A syndrome formed of:

1. Hypoproteinaemia.

2. Proteinuria .

3. Oedema.

4. Hypercholesterolaemia.

  • The most common cause of nephrotic syndrome in children is minimal change glomerular disease.

  • The most common cause of nephrotic syndrome in adults is membranous GN.




Robbins and Cotran’s: Pathologic Basis of Disease. Seventh edition.
