Lecture on Data Link Control

  • Goal : Conversion of a virtual bit pipe into an error free link.

  • Functions

    • Error Detection

    • Automatic Repeat Request (ARQ)

    • Framing

  • Sending DLC receives packets from Network layer.

  • Receiving DLC delivers packets to Network Layer.

  • Packet ordering is checked at the receiving DLC.

  • Sending DLC must add additional bits to the beginning and end of each packet.

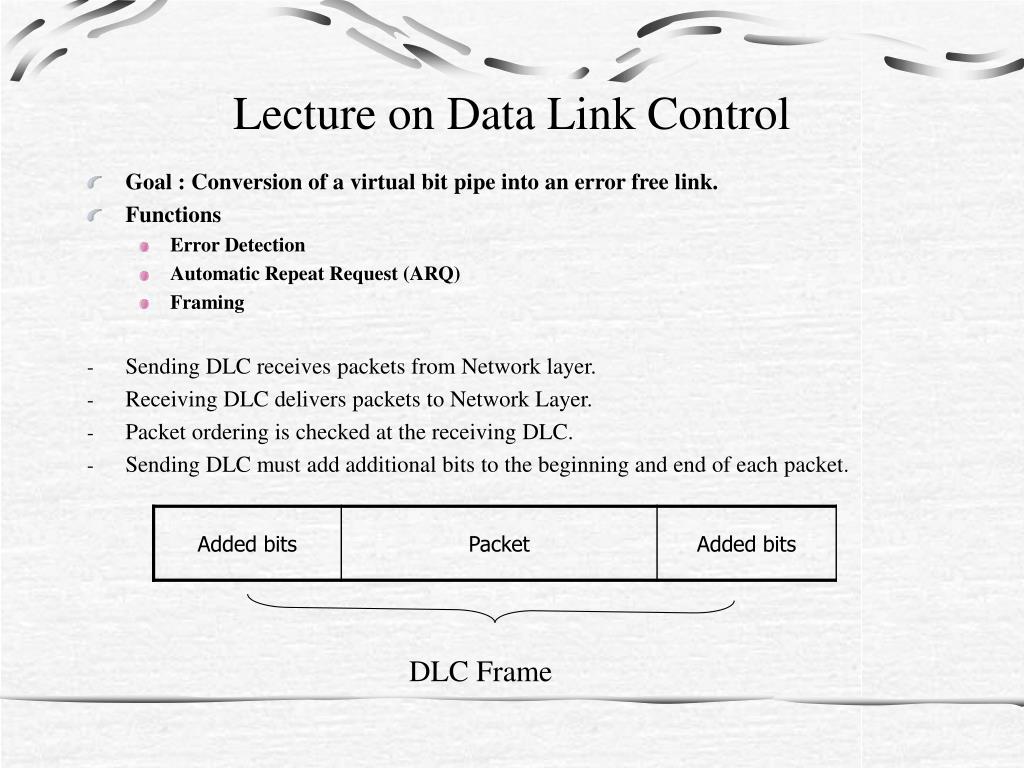

    DLC Frame


Error detection

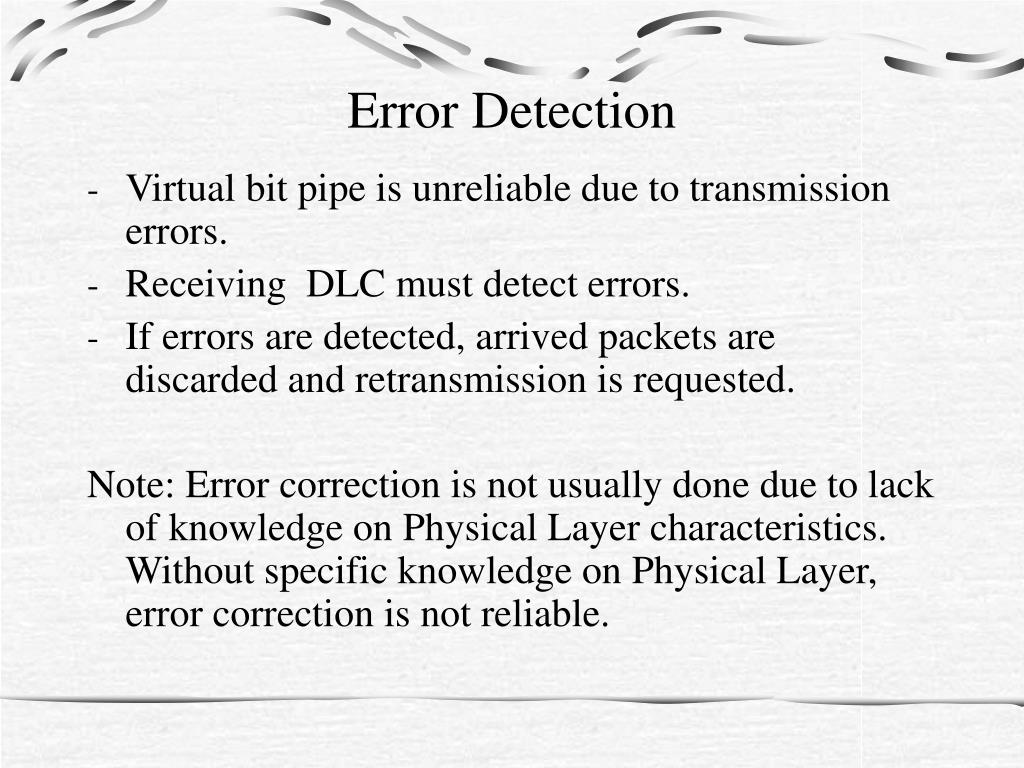

Error Detection

  • Virtual bit pipe is unreliable due to transmission errors.

  • Receiving DLC must detect errors.

  • If errors are detected, arrived packets are discarded and retransmission is requested.

    Note: Error correction is not usually done due to lack of knowledge on Physical Layer characteristics. Without specific knowledge on Physical Layer, error correction is not reliable.


Error detection method single parity check

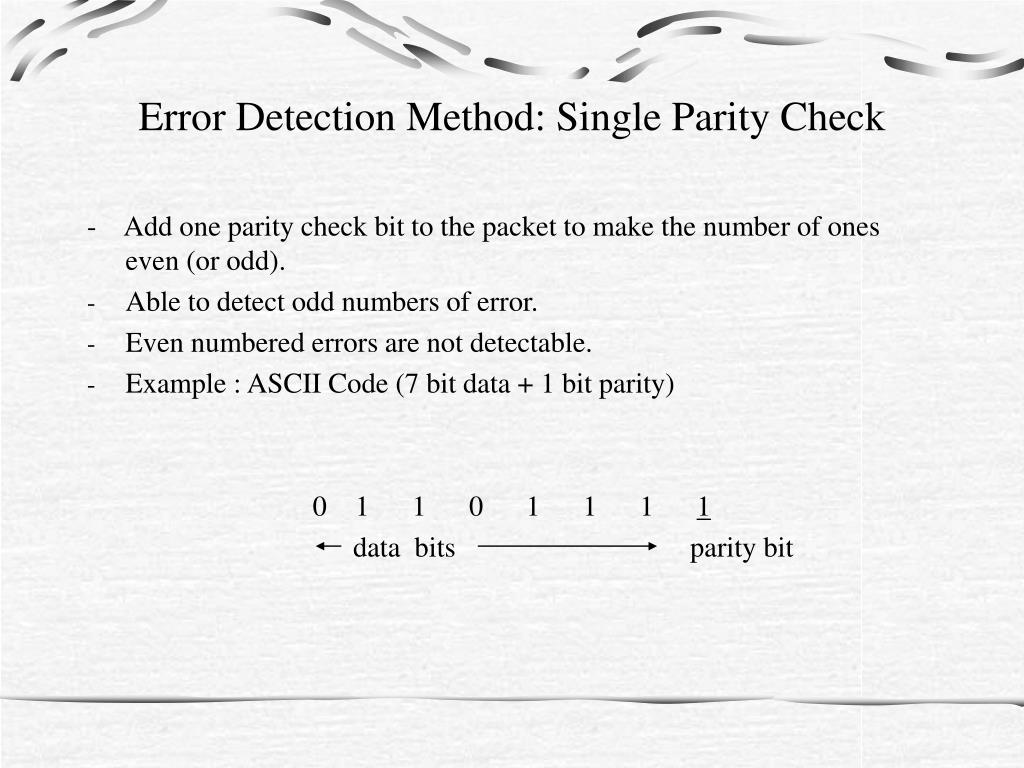

Error Detection Method: Single Parity Check

- Add one parity check bit to the packet to make the number of ones even (or odd).

  • Able to detect odd numbers of error.

  • Even numbered errors are not detectable.

  • Example : ASCII Code (7 bit data + 1 bit parity)

    0 1 1 0 1 1 1 1

    data bits parity bit


Error detection method horizontal and vertical parity check

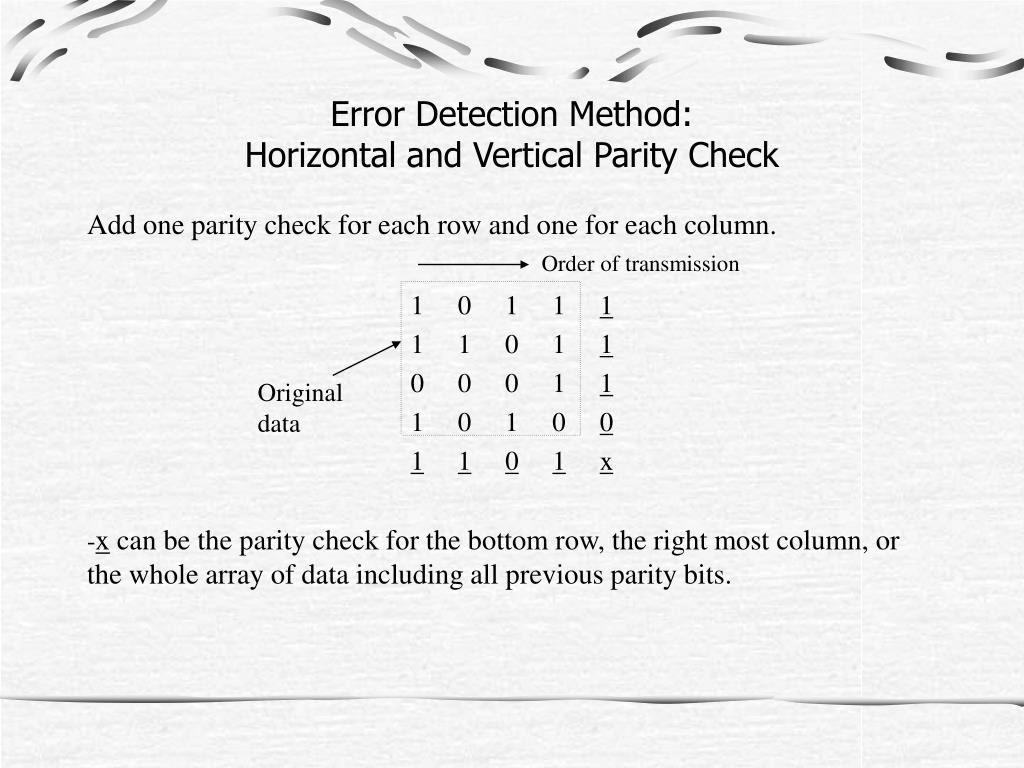

Error Detection Method: Horizontal and Vertical Parity Check

Add one parity check for each row and one for each column.

1 0 1 1 1

1 1 0 1 1

0 0 0 1 1

1 0 1 0 0

1101x

  • x can be the parity check for the bottom row, the right most column, or the whole array of data including all previous parity bits.

Order of transmission

Original

data


Lecture on data link control

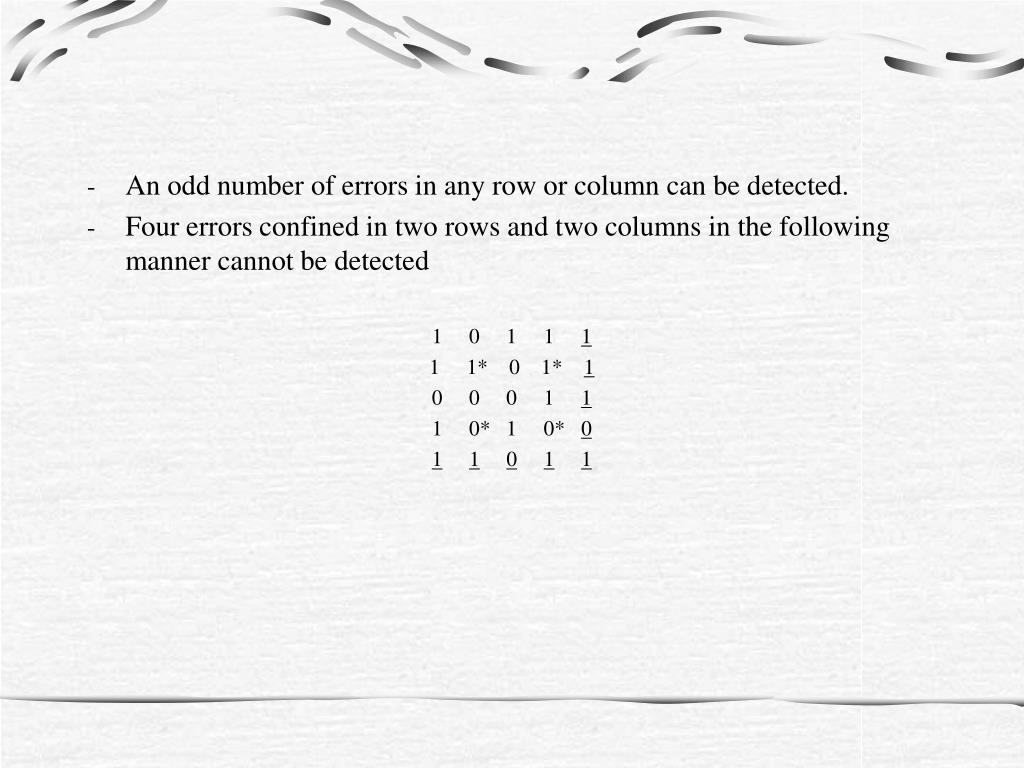

  • An odd number of errors in any row or column can be detected.

  • Four errors confined in two rows and two columns in the following manner cannot be detected

    1 0 1 1 1

    1 1* 0 1* 1

    0 0 0 1 1

    1 0* 1 0* 0

    11011


Error detection method coding

Error detection method : Coding

  • Given the information bits S(0) S(1)…S(K-1), generate parity bits C(0) C(1)…C(L-1) with each C(i) depending on some information bits.

  • Transmit X(0) X(1)…X(K+L-1) where

    X(0)=C(0)

    X(1)=C(1)

    …………

    X(L-1)=C(L-1)

    X(L)=S(0)

    X(L+1)=S(1)

    ………..

    X(K+L-1)=S(K-1)

    Information bitsTransmitted bits

    S(0) S(1)…S(K-1) | X(0) X(1)…X(K+L-1)

    0 1 … 1 0 0 ... 1

    …………… …………….

    ………….. …………….

Each correctly generated X(0) X(1)…X(K+L-1) is

called a codeword. There are 2K code words in the

code book. However, there are 2K+L random bit patterns

of length K+L that can potentially be received.

2K information

patterns

2K code words


Automatic repeat request arq

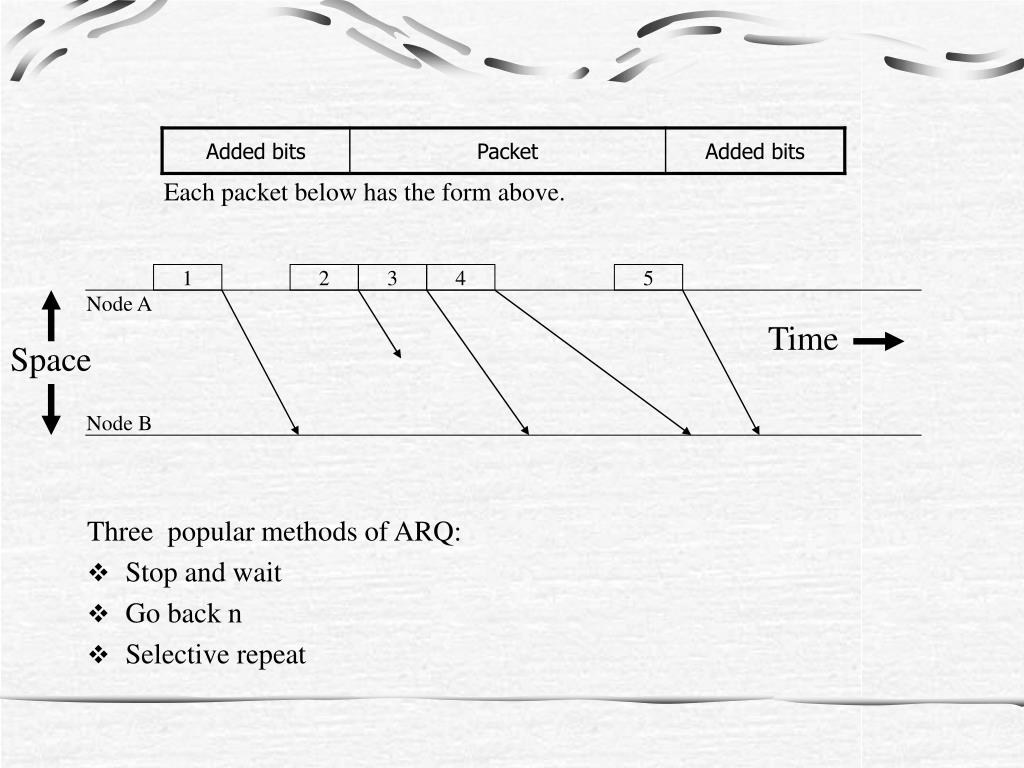

Automatic Repeat Request (ARQ)

  • After an error is detected, the receiving DLC requests the sending DLC to retransmit.

  • Assumptions

    • Framing is done properly

    • There exist a non zero probability that transmission is a success over the link.

    • FIFO on the communication link

    • All errors are properly detected.


Lecture on data link control

Each packet below has the form above.

Three popular methods of ARQ:

  • Stop and wait

  • Go back n

  • Selective repeat

1

2

3

4

5

Node A

Time

Space

Node B


Stop and wait arq

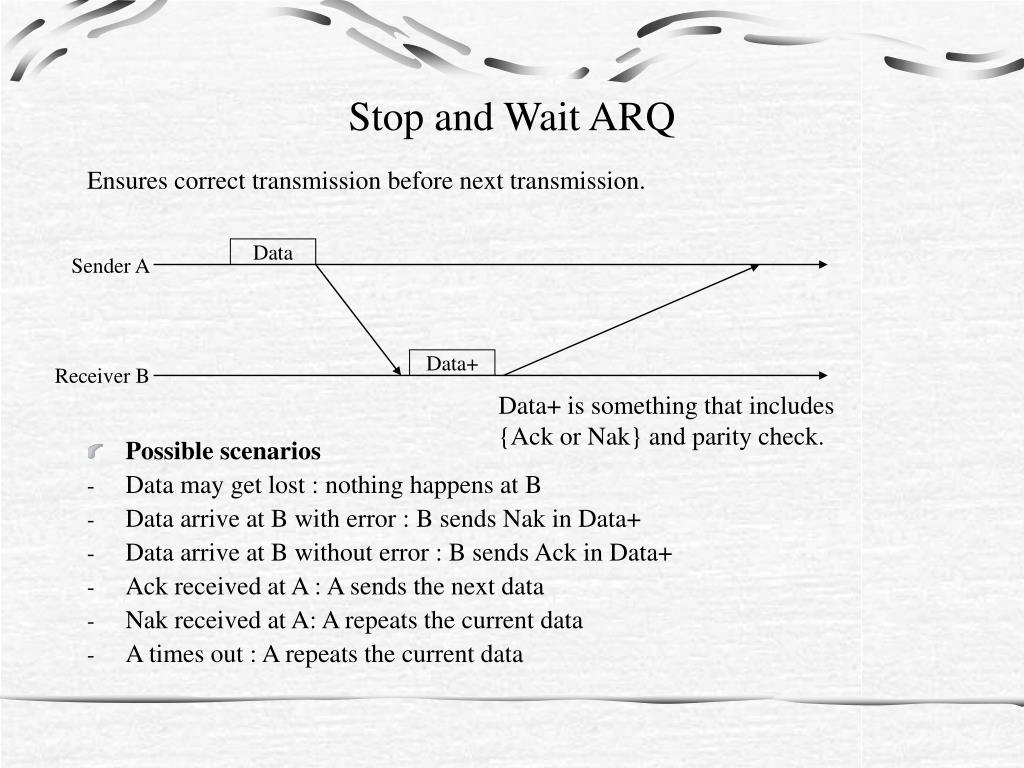

Stop and Wait ARQ

Ensures correct transmission before next transmission.

  • Possible scenarios

  • Data may get lost : nothing happens at B

  • Data arrive at B with error : B sends Nak in Data+

  • Data arrive at B without error : B sends Ack in Data+

  • Ack received at A : A sends the next data

  • Nak received at A: A repeats the current data

  • A times out : A repeats the current data

Data

Sender A

Data+

Receiver B

Data+ is something that includes

{Ack or Nak} and parity check.


Examples of trouble scenario

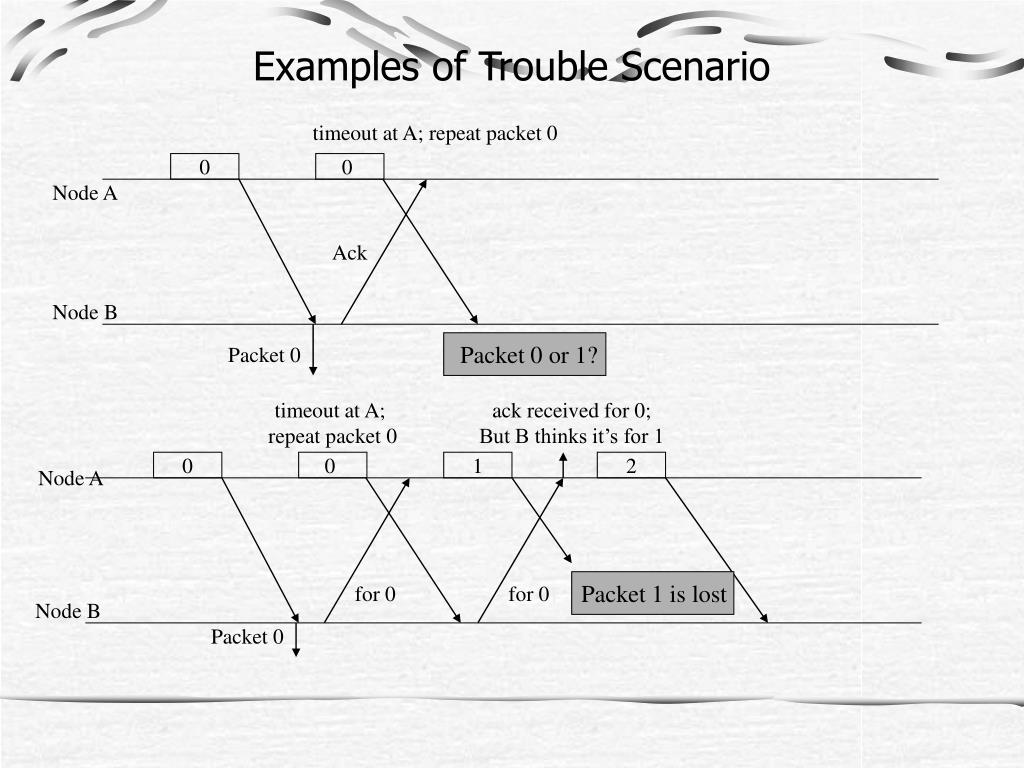

Examples of Trouble Scenario

timeout at A; repeat packet 0

0

0

Node A

Ack

Node B

Packet 0

Packet 0 or 1?

timeout at A;

repeat packet 0

ack received for 0;

But B thinks it’s for 1

0

0

1

2

Node A

for 0

for 0

Packet 1 is lost

Node B

Packet 0


Lecture on data link control

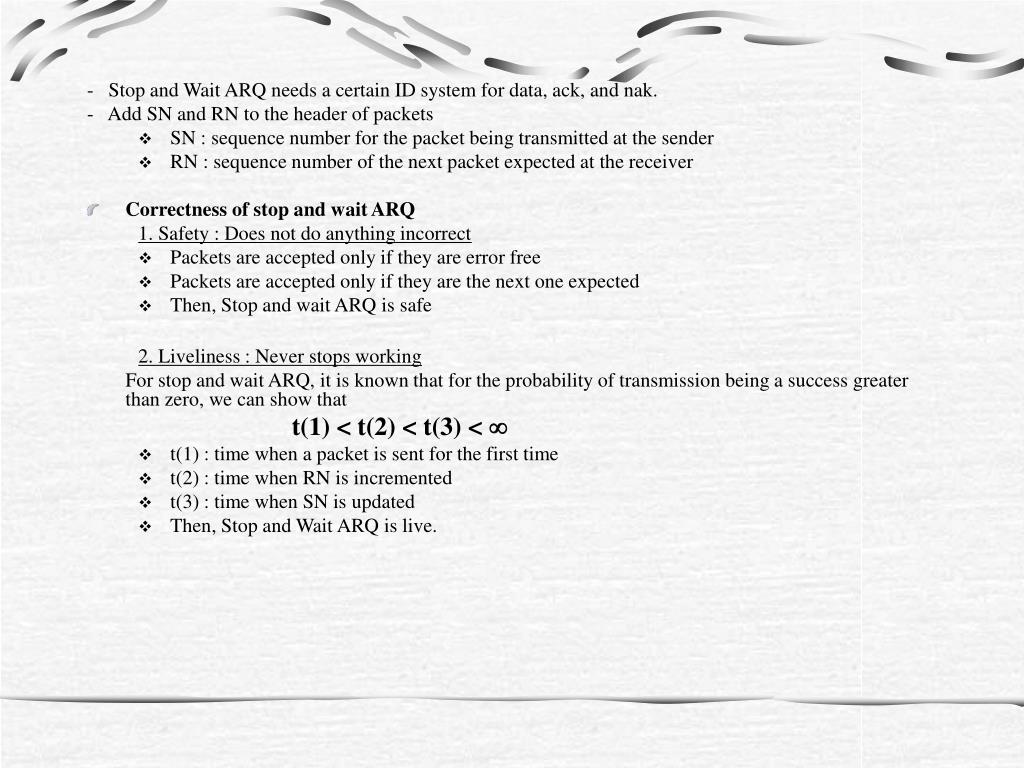

- Stop and Wait ARQ needs a certain ID system for data, ack, and nak.

- Add SN and RN to the header of packets

  • SN : sequence number for the packet being transmitted at the sender

  • RN : sequence number of the next packet expected at the receiver

  • Correctness of stop and wait ARQ

    1. Safety : Does not do anything incorrect

    • Packets are accepted only if they are error free

    • Packets are accepted only if they are the next one expected

    • Then, Stop and wait ARQ is safe

      2. Liveliness : Never stops working

      For stop and wait ARQ, it is known that for the probability of transmission being a success greater than zero, we can show that

      t(1) < t(2) < t(3) < 

    • t(1) : time when a packet is sent for the first time

    • t(2) : time when RN is incremented

    • t(3) : time when SN is updated

    • Then, Stop and Wait ARQ is live.


  • Go back n arq

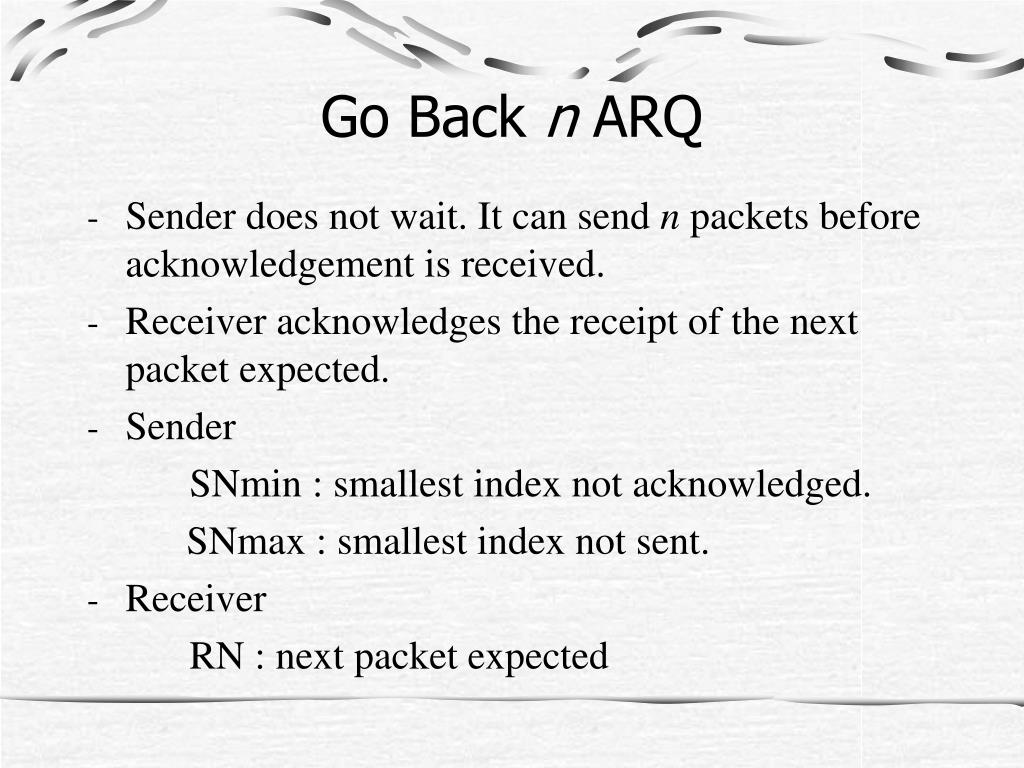

    Go Back n ARQ

    • Sender does not wait. It can send n packets before acknowledgement is received.

    • Receiver acknowledges the receipt of the next packet expected.

    • Sender

      SNmin : smallest index not acknowledged.

      SNmax : smallest index not sent.

    • Receiver

      RN : next packet expected


    Lecture on data link control

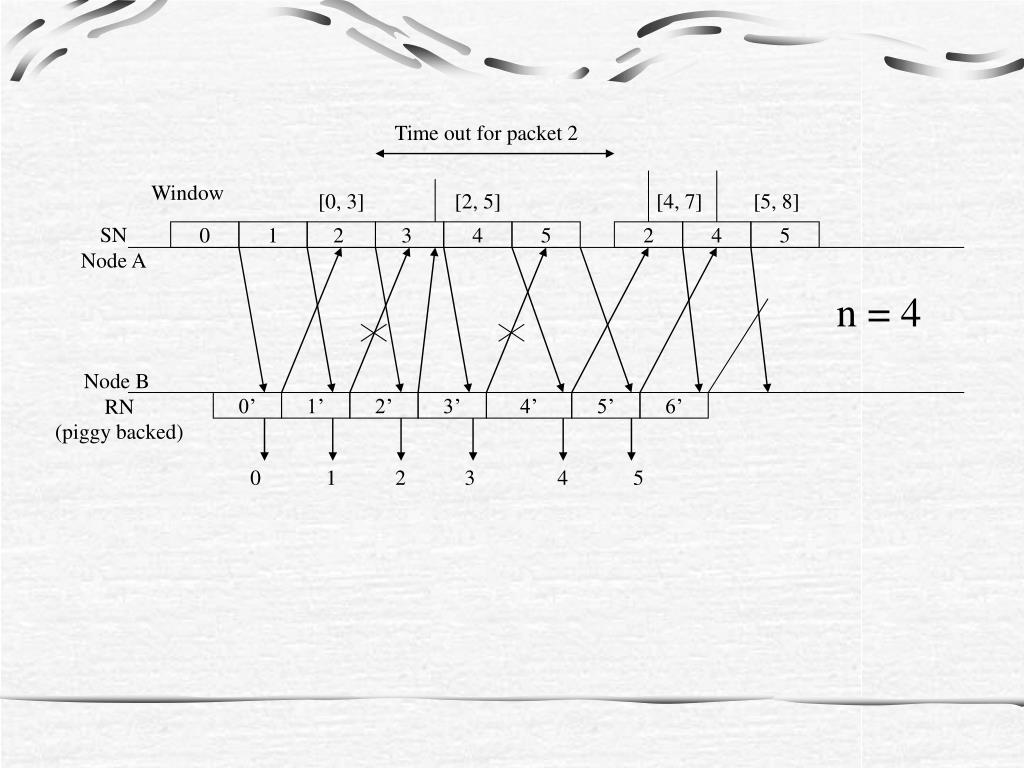

    0 1 2 3 4 5

    Time out for packet 2

    Window

    [0, 3]

    [2, 5]

    [4, 7]

    [5, 8]

    0

    1

    2

    3

    4

    5

    2

    4

    5

    SN

    Node A

    n = 4

    Node B

    RN

    0’

    1’

    2’

    3’

    4’

    5’

    6’

    (piggy backed)


    Selective repeat arq

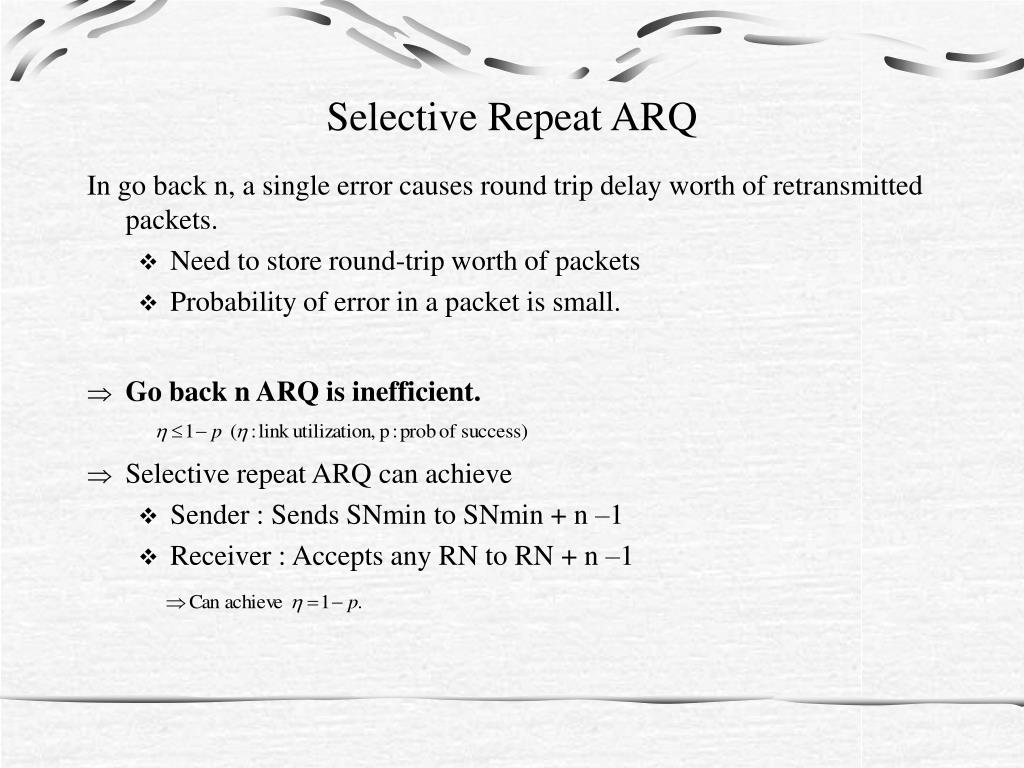

    Selective Repeat ARQ

    In go back n, a single error causes round trip delay worth of retransmitted packets.

    • Need to store round-trip worth of packets

    • Probability of error in a packet is small.

  • Go back n ARQ is inefficient.

  • Selective repeat ARQ can achieve

    • Sender : Sends SNmin to SNmin + n –1

    • Receiver : Accepts any RN to RN + n –1


  • Framing

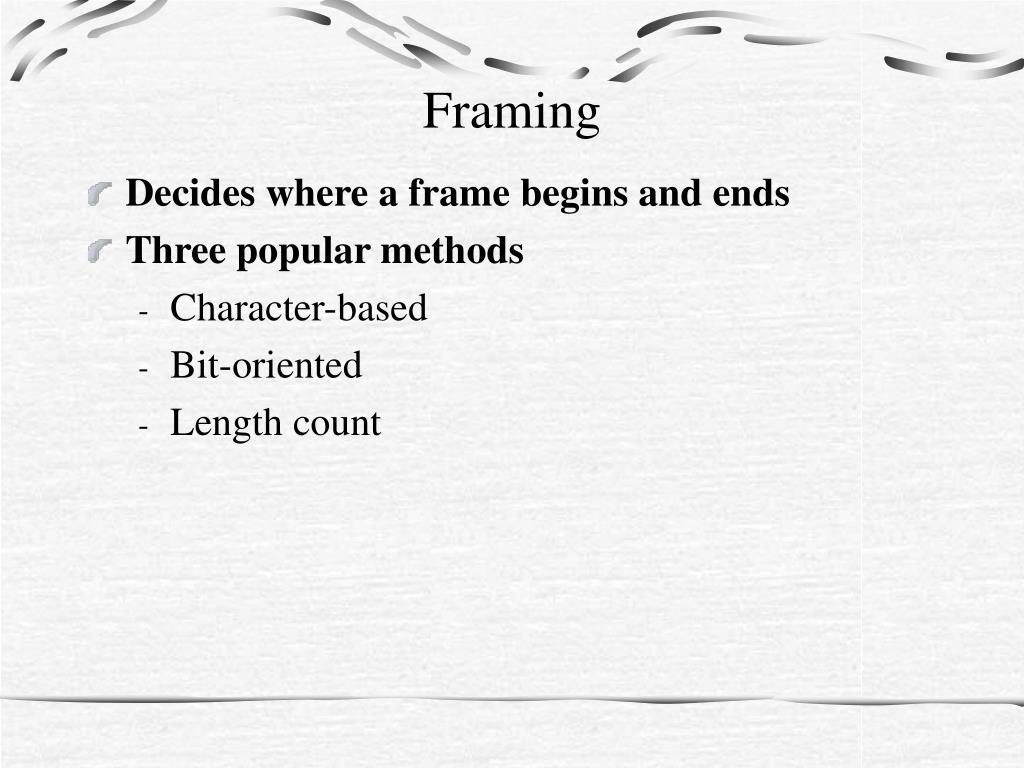

    Framing

    • Decides where a frame begins and ends

    • Three popular methods

      • Character-based

      • Bit-oriented

      • Length count


    Character based framing

    Character Based Framing

    SYN

    SYN

    DLE

    STX

    HEADER

    Packet

    DLE

    ETX

    CRC

    SYN

    SYN

    SYN

    • DLE is needed for differentiating accidental appearances of STX, ETX, and DLE itself

      • DLE STX : Start

      • * STX: binary string that happens to be the same as STX

      • DLE DLE STX : binary string that happens to be DLE STX

      • DLE DLE * : binary string that happens to be DLE *

    filler

    start

    Pay load

    EDD

    check

    filler


    Disadvantages of character based framing

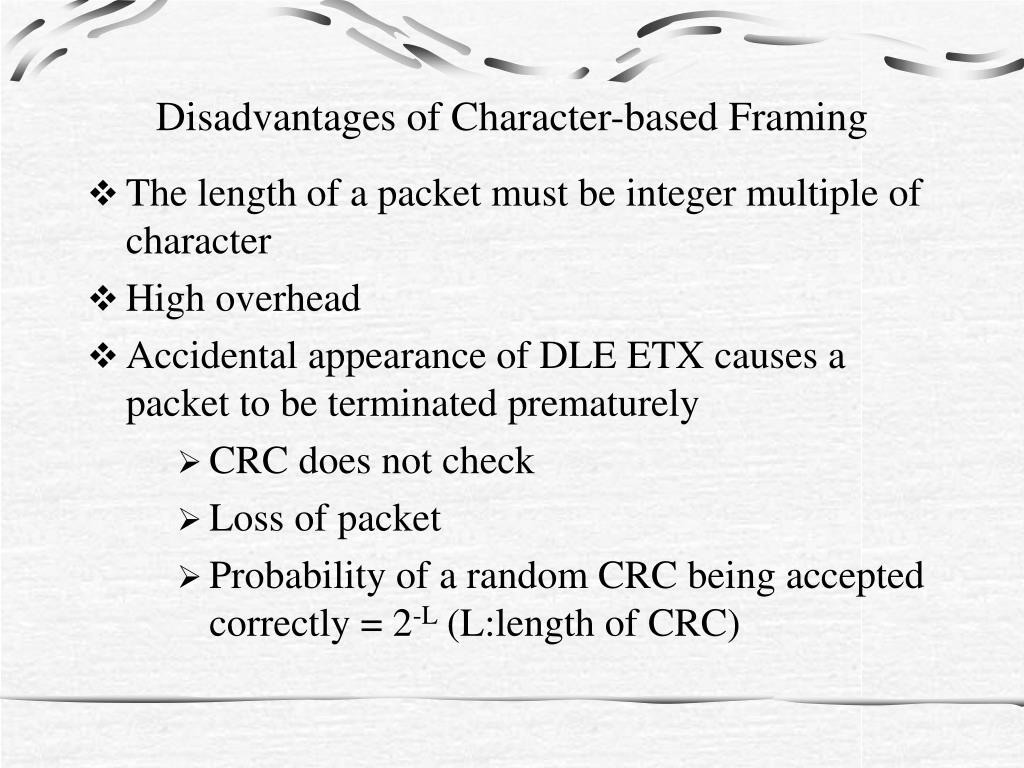

    Disadvantages of Character-based Framing

    • The length of a packet must be integer multiple of character

    • High overhead

    • Accidental appearance of DLE ETX causes a packet to be terminated prematurely

      • CRC does not check

      • Loss of packet

      • Probability of a random CRC being accepted correctly = 2-L (L:length of CRC)


    Bit oriented framing

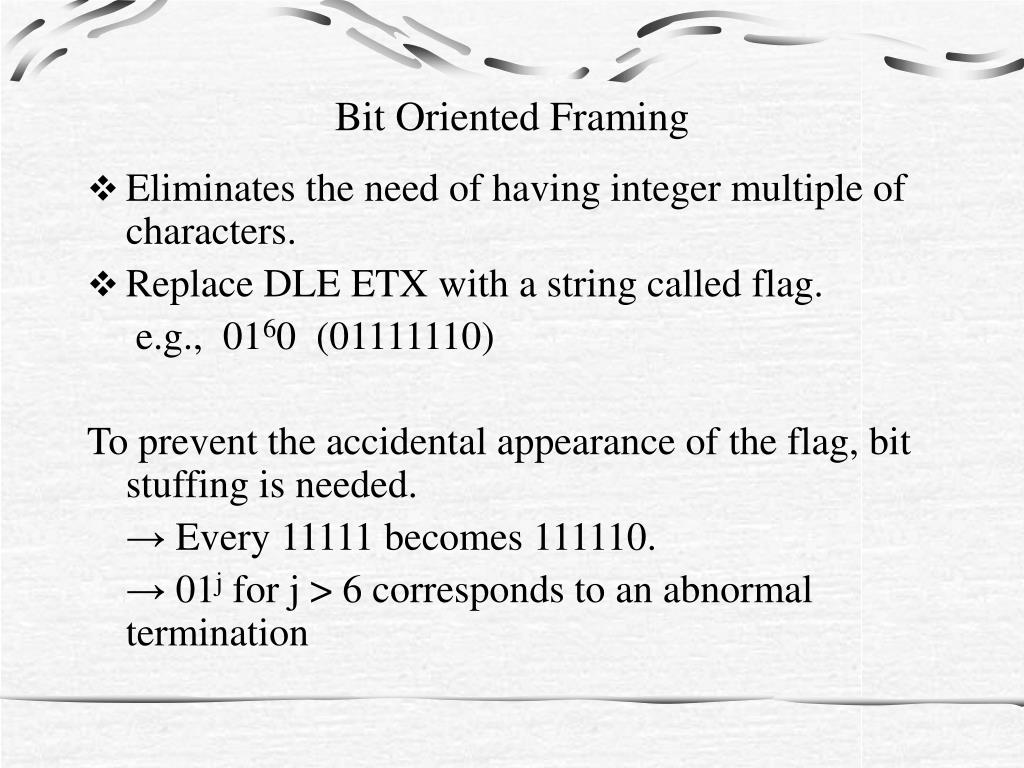

    Bit Oriented Framing

    • Eliminates the need of having integer multiple of characters.

    • Replace DLE ETX with a string called flag.

      e.g., 0160 (01111110)

      To prevent the accidental appearance of the flag, bit stuffing is needed.

      → Every 11111 becomes 111110.

      → 01j for j > 6 corresponds to an abnormal termination


    Overhead in bit oriented framing

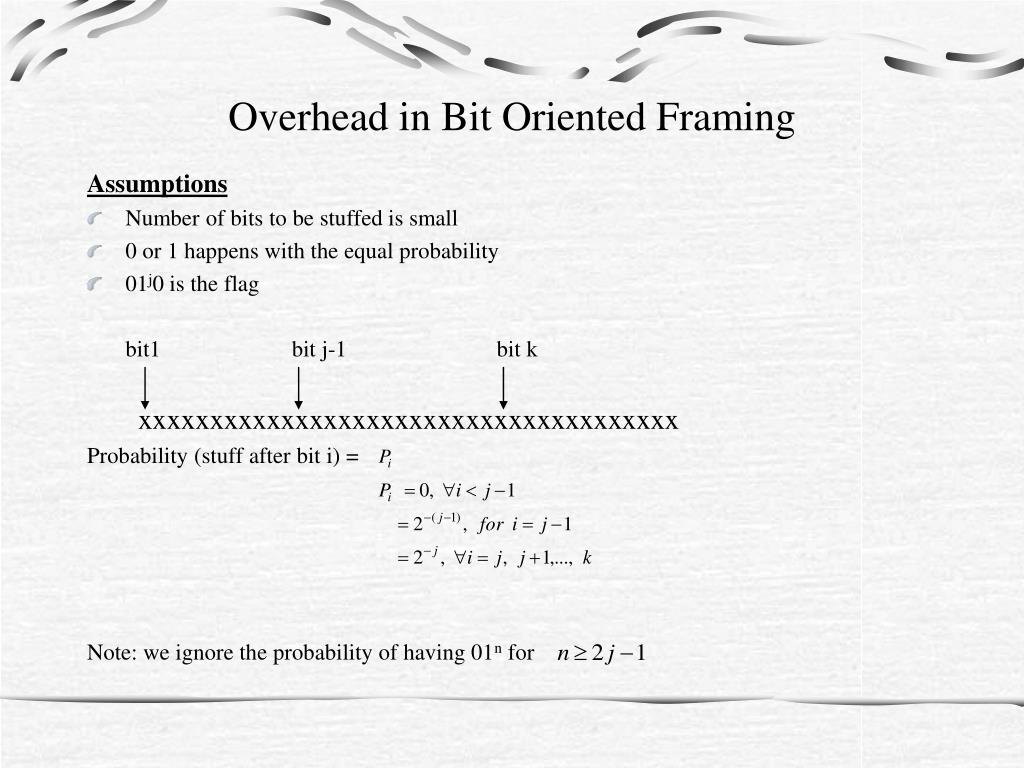

    Overhead in Bit Oriented Framing

    Assumptions

    • Number of bits to be stuffed is small

    • 0 or 1 happens with the equal probability

    • 01j0 is the flag

      bit1bit j-1bit k

      xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

      Probability (stuff after bit i) =

      Note: we ignore the probability of having 01n for


    Overhead calculation

    Overhead Calculation

    OV : Number of overhead bits

    It is possible to find minimum Ek(OV) by varying j.

    Optimal value of


    Length field framing

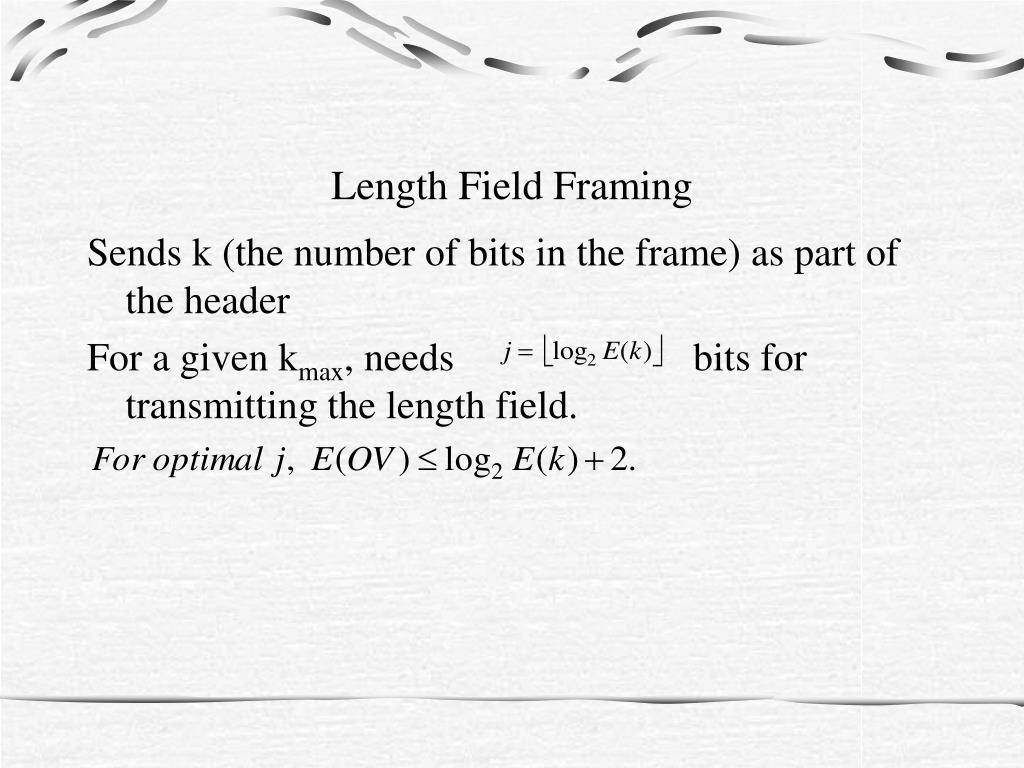

    Length Field Framing

    Sends k (the number of bits in the frame) as part of the header

    For a given kmax, needs bits for transmitting the length field.


    Minimum bits for length field

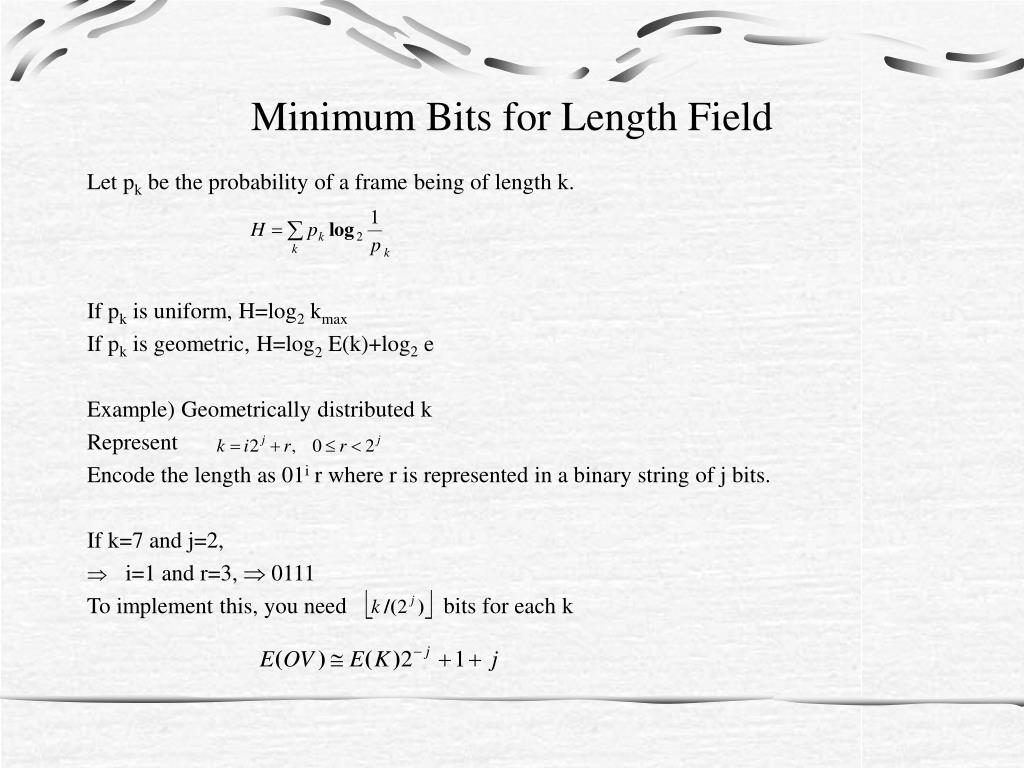

    Minimum Bits for Length Field

    Let pk be the probability of a frame being of length k.

    If pk is uniform, H=log2 kmax

    If pk is geometric, H=log2 E(k)+log2 e

    Example) Geometrically distributed k

    Represent

    Encode the length as 01i r where r is represented in a binary string of j bits.

    If k=7 and j=2,

    • i=1 and r=3,  0111

      To implement this, you need bits for each k


    Effect of maximum frame size

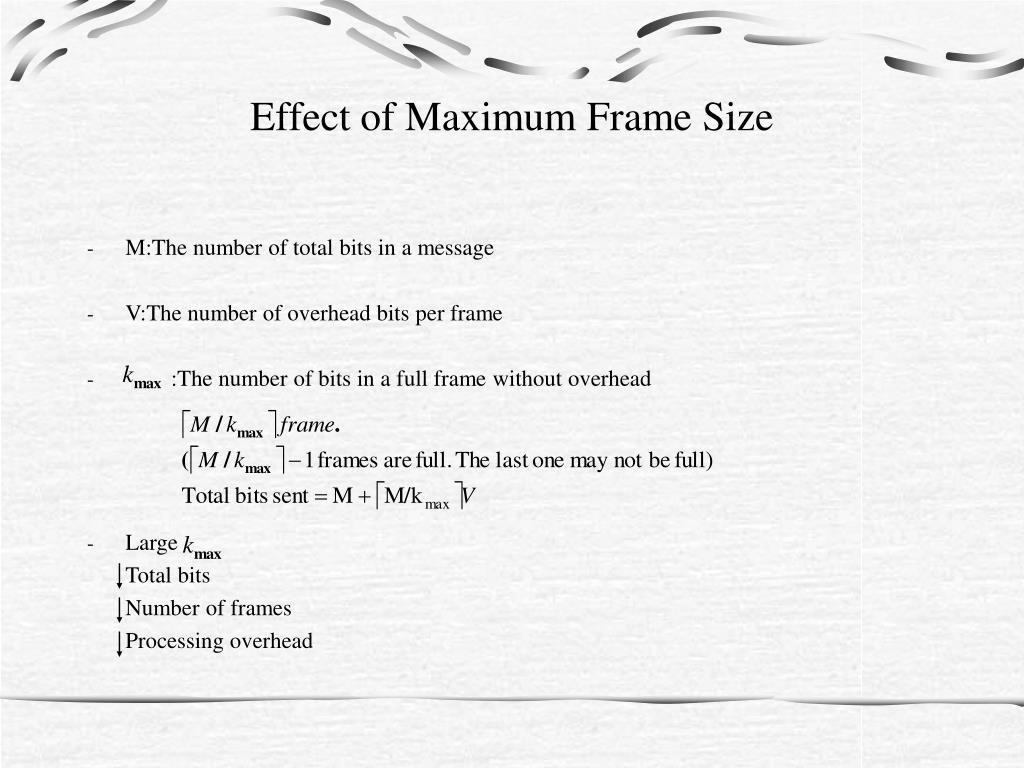

    Effect of Maximum Frame Size

    • M:The number of total bits in a message

    • V:The number of overhead bits per frame

    • :The number of bits in a full frame without overhead

    • Large

      Total bits

      Number of frames

      Processing overhead


    Lecture on data link control

    • Small kmax (assume j nodes j-1 links)

    Source

    Destination

    Packet

    transmission

    time

    Total packet

    Delay over

    both links

    Time


    Lecture on data link control

    Half-packet

    transmission

    time

    - Reduces the transmission delay by pipelining

    T: total time

    C: bits/second capacity on each link

    Total delay for the

    two half packets

    over both links

    Time


    Stream type traffic voice

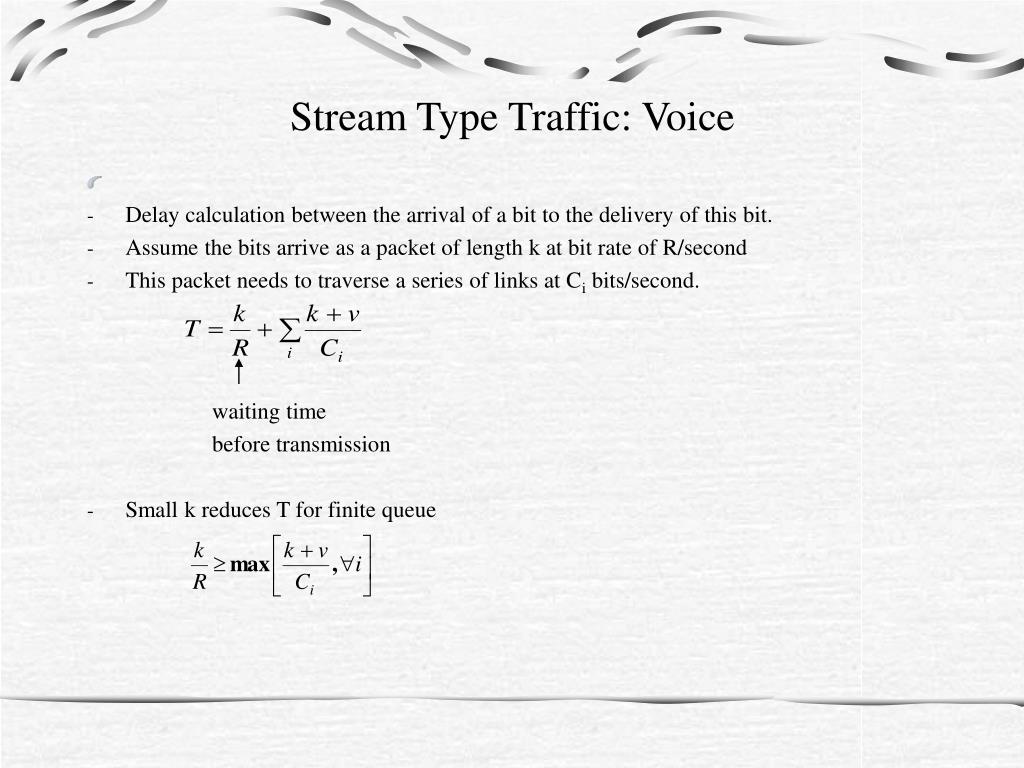

    Stream Type Traffic: Voice

    • Delay calculation between the arrival of a bit to the delivery of this bit.

    • Assume the bits arrive as a packet of length k at bit rate of R/second

    • This packet needs to traverse a series of links at Ci bits/second.

      waiting time

      before transmission

    • Small k reduces T for finite queue
