Aerobic respiration

Aerobic respiration. <click to start>. reacts with…. which is oxidised…. to produce…. 2 molecules of…. producing…. and…. to make…. This is called…. glycolysis. and it happens in the…. cytoplasm. What must react with glucose to start the process off?

denim
Download Presentation

Aerobic respiration

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Aerobic respiration <click to start>

  2. reacts with… which is oxidised… to produce… 2 molecules of… producing… and… to make… This is called… glycolysis and it happens in the… cytoplasm

  3. What must react with glucose to start the process off? • How many carbons does glucose have? • How many molecules of 3C sugar are made from glucose? • Is the 3C sugar oxidised or reduced to produce pyruvic acid? • What accepts the hydrogens and electrons from the 3C sugar? • How many molecules of ATP are produced per glucose? • Where does glycolysis take place? ATP 6 2 oxidised NAD 4 (but 2 are used to get it started = 2) cytoplasm

  4. reacts with… diffuses into the … mitochondria and then… producing… and… to make… This is called… the link reaction

  5. Where does the link reaction take place? • What reacts with pyruvate at the start of this stage? • How many carbons does the product of this reaction have? • How can you tell that this is an oxidation? • What inorganic carbon compound is produced by the reaction? • How many molecules of ATP are produced per pyruvic acid? In the mitochondrial matrix Coenzyme A 2 Reduced NAD is produced Carbon dioxide 1

  6. reacts with a… and producing a… which goes through a series of reactions producing… until the… releasing… is remade. 6 carbon compound This is called… The Krebs Cycle And it happens in the… Matrix. and… and… and…

  7. Where does the Krebs cycle take place? • How many carbons does the intermediate that reacts with acetyl coA have? • How many carbon dioxides are lost per turn of the cycle? • Which reduced coenzymes are made in this part of respiration? • How many turns does the cycle have per glucose? • Are any molecules of ATP produced per turn of the cycle? In the mitochondrial matrix 4 2 Reduced NAD and reduced FAD 2 Yes

  8. The hydrogens and electrons are passed to a series of other carriers until… collects them and is reduced to… passes its hydrogens and electrons to an… which becomes a… regenerating… This is the electron transport chain on the inner membranes. with enough energy released for…

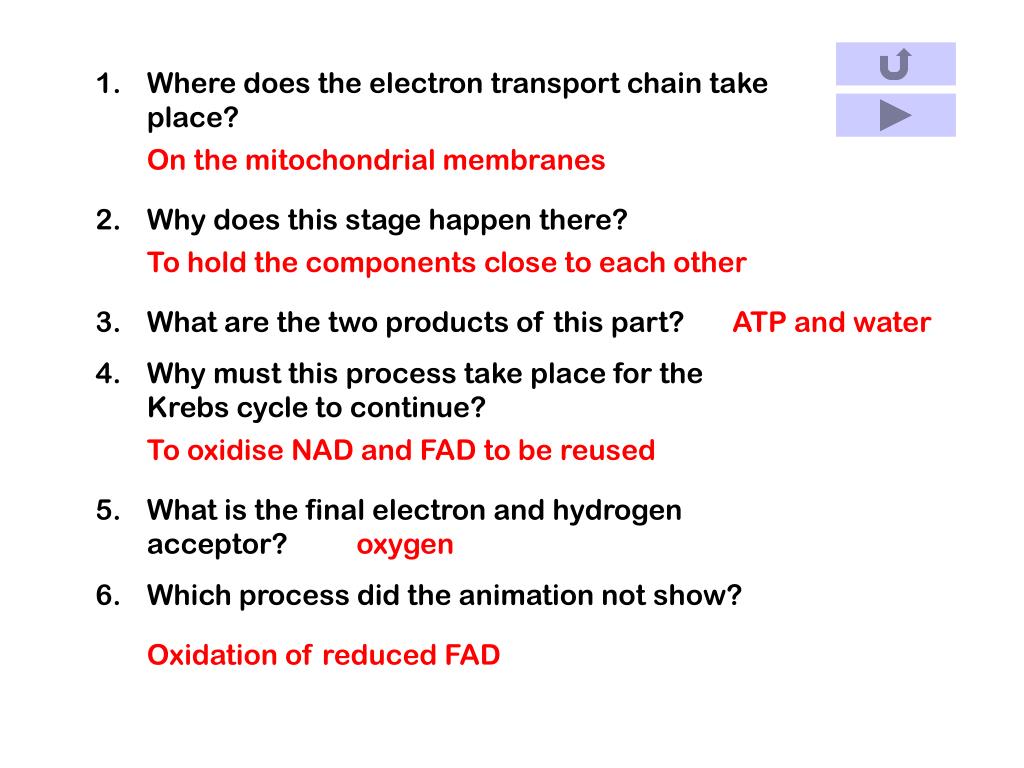

  9. Where does the electron transport chain take place? • Why does this stage happen there? • What are the two products of this part? • Why must this process take place for the Krebs cycle to continue? • What is the final electron and hydrogen acceptor? • Which process did the animation not show? On the mitochondrial membranes To hold the components close to each other ATP and water To oxidise NAD and FAD to be reused oxygen Oxidation of reduced FAD
