Presentation Transcript


The use of technology in providing proactive customer support l.jpg

The Use of Technology in Providing Proactive Customer Support

By Eashwar Iyer

IOUG-A Live! 2000, 11th May 2000, 11.15am

Paper# 464


Goals objectives l.jpg

Goals & Objectives

  • Basics of setting up a Wide Area Network (WAN)

  • Using the Internet as an alternative

  • Look at a Case Study to see how a WAN, Oracle Application Server, Oracle Database Server and PL/SQL could be used effectively to provide Proactive Support to Customers with the help of a sample application at the end

by Eashwar Iyer ([email protected])


The driving factors l.jpg

The Driving Factors

  • For a small Software Development House (SDH), wouldn’t it be highly desirable if a low cost, high speed WAN could be set up to:

    • Access the clients’ LAN

    • Access the clients’ Database

    • Without compromising the security of the network and database

  • If this is possible, it could be used to:

    • Distribute the developed application

    • Troubleshoot the implemented application and

    • Monitor the environment for possible bugs

by Eashwar Iyer ([email protected])


Wide area networks l.jpg

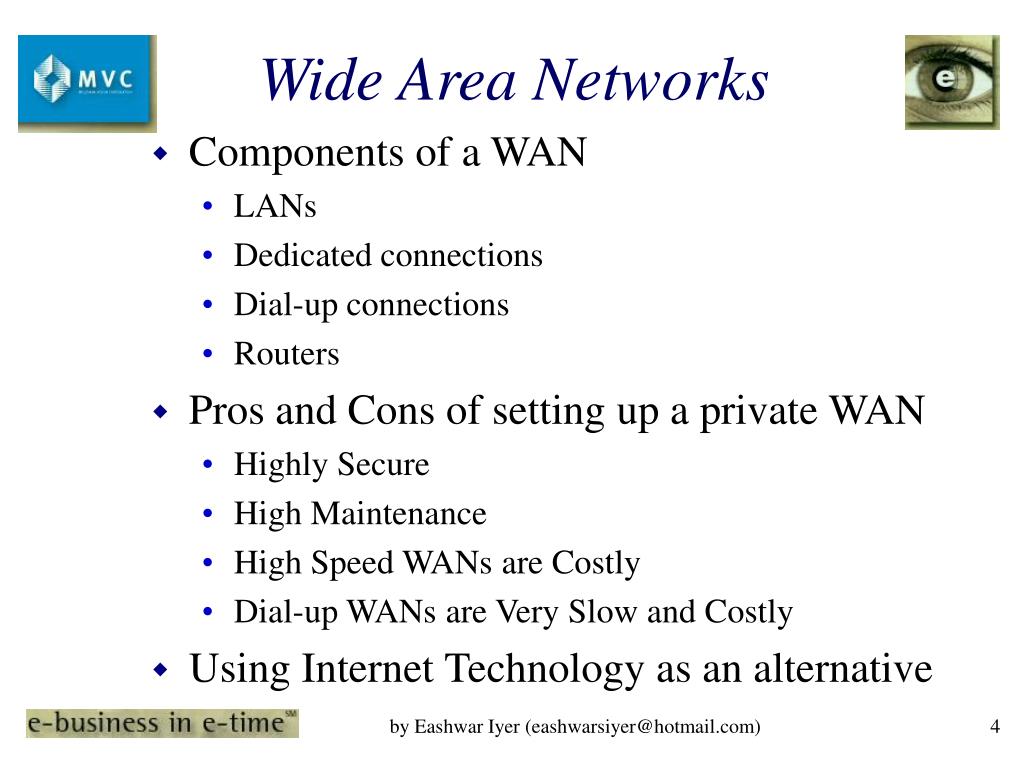

Wide Area Networks

  • Components of a WAN

    • LANs

    • Dedicated connections

    • Dial-up connections

    • Routers

  • Pros and Cons of setting up a private WAN

    • Highly Secure

    • High Maintenance

    • High Speed WANs are Costly

    • Dial-up WANs are Very Slow and Costly

  • Using Internet Technology as an alternative

by Eashwar Iyer ([email protected])


Using the internet to set up a wan pros and cons l.jpg

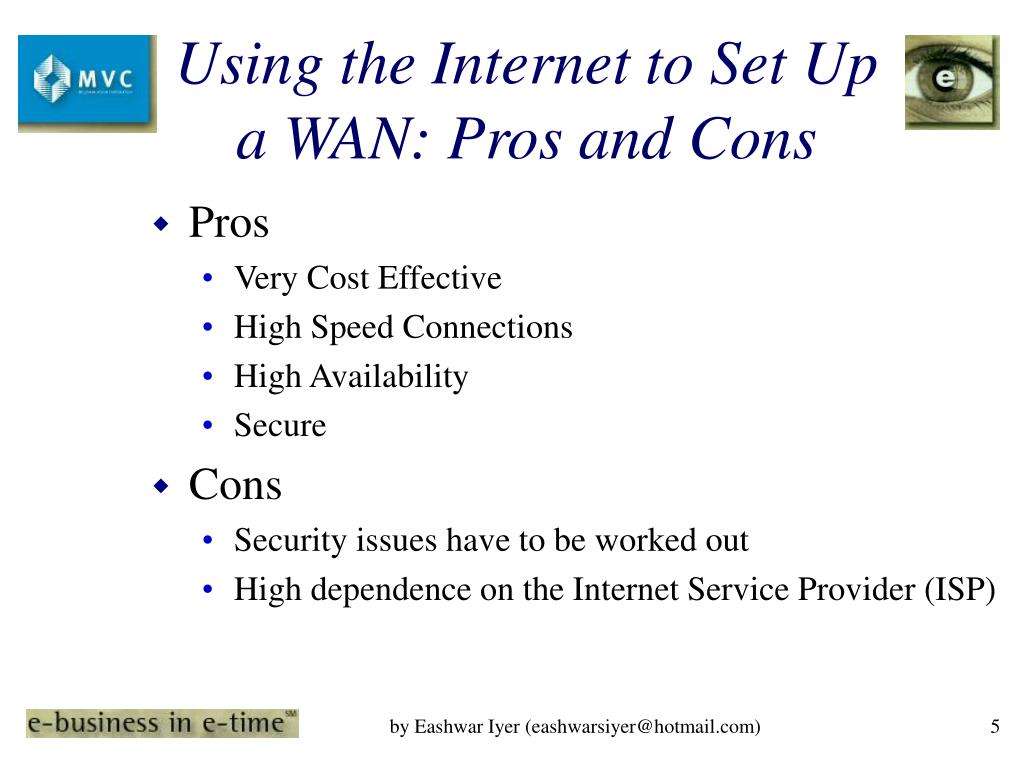

Using the Internet to Set Up a WAN: Pros and Cons

  • Pros

    • Very Cost Effective

    • High Speed Connections

    • High Availability

    • Secure

  • Cons

    • Security issues have to be worked out

    • High dependence on the Internet Service Provider (ISP)

by Eashwar Iyer ([email protected])


Using the internet to set up a wan three examples l.jpg

Using the Internet to Set Up a WAN - Three Examples

  • Using a Virtual Private Network (VPN)

    • Firewall

    • Encryption

    • Authentication

  • Using a Firewall or a Router

    • IP address filtering

    • IP Masquerading

  • Using a Linux box as the Internet Host

    • IP Masquerading

by Eashwar Iyer ([email protected])


An example of a vpn setup l.jpg

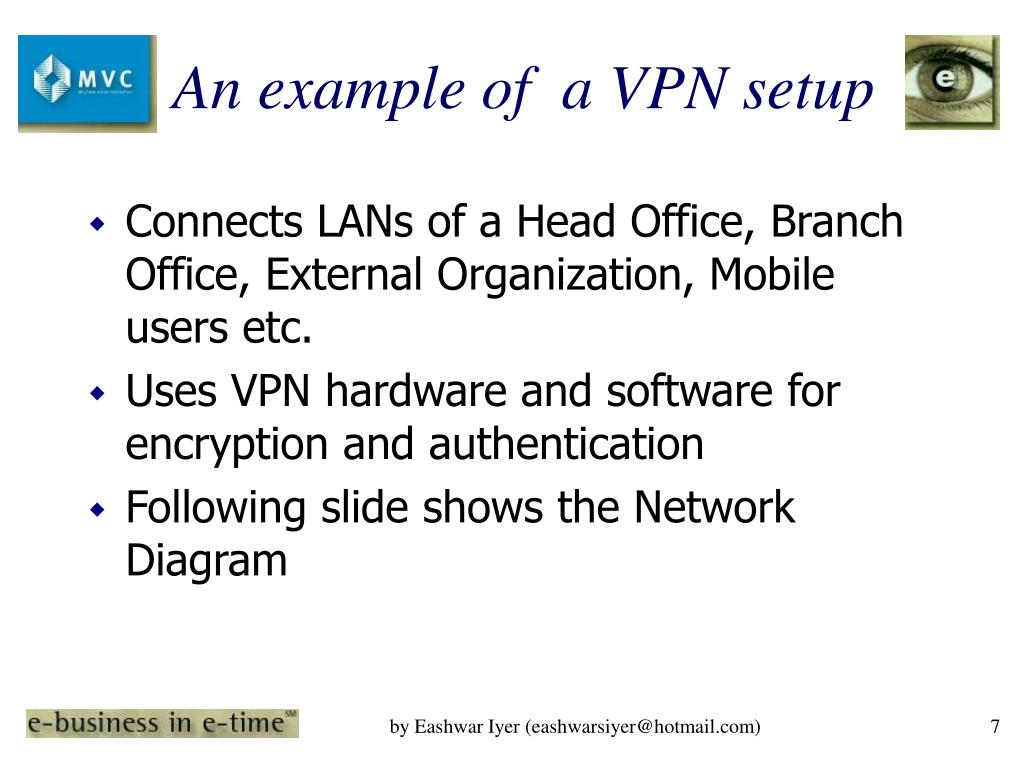

An example of a VPN setup

  • Connects LANs of a Head Office, Branch Office, External Organization, Mobile users etc.

  • Uses VPN hardware and software for encryption and authentication

  • Following slide shows the Network Diagram

by Eashwar Iyer ([email protected])


An example of firewall and linux setup l.jpg

An example of Firewall and Linux setup

  • Connects LANs of a Head Office, Branch Office and External Organization with Filtering Firewalls and Linux respectively

  • Firewalls filter the incoming IP addresses allowing only valid ones

  • Following slide shows the Network Diagram

by Eashwar Iyer ([email protected])


Putting the technology to use l.jpg

Putting the Technology to Use

How setting up a low-cost WAN helps

Software Development Houses (SDH)?

  • Some of the typical activities of a SDH include-

    • Develop Applications

    • Deploy Applications

    • User Acceptance Test

    • Bug Fixes etc.

    • Maintain the Applications

by Eashwar Iyer ([email protected])


Case study l.jpg

Case Study

Proactive Error Handling


User acceptance test one of the crucial phases l.jpg

User Acceptance Test: One of the Crucial Phases

Error Handling in Applications - some important

elements to store:

  • Application name

  • Application version

  • Program name

  • Program module

  • Error id

  • Error number

  • Error description

  • Date/Time

  • User-id

by Eashwar Iyer ([email protected])


Explore user id naming standards l.jpg

Explore User-Id Naming Standards

  • Oracle User-Ids

  • Network/Domain User-Ids

  • E-Mail Ids?

  • Use E-Mail Aliases effectively

by Eashwar Iyer ([email protected])


Network setup for the case study l.jpg

Network Setup for the Case Study

  • Connects LANs of the Customer and the Software House with Filtering Firewalls and Linux as the Internet Host respectively

  • Customer’s LAN has a Firewall that filters the incoming IP addresses allowing only valid ones

  • SDH’s LAN has a Linux Internet Host with IP Masquerading that allows any of its workstations to access the customer’s LAN

  • Following slide shows the Network Diagram

by Eashwar Iyer ([email protected])


Slide17 l.jpg

Error Monitoring

  • Monitor the stored data or “Error Logs”

  • Don’t wait for users to log the error or complain of problems being faced in the Application!

  • Take action

  • Contact users before and/or after taking action

by Eashwar Iyer ([email protected])


Error handling system ehs a simple web application l.jpg

Error Handling System (EHS) - A Simple Web Application

  • EHS is

    • A PL/SQL Web application

    • Generated using Oracle Designer

  • EHS uses

    • A PL/SQL cartridge defined on the Oracle Application Server

    • A database link to the customer’s database defined on the SDH’s Database Server

  • EHS runs on

    • Any client machinewith a Browser in the SDH’s LAN

by Eashwar Iyer ([email protected])


Main menu of the ehs l.jpg

Main Menu of the EHS

The menu has hyperlinks to all modules


Query screen for viewing errorlog l.jpg

Query Screen for Viewing Errorlog

Error Log can be queried from this screen


Screen for displaying error log records l.jpg

Screen for Displaying Error Log Records

The query results are displayed on this screen.

The user-id has a hyperlink through which the user can be reached via e-mail


Recording actions l.jpg

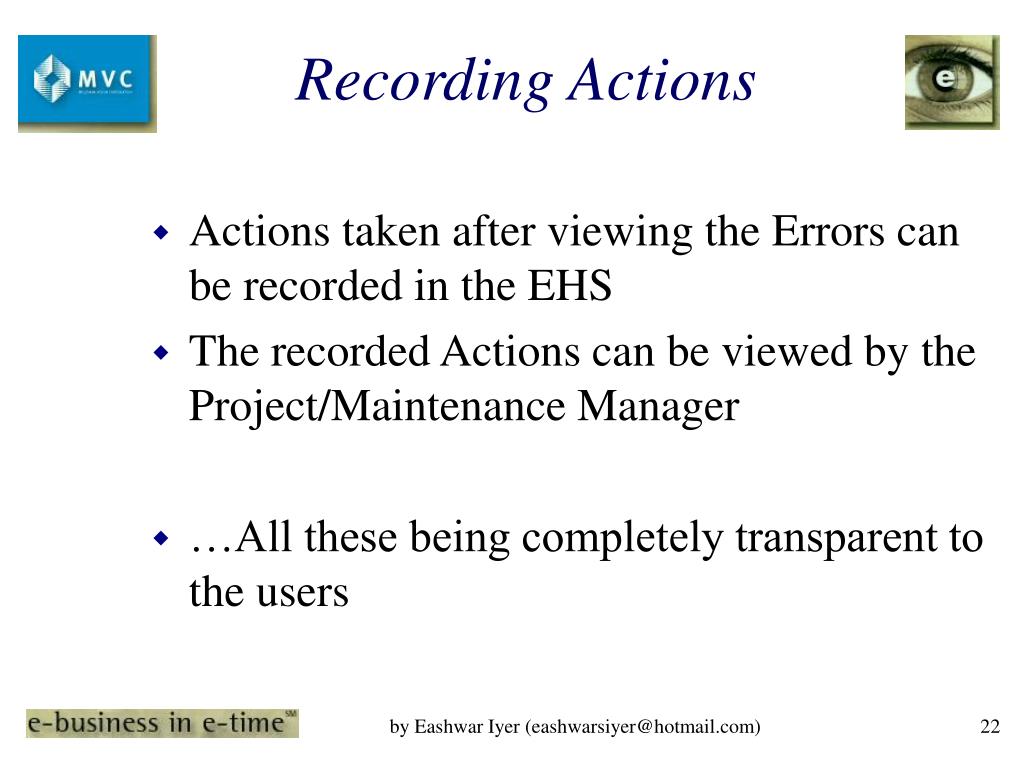

Recording Actions

  • Actions taken after viewing the Errors can be recorded in the EHS

  • The recorded Actions can be viewed by the Project/Maintenance Manager

  • …All these being completely transparent to the users

by Eashwar Iyer ([email protected])


Conclusion l.jpg

Conclusion

  • Low cost WANs can be setup using the Internet Technology.

  • WANs are important for SDHs enabling them to deploy and support their products.

  • Proactive Support could be provided to customers.

  • These were demonstrated by the EHS, a simple application, fully generated from Oracle Designer with minimal efforts.

by Eashwar Iyer ([email protected])


What next l.jpg

What Next?

  • The EHS can be extended to cover other requirements to provide proactive support to customers.

  • I would love to hear from you if you use this concept and/or add more functionality to this.

by Eashwar Iyer ([email protected])


Uestions l.jpg

uestions?

by Eashwar Iyer ([email protected])


Slide26 l.jpg

Please spare a few minutes to fill the paper evaluation sheet.

The Use of Technology in Providing Proactive Customer Support

By Eashwar Iyer

IOUG-A Live! 2000, 11th May 2000, 11.15am

Paper# 464

by Eashwar Iyer ([email protected])
