  1. The Current Status of KorCAF and CDF Grid 양유철, 장성현, 미안 사비르 아메드, 칸 아딜, 모하메드 아즈말, 공대정, 김지은, 서준석, 김동희 (경북대학교, 물리학과)이영장, 정지은, 문창성, 김현수, 전은주, 주경광, 김수봉(서울대학교, 물리학과)고정환, 이재승, 유인태(성균관대학교, 물리학과)조기현(슈퍼컴퓨팅 센터, KISTI) KPS 2006 가을 EXCO ,대구

  2. Introduction to CDF Computing • Developed in 2001-2002 to respond to experiments greatly increased need for computational and data handling resources to deal with RunII • One of the first large-scale cluster approaches to user computing for general analysis. • Greatly increased CPU power & data to physicists. • CDF Grid via CAF, DCAF, SAM and SAMGrid ☞ DCAF(DeCentralized Analysis Farm) ☞ SAM (Sequential Access through Metadata) – Real data Handling System ☞ SAMGrid – combination of SAM and JIM (Job Information Management) system KPS 2006 가을 EXCO ,대구

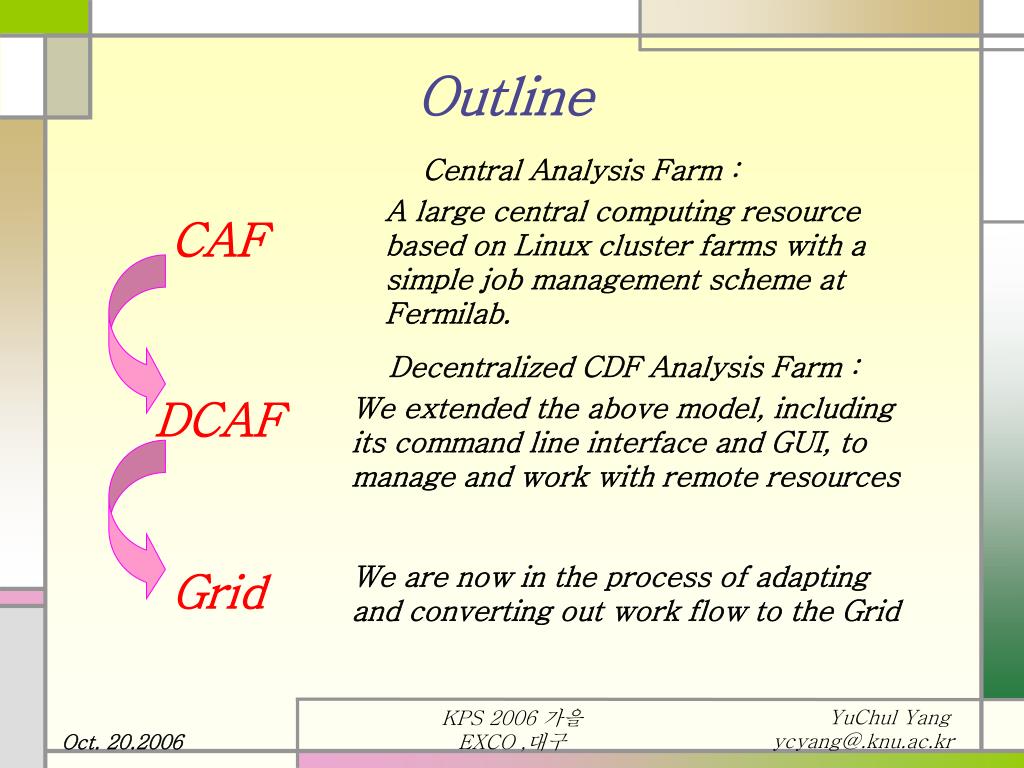

  3. Outline KPS 2006 가을 EXCO ,대구

  4. Environment on CAF • All basic CDF software pre-installed on CAF • Authentication via Kerberos ☞ Jobs are run via mapped accounts with authentication of actual user through special principal ☞ Database, data handling remote usres ID passed on through lookup of actual user via special principal • User’s analysis environment comes over in tarball - no need to pre-register or submit only certain jobs. • Job returns results to user via secure ftp/rcp controlled by user script and principal KPS 2006 가을 EXCO ,대구

  5. Distributed clusters in Korea, Taiwan, Japan, Italy, Germany, Spain, UK, USA and Canada In 2006, about 50% of analysis farm outside of FNAL KPS 2006 가을 EXCO ,대구

  6. Current DCAF approach • Cluster technology (CAF = “Central analysis farm”) extended to remote site (DCAFs = Decentralized CDF analysis Farm) • Multiple batch systems supported : converting from FBSNG system to Condor on all DCAFs • SAM data handling system required for offsite DCAFs KPS 2006 가을 EXCO ,대구

  7. Current CDF Dedicated Resources http://www-cdf.fnal.gov/internal/fastnavigator/fastnavigator.html (2006/Aug) KPS 2006 가을 EXCO ,대구

  8. Detail of KorCAF resources KPS 2006 가을 EXCO ,대구

  9. Storage status • cdfsoft Installed products : 4.11.1, 4.11.2, 4.8.4, 4.9.1, 4.9.1hpt3, 5.2.0, 5.3.0, 5.3.1, 5.3.3, 5.3.3_nt, 5.3.4, development Installed binary products: 4.11.2, 5.3.1, 5.3.3, 5.3.3_nt, 5.3.4 Working on CondorCAF batch system KPS 2006 가을 EXCO ,대구

  10. CAF gui & Monitoring System Select farm Data access Process type Submit status User script , I/O file location http://cluster46.knu.ac.kr/condorcaf KPS 2006 가을 EXCO ,대구

  11. Grid Functionality for User (KorCAF) KPS 2006 가을 EXCO ,대구

  12. Total CDF Computing Requirements • Analysis CPU, disk, tape needs scale with number of events. • FNAL portion of analysis CPU assumed at roughly 50% beyond 2005. KPS 2006 가을 EXCO ,대구

  13. Movement to Grid • It’s the world wide trend for HEP experiment. • Need to take advantage of global innovations and resources. • CDF still has a lot of data to be analyzed. Cannot continue to expand dedicate resource USE Grid KPS 2006 가을 EXCO ,대구

  14. Activities for CDF Grid • Testing various approaches to using Grid resources (Grid3/OSG and LCG) • Adapt the CAF infrastructure to run on top of the Grid using Condor glide-ins (GlideCAF) • Use direct submission via CAF interface to OSG and LCG • Use SAMGrid/JIM sendboxing as an alternate way to deliver experiment + user software • Combine DCAFs with Grid resources KPS 2006 가을 EXCO ,대구

  15. Conclusions • CDF has successfully deployed a global computing environment (DCAFs) for user analysis. • A large portion (50%) of the total CPU resources of the experiment are now provided by offsite through a combination of DCAFs and other clusters. • And KorCAF (DCAF in Korea) working on Condor batch system. • Active work is in progress to build bridges to true Grid methods & protocols provide a path to the future. KPS 2006 가을 EXCO ,대구
