Adaptive plug and play components for

Adaptive Plug and Play Components for

Evolutionary Software Development

Mezini/Lieberherr


Adaptive plug and play components for

Outline

  • the problem:

    • - no construct to capture high-level behavior -

  • why is this a problem ?

    • - unit of reuse is not a single object

  • but a slice of behavior affecting several objects -

  • our solution: APPCs

    • what are APPCs ?

    • how do they support reuse of high-level behavior ?

    • current state of the art and work in progress

  • “can´t capture

    cross-cutting aspects”

    “can´t capture

    subjective views”

    “can´t capture

    system operations”


    Adaptive plug and play components for

    The problem

    “OOtechnologyhas not met its expectations

    when applied to real business applications partly

    due to the fact that there is no place where to

    put higher-level operations which affect several

    objects.

    … if built into the classes involved,it is impossible

    to get an overview of the control flow. It is like

    reading a road map through a soda straw'’

    • [Lauesen, IEEE Software, April ‘98]


    Adaptive plug and play components for

    The problem

    high-level behavior

    scattered around the

    implementation

    of several classes

    OOAD

    Collab-1

    Z

    C1

    C4

    C2

    C3

    C5

    Collab-4

    Collab-2

    Collab-3

    C1

    C4

    C2

    C3

    Implementation

    C5


    Adaptive plug and play components for

    C1

    C4

    C2

    C3

    C5

    Effects of scattering

    bad, because the unit of

    reuse is generally not a class,

    but a slice of behavior

    affecting several classes

    • “tangled code”

      • difficult to reason about

        • why is this here?

        • what does this connect to?

      • difficult to change

      • difficult to evolve

    • code duplication

    essentially, lack of modularity


    Adaptive plug and play components for

    Unit of reuse: a slice of behavior...

    • one slice of high-level behavior reused with several applications

    • one slice of behavior multiply reused in different places of a single

      application

    • higher-level behavior defined in terms of lower-level behavior;

      high-level behavior definition reused with different lower-level

      behavior implementations

    • define new behavior by refining existing behavior

    • one slice of high-level behavior reused with several applications

    • one slice of behavior multiply reused in different places of a single

      application

    • higher-level behavior defined in terms of lower-level behavior;

      high-level behavior definition reused with different implementations

      of the lower-level behavior

    • define new behavior by refining existing behavior


    Adaptive plug and play components for

    Unit of reuse: a slice of behavior

    • one slice of behavior reused with several applications

    an example ...

    • an application generator from IBM (‘70)

    • Hardgoods Distributors Management Accounting System

    • encode a generic design for order entry systems which

    • could be subsequently customized to produce an

    • application meeting a customer’s specific needs

    consider the pricing component ...


    Adaptive plug and play components for

    ChargerParty

    ChargerParty

    float cost(Integer qty, Float unitPrice, ItemParty item)

    Unit of reuse: a slice of behavior

    PricerParty

    pricer

    LineItemParty

    float basicPrice(ItemParty item)

    int discount(ItemParty item, Integer qty,

    Customer cust)

    int quantity ();

    item

    cust

    ItemParty

    CustomerParty

    charges

    pricing component: class diagram

    • one slice of behavior reused with several applications


    Adaptive plug and play components for

    Unit of reuse: a slice of behavior

    unitPrice( ... ) {

    basicPr = basicPrice(item);

    discount = discount(item, qty, cust);

    unitPr = basicPr - (discount * basicPr);

    return unitPr; }

    price() {

    int qty = quantity();

    quotePr = pricer.unitPrice(item, qty, cust);

    quotePr += item.additionalCharges(unitPr, qty);

    return quotePr;}

    design applies to several applications

    with different classes playing the roles

    of different participants !!!

    price()

    1: unitPrice (item, qty, cust)

    lineItem: LineItemParty

    pricer: PricerParty

    2: additionalCharges(unitPr, qty)

    additionalCharges(…){

    int total;

    forall ch in charges {

    total += ch.cost(…);}

    return total;}

    item: ItemParty

    2.1: ch=next()

    2.2: cost(qty,unitPr,item)

    ChargerParty

    ChargerParty

    ch: ChargerParty

    pricing component: collaboration diagram

    • one slice of behavior reused with several applications


    Adaptive plug and play components for

    Unit of reuse: a slice of behavior...

    • one slice of high-level behavior reused with several applications

    • one slice of behavior multiply reused in different places of a single

      application

    • higher-level behavior defined in terms of lower-level behavior;

      high-level behavior definition reused with different implementations

      of the lower-level behavior

    • define new behavior by refining existing behavior


    Adaptive plug and play components for

    What ?!

    Unit of reuse: a slice of behavior

    • one slice of behavior multiply reused in different places

      of a single application

    • may need to represent several pricing schemes:

      • regular pricing:discounts depending on the number of

      • ordered units,

      • negotiated pricing:customers may have negotiated

      • prices for items,

      • sale pricing:each product has a designated sale price

      • and no discounting allowed

    Design is the same for all schemes !!!

    Given a concrete application, each scheme

    might require the application class model

    to conform to the design in a specific way


    Adaptive plug and play components for

    application

    application

    prod

    prod

    Quote

    Quote

    HWProduct

    HWProduct

    Application

    HWProduct

    Customer

    customer

    customer

    taxes

    taxes

    float price

    float salePrice

    Table discount

    String name

    prod

    Tax

    Tax

    Tax

    Tax

    Customer

    Customer

    Quote

    float negProdPrice(HWProduct)

    float negProdDiscount(HWProduct, int)

    float regPrice()

    float regDiscount(int)

    float salePrice()

    float saleDiscount()

    int quantity

    float regPrice()

    float regDiscount(int)

    float salePrice()

    float saleDiscount()

    Customer

    Customer

    int quantity()

    HWProduct prod()

    Customer customer()

    LineItemParty

    LineItemParty

    PricerParty

    PricerParty

    customer

    1..N

    taxes

    ItemParty

    ItemParty

    Tax

    float percentage

    ChargerParty

    ChargerParty

    float taxCharge(float)

    pricing component

    pricing component

    negotiated pricing

    regular pricing

    Unit of reuse: a slice of behavior

    • one slice of behavior multiply reused in different places of a single application


    Adaptive plug and play components for

    Unit of reuse: a slice of behavior...

    • one slice of high-level behavior reused with several applications

    • one slice of behavior multiply reused in different places of a single

      application

    • higher-level behavior defined in terms of lower-level behavior;

      high-level behavior definition reused with different implementations

      of the lower-level behavior

    • define new behavior by refining existing behavior


    Adaptive plug and play components for

    may be any of the

    pricing schemes

    OrderParty

    LineItemParty

    LineItemParty

    float price()

    total()

    float price()

    :OrderParty

    2: price()

    1:lineItem = next()

    write Total once and reuse

    with all pricing schemes

    lineItem :LineItemParty

    :LineItemParty

    Unit of reuse: a slice of behavior

    • define higher-level behavior in terms of lower-level behavior


    Adaptive plug and play components for

    Unit of reuse: a slice of behavior...

    • one slice of high-level behavior reused with several applications

    • one slice of behavior multiply reused in different places of a single

      application

    • higher-level behavior defined in terms of lower-level behavior;

      high-level behavior definition reused with different implementations

      of the lower-level behavior

    • define new behavior by refining existing behavior


    Adaptive plug and play components for

    price() {

    int qty = quantity();

    quotePr = pricer.unitPrice(item, qty, cust);

    quotePr += item.additionalCharges(unitPr, qty);

    quotePr = quotePr - item.stockTimeRed();

    return quotePr; }

    price() {

    int qty = quantity();

    quotePr = pricer.unitPrice(item, qty, cust);

    quotePr += item.additionalCharges(unitPr, qty);

    return quotePr;}

    unitPrice(... ) {

    basicPr = basicPrice(item);

    discount = discount(item, qty, cust);

    unitPr = basicPr - (discount * basicPr);

    return unitPr; }

    price()

    1: unitPrice (item, qty, cust)

    lineItem: LineItemParty

    pricer: PricerParty

    2: additionalCharges(unitPr, qty)

    3 stockTimeRed()

    additionalCharges(…){

    Integer total;

    forall ch in charges{

    total += ch.cost(…)}

    return total}

    item: ItemParty

    2.1: ch=next()

    2.2: cost(qty,unitPr,item)

    ChargerParty

    ChargerParty

    ch: ChargerParty

    stockTimeRed() {

    . . . }

    pricing component: collaboration diagram

    aging

    Unit of reuse: a slice of behavior

    • define new behavior by refining existing behavior


    Adaptive plug and play components for

    price() {

    int qty = quantity();

    quotePr = pricer.unitPrice(item, qty, cust);

    quotePr += item.additionalCharges(unitPr, qty);

    quotePr = quotePr - cust.frequentRed();

    return quotePr; }

    price() {

    int qty = quantity();

    quotePr = pricer.unitPrice(item, qty, cust);

    quotePr += item.additionalCharges(unitPr, qty);

    return quotePr;}

    unitPrice(... ) {

    basicPr = basicPrice(item);

    discount = discount(item, qty, cust);

    unitPr = basicPr - (discount * basicPr);

    return unitPr; }

    price()

    1: unitPrice (item, qty, cust)

    lineItem: LineItemParty

    pricer: PricerParty

    2: additionalCharges(unitPr, qty)

    additionalCharges(…){

    Integer total;

    forall ch in charges{

    total += ch.cost(…)}

    return total}

    item: ItemParty

    3 frequentRed()

    2.1: ch=next()

    2.2: cost(qty,unitPr,item)

    ChargerParty

    ChargerParty

    ch: ChargerParty

    frequentRed() {

    . . . }

    cust: CustomerParty

    frequent

    pricing component: collaboration diagram

    Unit of reuse: a slice of behavior

    • define new behavior by refining existing behavior


    Adaptive plug and play components for

    Unit of reuse: a slice of behavior

    • define new behavior by combining existing behavior

    Pricing

    FrequentPricing

    AgingPricing

    want to reuse the definition

    of the basic pricing component

    Aging&FrequentCustomer

    Pricing


    Adaptive plug and play components for

    C1

    C4

    C2

    C3

    C5

    Effects of scattering

    bad, because the unit of

    reuse is generally not a class,

    but a slice of behavior

    affecting several classes

    • “tangled code”

      • difficult to reason about

        • why is this here?

        • what does this connect to?

      • difficult to change

      • difficult to evolve

    • code duplication

    essentially, lack of modularity


    Adaptive plug and play components for

    Effects of scattering

    During implementation

    separate collaborations

    are mixed together

    During maintenance/evolution

    individual collaborations need

    to be factored out of the

    tangled code


    Adaptive plug and play components for

    The problem

    Although unit of reuse is generally not a class, but a slice of behavior affecting several classes, there is no language construct that would provide:

    • Unit of encapsulation beyond single objects

    • Late binding beyond single classes

    • How does that relate to AOP ?

      • - an aspect is also a slice of behavior (functionality) that affects several

      • classes

      • - an aspect does not add new functionality - it primarily „modifies“

      • existing functionality.


    Adaptive plug and play components for

    Monitor [Data-To-Protect] {

    Semaphore mutex =

    new Semaphore(1);

    void entry() {

    mutex.P();

    // access Data-To-Protect

    mutex.V();

    }

    }

    FIFOQueue {

    List elements = new List();

    Monitored {

    Semaphore mutex = new Semaphore(1);

    public void put(Object e) {

    mutex.P();

    elements.insertLast(e);

    mutex.V();}

    public Object get() {

    mutex.P();

    e = elements.removeFirst();

    return e;

    mutex.P(); }

    } // Monitored

    . . .

    }

    FIFOQueue {

    List elements = new List();

    public void put(Object e) {

    elements.insertLast(e); }

    public Object get() {

    e = elements.removeFirst();

    return e;}

    . . .

    }

    data structures

    synchronization

    mechanisms

    Relation to AOP


    Adaptive plug and play components for

    What about using frameworks ?

    a framework capture abstract behavior as a set of collaborating classes,

    indeed, ... but ...

    • No framework/application independence:

      • generally the application is written as a delta to the

      • framework embedding knowledge about the application’s

      • implementation.

    • Bad, because (a) the HWProduct application developer wants

    • to write only his specific part and bye the Pricing component,

    • and (b) thePricing component developer wants to sell his

    • component to clients that already have their specific part.

    Component Market was the big (buzz-word ??)

    rescue invented to bring software out of crisis !!!

    • No customization independence:

      • the mechanism used to customize a framework for an

      • application is part of the application definition.

    Separation of Concerns is the other big hope

    to managing the complexity of software !!!

    • Bad, because cannot define new customizations (new

    • Pricing schemes) without modifying the application

    Interface incompatibility:

    operations in the application code must conform with the

    operations in the framework with regard to their name,

    argument type and cardinality.

    • Bad, because it makes framework/application independence

    • impossible


    Adaptive plug and play components for

    Monitor {

    Semaphore mutex = new Semaphore(1);

    void put(Object e) {mutex.P(); concrete_put(e);mutex.V();}

    Object void get() { mutex.P(); concrete_get();mutex.V(); }

    abstract void concrete_put(Object e);

    abstract Object concrete_get();

    }

    Something I

    can do !

    FIFOQueue {

    List elements = new List();

    public void concrete_put(Object e) {

    elements.insertLast(e); }

    public Object concrete_get() {

    return elements.removeFirst();}

    }

    What about using frameworks ?

    Monitor restricted to exactly

    two entries ! As many monitor

    implementations as different

    possible combinations of number

    of entries, cardinality, ... ????

    FORGET ABOUT IT !!!

    Data structures cannot

    be defined independently

    of the synchronization

    framework

    What if I need different

    parts of the application

    to be protected by different

    monitors ???


    Adaptive plug and play components for

    What about patterns ?

    currently working on a pattern for programming with pre-compiled components

    package Comp;

    class ConcreteMap implements Comp.CompMap

    extends Map {

    . . .

    P2 op1_P1(Comp.P1 compObj, Object host) {

    return makeP2(((T1) host). applic_op());

    }

    P2 makeP2(T2 host) {

    HashKey key = new MapKey(this, P2.class);

    if (mapHashTable.containKey(key))

    {return mapHashTable.get(key);}

    else {

    P2 compObj = new P2(this, host);

    mapHashTable.set(key, compObj); }

    }

    . . .

    }

    ConcreteMap map = new Concretemap();

    Comp.P1 compObj = map.makeP1(new T1());

    compObj.op();

    . . .

    interface CompMap {

    // expected operations declared here

    // . . .

    P2 op1_P1(P1, Object);

    // . . .

    }

    class P1 {

    Object host;

    CompMap mapObj;

    ...

    RetType provided_op(...) {

    ...

    op1();

    ... }

    P2 op1() {

    // op1 is one of the operations

    // expected from the application

    return mapObj.op1_P1(this, host);}

    ... }

    class P2 { ... }

    ...

    independently

    compiled

    package APPL;

    class T1 {

    T2 applic_op1() {...}

    }

    ...


    Adaptive plug and play components for

    op1_P1(P1 comp, Object appl)

    ((T1)appl).appl_op()

    return T2_obj

    return makeP2(T2_obj, this)

    What about patterns ?

    1. ConcreteMap mapObject = new ConcreteMap();

    2. P1 compObj = mapObject.makeP1(new T1());

    3. compObj.op1();

    3. op1()

    • complex

    • restricted application, e.g., does not work with aspect components

    • essentially, don‘t have a good solution for the general case

    • suggestions are welcome !

    T1

    compObj: P1

    mapObject

    T2

    P2

    Component

    Application


    Adaptive plug and play components for

    “Forget about objects”

    [Udell, BYTE, May 94]

    C1

    C4

    C2

    C3

    The point is merely that objects are too

    low-level. If we don’t follow certain

    principles, we easily end up with

    “hyper spaghetti’’ objects

    C5

    So, what?

    NO !

    So, let’s organize !! Let’s have component

    constructs on top of objects and classes !!

    Let’s have Adaptive Plug-n-Play Components (APPC)


    Adaptive plug and play components for

    minimal

    assumptions on

    application structure

    P3

    P2

    +

    expected interfaces

    meth

    meth

    meth

    meth

    1,k

    1,1

    3,j

    3,1

    How do APPCs look like ?

    Interface Class Graph

    P1

    Behavior Definition

    P

    P1

    ...

    written to the ICG similar to an OO program is written

    to a concrete class graph

    provided

    =

    everything public

    P3

    ...


    Adaptive plug and play components for

    What do APPCs look like ?

    APPC Pricing {

    Interface {

    // structural interface ==> textual representation of UML class diagram

    LineItemParty = item: ItemParty; pricer: PricerParty; customer:Customer;

    ItemParty = charges: ListOf(ChargerParty)

    // behavioral interface ==> set of expected interfaces

    LineItemParty { int quantity();}

    PricerParty { float basicPrice(ItemParty item);

    float discount(ItemParty item, int qty, Customer customer); }

    ChargerParty { float cost(int qty, float unitP, ItemParty item); }

    }


    Adaptive plug and play components for

    What do APPCs look like ?

    Behavior Definition {

    int qty; float unitPrice; //local variables

    LineItemParty {

    public float price() {

    qty = quantity();

    unitPrice = pricer.unitPrice(item, qty, cust);

    float quotePr = unitPrice + item.additionalCharges();

    return quotePr;}}

    PricerParty {

    private float unitPrice( ... ) {

    float basicPr = basicPrice(item);

    float discount = discount(item, qty, cust);

    unitPr = basicPr - (discount * basicPr);

    return unitPr; }}

    ItemParty {

    private float additionalCharges() {

    float total = 0;

    while (charges.hasElement()) {

    nextCharge = chargerParties.next();

    total =+ charge.cost(qty, unitPrice, this); }

    return total; }}

    }

    }


    Adaptive plug and play components for

    P2

    one generic

    collaboration

    P3

    P1

    reused

    APPL

    1

    C1

    C1

    APPL

    C2

    n

    C4

    C2

    C3

    C3

    C4

    C5

    with a family of concrete applications

    Design goals: adaptiveness


    Adaptive plug and play components for

    P2

    one generic

    collaboration

    P3

    P1

    reused

    with different mappings

    of participants to classes

    APPL

    1

    C1

    APPL

    C1

    1

    C4

    C4

    C5

    C5

    C2

    C3

    C2

    C3

    of the same application

    Design goals: adaptiveness


    Adaptive plug and play components for

    P3

    P2

    m

    m

    1,k

    1,1

    Connecting with applications

    participant-to-class

    name map

    Application

    Interface Class Graph

    expected/provided interface map

    P1

    link-to-paths

    map

    Behavior Definition

    P1

    ...

    APPC Compiler

    (CG-to-ICG compatability?)

    executable

    Java code


    Adaptive plug and play components for

    Connecting with applications

    Map 1

    connector HWApplWithRegPricing {

    connects HWApp, Pricing;

    Quote implementsLineItemParty {

    provided {regularPrice = price }

    };

    HWProductimplements PricerParty {

    expected {

    float basicPrice() {return regPrice();}

    float discount() {return regDiscount();}

    };

    HWProductimplements ItemParty;

    Tax implements ChargerParty;}

    Application

    prod

    Quote

    HWProduct

    cust

    taxes

    Tax

    Customer

    Tax

    Tax

    Tax

    Pricing APPC

    APPC compiler

    (CG-to-ICG compatability?)


    Adaptive plug and play components for

    Connecting with applications

    Map 2

    connector HWApplWithNegPricing {

    connec ts HWApp, Pricing;

    Quote implementsLineItemParty {

    provided {negotiatedPrice = price }

    }

    Customer implements PricerParty {

    expected {

    float basicPrice() {return negProdPrice();}

    float discount() {return negProdDiscount();}

    } }

    HWProductimplementsItemParty;

    Tax implements ChargerParty;}

    Application

    prod

    Quote

    HWProduct

    cust

    taxes

    Tax

    Customer

    Tax

    Tax

    Tax

    Pricing APPC

    APPC compiler

    (CG-to-ICG compatability?)


    Adaptive plug and play components for

    APPC Monitor {

    expected {

    Data-To-Protect {* access-op(*);}

    }

    provided {

    Semaphore mutex = new Semaphore(1);

    Data-To-Protect {

    before access-op(*) { mutex.P(); }

    after access-op(*) { mutex.V(); }

    }

    }

    }

    Application {

    . . .

    FIFOQueue {

    List elements = new List();

    public void put(Object e) {

    elements.insertLast(e); }

    public Object get() {

    e = elements.removeFirst();

    return e;}

    }

    Connecting with applications

    connector ConcurentApplication {

    connects Application, Monitor;

    FIFOQueue implements Data-To-Protect {

    expexted { access-op = {put, get} }

    }

    ...

    }


    Adaptive plug and play components for

    Application {

    . . .

    class HTTPServer {

    public HTMLDocument

    getURL(String url) { . . . }

    public void

    putURL(String url, HTMLDocument doc) {

    . . .}

    class WebBrowser {

    HTTPServer server;

    void connectToServer(HTTPServer aServer) {

    server = aServer;}

    void onMouseClick() {

    ...

    Server.getURL(linkUrlAddress);

    ... }

    }

    appc Rendez-Vous-Synchronization {

    expected {

    Data-To-Protect {* access-op(*);}

    }

    provided {

    Semaphore mutex = new Semaphore(0);

    Semaphore sync = new Semaphore(0);

    Data-To-Protect {

    before access-op(*) { mutex.P(); }

    after access-op(*) { sync.V();}

    public void accept() {

    mutex.V(); sync.P();}

    }

    }

    Connecting with applications

    connector ConcWebApplication {

    connects Application, Rendez-Vous-Synchronization;

    Application.HTTPServer implements Rendez-Vous-Synchronization.Data-To-Protect {

    expexted { access-op = {putURL, getURL} }

    }

    }

    ConcWebApplication.HTTPServer myServer = new ConcWebApplication. HTTPServer();

    // Thread 1

    while (true) {myServer.accept();}

    //Thread 2// Thread 3

    Browser b1 = new Browser();Browser b2 = new Browser();

    b1.connect(myServer); b2.connect(myServer);


    Adaptive plug and play components for

    Connecting with applications

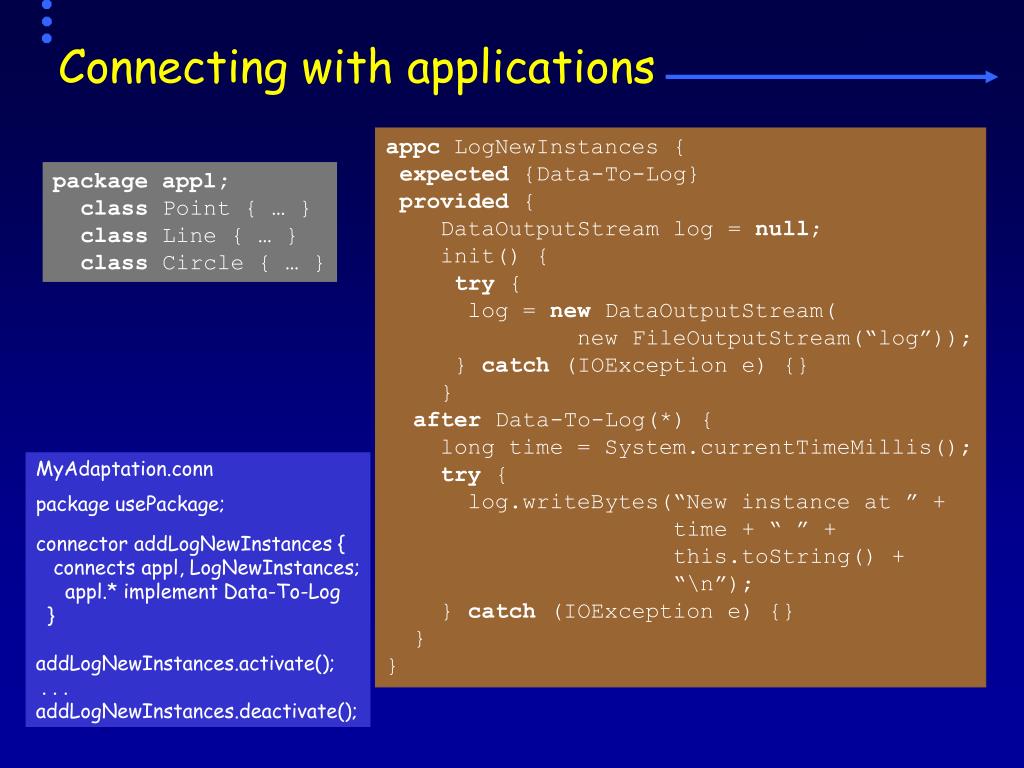

    appc LogNewInstances {

    expected {Data-To-Log}

    provided {

    DataOutputStream log = null;

    init() {

    try {

    log = new DataOutputStream(

    new FileOutputStream(“log”));

    } catch (IOException e) {}

    }

    after Data-To-Log(*) {

    long time = System.currentTimeMillis();

    try {

    log.writeBytes(“New instance at ” +

    time + “ ” +

    this.toString() +

    “\n”);

    } catch (IOException e) {}

    }

    }

    package appl;

    class Point { … }

    class Line { … }

    class Circle { … }

    MyAdaptation.conn

    package usePackage;

    connector addLogNewInstances {

    connects appl, LogNewInstances;

    appl.* implement Data-To-Log

    }

    addLogNewInstances.activate();

    . . .

    addLogNewInstances.deactivate();


    Adaptive plug and play components for

    Design goals: plug-n-play

    1. black-box composition

    higher-level collaboration

    lower-level collaboration


    Adaptive plug and play components for

    P1

    P2

    P4

    P5

    P3

    P3

    P2

    P6

    P1

    P1

    P2

    Design goals: plug-n-play

    1. black-box composition


    Adaptive plug and play components for

    Design goals: plug-n-play

    1. black-box composition

    . . . decoupled


    Adaptive plug and play components for

    Design goals: plug-n-play

    1. black-box composition

    . . . decoupled


    Adaptive plug and play components for

    Pricing APPC

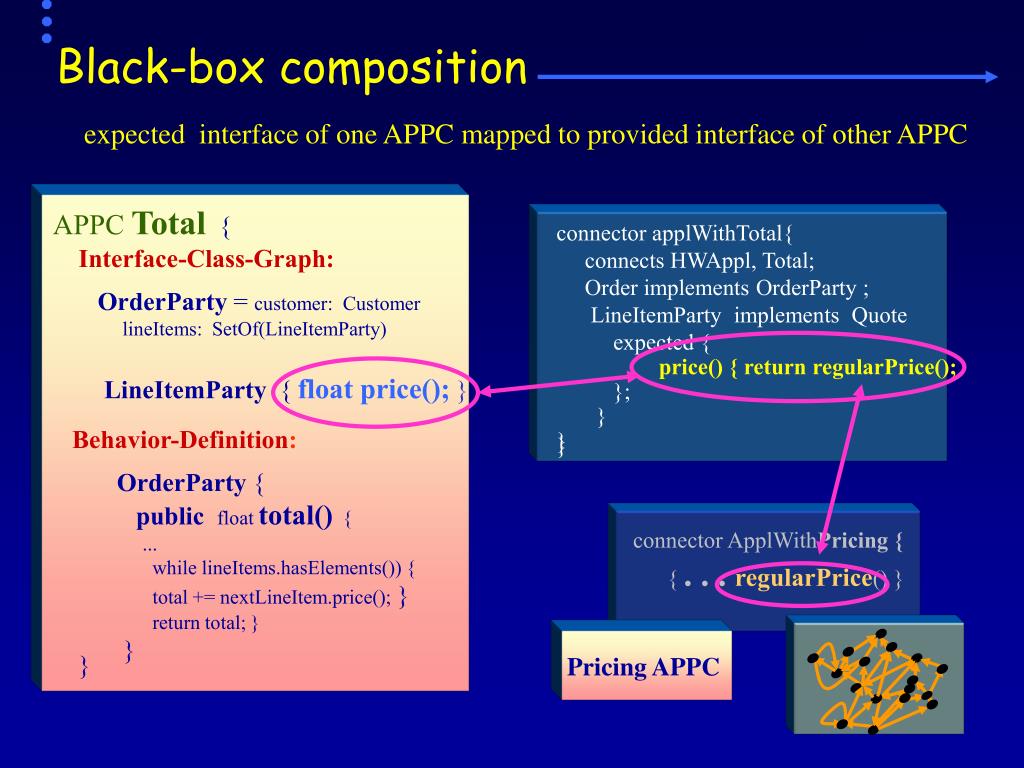

    Black-box composition

    expected interface of one APPC mapped to provided interface of other APPC

    APPCTotal {

    Interface-Class-Graph:

    OrderParty = customer: Customer

    lineItems: SetOf(LineItemParty)

    LineItemParty { floatprice(); }

    Behavior-Definition:

    OrderParty {

    public float total() {

    ...

    while lineItems.hasElements()) {

    total += nextLineItem.price(); }

    return total; }

    }

    }

    connector applWithTotal{

    connects HWAppl, Total;

    Order implements OrderParty ;

    LineItemParty implements Quote

    expected {

    price() { return regularPrice();

    };

    }

    }

    }

    connector ApplWithPricing {

    { . . . regularPrice() }


    Adaptive plug and play components for

    base collaboration

    refinement

    Design goals: plug-n-play

    2. white-box composition

    incrementally refine entire collaborations

    similar to individual classes


    Adaptive plug and play components for

    base collaboration

    refinement

    Design goals: plug-n-play

    2. white-box composition

    . . . but decoupled

    (a) reuse refinements with different bases


    Adaptive plug and play components for

    base collaboration

    refinement

    Design goals: plug-n-play

    2. white-box composition

    . . . but decoupled

    (a) reuse refinements with different bases


    Adaptive plug and play components for

    refinement

    base collaboration

    refinement

    refinement

    Design goals: plug-n-play

    2. white-box composition

    . . . but decoupled

    (b) combine several refinements of the

    same base without conflicts


    Adaptive plug and play components for

    Design goals: plug-n-play

    Pricing

    price()

    SpecialPricing

    price()

    reducedPrice()

    FrequentCustomer

    Pricing

    AgingPricing

    reducedPrice()

    reducedPrice()

    Aging&FrequentCustomer

    Pricing

    (b) combine several refinements of

    the same base without conflicts


    Adaptive plug and play components for

    White-box composition

    • mixin-like behavior definition

    super not

    statically

    bound

    AgingPricingmodifiesPricing {

    LineItemParty {

    price() {

    super.price();

    reducedPrice(...); }

    reducedPrice(...); } }


    Adaptive plug and play components for

    AgingPricingmodifies

    Pricing {

    AgingPricingmodifies

    Pricing {

    FrequentPricingmodifies

    Pricing {

    price() {. . .super . . .}

    price() {. . .super . . .}

    price() {. . .super . . .}

    Pricing APPC

    Pricing APPC

    }

    }

    }

    White-box composition

    • mixin-like behavior definition (late binding of super)


    Adaptive plug and play components for

    AgingPricingmodifiesPricing {

    price() {. . .super . . .

    . . . reducedPrice}

    reducedPrice();

    Pricing APPC

    }

    FrequentPricingmodifiesPricing {

    price() {. . .super . . .

    . . . reducedPrice }

    reducedPrice()

    }

    White-box composition

    • static declaration of the assumed specialization interface


    Adaptive plug and play components for

    White-box composition

    AgingPriicng

    SpecialPricing

    Pricing

    AgingPolicy = AgingDelta + Pricing

    AgingDelta = AgingPricing + SpecialPricing

    reducedPrice

    price

    price

    AgingDelta

    AgingPolicy

    AgingPricing

    SpecialPricing

    FrequentCustomerPricing

    SpecialPricing

    Pricing

    price

    price

    price

    reducedPrice

    reducedPrice

    AgingDelta

    FrequentCustomerDelta

    AgingAndFrequentCustomerPolicy

    AgingAndFrequentCustomerPolicy = AgingDelta + FrequentCustomerDelta + Pricing

    FrequentCustomerDelta = FrequentCustomerPricing + SpecialPricing


    Adaptive plug and play components for

    Summary so far

    APPCs as larger-grained constructs that complement classes in modeling

    collaborations or behavior that cross-cut class boundaries

    Generic behavior that can be reused with a family of applications

    Independent development of components

    Independent connectors of APPCs with applications

    Independent interfaces that are adapted explicitly

    Decoupled black-box composition of collaborations

    Definition of new collaborations as refinements of existing collaborations


    Adaptive plug and play components for

    package APPL;

    class T { ... }

    ...

    Implementation

    appc X { ... }

    • Using Map-Objects

    generates

    connector APPLX {

    ...

    T implements P {

    retType op() {applic_op();}

    ...

    }

    package APPC;

    interface APPCMap {

    // all expected operations

    // declared here}

    class P { ... } {

    Object host;

    APPCMap mapObj;

    ...

    }

    ...

    generates

    class Concrete Map

    implements APPC.APPCMap

    extends Map {

    ...

    }

    essentially, automatic generation of the map object pattern


    Adaptive plug and play components for

    Implementation

    • using Java beans + binary adaptation


    Adaptive plug and play components for

    Ongoing and future work

    further elaborate separate compilation with proxy objects and Java Beans

    as underlying implementation technologies

    elaborate syntax

    formal semantics

    use APPCs in real component architectures

    design and architectural patterns for COP


    Adaptive plug and play components for

    Adaptive

    Programming

    APPCs

    Rondo

    Related work

    visitor pattern (GOF)

    role modeling with template classes (VanHilst & Notkin)

    mixin-layers (Smaragdakis & Batory)

    contracts (Holland)

    AOP (Kiczales & Lopes)

    SOP (Harrison & Ossher)


    Adaptive plug and play components for

    Questions ?!


  • Login
