Presentation Transcript


Delta hmi seminar dop b dopsoft introduction

Delta HMI seminar DOP-B & DOPSoft Introduction

Automation for a Changing WorldHannover Mess 2012


Dop b10e s515 10 4 4 3 squared

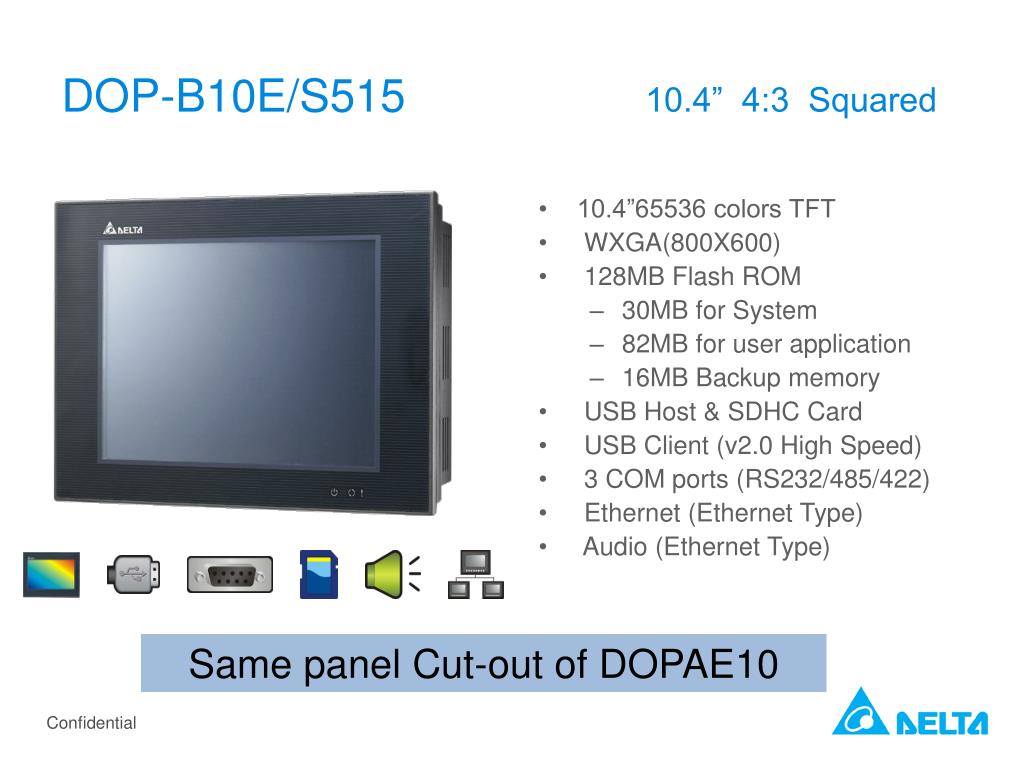

DOP-B10E/S515 10.4” 4:3 Squared

  • 10.4”65536 colors TFT

  • WXGA(800X600)

  • 128MB Flash ROM

    30MB for System

    82MB for user application

    16MB Backup memory

  • USB Host & SDHC Card

  • USB Client (v2.0 High Speed)

  • 3 COM ports (RS232/485/422)

  • Ethernet (Ethernet Type)

  • Audio (Ethernet Type)

Same panel Cut-out of DOPAE10

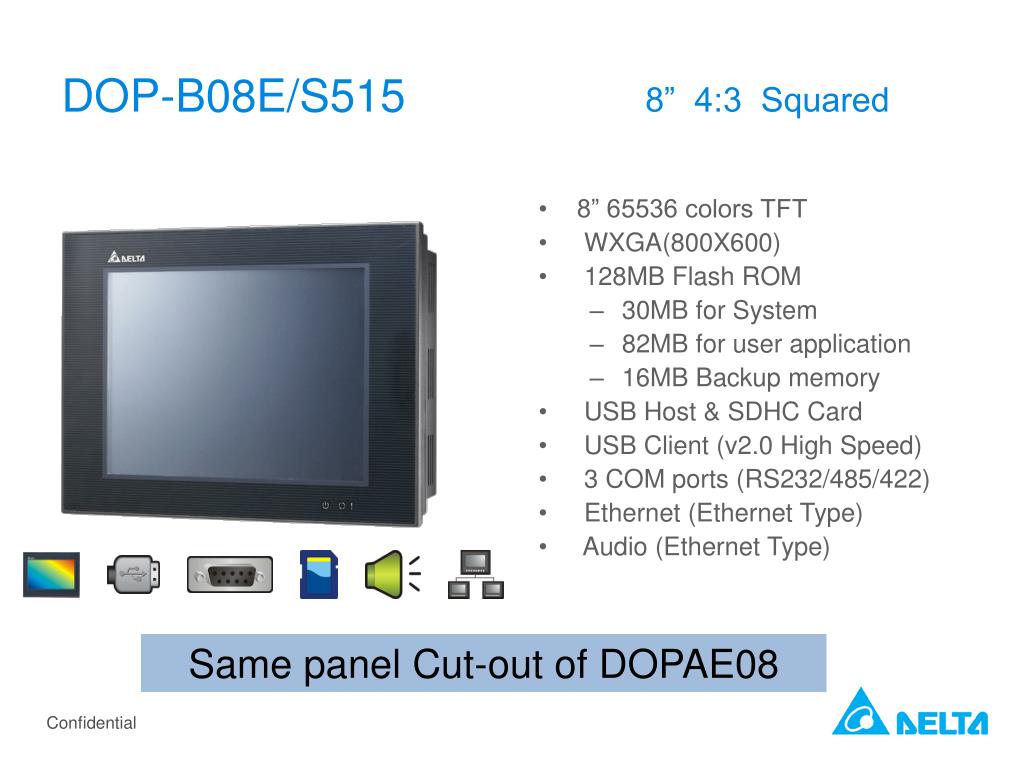

Dop b08e s515 8 4 3 squared

DOP-B08E/S515 8” 4:3 Squared

  • 8” 65536 colors TFT

  • WXGA(800X600)

  • 128MB Flash ROM

    30MB for System

    82MB for user application

    16MB Backup memory

  • USB Host & SDHC Card

  • USB Client (v2.0 High Speed)

  • 3 COM ports (RS232/485/422)

  • Ethernet (Ethernet Type)

  • Audio (Ethernet Type)

Same panel Cut-out of DOPAE08

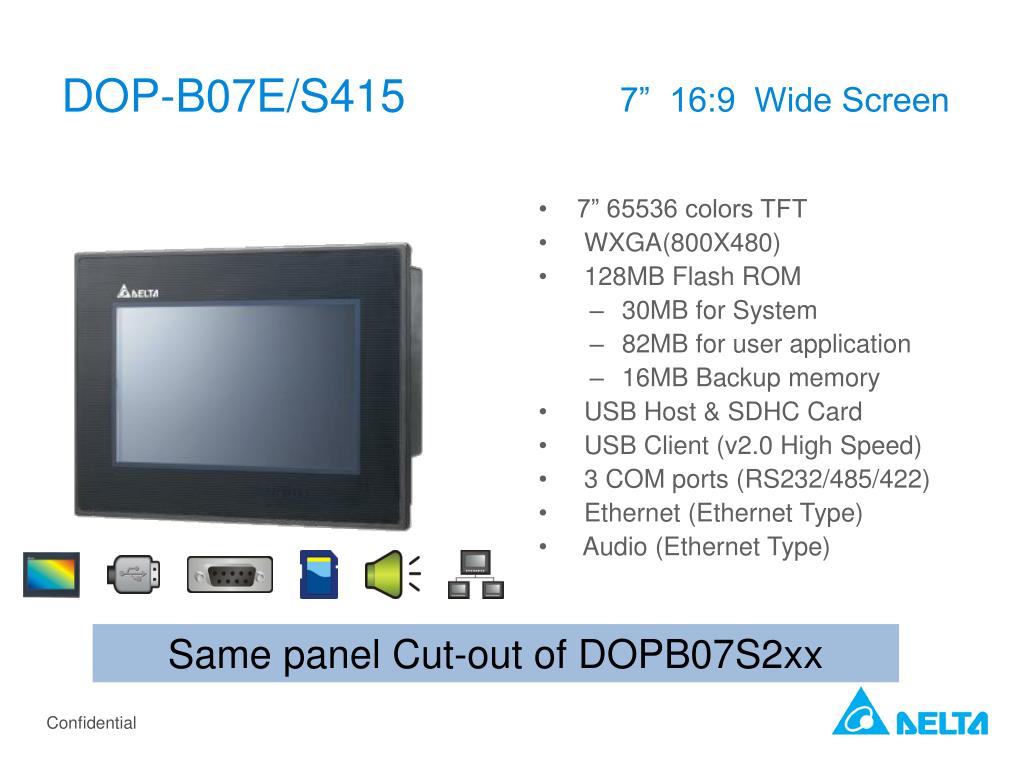

Dop b07e s415 7 16 9 wide screen

DOP-B07E/S415 7” 16:9 Wide Screen

  • 7” 65536 colors TFT

  • WXGA(800X480)

  • 128MB Flash ROM

    30MB for System

    82MB for user application

    16MB Backup memory

  • USB Host & SDHC Card

  • USB Client (v2.0 High Speed)

  • 3 COM ports (RS232/485/422)

  • Ethernet (Ethernet Type)

  • Audio (Ethernet Type)

Same panel Cut-out of DOPB07S2xx


Dop b07s411k 7 16 9 wide screen

DOP-B07S411K 7” 16:9 Wide Screen

PLANED Q4 2012

  • 7” 65536 colors TFT

  • WVGA(800X480)

  • 128MB Flash ROM

    30MB for System

    82MB for user application

    16MB Backup memory

  • USB Host & SDHC Card

  • USB Client (v2.0 High Speed)

  • 3 COM ports (RS232/485/422)

Same panel Cut-out of DOPB07S2xx


Dop b07e s515 7 4 3 squared screen

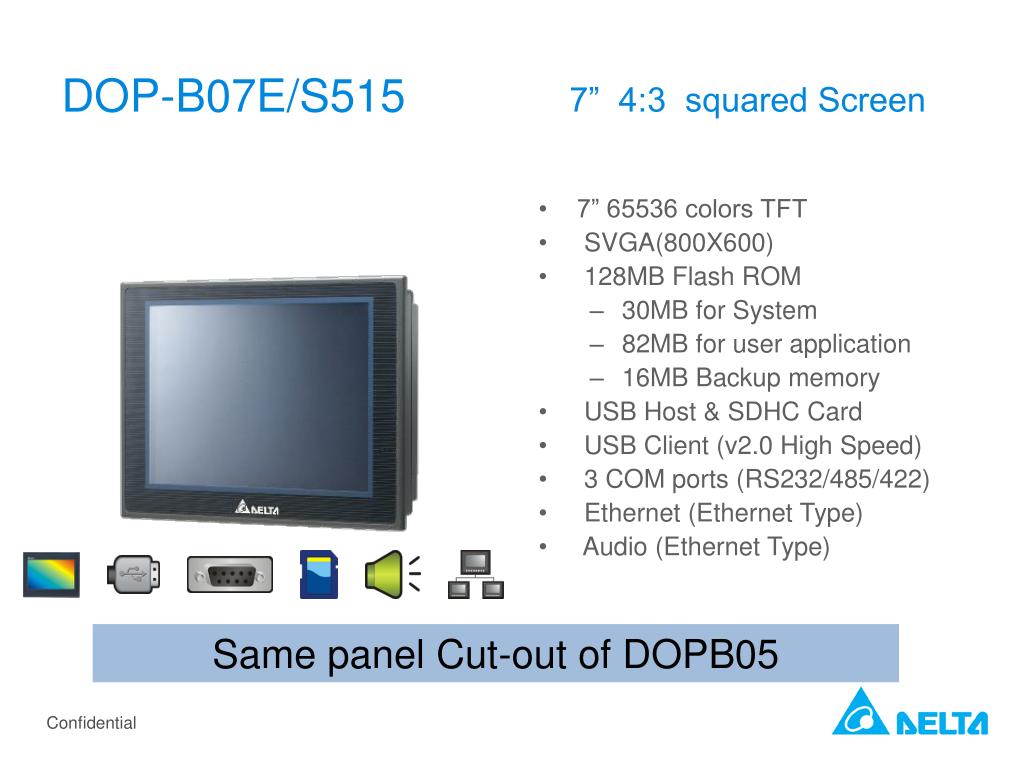

DOP-B07E/S515 7” 4:3 squared Screen

  • 7” 65536 colors TFT

  • SVGA(800X600)

  • 128MB Flash ROM

    30MB for System

    82MB for user application

    16MB Backup memory

  • USB Host & SDHC Card

  • USB Client (v2.0 High Speed)

  • 3 COM ports (RS232/485/422)

  • Ethernet (Ethernet Type)

  • Audio (Ethernet Type)

Same panel Cut-out of DOPB05


Comparison table

Comparison Table

7”

5.6”

320x234

800x600

184

184

144

144

7


Dop b07ps 7 professional model

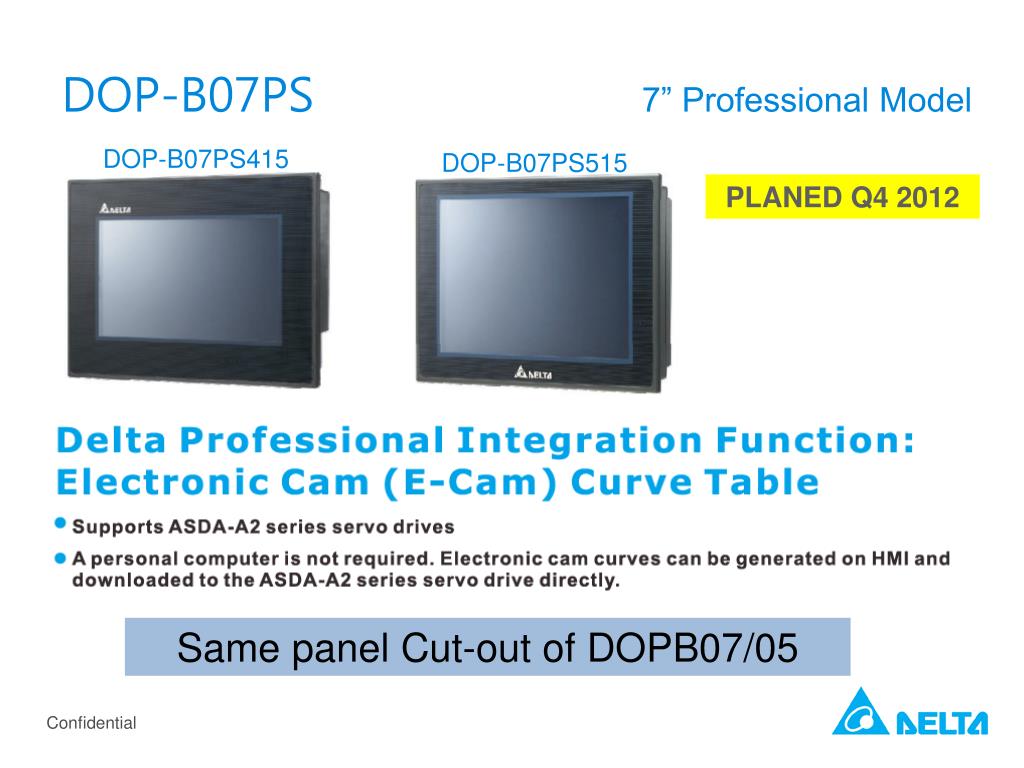

DOP-B07PS7” Professional Model

DOP-B07PS415

DOP-B07PS515

PLANED Q4 2012

Same panel Cut-out of DOPB07/05


Dop b07ps 7 professional model1

DOP-B07PS7” Professional Model

PLANED 2013


Dop b04s211 4 16 9 wide screen

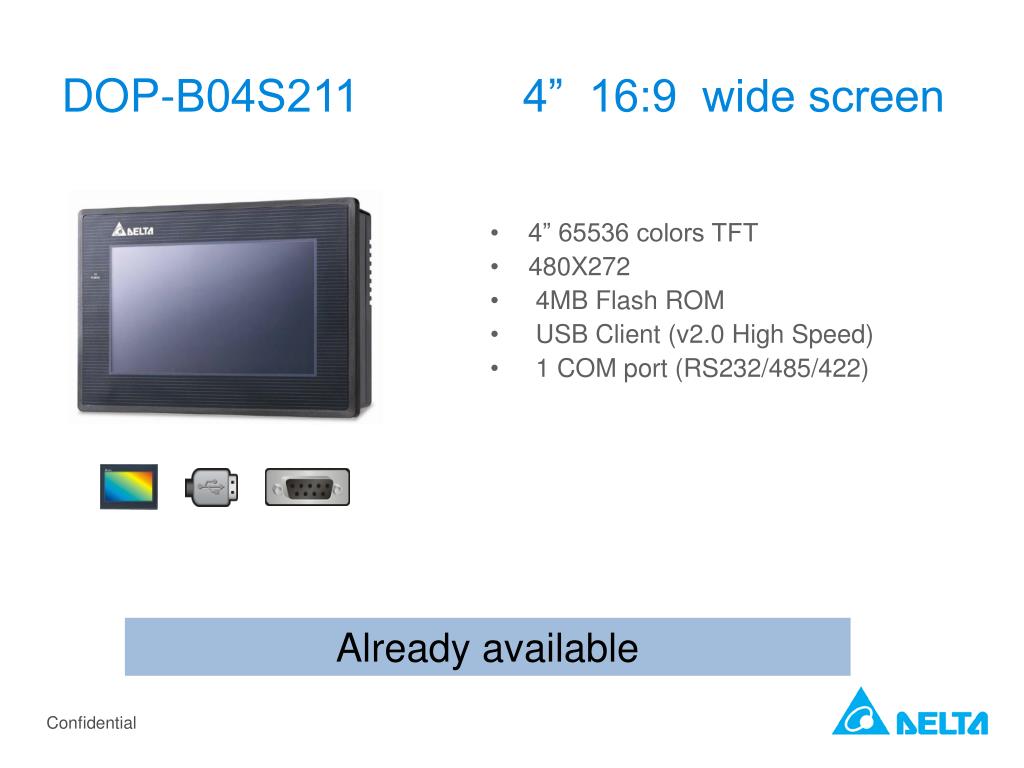

DOP-B04S211 4” 16:9 wide screen

  • 4” 65536 colors TFT

  • 480X272

  • 4MB Flash ROM

  • USB Client (v2.0 High Speed)

  • 1 COM port (RS232/485/422)

Already available


Dop b03e s211 4 3 16 9 wide screen

DOP-B03E/S211 4.3” 16:9 wide Screen

PLANED 2013

  • 4.3” 65536 colors TFT

  • WQGA(480X272)

  • 128MB Flash ROM

    30MB for System

    82MB for user application

    16MB Backup memory

  • USB Host

  • USB Client (v2.0 High Speed)

  • COM ports (RS232/485/422)

  • Ethernet (Ethernet Type)

Same panel Cut-out of DOPAS35

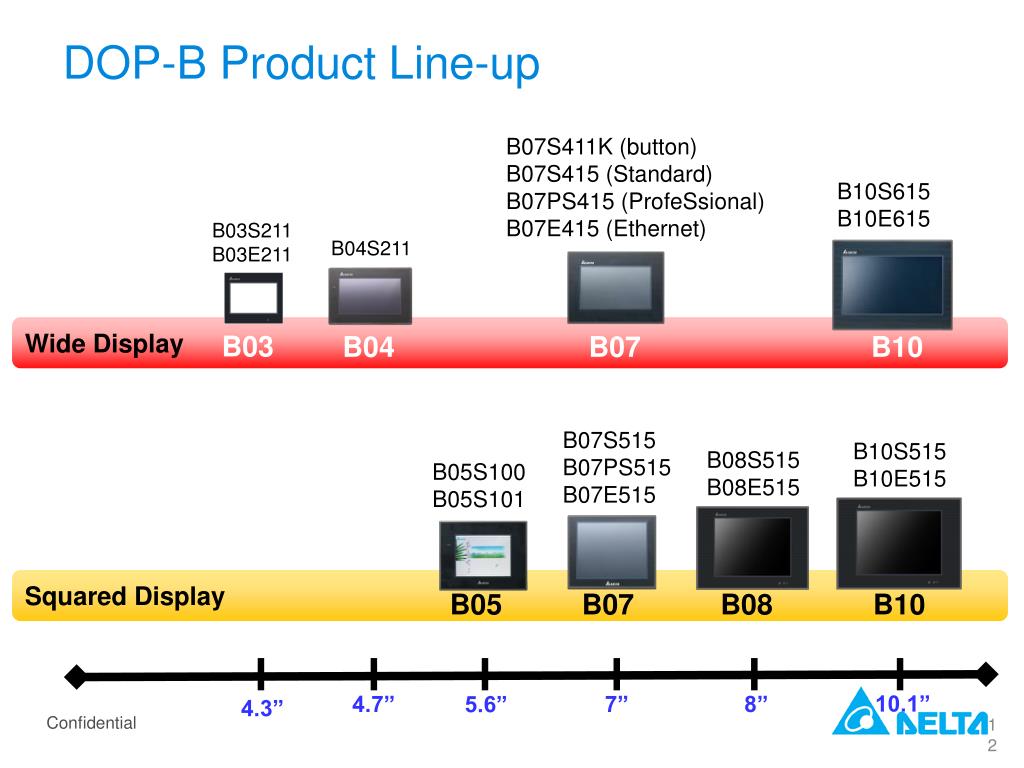

Dop b product line up

DOP-B Product Line-up

B07S411K (button)

B07S415 (Standard)

B07PS415 (ProfeSsional)

B07E415 (Ethernet)

B10S615

B10E615

B03S211

B03E211

B04S211

Wide Display

B03

B04

B07

B10

B07S515

B07PS515

B07E515

B10S515

B10E515

B08S515

B08E515

B05S100

B05S101

Squared Display

B05

B07

B08

B10

4.7”

7”

8”

5.6”

4.3”

10.1”

12


Dopsoft 1 00

DOPSoft 1.00

13


Delta hmi seminar dop b dopsoft introduction

Convenient Model Conversion

Screen Editor 1.05

Compatible with the Existing Screen Editor Project

Screen Editor 2.00

DOPSoft

14


Convenient model conversion

Convenient Model Conversion

The screen project can be converted to different resolution models.

B10, WXGA(1024x600)

B04, WQVGA(480x272)

B07, WVGA(800x480)

15

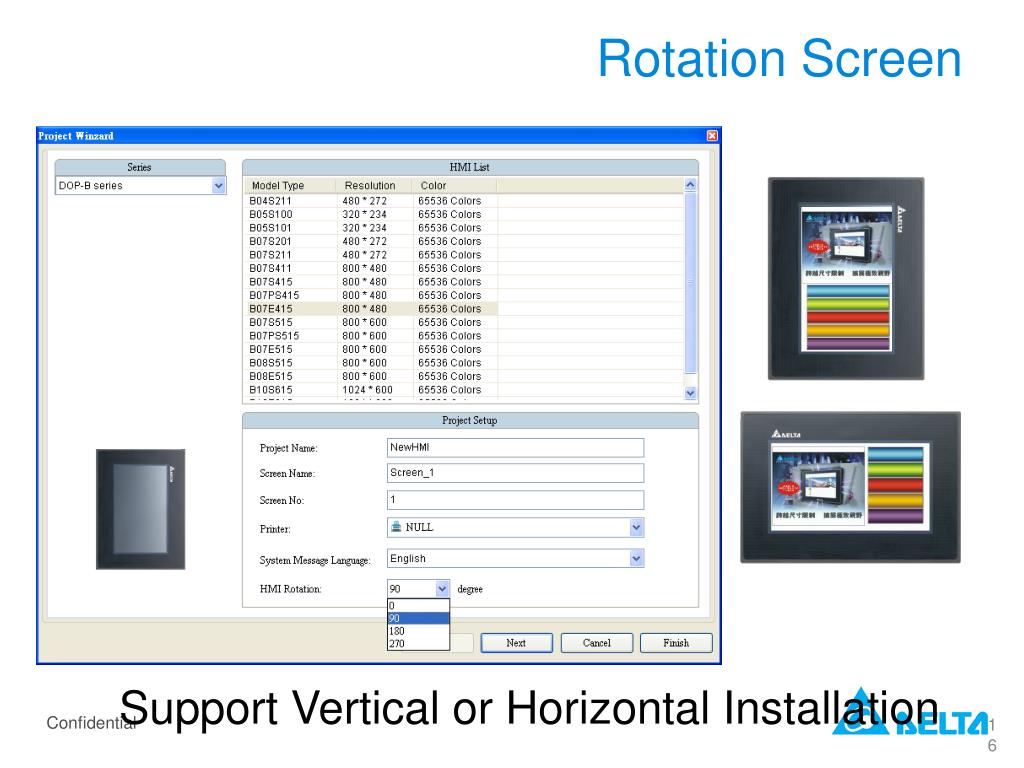

Rotation screen

Rotation Screen

Support Vertical or Horizontal Installation

16

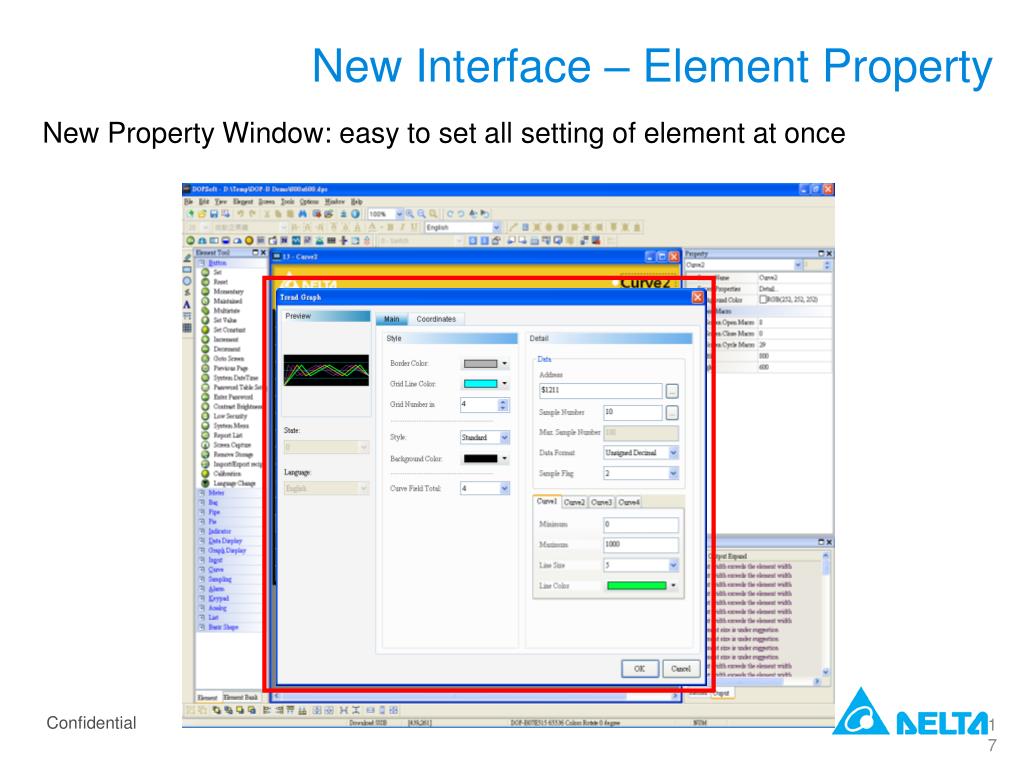

New interface element property

New Interface – Element Property

New Property Window: easy to set all setting of element at once

17


New interface multistate text edit

New Interface – Multistate Text Edit

Easy to Edit Multistate Text

18

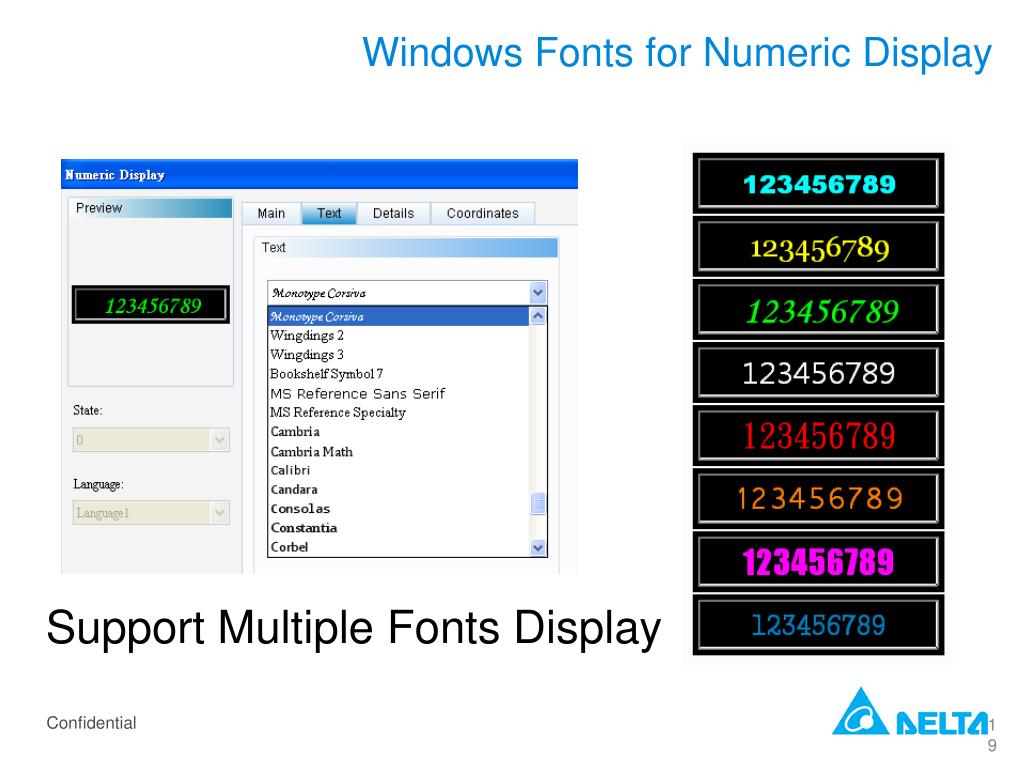

Windows fonts for numeric display

Windows Fonts for Numeric Display

Support Multiple Fonts Display

19


Multilingual display

MultilingualDisplay

Easy to Create Multi-Language

Project in EXCEL

20

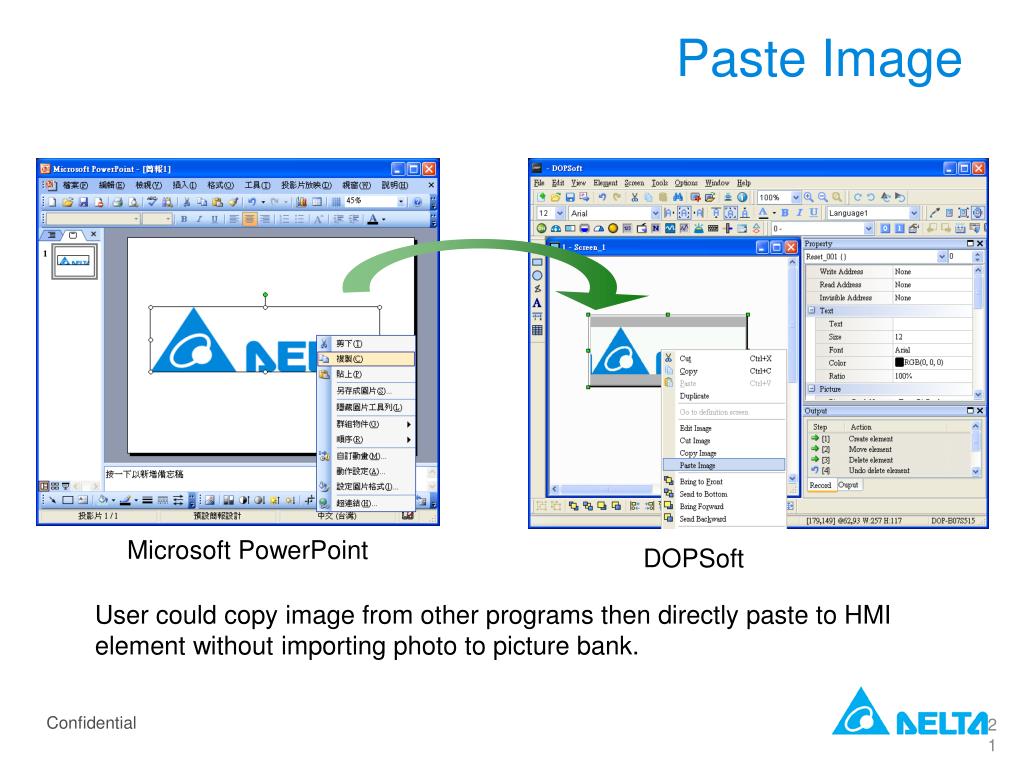

Paste image

Paste Image

Microsoft PowerPoint

DOPSoft

User could copy image from other programs then directly paste to HMI element without importing photo to picture bank.

21


Compatible with wplsoft and ispsoft symbol table

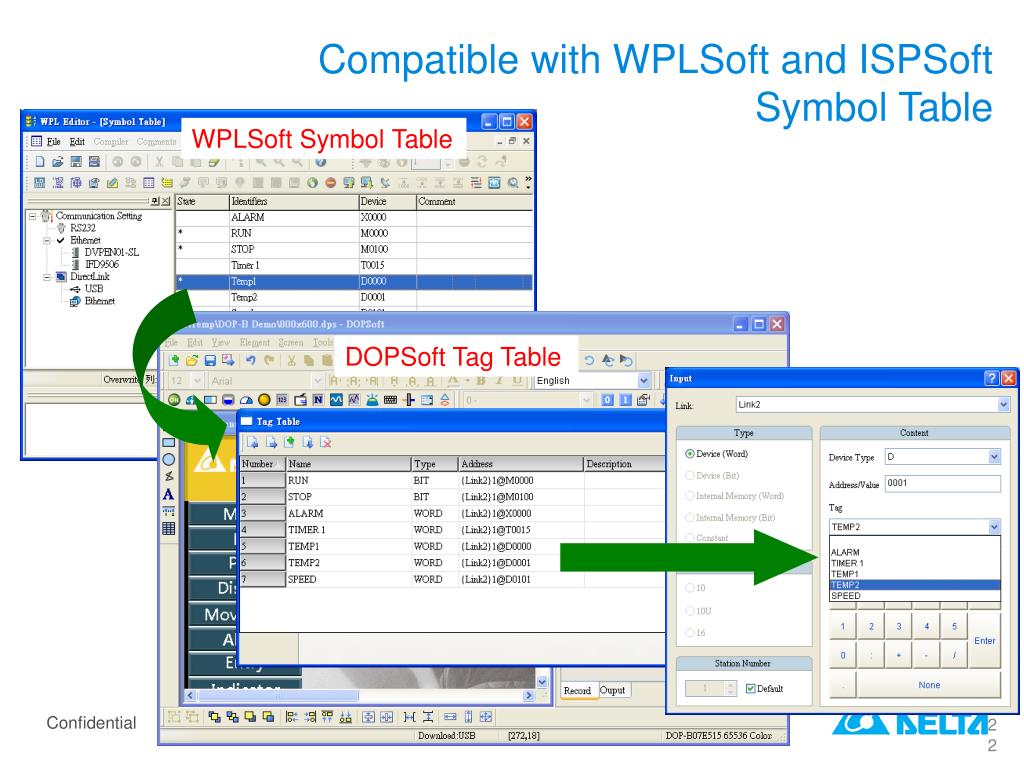

Compatible with WPLSoft and ISPSoft Symbol Table

WPLSoft Symbol Table

DOPSoft Tag Table

22

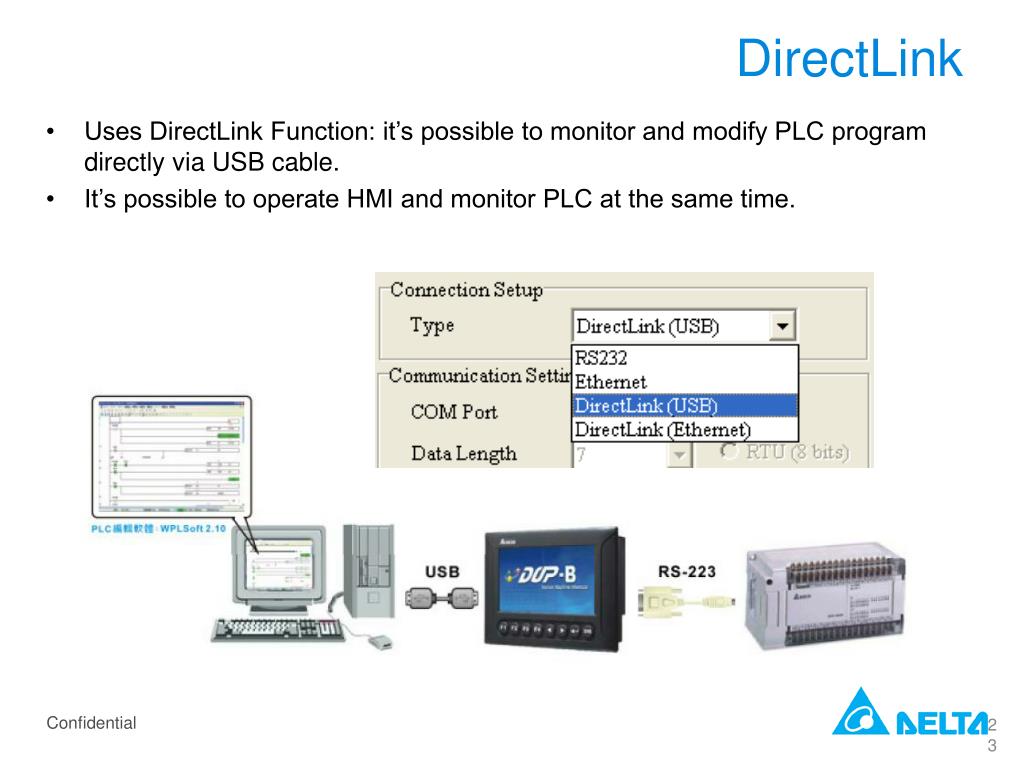

Directlink

DirectLink

  • Uses DirectLink Function: it’s possible to monitor and modify PLC program directly via USB cable.

  • It’s possible to operate HMI and monitor PLC at the same time.

23


Plc ladder transfer

PLC Ladder Transfer

  • PLC Ladder can be transferred and backup via SD card / USB flash drive even when an external PC isn’t available.

  • SD card / USB flash drive are capable of storing several PLC Ladder.

24


Delta hmi seminar dop b dopsoft introduction

DOP-eServer

DOP-eRemote

25


Remote control eremote

Remote Control: eRemote

eRemote is used to view and check the same screen shown on HMI at the production site and to control the manufacturing process via Ethernet.

26


Data collection excel

Data Collection: EXCEL

1.Excel 2000/2003/2007/2010

2.Collected data can be saved in user-defined Excel file according to various purposes for the user to easily create production report

27


Data collection database

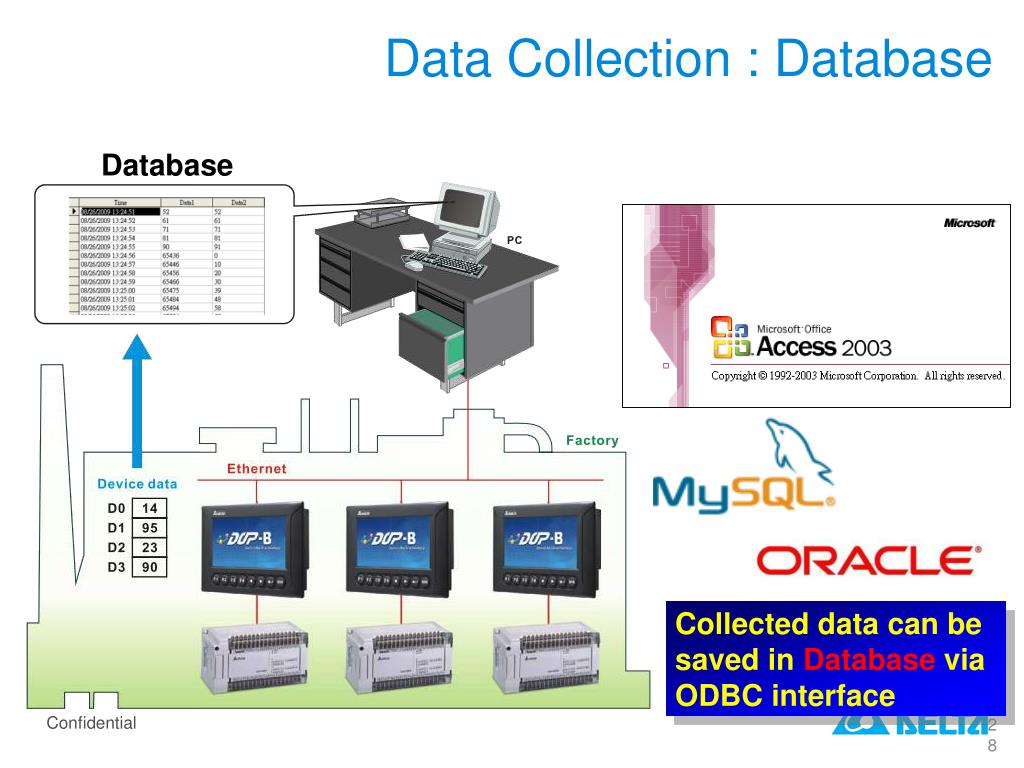

Data Collection : Database

Database

Collected data can be saved in Database via ODBC interface

28
