  1. LAMOST光谱仪器 朱永田 南京天文光学技术研究所 LAMOST项目-----工程部 2003. 02. 28，北京

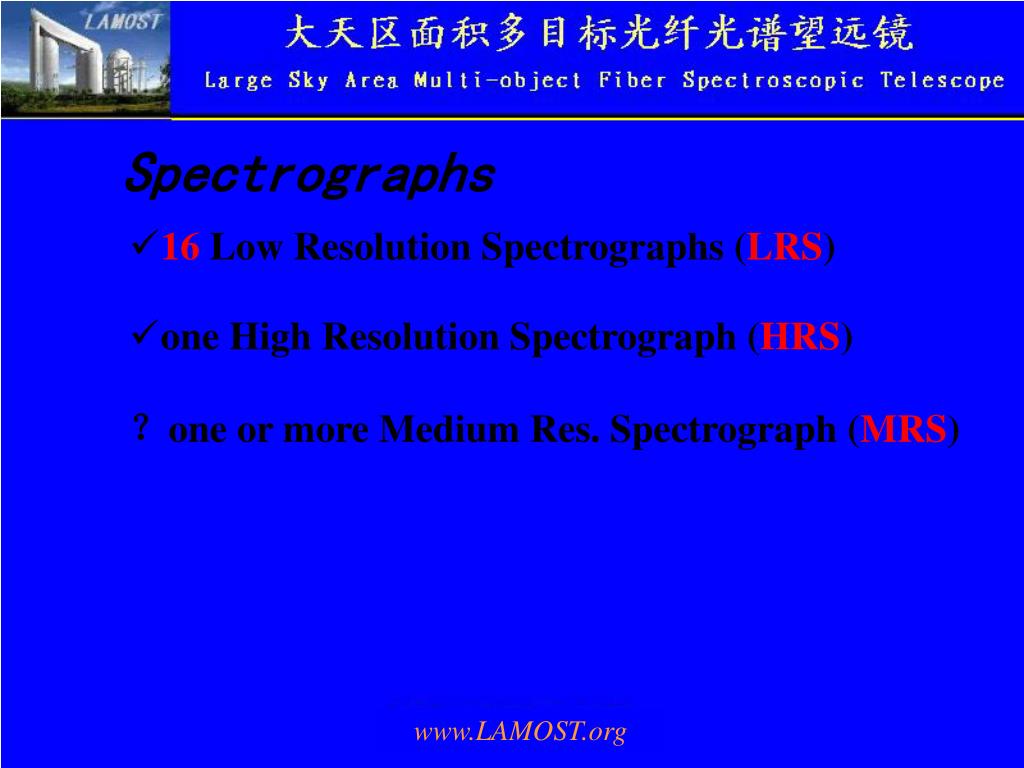

  2. Spectrographs

  3. LRSs

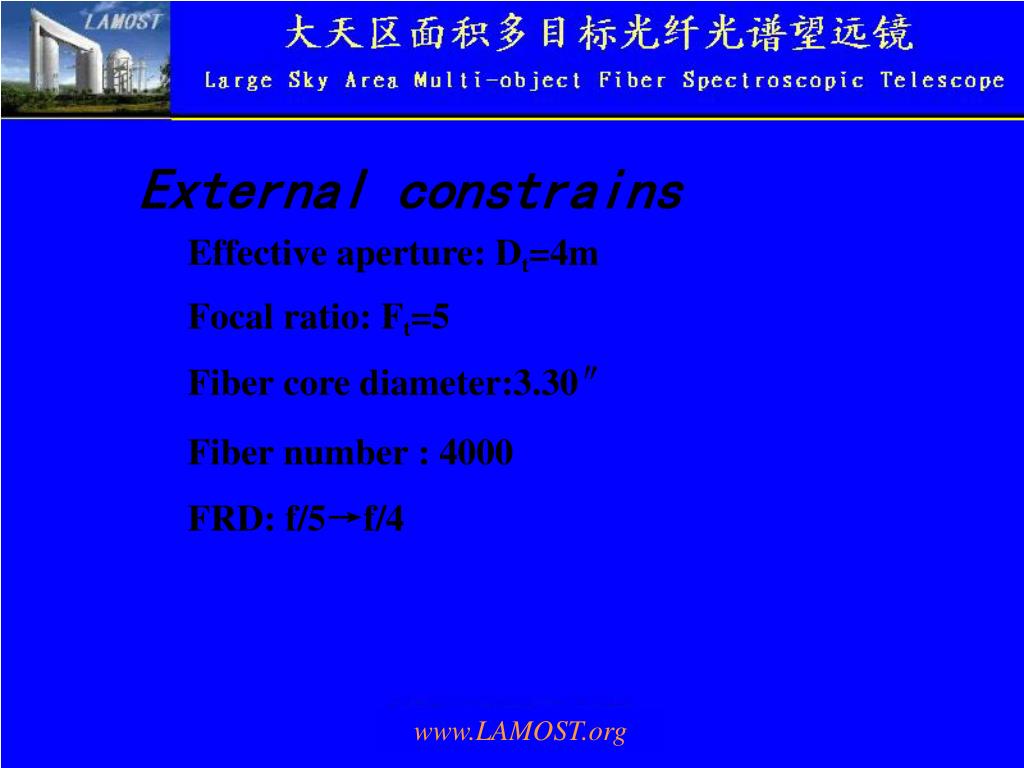

  4. External constrains

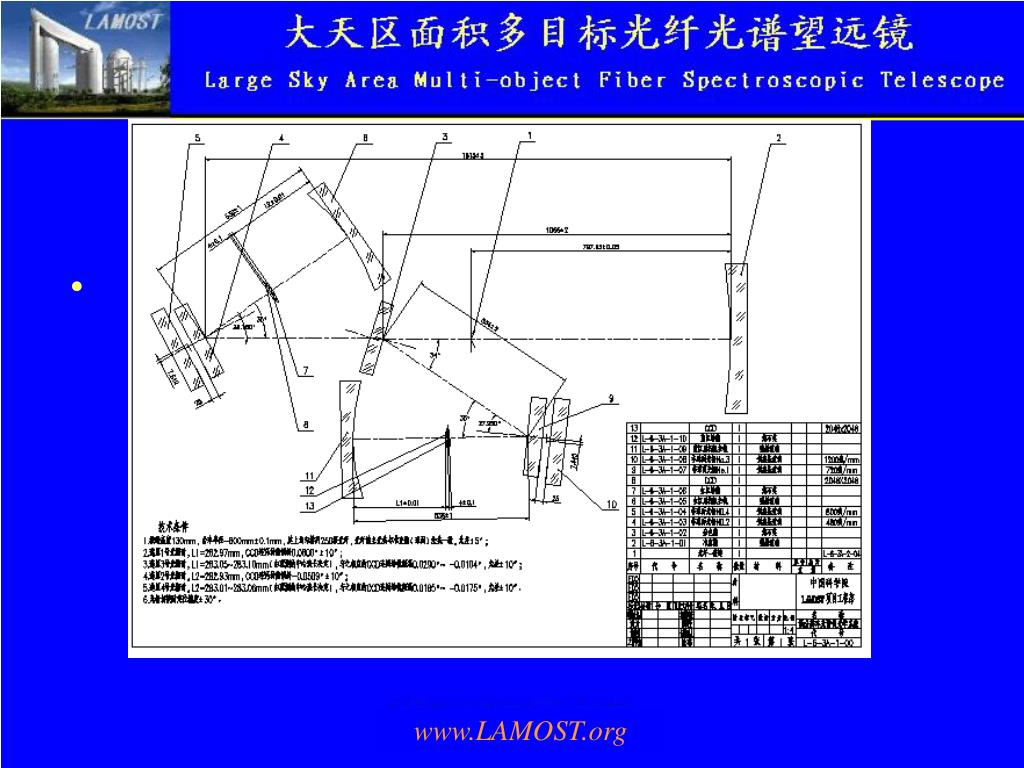

  5. Subtitle

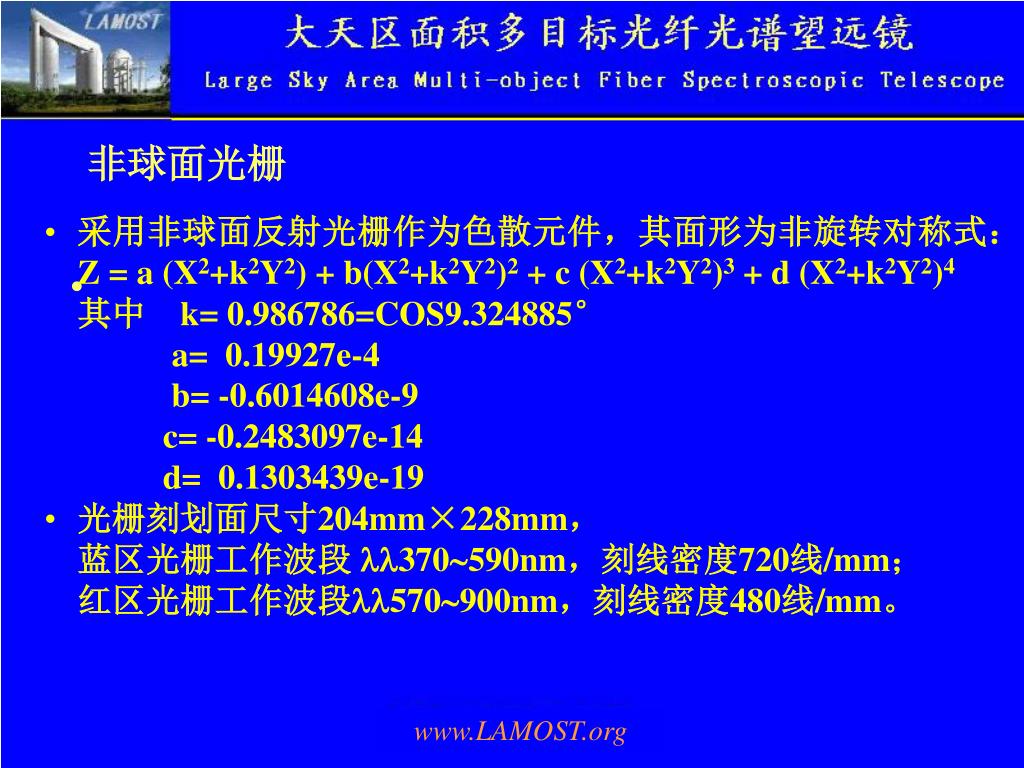

  6. 非球面光栅 • 采用非球面反射光栅作为色散元件，其面形为非旋转对称式： • Z = a (X2+k2Y2) + b(X2+k2Y2)2 + c (X2+k2Y2)3 + d (X2+k2Y2)4 • 其中 k= 0.986786=COS9.324885° • a= 0.19927e-4 • b= -0.6014608e-9 • c= -0.2483097e-14 • d= 0.1303439e-19 • 光栅刻划面尺寸204mm×228mm， • 蓝区光栅工作波段 370590nm，刻线密度720线/mm； • 红区光栅工作波段570900nm，刻线密度480线/mm。

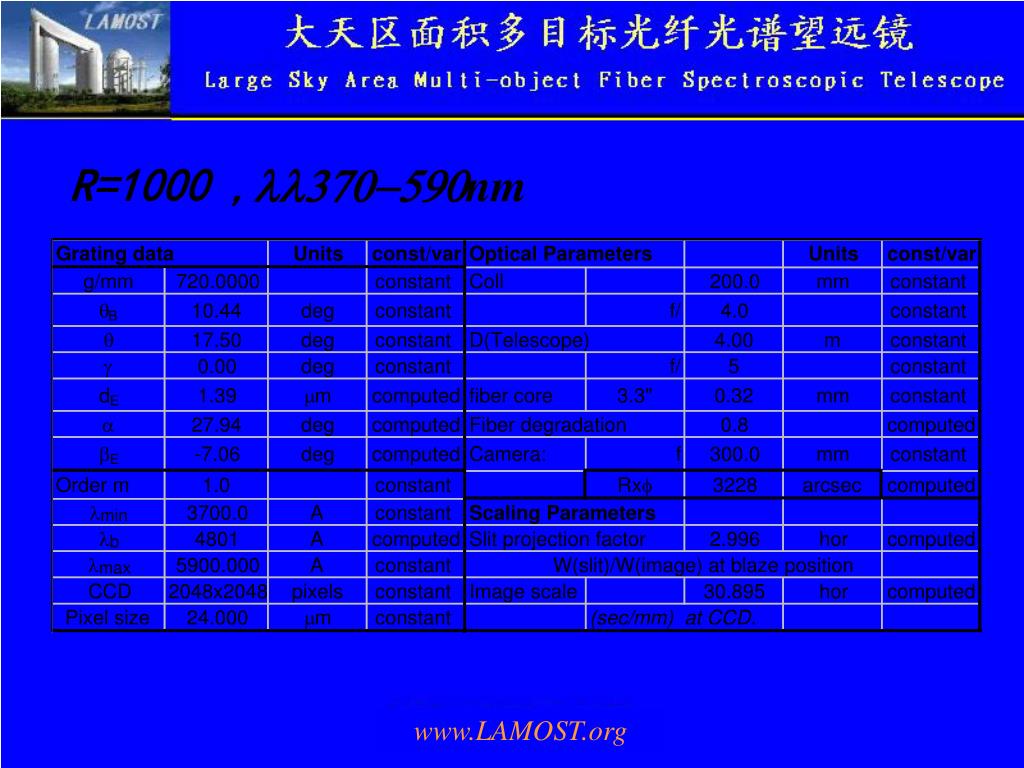

  7. R=1000 ,ll370-590nm

  8. R=1000 ,ll570-900nm

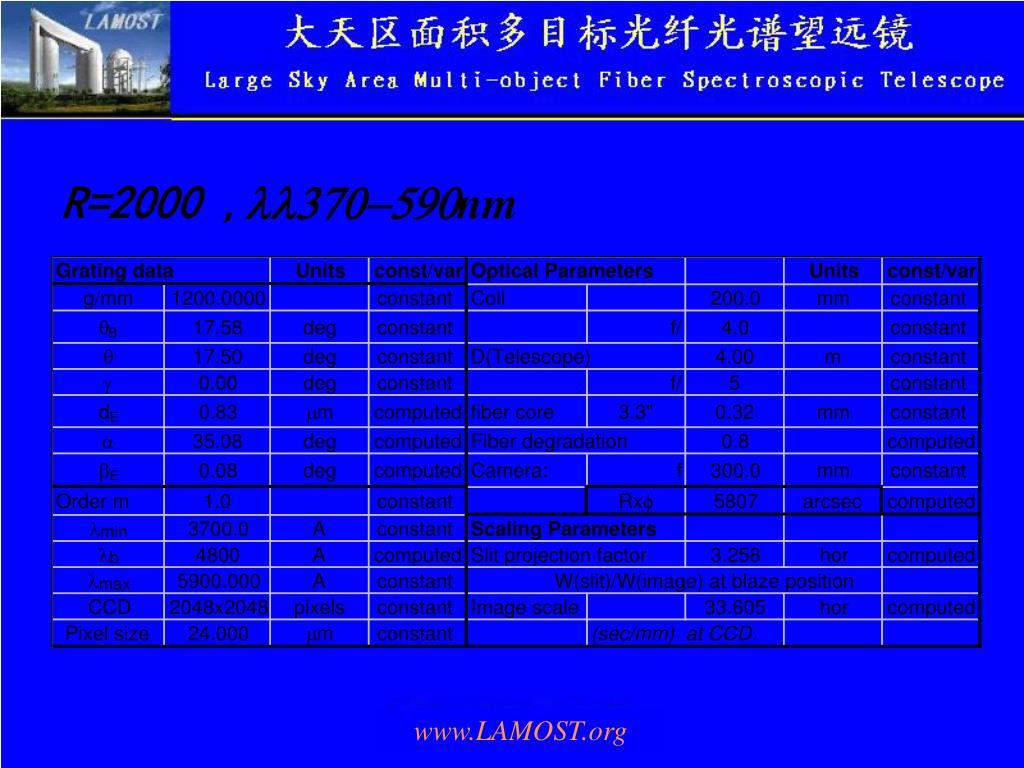

  9. R=2000 ,ll370-590nm

  10. R=2000 ,ll570-900nm

  11. 焦面光纤光谱分布图

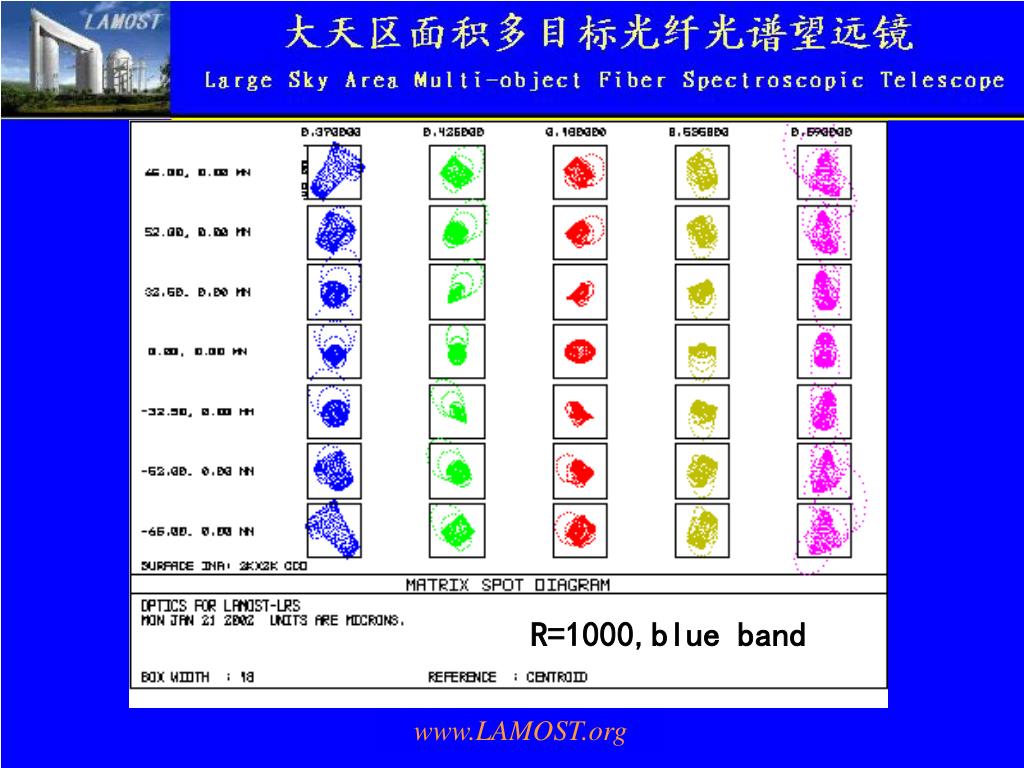

  12. R=1000,blue band

  13. R=1000,Red band

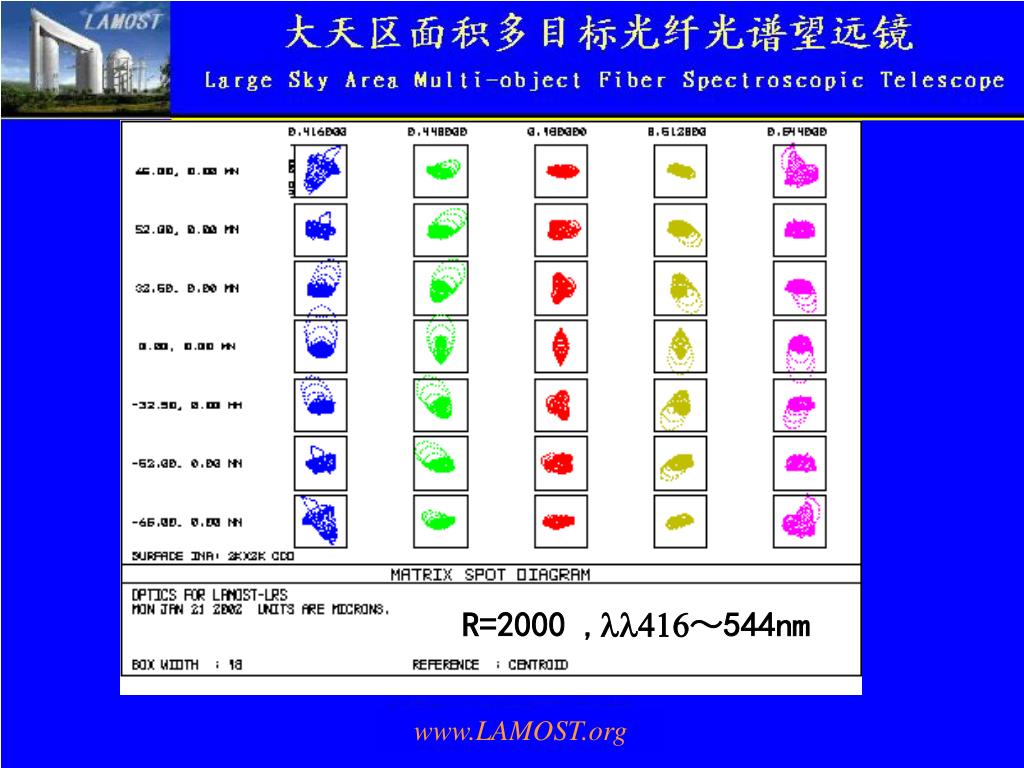

  14. R=2000 ,ll416～544nm

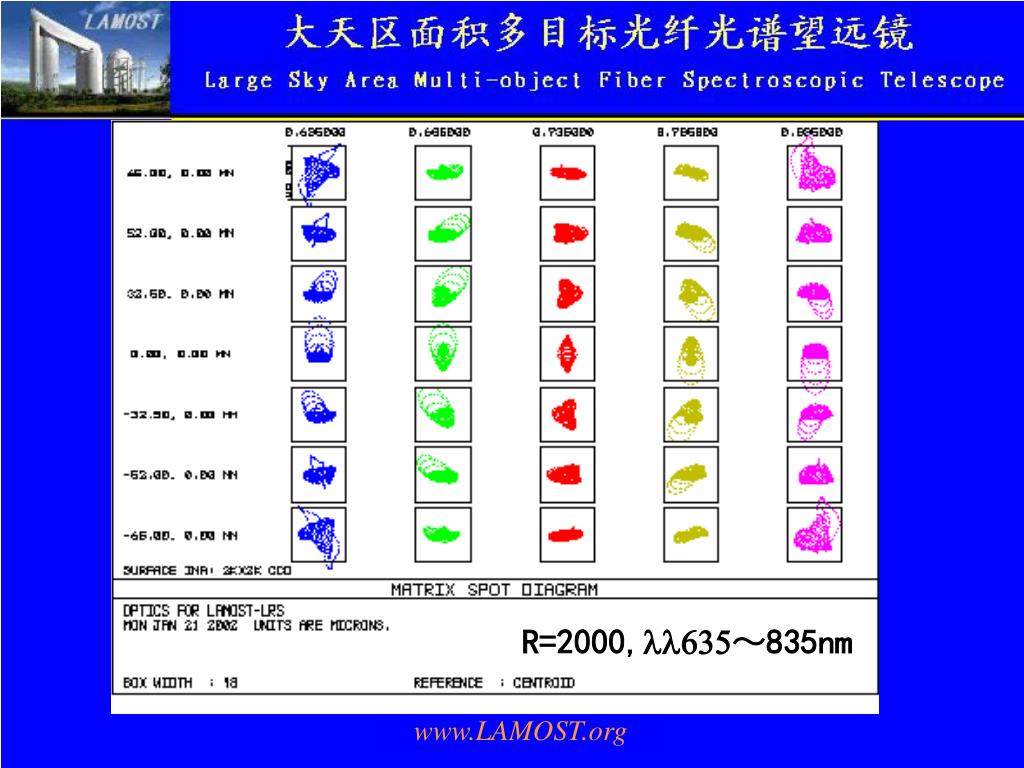

  15. R=2000,ll635～835nm

  16. Subtitle 光栅转台

  17. Subtitle 准直镜

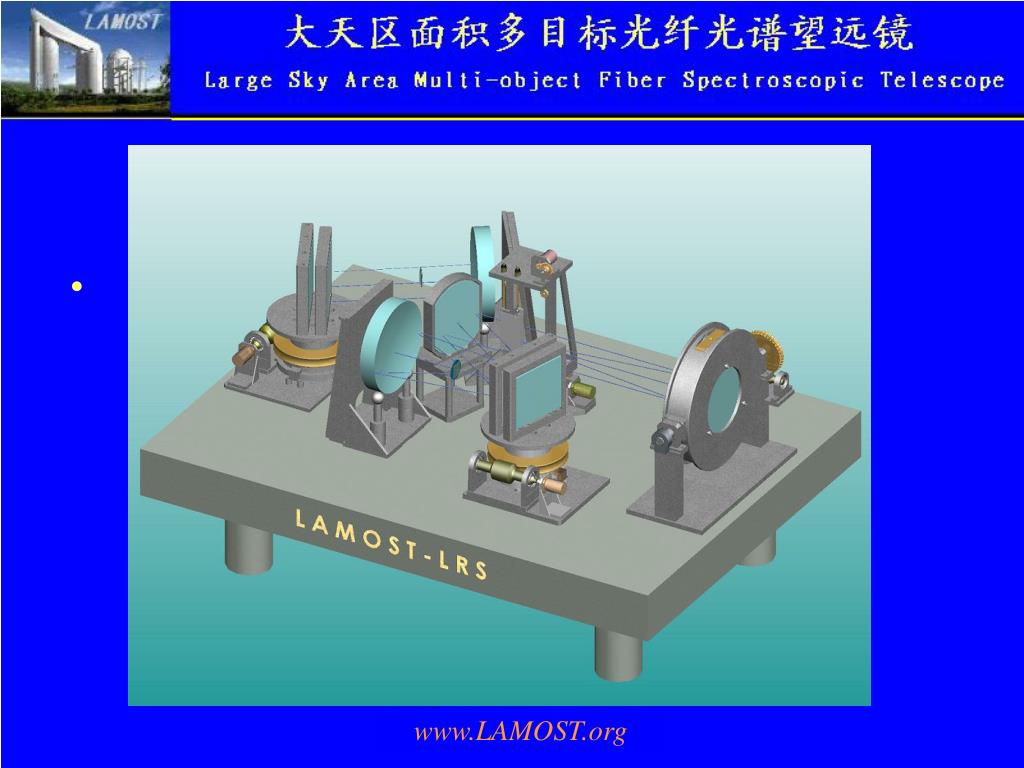

  18. Subtitle

  19. Subtitle

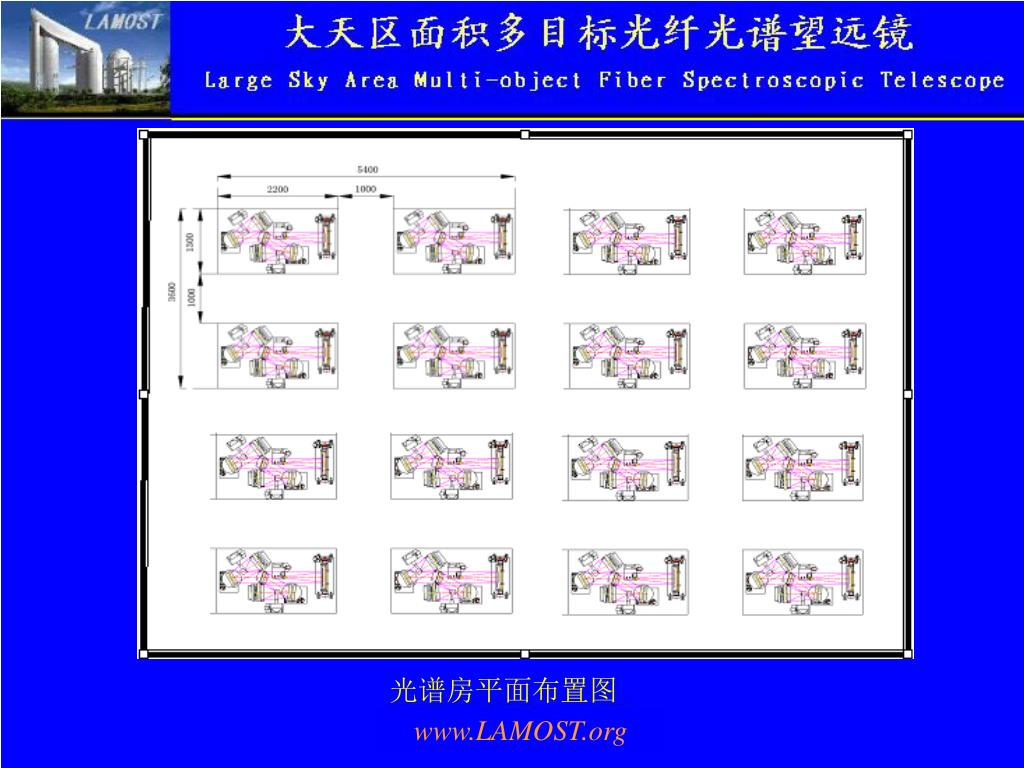

  20. 光谱房平面布置图

  21. 高分辨率光谱仪初步方案 朱永田 南京天文光学技术研究所 LAMOST项目-----工程部 2003. 02. 28，北京

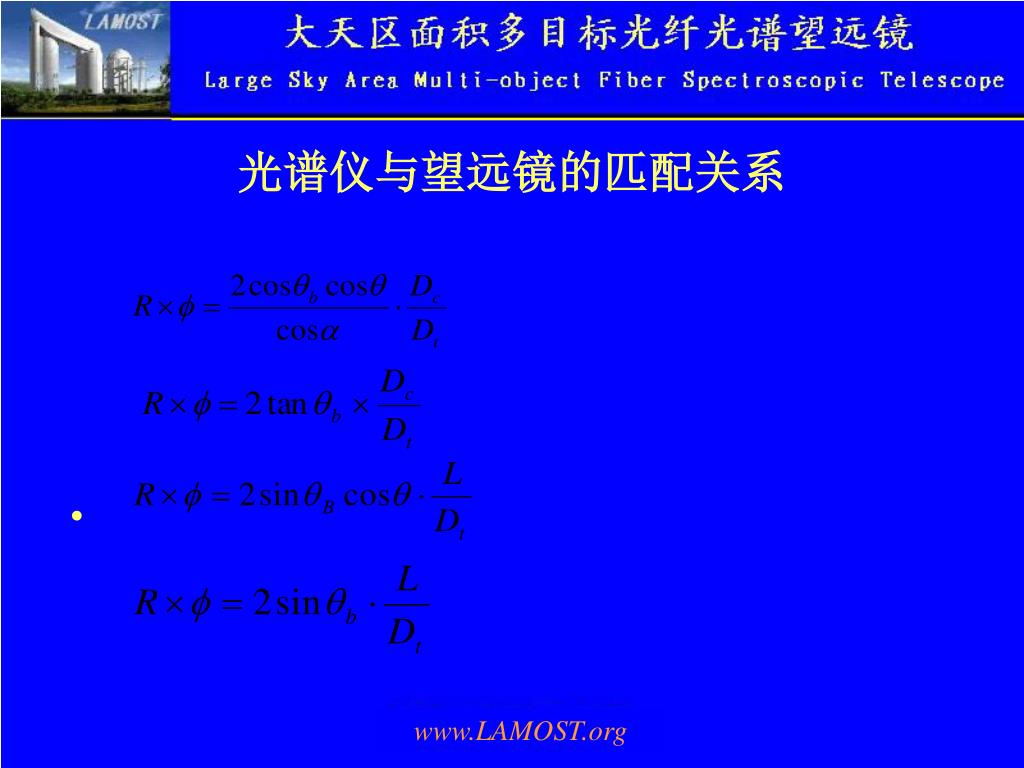

  22. 光谱仪与望远镜的匹配关系

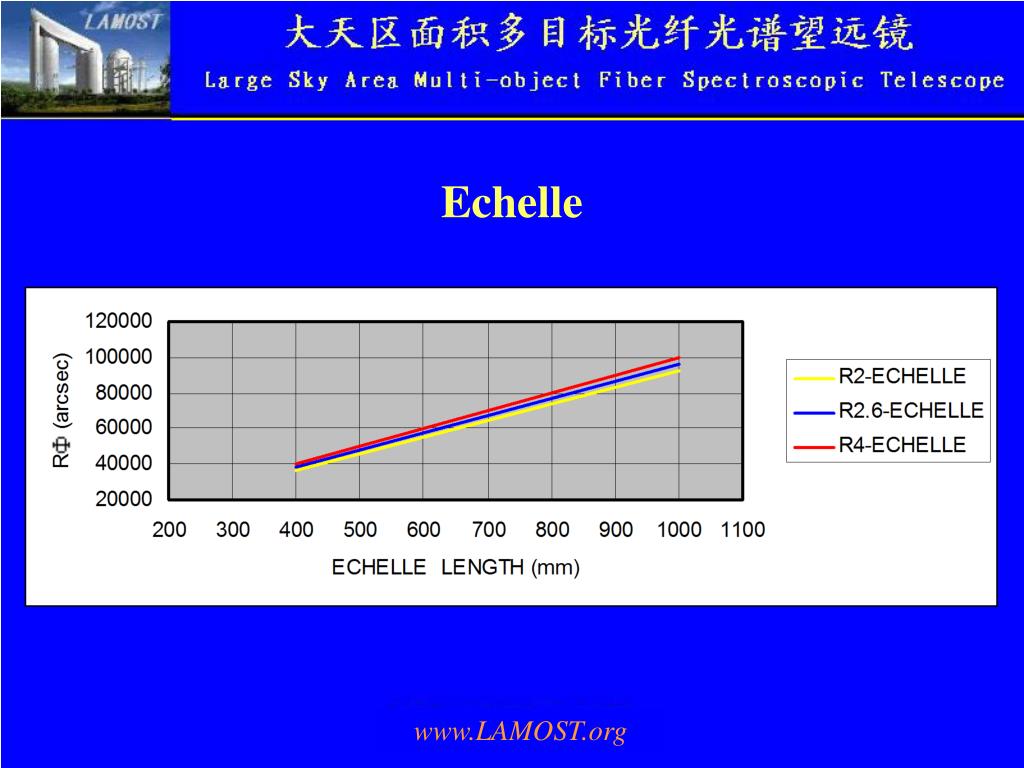

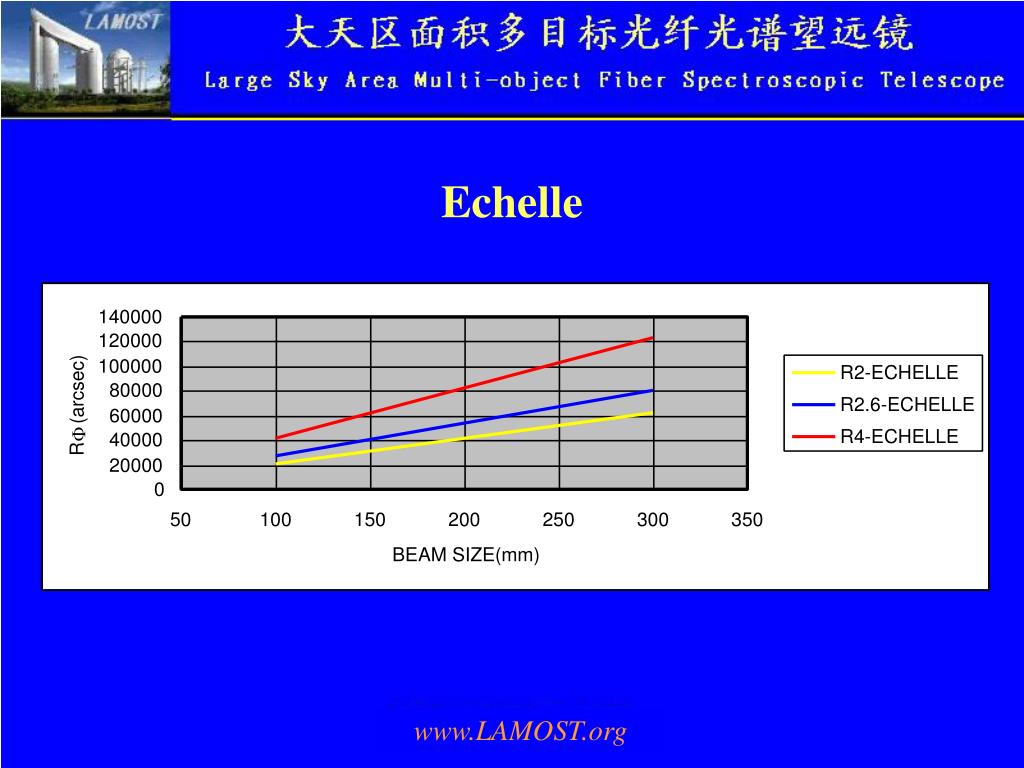

  23. Echelle

  24. Echelle

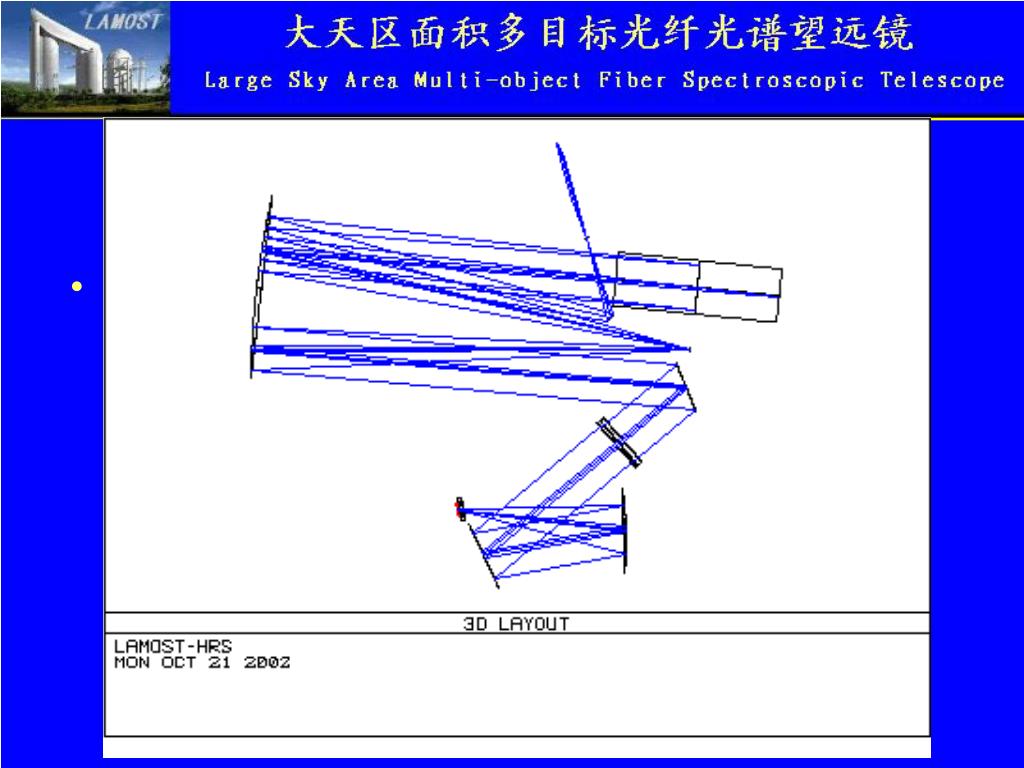

  25. Subtitle

  26. Subtitle

  27. Subtitle

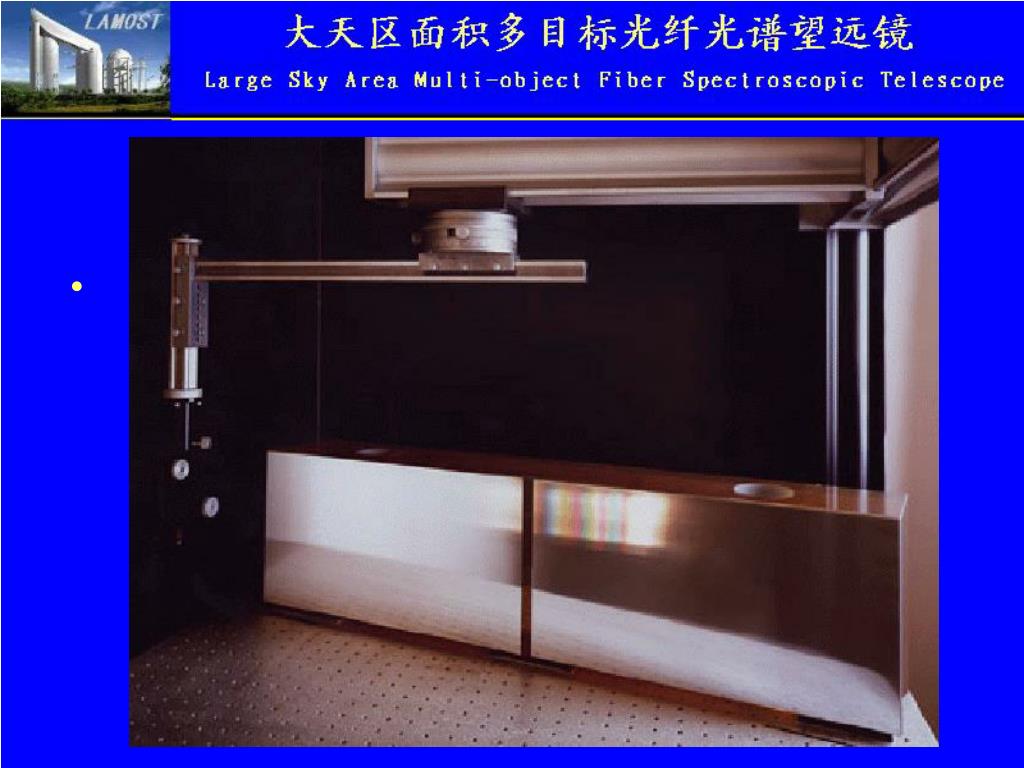

  28. Subtitle

  29. Subtitle

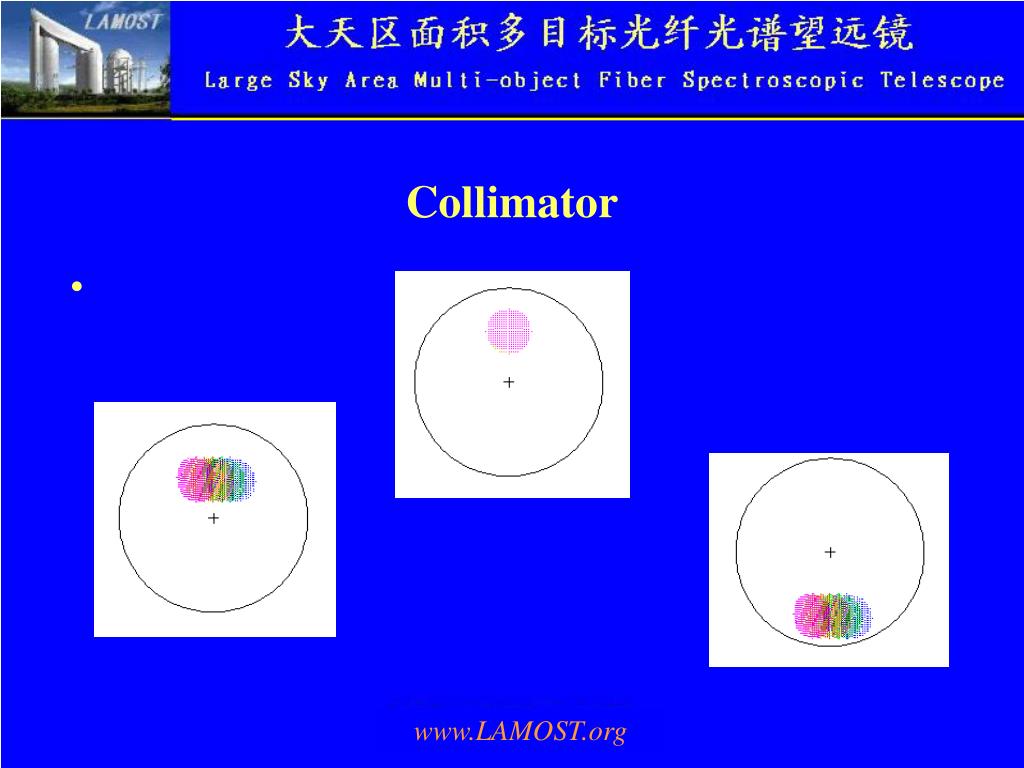

  30. Collimator

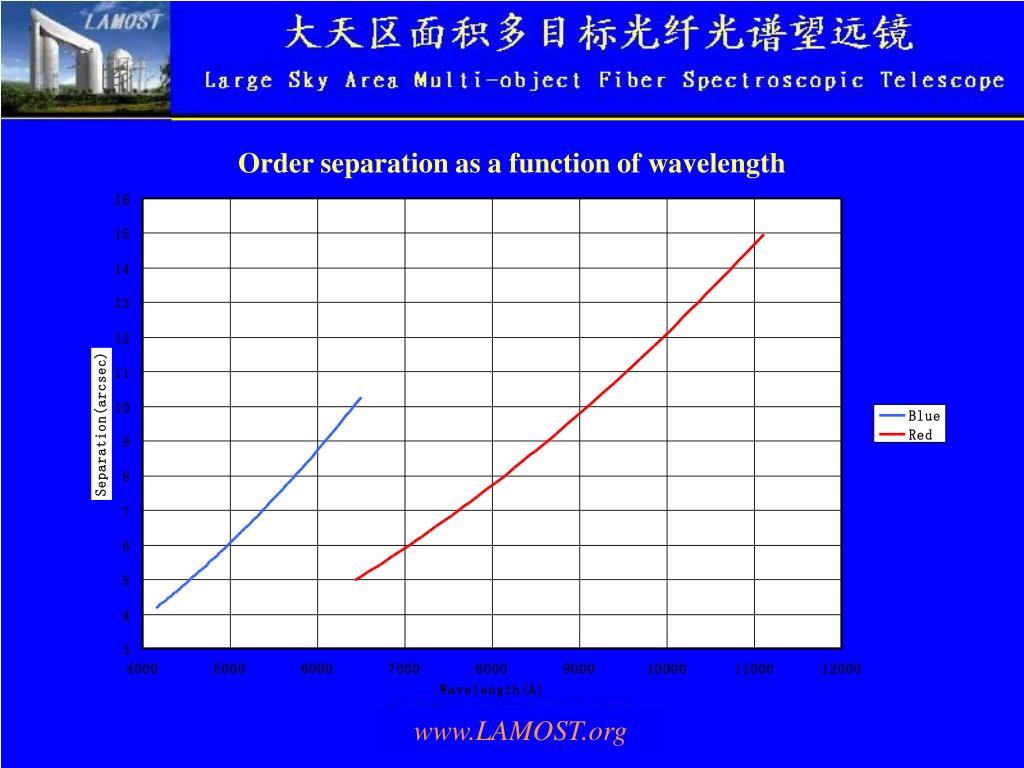

  31. Order separation as a function of wavelength

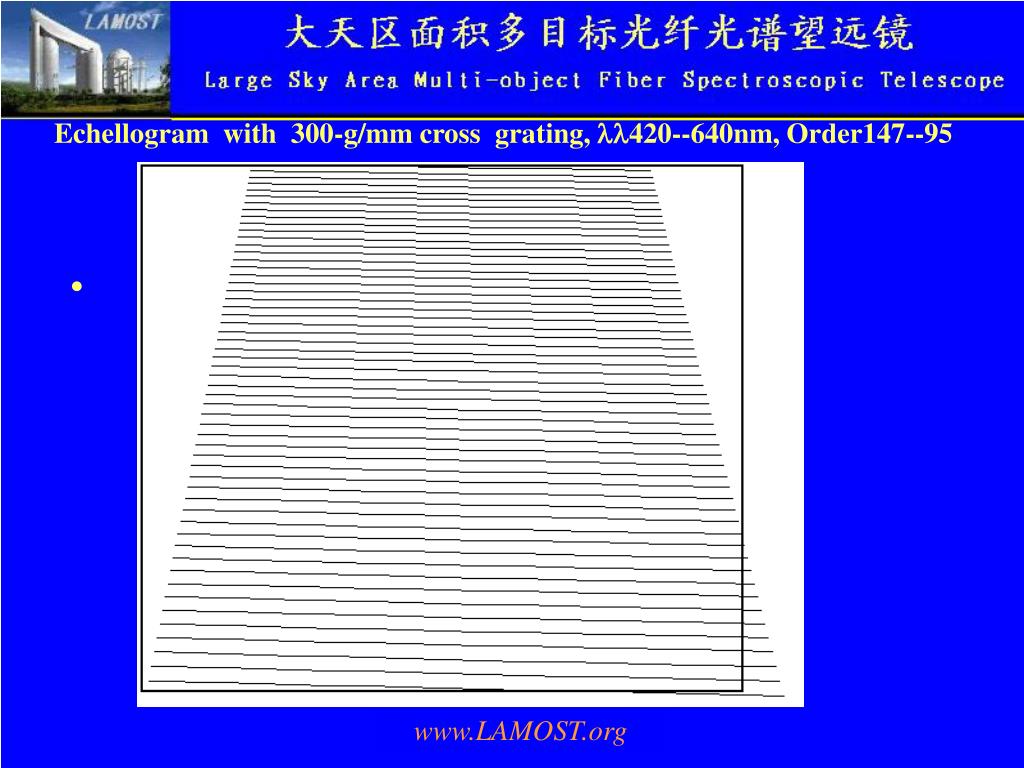

  32. Echellogram with 300-g/mm cross grating, ll420--640nm, Order147--95

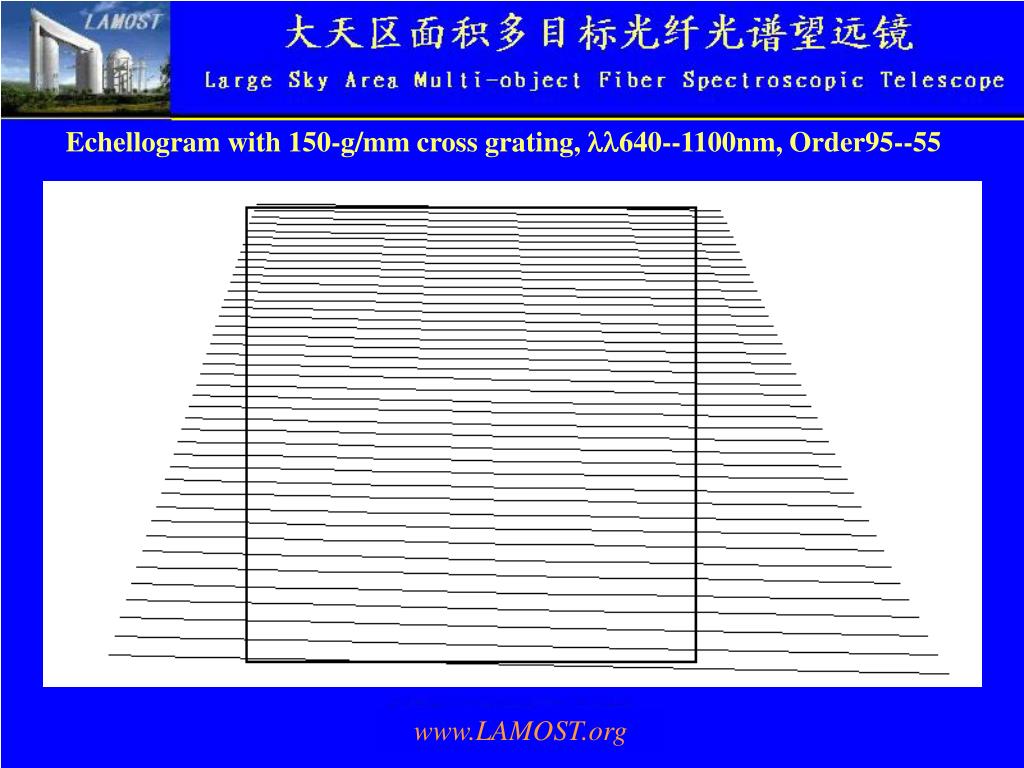

  33. Echellogram with 150-g/mm cross grating, ll640--1100nm, Order95--55

  34. Thank You ! • Email:ytzhu@nairc.ac.cn
