  1. The Three Tiered Philosophy Comfort by mechanical means Meeting comfort needs passively rather than relying on power grid Daylighting Ventilation Passive solar heating Mass cooling Lower the need for energy through building design

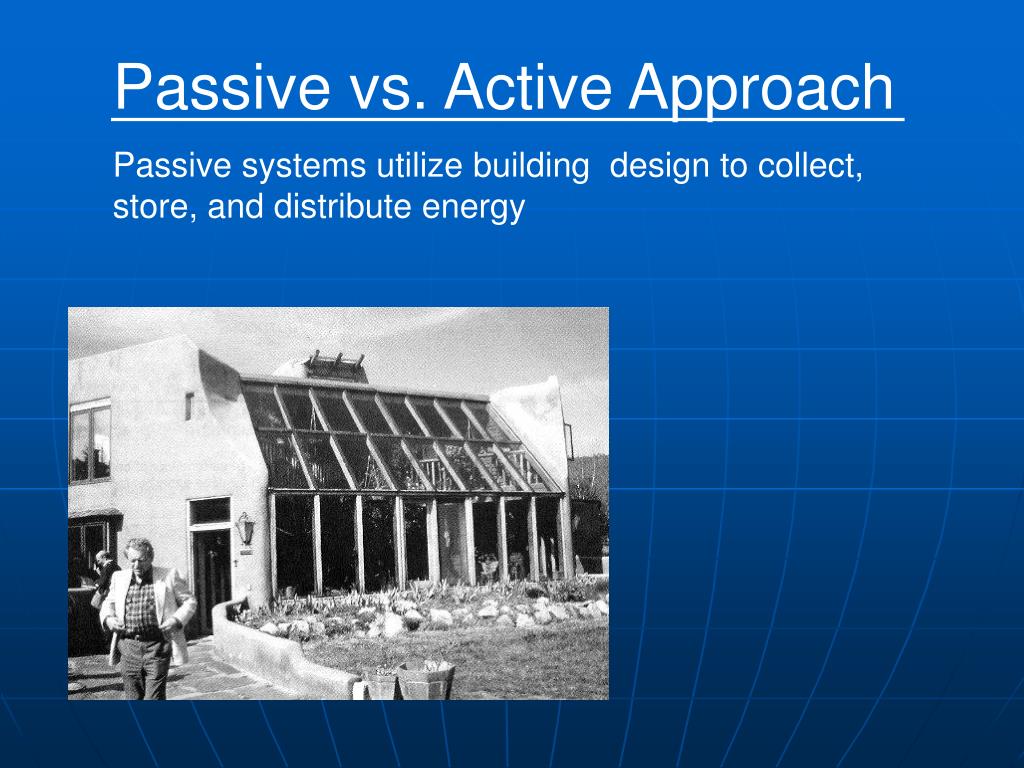

  2. Passive vs. Active Approach Passive systems utilize building design to collect, store, and distribute energy

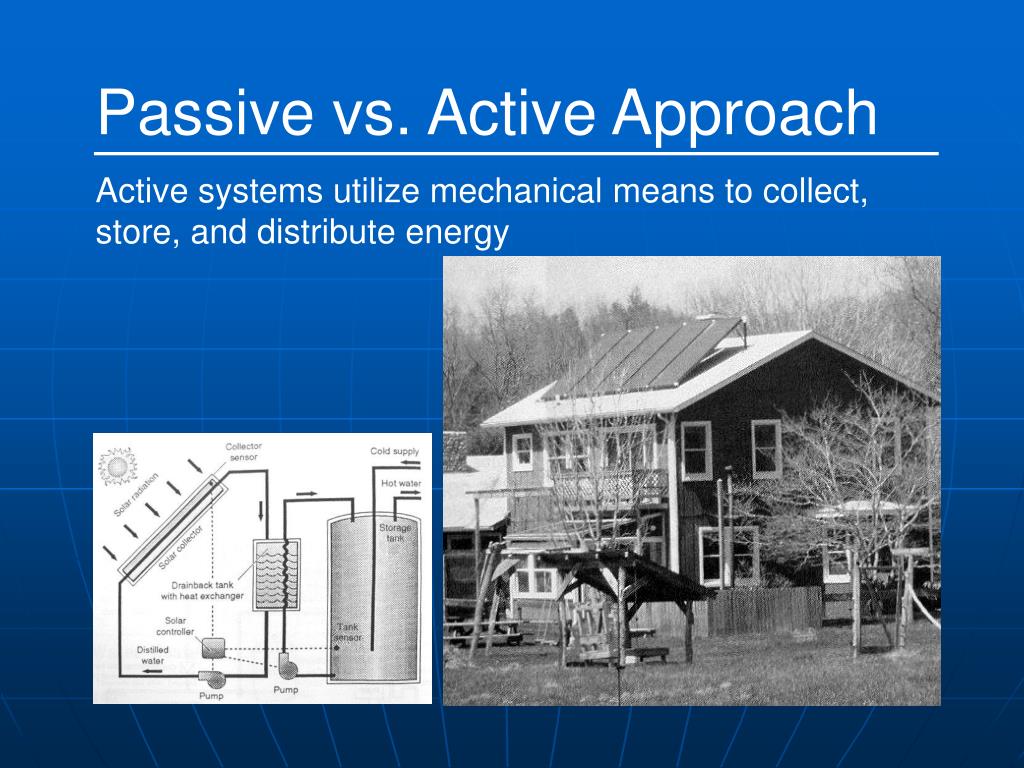

  3. Passive vs. Active Approach Active systems utilize mechanical means to collect, store, and distribute energy

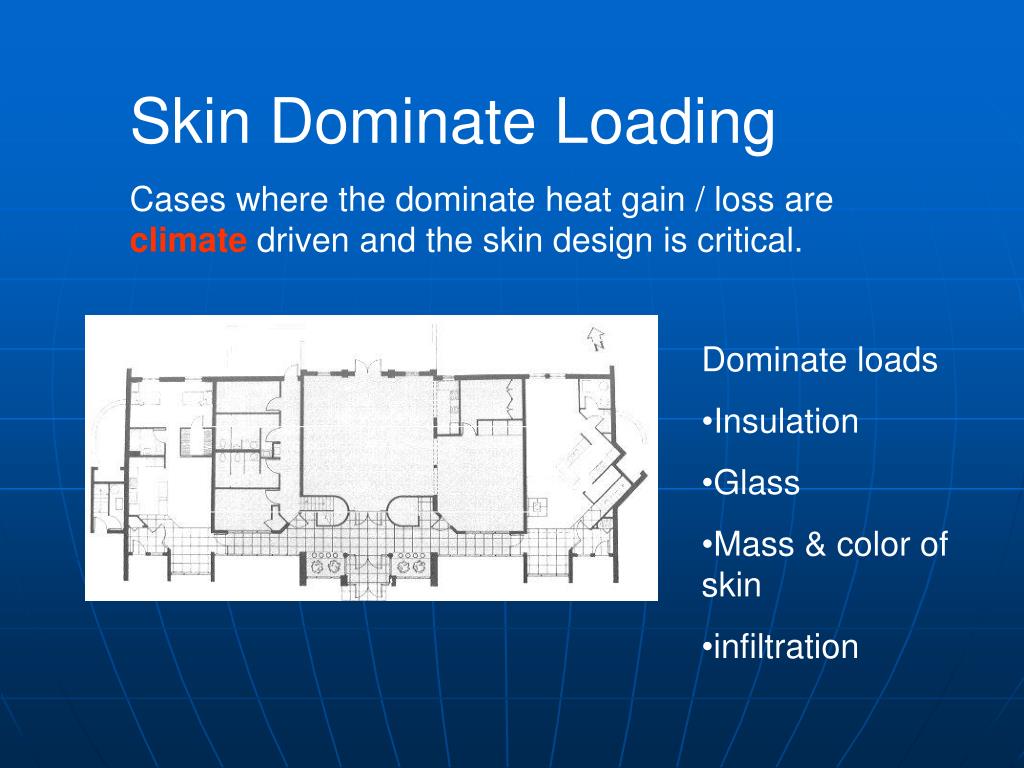

  4. Skin Dominate Loading Cases where the dominate heat gain / loss are climate driven and the skin design is critical. • Dominate loads • Insulation • Glass • Mass & color of skin • infiltration

  5. Internal Dominate Loading Cases where the dominate heat gain is driven by internal conditions. • Dominate loads • Lighting • Occupants • Equipment • Core space not affected by outside conditions

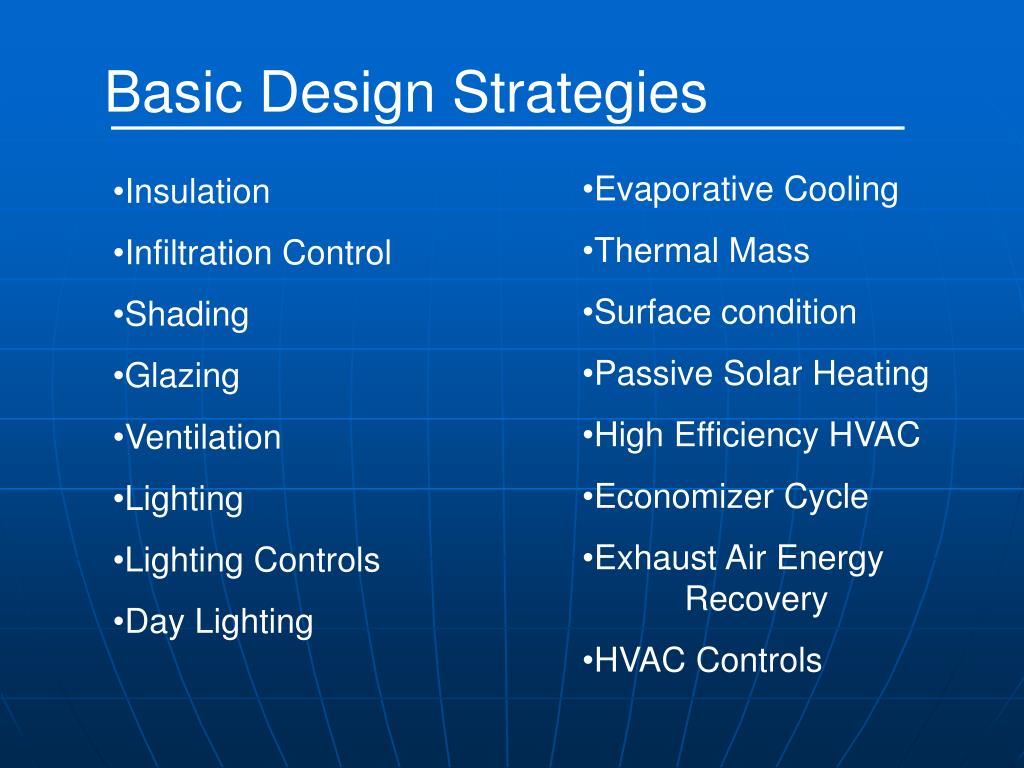

  6. Basic Design Strategies • Insulation • Infiltration Control • Shading • Glazing • Ventilation • Lighting • Lighting Controls • Day Lighting • Evaporative Cooling • Thermal Mass • Surface condition • Passive Solar Heating • High Efficiency HVAC • Economizer Cycle • Exhaust Air Energy Recovery • HVAC Controls

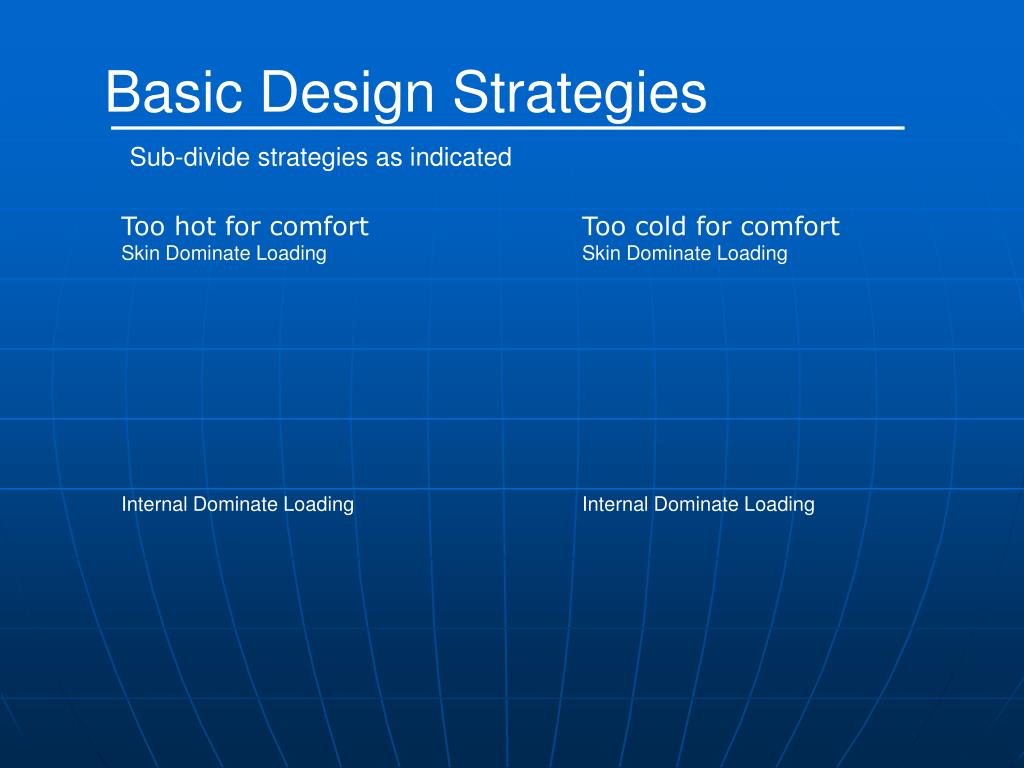

  7. Basic Design Strategies Sub-divide strategies as indicated Too hot for comfort Skin Dominate Loading Internal Dominate Loading Too cold for comfort Skin Dominate Loading Internal Dominate Loading

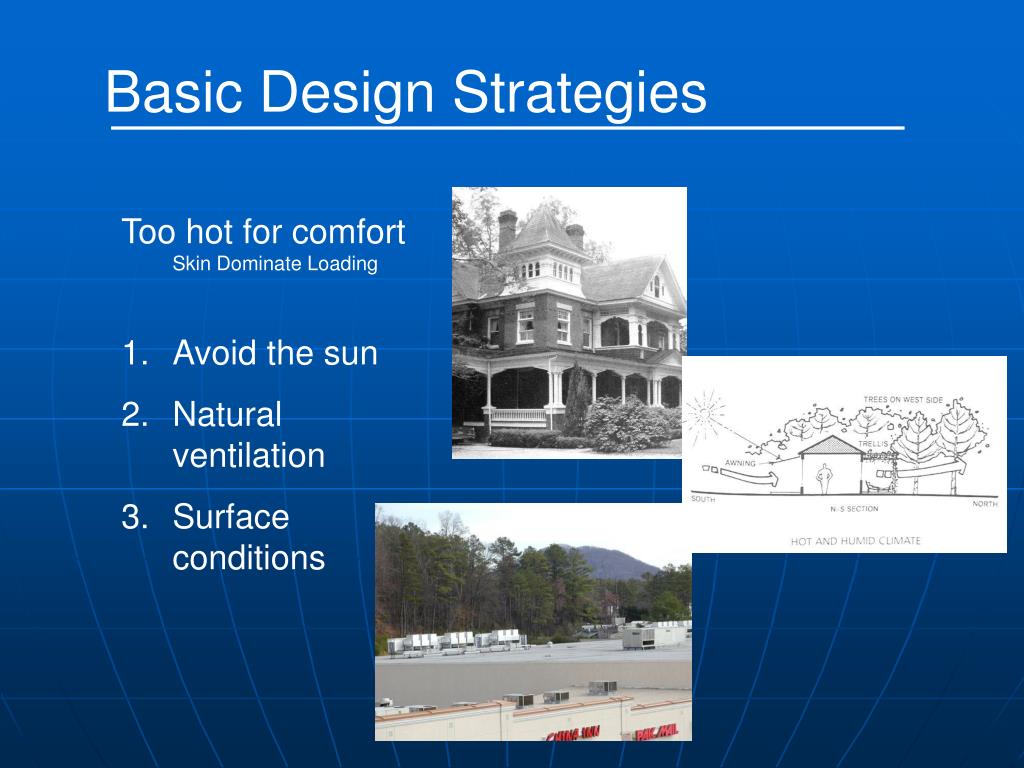

  8. Basic Design Strategies • Too hot for comfortSkin Dominate Loading • Avoid the sun • Natural ventilation • Surface conditions

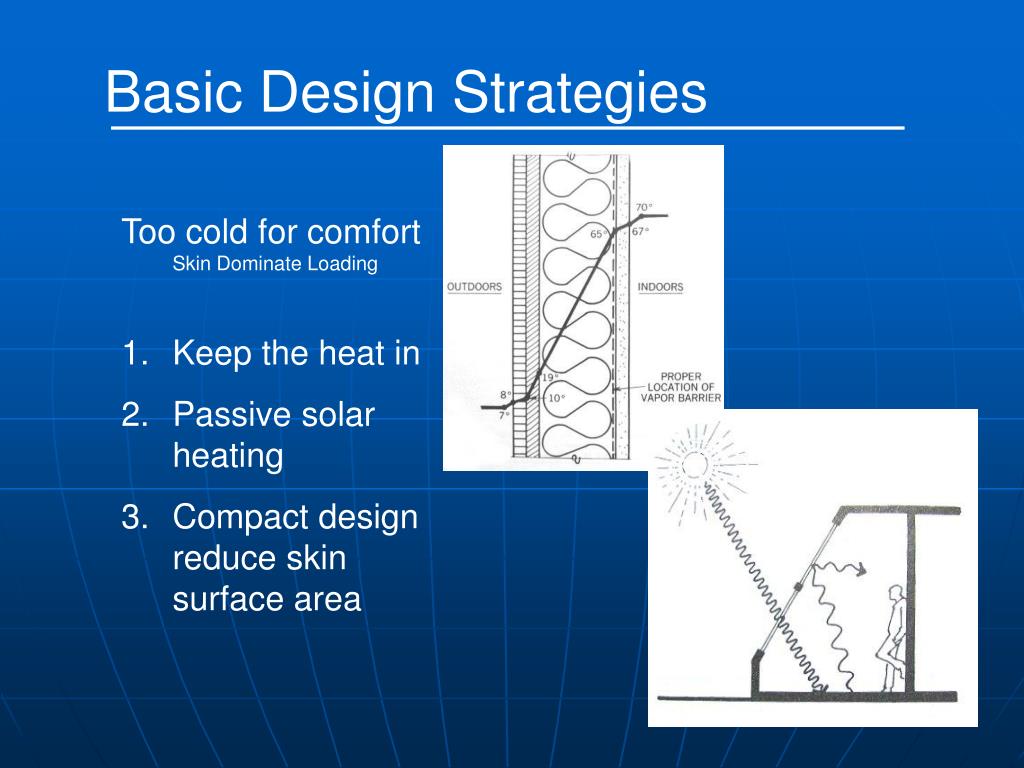

  9. Basic Design Strategies • Too cold for comfortSkin Dominate Loading • Keep the heat in • Passive solar heating • Compact design reduce skin surface area

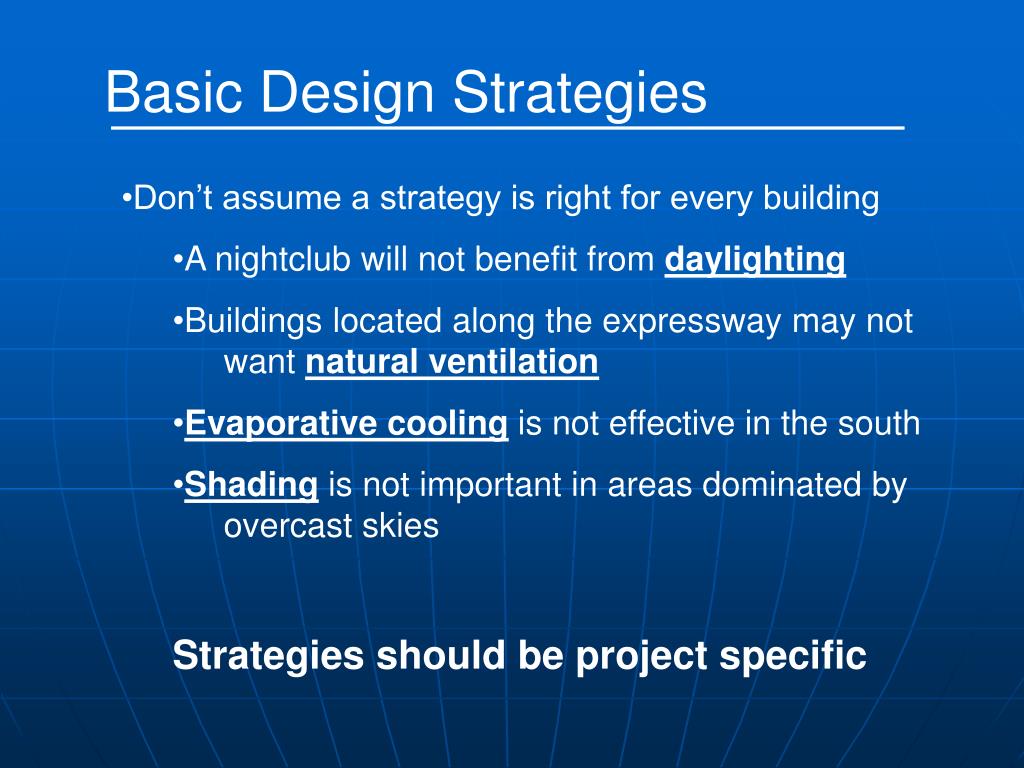

  10. Basic Design Strategies • Don’t assume a strategy is right for every building • A nightclub will not benefit from daylighting • Buildings located along the expressway may not want natural ventilation • Evaporative cooling is not effective in the south • Shading is not important in areas dominated by overcast skies • Strategies should be project specific

  11. Basic Design Strategies Internal Dominate Load Building • Lighting • Lighting Controls • Day Lighting • Exhaust air energy recovery

  12. Class Exercise Prioritizing climate issues

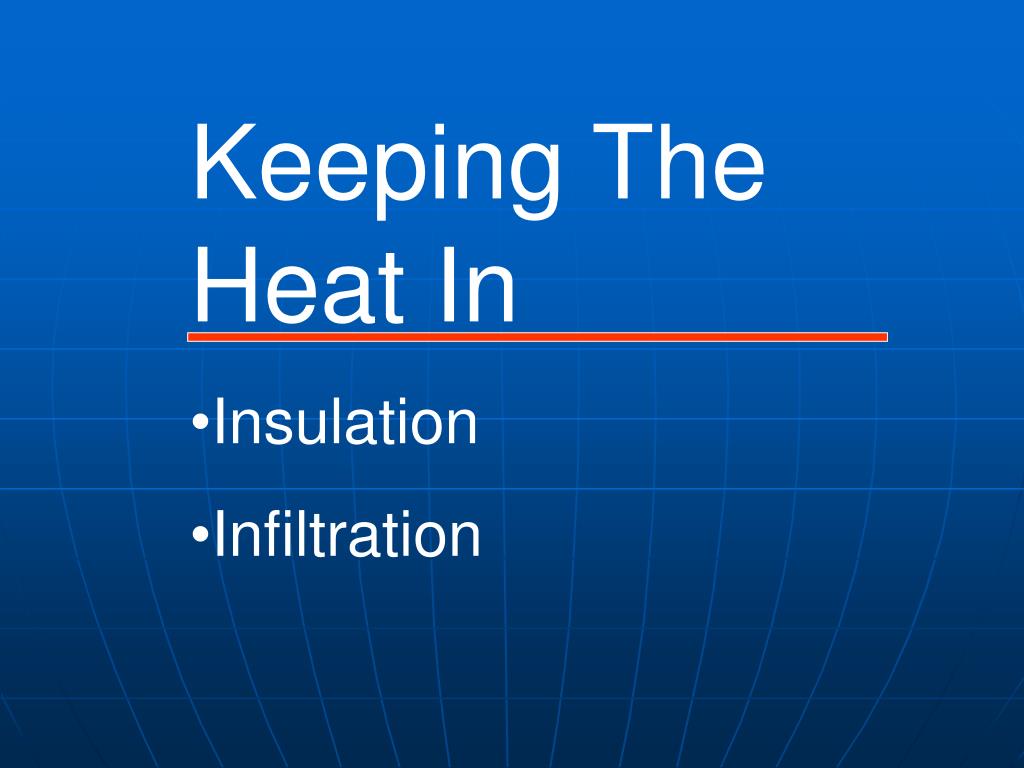

  13. Keeping The Heat In • Insulation • Infiltration

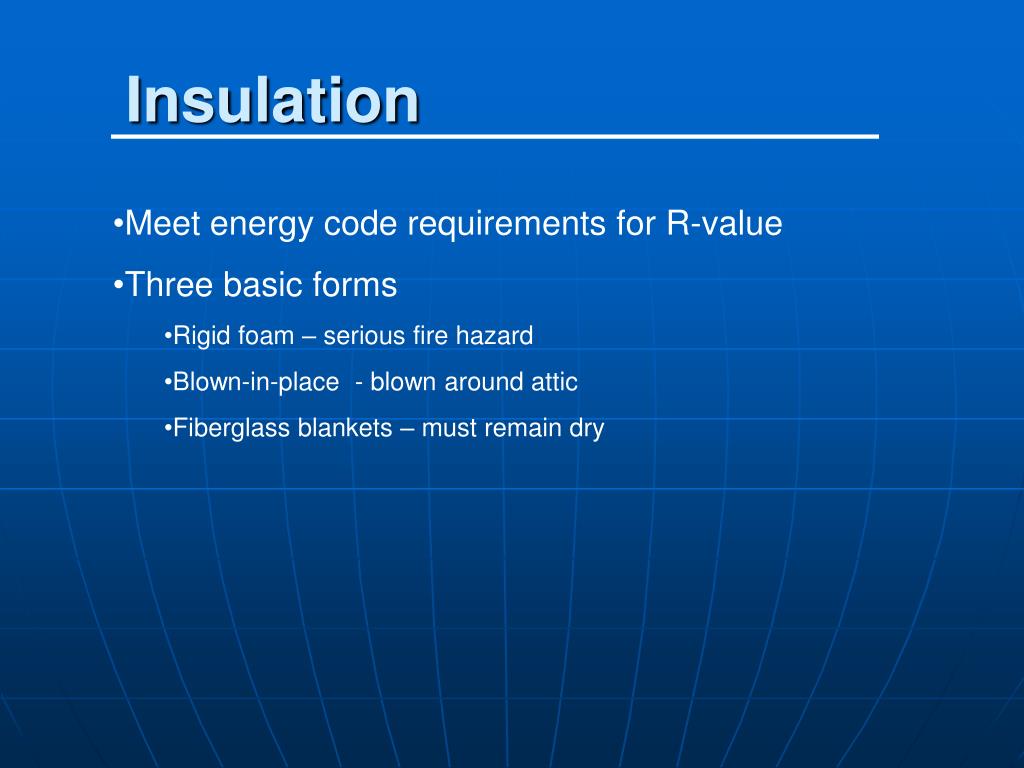

  14. Insulation • Meet energy code requirements for R-value • Three basic forms • Rigid foam – serious fire hazard • Blown-in-place - blown around attic • Fiberglass blankets – must remain dry

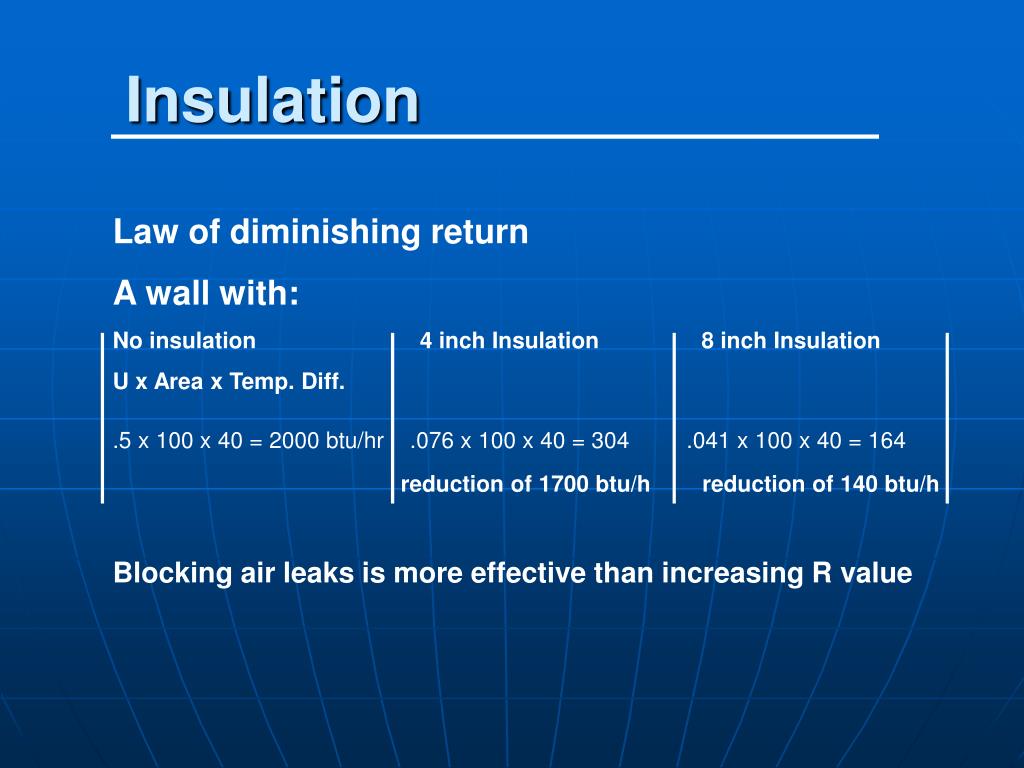

  15. Insulation Law of diminishing return A wall with: No insulation 4 inch Insulation 8 inch Insulation U x Area x Temp. Diff. .5 x 100 x 40 = 2000 btu/hr .076 x 100 x 40 = 304.041 x 100 x 40 = 164 reduction of 1700 btu/h reduction of 140 btu/h Blocking air leaks is more effective than increasing R value

  16. Insulation • Installing Insulation • Install moisture barrier on warm side of envelop to avoid condensation inside of the wall • Install building wrap to reduce infiltration

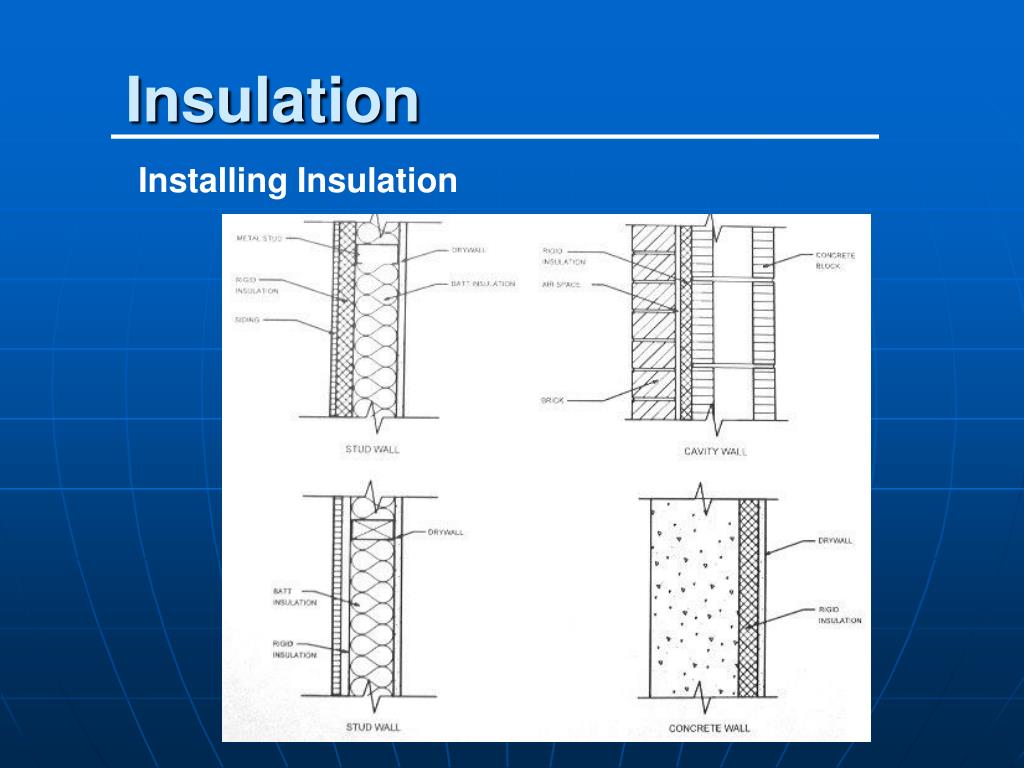

  17. Insulation Installing Insulation

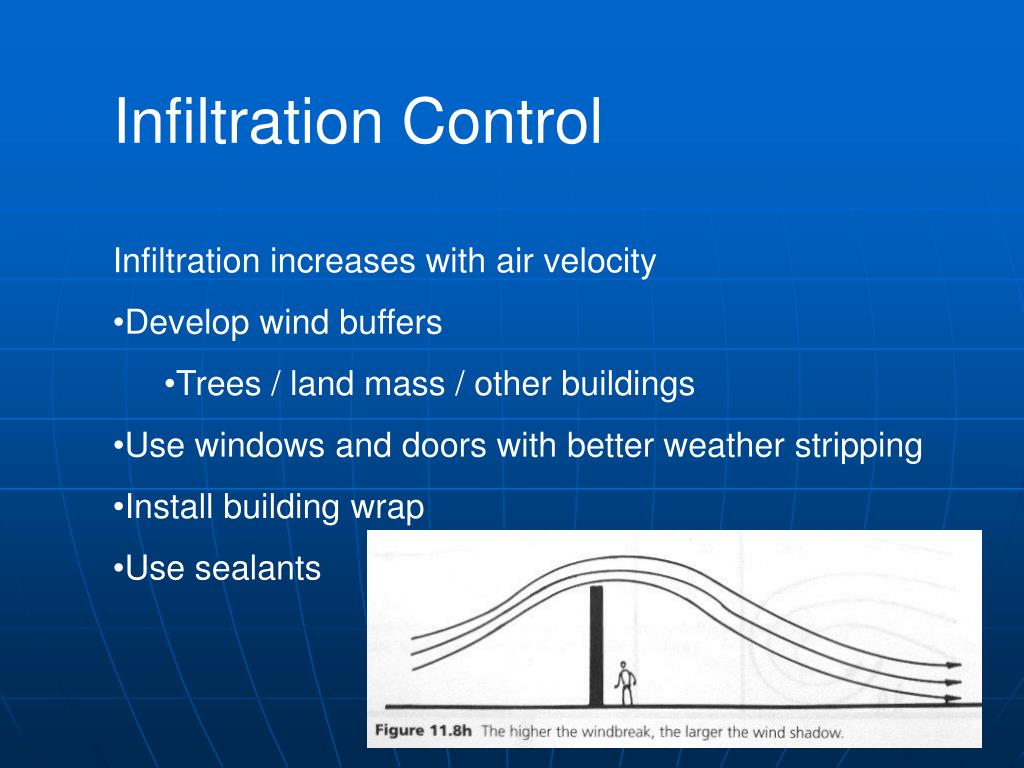

  18. Infiltration Control • Infiltration increases with air velocity • Develop wind buffers • Trees / land mass / other buildings • Use windows and doors with better weather stripping • Install building wrap • Use sealants

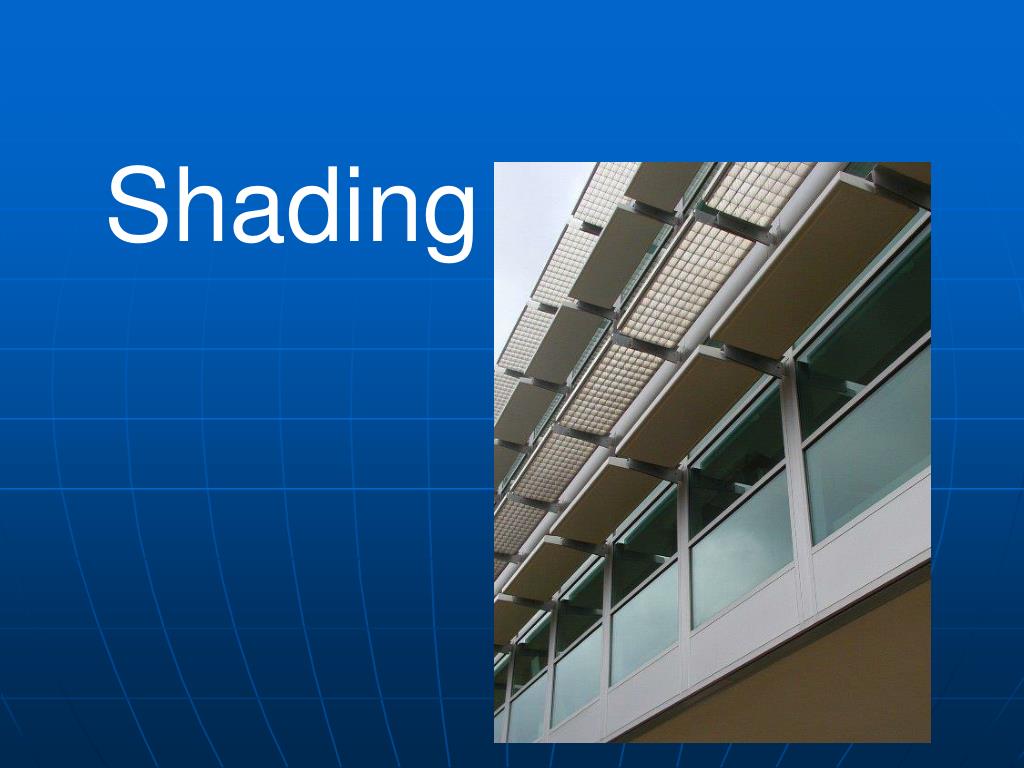

  19. Shading

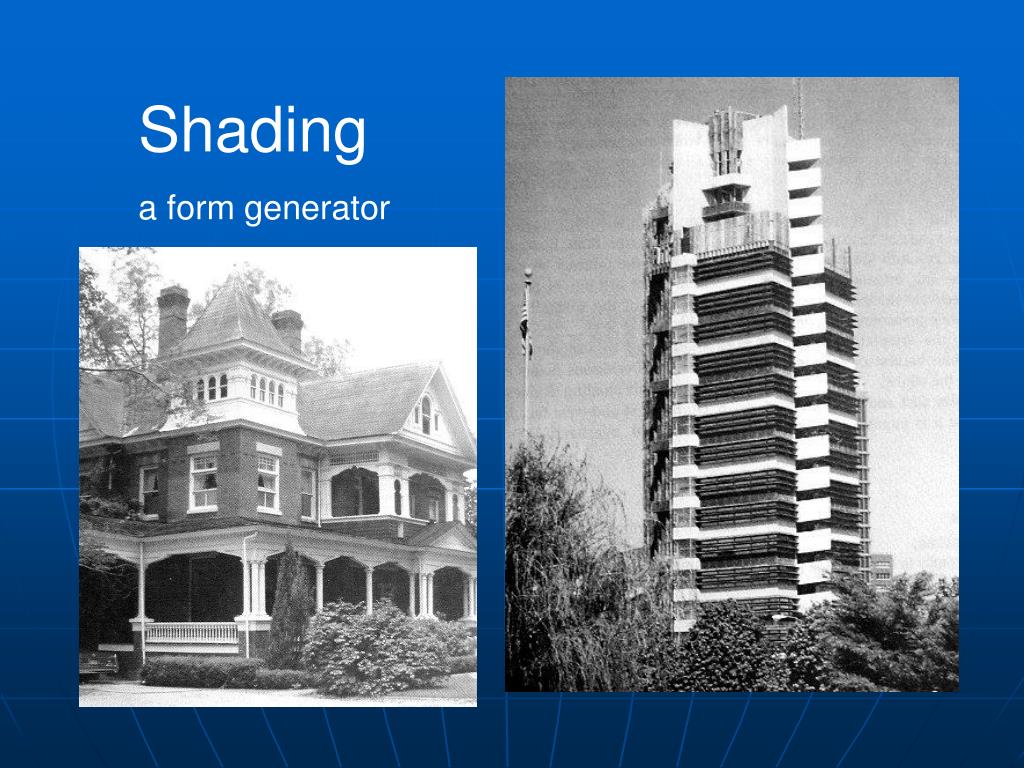

  20. Shading a form generator

  21. Shading • Must understand solar geometry

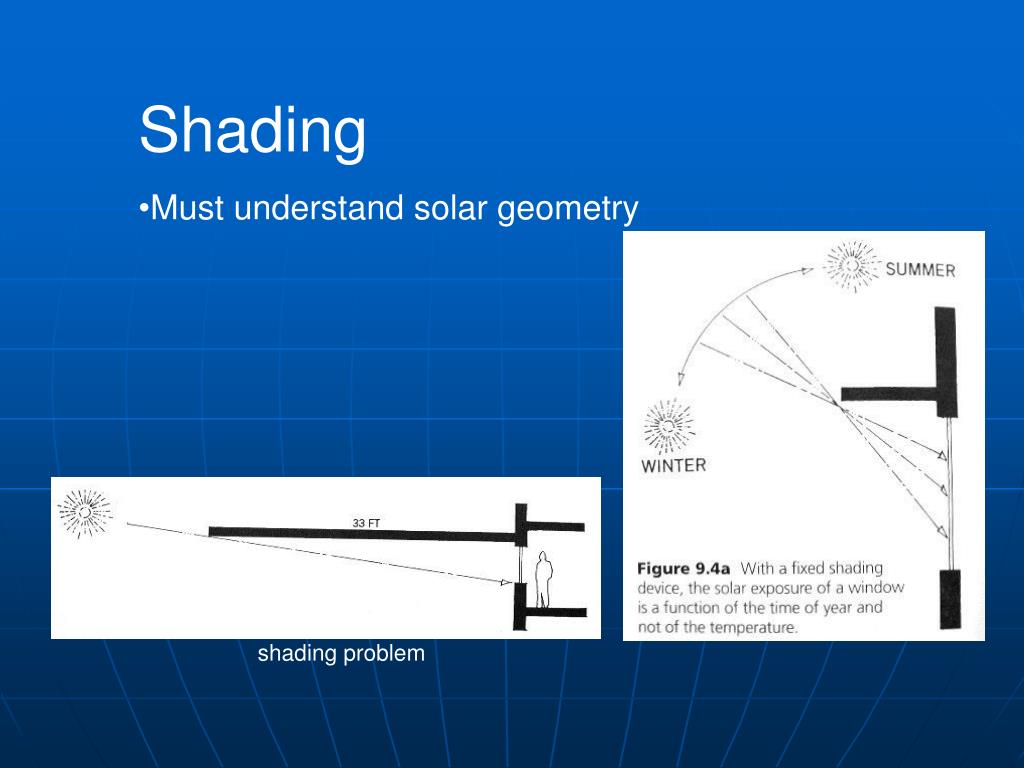

  22. Shading • Must understand solar geometry East / West shading problem

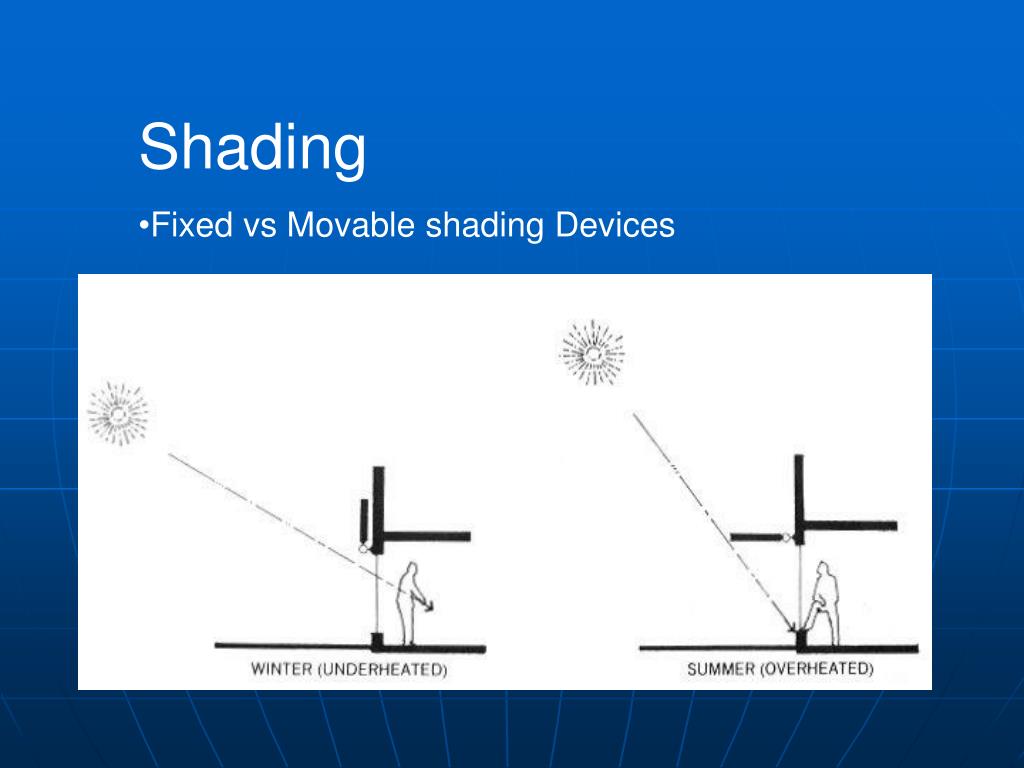

  23. Shading • Fixed vs Movable shading Devices

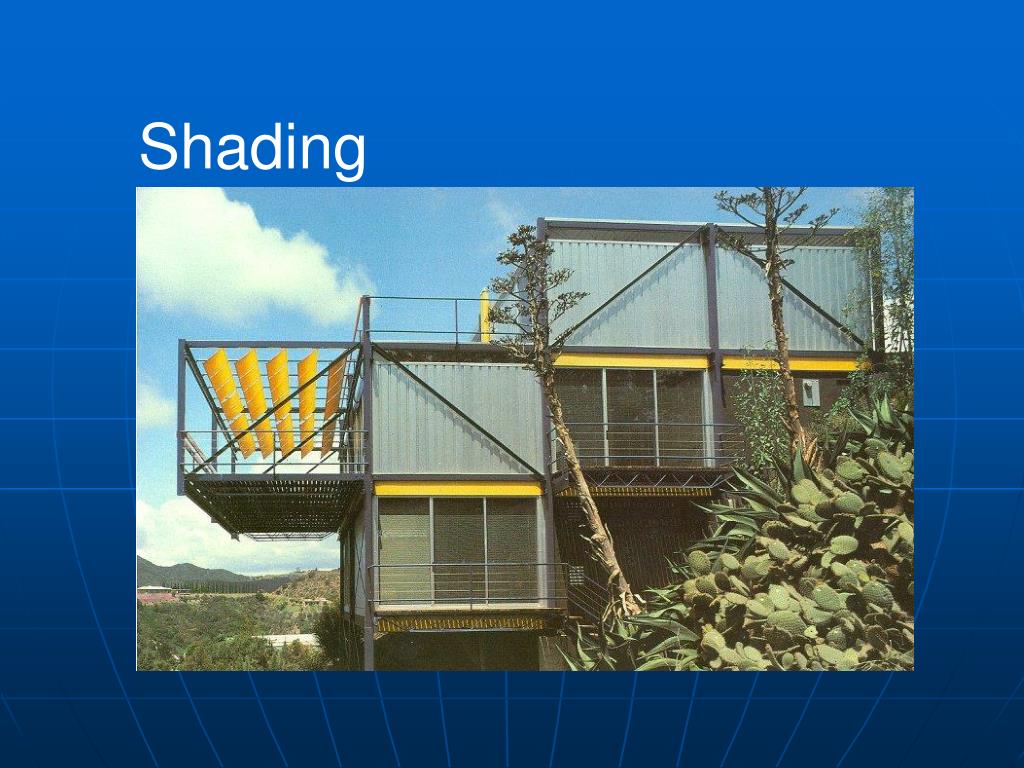

  24. Shading

  25. Glazing

  26. Glazing for Hot Climate • Concept - spectrally selective glazing • Transmits one portion of solar energy and block another

  27. Glazing • Understand solar geometry

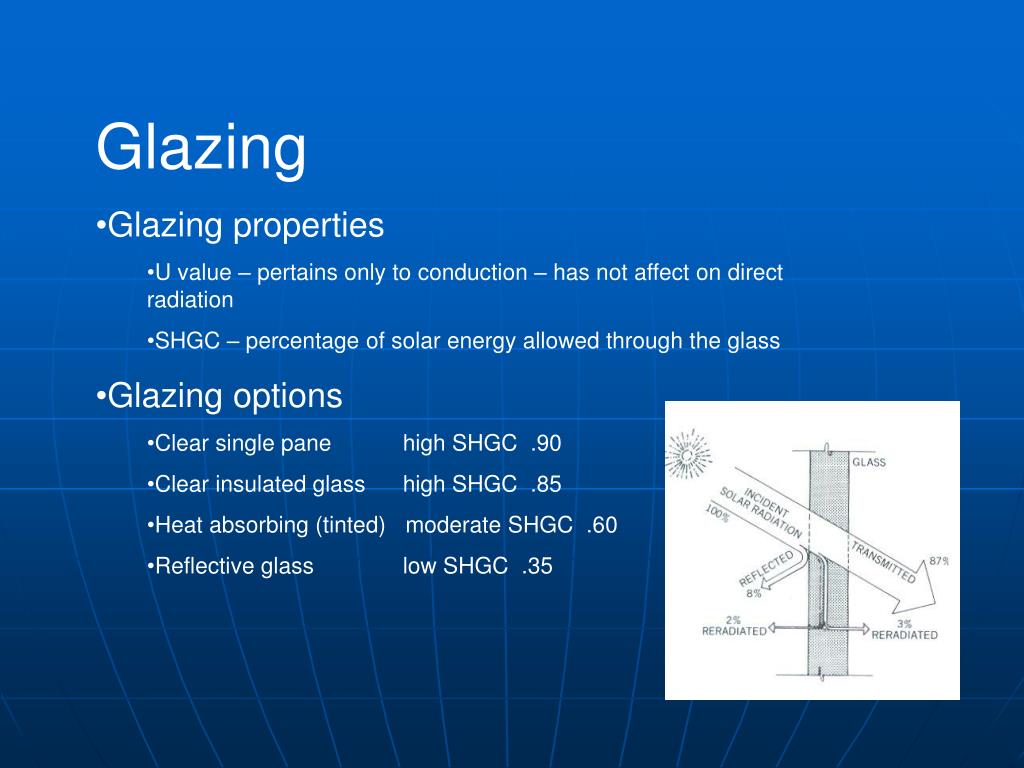

  28. Glazing • Glazing properties • U value – pertains only to conduction – has not affect on direct radiation • SHGC – percentage of solar energy allowed through the glass • Glazing options • Clear single pane high SHGC .90 • Clear insulated glass high SHGC .85 • Heat absorbing (tinted) moderate SHGC .60 • Reflective glass low SHGC .35

  29. clear Heat absorbing Reflective

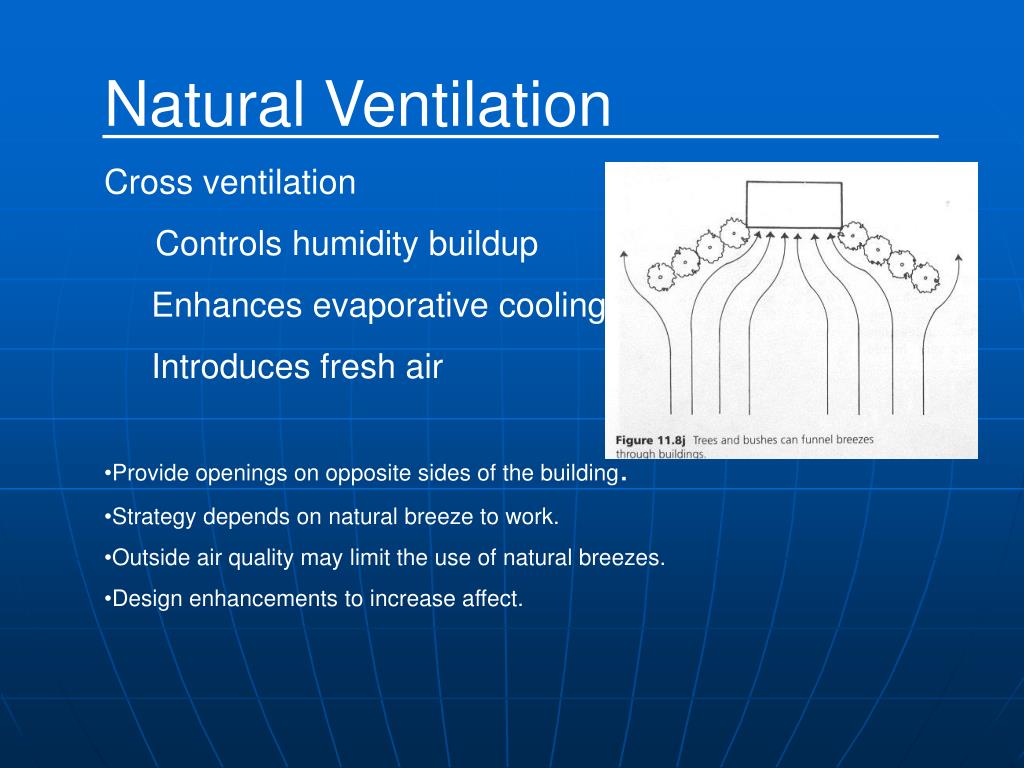

  30. Natural Ventilation • Cross ventilation • Controls humidity buildup • Enhances evaporative cooling • Introduces fresh air • Provide openings on opposite sides of the building. • Strategy depends on natural breeze to work. • Outside air quality may limit the use of natural breezes. • Design enhancements to increase affect.

  31. Natural Ventilation • Stack ventilation • Concept is based on thermal convection and therefore does not require a natural breeze. • Works best in spaces with high ceilings that provide high louvers for heat escape and low louvers for incoming cool air.

  32. Natural Ventilation • Night Flushing • Concept is based on the heat capacity of the buildings mass. • The building mass absorbs heat throughout the day. • Cool night air is circulated through the building to cool the mass. • By morning, the cycle is ready to start over. • Concept relies on cool nigh air. It is not effective when night temperatures remain relatively high.

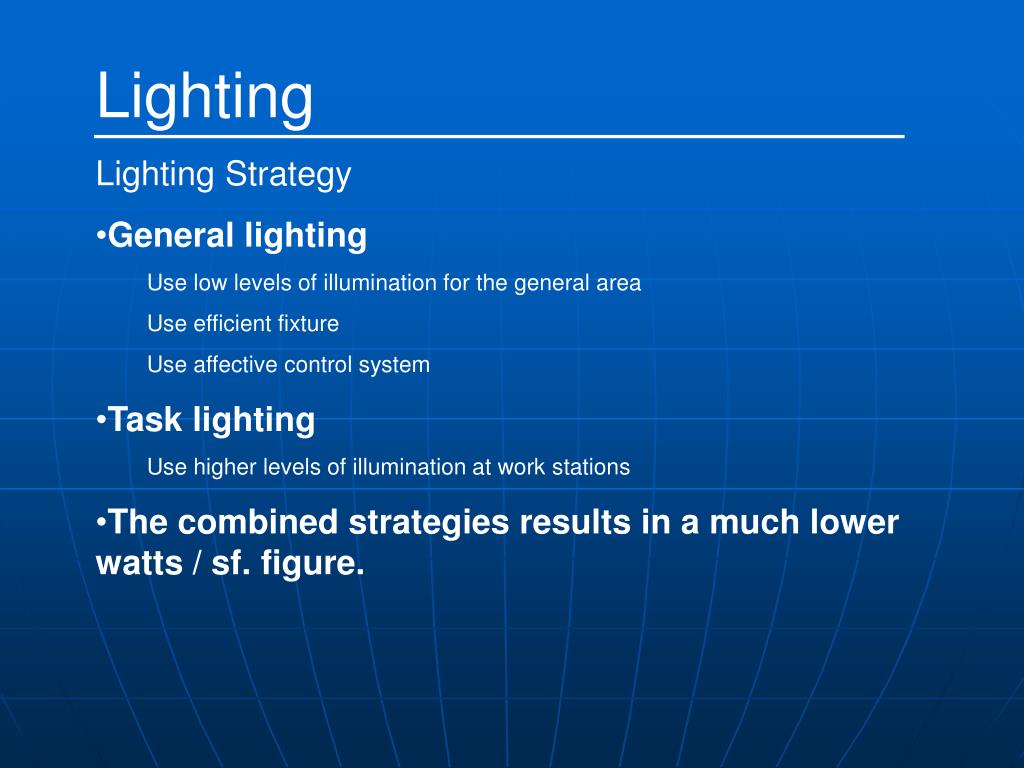

  33. Lighting • Lighting Strategy • General lighting • Use low levels of illumination for the general area • Use efficient fixture • Use affective control system • Task lighting • Use higher levels of illumination at work stations • The combined strategies results in a much lower watts / sf. figure.

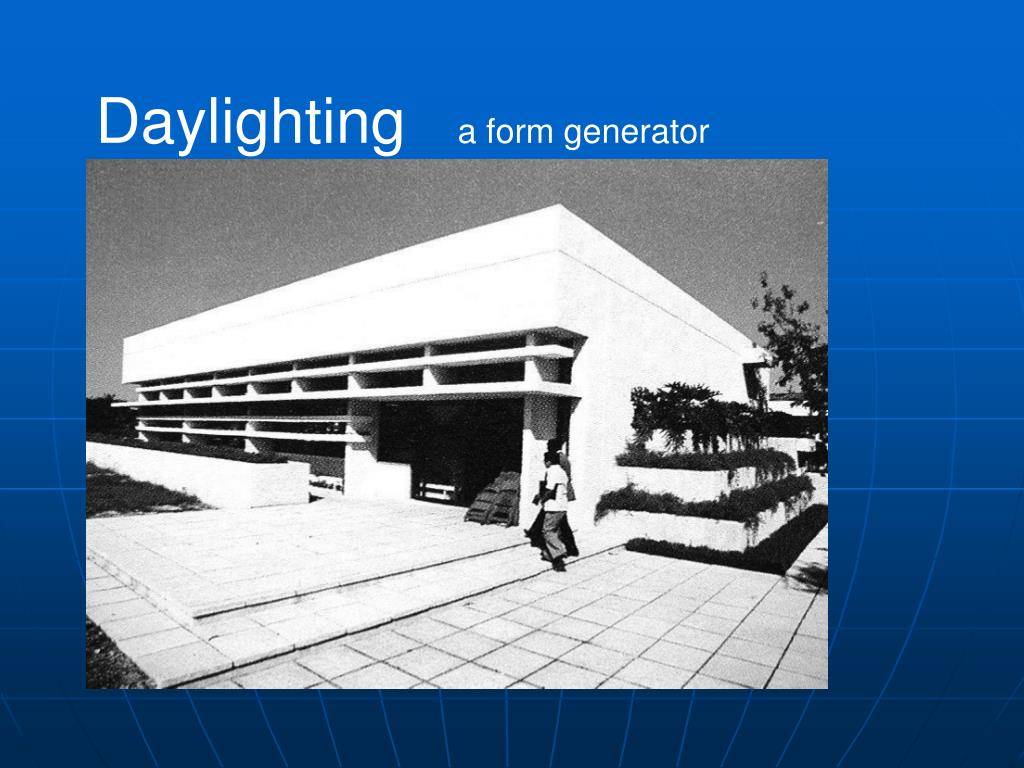

  34. Daylighting a form generator

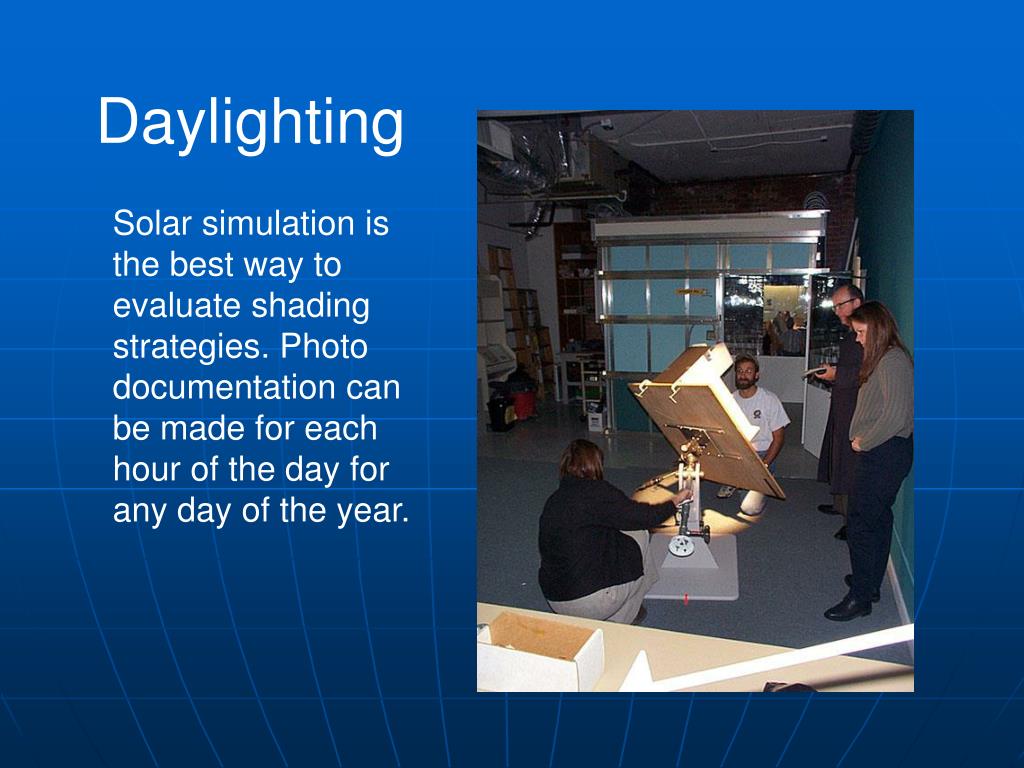

  35. Daylighting Solar simulation is the best way to evaluate shading strategies. Photo documentation can be made for each hour of the day for any day of the year.

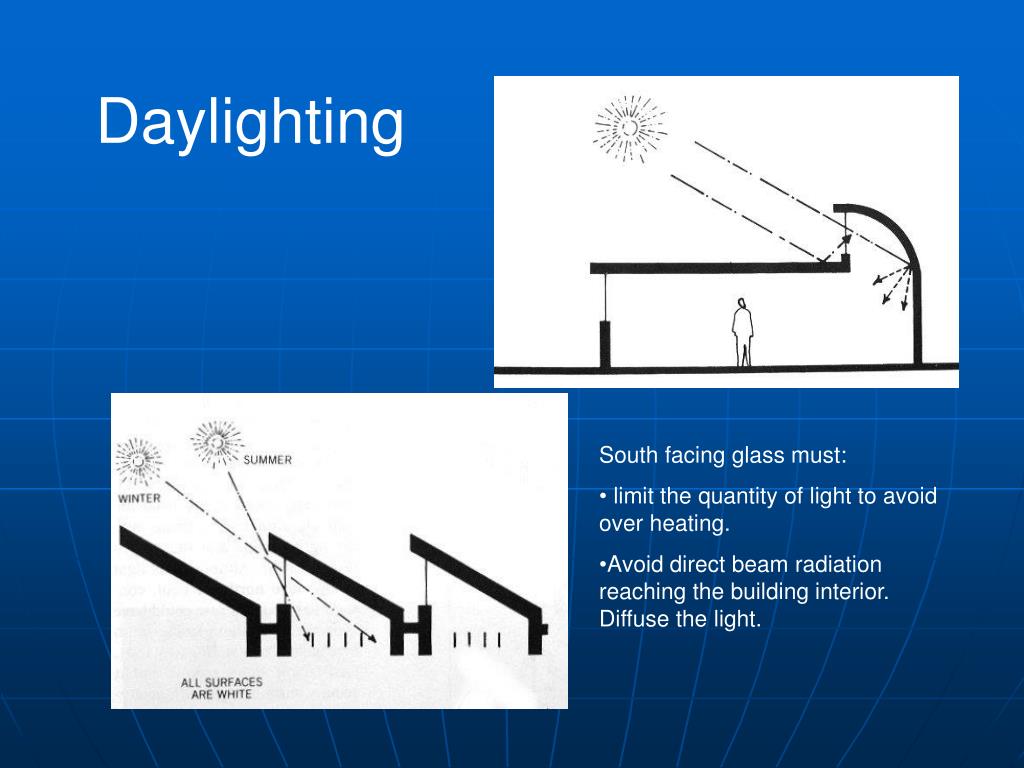

  36. Daylighting • South facing glass must: • limit the quantity of light to avoid over heating. • Avoid direct beam radiation reaching the building interior. Diffuse the light.

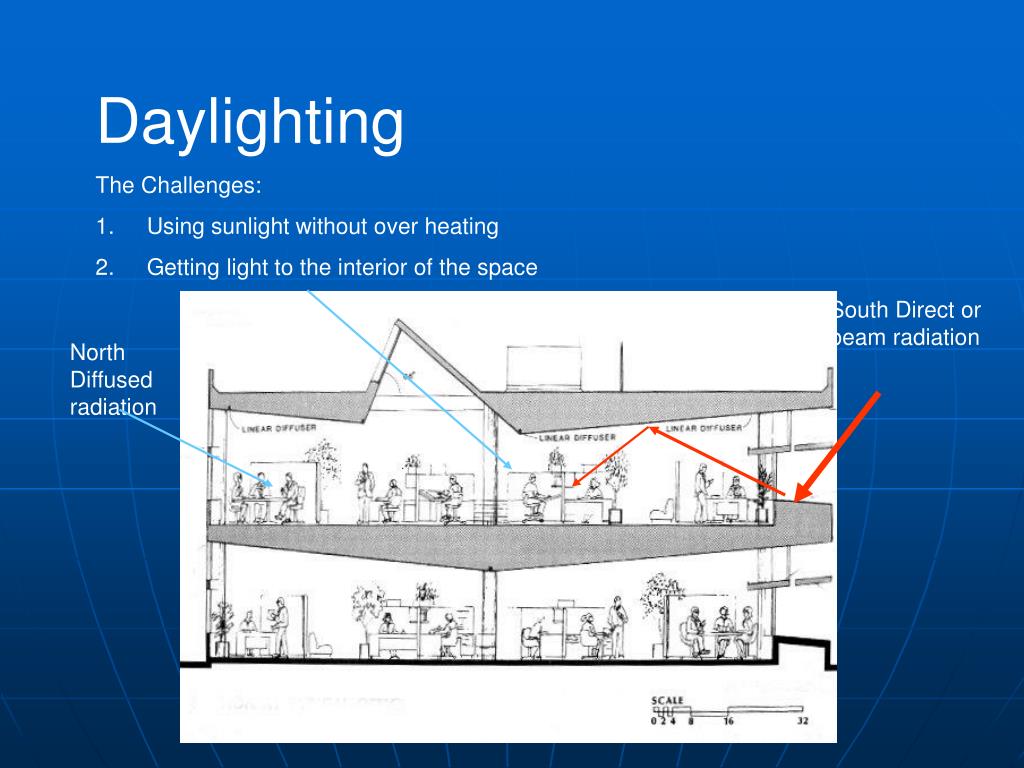

  37. Daylighting • The Challenges: • Using sunlight without over heating • Getting light to the interior of the space South Direct or beam radiation North Diffused radiation

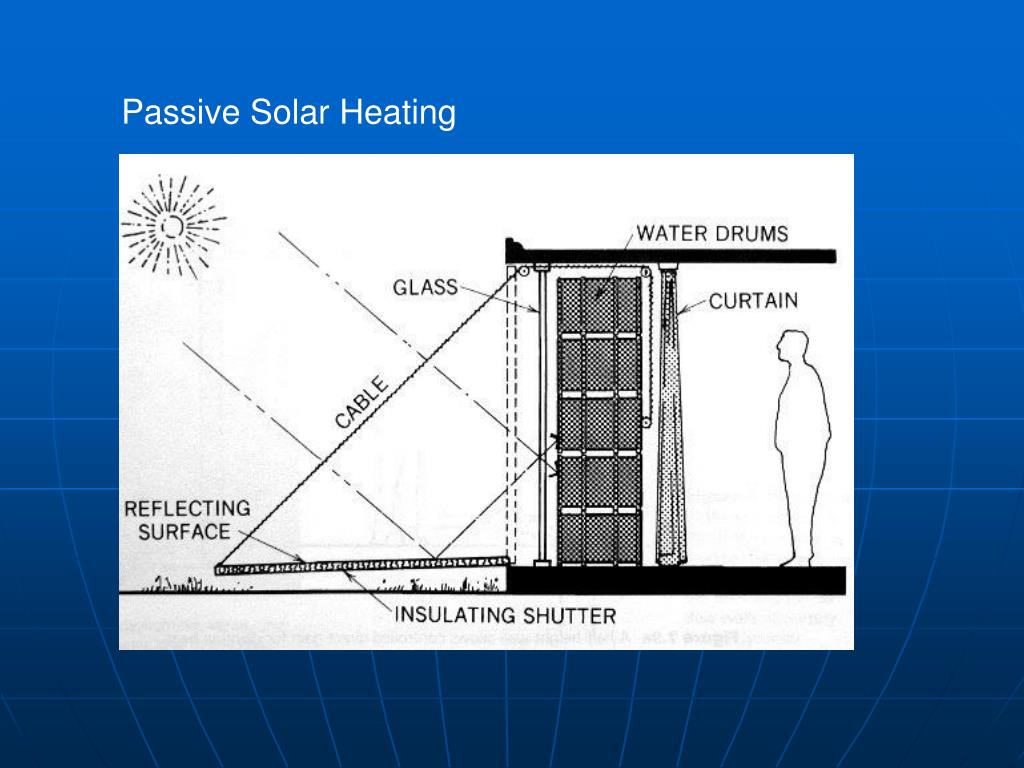

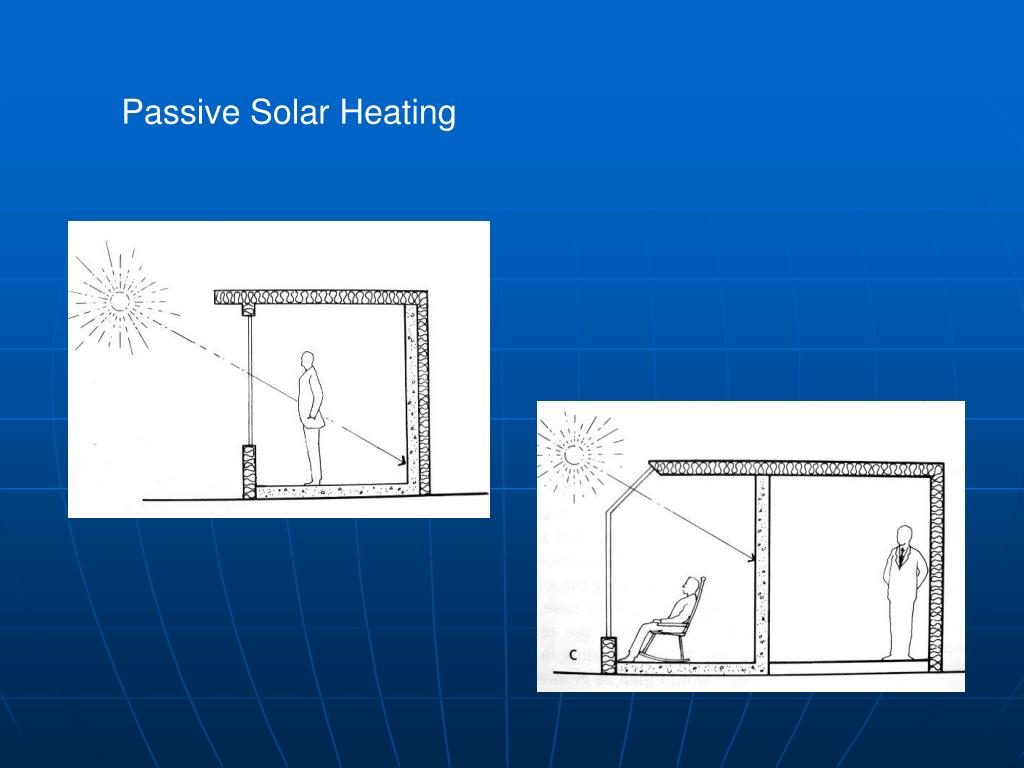

  38. Passive Solar Heating

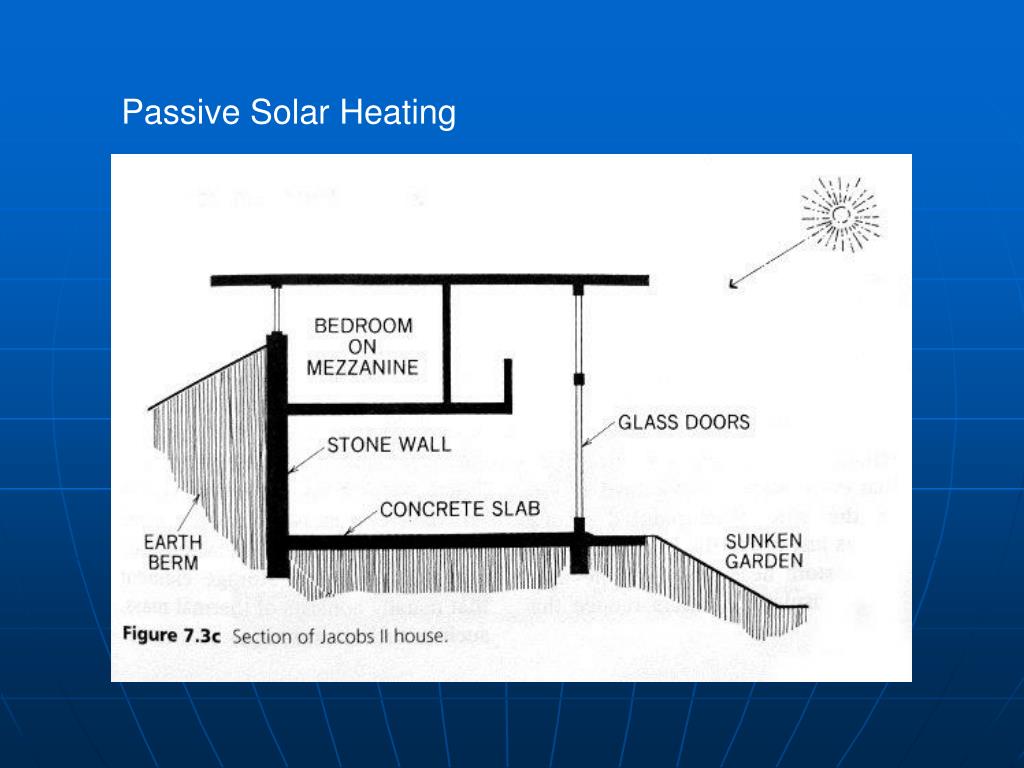

  39. Passive Solar Heating

  40. Passive Solar Heating

  41. Passive Solar Heating

  42. Passive Solar Heating

  43. Passive Solar Heating

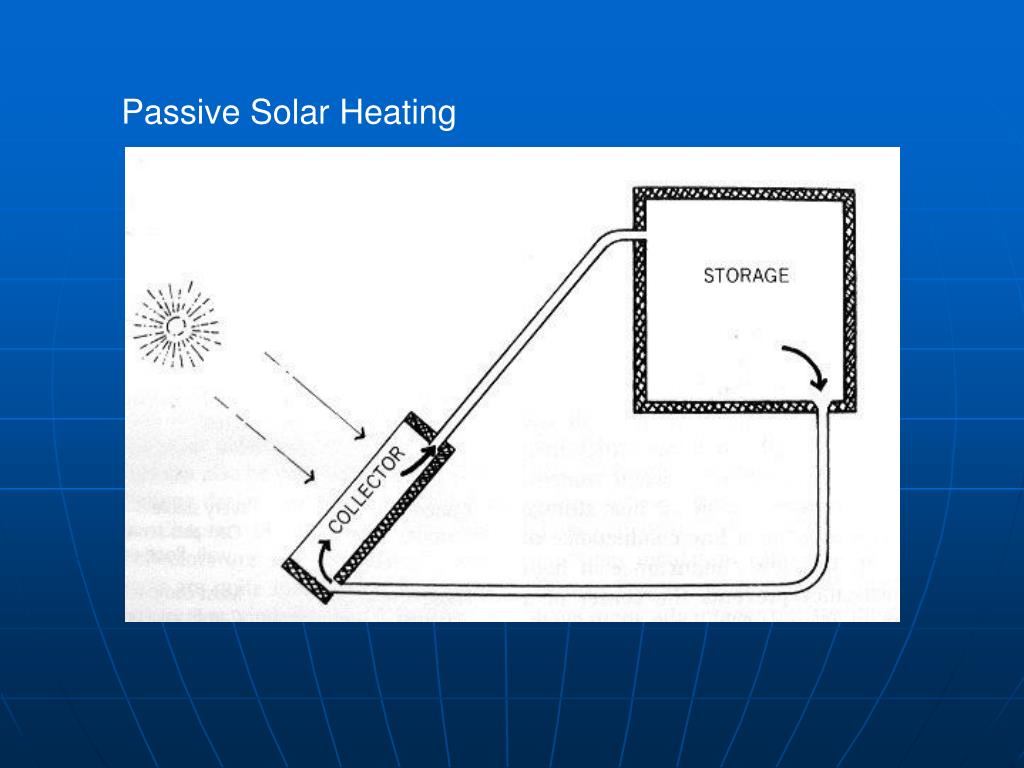

  44. Passive Solar Heating
