  1. Information Security Mark Lachniet mlachniet@analysts.com Analysts International

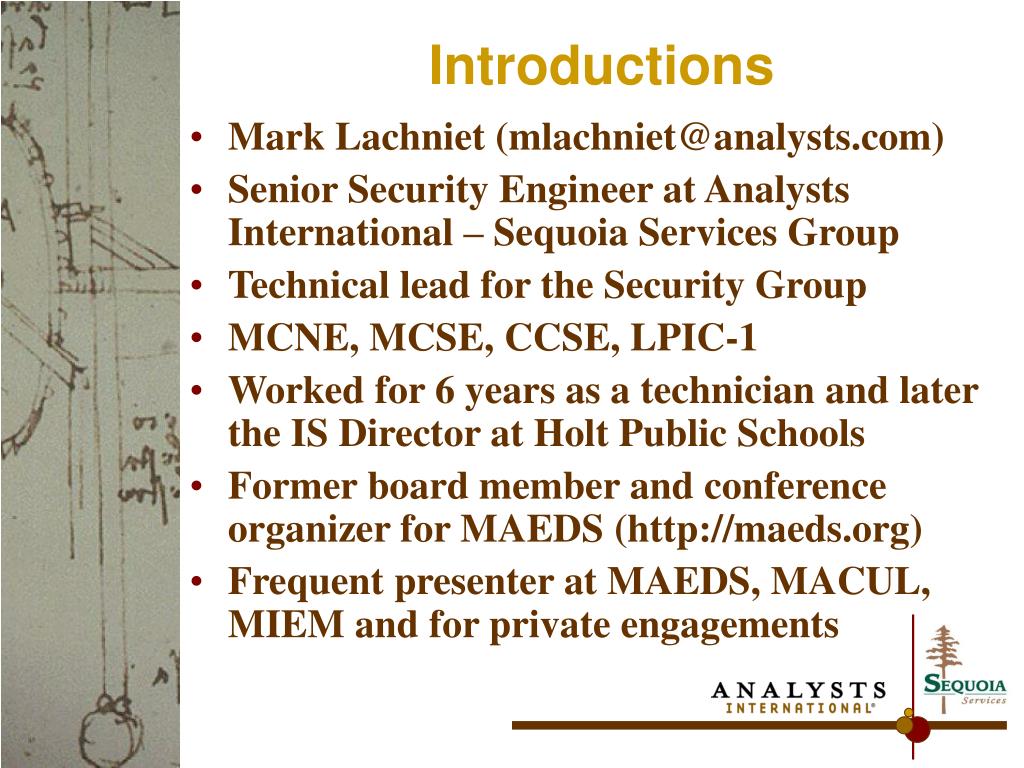

  2. Introductions • Mark Lachniet (mlachniet@analysts.com) • Senior Security Engineer at Analysts International – Sequoia Services Group • Technical lead for the Security Group • MCNE, MCSE, CCSE, LPIC-1 • Worked for 6 years as a technician and later the IS Director at Holt Public Schools • Former board member and conference organizer for MAEDS (http://maeds.org) • Frequent presenter at MAEDS, MACUL, MIEM and for private engagements

  3. Purpose of Today’s Presentation • Provide a macroscopic overview of security issues, technologies, and concerns for schools • General Overview • Operations Security • Physical Security • For administrators and technicians • Will be presented first. Non-technical people may not need to hear about server hardening, but technical people definitely need to hear everything • Provide technical information about specific technologies of concern • Network Security • Host Security

  4. Purpose of Today’s Presentation • Provide links, works cited and references for continued research and investigation • Provide time for discussion (via e-mail) about specific issues of concern • Most importantly – to raise awareness. Things are bad in computer security, and we don’t want Michigan schools to be a casualty!

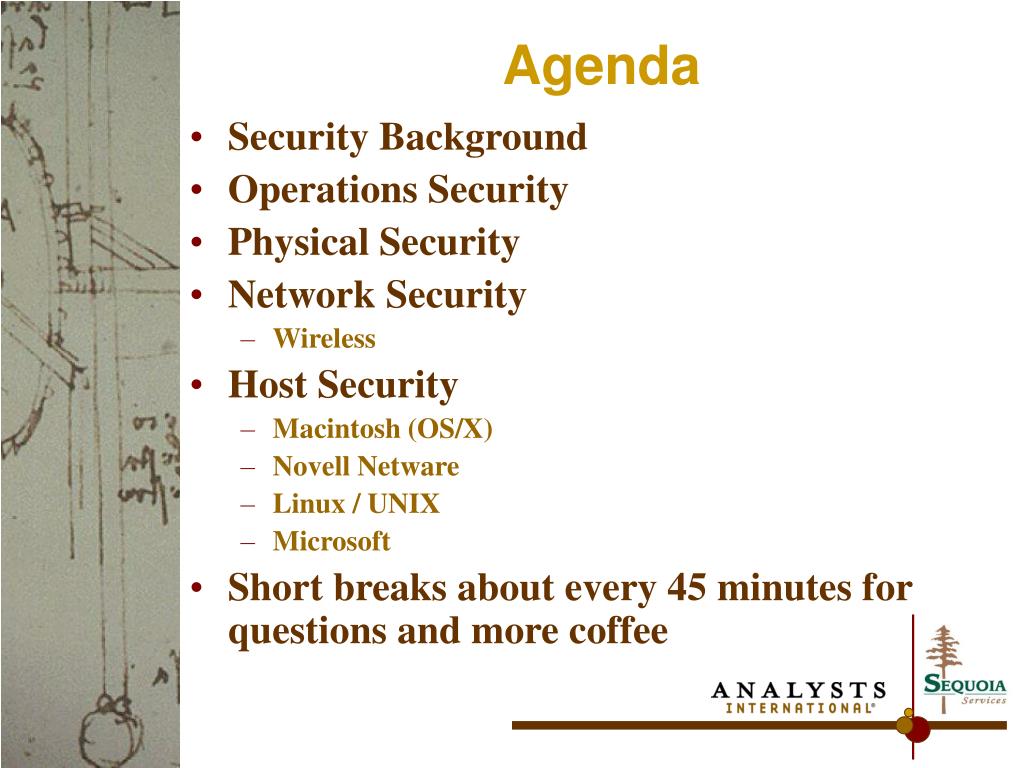

  5. Agenda • Security Background • Operations Security • Physical Security • Network Security • Wireless • Host Security • Macintosh (OS/X) • Novell Netware • Linux / UNIX • Microsoft • Short breaks about every 45 minutes for questions and more coffee

  6. General Overview

  7. Computer Crime on the Rise • We know that computer security is a real problem. We are here, aren’t we? • September 11th has further raised the bar on computer security awareness and funding • Computer security is about economic impact – our reliance on the Internet and computers mean that our livelihood can be threatened by digital attackers from around the world • Consider how skittish the stock market is, and how it affects the overall economy • More and more people are getting connected • Tools and attacks are increasingly easy to find and use, lowering the intellectual bar

  8. The CSI Computer Crime and Security Survey • The CSI survey, released 4/7/2002 has some very interesting pieces of information: • 90% of respondents detected a security breach within the last 12 months. Have you? If not, it is probably happening without your knowledge! • 44% of respondents were able to quantify their losses due to a security breach. The result was $455,848,000 over 223 respondents, for an average loss of $2,044,161 each

  9. The CSI Computer Crime and Security Survey • 74% of attacks cited were against the Internet border and devices (web servers, firewalls) • 33% of attacks cited were against internal systems (internal file/print, workstations) • 40% detected penetrations from the outside • 40% detected Denial of Service (DoS) attacks • 78% detected employees abusing privileges (pornography, pirated software, etc.)

  10. The CIA Triangle Confidentiality Integrity Availability

  11. The CIA Triangle • Confidentiality • The unintended or unauthorized disclosure of computer data or information • Integrity • The unintended or unauthorized modification of computer data or information • Availability • The loss of service of critical applications, systems, data, networks or computer services • K-12 Schools need to worry about all three!

  12. Reasons for Security in K-12 Education • Funding requirements (USF) • Integrity of critical data • Public opinion / negative publicity • Student safety & disciplinary issues • Avoid costly litigation • Lost productivity, both for technical and non-technical personnel • Lost educational potential, inability to teach on broken computers, lost files, etc. • To be a good Internet citizen

  13. Important K-12 Data to Protect • Grades / Attendance: changing (for better or worse) student grades or attendance: School Accreditation, state funding (count day) etc. • Information considered private: SS#, special education status, free lunch programs, notes from councilors, discipline, medication (Ritalin), etc. • Integrity of financial data – online PO’s, budgetary information (balances, accounts, responsibility reports) • Payroll and Human Resources – criminal history, disciplinary actions, disability, etc. • Educational and administrative documents – tests, lessons, etc. These are essentially “congealed money”

  14. Protecting Students and Staff • We must protect children and staff who are threatened by electronic means • Pedophiles, stalkers, and bad people • Student to student threats, assault • Recorded information about drugs, sexual activity, abuse, gang activity, violence, or other crime • Questionable Internet content – bomb-making instructions, how to hack, etc. • The problem of IM and chat rooms • Student info – last names & pictures • South Carolina’s law

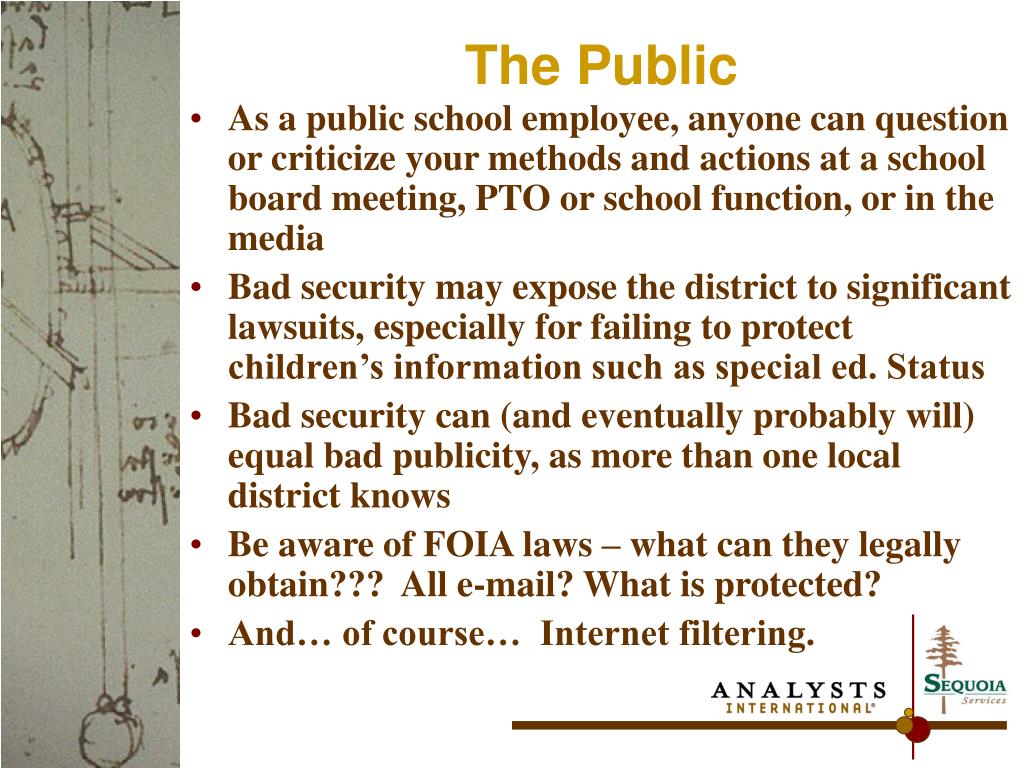

  15. The Public • As a public school employee, anyone can question or criticize your methods and actions at a school board meeting, PTO or school function, or in the media • Bad security may expose the district to significant lawsuits, especially for failing to protect children’s information such as special ed. Status • Bad security can (and eventually probably will) equal bad publicity, as more than one local district knows • Be aware of FOIA laws – what can they legally obtain??? All e-mail? What is protected? • And… of course… Internet filtering.

  16. Downtime and Discipline • Broken systems – deleted files, missing software, physical vandalism • Prevents students from learning • Requires extensive time and $$ to fix • Frequently leads to disciplinary action. The computer tech as computer-narc (Think S.C.) • Take good notes of what you do • Learn to use windows find! Alt-PrtScn it, print it out, and start a file • Parents….. “my son would never do that!” • Hopefully, it takes less time to proactively secure things than to fix them

  17. Justifying the Cost of Security • Security work can be expensive! It takes tools, training and time (or money to hire out) • Compared to “firefighting”, yearly replacement, keeping servers running, and imaging workstations, it is usually not seen as a priority (until there is an incident, anyway) • Or worse, it is a priority but nobody ever gets the time to do it • Talk to the school board, H.R. and Finance directors, and superintendents about the risk (and get help from someone) • Security is a proactive cost savings, not reactive

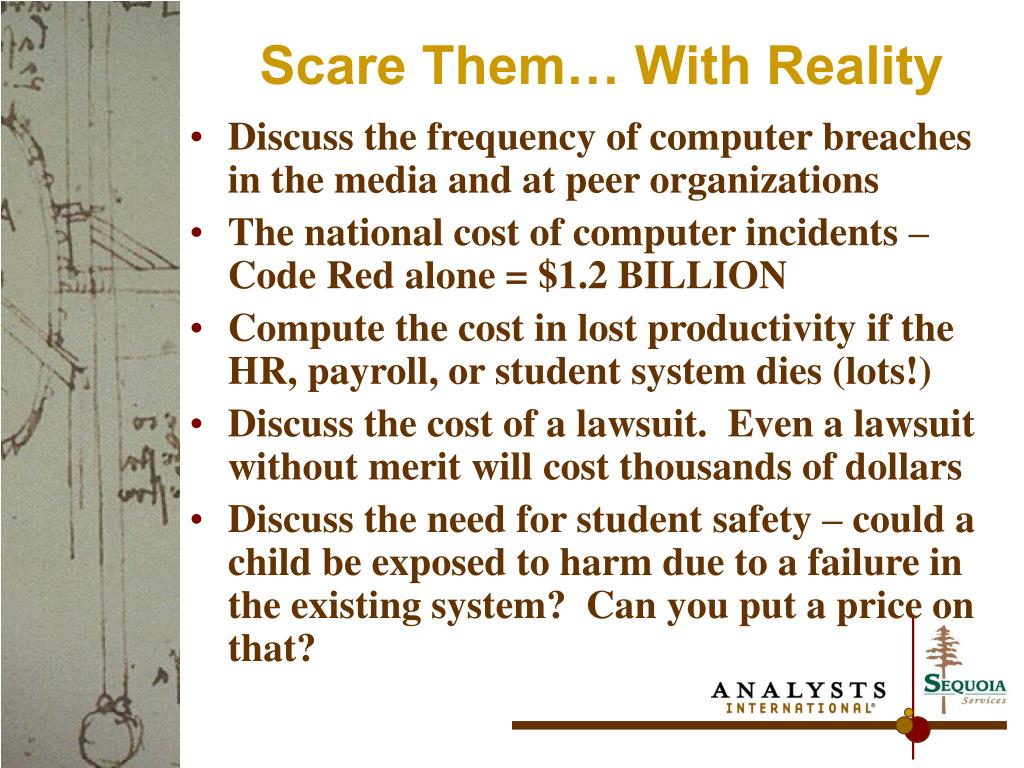

  18. Scare Them… With Reality • Discuss the frequency of computer breaches in the media and at peer organizations • The national cost of computer incidents – Code Red alone = $1.2 BILLION • Compute the cost in lost productivity if the HR, payroll, or student system dies (lots!) • Discuss the cost of a lawsuit. Even a lawsuit without merit will cost thousands of dollars • Discuss the need for student safety – could a child be exposed to harm due to a failure in the existing system? Can you put a price on that?

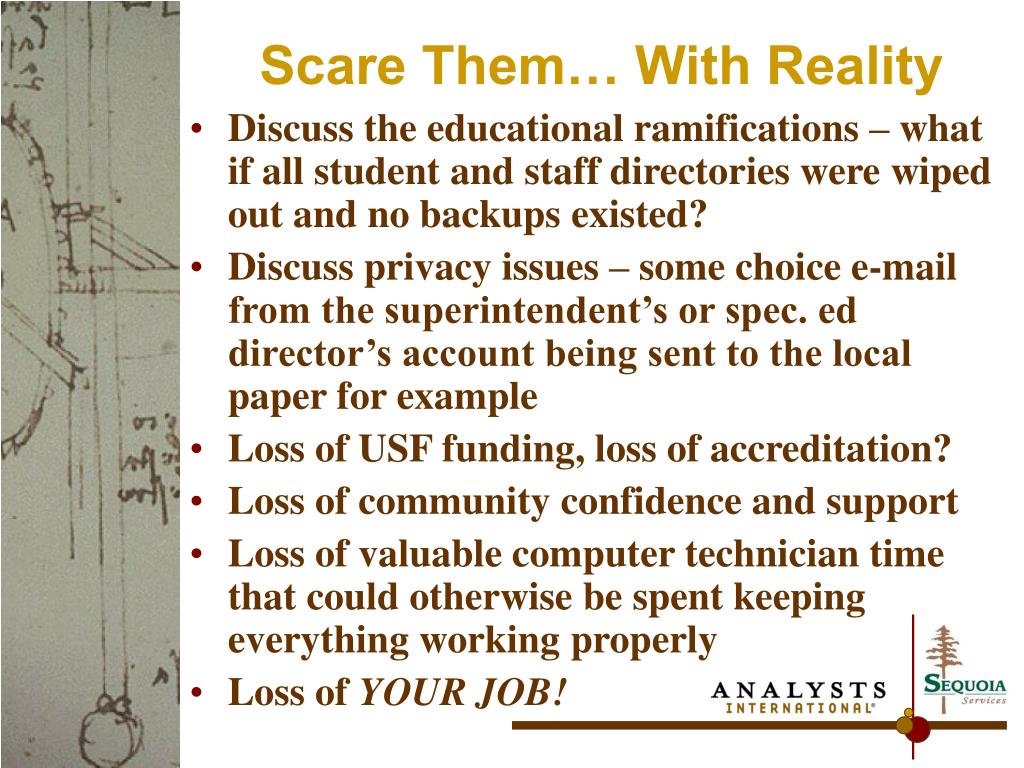

  19. Scare Them… With Reality • Discuss the educational ramifications – what if all student and staff directories were wiped out and no backups existed? • Discuss privacy issues – some choice e-mail from the superintendent’s or spec. ed director’s account being sent to the local paper for example • Loss of USF funding, loss of accreditation? • Loss of community confidence and support • Loss of valuable computer technician time that could otherwise be spent keeping everything working properly • Loss of YOURJOB!

  20. Hacking

  21. The Goal of Network Security • Simply put: “To be more annoying to break into than your neighbor” • The house and neighborhood metaphor • Increase the “work factor” of attacking you by erecting as many barriers as possible (defense in depth) • Ultimately, network security is all about preserving the functionality of the organization. Technology is just the tool.

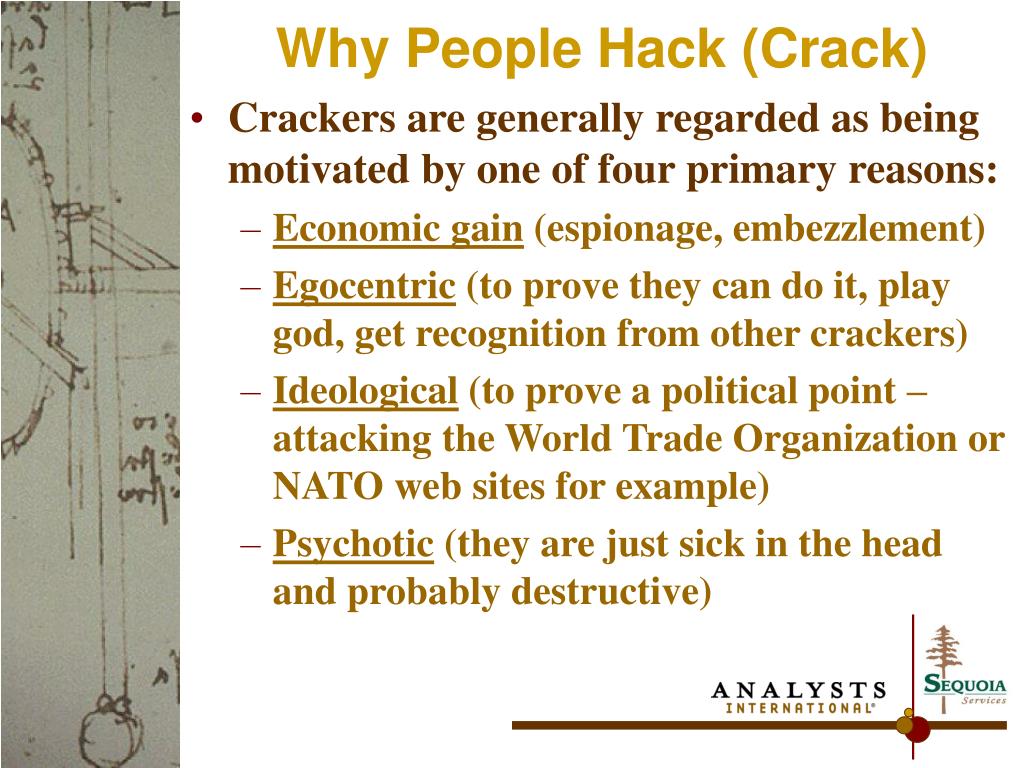

  22. Why People Hack (Crack) • Crackers are generally regarded as being motivated by one of four primary reasons: • Economic gain (espionage, embezzlement) • Egocentric (to prove they can do it, play god, get recognition from other crackers) • Ideological (to prove a political point – attacking the World Trade Organization or NATO web sites for example) • Psychotic (they are just sick in the head and probably destructive)

  23. Types of Hack Attacks • Reconnaissance – Scan networks and online resources (whois, DNS), dumpster diving, etc. to gain interesting information about the target. Typically non-invasive, usually untraceable • Exploits – Attack servers in an attempt to exploit a system vulnerability of some kind (e.g. NIMDA, Code Red, etc.) Very invasive, can be detected by IDS systems or careful log analysis • Denial of Service (DoS) – Attack servers to take them down and render them unusable. You will probably know when this is happening from the complaint phone calls

  24. Types of Hack Attacks • Attacks can be both personal and manual, or automated and generic • Many attacks are the result of systems that have already been attacked, and are now attempting to hack other machines. NIMDA was a good example of this. Usually the system owners have no idea what is happening • If you monitor any Internet connection long enough (say, 15 minutes) you are bound to see attacks coming through. It is just part of doing business nowadays • It is the manual attacks that you need to be worried about – deliberate, careful, and focused • Most hackers aren’t that smart – they just use programs given to them – and are thus known as “script kiddies”

  25. Common Security Practices • Security is a nascent field in many respects • Terminology, procedures and skill levels vary drastically between people and organizations • Some disagreement over what best practices actually are (i.e. the best placement of an IDS) • Few objective benchmarks to allow “apples to apples” comparisons for HW, SW, Services • There is a big technical curve for security – you must first be an expert in the technology, and then learn security on top of it • Whether you do it internally or get external help, it needs to be done

  26. What We Have to Work With

  27. Common Security Services • A firewall and Internet border security is simply not enough! This gives rise to the “candy” network – hard on the outside, soft on the inside (and tasty for attackers, too) • Embrace the concept of “defense in depth.” In other words, have security at multiple layers and in many places to make attacks as difficult as possible. • There is value in getting help from an external perspective – there is less ego on the line and a fresh viewpoint

  28. Vulnerability Assessments • Sometimes called “penetration testing” • Uses scripts and vulnerability assessment tools such as “Nessus” and the “ISS Internet Scanner” to scan all hosts for all known vulnerabilities • Also uses “human logic” to find problems – manually connecting to services, analyzing portscans, researching various software packages, making connections, etc. • Human logic is the most important step! Anyone can run a scanner program, but interpreting results and applying knowledge of the technologies involved is essential.

  29. Vulnerability Assessments • People and companies that specialize in security are important for a good vulnerability assessment project • The deliverable of a vulnerability assessment should include a list of all IP addresses, open ports, explanation and ranking of vulnerabilities, and hopefully some dialog on how to start fixing them • Vulnerability assessments should be done regularly – new vulnerabilities come out all the time – so you must stay up to date • Be warned – other people are assessing your network. Are you?

  30. Security Assessment Services • Sometimes called an audit • Sometimes performed in a very limited capacity by financial auditors (mainly backup systems) • Can be used to audit an actual environment against a set criteria, for example to determine compliance • Should be performed by one or more individuals with backgrounds in both network systems and organizational administration • Takes a macroscopic view of the organization • Analyze technology as well as policies and procedures, configurations, and other items that a tool cannot assess

  31. Security Assessment Services • Uses interviews, inspection of documentation, and manual analysis (depending upon the focus) • Should make recommendations on a wide variety of things to improve security • Should provide a description of the current situation, what best practices are, and what the recommended changes are • Should provide for estimation of pricing and priority, so that it could be used as a planning document for department priorities and budgets

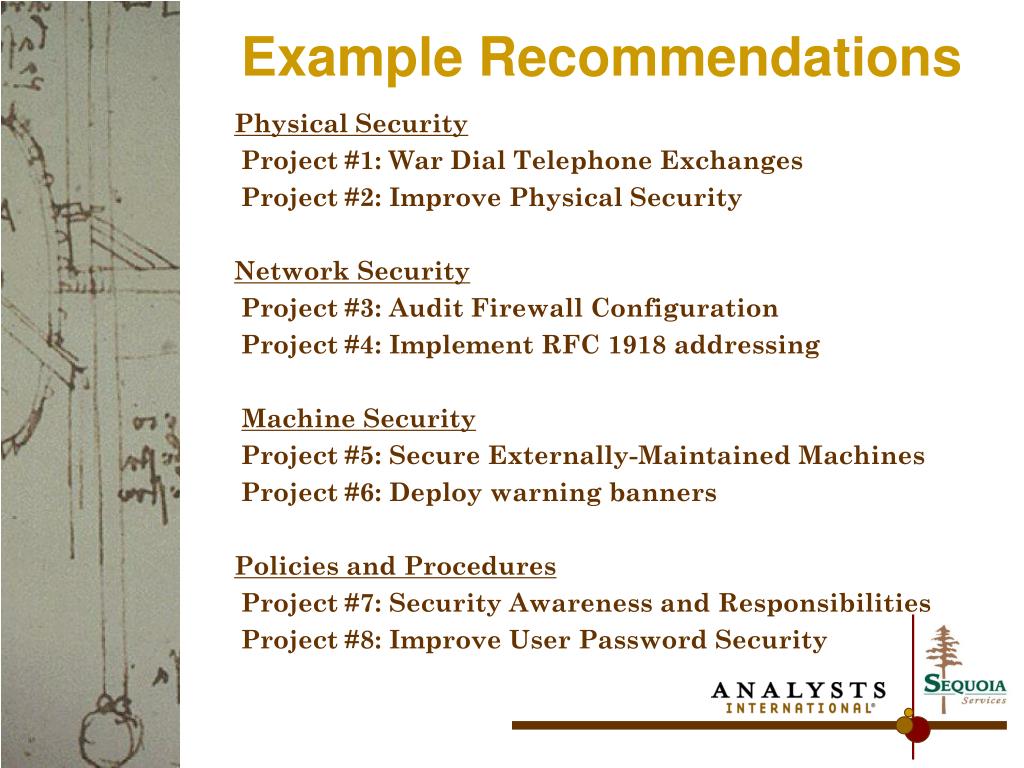

  32. Example Recommendations Physical Security Project #1: War Dial Telephone Exchanges Project #2: Improve Physical Security Network Security Project #3: Audit Firewall Configuration Project #4: Implement RFC 1918 addressing Machine Security Project #5: Secure Externally-Maintained Machines Project #6: Deploy warning banners Policies and Procedures Project #7: Security Awareness and Responsibilities Project #8: Improve User Password Security

  33. Disaster Recovery Planning • Concerned with minimizing the effect of a problem with a technological system • Focuses on things like tape backup, off-site storage, network and machine redundancy, and recovery procedures • Must identify critical assets, and all of the resources that support them (power, network, etc.) • Put into place preventative measures and recovery procedures • DRP is highly interactive and labor-intensive, primarily conducted through lots of interviews • In the private sector, failure to have a Disaster Recovery Plan in place constitutes a failure of due diligence, and CEOs can be held legally liable for damages

  34. Business Continuity Planning • BCP is similar to DRP, but it looks at the health of the entire organization, and not just technological systems • Why? Approx 65% of businesses that are down for more than a week never recover! School must continue regardless, but it will cost a fortune, and that may mean cutting back on services and employees to compensate (you won’t be popular) • BCP looks at things like alternate locations, backup telephone systems, contacting employees, interfacing with public service agencies and the media, forming relationships with support vendors, etc. • BCP typically is larger than, and contains, DRP measures • Takes even longer than DRP

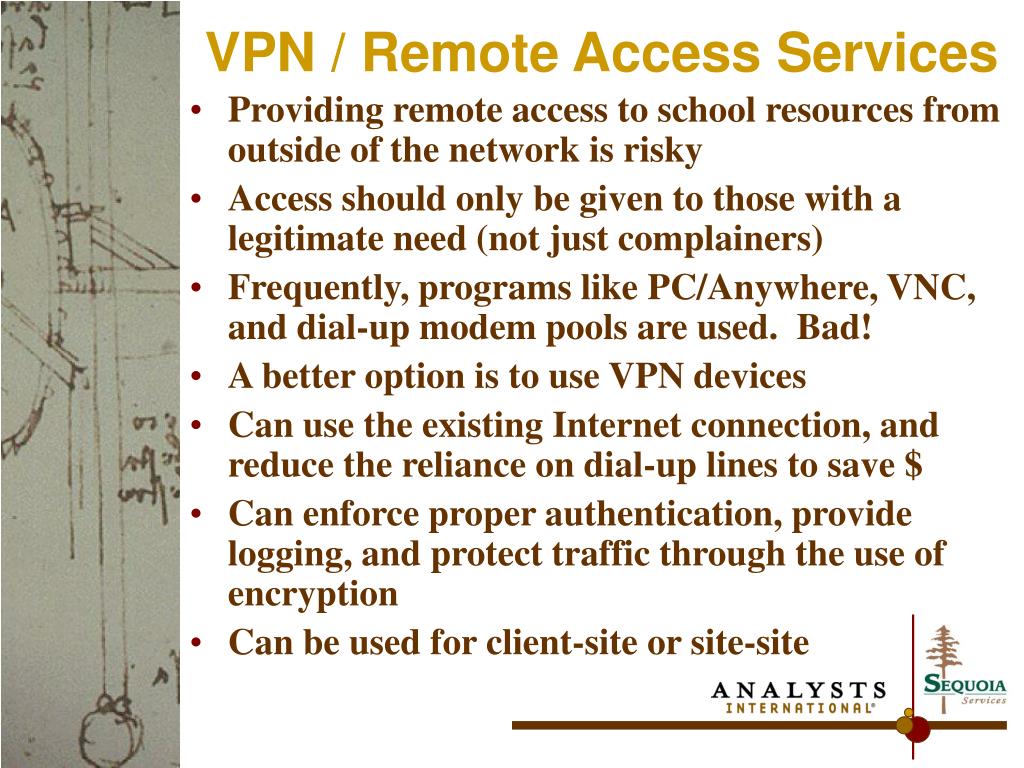

  35. VPN / Remote Access Services • Providing remote access to school resources from outside of the network is risky • Access should only be given to those with a legitimate need (not just complainers) • Frequently, programs like PC/Anywhere, VNC, and dial-up modem pools are used. Bad! • A better option is to use VPN devices • Can use the existing Internet connection, and reduce the reliance on dial-up lines to save $ • Can enforce proper authentication, provide logging, and protect traffic through the use of encryption • Can be used for client-site or site-site

  36. Intrusion Detection Systems • Are designed to detect (and sometimes respond to) significant security events • Configuration is critical to success! • IDS works in two ways: • Signature matching, like antivirus software • Pattern matching, finding strange behaviors or fluctuations from the norm (ie, a DoS attack)

  37. Intrusion Detection Systems • IDS comes in a few different forms: • Network based, “sniffs” the network • Host based, monitor local traffic and API calls • Intrusion Prevention Systems, a combination of other types but with the ability to intercept and *stop* attacks (e.g. Entercept) • Filesystem integrity based, monitor changes in the filesystem, registry, routers, etc. for changes (e.g. TripWire) • Popular IDS Systems: • Snort (free, open source, harder to manage) • ISS RealSecure (nice, but expensive) • Cisco Secure IDS (great for internal switches, especially)

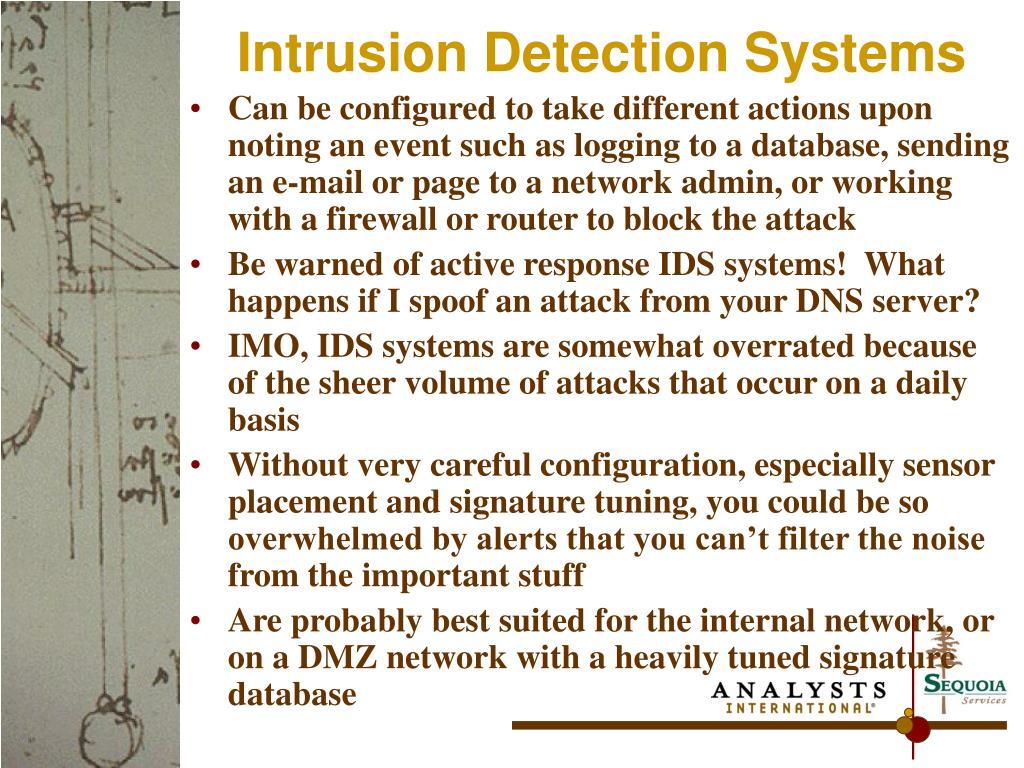

  38. Intrusion Detection Systems • Can be configured to take different actions upon noting an event such as logging to a database, sending an e-mail or page to a network admin, or working with a firewall or router to block the attack • Be warned of active response IDS systems! What happens if I spoof an attack from your DNS server? • IMO, IDS systems are somewhat overrated because of the sheer volume of attacks that occur on a daily basis • Without very careful configuration, especially sensor placement and signature tuning, you could be so overwhelmed by alerts that you can’t filter the noise from the important stuff • Are probably best suited for the internal network, or on a DMZ network with a heavily tuned signature database

  39. Server Hardening • Probably the single most important aspect of security • A firewall cannot protect an insecure host • Hardening includes a number of steps including keeping up to date with patches, and other proactive steps • Simply keeping up with patches is not true hardening • True hardening takes steps to make a compromise more difficult – even for exploits that have not yet been discovered • Server hardening is time consuming, especially on NT and UNIX systems, and requires a lot of upkeep • We will discuss server hardening in the technical portion of this presentation

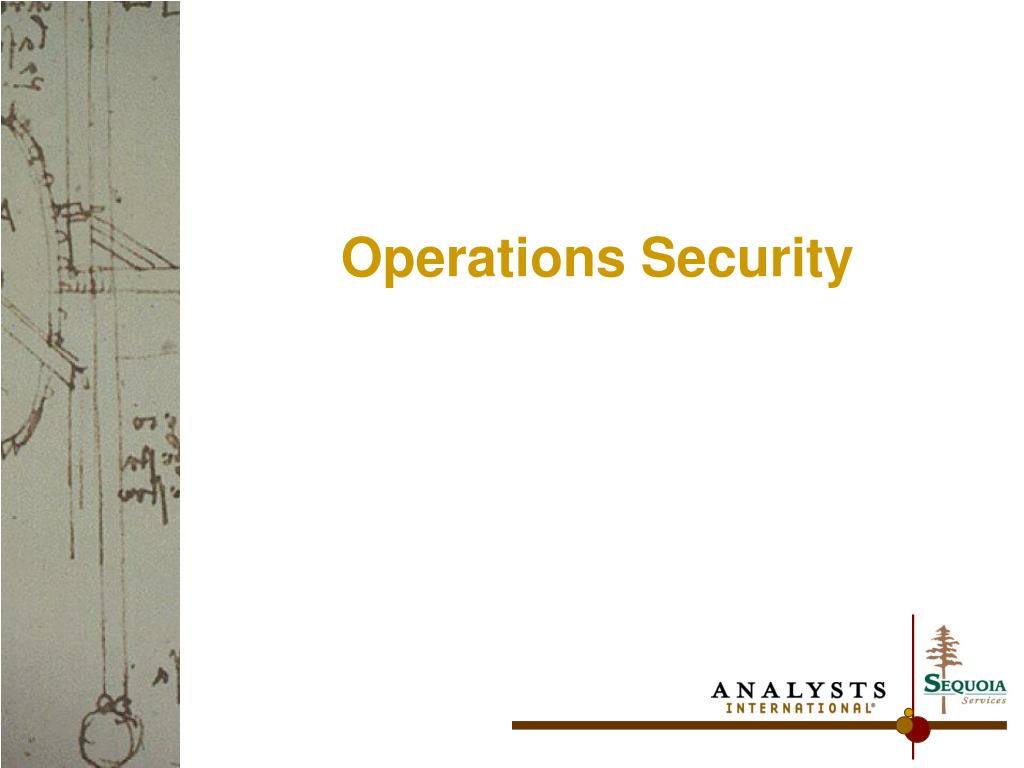

  40. Operations Security

  41. Operations Security • Concerned with ways to mitigate security risks through administration – policies, procedures and practices • The weakest link in the security chain are individual humans (or as Dilbert calls them, “in-duh-viduals”) • Part of “defense in depth” • Administration support is critical to any security initiative • Helps to minimize risk, respond to incidents, and establish standards for how things should be done

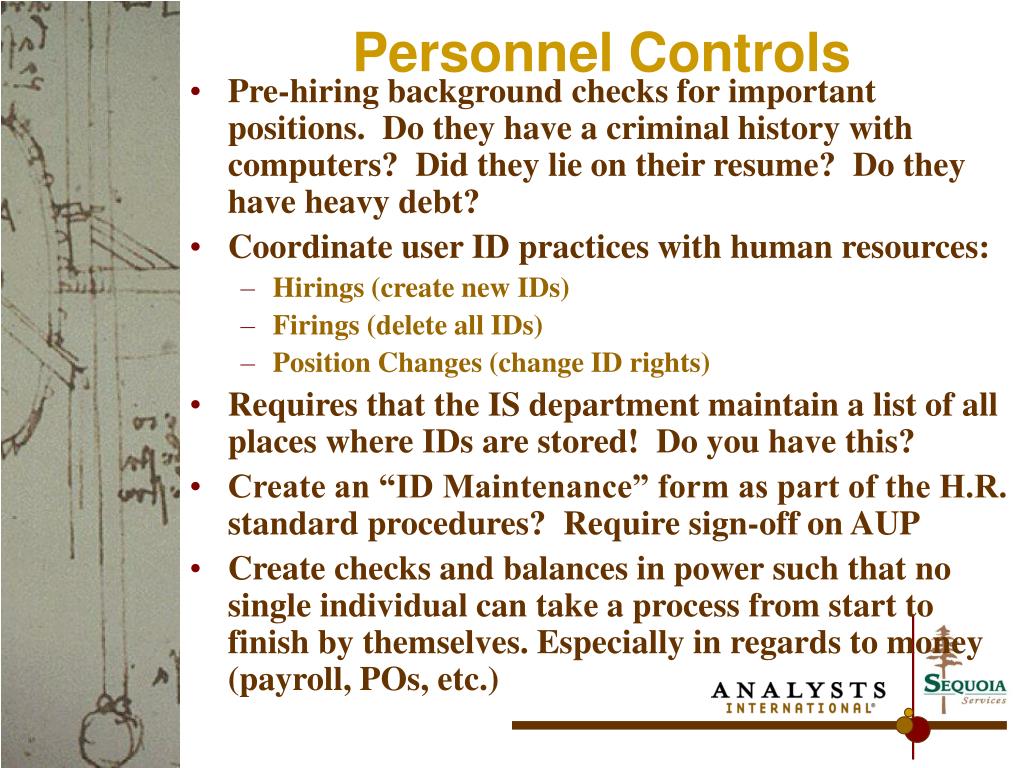

  42. Personnel Controls • Pre-hiring background checks for important positions. Do they have a criminal history with computers? Did they lie on their resume? Do they have heavy debt? • Coordinate user ID practices with human resources: • Hirings (create new IDs) • Firings (delete all IDs) • Position Changes (change ID rights) • Requires that the IS department maintain a list of all places where IDs are stored! Do you have this? • Create an “ID Maintenance” form as part of the H.R. standard procedures? Require sign-off on AUP • Create checks and balances in power such that no single individual can take a process from start to finish by themselves. Especially in regards to money (payroll, POs, etc.)

  43. Acceptable Use Policies • Should be well-plowed ground for most school districts, so we’ll just touch on it • Provides guidance and expectation settings on what behavior is acceptable an unacceptable • Should apply to both students and staff • Should use “implicit deny” language • Should state that all equipment is the property of the district and may be monitored at any time • Should require sign-off on the part of users to document that they have read it and agree with the requirements • Should address password security • Should address information privacy standards such as the treatment of confidential data (special ed records, etc.)

  44. Warning Banners • Use warning banners when possible • Functions somewhat like an AUP, and can contain the AUP itself (or items of it) • Can provide additional legal ammunition in the event that something needed to go to court • Should be placed on public servers (web server, e-mail servers, etc.) and on local workstations • Should contain three distinct statements: • Definition of the appropriate use of the resource • Warning that the system is monitored • That there is no expectation of privacy • http://www.ciac.org/ciac/bulletins/j-043.shtml

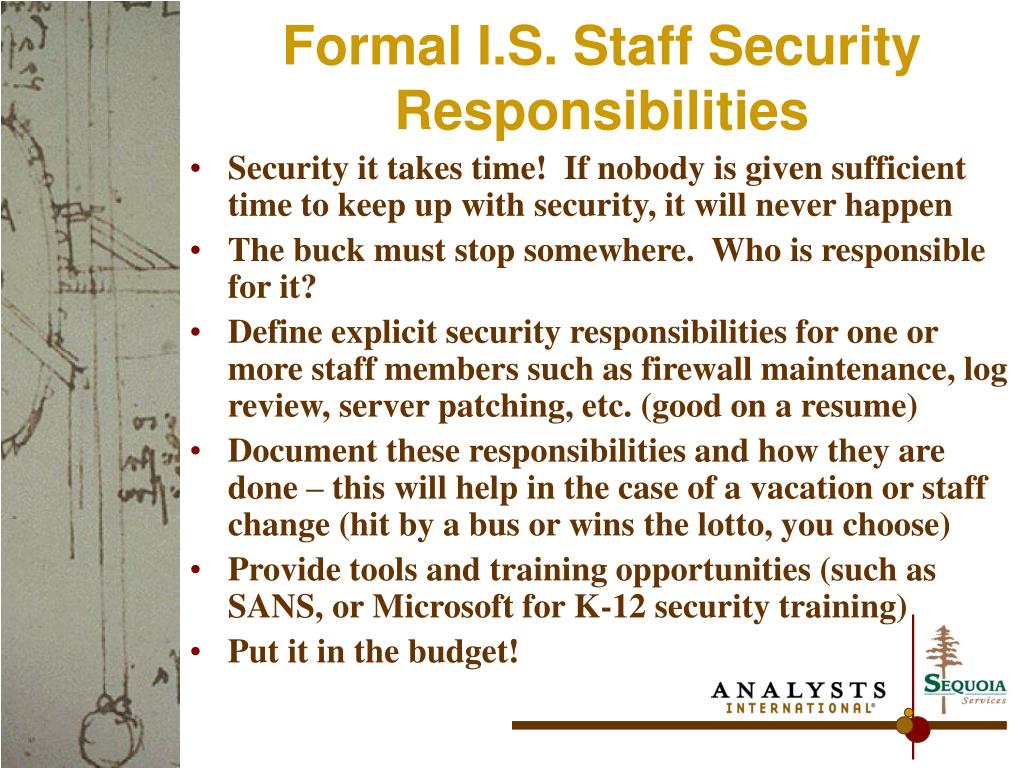

  45. Formal I.S. Staff Security Responsibilities • Security it takes time! If nobody is given sufficient time to keep up with security, it will never happen • The buck must stop somewhere. Who is responsible for it? • Define explicit security responsibilities for one or more staff members such as firewall maintenance, log review, server patching, etc. (good on a resume) • Document these responsibilities and how they are done – this will help in the case of a vacation or staff change (hit by a bus or wins the lotto, you choose) • Provide tools and training opportunities (such as SANS, or Microsoft for K-12 security training) • Put it in the budget!

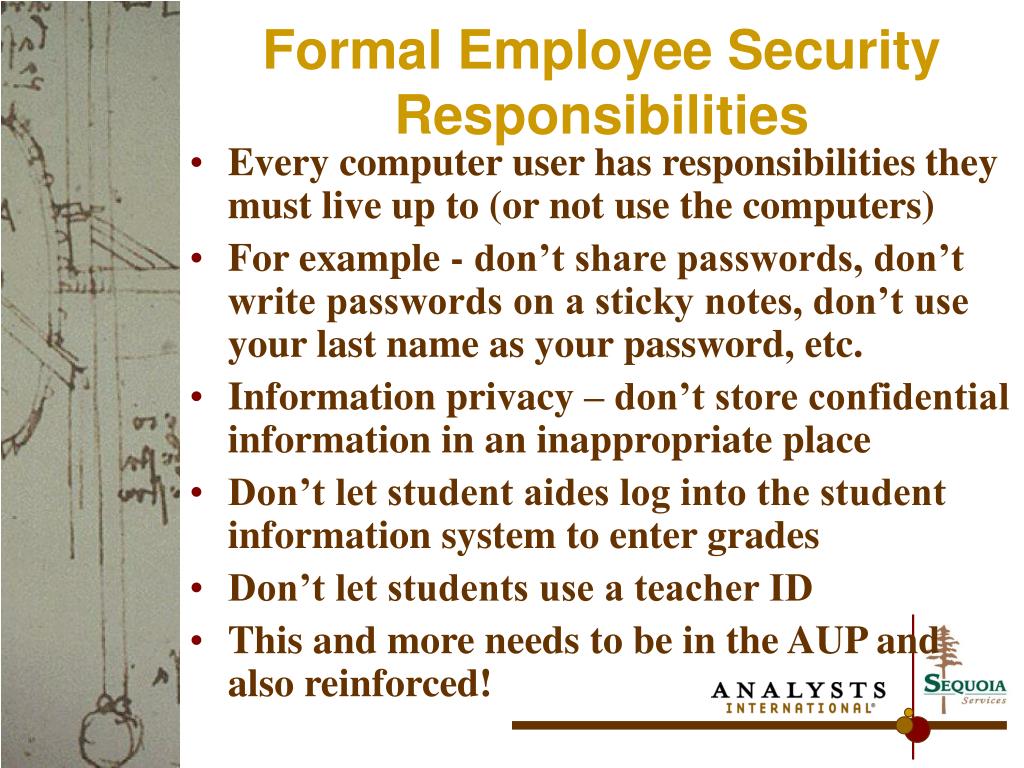

  46. Formal Employee Security Responsibilities • Every computer user has responsibilities they must live up to (or not use the computers) • For example - don’t share passwords, don’t write passwords on a sticky notes, don’t use your last name as your password, etc. • Information privacy – don’t store confidential information in an inappropriate place • Don’t let student aides log into the student information system to enter grades • Don’t let students use a teacher ID • This and more needs to be in the AUP and also reinforced!

  47. Incident Response Plans • Have a plan in place on how to respond to security incidents before it happens • May be different for student discipline vs. external hacks • It is better to plan ahead than to figure it out when you are under stress • What is the criteria for alerting superiors? • What is the criteria for alerting law enforcement? • Who will be responsible for responding? • How will the response be escalated? • What type of documentation will you keep?

  48. Change Control • Change control is the process of requesting changes to systems, implementing and testing them, and documenting results • Security can be improved through change control because it reduces error and improves availability • Keep detailed records of before and after configurations • Require approval of changes by another party to ensure that the change is appropriate, needed, and does not create problems • Test changes on a non-production system prior to full implementation

  49. Security Awareness • Staying abreast of the latest issues and solutions in security is critical • Administrators must budget for and offer training opportunities to technical staff • Administrators should require that technical staff be signed up for security listserves such as: • BugTraq / NT BugTraq (www.securityfocus.com) • Microsoft Bulletins (security.microsoft.com) • Consider conducting regular internal trainings on security topics • Consider ways to keep staff up to speed

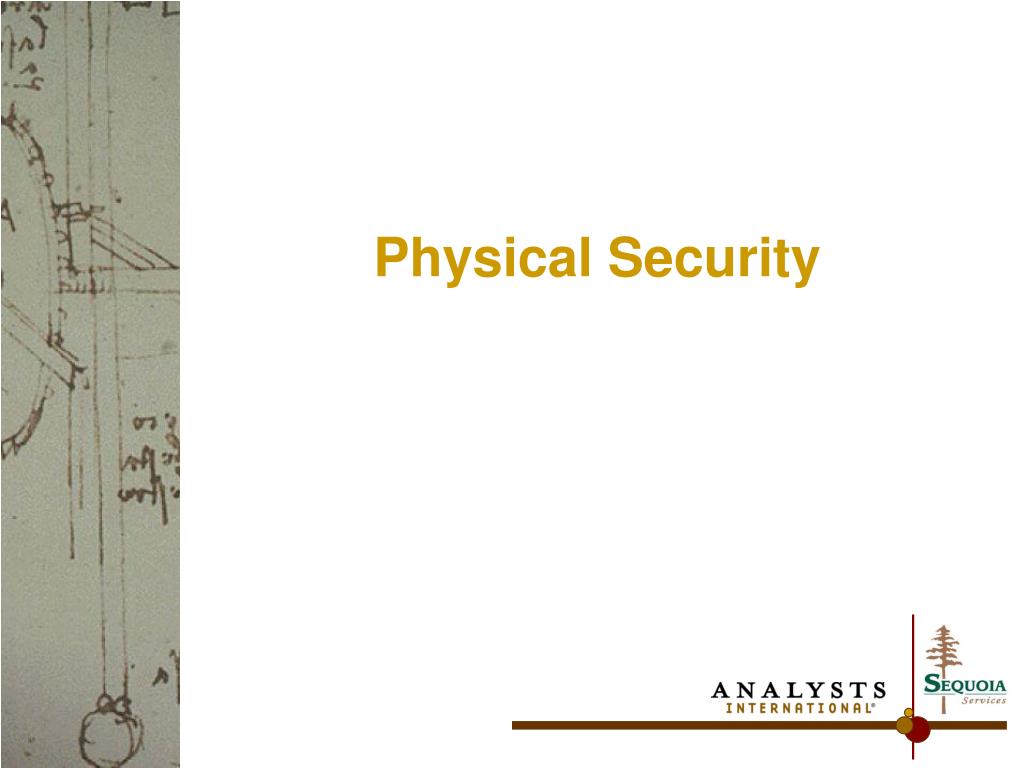

  50. Physical Security
