Presentation Transcript


Sharing your finding aids in contentdm

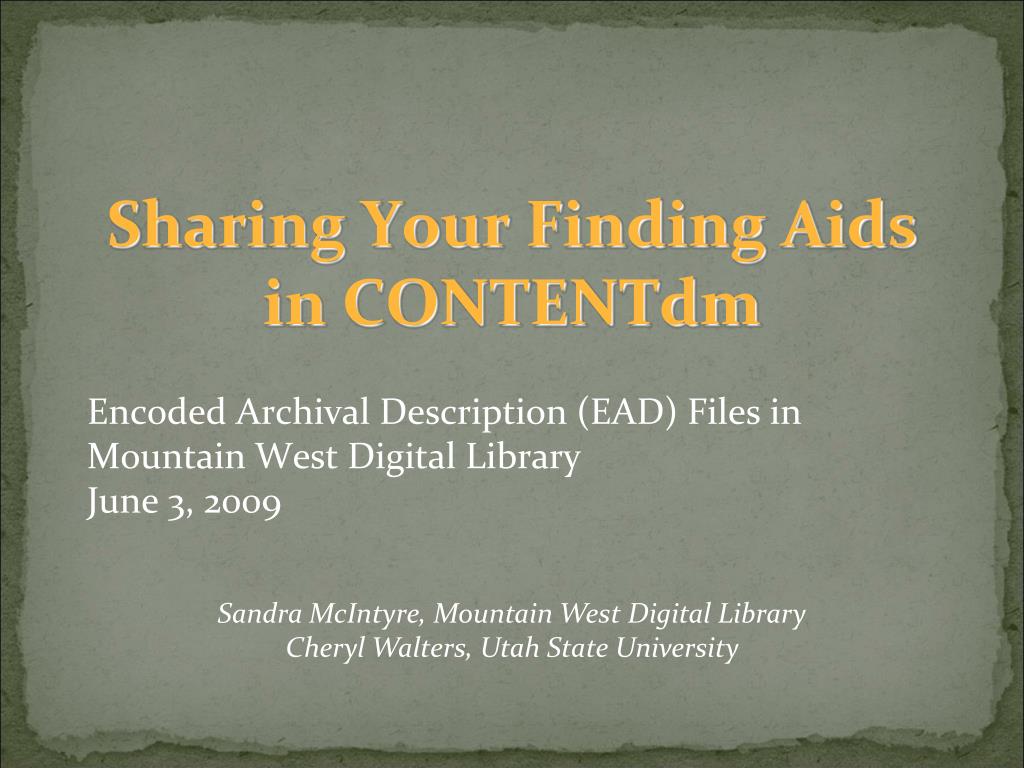

Sharing Your Finding Aids in CONTENTdm

Encoded Archival Description (EAD) Files in Mountain West Digital LibraryJune 3, 2009

Sandra McIntyre, Mountain West Digital LibraryCheryl Walters, Utah State University


Encoded archival description ead

Encoded Archival Description(EAD)

  • Used by archives and manuscripts libraries to encode data describing corporate records and personal papers

  • Variously called finding aids, guides, handlists, registers, or catalogues

  • Administered and maintained jointly by:

    • Society of American Archivists

    • U.S. Library of Congress


Encoded archival description ead1

Encoded Archival Description(EAD)

  • Based on Standard Generalized Markup Language (SGML) and its subset, eXtensible Markup Language (XML)

  • Main sections:

    • <eadheader> – contains the title and optional subtitle of the collection and detailed information about the finding aid itself

    • <archdesc> – contains the description of the collection material itself


Ead file in xml

EAD file in XML

Finding Aid text is encoded using EAD and XML markup so the finding aids can be shared, searched and viewed electronically.

EAD element titleproper in XML tagging:

<titleproper encoding analog=“title”>Register of the Andrew Karl Larson Papers</titleproper>

XML is the markup language that allows EAD files to be read and exchanged electronically.


Ead 2002 schema

EAD 2002 Schema

See http://www.loc.gov/ead


Using contentdm for ead files

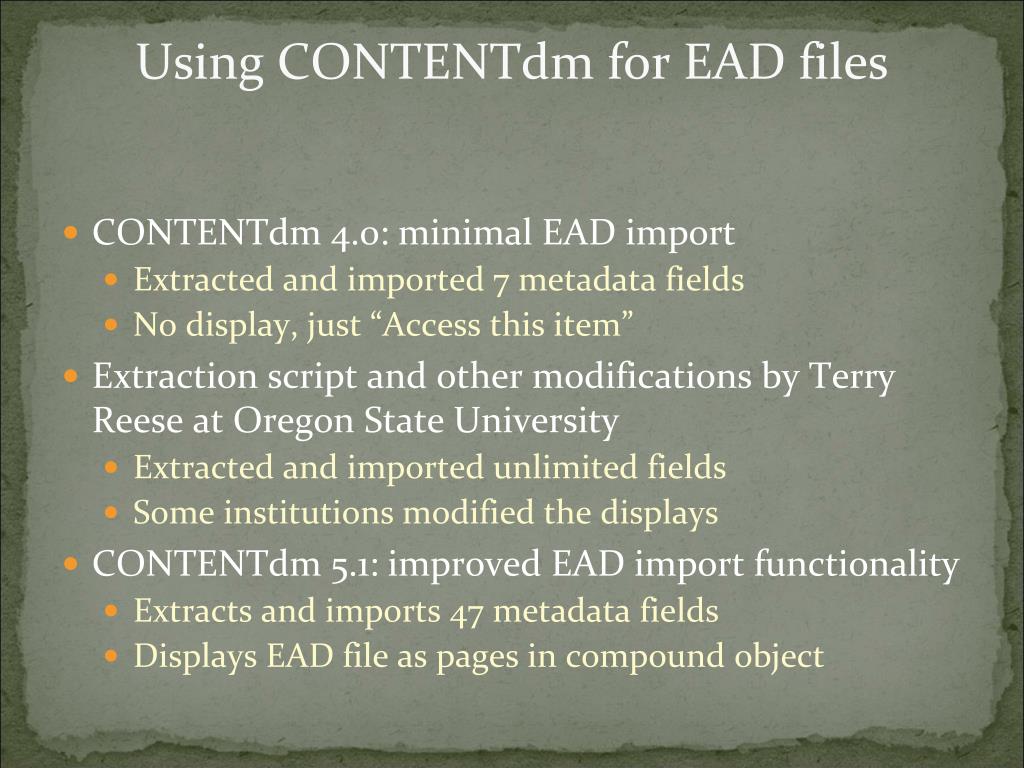

Using CONTENTdm for EAD files

  • CONTENTdm 4.0: minimal EAD import

    • Extracted and imported 7 metadata fields

    • No display, just “Access this item”

  • Extraction script and other modifications by Terry Reese at Oregon State University

    • Extracted and imported unlimited fields

    • Some institutions modified the displays

  • CONTENTdm 5.1: improved EAD import functionality

    • Extracts and imports 47 metadata fields

    • Displays EAD file as pages in compound object


Collaborative ead project

Collaborative EAD project

  • Utah Manuscripts Association (UMA)

  • Funding: LSTA grant 2007-2008

  • 6 pilot institutions:

    • Utah State University -- PI: Brad Cole

    • University of Utah

    • Brigham Young University

    • Weber State University

    • Utah State History

    • Utah State Archives


Collaborative ead project goals

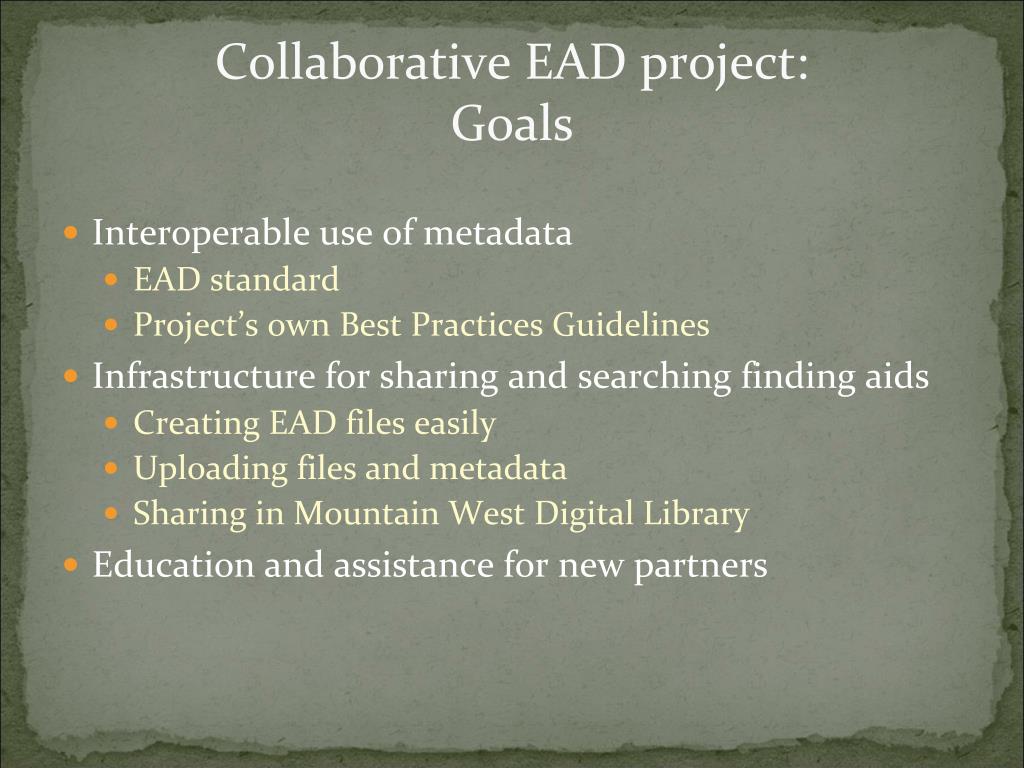

Collaborative EAD project: Goals

  • Interoperable use of metadata

    • EAD standard

    • Project’s own Best Practices Guidelines

  • Infrastructure for sharing and searching finding aids

    • Creating EAD files easily

    • Uploading files and metadata

    • Sharing in Mountain West Digital Library

  • Education and assistance for new partners


Coming from different directions partners widely divergent

Coming from different directions: partners widely divergent

  • Stages of readiness:

    • One library had no electronic EAD finding aids, just print

    • Another had all finding aids in XML EAD

    • Some had a mixture of print, html, & EAD finding aids

  • Staff size: from very small to very large

  • IT support: from very little to a lot

  • Inhouse EAD expertise: from none to considerable


Result 1 ead files in 6 local repositories

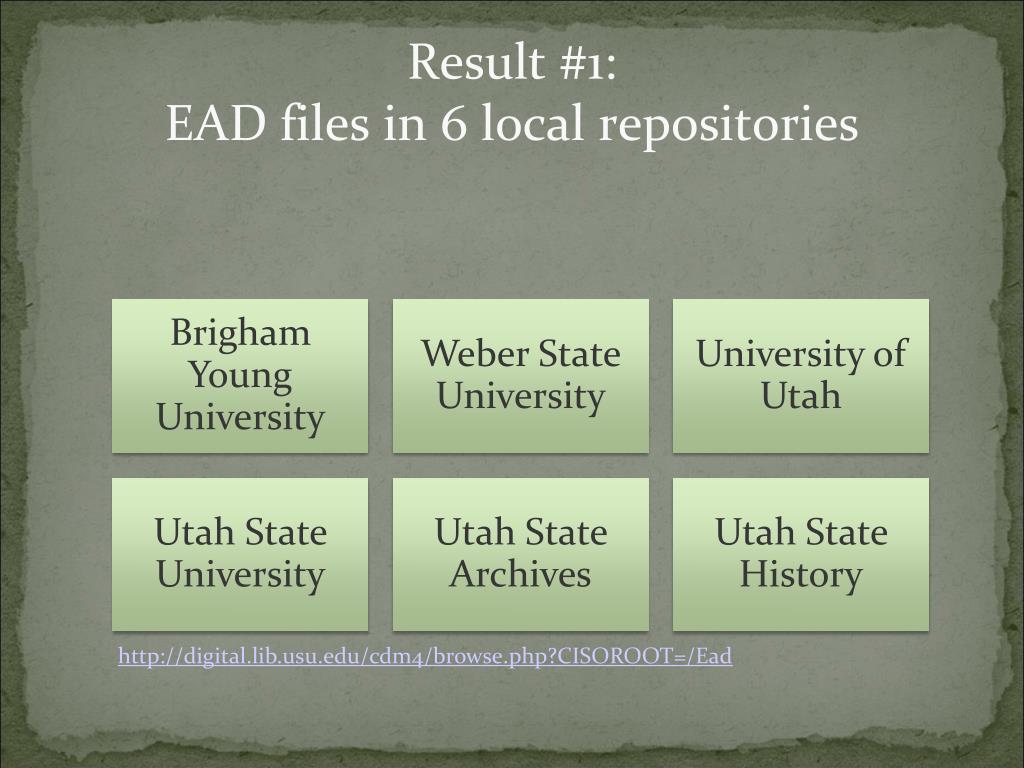

Result #1:EAD files in 6 local repositories

http://digital.lib.usu.edu/cdm4/browse.php?CISOROOT=/Ead


A local ead collection

A local EAD collection


An individual ead file

An individual EAD file


Result 2 harvested centrally

Result #2:Harvested centrally

http://mwdl.org/index.php/search/results?query=&field-10=ead


Mountain west digital library

Mountain West Digital Library


Project steps

Project Steps

  • Project-specific standards

  • Encoding tool

  • Metadata extraction

  • Ingestion to CONTENTdm

  • XSL stylesheet for display of EAD files

  • Modification of the CONTENTdm item viewer

  • OAI harvest into Mountain West Digital Library


Our best practice guidelines

Our Best PracticeGuidelines

See LSTA project wiki: http://lsta.lib.byu.edu

Based on other existing guidelines such as Northwest Digital Archive Best Practice Guidelines &

Best Practices and Application Guidelines for Creating EAD Finding Aids at the University of

Minnesota Libraries


Encoding tools

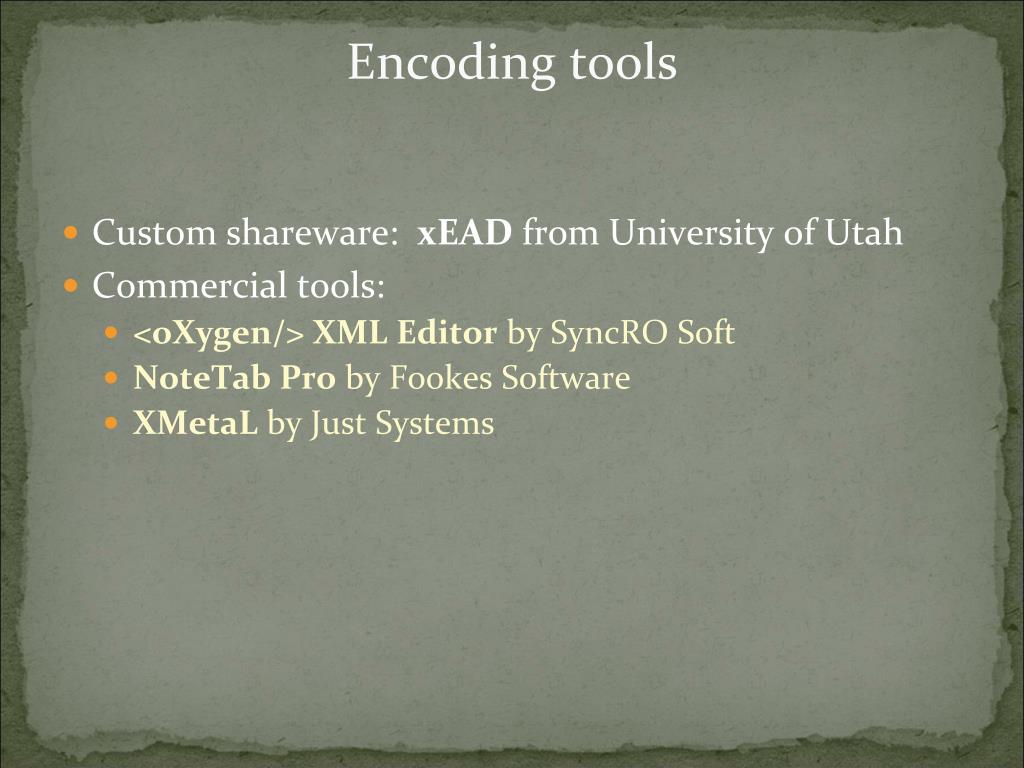

Encoding tools

  • Custom shareware: xEAD from University of Utah

  • Commercial tools:

    • <oXygen/> XML Editor by SyncRO Soft

    • NoteTab Pro by Fookes Software

    • XMetaL by Just Systems


Metadata extraction mapping ead elements i e fields

Metadata extraction:Mapping EAD elements (i.e., fields)

35 EAD elements are extracted and mapped


Metadata extraction mapping flow

Metadata extraction:Mapping flow


Metadata extraction setting up contentdm fields

Metadata extraction:Setting up CONTENTdm fields


Metadata extraction extraction script

Metadata extraction:Extraction script

  • JScript batch extraction script:

    • Acts on all EAD files in the same folder

    • Parses XML: Takes EAD elements and maps them to CONTENTdm fields

    • Saves each record (=metadata extracted from one EAD file) as a separate line in a tab-delimited text file


Jscript maps ead unitid into the collection number field of tab delimited spreadsheet

JScript maps EAD unitid into the Collection Number field of tab-delimited spreadsheet

JScript instruction:

// unitid to Collection Number

eadFields[4] = "ead:ead/ead:archdesc/ead:did/ead:unitid";

eadToCdm[4] = 3;

Spreadsheet with Dublin Core metadata


Ingestion into contentdm

Ingestion into CONTENTdm

  • Standard CONTENTdm “Multiple Files” import

    • Metadata from tab-delimited text file goes into CONTENTdm fields.

    • All files from selected folder are uploaded.

  • Workaround for date ranges in 4.3


What s happening inside a folder of finding aid files during extraction

What’s happening inside a folder of finding aid files during extraction

Clicking on jscript file extracts Dublin Core fields and…

a tab delimited spreadsheet of DC metadata is created in same folder


Xsl stylesheet

XSL stylesheet

  • Modifying CONTENTdm for immediate display of EAD file (with no CONTENTdm metadata record)

  • XSLT transformation of original EAD – controls the display of EAD elements to the user

  • Appearance customizable in CSS by each partner

  • Includes a search box for regional search of all finding aids in MWDL


Xsl stylesheet1

XSL stylesheet

http://content.lib.utah.edu/u?/UU_EAD,867


Modifying item viewer in contentdm

Modifying item viewer in CONTENTdm

For CONTENTdm 4 or higher, with PHP 5 or higher:

  • Copy into appropriate directories:

    • XSL stylesheet

    • CSS stylesheet

    • Small images (for regional search box)

    • New include file basic_view_ead.php

  • Add about 25 lines in basic_view.php


Oai harvest into mountain west digital library

OAI harvest into Mountain West Digital Library


Project description and tools

Project description and tools

http://lsta.lib.byu.edu


Results

Results

  • All 6 repositories up

  • 4,694 EAD files harvested so far in MWDL

  • Reports of more patron requests

  • Standards still difficult to maintain

    • U of U: some empty required fields

    • USU: changed call number convention

    • Weber State: dates not formatted correctly

  • Editing process for EAD changes is tedious


Future growth

Future growth

  • Bringing in additional regional partners

  • Refining tools

  • Adding more EAD search and browse capability to MWDL

  • For repositories, adding links to digitized materials


Contentdm 5 s improved ead import

CONTENTdm 5’s Improved EAD Import

  • Advantages:

    • Can import much bigger finding aids

    • No need for pre-mapping by another tool

  • Disadvantages:

    • Limited to importing one finding aid at a time; this is problematic if have large amounts of finding aids

    • Encoding problems need to be resolved:

      • Schema namespace not accepted so x-links don’t work

      • <controlaccess>

    • Jury still out: will all text for files be searchable?


Questions welcome

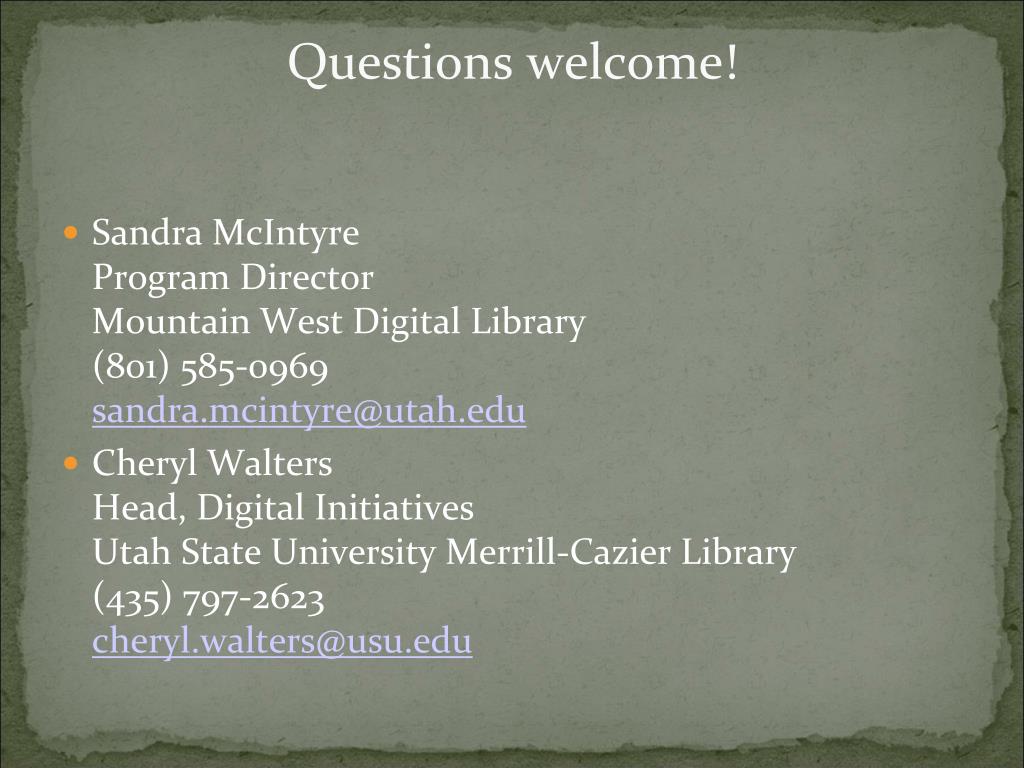

Questions welcome!

  • Sandra McIntyreProgram DirectorMountain West Digital Library(801) [email protected]

  • Cheryl WaltersHead, Digital InitiativesUtah State University Merrill-Cazier Library(435) [email protected]
