Presentation Transcript


Cs 423 operating systems design lecture 1 introduction

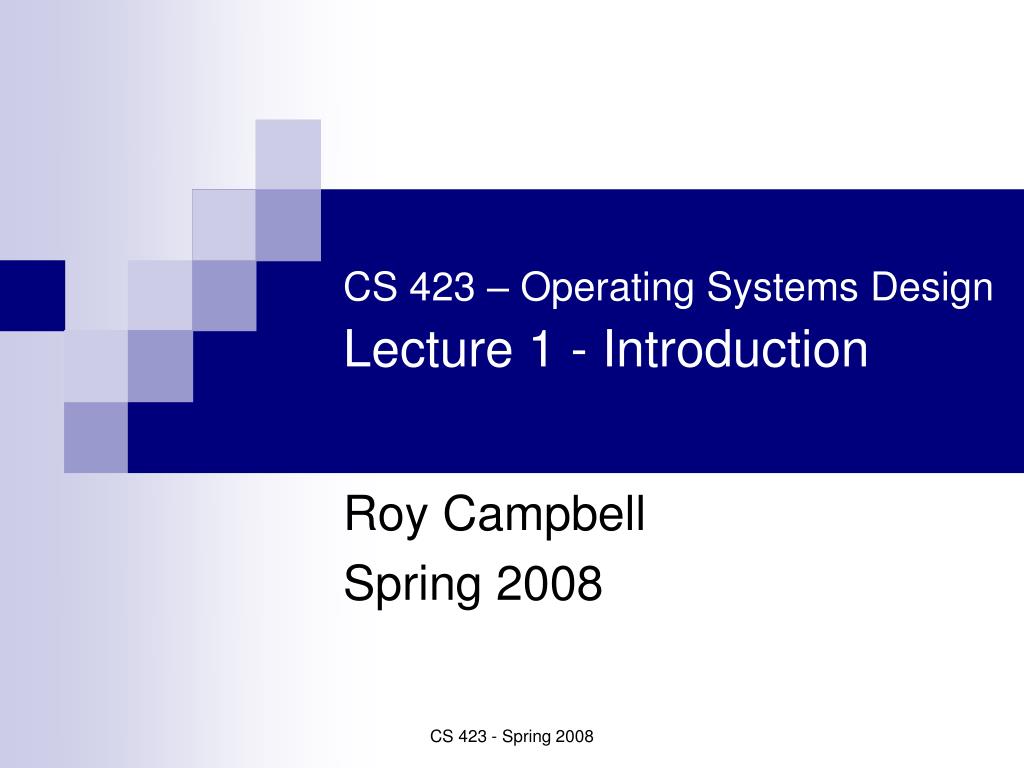

CS 423 – Operating Systems DesignLecture 1 - Introduction

Roy Campbell

Spring 2008

CS 423 - Spring 2008


Overview

Overview

  • Course information (personnel, policy, schedule, misc.)

  • What is OS? What does it do?

  • History of OS

  • Summary

CS 423 - Fall 2007


Instructor

Instructor

  • Roy Campbell

    • PhD University of Newcastle upon Tyne

    • Research:

      • Distributed Operating Systems (Distributed Services, Reflective Systems, Adhoc Configuration),

      • Object-Oriented Operating systems (Parallelism, O-O Design, File Systems, Persistent Objects, Fault-Tolerance, Security, Real-time, Root Kits

      • Pervasive/Ubiquitous Systems (Naming, Discovery, Configuration, Fault-Tolerance, Events, Active Spaces, Rooms, Buildings),

      • Security (Corba SECIOP, Policies, Denial of Service, Authentication, Access Control, Security Assessment)

      • Streaming Video (QoS, Adaptation, Protocols)

CS 423 - Fall 2007


Overview1

Office Assistants:

Anda Ohlsson ([email protected]) for Roy Campbell

Teaching Assistants:

Jeffrey Naisbitt

Class Website http://www.cs.uiuc.edu/class/sp08/cs423/

Newsgroup: uiuc.class.cs423 and uiuc.class.cs423.announce

Two newsgroups – one for discussion on machine problems, one for announcements

Overview

CS 423 - Fall 2007


Required readings for cs423

Required Readings for cs423

  • Required Textbook:

    • Modern Operating Systems, Andrew Tanenbaum, Prentice Hall, second edition, 2001

    • Understanding the LINUX Kernel, Bovet and Cesati, O’Reilly, third edition, 2006 (kernel 2.6)

CS 423 - Fall 2007


Course prerequisites

Course Prerequisites

  • CS 241 – MUST

    • There will be a test similar to exams of cs241 (take-home exam)

      • If you can finish more than 80% of the exam, you should be fine in the class

      • If you cannot finish the exam with 70% and lower, then it means that you should consider sitting in cs241 or taking it first

    • Evaluation exam will be given on 1/16

CS 423 - Fall 2007


Facilities and office hours

Facilities and Office Hours

  • Laboratory Facilities

    • CSIL-linux clusters, 216 SC,

  • Office hours: available in web page

    • RC: Tue/Thu, 9-10am, Office: 3120 SC

    • JN: Wed/Fri, 1-2pm, Office: 1100 SC

CS 423 - Fall 2007


About this course

Principles

System concepts

OS design

Some theory

Rationale

Practice

Goals

Understand OS decisions

Basis for future learning

Get hands dirty

About this course…

CS 423 - Fall 2007


Expect some pain

Fast pace

Hard material

4 MPs (programming)

2 Homework

1 Midterm and 1 Final (Comprehensive) Exam

But….

Students survived past cs423!

Expect (Some) Pain

CS 423 - Fall 2007


Grading

Grading

  • Final exam: 35%

  • Mid-exam: 20%

  • 2 Homework: 10%

  • 4 MPs: 35% (depending on the difficulty each MP will have different weight

    • 1st MP – 7%

    • 2nd MP – 8%

    • 3rd MP – 10%

    • 4th MP – 10%

CS 423 - Fall 2007


Grading policy

Grading policy

  • Gradebook system: http://compass.uiuc.edu

  • Late policy for MPs and Homework Assignments

    • No Late Policy, but there will be 3Bonus Days

  • It is your responsibility!

    • Check announcements in lectures, newsgroups, or web pages

  • MPs will be done in Groups of 2-3 students

  • MPs done on vmware server

CS 423 - Fall 2007


Group setup

Group Setup

  • Setup Groups between 1/14 and 1/23

  • Email to the TA Jeff ([email protected] ) your group formation

  • David Andersen (system admin) will setup accounts on the vmware server.

  • Between 1/23 and 25 the TA (Jeff) will inform each group their login and password to start to work on the vmware server.

  • The instructions about working on the vmware server will be also posted on web as well as mailed to each group.

CS 423 - Fall 2007


Re grading policy

Re-grading policy

  • Students have 1 week (after the grade for a Homework/MP/exam is released into gradebook) to request for re-grading

  • Re-grading requests need to be in writing to the TA

  • After the re-grading period, no re-grading request will be granted for this Homework/MP/exam.

CS 423 - Fall 2007


Cheating policy

Cheating Policy

  • Academic integrity

  • Your homework and exams must be your own - we have a zero tolerance policy towards cheating of any kind and any student who cheats will get a failing grade in the course.

  • Both the cheater and the student who aided the cheater will be held responsible for the cheating

  • Machine problems will be graded per group, i.e., each member gets the same number of points.

CS 423 - Fall 2007


Lecture format

Lecture Format

  • Help you understand important and hard OS concepts

  • Lectures do not cover everything

    • Not all questions in homework or exams are from lectures

  • Students responsibility

    • Attend lectures

    • Read textbooks

    • Homework, MP, Exam

    • Periodically check web page, Read/utilize newsgroup

CS 423 - Fall 2007


Mps deadlines

MPs (Deadlines)

  • Q&A Session before each MP due date

  • MP releases and Q&A Session dates will be announced

  • on the course web page/newsgroup

CS 423 - Fall 2007


Homework exams

Homework & Exams

  • Announcement in web page

  • No makeup homework

  • No makeup exams unless with documented medical emergency

CS 423 - Fall 2007


Unit project graduate students

¼ Unit Project: graduate students

  • Final grade is decided upon ¾ unit performance

  • ¼ unit project: pass or fail

  • Individual or group of two

  • Choices

    • Implementation project

    • Animation project

    • Survey

  • Proposal due: 2/8, Friday, 5pm, by email to [email protected]

  • Details in web page

CS 423 - Fall 2007


What is an os

“Code” that:

Sits between programs & hardware

Sits between different programs

Sits betweens different users

But what does it do?

to provide an orderly and controlled allocation of the processors, memories and I/O devices among the various programs competing for them

Real Life Example:

Government

What Is an OS?

CS 423 - Fall 2007


What is an os1

Resources

Allocation

Protection

Reclamation

Virtualization

Services

Abstraction

Simplification

Convenience

Standardization

What Is an OS?

Makes computers simpler

CS 423 - Fall 2007


What is an os2

Resources

Allocation

Protection

Reclamation

Virtualization

Finite resources

Competing demands

Examples:

CPU

Memory

Disk

Network

What Is an OS?

Government

Limited budget,Land,Oil,Gas,

CS 423 - Fall 2007


What is an os3

Resources

Allocation

Protection

Reclamation

Virtualization

You can’t hurt me

I can’t hurt you

Implies some degree of safety & security

What Is an OS?

Government

Law and order

CS 423 - Fall 2007


What is an os4

Resources

Allocation

Protection

Reclamation

Virtualization

The OS gives

The OS takes away

Voluntary at run time

Implied at termination

Involuntary

Cooperative

What Is an OS?

Government

Income Tax

CS 423 - Fall 2007

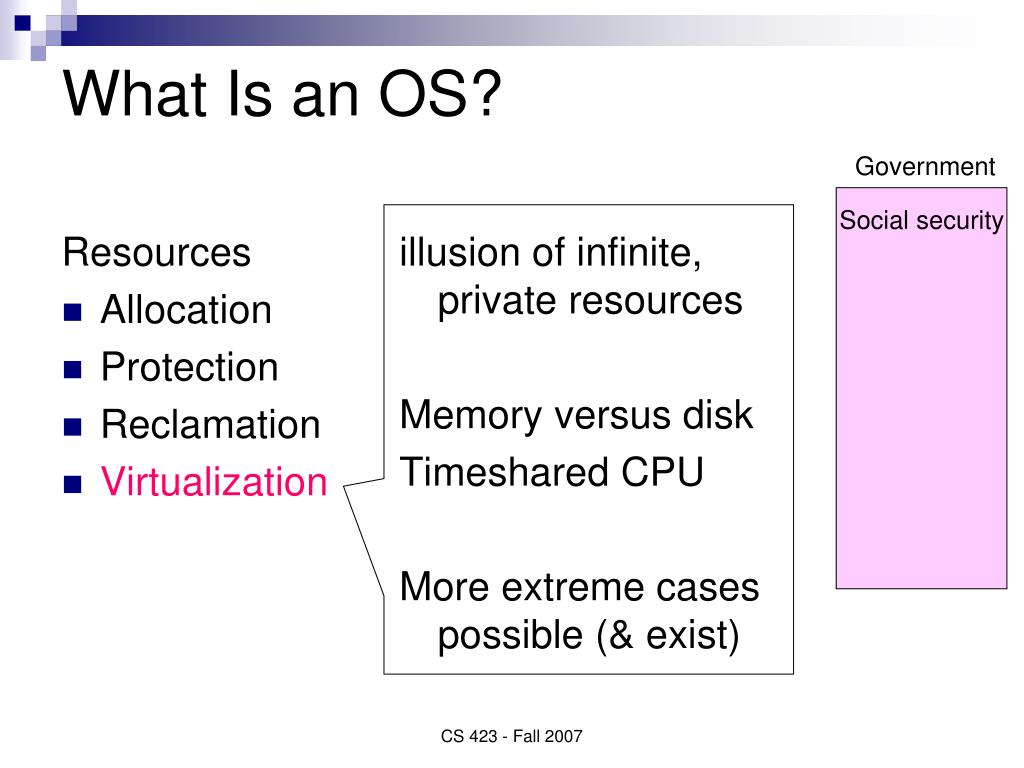

What is an os5

Resources

Allocation

Protection

Reclamation

Virtualization

illusion of infinite, private resources

Memory versus disk

Timeshared CPU

More extreme cases possible (& exist)

What Is an OS?

Government

Social security

CS 423 - Fall 2007


History of operating systems 1

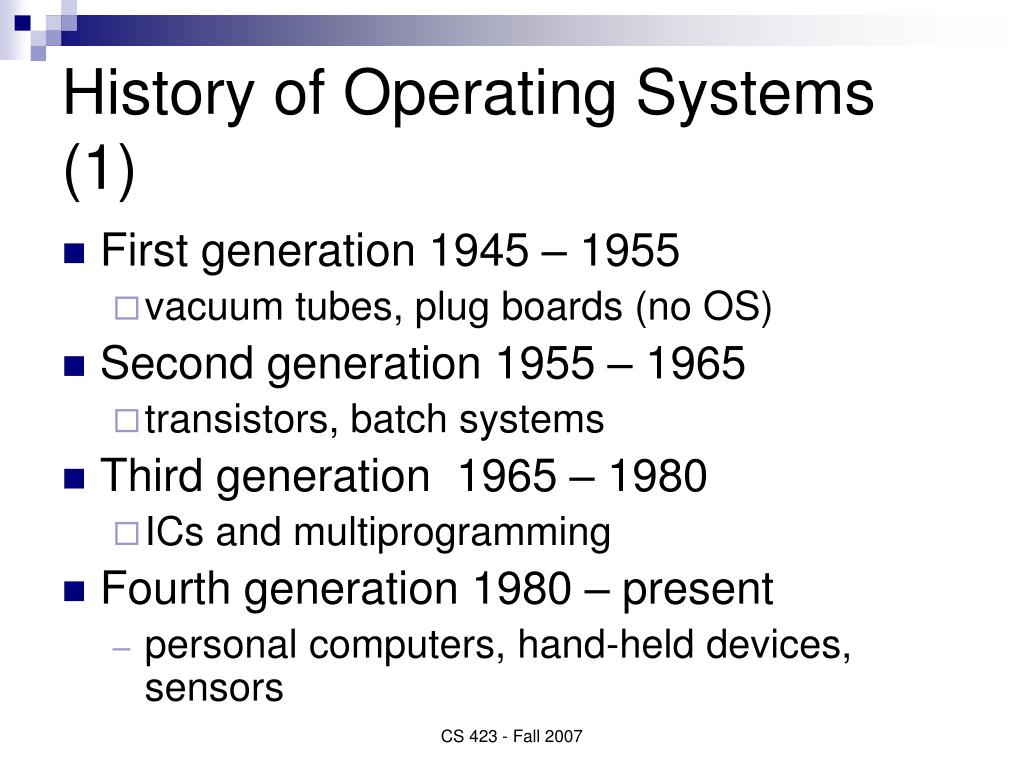

History of Operating Systems (1)

  • First generation 1945 – 1955

    • vacuum tubes, plug boards (no OS)

  • Second generation 1955 – 1965

    • transistors, batch systems

  • Third generation 1965 – 1980

    • ICs and multiprogramming

  • Fourth generation 1980 – present

    • personal computers, hand-held devices, sensors

CS 423 - Fall 2007


History of operating system 1945 55

History of Operating System (1945-55)

Early batch system

  • bring cards to 1401

  • read cards to tape

  • put tape on 7094 which does computing

  • put tape on 1401 which prints output

CS 423 - Fall 2007


History of operating systems 1955 65

History of Operating Systems (1955-65)

  • Structure of a typical JCL job – 2nd generation

  • Single user

  • Programmer/User as the operator

  • Secure, but inefficient use of expensive resources

  • Low CPU utilization-slow mechanical I/O devices

CS 423 - Fall 2007


History of operating systems 1965 80

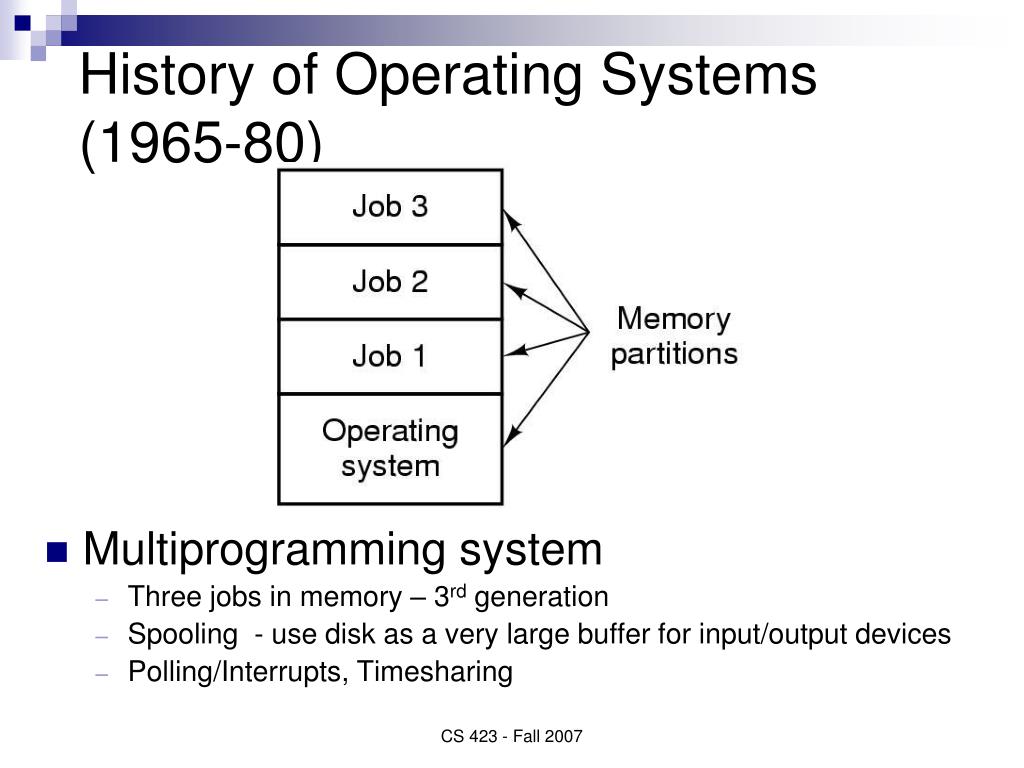

History of Operating Systems (1965-80)

  • Multiprogramming system

    • Three jobs in memory – 3rd generation

    • Spooling - use disk as a very large buffer for input/output devices

    • Polling/Interrupts, Timesharing

CS 423 - Fall 2007


The operating system zoo 1980 present

The Operating System Zoo (1980-present)

  • Mainframe operating systems

  • Server operating systems

  • Multiprocessor operating systems

  • Personal computer operating systems

  • Real-time operating systems

  • Embedded operating systems

  • Smart card operating systems

CS 423 - Fall 2007


Historical comparison

Historical Comparison

CS 423 - Fall 2007


Summary

Summary

  • Course overview

  • Policy and requirement

  • What is OS?

  • OS history

  • Next lecture: system overview (chapter 1.4-1.6 – review of cs241 concepts)

CS 423 - Fall 2007


After this lecture

After this lecture…

  • Reading assignment: chapter 1

  • Browse the web site

  • Subscribe to newsgroup

  • Login to csil machines

  • Setup Groups: 1/14-1/23(email to Jeff about group formation)

  • Think about what are the criteria to evaluate an OS?

CS 423 - Fall 2007
