Getting ready for day 2

Getting ready for day 2

  • Yesterday’s tree was moved to NetFPGA-10G-live-BACKUP-Day1/

  • IF you edited code

    cp NetFPGA-10G-live-BACKUP-Day1/projects/crypto_nic/hw/ pcores/crypto/ hdl/verilog/crypto.v \

    NetFPGA-10G-live/ projects/crypto_nic/hw/pcores/crypto/hdl/verilog/ nf10_crypto_v1_00_a.v

  • Edit yournf10_crypto_v1_00_a.v

    • Rename the module to nf10_crypto

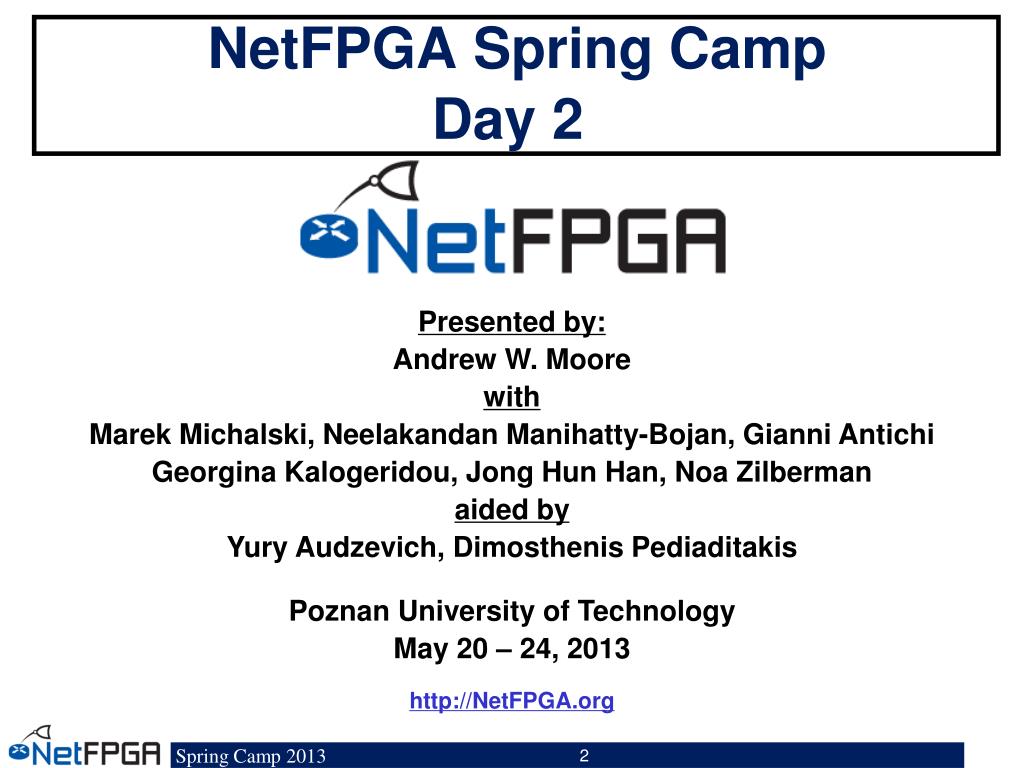

Netfpga spring camp day 2

Presented by:

Andrew W. Moore

with

Marek Michalski, Neelakandan Manihatty-Bojan, Gianni Antichi

Georgina Kalogeridou, Jong Hun Han, Noa Zilberman

aided by

Yury Audzevich, Dimosthenis Pediaditakis

Poznan University of Technology

May 20 – 24, 2013

http://NetFPGA.org

NetFPGA Spring CampDay 2


Previously covered

Previously Covered

Infrastructure

Tree

Build System

EDK environment

The Life of a Packet Through the NetFPGA

Hardware Datapath

Interface to software: Exceptions and Host I/O

Implementation

Module Template

Write Crypto NIC using a static key

Simulation and Debug

Write and Run Simulations for Crypto NIC


Tutorial outline

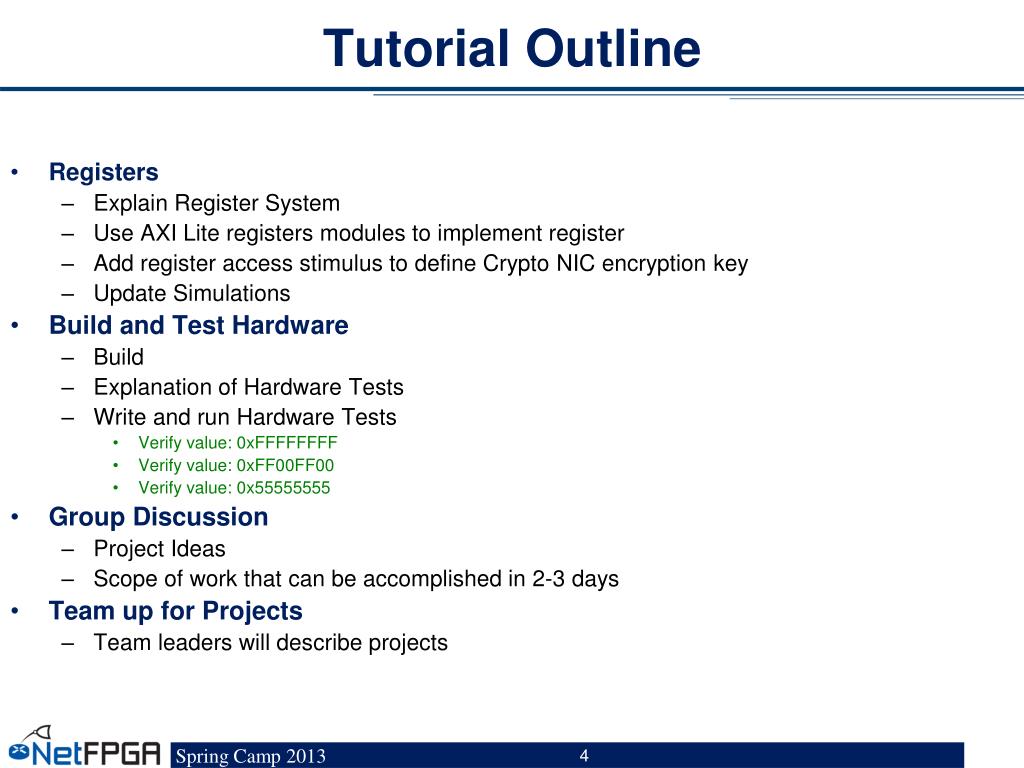

Tutorial Outline

Registers

Explain Register System

Use AXI Lite registers modules to implement register

Add register access stimulus to define Crypto NIC encryption key

Update Simulations

Build and Test Hardware

Build

Explanation of Hardware Tests

Write and run Hardware Tests

Verify value: 0xFFFFFFFF

Verify value: 0xFF00FF00

Verify value: 0x55555555

Group Discussion

Project Ideas

Scope of work that can be accomplished in 2-3 days

Team up for Projects

Team leaders will describe projects

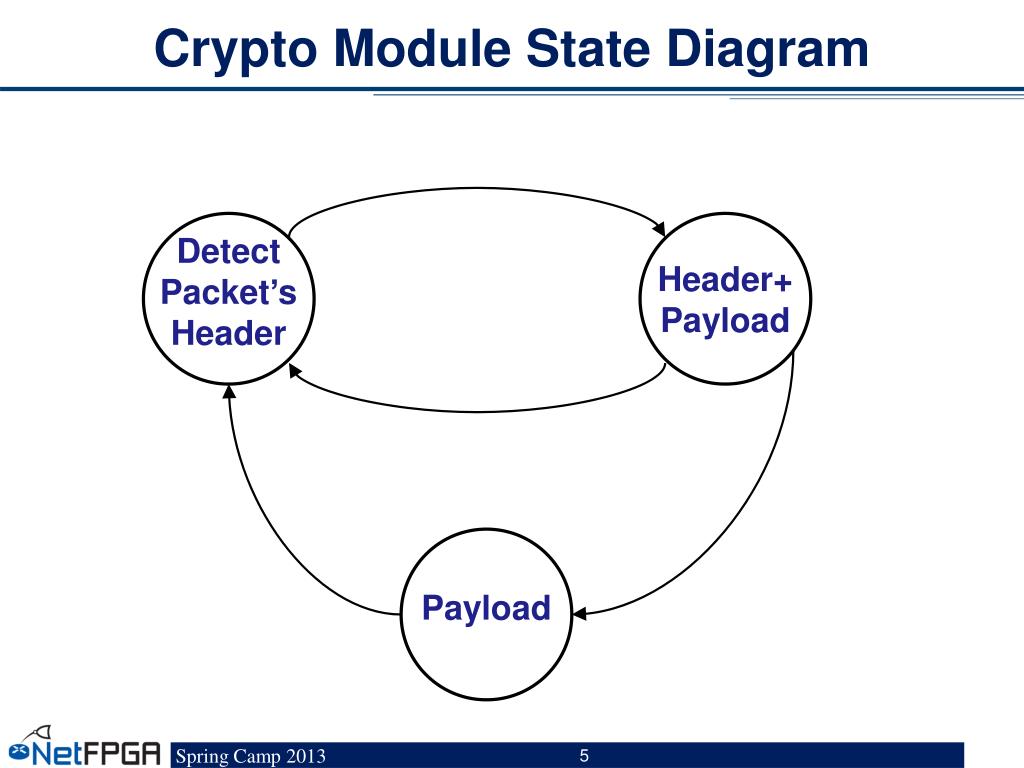

Crypto module state diagram

Crypto Module State Diagram

Detect

Packet’s

Header

Header+

Payload

Payload


Getting ready for day 2

Section I: Registers


Specifying the key via a register

Specifying the Key via a Register

  • Can set the key via a register instead

  • Need to understand the register system 

  • Register system:

    • Specify registers stimulus in the reg_stim.axi file

    • Implement registers in module

      • Use instances of ipif_regs and axi_lite_ipif_1bar

      • Other instances available as well (2bar, 3bar, table)


Register bus

Register bus

S_AXI_CLK

Module

S_AXI_ARESETN

S_AXI_WREADY

S_AXI_AWVALID

S_AXI_BRESP

S_AXI_WVALID

S_AXI_BVALID

S_AXI_BREADY

WRITE

S_AXI_AWREADY

WRITE

S_AXI_AWADDR

S_AXI_ARREADY

S_AXI_WDATA

S_AXI_RRESP

S_AXI_WSTRB

S_AXI_RVALID

READ

S_AXI_ARVALID

S_AXI_RDATA

S_AXI_RREADY

READ

S_AXI_ARADDR

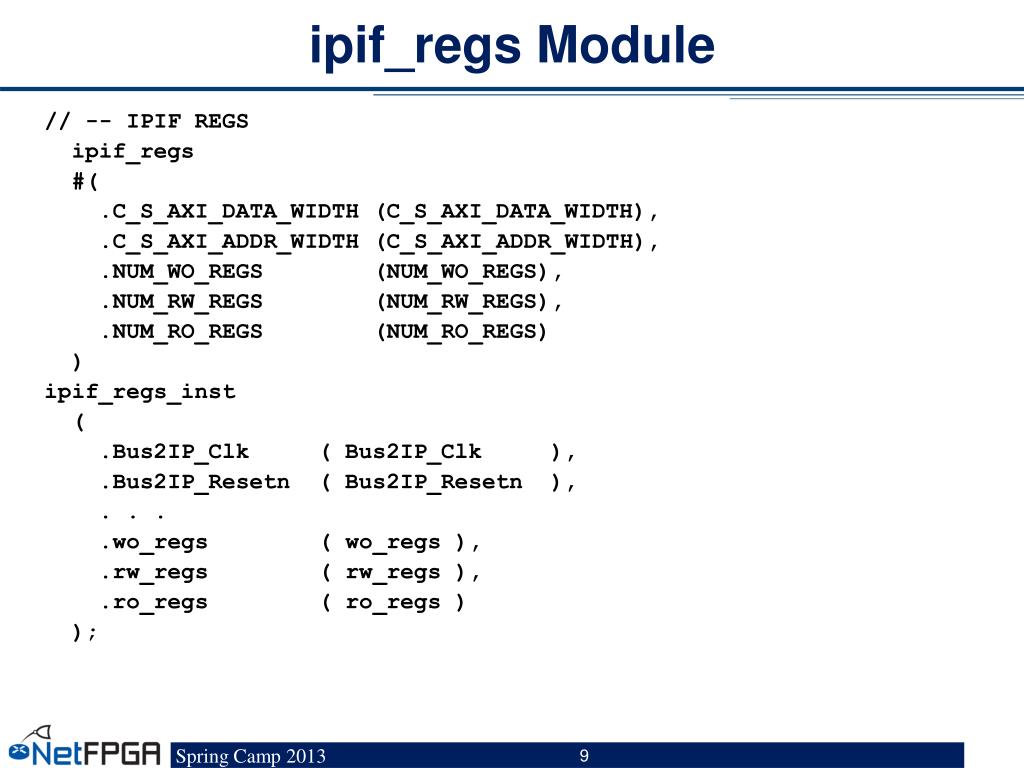

Ipif regs module

ipif_regs Module

// -- IPIF REGS

ipif_regs

#(

.C_S_AXI_DATA_WIDTH (C_S_AXI_DATA_WIDTH),

.C_S_AXI_ADDR_WIDTH (C_S_AXI_ADDR_WIDTH),

.NUM_WO_REGS (NUM_WO_REGS),

.NUM_RW_REGS (NUM_RW_REGS),

.NUM_RO_REGS (NUM_RO_REGS)

)

ipif_regs_inst

(

.Bus2IP_Clk ( Bus2IP_Clk ),

.Bus2IP_Resetn ( Bus2IP_Resetn ),

. . .

.wo_regs ( wo_regs ),

.rw_regs ( rw_regs ),

.ro_regs ( ro_regs )

);


Axi lite ipif 1bar in every core

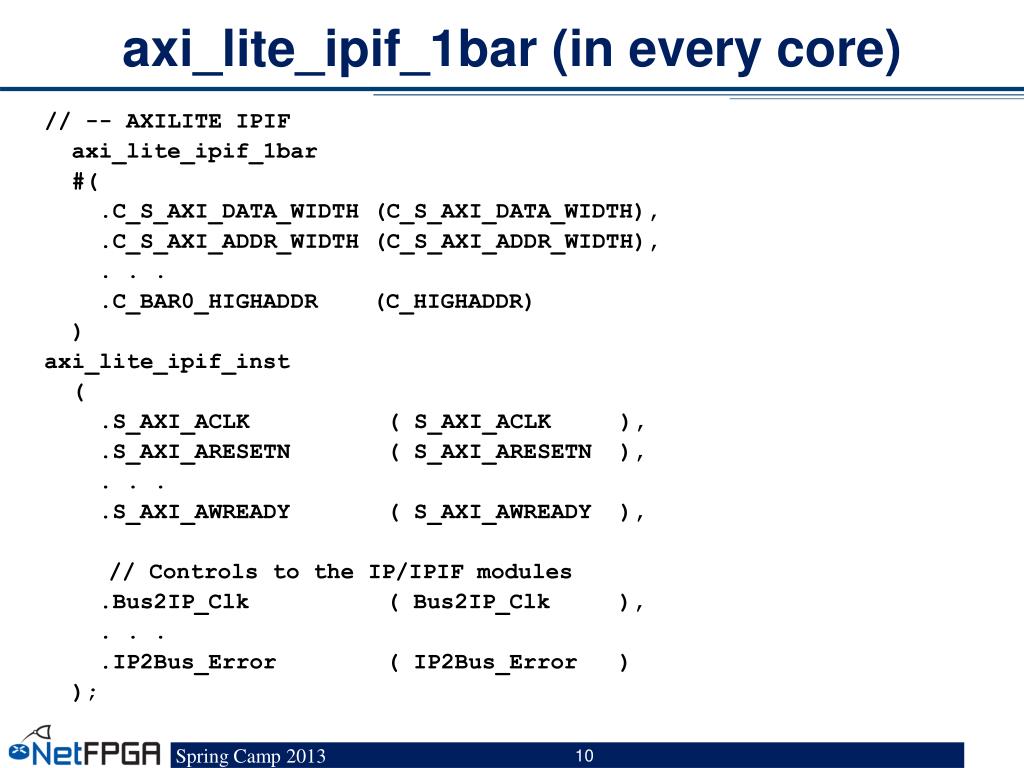

axi_lite_ipif_1bar (in every core)

// -- AXILITE IPIF

axi_lite_ipif_1bar

#(

.C_S_AXI_DATA_WIDTH (C_S_AXI_DATA_WIDTH),

.C_S_AXI_ADDR_WIDTH (C_S_AXI_ADDR_WIDTH),

. . .

.C_BAR0_HIGHADDR (C_HIGHADDR)

)

axi_lite_ipif_inst

(

.S_AXI_ACLK ( S_AXI_ACLK ),

.S_AXI_ARESETN ( S_AXI_ARESETN ),

. . .

.S_AXI_AWREADY ( S_AXI_AWREADY ),

// Controls to the IP/IPIF modules

.Bus2IP_Clk ( Bus2IP_Clk ),

. . .

.IP2Bus_Error ( IP2Bus_Error )

);


Additional related modules

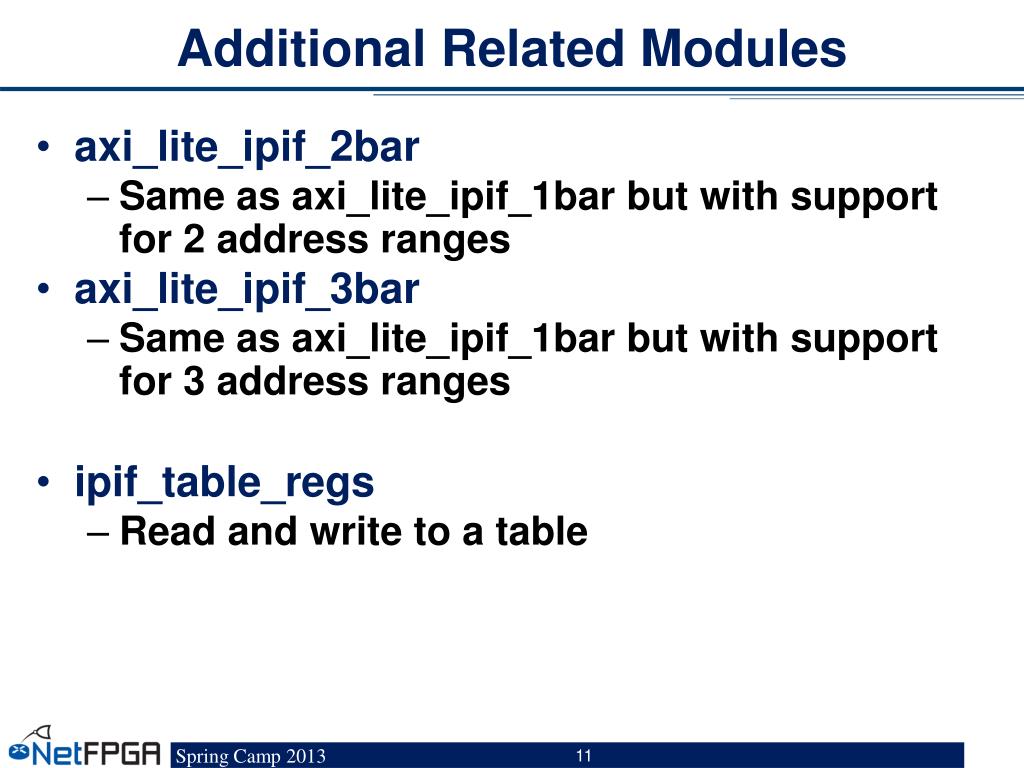

Additional Related Modules

  • axi_lite_ipif_2bar

    • Same as axi_lite_ipif_1bar but with support for 2 address ranges

  • axi_lite_ipif_3bar

    • Same as axi_lite_ipif_1bar but with support for 3 address ranges

  • ipif_table_regs

    • Read and write to a table


Adding registers logic 1

Adding Registers Logic (1)

  • Registers are arranged in memory in the following order:

    • Write only registers

    • Read/Write registers

    • Read only registers

  • Define the number of registers used of each type, e.g.:

    • localparam NUM_RW_REGS = 2;

      localparam NUM_RO_REGS = 1;

  • Use these parameters for the ipif_regs module

    • No need to define a parameter that is not used

      (e.g. there are no WO registers)


Adding registers logic 2

Adding Registers Logic (2)

  • Ipif_regs exposes 3 registers busses:

    • wo_regs, rw_regs, ro_regs

  • Each bus is (NUM_REGS*C_S_AXI_DATA_WIDTH) wide

    • Each register is assigned C_S_AXI_DATA_WIDTH bits

  • Usage examples:

    assign ro_regs = {version_reg,counter_reg1,counter_reg2};

    always @(posedge Bus2IP_Clk)

    if (~Bus2IP_Resetn) begin

    dummy_reg <= 'h0;

    end

    else begin

    dummy_reg <= rw_regs [C_S_AXI_DATA_WIDTH*(DUMMY_REG_ADDR) + 31 : C_S_AXI_DATA_WIDTH*(DUMMY_REG_ADDR) ];

    end


Adding registers logic 3

Adding Registers Logic (3)

Registers usage:

  • RO, WO, RW refers to software access

  • Write only registers can be written only by the software

    • Read only registers are set by hardware and read by software or hardware

    • Read/Write registers can set by software and read by software or hardware


Testing registers with simulation

Testing Registers with Simulation


Simulating register access

Simulating Register Access

2. The testbench executes the stimulus

1. Define register

stimulus

system_axisim_tb

DUT

reg_stim.log

reg_stim.axi

3. Simulation accesses are written to a log file

compare

4. A script can compare expected and actual values

And declare success or failure

Legend:

- DUT: Design Under Test

- stim: stimulus

- tb: testbench

- sim: simulation

==

!=

PASS

FAIL


Registers stimulus 1

Registers Stimulus (1)

cd ~/NetFPGA-10G-live/projects/crypto_nic/hw

vim reg_stim.axi

  • An example of write format :

Address

Data

Byte Enable strobe


Registers stimulus 2

Registers Stimulus (2)

cd ~/NetFPGA-10G-live/projects/crypto_nic/hw

vim reg_stim.axi

  • An example read format :

Address


Registers access log

Registers Access Log

cd ~/NetFPGA-10G-live/projects/crypto_nic/hw

vim reg_stim.log

WRITE

READ

Time

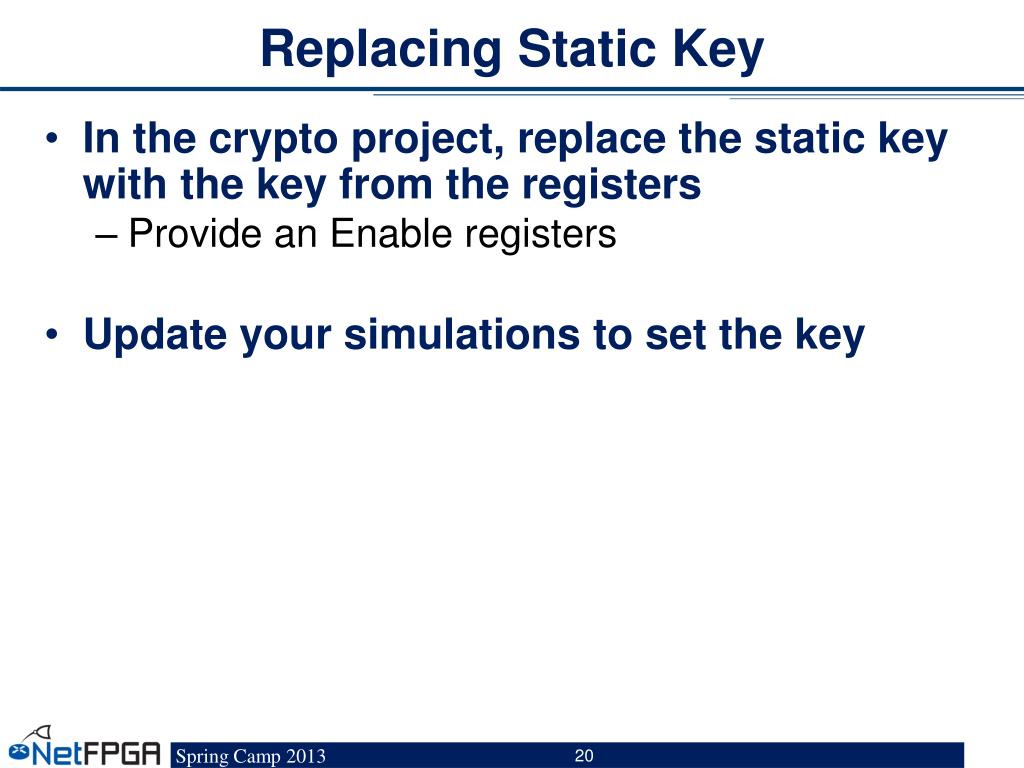

Replacing static key

Replacing Static Key

  • In the crypto project, replace the static key with the key from the registers

    • Provide an Enable registers

  • Update your simulations to set the key


Getting ready for day 2

To execute a register simulation

cd ~/NetFPGA-10G-live/projects/crypto_nic/hw

make simreg


Getting ready for day 2

Section II: Build and Test Hardware


Synthesis

Synthesis

  • To synthesize your project

    CHECK your pao file:

    cd ~/NetFPGA-10G-live/projects/crypto_nic/hw/pcores/nf10_crypto_v1_00_a/data/

    edit nf10_crypto_v2_1_0.pao

    For synthesis

    uncomment lines 39,40,43

    comment out lines 41 and 42

    cd ~/NetFPGA-10G-live/projects/crypto_nic/hw

    make


Hardware tests

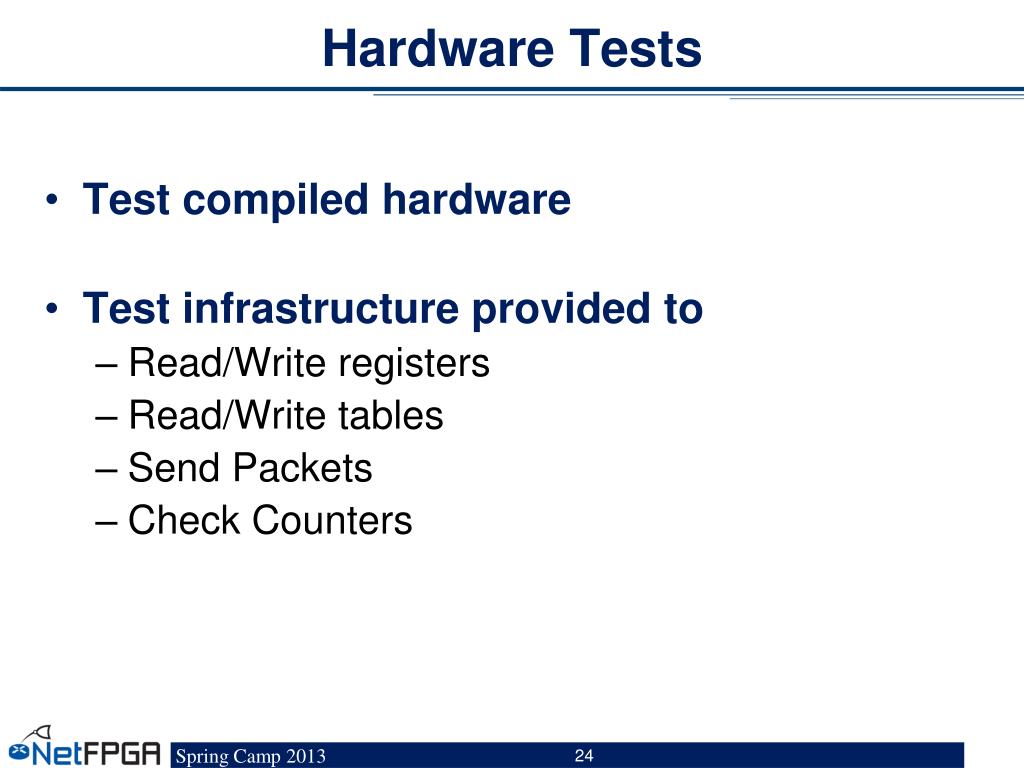

Hardware Tests

  • Test compiled hardware

  • Test infrastructure provided to

    • Read/Write registers

    • Read/Write tables

    • Send Packets

    • Check Counters


Python libraries

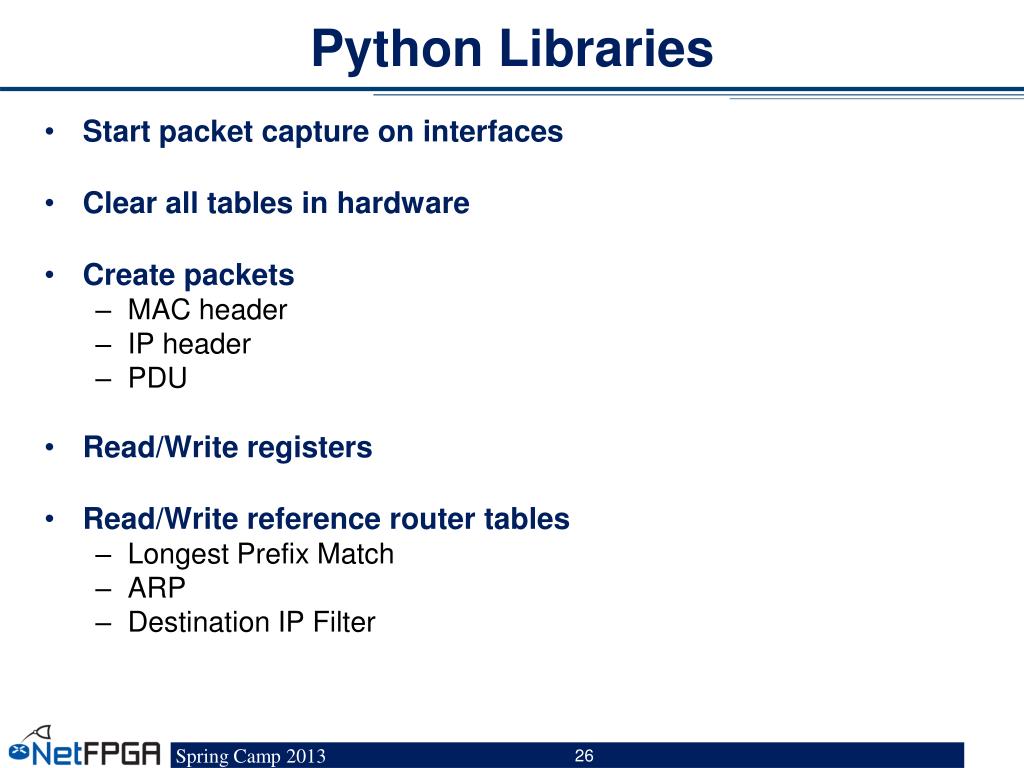

Python Libraries

  • Start packet capture on interfaces

  • Clear all tables in hardware

  • Create packets

    • MAC header

    • IP header

    • PDU

  • Read/Write registers

  • Read/Write reference router tables

    • Longest Prefix Match

    • ARP

    • Destination IP Filter


Hardware test examples

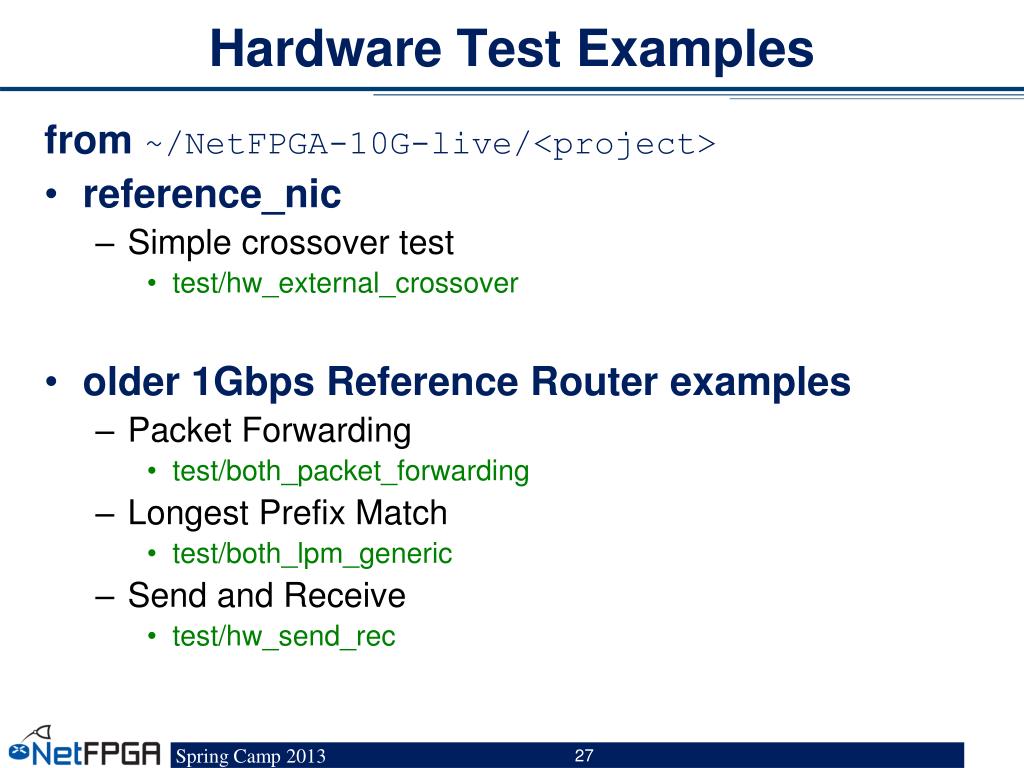

Hardware Test Examples

from ~/NetFPGA-10G-live/<project>

  • reference_nic

    • Simple crossover test

      • test/hw_external_crossover

  • older 1Gbps Reference Router examples

    • Packet Forwarding

      • test/both_packet_forwarding

    • Longest Prefix Match

      • test/both_lpm_generic

    • Send and Receive

      • test/hw_send_rec


Creating a hardware test 2

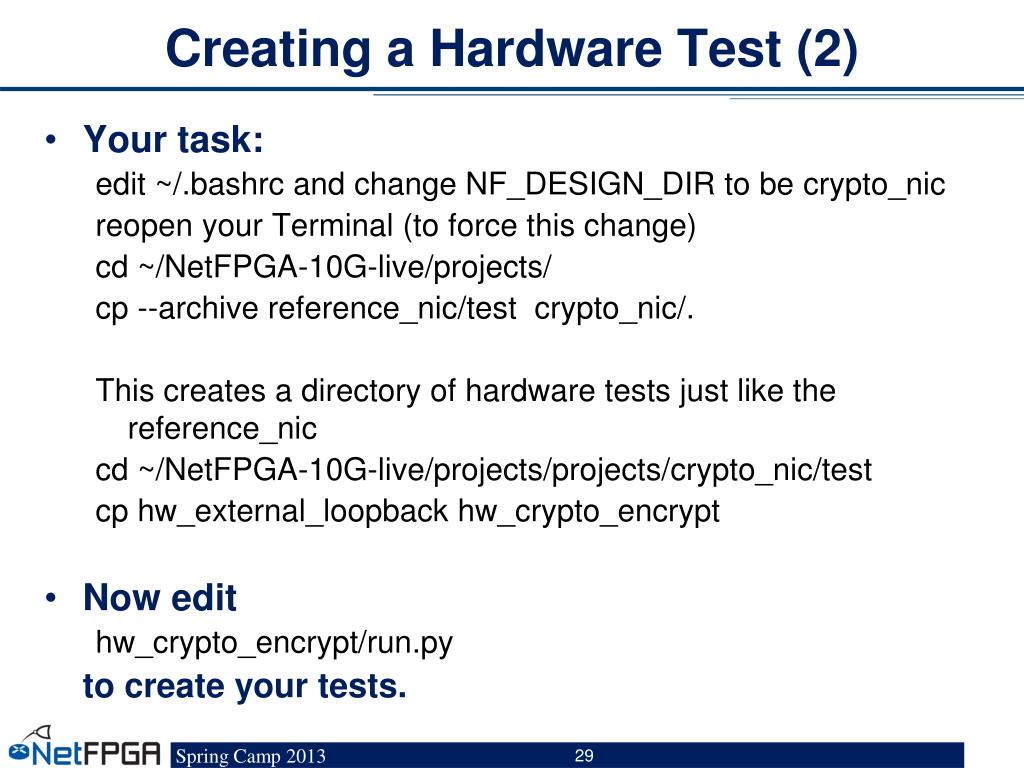

Creating a Hardware Test (2)

  • Your task:

    edit ~/.bashrc and change NF_DESIGN_DIR to be crypto_nic

    reopen your Terminal (to force this change)

    cd ~/NetFPGA-10G-live/projects/

    cp --archive reference_nic/test crypto_nic/.

    This creates a directory of hardware tests just like the reference_nic

    cd ~/NetFPGA-10G-live/projects/projects/crypto_nic/test

    cphw_external_loopbackhw_crypto_encrypt

  • Now edit

    hw_crypto_encrypt/run.py

    to create your tests.


Running hardware tests

Running Hardware Tests

  • Use command nf_test.py

    • Required Parameter

      • sim hw or both (right now only use hw)

    • Optional parameters

      • --major <major_name>

      • --minor <minor_name>

        both_crypto_encrypt

  • Run the command

    nf_test.py hw --major crypto --minor encrypt

major

minor


Getting ready for day 2

Section III: Interface with Software


Netfpga host interaction recap

NetFPGA-Host Interaction (recap)

Register reads/writes via ioctl system call with wrapper functions:

rdaxi(int address, unsigned *rd_data);

wraxi(int address, unsigned *wr_data);

eg:

rdaxi(0x7d4000000, &val);

Useful command line utilities

cd ~/NetFPGA-10-live/projects/crypto_nic/sw/host/apps

./rdaxi0x7d4000000

./wraxi0x7d40000000x1


Recap

Recap

Build a complete NetFPGA design

Learn:

  • Module creation (Verilog)

  • Reference pipeline integration

  • Verification via simulation

  • Verification via hardware tests

  • Interaction with software


Step 1 program netfpga 10g guidelines

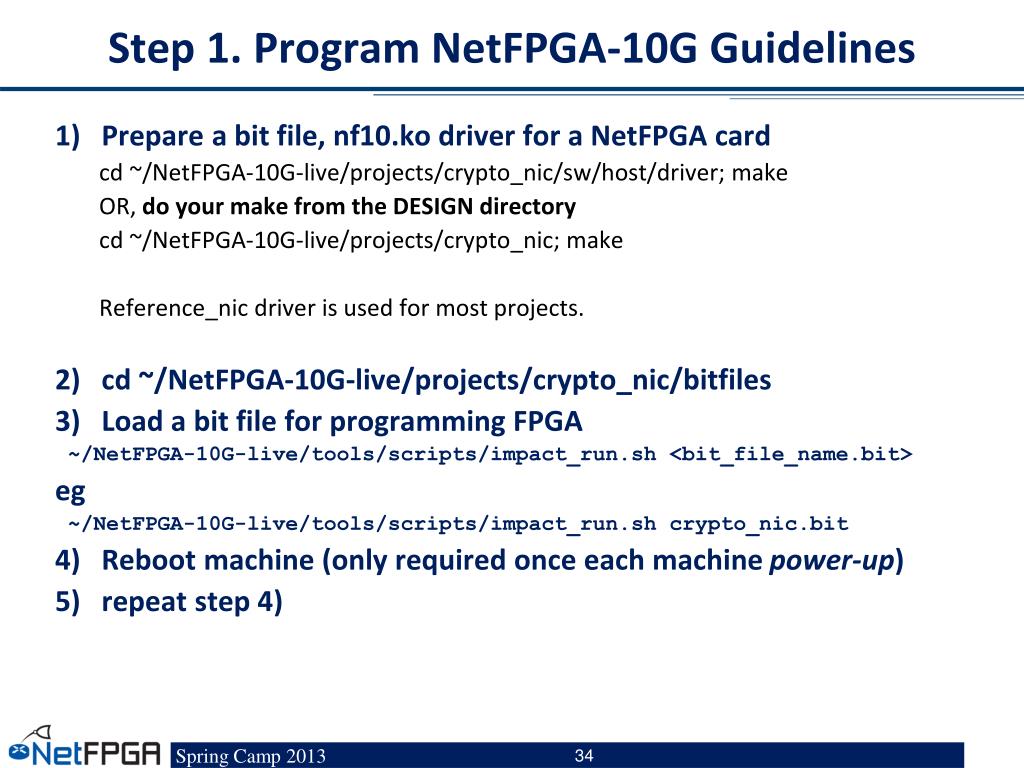

Step 1. Program NetFPGA-10G Guidelines

  • Prepare a bit file, nf10.ko driver for a NetFPGA card

    cd ~/NetFPGA-10G-live/projects/crypto_nic/sw/host/driver; make

    OR, do your make from the DESIGN directory

    cd ~/NetFPGA-10G-live/projects/crypto_nic; make

    Reference_nic driver is used for most projects.

  • cd ~/NetFPGA-10G-live/projects/crypto_nic/bitfiles

  • Load a bit file for programming FPGA

    ~/NetFPGA-10G-live/tools/scripts/impact_run.sh <bit_file_name.bit>

    eg

    ~/NetFPGA-10G-live/tools/scripts/impact_run.sh crypto_nic.bit

  • Reboot machine (only required once each machine power-up)

  • repeat step 4)


Step 2 program netfpga 10g guidelines

Step 2. Program NetFPGA-10G Guidelines

If you are developing new DMA systems steps 6 onward apply

  • To find out loaded bitfile image, run

    $ lspci –d *:4244 –vxx


Step 3 program netfpga 10g guidelines

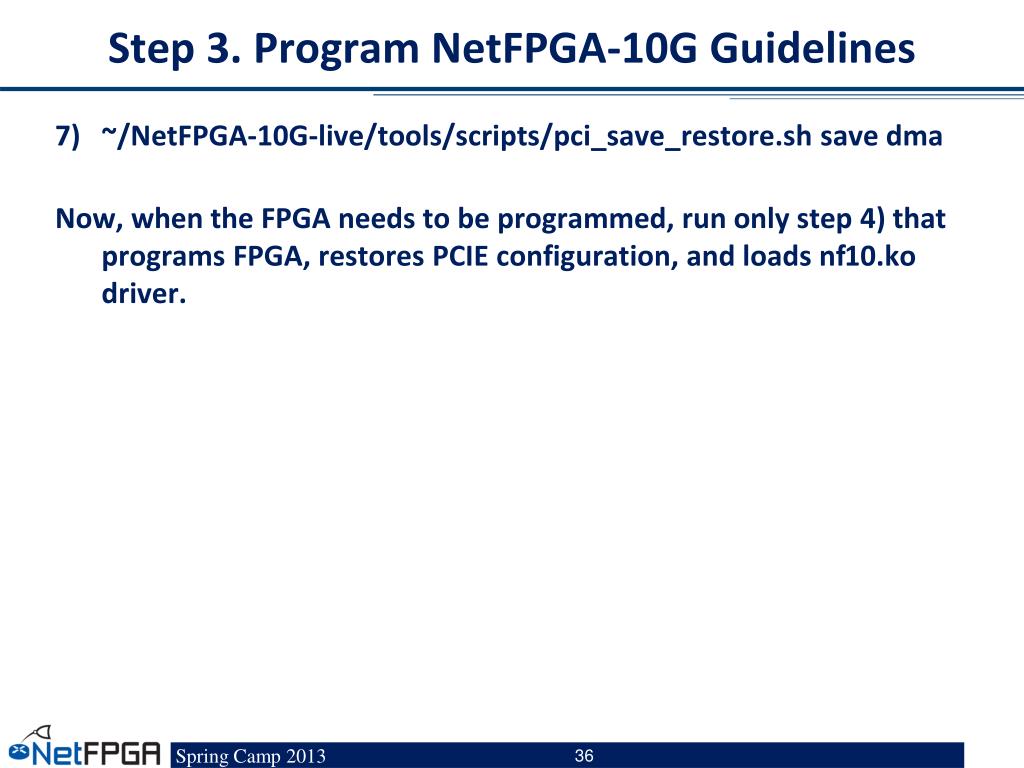

Step 3. Program NetFPGA-10G Guidelines

  • ~/NetFPGA-10G-live/tools/scripts/pci_save_restore.sh save dma

    Now, when the FPGA needs to be programmed, run only step 4) that programs FPGA, restores PCIE configuration, and loads nf10.ko driver.


Step 4 program netfpga 10g guidelines

Step 4. Program NetFPGA-10G Guidelines

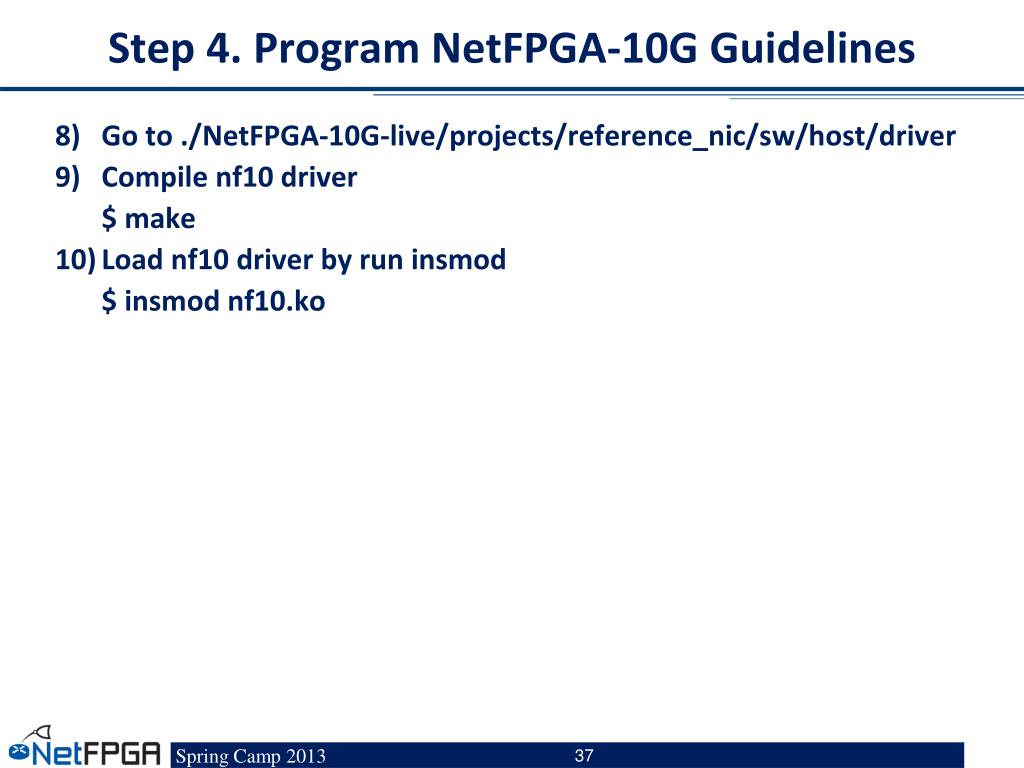

  • Go to ./NetFPGA-10G-live/projects/reference_nic/sw/host/driver

  • Compile nf10 driver

    $ make

  • Load nf10 driver by run insmod

    $ insmod nf10.ko


Step 5 program netfpga 10g guidelines

Step 5. Program NetFPGA-10G Guidelines

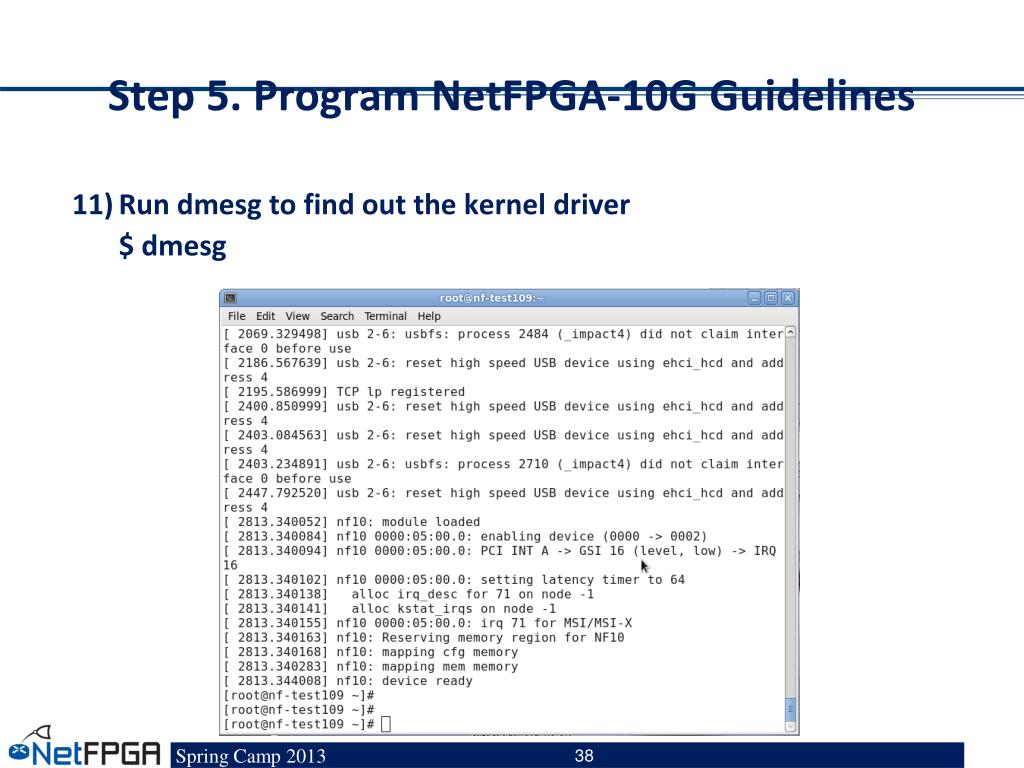

  • Run dmesg to find out the kernel driver

    $ dmesg


Impact the fpga loader

Impact (the FPGA loader)

Appendix

  • Xilinx impact has a peculiar behaviour sometimes (this is a known Xilinx impact bug)

    If the batch mode of impact does not work, a GUI interface appears….

    These next slides will guide you through using the GUI.


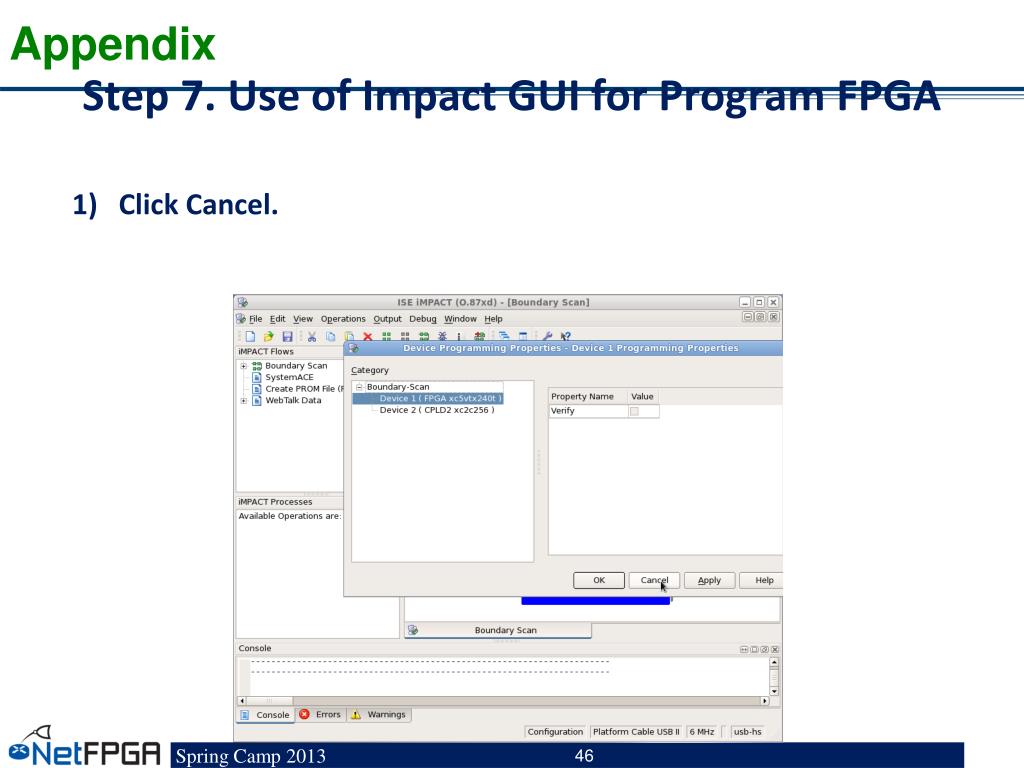

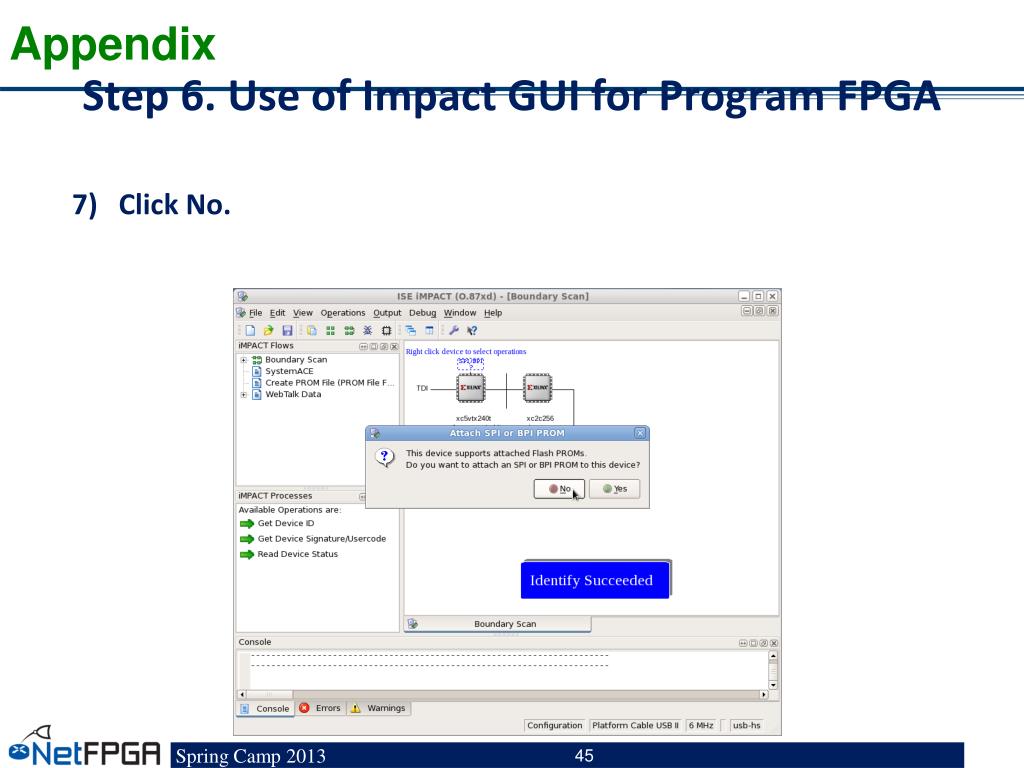

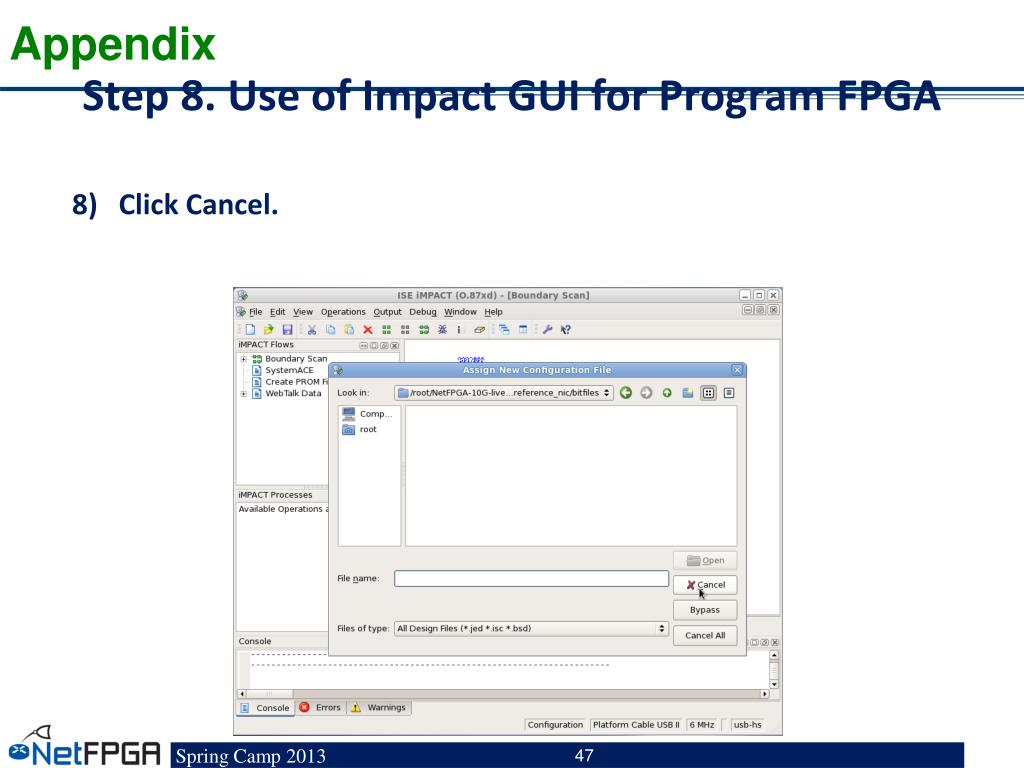

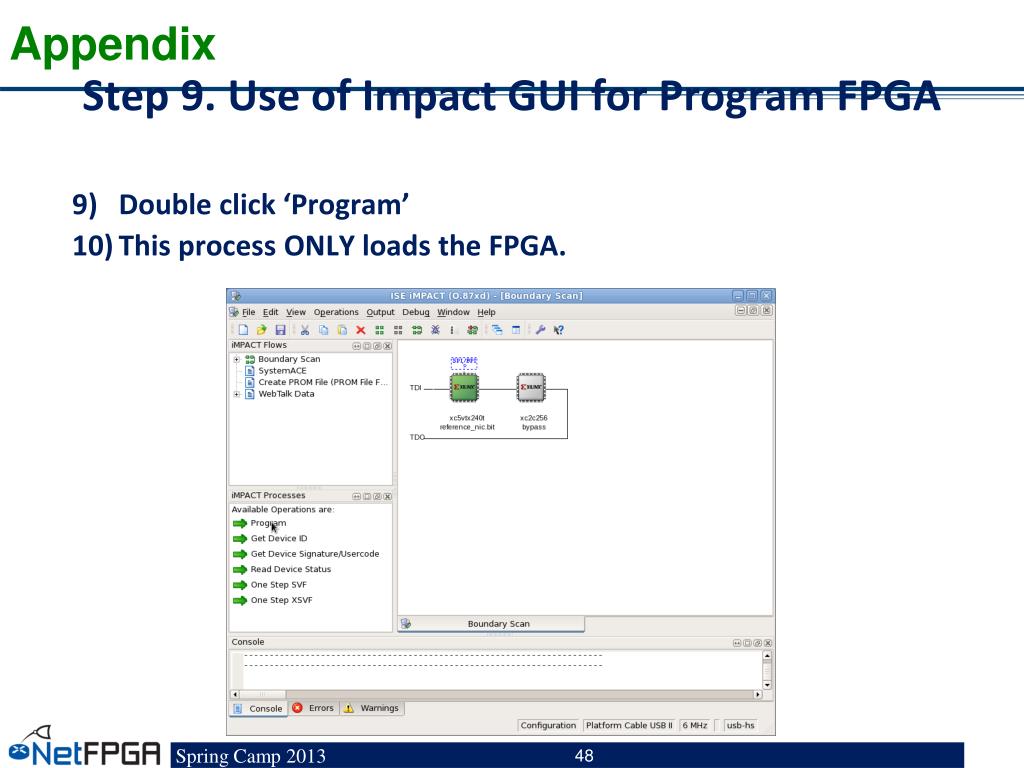

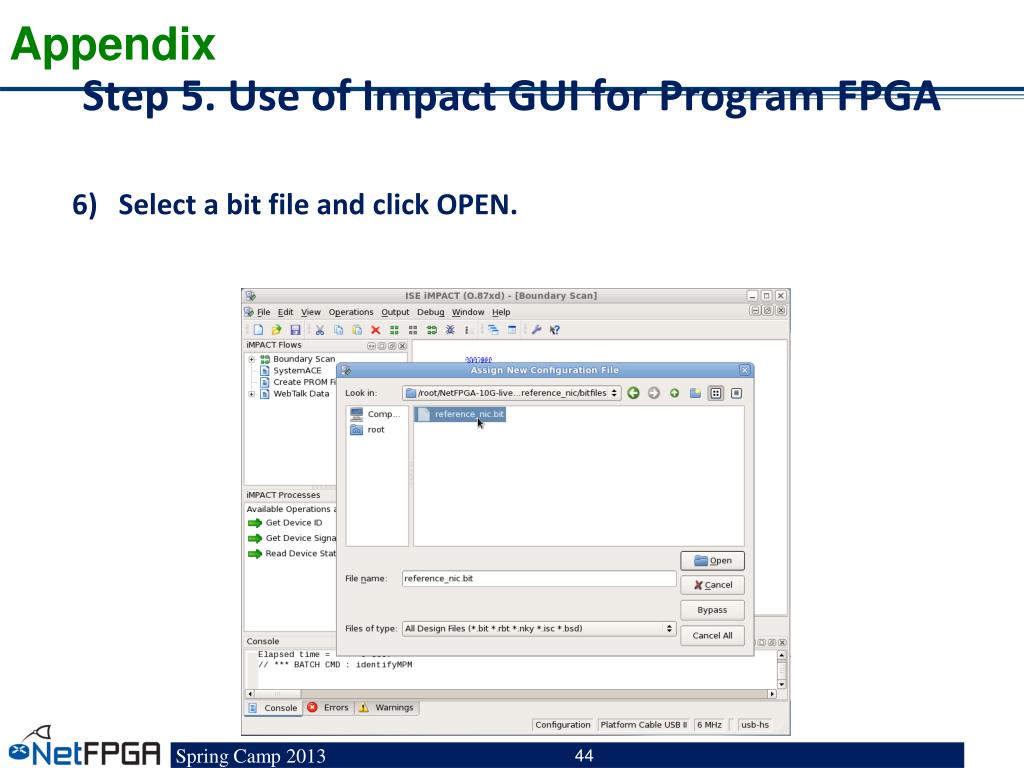

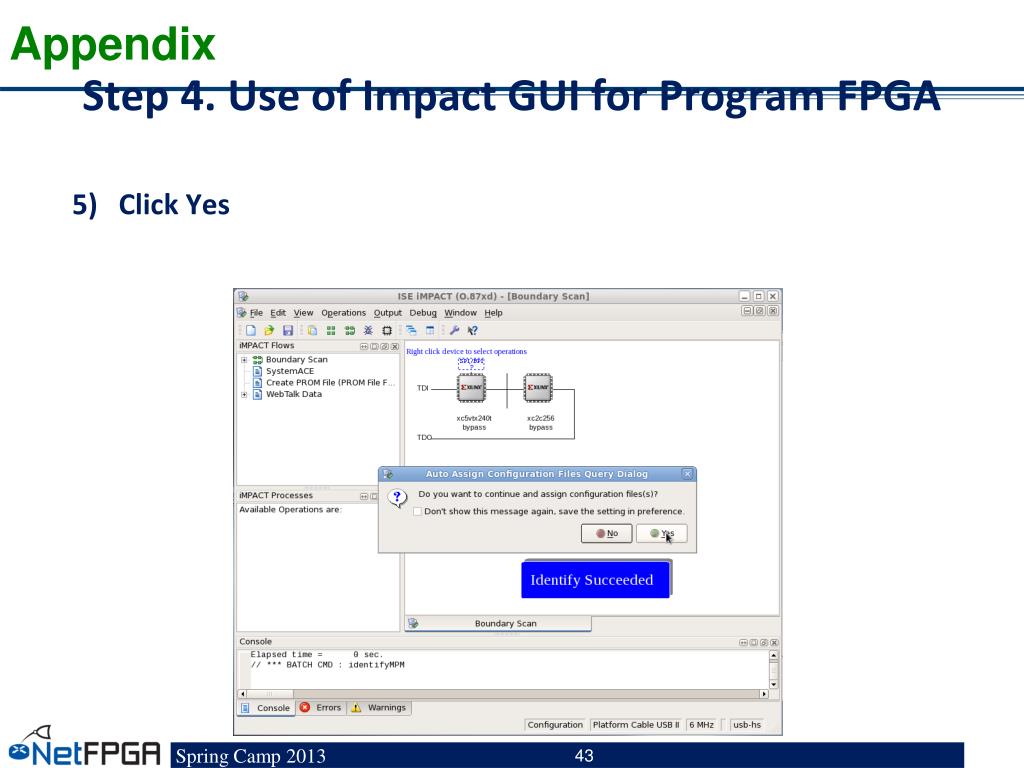

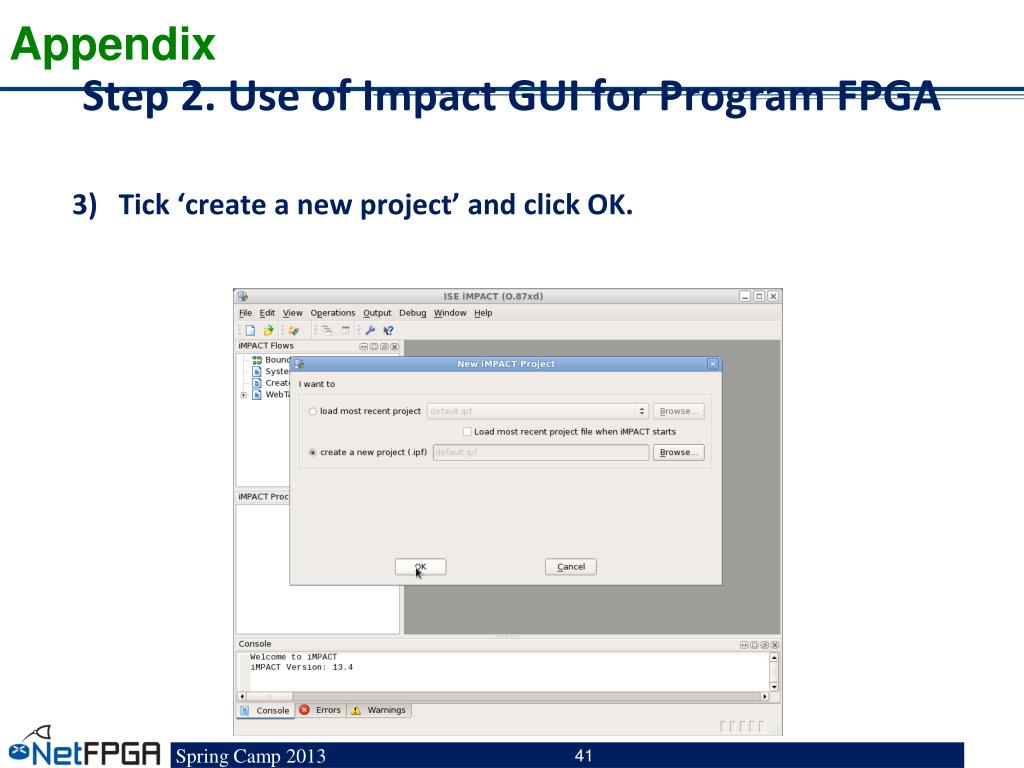

Step 1 use of impact gui for program fpga

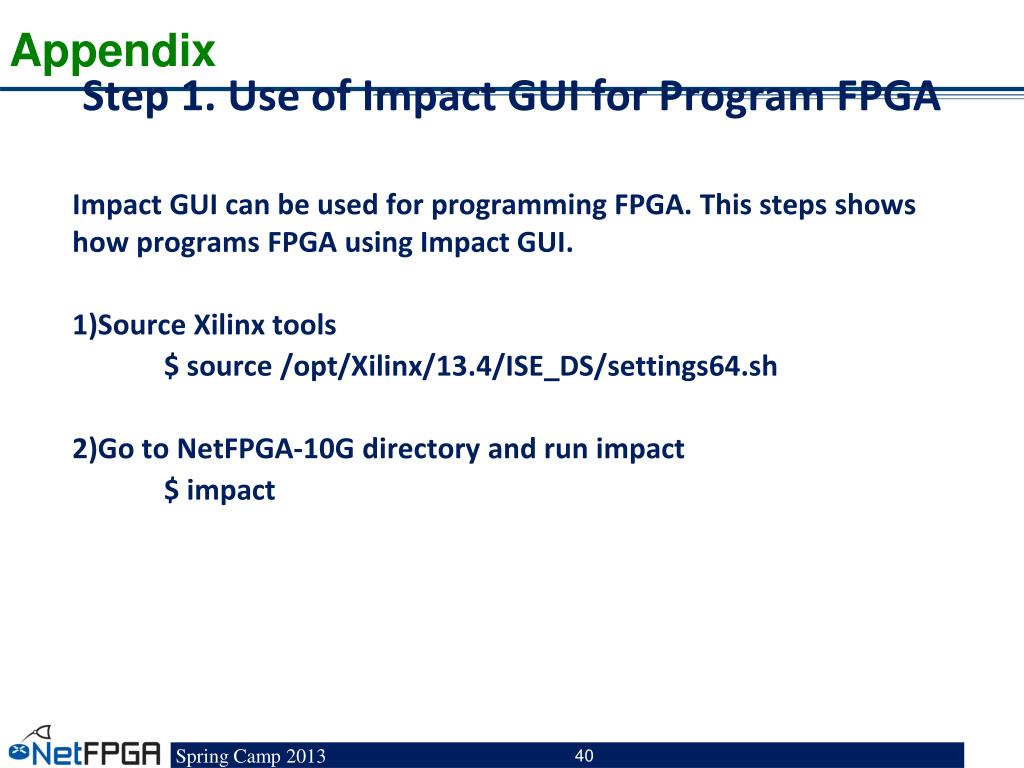

Step 1. Use of Impact GUI for Program FPGA

Appendix

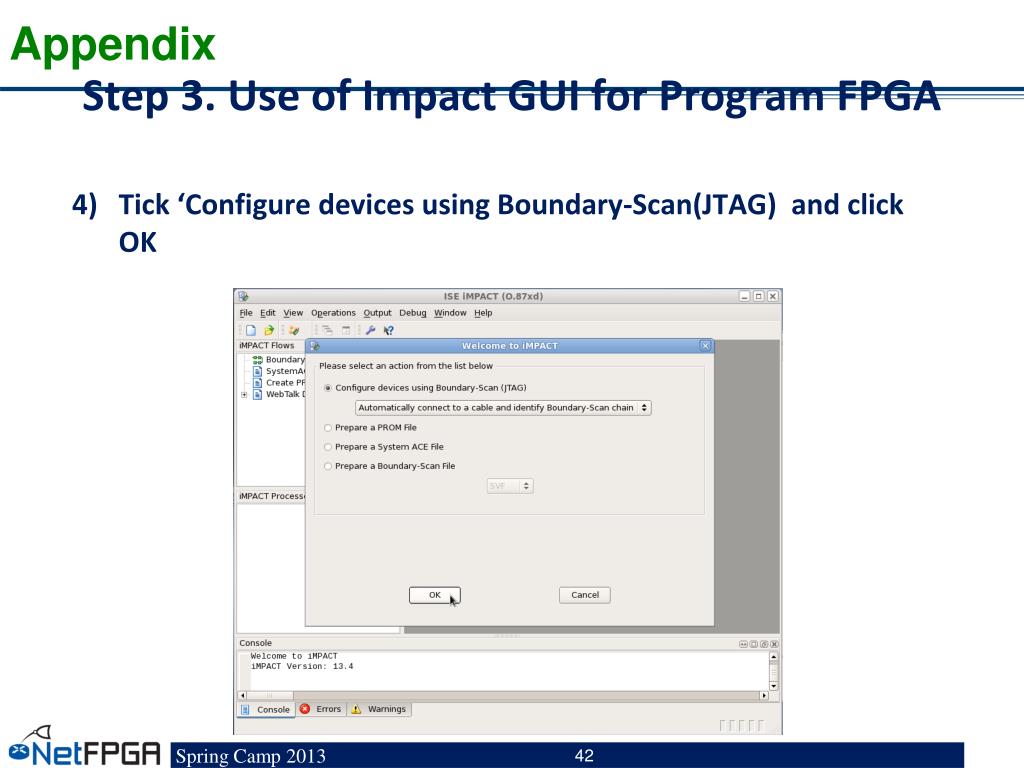

Impact GUI can be used for programming FPGA. This steps shows how programs FPGA using Impact GUI.

  • Source Xilinx tools

    $ source /opt/Xilinx/13.4/ISE_DS/settings64.sh

  • Go to NetFPGA-10G directory and run impact

    $ impact


Step 2 use of impact gui for program fpga

Step 2. Use of Impact GUI for Program FPGA

Appendix

  • Tick ‘create a new project’ and click OK.


Step 3 use of impact gui for program fpga

Step 3. Use of Impact GUI for Program FPGA

Appendix

  • Tick ‘Configure devices using Boundary-Scan(JTAG) and click OK


Step 4 use of impact gui for program fpga

Step 4. Use of Impact GUI for Program FPGA

Appendix

  • Click Yes


Step 5 use of impact gui for program fpga

Step 5. Use of Impact GUI for Program FPGA

Appendix

  • Select a bit file and click OPEN.


Step 6 use of impact gui for program fpga

Step 6. Use of Impact GUI for Program FPGA

Appendix

  • Click No.


Step 7 use of impact gui for program fpga

Step 7. Use of Impact GUI for Program FPGA

Appendix

  • Click Cancel.


Step 8 use of impact gui for program fpga

Step 8. Use of Impact GUI for Program FPGA

Appendix

  • Click Cancel.


Step 9 use of impact gui for program fpga

Step 9. Use of Impact GUI for Program FPGA

Appendix

  • Double click ‘Program’

  • This process ONLY loads the FPGA.


Getting ready for day 2

Section IV: Wrap-up


Thoughts for developers

Thoughts for Developers

  • Build Modular components

    • Describe shared registers

    • Consider how modules would be used in larger systems

  • Define functionality clearly

    • Through regression tests

    • With repeatable results

  • Disseminate projects

    • Post open-source code

    • Document projects on Web, Wiki

  • Expand the community of developers

    • Answer questions on the Email list

    • Collaborate with your peers to build new applications

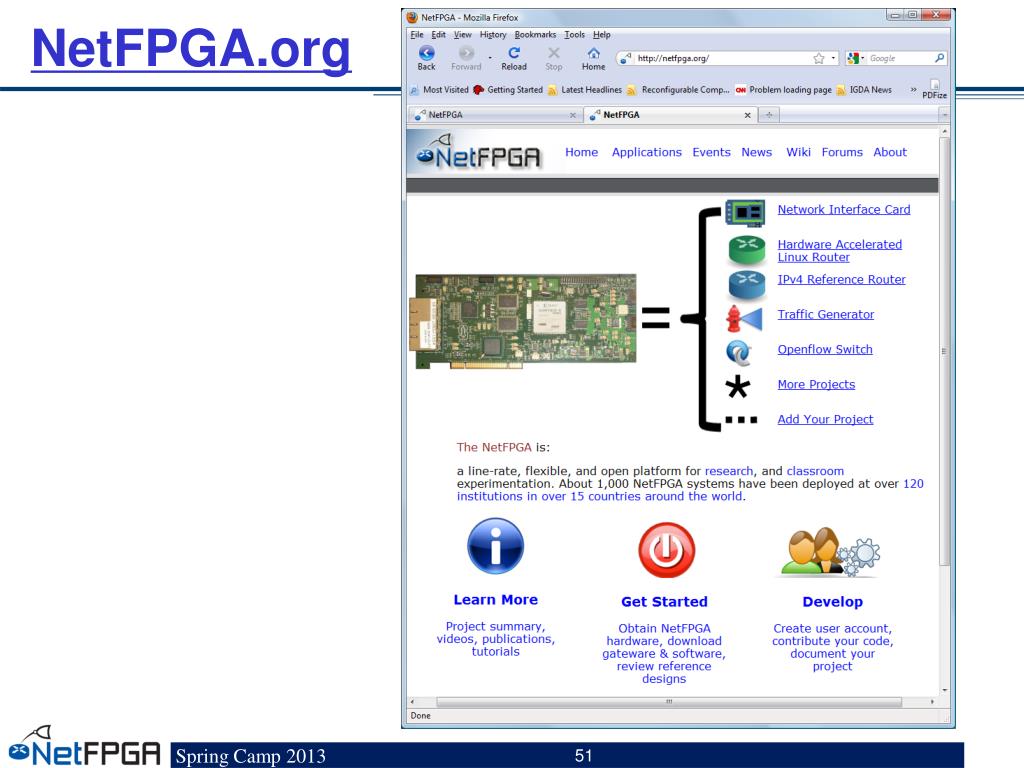

Netfpga org

NetFPGA.org


Stuck for a netfpga project

Stuck for a NetFPGA project?

  • Build an accurate, fast, line-rate NetDummy/nistnet element

  • A flexible home-grown monitoring card

  • Evaluate new packet classifiers

    • (and application classifiers, and other neat network apps….)

  • Prototype a full line-rate next-generation Ethernet-type

  • Trying any of Jon Crowcrofts’ ideas (Sourceless IP routing for example)

  • Demonstrate the wonders of Metarouting in a different implementation (dedicated hardware)

  • Provable hardware (using a C# implementation and kiwi with NetFPGA as target h/w)

  • Hardware supporting Virtual Routers

  • Check that some brave new idea actually works

    • e.g. Rate Control Protocol (RCP), Multipath TCP,

  • toolkit for hardware hashing

  • MOOSE implementation

  • IP address anonymization

  • SSL decoding “bump in the wire”

  • Xen specialist nic

  • computational co-processor

  • Distributed computational co-processor

  • IPv6 anything

  • IPv6 – IPv4 gateway (6in4, 4in6, 6over4, 4over6, ….)

  • Netflow v9 reference

  • PSAMP reference

  • IPFIX reference

  • Different driver/buffer interfaces (e.g. PFRING)

  • or “escalators” (from gridprobe) for faster network monitors

  • Firewall reference

  • GPS packet-timestamp things

  • High-Speed Host Bus Adapter reference implementations

    • Infiniband

    • iSCSI

    • Myranet

    • Fiber Channel

  • Smart Disk adapter (presuming a direct-disk interface)

  • Software Defined Radio (SDR) directly on the FPGA (probably UWB only)

  • Routing accelerator

    • Hardware route-reflector

    • Internet exchange route accelerator

  • Hardware channel bonding reference implementation

  • TCP sanitizer

  • Other protocol sanitizer (applications… UDP DCCP, etc.)

  • Full and complete Crypto NIC

  • IPSec endpoint/ VPN appliance

  • VLAN reference implementation

  • metarouting implementation

  • virtual <pick-something>

  • intelligent proxy

  • application embargo-er

  • Layer-4 gateway

  • h/w gateway for VoIP/SIP/skype

  • h/w gateway for video conference spaces

  • security pattern/rules matching

  • Anti-spoof traceback implementations (e.g. BBN stuff)

  • IPtv multicast controller

  • Intelligent IP-enabled device controller (e.g. IP cameras or IP powermeters)

  • DES breaker

  • platform for flexible NIC API evaluations

  • snmp statistics reference implementation

  • sflow (hp) reference implementation

  • trajectory sampling (reference implementation)

  • implementation of zeroconf/netconf configuration language for routers

  • h/w openflow and (simple) NOX controller in one…

  • Network RAID (multicast TCP with redundancy)

  • inline compression

  • hardware accelorator for TOR

  • load-balancer

  • openflow with (netflow, ACL, ….)

  • reference NAT device

  • active measurement kit

  • network discovery tool

  • passive performance measurement

  • active sender control (e.g. performance feedback fed to endpoints for control)

  • Prototype platform for NON-Ethernet or near-Ethernet MACs

    • Optical LAN (no buffers)

Well I’m not sure about you but here is a list I created:

  • Build an accurate, fast, line-rate NetDummy/nistnet element

  • A flexible home-grown monitoring card

  • Evaluate new packet classifiers

    • (and application classifiers, and other neat network apps….)

  • Prototype a full line-rate next-generation Ethernet-type

  • Trying any of Jon Crowcrofts’ ideas (Sourceless IP routing for example)

  • Demonstrate the wonders of Metarouting in a different implementation (dedicated hardware)

  • Provable hardware (using a C# implementation and kiwi with NetFPGA as target h/w)

  • Hardware supporting Virtual Routers

  • Check that some brave new idea actually works

    e.g. Rate Control Protocol (RCP), Multipath TCP,

  • toolkit for hardware hashing

  • MOOSE implementation

  • IP address anonymization

  • SSL decoding “bump in the wire”

  • Xen specialist nic

  • computational co-processor

  • Distributed computational co-processor

  • IPv6 anything

  • IPv6 – IPv4 gateway (6in4, 4in6, 6over4, 4over6, ….)

  • Netflow v9 reference

  • PSAMP reference

  • IPFIX reference

  • Different driver/buffer interfaces (e.g. PFRING)

  • or “escalators” (from gridprobe) for faster network monitors

  • Firewall reference

  • GPS packet-timestamp things

  • High-Speed Host Bus Adapter reference implementations

    • Infiniband

    • iSCSI

    • Myranet

    • Fiber Channel

  • Smart Disk adapter (presuming a direct-disk interface)

  • Software Defined Radio (SDR) directly on the FPGA (probably UWB only)

  • Routing accelerator

    • Hardware route-reflector

    • Internet exchange route accelerator

  • Hardware channel bonding reference implementation

  • TCP sanitizer

  • Other protocol sanitizer (applications… UDP DCCP, etc.)

  • Full and complete Crypto NIC

  • IPSec endpoint/ VPN appliance

  • VLAN reference implementation

  • metarouting implementation

  • virtual <pick-something>

  • intelligent proxy

  • application embargo-er

  • Layer-4 gateway

  • h/w gateway for VoIP/SIP/skype

  • h/w gateway for video conference spaces

  • security pattern/rules matching

  • Anti-spoof traceback implementations (e.g. BBN stuff)

  • IPtv multicast controller

  • Intelligent IP-enabled device controller (e.g. IP cameras or IP powermeters)

  • DES breaker

  • platform for flexible NIC API evaluations

  • snmp statistics reference implementation

  • sflow (hp) reference implementation

  • trajectory sampling (reference implementation)

  • implementation of zeroconf/netconf configuration language for routers

  • h/w openflow and (simple) NOX controller in one…

  • Network RAID (multicast TCP with redundancy)

  • inline compression

  • hardware accelorator for TOR

  • load-balancer

  • openflow with (netflow, ACL, ….)

  • reference NAT device

  • active measurement kit

  • network discovery tool

  • passive performance measurement

  • active sender control (e.g. performance feedback fed to endpoints for control)

  • Prototype platform for NON-Ethernet or near-Ethernet MACs

    • Optical LAN (no buffers)


Project ideas for the netfpga

Project Ideas for the NetFPGA

  • NetFPGA-10G Test Harness

  • Drop 1-in-N packet module

  • Rate-limited module

  • Event capture module

  • Statistics and Counters

  • Measurement sketch

  • Advanced OPL

  • Input / Output scheduler

  • 40G Port

  • VLAN Tagging

  • ….

  • Ideas from NetFPGA-1G


Visit http netfpga org

Visit http://NetFPGA.org


Getting ready for day 2

  • Wednesday restart from 9am

  • This evening is time to try hw testing & synthesis crypto_nic design if you didn’t manage that

  • Make your group, leader&project

  • Specific, Realistic

  • Time-bounded

  • Modest is good…..


Getting ready for day 2

Section IX: Conclusion


Acknowledgments

Acknowledgments

NetFPGA Team at Stanford University (Past and Present):

Nick McKeown, Glen Gibb,Jad Naous, David Erickson,

G. Adam Covington, John W. Lockwood, Jianying Luo,Brandon Heller, Paul Hartke, Neda Beheshti, Sara Bolouki, James Zeng,

Jonathan Ellithorpe, Sachidanandan Sambandan, Eric Lo

NetFPGA Team at University of Cambridge (Past and Present):

Andrew Moore, David Miller, Muhammad Shahbaz, Martin Zadnik

Matthew Grosvenor, Gianni Antichi, Neelakandan Manihatty-Bojan,

Georgina Kalogeridou, Jong Hun Han, Noa Zilberman

All Community members (including but not limited to):

Paul Rodman, Kumar Sanghvi, Wojciech A. Koszek,

Yahsar Ganjali, Martin Labrecque, Jeff Shafer,

Eric Keller , Tatsuya Yabe, Bilal Anwer,

Yashar Ganjali, Martin Labrecque

Kees Vissers, Michaela Blott, Shep Siegel


Thanks to our sponsors

Thanks to our Sponsors:

Support for the NetFPGA project has been provided by the following companies and institutions

Disclaimer: Any opinions, findings, conclusions, or recommendations expressed in these materials do not necessarily reflect the views of the National Science Foundation or of any other sponsors supporting this project.

This effort is also sponsored by the Defense Advanced Research Projects Agency (DARPA) and the Air Force Research Laboratory (AFRL), under contract FA8750-11-C-0249. This material is approved for public release, distribution unlimited. The views expressed are those of the authors and do not reflect the official policy or position of the Department of Defense or the U.S. Government.


  • Login
