## Time Series Shapelets: A New Primitive for Data Mining

Lexiang Ye and Eamonn Keogh

University of California, Riverside

### Classification

• Classification

• Huge interest in time series

• Extensive applications

• Nearest Neighbor

• Most accurate (in extensive empirical tests)

• Robust

• Simple

### Drawback of the NN

• Time and space complexity

• Results are not interpretable

### Solution

• Shapelets

• shapelets are time series subsequences which are maximally representative of a class

• Distinguishing substring selection

• Probe design (computational biology)

### Motivating example

false nettles

stinging nettles

false nettles

Shapelet Dictionary

I

Shapelet

5.1

Leaf Decision Tree

I

yes

no

0

1

false nettles

stinging nettles

stinging nettles

false nettles

Candidates Pool

ca

. . .

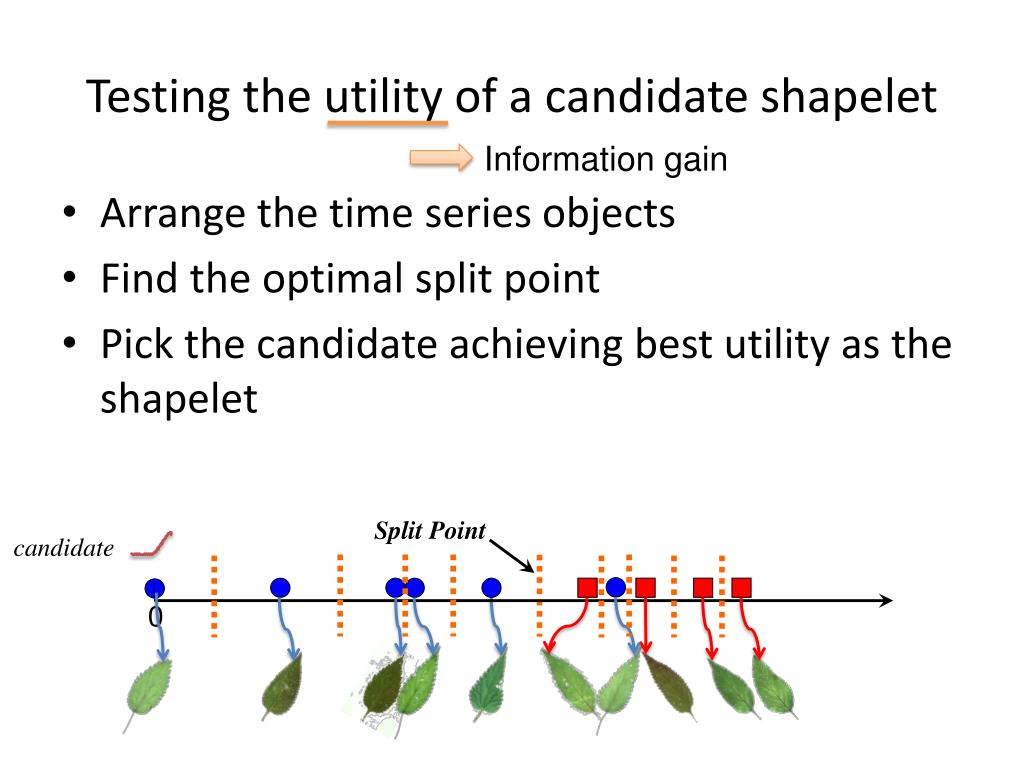

### Testing the utility of a candidate shapelet

• Information gain

• Arrange the time series objects

• Find the optimal split point

• Pick the candidate achieving best utility as the shapelet

candidate

Split Point

0

Candidates Pool

### Problem

• Total number of candidate

• Trace dataset

• 200 instances, each of length 275

• 7,480,200 shapelet candidates

• approximately three days

. . .

### Speedup

• Distance calculations from time series objects to shapelet candidates are the most expensive part

• Reduce the time in two ways

• Distance Early Abandon (known idea)

• Admissible Entropy Pruning (novel idea)

• Information Gain

• Traditional evaluation in decision tree

• Easily generalized to the multi-class problem

• Reduce the number of distance calculations

stinging nettles

false nettles

0

I=0.42

I= 0.29

0

0

false nettles

stinging nettles

false nettles

Shapelet Dictionary

I

Shapelet

5.1

Classification

Leaf Decision Tree

I

yes

no

0

1

false nettles

stinging nettles

stinging nettles

false nettles

### Performance Comparison

5 *105

1.00

Brute Force

4 *105

0.95

3 *105

seconds

accuracy

0.90

2 *105

Currently best published accuracy 91.1%

Pruning

0.85

1 *105

0

0.80

160

10

20

40

80

10

20

40

80

320

160

|D|, the number of objects in the database

|D|, the number of objects in the database

### Projectile Points

I

II

0

2

1

Avonlea

Clovis

1.0

(Clovis)

11.24

I

0

(Avonlea)

85.47

II

Shapelet Dictionary

0

200

400

### Wheat Spectrography

1

0.5

0

0

200

400

600

800

1000

1200

one sample from each class

I

V

II

III

IV

VI

2

4

0

1

3

6

5

Shapelet Dictionary

I

0.4

II

0.3

III

0.2

IV

0.1

0.0

V

VI

300

0

100

200

Wheat Decision Tree

### the Gun/NoGun Problem

No Gun

Gun

(No Gun)

2

38.94

I

0

Shapelet Dictionary

0

50

100

Gun Decision Tree

I

1

0

0

100

200

300

### Reduces the sensitivity of alignment

1.0

0

0.909

0.902

0.860

right toe

144.075

I

left toe

(Normal Walk)

Walk Decision Tree

I

0.535

0

1

### Conclusions

• Interpretable results

• more accurate/robust

• significantly faster at classification

Thank You 
